Bosch GCC 30-4 Professional Assembly instructions

IMPORTANT:
Read Before Using
IMPORTANT :
Lire avant usage
IMPORTANTE:
Leer antes de usar
For English Version
See page 2 Version française Voir page 19 Versión en español Ver la página 37
Call Toll Free for
Consumer
Information and Service
Locations
Pour obtenir des informations et les
adresses de nos centres de service
après-vente, appelez ce numéro gratuit
Llame gratis para obtener in-
formación para el consumidor
y ubicaciones de servicio
Operating/Safety Instructions
Consignes de sécurité/d’utilisation
Instrucciones de funcionamiento y seguridad
1-877-BOSCH99 (1-877-267-2499) www.boschtools.com
GCC30-4

2
Safety Symbols
The definitions below describe the level of severity for each signal word. Please
read the manual and pay attention to these symbols.
!
This is the safety alert symbol. It is used to alert
you to potential personal injury hazards. Obey
all safety messages that follow this symbol to
avoid possible injury or death.
DANGER indicates a hazardous situation which,
if not avoided, will result in death or serious in-
jury.
WARNING indicates a hazardous situation
which, if not avoided, could result in death or
serious injury.
CAUTION, used with the safety alert symbol,
indicates a hazardous situation which, if not
avoided, will result in minor or moderate injury.

3
Only use batteries listed in this operating manual. Do
Only use Button/coin cell 3V lithium CR2032 battery.
Do not use any other button/coin cells or other forms of electrical power supply.
Ensure that battery replacement is carried out prop-
erly. There is a risk of explosion.
Chemical Burn Hazard. Keep batteries away from chil-
dren. This product contains a lithium button/coin cell bat-
tery. If a new or used lithium button/coin cell battery is swallowed or enters the
body, it can cause severe internal burns and can lead to death in as little as 2 hours.
If you think a battery might have been swallowed or placed inside any part of the
body, seek immediate medical attention.
Always completely secure the battery compartment
cover. If the battery compartment cover does not close
securely, stop using the product, remove the battery, and keep it away from chil-
dren.
When discarding batteries, insulate the ‘+’ and ‘–’ ter-
minals with insulating tape. When disposed of improp-
erly, lithium batteries may short, causing them to become hot, burst or ignite.
Never dispose of the batteries in a fire or expose to
high heat. The batteries may explode.
Do not attempt to recharge the batteries and do not
short circuit the batteries. The batteries may leak, ex-
plode, catch fire and cause personal injury.
Follow all instructions and warnings provided by your
Bluetooth® device manufacturer. Failure to follow rec-
ommended procedures could result in personal injury or property damage.
GCC30-4 is equipped with a radio interface. Local op-
erating restrictions, e.g. in military sites or hospitals,
are to be observed. Transmitters have demonstrated an ability to unintentionally
interfere with other devices.
THINK SAFETY
SAFETY IS A COMBINATION OF OPERATOR COMMON SENSE AND ALERTNESS AT
ALL TIMES WHEN THE CONNECTIVITY MODULE IS BEING USED.
General Safety Rules
Read all safety warnings and all instructions. Failure to
follow the warnings and instructions may result in electric
shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

4
FCC Caution
The manufacturer is not responsible for radio interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s author-
ity to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that
may cause undesired operation.
NOTE! This equipment has been tested and found to comply with the limits for
a Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equip-
ment does cause harmful interference to radio or television reception, which can
be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorientorrelocatethereceivingantenna.
• Increasetheseparationbetweentheequipmentandreceiver.
• Connecttheequipmentintoanoutletonacircuitdierentfromthattowhich
the receiver is connected.
• Consultthedealeroranexperiencedradio/TVtechnicianforhelp.
“Exposure to Radio Frequency (RF) Signals: The wireless device is a radio trans-
mitter and receiver. It is designed and manufactured not to exceed the emission
limit for exposure to radio frequency (RF) energy set by the Ministry of Health
(Canada), Safety Code 6. These limits are part of comprehensive guidelines and
established permitted levels of RF energy for the general population.
These guidelines are based on the safety standards previously set by international
standard bodies. These standards include a substantial safety margin designed to
assure the safety of all persons, regardless of age and health.
This device and its antenna must not be co-located or operating in conjunction
with any other antenna or transmitter.
SAVE THESE INSTRUCTIONS

5
Industry Canada
This device complies with Industry Canada licence-exempt RSS standard(s). Op-
eration is subject to the following two conditions:
(1) this device may not cause interference, and
(2) this device must accept any interference, including interference that may
cause undesired operation of the device.
SAVE THESE INSTRUCTIONS

6
Description and Specifications
1Battery compartment cover
2Groove on the battery compart-
ment cover
3Module housing
4Battery
5Battery compartment key
6Cable clip GCA30-4
7 Gasket*
8Data matrix code*
9Protective film*
10 Battery compartment*
*Not shown
4
6
5
1
3
2

7
Specifications
Model GCC30-4
Bluetooth® module TI CC2640
Operating temperature 14 °F…+ 104 °F
(–10 °C...+40 °C)
Storage temperature -4 °F…+ 158 °F
(–20 °C...+70 °C)
Degree of protection IP 67 (water-tight)
Dimensions 1⅓” x 1¼” x ½”
(34 x 32 x 13 mm)
Weight according to EPTA-Pro-
cedure 01:2014 0.7 oz. (0.02 kg)
Data transmission
Bluetooth® Bluetooth® 4.2 (Low Energy)A
Signal Interval 8s
Signal Range 100 ft. (30 m)B
Frequency range used 2402–2480 MHz
Output power <1mW
Power Supply
Battery Button/coin cell (3 V lithium battery,
CR2032)
Battery service life, approx. 36 months
AThe mobile terminal device must be compatible with Bluetooth® Low Energy de-
vices (version 4.1) and support the Generic Access Profile (GAP).
BThe signal range may vary greatly depending on external conditions. The Blue-
tooth® range may be significantly weaker inside closed rooms and through me-
tallic barriers (e.g. walls, shelving, units, cases, etc.)
IC: 909H-GCC304
FCC: TXTGCC30-4

8
System Requirements
Mobile terminal device
(tablet, smartphone) Android 4.3 (and above)
iOS 8 (and above)
Bluetooth® 4.0 (and above)
PC Windows Vista, 7, 8, 8.1
Linux Mint 17, Ubuntu 14.10, Debian GNU/Linux
7.0, Mageia 4, Fedora 21
Mac OS X 10.7 to 10.10
Browser Internet Explorer 10 (and above), Firefox 28 (and
above), Chrome 26 (and above), Safari 7.0 (and
above)

9
Assembly and Preparations
Registering and setting up the app/web-based applications
Before you can use the GCC30-4, you need to register with TrackMyTools online.
• Openthewebsitewww.bosch-trackmytools.com and register.
After registration is complete, you will receive your access information.
Bosch offers a special application (app) or web-based application for managing
the inserted GCC30-4 module and determining its location. Note: Tool presence
is indicated within the range of the GCY30-4 Bluetooth™ transmitter, it is not pro-
vided by GPS.
• DownloadtheTrackMyTools app/web-based application via the appropriate
app store (Apple App Store, Google Play Store) or access the web application
at https://web.bosch-trackmytools.com, where you can log in using your ac-
cess details.
You can now create and manage your inventory using the app/web-based applica-
tion.
Help on using the app/web-based application and creating the inventory
Note: First, complete the tutorial for the app/web-based application. This will pro-
vide you with a better overview of the procedure for creating the inventory and
using the software.
– Scan the data matrix code 8on the side of the GCC30-4 module using the
TrackMyTools app (Fig. A).
This means that the GCC30-4 module is clearly identified and can be assigned
to an inventory set up in the software.
8
A

10
Never remove the battery compartment cover and the
battery with an unsuitable object such as a screw-
driver or needle nose pliers. Using unsuitable objects can damage the electron-
ics or the gasket.
Initial Set-Up
– Using the battery compartment key 5, turn the battery compartment cover
1counterclockwise until the tips of the arrows for the “unlocked” symbol are
aligned (Fig. B).
–
Remove the protective film 9. To do this, press down lightly at the position shown
in the figure C so that the battery compartment cover 1cannot drop down.
1
5
9
9
1
2
2
5
B
C
D

11
– To close it, turn the battery compartment cover 1clockwise using the battery
compartment key 6until the tips of the arrows for the “locked” symbol are
aligned (Fig. D).
Battery Replacement
– Using the battery compartment key 5, turn the battery compartment cover
1counterclockwise until the tips of the arrows for the “unlocked” symbol are
aligned (Fig. E).
– Lift the compartment cover 1 (Fig. F) and remove the used battery 4only with
your fingers. Using other object may damage the electronics or the gasket 7
(Fig. G).

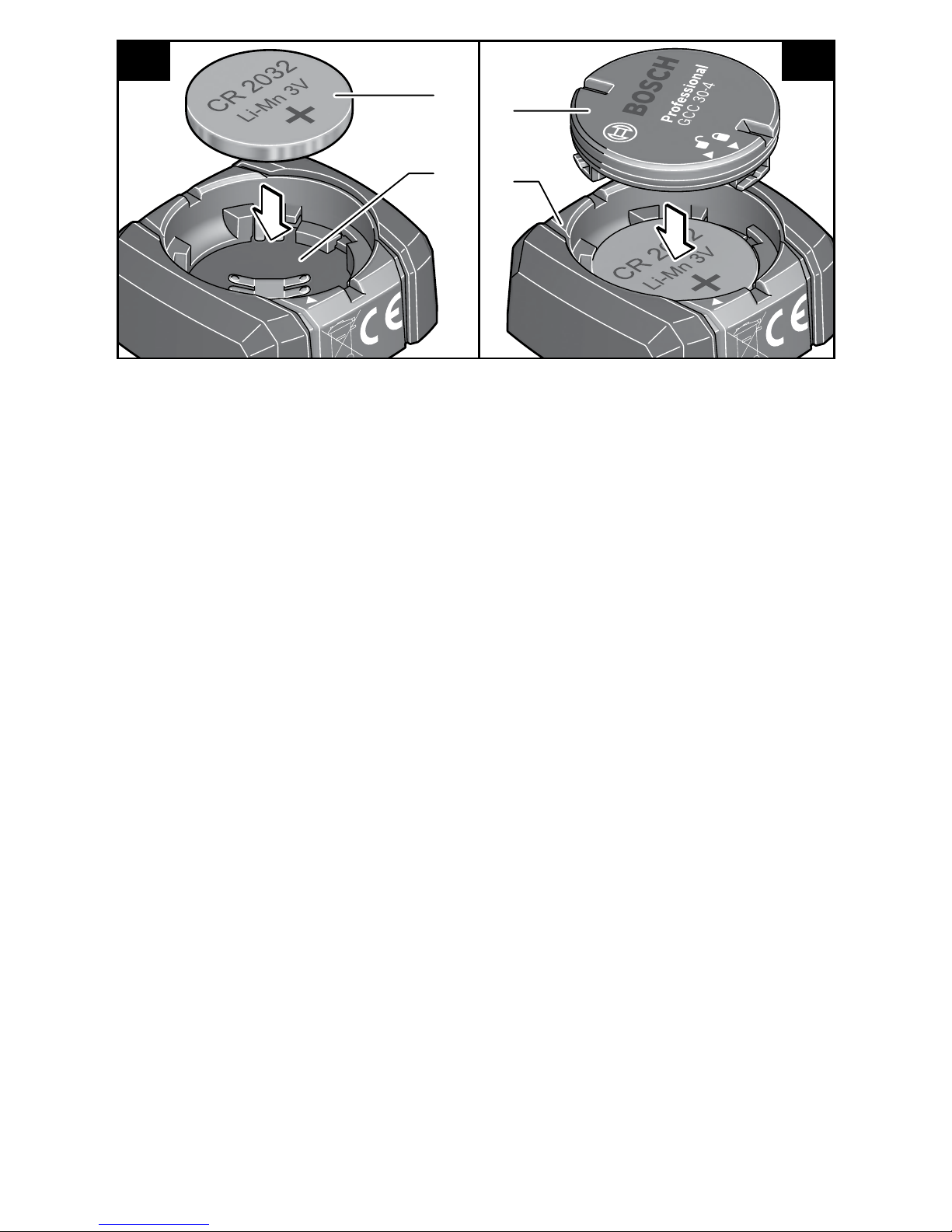

– Insert the battery 4into the battery compartment 10 with the plus terminal
facing upwards (Fig. H). Do not push the battery in.
– Before closing the battery cover 1, ensure that the gasket 7was not damaged.
If the gasket is damaged, please contact Bosch Customer Service.
– Place battery cover 1back into the housing 3(Fig. H) and lock it by turning it
clockwise using the battery compartment key 6until the tips of the arrows for
the “locked” symbol are aligned (Fig. D).
1
5
E
F G
4
1
7

12
Attaching GCC30-4
Use a commercially available two-part adhesive (not supplied) for attachment of
the GCC30-4 to a power tool or industrial asset. Observe all processing instruc-
tions from the adhesive manufacturer. The use of other adhesives may be ade-
quate depending on the application and environment. Choosing the right adhesive
composition will create a long lasting bond between the GC30-4 and the tool.
Prepare the bonding surface in accordance with the instructions from the
manufacturer of the two-part adhesive. If the power tool is not properly cleaned
before bonding, the material properties could change, potentially leading to dam-
age.
It must be ensured that attaching the GCC30-4 does not limit the proper and
safe use of the power tool at any time. Attaching a GCC30-4 at the following
locations is prohibited (see figure J):
– Protective guards,
– Ventilation openings,
– Components that are actively operated (e.g. switches, controllers, inlets, etc.)
– Moving or rotating components,
– Labels/nameplates,
– Operating panels and grip surfaces,
– Soft grip surfaces,
– Surfaces in the direct vicinity of sparks,
– Surfaces that are exposed to strong mechanical or thermal effects,
– Surfaces that ensure that the power tool is positioned safely,
– Surfaces that could be damaged by adhesive components.
10
4
3
1
H I

13
J

14
K

15
The following locations are suitable for attaching a GCC30-4 (see figure K):
– Surfaces where attaching the GCC30-4 does not prevent or complicate the
operation of the power tool,
– Surfaces that will not be exposed in the event that the power tool falls over,
– Surfaces with the minimum possible curvature.
Removing the GCC30-4
Do not use any sharp or pointed tools, which may cause damage to GCC30-4 or
the surface of the power tool it is attached to.
If you have to use chemicals to thin the adhesive, make sure the chemicals (e.g.
thinners) do not damage the plastic surface of a power tool or GCC30-4.
Attaching the GCC30-4 to a power cord
To reduce the risk of electric shock always disconnect
power cord from the power outlet before attaching or
removing GCA30-9 retaining clip.
You can attach the GCC30-4 module to a power cord using the GCA30–9 retain-
ing clip.
- Remove the liner to expose adhesive tape on the back of GCA30-9 (Fig. L).
- Attach GCC30-4 to the adhesive back of the retaining clip GCA30-9 (Fig. M).
L M

16
N
max.
3/8"
9.5 mm
⌀
O P

17
min. 9/32"
7 mm
1
2
↔
Q
- To reduce the risk of damage to the GCC30-4 we highly recommend placing the
clip as close on the cord as possible to either the power plug or the power tool
(Fig. N). Insert the power cord into the GCA30-9 housing (Fig. O). Note that
the maximum thickness of the cord that fits in retaining clip is 3/8” (9.5mm).
- Snap the back of the retaining clip into the clip housing. Make sure both lock
tabs click in place (Fig. P).
To remove the retaining clip from the cord, use a flathead screwdriver to push the
lock tabs in and lift the back of the clip (with GCC30-4 attached). Make sure the
screwdriver tip is at least 9/32” (7mm) wide (Fig. Q).

18
Operation
Note: First, complete the tutorial for the app/web-based application. This will pro-
vide you with a better overview of the procedure for creating the inventory and
using the software.
Once the battery 4 has been inserted or put into use, the GCC30-4 will send out a
continuous signal. The Bluetooth® signal will only stop if the battery is drained or
faulty or if it is removed.
You can find further information directly in the app/web-based application from
Bosch.
Data Transmission via Bluetooth®
The transmission interval of the GCC30-4 is eight seconds. Depending on am-
bient conditions, up to three transmission intervals may be required before the
GCC30-4 is detected. If the GCC30-4 is not detected, check the following:
– Is the battery too low or drained?
▷ Change the battery.
– Is the distance to the mobile terminal device too great?
▷ Reduce the distance between the mobile terminal device and the GCC30-4.
Note: During initial set-up, GCC30-4 modules that are already assigned to a power
tool are not displayed or cannot be connected.
Maintenance and Service
Maintenance and Cleaning
Remove debris with a brush. Do not use any cleaning agents or solvents.
Certain cleaning agents and solvents can damage plas-
tic parts. Some of these are: gasoline, carbon tetrachlo-
ride, chlorinated cleaning solvents, ammonia and household detergents which
contain ammonia. Avoiding use of these and other types of cleaning agents will
minimize the possibility of damage.

19
Symboles relatifs à la sécurité
Les définitions ci-dessous décrivent le niveau de gravité pour chaque terme
signalant un danger. Veuillez lire le mode d’emploi et lire la signification de ces
symboles.
!
C’est le symbole d’alerte relatif à la sécurité. Il est utilisé pour vous avertir de
l’existence possible d’un danger de lésion corporelle. Obéissez à tous les mes-
sages relatifs à la sécurité qui suivent ce symbole pour éviter tout risque de bles-
sure ou même de mort.
DANGER indique une situation dangereuse qui, si elle n’est pas évitée, causera la
mort d’une personne ou une blessure grave.
AVERTISSEMENT indique une situation dangereuse qui, si elle n’est pas évitée,
pourrait causer la mort d’une personne ou une blessure grave.
MISE EN GARDE, conjointement avec le symbole d’alerte en liaison avec la sécu-
rité, indique une situation dangereuse qui, si elle n’est pas évitée, causera une
blessure légère ou modérée.
Consignes générales de sécurité
Veuillez lire tous les avertissements et toutes
les consignes de sécurité. Si l’on n’observe pas
ces avertissements et ces consignes de sécurité, il existe un risque de choc élec-
trique, d’incendie et/ou de blessures corporelles graves.
CONSERVEZ TOUS LES AVERTISSEMENTS ET
TOUTES LES CONSIGNES DE SÉCURITÉ
POUR RÉFÉRENCE FUTURE.

20
N’utilisez que des piles CR2032 au lithium de
3 V en forme de bouton/pièce de monnaie.
N’utilisez pas d’autres piles en forme de bouton/pièce de monnaie ou d’autres
types d’alimentation électrique.
Assurez-vous que les piles sont remplacées de
façon appropriée. Il existe un risque d’explosion.
Risque de brûlure chimique. Gardez les piles
hors de la portée des enfants. Ce produit contient
une pile au lithium en forme de bouton/pièce de monnaie. Si une pile au lithium en
forme de bouton/pièce de monnaie neuve ou usagée est avalée ou entre dans le
corps, elle risque de causer de graves brûlures internes et de causer la mort en
deux heures seulement. Si vous pensez que des piles ont pu avoir été avalées ou
placées dans une partie quelconque du corps, consultez immédiatement un mem-
bre du corps médical.
Sécurisez toujours complètement le cache du
compartiment de la pile. Si le cache du comparti-
ment de la pile n’est pas bien sécurisé, cessez d’utiliser le produit, retirez-en la pile
et gardez-le hors de la portée des enfants.
Lorsque vous mettez des piles au rebut, isolez
les bornes « + » et « ‒ » avec un ruban isolant. Si
elles sont mises au rebut de façon inappropriée, les piles au lithium risquent de se
court-circuiter, ce qui élèvera leur température et risque de les faire éclater ou de
causer leur inflammation.
Ne jetez jamais de piles dans un feu et ne les ex-
posez pas à une chaleur élevée. Les piles pour-
raient exploser.
Ne tentez pas de recharger les piles et ne court-
circuitez pas les piles. Les piles risqueraient de
fuir, d’exploser, de prendre feu et de causer des blessures.
Suivez toutes les instructions et tous les aver-
tissements fournis par votre fabricant de dis-
positif Bluetooth®. Le non-respect des procédures recommandées pourrait
causer des blessures ou des dommages matériels.
Le module GCC30-4 est pourvu d’une interface
radio.Ilfautobserverlesrestrictionsd’utilisation
locales, p. ex., dans les établissements militaires ou les hôpitaux. Les
émetteurs ont démontré une capacité d’interférence non intentionnelle avec
d’autres dispositifs.
CONSERVEZ CES INSTRUCTIONS
