Bosch FLEXIDOME IP NIN-70122 User manual

FLEXIDOME IP panoramic 7000 MP
NIN-70122
en Installation Manual

Table of contents
1Safety 5
1.1 Safety message explanation 5
1.2 Safety precautions 5
1.3 Important safety instructions 6
1.4 FCC and ICES compliance 7
1.5 Notices 8
2Short information 9
3System overview 10
3.1 Application variants 11
3.2 Using the camera 11
3.3 Operation with external systems 12
3.3.1 Larger surveillance systems 13
4Planning 14
4.1 Unpacking 14
4.2 Contents 14
4.3 System requirements 15
5Installation 16
5.1 Local storage 16
5.2 Ceiling mount 17
5.2.1 Mount flush to ceiling 17
5.2.2 Mounting with a Surface Mount Box 19
5.3 Wall mount 20
5.4 Removing the camera 21
6Network connection 24
6.1 Network (and PoE power) 24
7Configuration 25
7.1 Browser connection 25
7.1.1 Establishing the connection 25
7.1.2 Protected network 25
7.2 Bosch Video Client 26
7.3 Video Security Client 26
8Troubleshooting 27
8.1 LED status overview 27
FLEXIDOME IP
panoramic 7000 MP Table of Contents | en 3
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

8.2 Resolving problems 28
8.3 Testing the network connection 31
8.4 Customer service 31
9Maintenance 32
9.1 Cleaning 32
9.1.1 Lens cleaning 32
9.2 Repair 32
9.3 Reset 33
10 Decommissioning 34
10.1 Transfer 34
10.2 Disposal 34
11 Technical data 35
11.1 Specifications 35
11.2 Dimensions 41
4en | Table of Contents FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Safety
Safety message explanation
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
Safety precautions
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
1
1.1
1.2
FLEXIDOME IP
panoramic 7000 MP Safety | en 5
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings before operating the
device.
1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.
2. Do not install device near any heat sources such as
radiators, heaters, stoves, or other equipment (including
amplifiers) that produce heat.
3. Never spill liquid of any kind on the device.
4. Take precautions to protect the device from power and
lightning surges.
5. Adjust only those controls specified in the operating
instructions.
6. Operate the device only from the type of power source
indicated on the label.
7. Unless qualified, do not attempt to service a damaged
device yourself. Refer all servicing to qualified service
personnel.
8. Install in accordance with the manufacturer's instructions in
accordance with applicable local codes.
9. Use only attachments/accessories specified by the
manufacturer.
10. Protect all connection cables from possible damage,
particularly at connection points.
1.3
6en | Safety FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

FCC and ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the
dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
1.4
FLEXIDOME IP
panoramic 7000 MP Safety | en 7
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

Notices
Notice!
Optical elements are sensitive and should be protected at all
times. Do not allow objects to come into contact with glass
surfaces and do not touch optical elements with your fingers.
Notice!
Video loss is inherent to digital video recording; therefore,
Bosch Security Systems cannot be held liable for any damage
that results from missing video information.
To minimize the risk of losing information, we recommend
multiple, redundant recording systems, and a procedure to
back up all analog and digital information.
Notice!
We recommend that memory cards only be used for local
storage of alarm recordings.
1.5
8en | Safety FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Short information
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
Trademarks
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
http://www.boschsecurity.com/catalog_overview.htm
2
FLEXIDOME IP
panoramic 7000 MP Short information | en 9
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

System overview
The FLEXIDOME IP panoramic 7000 MP is a discreet, aesthetic,
low-profile camera for indoor use. The 12MP sensor operating at
30 fps provides full panoramic surveillance with complete area
coverage, fine details and high speeds. The camera offers full
situational awareness and simultaneous E-PTZ views in high
resolution.
Unobtrusive design and easy installation
The low profile of the camera makes it exceedingly suitable for
installations where aesthetics are important. Its unobtrusive
nature allows it to fit in with architectural features without
detracting from the surroundings. Museums, historic buildings
or impeccably designed interiors will all benefit from the
discreet design.
The camera is easily mounted to any surface using a twist-click
mechanism via the supplied mounting ring. The high quality IR
corrected lens is factory focused and is not restricted by a
bubble, so installation is simplified and sharpness is assured.
The LED indicators, reset button and SD card slot are easily
accessed via two hinges at the front of the camera. A complete
set of indoor mounting accessories, such as a surface mount
box or a pendant pipe mount, are available.
Power for the camera is supplied via a Power-over-Ethernet
compliant network cable connection. With this configuration,
only a single cable connection is required to view, power, and
control the camera.
3
10 en | System overview FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Advantages of panoramic surveillance
Panoramic surveillance offers full 180° or 360° coverage of the
designated area. Because our panoramic cameras cover the full
area, they provide complete situational awareness and are
ideally suited to following movement in one continuous sweep.
The 360° version of the camera, when mounted centrally on a
ceiling, gives complete wall‑to‑wall coverage. The 180° version
has a higher effective resolution and is ideal for wall mounting
or for ceiling mounting in corridors.
Application variants
The camera has a choice of application variants that set up the
camera for optimum performance in a specific environment.
Select the application variant best suited to your installation.
The application variant must be selected before any other
changes are made, as the camera reboots automatically and
resets the factory defaults when the application variant is
changed.
This camera has the following application variants:
– Client-side dewarping
– Edge dewarping
Using the camera
To access the features of the camera, use a web browser. The
browser provides live viewing of the camera streams in the
interface window, and also allows you to access and change the
extensive list of settings and parameters for camera
configuration. Refer to the software manual for more
information on the browser interface.
3.1
3.2
FLEXIDOME IP
panoramic 7000 MP System overview | en 11
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

The camera recording and storage functions include local alarm
recording and recording to iSCSI-based systems. The camera
can also use the Bosch Video Recording Manager (VRM) to
control recording and storage. Integration with the many Bosch
recording solutions is seamless.
Operation with external systems
The web browser is the most direct way of using the camera,
however, the Bosch download store provides several other free
applications (listed below) for viewing and controlling the
camera.
Download store
Download the latest applications and firmware from:
http://downloadstore.boschsecurity.com/
Video Security Client
The Video Security Client is a free, easy-to-use video-surveillance
application provided by Bosch for local and remote monitoring
of IP cameras and appliances. The software supports up to 16
cameras.
The Video Security Client has extensive dewarping capabilities
and can be used for client-side dewarping as well as for viewing
the available modes.
3.3
12 en | System overview FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Bosch Video Client
The Bosch Video Client is a free Windows application to view,
operate, control, and administer surveillance cameras and
installations at remote locations. It offers a user-friendly
interface for easy live viewing of multiple cameras, playback,
forensic search and export.
IP Helper
The IP Helper tool is a free PC application that makes it easy to
detect Bosch cameras and devices on your network.
Larger surveillance systems
Bosch Video Management System
The Bosch Video Management System is a unique enterprise IP
video surveillance solution that provides seamless management
of digital video, audio and data across any IP network. It is
designed to work with Bosch security products as part of a total
video surveillance management system.
Third-party integration
Third-party integrators can easily access the internal feature set
of the camera for integration into large projects. Access to IVA
metadata is available to integrators via RTSP.
When connected to external systems, many of the camera
configuration parameters are controlled by the system and not
by the settings made via a web browser.
3.3.1
FLEXIDOME IP
panoramic 7000 MP System overview | en 13
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

Planning
Unpacking
This equipment should be unpacked and handled with care. If an
item appears to have been damaged in shipment, notify the
shipper immediately.
Verify that all parts are included. If any items are missing, notify
your Bosch Security Systems Sales or Customer Service
Representative.
The original packaging is the safest container in which to
transport the unit and can be used if returning the unit for
service.
Contents
The packaging contains:
– FLEXIDOME IP panoramic 7000 MP camera
– Quick install instructions
– Identification labels
– Mounting ring
– 2 x Allen keys (T10 and 1.5)
– 4 x screws (4.5 x 40)
– 4 x plugs
– 2 x washers (M4 x 14) for mounting to 4s box
– Surface Mount Box with four M5 screws (delivered
separately with SMB versions of the camera)
4
4.1
4.2
14 en | Planning FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

System requirements
To enjoy the full benefits of megapixel resolutions, ensure that
the computer, the graphic adapter, the display connections, and
the monitor are sufficiently powerful to view our camera images
at their best.
Our recommendations are:
– Computer with Dual core HyperThreading processor or
better
– Graphic card with performance that matches or is better
than the resolution of the camera
– Windows 7 or later operating system
– Network access
– Internet Explorer version 11 or later
– or –
Application software, for example, Video Security Client,
Bosch Video Client or Bosch Video Management System.
Notice!
Megapixel cameras can generate high bitrate streams. Ensure
that your network can handle high volume traffic and that you
use a powerful, high performance computer.
4.3
FLEXIDOME IP
panoramic 7000 MP Planning | en 15
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

Installation
Local storage
Notice!
Local storage on SD cards should only be used for alarm
recording. To minimize the risk of losing information, use
multiple, redundant recording systems and a procedure to back
up all digital information.
Inserting an SD card
1. Push a small object (for example, the 1.5 Allen key) into the
opening above the access flap to open it (push straight, do
not wobble).
2. Slide the memory card into the slot until it latches into
place.
3. Turn the locking screw counterclockwise to lock the card
into place.
1.5 mm
SD card
Push
5
5.1
16 en | Installation FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Ceiling mount
Mount flush to ceiling
To flush mount the camera in a ceiling:
1. Use the mounting ring to mark out the recess hole and to
mark the four mounting holes. The mounting holes PCD is
133 mm (5.25 in)
2. Cut out the inner recess hole: Ø105 mm (4.13 in).
3. Drill four holes with a diameter of 6 mm (0.24 in).
4. Insert the supplied mounting plugs (6 x 30) into the holes.
5. Use the supplied screws (4.5 x 40) to securely attach the
mounting ring to the ceiling surface:
Ø6 mm
x4
x4
Ø105 (4.13)
133 (5.25)
4.5 x 40
121 (4.77) M4 x 14
x2
4s box
Note:
If using a recessed 4s mounting box, attach the mounting ring
using two screws and the supplied washers (M4 x 14).
5.2
5.2.1
FLEXIDOME IP
panoramic 7000 MP Installation | en 17
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

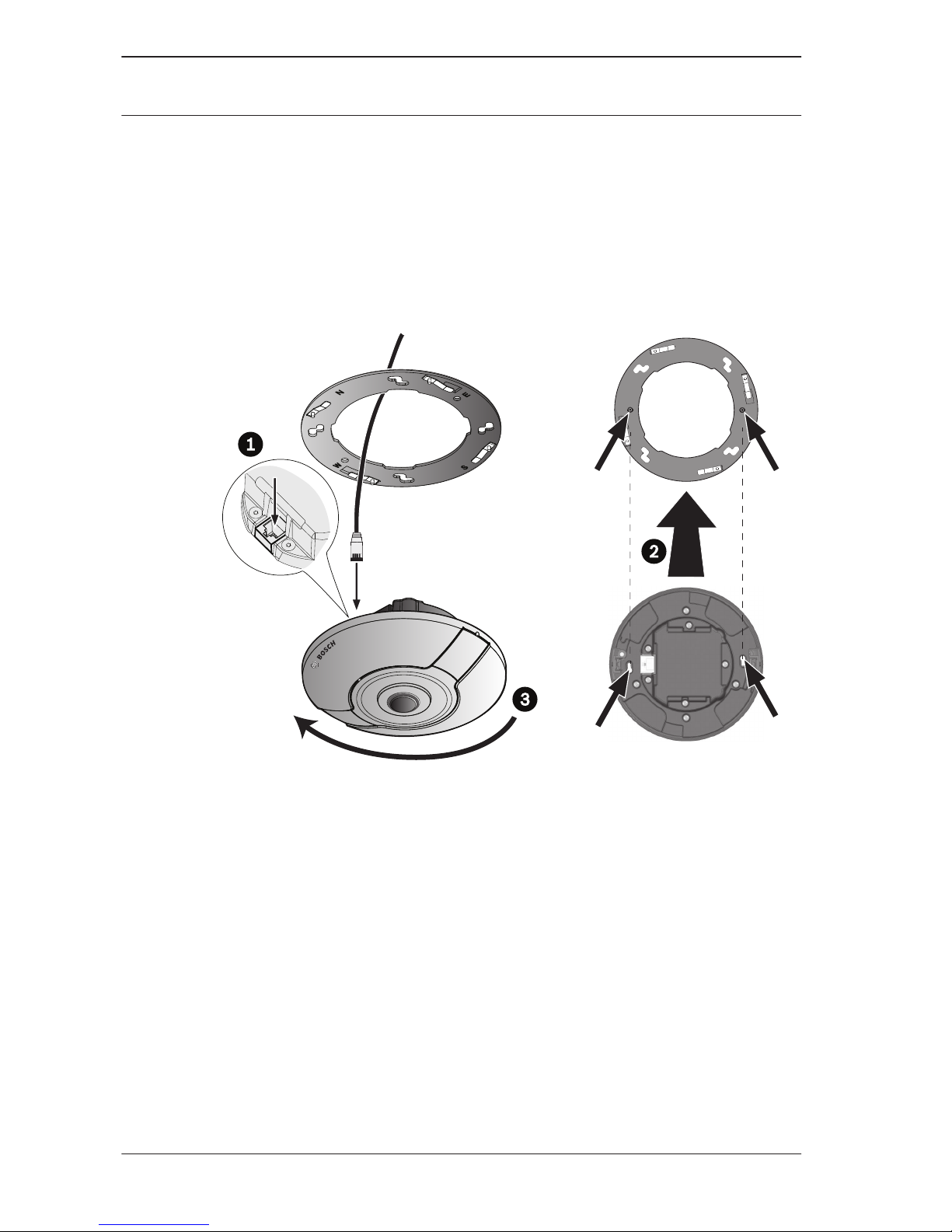

Attach the camera body
1. Insert the Ethernet cable into the RJ45 connector on the
back of the camera.
2. Mount the slots on the back of the camera onto the studs
of the mounting ring.
3. Rotate the camera body clockwise until it clicks into place.
RJ45
N
S
WE
18 en | Installation FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems

Mounting with a Surface Mount Box
To mount the camera using a Surface Mount Box (SMB):
1. Use the SMB to mark out the cable hole (if required) and to
mark the three mounting holes. The PCD is 123 mm
(4.84 in).
2. Drill three holes with a diameter of 6 mm (0.24 in).
3. Insert the supplied mounting plugs (6 x 30) into the holes.
4. Use the supplied screws (4.5 x 40) to securely attach the
SMB to the surface:
5. Use the four screws (M5) to attach the mounting ring to the
SMB.
6. Attach the camera body to the mounting ring as described
above.
9.5 mm (0.375 in)
Ø6 mm
x3
4.5 x 4 (x3)
M5
5.2.2
FLEXIDOME IP
panoramic 7000 MP Installation | en 19
Bosch Security Systems 2015.02 | v1.0 | AM18-Q0684

Wall mount
Use the Surface mount box (SMB) to mount the camera on a
wall as described above. It is however, very important to pay
attention to the following points:
– Ensure that the SMB is mounted in one of the four 90°
rotation positions and that it is horizontal along the axes
shown. (Use the slots as a reference.)
– When attaching the mounting ring, ensure that the N is at
the top.
– When attaching the camera body, ensure that the Bosch
logo is at the top.
90°
0°
180°
270°
Top = N
5.3
20 en | Installation FLEXIDOME IP
panoramic 7000 MP
2015.02 | v1.0 | AM18-Q0684 Bosch Security Systems
