Bosch FLEXIDOME IP panoramic 6000 IC User manual

FLEXIDOME IP panoramic
6000/7000 IC
NFN-60122 | NFN-70122
en Installation Manual

Table of contents
1Safety 5
1.1 Safety message explanation 5
1.2 Safety precautions 5
1.3 Important safety instructions 6
1.4 FCC and ICES compliance 7
1.5 Notices 8
2Short information 9
3System overview 10
3.1 Application variants 10
3.2 Using the camera 10
3.3 Operation with external systems 11
3.3.1 Larger surveillance systems 12
4Planning information 13
4.1 Unpacking 13
4.2 Contents 13
4.3 System requirements 14
5Installation 15

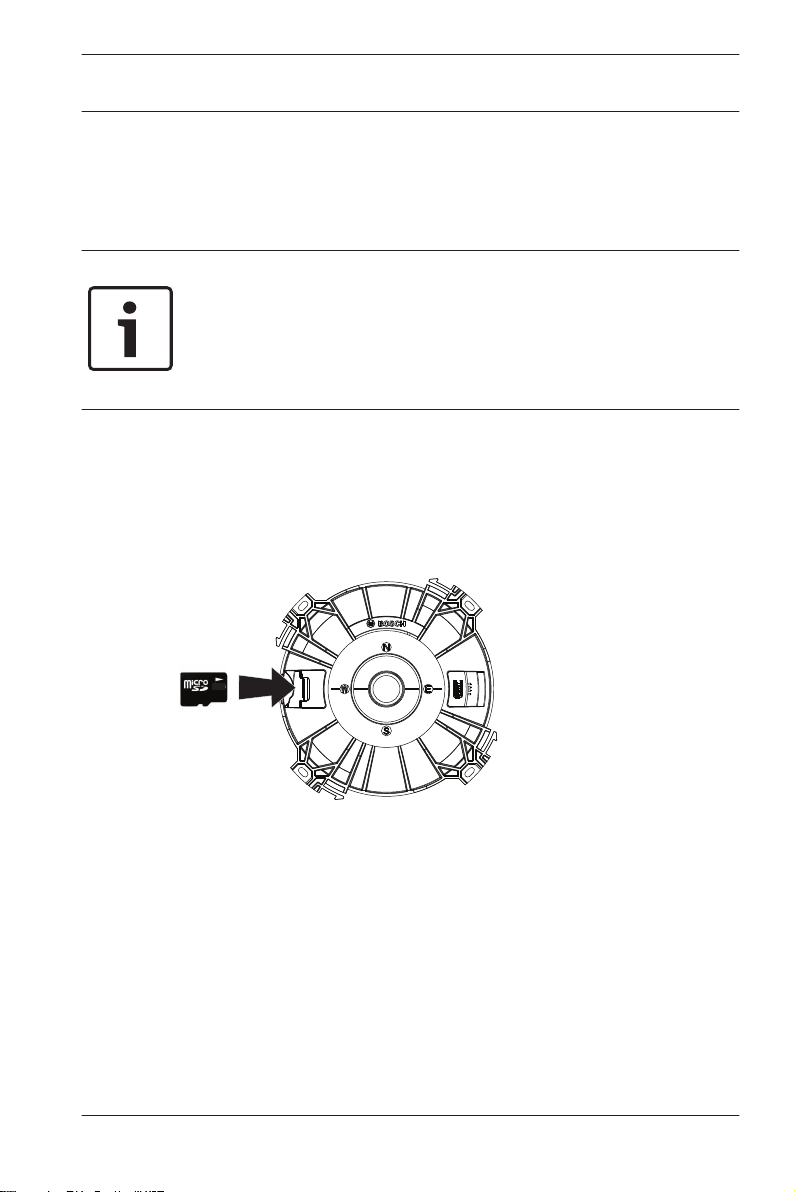

5.1 Local storage 15
5.2 Painting the cover plate 16
5.3 Mounting the camera 17
5.4 Uninstalling the camera 20
6Connection 22
6.1 Network (and PoE power) 22
7Configuration 23
7.1 Browser connection 23
7.1.1 Establishing the connection 23
7.1.2 Protected network 23
7.1.3 Set-up with web browser 24
8Troubleshooting 25
8.1 Resolving problems 25
8.2 Testing the network connection 27
8.3 Customer service 27
FLEXIDOME IP
panoramic 6000/7000 IC Table of Contents | en 3
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

9Maintenance 28
9.1 Cleaning 28
9.1.1 Lens cleaning 28
9.2 Repair 28
9.3 Reset 29
10 Decommissioning 30
10.1 Transfer 30
10.2 Disposal 30
11 Technical data 31
11.1 Specifications 31
11.2 Dimensions 37
4en | Table of Contents FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

Safety
Safety message explanation
!
Caution!
Indicates a hazardous situation which, if not avoided, could
result in minor or moderate injury.
Notice!
Indicates a situation which, if not avoided, could result in
damage to the equipment or environment, or data loss.
Safety precautions
!
Caution!
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code
(NEC 800 CEC Section 60) or applicable local codes.
1
1.1
1.2
FLEXIDOME IP
panoramic 6000/7000 IC Safety | en 5
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

Important safety instructions
Read, follow, and retain for future reference all of the following
safety instructions. Follow all warnings before operating the
device.
1. Clean only with a dry cloth. Do not use liquid cleaners or
aerosol cleaners.
2. Do not install device near any heat sources such as
radiators, heaters, stoves, or other equipment (including
amplifiers) that produce heat.
3. Never spill liquid of any kind on the device.
4. Take precautions to protect the device from power and
lightning surges.
5. Adjust only those controls specified in the operating
instructions.
6. Operate the device only from the type of power source
indicated on the label.
7. Unless qualified, do not attempt to service a damaged
device yourself. Refer all servicing to qualified service
personnel.
8. Install in accordance with the manufacturer's instructions in
accordance with applicable local codes.
9. Use only attachments/accessories specified by the
manufacturer.
10. Protect all connection cables from possible damage,
particularly at connection points.
1.3
6en | Safety FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

FCC and ICES compliance
FCC & ICES Information
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following
measures:
– reorient or relocate the receiving antenna;
– increase the separation between the equipment and
receiver;
– connect the equipment into an outlet on a circuit different
from that to which the receiver is connected;
– consult the dealer or an experienced radio/TV technician
for help.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult the
dealer or an experienced radio/television technician for
corrective action.
The user may find the following booklet, prepared by the
Federal Communications Commission, helpful: How to Identify
and Resolve Radio-TV Interference Problems. This booklet is
available from the U.S. Government Printing Office, Washington,
DC 20402, Stock No. 004-000-00345-4.
1.4
FLEXIDOME IP
panoramic 6000/7000 IC Safety | en 7
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

Notices
Notice!
Optical elements are sensitive and should be protected at all
times. Do not allow objects to come into contact with glass
surfaces and do not touch optical elements with your fingers.
Notice!
Video loss is inherent to digital video recording; therefore,
Bosch Security Systems cannot be held liable for any damage
that results from missing video information.
To minimize the risk of losing information, we recommend
multiple, redundant recording systems, and a procedure to
back up all analog and digital information.
Notice!
We recommend that memory cards only be used for local
storage of alarm recordings.
1.5
8en | Safety FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

Short information
This manual has been compiled with great care and the
information it contains has been thoroughly verified. The text
was correct at the time of printing, however, the content can
change without notice. Bosch Security Systems accepts no
liability for damage resulting directly or indirectly from faults,
incompleteness or discrepancies between this manual and the
product described.
Trademarks
All hardware and software product names used in this document
are likely to be registered trademarks and must be treated
accordingly.
More information
For more information please contact the nearest Bosch Security
Systems location or visit www.boschsecurity.com
http://www.boschsecurity.com/catalog_overview.htm
2
FLEXIDOME IP
panoramic 6000/7000 IC Short information | en 9
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

System overview
This discreet, aesthetic camera mounts flush in a ceiling or wall.
Its easily-painted cover plate blends in with almost all
surroundings. The 12MP sensor operating at 30 fps provides full
panoramic surveillance with complete area coverage, fine details
and high speeds. The camera offers full situational awareness
and simultaneous E-PTZ views in high resolution.
The 360° version of the camera, when mounted centrally on a
ceiling, gives complete wall‑to‑wall coverage. The 180° version
has a higher effective resolution and is ideal for wall mounting
or for ceiling mounting in corridors.
Application variants
The camera has a choice of application variants that set up the
camera for optimum performance in a specific environment.
Select the application variant best suited to your installation.
The application variant must be selected before any other
changes are made, as the camera reboots automatically and
resets the factory defaults when the application variant is
changed.
This camera has the following application variants:
– Client-side dewarping
– Edge dewarping
Using the camera
To access the features of the camera, use a web browser. The
browser provides live viewing of the camera streams in the
interface window, and also allows you to access and change the
extensive list of settings and parameters for camera
configuration. Refer to the software manual for more
information on the browser interface.
3
3.1
3.2
10 en | System overview FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

The camera recording and storage functions include local alarm
recording and recording to iSCSI-based systems. The camera
can also use the Bosch Video Recording Manager (VRM) to
control recording and storage. Integration with the many Bosch
recording solutions is seamless.
Operation with external systems
The web browser is the most direct way of using the camera,
however, the Bosch download store provides several other free
applications (listed below) for viewing and controlling the
camera.
Download store
Download the latest applications and firmware from:
http://downloadstore.boschsecurity.com/
Video Security Client
The Video Security Client is a free, easy-to-use video-surveillance
application provided by Bosch for local and remote monitoring
of IP cameras and appliances. The software supports up to 16
cameras.
The Video Security Client has extensive dewarping capabilities
and can be used for client-side dewarping as well as for viewing
the available modes.
3.3
FLEXIDOME IP
panoramic 6000/7000 IC System overview | en 11
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

Bosch Video Client
The Bosch Video Client is a free Windows application to view,
operate, control, and administer surveillance cameras and
installations at remote locations. It offers a user-friendly
interface for easy live viewing of multiple cameras, playback,
forensic search and export.
IP Helper
The IP Helper tool is a free PC application that makes it easy to
detect Bosch cameras and devices on your network.
Larger surveillance systems
Bosch Video Management System
The Bosch Video Management System is a unique enterprise IP
video surveillance solution that provides seamless management
of digital video, audio and data across any IP network. It is
designed to work with Bosch security products as part of a total
video surveillance management system.
Third-party integration
Third-party integrators can easily access the internal feature set
of the camera for integration into large projects. Access to
metadata is available to integrators via RTSP.
When connected to external systems, many of the camera
configuration parameters are controlled by the system and not
by the settings made via a web browser.
3.3.1
12 en | System overview FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

Planning information
Unpacking
This equipment should be unpacked and handled with care. If an
item appears to have been damaged in shipment, notify the
shipper immediately.
Verify that all parts are included. If any items are missing, notify
your Bosch Security Systems Sales or Customer Service
Representative.
The original packaging is the safest container in which to
transport the unit and can be used if returning the unit for
service.
Contents
The packaging contains:
Qty Component
1 Camera
1 Cover plate
1 Hex wrench
1 Drill template
4 Screws (4 x 35)
4 Washers (M4 DIN433)
4 Plugs
1 Installation Guide
1 Identification label sheet
4
4.1
4.2
FLEXIDOME IP
panoramic 6000/7000 IC Planning information | en 13
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

System requirements
To enjoy the full benefits of megapixel resolutions, ensure that
the computer, the graphic adapter, the display connections, and
the monitor are sufficiently powerful to view our camera images
at their best.
Our recommendations are:
– Computer with Dual core HyperThreading processor or
better
– Graphic card with performance that matches or is better
than the resolution of the camera
– Windows 7 or later operating system
– Network access
– Internet Explorer version 11 or later
– or –
Application software, for example, Video Security Client,
Bosch Video Client or Bosch Video Management System.
Notice!
Megapixel cameras can generate high bitrate streams. Ensure
that your network can handle high volume traffic and that you
use a powerful, high performance computer.
4.3
14 en | Planning information FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

Installation
Local storage
Notice!
Local storage on memory cards should only be used for alarm
recording. To minimize the risk of losing information, use
multiple, redundant recording systems and a procedure to back
up all digital information.
To insert a memory card:
1. Slide the memory card into the slot.
2. Press it firmly until it latches into place in the slot (when
removing the card, press it down firmly again until it
unlatches).
5
5.1
FLEXIDOME IP
panoramic 6000/7000 IC Installation | en 15
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

Painting the cover plate
The paint for the cover plate must have the following
specifications:
– Epoxy or polyester based
– Temperature range: -40°C to +80°C (-40°F to 176°F)
To paint the cover plate:
1. Use a non-scratch scour pad to improve the adhesion of the
paint.
2. Thoroughly clean the cover plate to remove dust particles.
3. Spray the paint in a dust-free environment.
5.2
16 en | Installation FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

Mounting the camera
Notice!
The 180° version of the camera, when mounted on a wall, must
be horizontal along its east-west axis.
To mount the camera on the surface of a wall or ceiling:
1. Cut out the inner recess hole: Ø159.2 mm (6.268 in).
2. Use the drilling template to mark out the four mounting
holes. The mounting holes are equally spaced around a
diameter of 175 mm (6.89 in).
3. Use a 6 mm (0.24 in) bit to drill the four mounting holes.
4. Insert the supplied mounting plugs into the mounting holes.
5.3
FLEXIDOME IP
panoramic 6000/7000 IC Installation | en 17
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

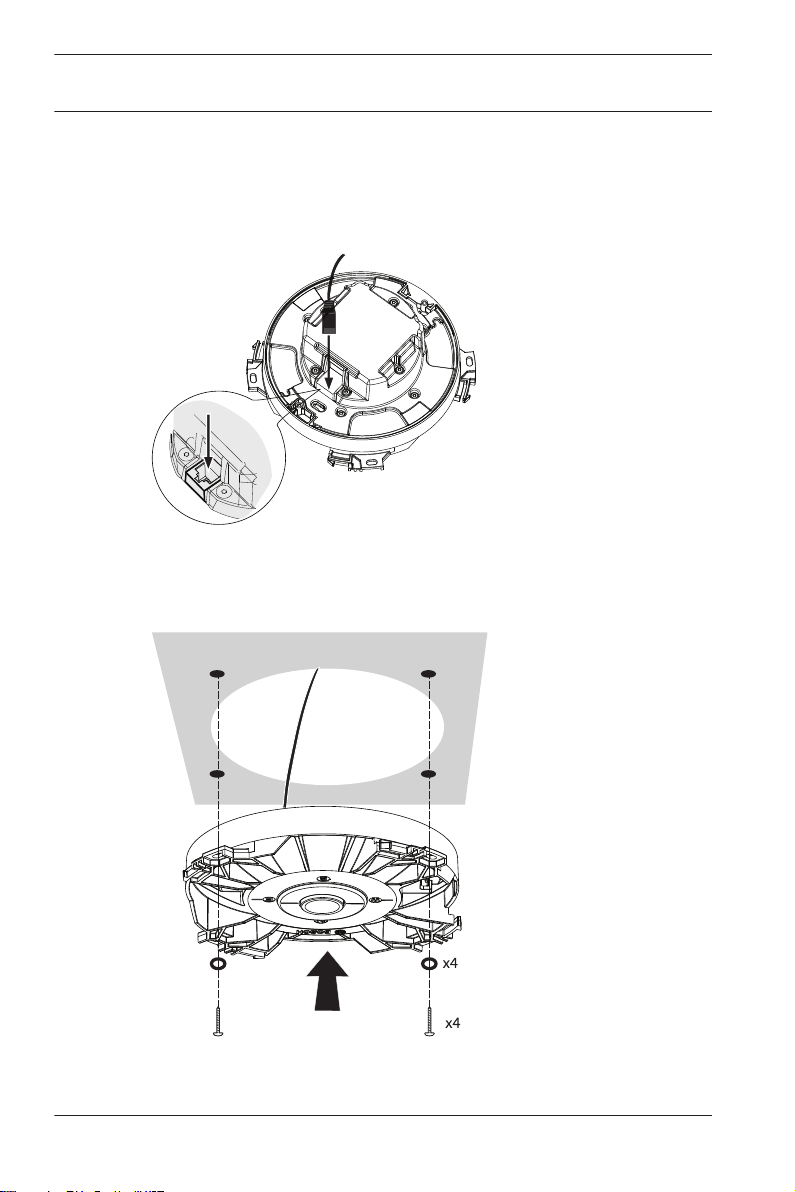

5. Insert the Ethernet cable into the RJ45 connector at the
back of the camera.
6. Use the supplied screws and washers to securely mount
the camera to the surface; if the surface is too thin, use
appropriate bolts (not supplied).
18 en | Installation FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems

7. To install the cover plate hold it against the camera body
and rotate it clockwise until it clicks into place.
FLEXIDOME IP
panoramic 6000/7000 IC Installation | en 19
Bosch Security Systems 2016.08 | v1.0 | AM18-Q0707

Uninstalling the camera
Remove the cover plate
1. Push a small object (for example, the 1.5 Allen key) into the
opening (push straight, do not wobble).
2. Turn the cover plate counterclockwise to disconnect it from
the camera body.
5.4
20 en | Installation FLEXIDOME IP
panoramic 6000/7000 IC
2016.08 | v1.0 | AM18-Q0707 Bosch Security Systems
