Bosch MegaPixel NWC-0800 User manual

MegaPixel IP Camera
Type numbers NWC-0700, NWC-0800, NWC-0900
en Manual_en

MegaPixel IP Cameras | en 1
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
Table of Contents
1Safety 3
1.1 Important safety instructions 3
1.2 Safety precautions 5
1.3 Important notices 5
2 Introduction 9
2.1 Product information 9
2.2 System requirements 9
2.3 Network switch or router 10
3 Camera reference 12
3.1 Introduction 12
3.2 Connectors 13
3.3 Housing and mounting 13
3.4 Network cabling 14
3.5 Optics 14
3.5.1 Using manual iris lenses 14
3.5.2 Auto-iris lenses 14
3.5.3 Using auto-iris lenses 14
3.6 Accessing cameras 15
3.6.1 Supported network services 15
4Software 16
4.1 Software installation 16
4.1.1 Configure firewall 17

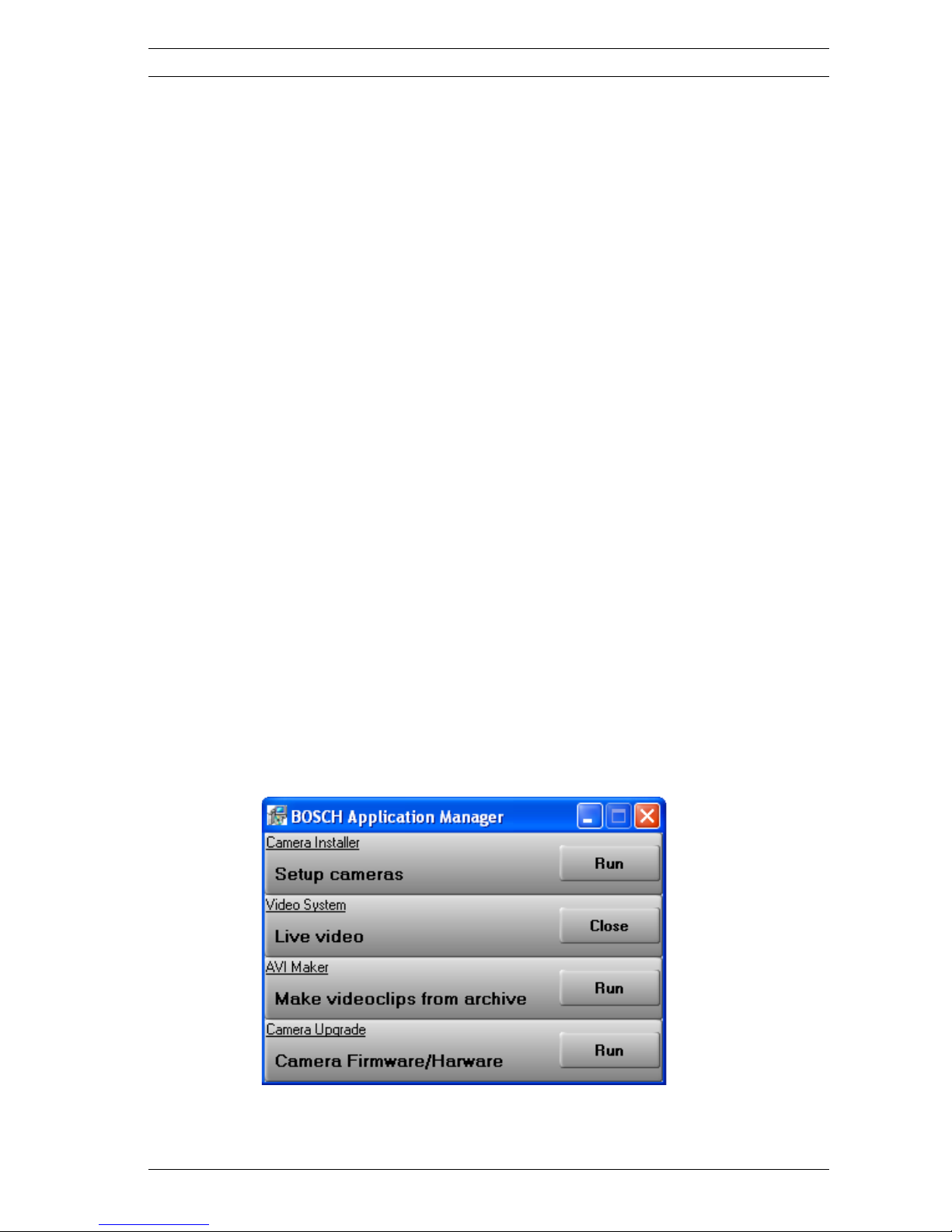

4.1.2 Bosch Application Manager 17
4.1.3 Camera installer 18
4.1.4 Installation tips 20
4.1.4 Assigning IP addresses 20
4.1.4 Subnets 20
4.1.4 Keeping a log of MAC addresses 20
4.2 Operating Bosch Video System 21

2en | MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
4.2.1 Toolbar 21
4.2.2 Selecting full/reduced resolution and zoom 23
4.2.2 Selecting Cameras 23
4.2.2 Full/Half camera resolution 23
4.2.2 Full size/Reduced size display 23
4.2.2 Zooming 23
4.2.3 Settings 24
4.2.4 Exposure 25
4.2.5 Image Quality 26
4.2.6 Archive 28
4.2.7 Motion Detection 28
4.2.8 Save to 31
4.2.9 Advanced 32
4.2.10 Permission 33
4.2.11 Remote Viewing 33
4.2.12 Day/Night 34
4.2.13 Auto-Iris 34
4.2.14 Right-click menu 35
4.2.15 User authentication 37
4.2.16 Language selection 37
4.2.17 Browsing archives 37
4.2.18 AVI Maker 37
4.2.19 HTTP access 38
4.2.20 Firmware Loader - Upgrading the cameras 38
4.3 DiBos8 set-up for Bosch Megapixel cameras 38
4.3.1 Preparing Megapixel cameras for DiBos8 38
4.3.2 Setting up DiBos8 for Megapixel Cameras 39
4.3.3 HTTP command string parameters 40
4.3.3 x0 and y0 40
4.3.3 x1 and y1 40

MegaPixel IP CamerasSafety | en 3
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
1Safety
1.1 Important safety instructions
Read, follow, and retain for future reference all of the following safety
instructions. Heed all warnings on the unit and in the operating instructions
before operating the unit.
1. Cleaning - Unplug the unit from the outlet before cleaning. Follow any
instructions provided with the unit. Generally, using a dry cloth for
cleaning is sufficient, but a moist fluff-free cloth or leather shammy may
also be used. Do not use liquid cleaners or aerosol cleaners.
2. Heat Sources - Do not install the unit near any heat sources such as
radiators, heaters, stoves, or other equipment (including amplifiers)
that produce heat.
3. Water - Do not use this unit near water, for example near a bathtub,
washbowl, sink, laundry basket, in a damp or wet basement, near a
swimming pool, in an outdoor installation, or in any area classified as a
wet location. To reduce the risk of fire or electrical shock, do not
expose this unit to rain or moisture.
4. Object and liquid entry - Never push objects of any kind into this unit
through openings as they may touch dangerous voltage points or short-
out parts that could result in a fire or electrical shock. Never spill liquid
of any kind on the unit. Do not place objects filled with liquids, such as
vases or cups, on the unit.
5. Lightning - For added protection during a lightning storm, or when leav-
ing this unit unattended and unused for long periods, unplug the unit
from the wall outlet and disconnect the cable system. This will prevent
damage to the unit from lightning and power line surges.
6. Controls adjustment - Adjust only those controls specified in the oper-
ating instructions. Improper adjustment of other controls may cause
damage to the unit. Use of controls or adjustments, or performance of
procedures other than those specified, may result in hazardous radia-
tion exposure.
7. Overloading - Do not overload outlets and extension cords. This can
cause fire or electrical shock.
8. Power cord and plug protection - Protect the plug and power cord from
foot traffic, being pinched by items placed upon or against them at
electrical outlets, and its exit from the unit.
9. Power disconnect - Units with or without ON/OFF switches have power
supplied to the unit whenever the power cord is inserted into the
power source; however, the unit is operational only when the ON/OFF
switch is in the ON position. The power cord is the main power discon-
nect device for switching off the voltage for all units.

4en | Safety MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
10. Power sources - Operate the unit only from the type of power source
indicated on the label. Before proceeding, be sure to disconnect the
power from the cable to be installed into the unit.
– For external power supplied units, use only the recom-
mended or approved power supplies.
– For limited power source units, this power source must
comply with EN60950. Substitutions may damage the unit
or cause fire or shock.
– For 9-12 VDC units, voltage applied to the unit's power
input should not exceed 12.3 VDC. User-supplied wiring
must comply with local electrical codes (Class 2 power lev-
els). Do not ground the supply at the terminals or at the
unit's power supply terminals.
– If unsure of the type of power supply to use, contact your
dealer or local power company.
11. Servicing - Do not attempt to service this unit yourself. Opening or
removing covers may expose you to dangerous voltage or other haz-
ards. Refer all servicing to qualified service personnel.
12. Damage requiring service - Unplug the unit from the main AC power
source and refer servicing to qualified service personnel when any dam-
age to the equipment has occurred, such as:
– the power supply cord or plug is damaged;
– exposure to moisture, water, and/or inclement weather
(rain, snow, etc.);
– liquid has been spilled in or on the equipment;
– an object has fallen into the unit;
– unit has been dropped or the unit cabinet is damaged;
– unit exhibits a distinct change in performance;
– unit does not operate normally when the user correctly fol-
lows the operating instructions.
13. Replacement parts - Be sure the service technician uses replacement
parts specified by the manufacturer, or that have the same characteris-
tics as the original parts. Unauthorized substitutions may cause fire,
electrical shock, or other hazards.
14. Safety check - Safety checks should be performed upon completion of
service or repairs to the unit to ensure proper operating condition.
15. Installation - Install in accordance with the manufacturer's instructions
and in accordance with applicable local codes.
16. Attachments, changes or modifications - Only use attachments/acces-
sories specified by the manufacturer. Any change or modification of the
equipment, not expressly approved by Bosch, could void the warrantee

MegaPixel IP CamerasSafety | en 5
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
or, in the case of an authorization agreement, authority to operate the
equipment.
1.2 Safety precautions
1.3 Important notices
Accessories - Do not place this unit on an unstable stand, tripod, bracket, or
mount. The unit may fall, causing serious injury and/or serious damage to
the unit. Use only with the cart, stand, tripod, bracket, or table specified by
the manufacturer. When a cart is used, use caution and care when moving
the cart/apparatus combination to avoid injury from tip-over. Quick stops,
excessive force, or uneven surfaces may cause the cart/unit combination to
overturn. Mount the unit per the manufacturer's instructions.
Camera lens - A camera lens must comply and be tested in accordance with
UL/IEC60950. Any output or signal lines from the camera must be SELV or
Limited Power Source. For safety reasons the environmental specification of
the camera lens assembly must be within the environmental specification of
-10 °C (14 °F) to 50 °C (122 °F).
DANGER! High risk:
This symbol indicates an imminently hazardous situation such
as "Dangerous Voltage" inside the product. If not avoided, this
will result in an electrical shock, serious bodily injury, or death.
!
WARNING! Medium risk:
Indicates a potentially hazardous situation.
If not avoided, this could result in serious bodily injury or death.
!
CAUTION! Medium risk:
Indicates a potentially hazardous situation. If not avoided, this
may result in minor or moderate injury. Alerts the user to
important instructions accompanying the unit.
CAUTION!
Indicates a potentially hazardous situation.
If not avoided, this may result in property damage or risk of
damage to the unit.
i
NOTICE!
This symbol indicates information or a company policy that
relates directly or indirectly to the safety of personnel or
protection of property.

6en | Safety MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
Environmental statement - Bosch has a strong commitment towards the
environment. This unit has been designed to respect the environment as
much as possible.
Pluggable equipment - Install the socket outlet near the equipment so it is
easily accessible.
Power disconnect - Units have power supplied whenever the power cord is
inserted into the power source. The power cord is the main power discon-
nect for all units.
Power lines - Do not locate the camera near overhead power lines, power
circuits, or electrical lights, nor where it may contact such power lines, cir-
cuits, or lights.
Warning - This device is intended for use in public areas only. U.S. federal
law strictly prohibits surreptitious recording of oral communications.
FCC & ICES INFORMATION
(U.S.A. and Canadian Models Only)
This device complies with part 15 of the FCC Rules. Operation is subject to
the following conditions:
– this device may not cause harmful interference, and
– this device must accept any interference received, includ-
ing interference that may cause undesired operation.
Disposal - Your Bosch product was developed and manufac-
tured with high-quality material and components that can be
recycled and reused. This symbol means that electronic and
electrical appliances, which have reached the end of their work-
ing life, must be collected and disposed of separately from
household waste material. Separate collecting systems are usu-
ally in place for disused electronic and electrical products.
Please dispose of these units at an environmentally compatible
recycling facility, per European Directive 2002/96/EC.
i
NOTICE!
This is a class A product. In a domestic environment this
product may cause radio interference, in which case the user
may be required to take adequate measures.

MegaPixel IP CamerasSafety | en 7
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
The user may find the following booklet, prepared by the Federal Communi-
cations Commission, helpful: How to Identify and Resolve Radio-TV Interfer-
ence Problems. This booklet is available from the U.S. Government Printing
Office, Washington, DC 20402, Stock No. 004-000-00345-4.
Disclaimer
Underwriter Laboratories Inc. ("UL") has not tested the performance or reli-
ability of the security or signaling aspects of this product. UL has only tested
fire, shock and/or casualty hazards as outlined in UL's Standard(s) for Safety
for Information Technology Equipment, UL 60950-1. UL Certification does not
cover the performance or reliability of the security or signaling aspects of
this product.
UL MAKES NO REPRESENTATIONS, WARRANTIES, OR CERTIFICATIONS
WHATSOEVER REGARDING THE PERFORMANCE OR RELIABILITY OF ANY
SECURITY OR SIGNALING-RELATED FUNCTIONS OF THIS PRODUCT.
i
NOTICE!
This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to Part 15 of the
FCC Rules and ICES-003 of Industry Canada. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and radiates
radio frequency energy and, if not installed and used in accor-
dance with the instruction manual, may cause harmful interfer-
ence to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at his
expense.
Intentional or unintentional modifications, not expressly
approved by the party responsible for compliance, shall not be
made. Any such modifications could void the user's authority to
operate the equipment. If necessary, the user should consult
the dealer or an experienced radio/television technician for cor-
rective action.

8en | Safety MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
More Information
For additional information, please contact the Bosch Security
Systems location nearest you or visit our web site at
www.boschsecuritysystems.com
i
NOTICE!
This user guide has been compiled with great care and the
information it contains has been thoroughly verified. The text
was complete and correct at the time of printing. The ongoing
development of the products may mean that the content of the
user guide can change without notice. Bosch Security Systems
accepts no liability for damage resulting directly or indirectly
from faults, incompleteness or discrepancies between the user
guide and the product described.

MegaPixel IP CamerasIntroduction | en 9
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
2 Introduction
Bosch MegaPixel® video cameras are state-of-the-art IP units
designed to deliver full-motion, high definition digital video

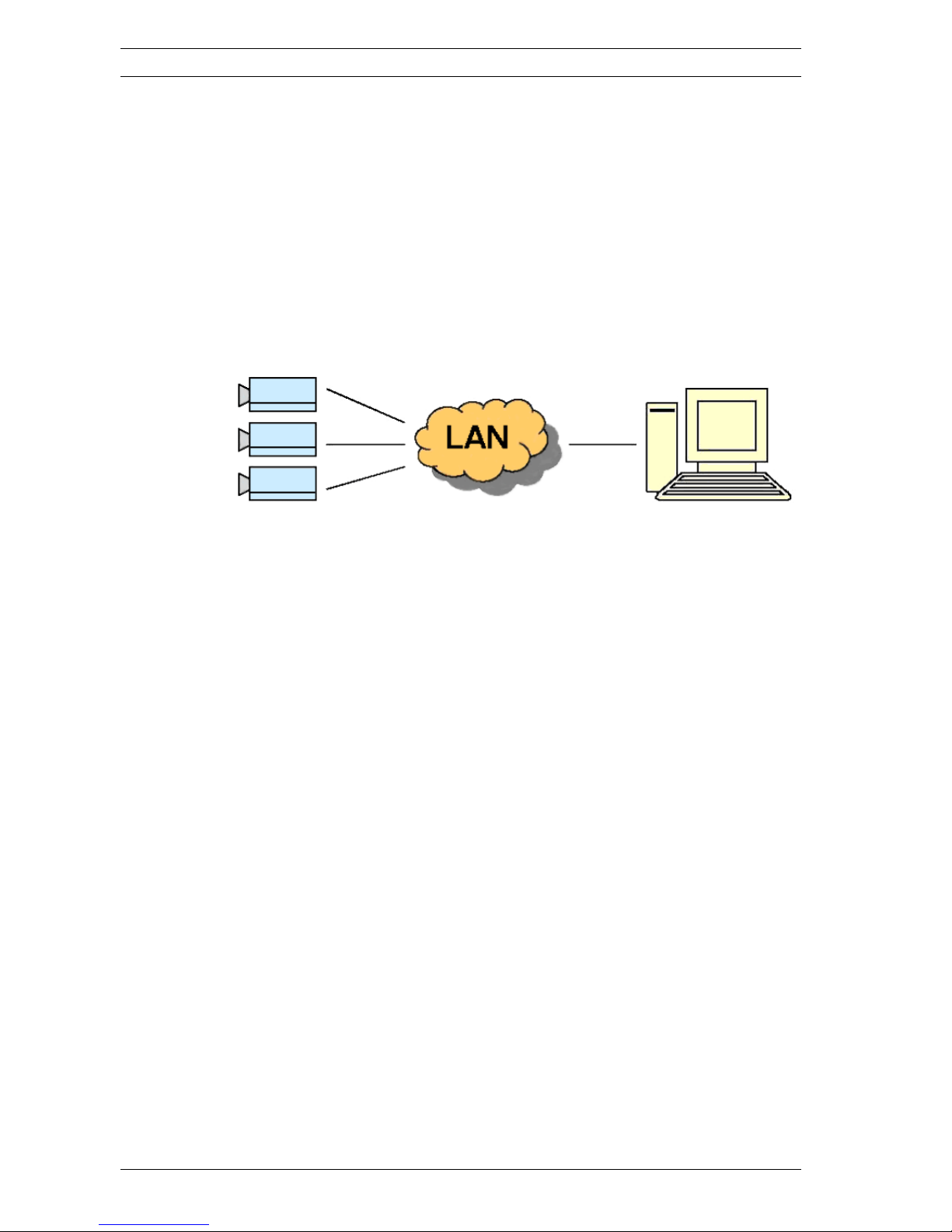

across local area networks. The DiBos software system accom-
modates multiple cameras connected to a single video server
and provides a variety of display and digital archiving modes.
Delivering over 45 Mpixels/sec of crystal-clear imagery, Bosch
MegaPixel cameras represent a superior alternative to low reso-
lution analog and digital video. To accommodate this level of
performance certain minimum system requirements have to be
met. Please make sure to read this entire manual and to follow
the installation instructions given below. For DiBos8 insallation
and operation details, refer to its instructions and manuals.
2.1 Product information
Contact Bosch Security Systems:
– On the web at http://www.boschsecurity.com/
– By post, e-mail, or phone/fax: from the above mentioned
webpage click contact, select Security Systems from the
drop down menu and scroll down for your region.
2.2 System requirements
The DiBos8 digital video recorder system is the primary viewer
and recording system for the Megapixel cameras. In the DiBos8
dongle, the "Network Cameras" must be enabled. Sufficient
disk space should be available for the Megapixel cameras files.
File size is approximately 200 Kbytes per image.
Camera setup and verification is best done using a dedicated
PC with Windows 2000 or Windows XP operating system and
running the supplied Bosch Video System.
Personal Computer:
The suggested minimum computer requirements are as follows:
A PC (or laptop) for setup and verification.
– CPU: 1.4 GHz
– RAM: 512 MB
– Video Card: 1024X768, 64 MB RAM
– Network card: 100 base-T
Standard Performance, with live viewing of 16-17 FPS (frames
per second) of full-resolution video:

10 en | Introduction MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
–CPU:3.0GHz
–RAM:512MB
– Video Card: 1600x1200, 64 MB RAM
– Network card: 100 base-T
High performance, with best frame rate live viewing:
– CPU: Dual CPU or DualCore 3.2 GHz
–RAM:1GB
– Video card: 1920x1200, 128 MB RAM (for NWC-0800 reso-
lution)
– Network card: 100 base-T, 2 network cards - one for cam-
eras and one for other network functions
Monitors, for full resolution live viewing:
– 24-inch Wide Aspect Flat Panel LCD Monitor with Height
Adjustable Stand (1920x1200 Resolution)
– 24 Inch LCD Display (1920 x 1200 resolution)
For Setup and verification:
– Standard PC monitors can be used, images are automati-
cally scaled to the correct size.
2.3 Network switch or router
Using a 100 Mbps network switch or router is recommended.
Simple hubs do not provide collision management and are not
suitable for a multi-camera audio/video system. Suggested
models:
Power-over-Ethernet routers:
– "Netgear ProSafe 8PT 100Base-TX Switch with PoE
#FS108PNA
10/100Base-TX w/4 PoE 100Base-TX
– "Netgear ProSave 16PT 100Base-TX Switch with PoE
#FS116P
10/100Base-TX w/8 PoE 100Base-TX
– "Netgear ProSafe 24+2 Gigabit Switch with PoE
1 Gigabit output w/12 PoE 100Base-TX
(www.netgear.com)
– "D-Link Web Smart #DES-1316 (POE Switch/Hub)

MegaPixel IP CamerasIntroduction | en 11
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
www.dlink.com
10/100Base-TX
8 PoE ports and 8 non-PoE ports
True IEEE 802.3af
– "TRENDnet #TPE-S88 (POE Switch/Hub)
www.trendnet.com
10/100Base-TX
8 PoE ports and 8 non-PoE ports
True IEEE 802.3af
– "PowerDsine #PD-6001/AC (PoE Single port hub)
www.powerdsine.com
10/100Base-TX
Single Midspan POE port
True IEEE 802.3af
i
NOTICE!
PoE network equipment must be CE marked for use in Euro-
pean Community. Note that the cameras are designed for use
with indoor network cabling only.

12 en | Camera reference MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
3 Camera reference
3.1 Introduction
NWC-0700, NWC-0800 and NWC-0900 are megapixel resolution
IP cameras capable of delivering crisp, low-noise images at a
video frame rate.
NWC-0700 is a 2-megapixel resolution camera having maximum
resolution of 1600 by 1200 and achieving a maximum frame
rate of 24.
NWC-0800 is a 3.1-megapixel resolution camera having maxi-
mum resolution of 2048 by 1536. It is typically viewed at 1920
by 1200 resolution with the frame rate up to 20.
NWC-0900 is a dual-sensor, day-night camera featuring a 3.1-
megapixel color sensor paired with a 1.3-megapixel mono-
chrome sensor sensitive to near infrared illumination. When the
scene is well illuminated, the 3.1-megapixel sensor is selected
to deliver color images of up to 2048x1536 pixels. To provide
seamless transition between day and night modes, the color
sensor is set to default resolution of 1920x1200 pixels. In low-
light conditions, NWC-0900 can automatically switch to the 1.3-
megapixel (1280x1024) monochrome sensor, enabling the
delivery of clear imagery at illumination levels as low as 0.01
lux. NWC-0900 typically delivers 20 fps in day mode and over
30 fps in night mode.
All cameras are equipped with LAN connector and can deliver
image data at a maximum data rate of up to 55 Mbps. Images
are sent over the network in a compressed Motion JPEG format
using TFTP protocol with the supplied software or using HTTP
protocol with DiBos8.
Power for all cameras can be supplied via DC jack (+9 V to
+12 V) or Power over Ethernet.
All cameras feature:
–Automaticexposure(AE)and Gain (AGC) control
– Automatic backlight compensation
– Automatic multi-matrix white balance
– 50/60 Hz selectable flicker control
– Electronic pan, tilt, and zoom (PTZ)
!
CAUTION! Medium risk:
Never supply power via the Ethernet connection (PoE) when
power is already supplied via the power connector.

MegaPixel IP CamerasCamera reference | en 13
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
– Adjustable brightness, saturation, gamma, and sharpness
– Simultaneous delivery of full-field view and zoomed images
at video frame rate
– Electronic image rotation by 180 degrees
– On board motion detection
– Auto iris on NWC-0700 and NWC-0800
3.2 Connectors
NWC-0700, NWC-0800, and NWC-0900 have the following con-
nectors located on the rear side of the camera housing:
– LAN connector (100 Base-T). The LAN connector also
accepts power-over-Ethernet, 48V DC over spare wires or
over data pairs. The cameras are compliant with IEEE
802.saf. The polarity is arbitrary. For a list of recom-
mended PoE switches, see "Network Switch or Routers."
– Via DC jack, accepting 9V-12V (+/-10%) DC supply,
500 mA. The center contact in the power connector is pos-
itive.
– DC-iris connector. NWC-0900 does not support auto-iris so
does not have this connector.
3.3 Housing and mounting
All camera models feature durable aluminum housing. The
ambient temperature should be maintained between 0 ºC and
40 ºC. The cameras are not to be used outdoors without appro-
priate protective enclosures. When using outdoor an enclosure
with proper protection grade shall be used. The NWC-0900 has
two lenses and requires a 3" window to avoid shading; there is
no such limitation for the other two models.
Cameras are mounted using a ¼" x 20 threaded hole at the top
and bottom of the housing.
The cameras are to be installed according to the applicable
code. The mounting means should be adequate for mounting a
½ kg (1 lb) camera.
CAUTION!
When mounting the camera, make sure the screw that goes into
the hole is short in length, 6.35 mm (¼ inch) or less, and does
not touch the camera board.

14 en | Camera reference MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
3.4 Network cabling
Category 5 cabling or better is recommended. All network
cabling must be installed according to applicable codes and
regulations.
3.5 Optics
The MegaPixel cameras should be used with a 1/2" or larger
optical format lens. The NWC-0900 requires two manual-iris
lenses and has a limitation on lens diameter (<38mm).
3.5.1 Using manual iris lenses
Choosing the lens correctly is very important for megapixel
cameras. A poorly selected lens may cause the image to appear
blurry when the lens iris is fully opened or closed too far. To
deliver sharp megapixel resolution images you should:
– Use megapixel-resolution lenses;
– Obtain best resolution and depth of focus by having the
iris slightly closed.
When setting up the camera, direct it at the scene and try clos-
ing the iris by several F-stops. At some point the image will look
its sharpest. Leave the iris closed at this value. In situations
where motion-blur can be expected, an iris value should be
selected that gives best balance of resolution, depth of focus,
and motion blur.
3.5.2 Auto-iris lenses
Standard DC auto-iris lenses can be used with the NWC-0700
and NWC-0800 cameras. Cable shall be minimum 20 mm or
longer.
3.5.3 Using auto-iris lenses
NWC-0700 and NWC-0800 are available with DC auto-iris
option. To use the DC auto-iris lens:
1. Attach the lens to the camera.
2. Plug the lens cable into the connector on the back of the
camera. Make sure that the lens cable is long enough.
Many DC lenses are available with short and long cable
options.
The camera will automatically detect the presence of an auto-
iris DC lens and start using it. Auto-iris lens operation typically
proceeds as follows:
– If illumination is sufficient, the camera will close the iris
within half-a-minute.

MegaPixel IP CamerasCamera reference | en 15
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
– When the iris is closed, the image should become visibly
sharper. As the iris is gradually closed, the image bright-
ness may fluctuate slightly.
Note: You can monitor the state of the iris in the Bosch Video
System "Settings" dialog. See Section 3.5.2 Auto-iris lenses for
details.
3.6 Accessing cameras
Cameras can be accessed and controlled by means of:
– Bosch Video System software
– HTTP requests issued from DiBos8 or Internet Explorer
3.6.1 Supported network services
NWC-0700, NWC-0800, and NWC-0900 implement video over
TFTP and HTTP network protocols. The HTTP protocol allows
direct access to the cameras using DiBos8 and through Internet
Explorer or other HTTP-based applications.
The Bosch Video System software utilizes TFTP protocol. TFTP
protocol yields the highest live viewing frame rate.
Only 100 Mbps/1 Gbps network switches should be used. Sim-
ple hubs do not segregate network segments, and should be
replaced in existing networks to be used with MegaPixel cam-
eras.

16 en | Software MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
4Software
DiBos 8 provides viewing and recording functions for standard
analog as well as Network-connected cameras. DiBos8 supports
full-resolution recording of the Bosch Megapixel cameras. At
playback, the full resolution can be utilized by zooming in on
the area of interest. In addition, live viewing supports the zoom
function to select display of detail. Refer to DiBos8 manuals for
further information.
A typical system consists of a number of cameras connected
over the local or wide area network to a server PC running
DiBos8.
Fig. 4.1 Cameras connected over a local area network to a server PC run-
ning DiBos
The Bosch Video System software is supplied on the CD. This
program includes camera setup, live viewing, and firmware
upgrade software modules.
4.1 Software installation
To install the Bosch Video System software:
1. Make sure your Windows XP/2K account has administrative
privileges;
2. Run the setup.exe from the CD.
Setup process installs software and places the Bosch Applica-
tion Manager shortcut icon on the desktop. The program also
installs Bosch Video System in the Start menu with links to indi-
vidual applications:
–ApplicationManger
– Camera Installer
– Firmware Loader
– Video System
Starting the Application Manager opens a window with buttons
that access the following program functions:
– Camera Installer: for setting up the network parameters of
individual megapixel cameras;

MegaPixel IP CamerasSoftware | en 17
Bosch Security Systems User Manual F.01U.064.422 | V 1.0 | 2007.03
– Video System: live viewing for setting up the camera
parameters and motion detection function of the installed
cameras;
– Camera Upgrade: for loading firmware upgrades into the
Megapixel cameras.
Note: The software is installed in C:\Program Files\Bosch
4.1.1 Configure firewall
As you start the application, your PC may prompt you to permit
access to the network. Bosch Video System includes two appli-
cations that need access to the network:
– AVInstaller.exe - the camera finding and installation pro-
gram;
– LocalMachine.exe - the viewing and archiving program;
– FirmwareLoader.exe - the firmware upgrading program.
The executables are located in the installation folder. You
should grant access to these applications when the firewall
prompts you.
If you are using the Windows XP firewall, add these three pro-
grams to the Exceptions Tab of the program.
4.1.2 Bosch Application Manager
Clicking the Bosch Application Manager icon on the user's
Desktop provides access to all programs and utilities of the
Bosch Video System. Click the Run button to start the individ-
ual program modules. Clicking Close ends operation of the pro-
gram.
Fig. 4.2 Bosch Application Manager

18 en | Software MegaPixel IP Cameras
F.01U.064.422 | V 1.0 | 2007.03 User Manual Bosch Security Systems
4.1.3 Camera installer
Camera Installer allows you to find all cameras that are present
on the local area network, assign IP addresses to the detected
cameras, and to verify that the cameras are accessible and
operational. Camera Installer saves information about installed
cameras into a dedicated file used by Video System. Camera
Installer supports two modes of operation - Basic and
Advanced.
– Basic mode - In this mode, Camera Installer detects all
cameras that are within range of the broadcast request (all
cameras within the network segment of the host PC) and
automatically assigns IP addresses to the cameras. It
selects those addresses that belong to the same sub-net-
work as the host PC itself and not yet assigned to other
network cameras. To detect and install the cameras auto-
matically, the user should simply press the Automatic but-
ton in the Basic mode. The installer will find, configure,
and verify the operability of the cameras, and will report
installation results as shown below. Once installation is
complete, the user should press the Save/Exit button to
save the setup information and exit the Installer.
Fig. 4.3 Bosch Camera Installer - Basic mode
– Advanced mode - In this mode, the user can detect all cam-
eras present on the local area network and choose one or
more cameras for the installation. Furthermore, Advanced
mode allows you to issue the IP numbers of the cameras
