General safety instructions
❐The appliance must not be left unattended while it is connected to
the supply mains.
❐
water or before pouring out the remaining water after use.
❐The appliance must be used and placed on a stable surface.
❐When placing the iron on its stand or on its heel, make sure that the
surface on which the stand or heel is placed is stable.
❐The appliance should not be used if it has been dropped, if there
are visible signs of damage or if it is leaking water. It must be
checked by an authorised Technical Service Centre before it can be
used again.
❐With the aim of avoiding dangerous situations, any work or repair
that the appliance may need, e.g. replacing a faulty mains cable,

Technical Service Centre.
❐This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance in a
safe way and understand the hazards involved. Children shall not
play with the appliance. Cleaning and user maintenance shall not be
made by children without supervision.
❐Keep the appliance and its cord out of reach of children under 8
years of age when it is turned on or cooling down.
❐This appliance is designed only for household use up to 2000m
above sea level.
❐CAUTION. Hot surface.
Surface is liable to get hot during use.
Important notices
• Carefully read through the operating instructions for the appliance and safeguard them
for future reference.
• This appliance has been designed exclusively for normal household use in home
environment.
• This appliance must be used only for the purposes for which it was designed, i.e. as an
iron. Any other use will be considered improper and consequently dangerous. The
manufacturer will not be held responsible for any damage arising from misuse or
improper use.
• This appliance is to be connected and used in accordance with the information stated
on its characteristics plate.

7
BOSCH
ENGLISH
* Model dependent
Introduction
EasyComfort for simple, fast and safe ironing.
Discover the new way of ironing with EasyComfort – no more changing the
temperature of the iron and tedious pre-sorting! Now all ironable materials,

single temperature setting. Which means more time to do other things.
• This appliance must be connected to an earthed socket. If it is absolutely necessary to use
an extension cable, make sure that it is suitable for 16A and has a socket with an earth
connection.
 
• The electrical plug must not be removed from the socket by pulling the cable.
• Never immerse the appliance in water or any other liquid.
• Do not leave the appliance exposed to weather conditions (rain, sun, frost, etc.)
• This appliance reaches high temperatures and produces steam during use, this could
cause scalds or burns if not used properly.
• Do not allow the power cable to come into contact with the soleplate when it is hot.
Advice on disposal
Our goods come in optimised packaging. This basically consists in using non-
contaminating materials which should be handed over to the local waste disposal service
as secondary raw materials. Your local town council can give you information about how
to dispose of obsolete appliances.
This appliance is labelled in accordance with European Directive 2012/19/
EU concerning used electrical and electronic appliances (waste electrical
and electronic equipment - WEEE).
The guideline determines the framework for the return and recycling of
used appliances as applicable throughout the EU.
Description
1. “Calc'nClean” descaling button with
indicator light
2. “on / off” button with indicator light
3. Energy saving “Eco” button with
indicator light
4. Supply hose
5. Mains cable
6. Mains cable and supply hose storage
compartments
7. Water tank

9. Filling lid
10. Iron pad
11. Iron lock system “SecureLock” *
12. Steam release button
13. Soleplate
14. “Calc'nClean” container

8BOSCH
ENGLISH
* Model dependent

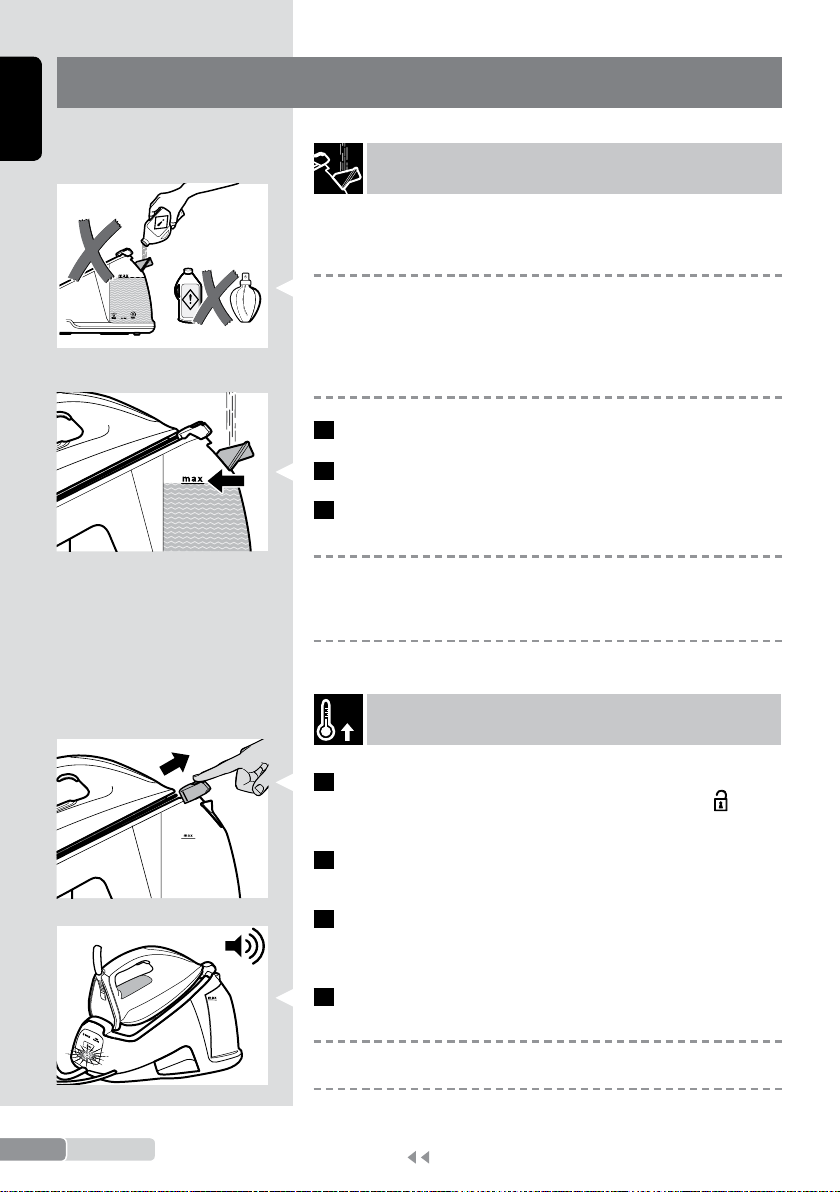

Using your appliance
1. Filling the water tank
This appliance has been designed to use normal tap
water.
Important: Do not use additives! The addition of other
liquids, such as perfume, vinegar, starch, condensation
water from tumble dryers or air conditioning systems, or
chemicals will damage the appliance. Any damage
caused by the use of the aforementioned products will
make the guarantee void!
1 
2Fill the water tank (7).

3 
Tip: To prolong the optimum steam function, you may mix
tap water with distilled or demineralised water 1:1. If the
tap water in your area is very hard, mix tap water with
distilled or demineralised water 1:2.
ºC 2. Heating
1If your steam station is equipped with an iron lock
system (11*), release the iron by pressing the
button.
2 Unwind the supply hose (4) and the mains cable (5).
Plug mains cable into an earthed socket.
3 Press the button (2) to switch the appliance on.

appliance is heating up.
4 When the iron is ready to use, the indicator light (2)
will remain permanently lit. Two beeps will be heard.
Important: 
steam will be lower and it will increase progressively.
2x

9
BOSCH
ENGLISH
* Model dependent
3. Ironing
1Press the steam release button (12) for ironing with
steam.
Important: When placing the iron on the pad (10), be


Tip: 
is to use the steam function in a forward direction (the
steam permeates the fabric and gives volume back to it)

fabric). This ensures that excessive steam is released and
the fabric dries faster while obtaining longterm crease
protection.The potential build-up of condensed water can
be avoided or at least minimized.
Warning: Ironing with an excessive amount of steam
may produce condensation of the hot water and
dripping from the ironing board or through any other
permeable surface. To prevent scalds or burns,
please follow the instructions in this user manual.
SteamBoost
“SteamBoost” function

creases.
1Press the steam release button (12) two times in
quick succession (double-click). Powerful shots of
steam will be released.
Vertical steam
Can be used to remove creases from hanging clothes,
curtains, etc.
1Hold the iron in an upright position 15 cm away from
the garment to be steamed.
2Press the steam release button (12) repeatedly with
pauses of at least 5 seconds.
Warning! : never point the steam jet at garments
being worn, or at people or animals.
2
1
15 cm
5”
2x

10 BOSCH
ENGLISH
* Model dependent

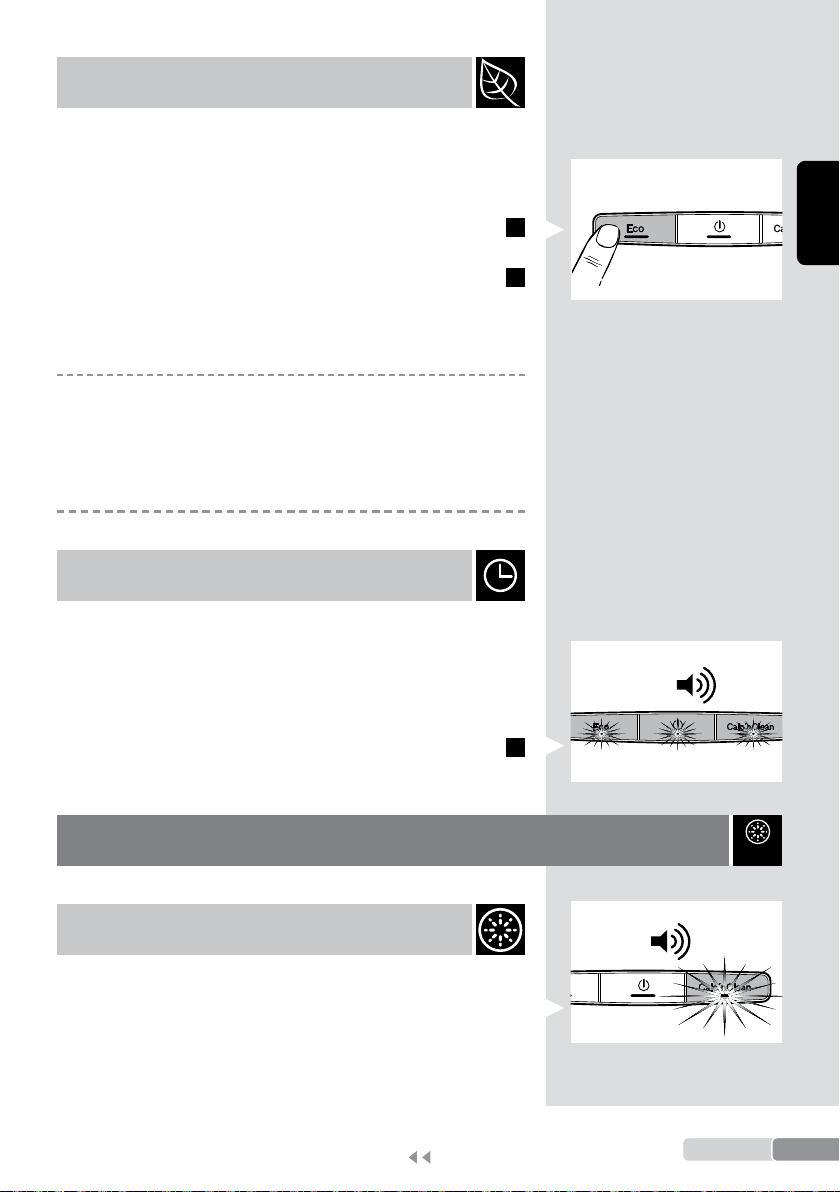

4. Energy saving
If the energy saving setting is selected, you can save
energy and water and still achieve good results when
ironing most of your garments.
1Press the energy saving button “Eco” (3). The
indicator light will come on.
2To switch back to the normal energy setting, press the
“Eco” button again. It is advisable to use the normal
energy setting to get optimum results on thick and
very wrinkled fabrics.
Tips to help you save energy:
• If you tumble dry your fabrics before ironing them, set
the tumble drier on the iron dry programme.
• Try to iron the fabrics while they are still damp and
reduce the steam setting. Steam will be generated from
the fabrics rather than the iron.
5. Auto switch off
For your safety and to save energy, the appliance
switches off automatically when it has not been used for 8
minutes.
Three beeps will be heard, and all indicator lights (1, 2, 3)

1To switch the steam station back on, press the steam
release button (12) again.
Calc’nClean
Easy
Calc’nClean
Easy
Cleaning & Maintenance
1. Descaling process
This appliance is equipped with an automatic clean
warning indicator, which indicates that scale particles
must be removed from inside the steam chamber.
When activated, three beeps will be heard and the

that the process should be performed.
3x
3x

11
BOSCH
ENGLISH
* Model dependent

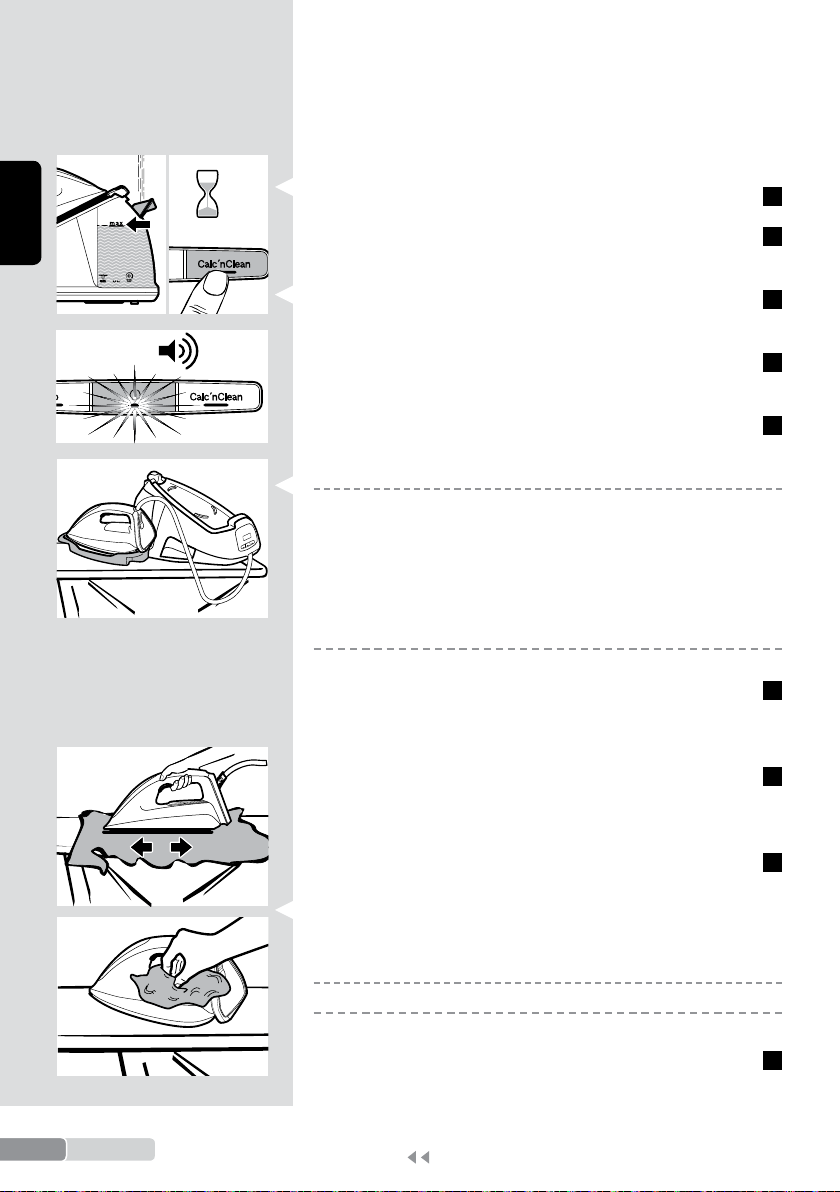

You may continue ironing for a time. Once this time
has passed, you will only be able to dry iron (without
steam).
To start steam ironing again, follow this descaling
process:
1 Fill the tank (7) with water.
2 Plug in the mains cable (5) and press the button (2) to
switch the appliance on.
3 Press the descaling button (1) for 2 seconds. Its
indicator light will remain permanently lit.
4  
remains lit permanently. Two beeps will be heard.
5 Place the iron on the "Calc'nClean" container (14).
Make sure that the surface on which the container is
placed is stable.
Warnings:
• Do not remove the iron from the container until the

Boiling water and steam will be released through
the soleplate, removing limescale and/or deposits
that may be inside.
• The container must only be used to perform the
descaling process. It must not be used as a stand
for the iron while ironing.
6 Press the steam release button (12) for 2 seconds.
The descaling process will start automatically. During
this process, short beeps will be heard.
7 After approximately 3 minutes, the iron will stop
releasing steam. A long beep will be heard, indicating

will switch off automatically.
8 To clean the soleplate (13), immediately rub off any
residue by running the hot iron over a wet cotton cloth.
Wipe the housing of the iron with a cloth.
Warning: The container gets hot during the descaling
process.
9 Let it cool down and then empty the container.
2”
2x

12 BOSCH
ENGLISH
* Model dependent
2. Cleaning the appliance
Regularly clean your appliance for properly maintenance.
Attention! Burn risk!
1 If the appliance is only slightly soiled, wipe it with a
damp cotton cloth only, and then dry it.
2 To keep the soleplate smooth, you should avoid
contact with hard metal objects. Never use a scouring
pad, or chemicals to clean the soleplate.
Storing the appliance
1Unplug the appliance and let it cool down. Empty the
water tank (7).
2Place the iron on the steam station, standing on the
pad (10).
If your steam station is equipped with iron lock system

block the tip moving the lock system against the iron.
3 Store the supply hose (4) and the mains cable (5) in
the storage compartments (6).
ab

13
BOSCH
ENGLISH
* Model dependent
Trouble shooting
Problem Possible causes Solution
The iron begins
to smoke when
switched on.
 
components on the
appliance have been lightly
greased at the factory and
may produce a small
amount of smoke when
initially heated.
1. This is completely normal
and will stop after a short
while.
The iron does not
produce any
steam.
 

completely.
2. The “Calc'nClean” indicator

descaling process has not
been completed.
1. Press and hold the steam
release button (12) until
steam comes out.
2. Perform a cleaning cycle
(see the “Descaling process"
section).
Dirt comes out
through the
soleplate.
1. There is a build-up of lime
scale or minerals in the iron.
2. Chemical products or
additives have been used.
1. Carry out a cleaning cycle
(see the “Descaling process"
section).
2. Never add products to the
water (see the “Filling the
water tank” section).
Clean the soleplate with a
damp cloth.
The
“Calc'nClean”
indicator light (1)
does not turn off.
1.
The iron descaling process
has been stopped before
being completed.
1.
Restart and complete the
iron descaling process.
The appliance
makes a pumping
sound.
1. Water is being pumped into
the iron.
2. The water tank is empty.
1. This is normal.
2. Fill the water tank.
The iron
produces little
steam.
1. The iron has been switched
on recently.
1. It is normal, the iron
produces steam gradually
until it is stabilized.
If the above tips do not solve the problem, get in touch
with our customer service.
You can download this manual from the Bosch local
homepages.

14 BOSCH





 1
    



 1

4 1

 2
1) “Calc’nClean”


 1
12
 2



1

     2

      1

 2

     


(1) “Calc’nClean”

     1

 1



 1
 2
 1
 2


     1

      1




ةيبرعلا

15
BOSCH

2


 
1

 
2



.(7 1
.(10 2
(*11)


54 3
.(6)
ab
ةيبرعلا

16 BOSCH




7 
1
25 2

1 
3

2 
4

.(14) “Calc’nClean 
5


 


 

  12       
6


 
7


13 
8




 
9
2”
2x
ةيبرعلا

17
BOSCH


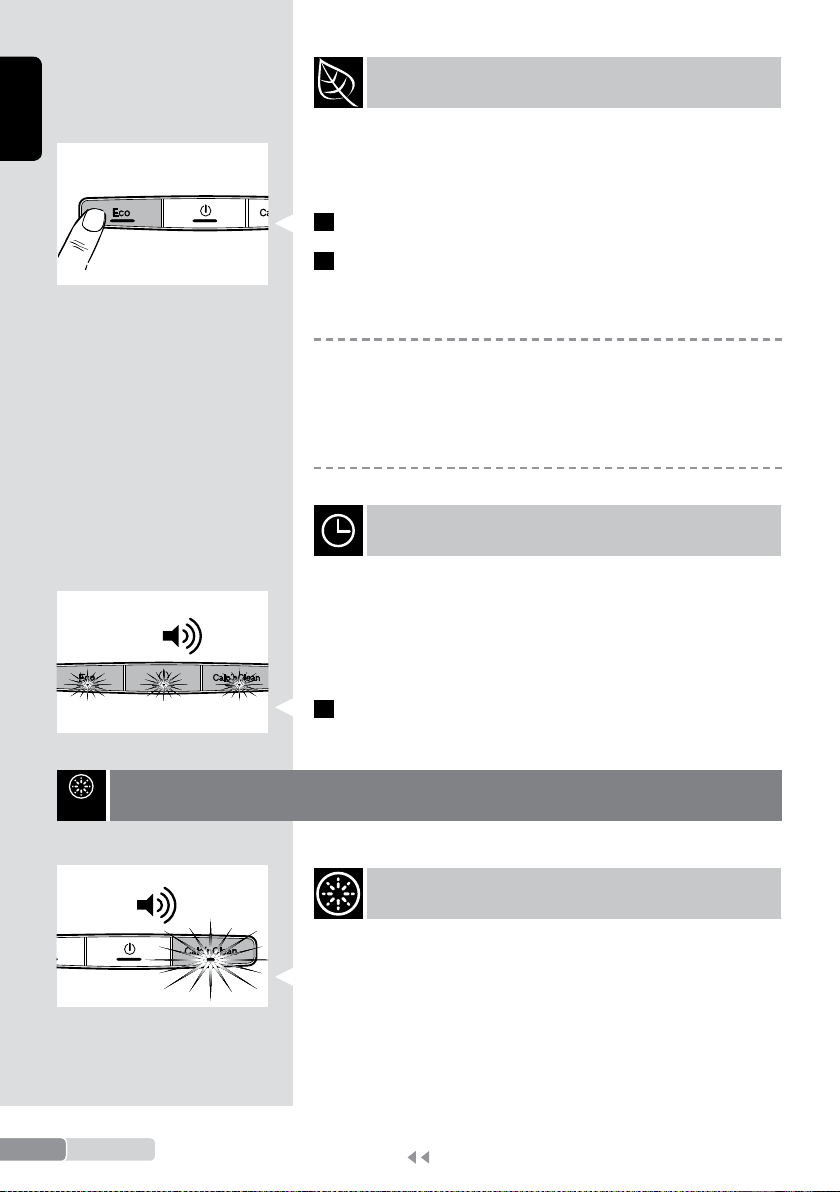

4


3“Eco” 
1

 
2
“Eco”



 

 

5

8
.(3 ,2 ,1
(12 
1

Calc’nClean
Easy
Calc’nClean
Easy

1


“Calc’nClean
1)
3x
3x
ةيبرعلا

18 BOSCH

3
12 1
10










SteamBoost
“SteamBoost

.  (12 
1




  15   
1

12 
2
5


15 cm
5”
2
1
2x
ةيبرعلا

19
BOSCH


1

          



.(9 
1
 .(7 2
!(8max“
 
3

1:1
.2:1
ºC
2
11 1
.
54
2

(22
3

(2
4



2x
ةيبرعلا

20 BOSCH

 
16
 
 
 
 
 

 




EU/19/2012



“Calc’nClean 1

 2
Eco 3

 4
 5
 6
 7
 8
 9
 10
* “SecureLock 11
 12
 13
“Calc’nClean 14

EasyComfort
EasyComfort 



ةيبرعلا
