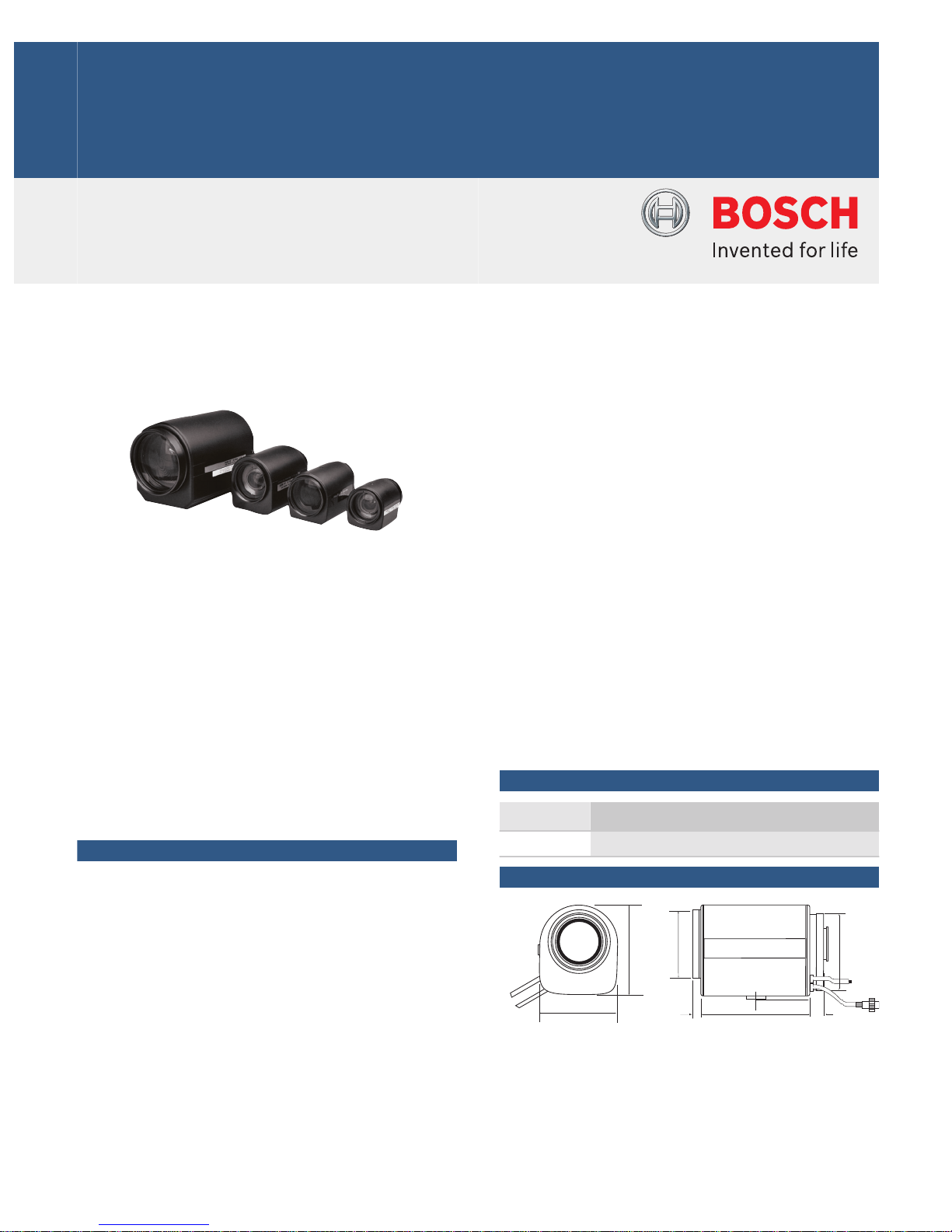

Video | Auto-iris Motorized Zoom Lenses
Auto-iris Motorized Zoom Lenses
www.boschsecurity.com
uHigh Quality Optics
uReliable, Robust Construction
u1/3-inch Format with DC-iris Control
u1/2-inch Format with Video-iris Control
u10x, 15x, and 20x Zoom Ranges
These Motorized Zoom Lenses are compact, rugged,
1/3-inch and 1/2-inch image format auto iris lenses.
Their high sensitivity and reliability provide optimal
performance in all environments.
The 1/3-inch DC-iris Series Lenses have been designed
for more economical uses and are provided with a
standard CS mount for use with a wide variety of
cameras.
The 1/2-inch Video-iris Series are high quality lenses,
and are provided with both CS and C mount options.
Functions
For the auto iris control, all lenses use the standard 4-
pin EIAJ connector which fits directly into the
camera’s iris output. For zoom, focus, and pre-position
control, the lenses are fitted with an 8-pin DIN
connector.
Impressive optical quality is a result of combined high
standards for resolution, contrast reproduction, and
lens coating. The lenses have been designed to match
with the complete range of Bosch cameras. When used
in combination with the 1/2-inch Series cameras they
provide the necessary large F/stop and high quality
camera optic features.
Lenses in this series include 10x, 15x, and 20x zoom
range models. Some models provide optional pre-
position and manual iris override functions.
The mechanical construction has been designed to
withstand the frequent control operations of the iris,
zoom, and focus operations. For a cost effective lens
that provides the high quality and reliability needed to
enhance camera images, these lenses are the ideal
solution.
Certifications and approvals
Region Certification
Europe CE
Installation/configuration notes
78
3.07
88.5
3.48
65
2.56
5
0.2 102.5
4.03
26
1.02
54.0
2.12
63.1
2.48
mm
inch

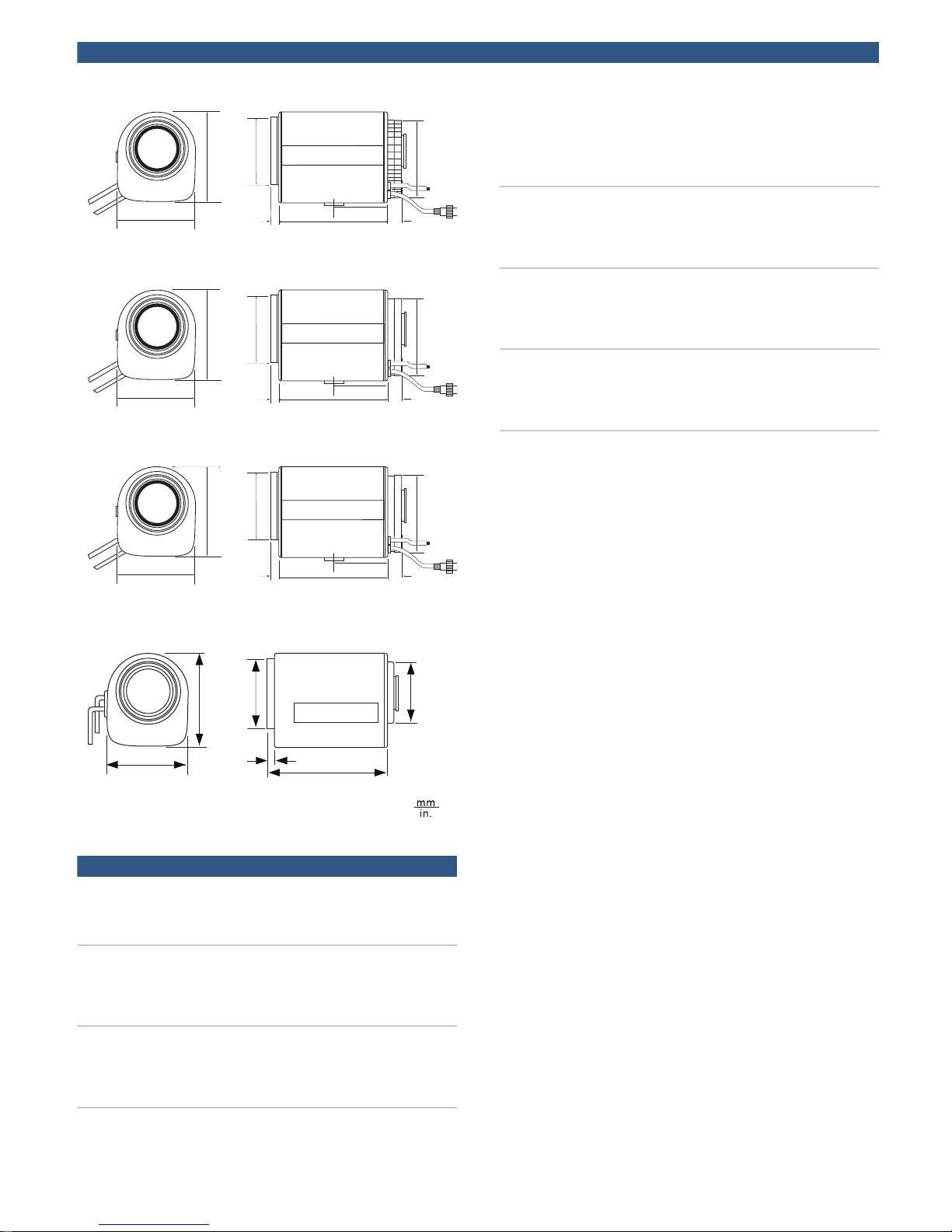

Dimensions LTC 3293 / 20 & LTC 3293 / 30

116
4.57
135
5.31
100
3.94
17
0.67 169.5
6.67
19.5
0.77
73.5
2.89
101.3
4.0
mm
inch
Dimensions LTC 3293 / 40 & LTC 3293 / 50
70
2.75
80.5
3.17
65
2.56
5.5
0.22 100
3.94
15.5
0.61
54.0
2.12
60.5
2.38
mm
inch
Dimensions LTC 3283/50
58
2.28
63.5
2.5
51
2.0
4
0.15 57
2.24
17
0.67
54.0
2.12
44
1.73
mm
inch
Dimensions LTC 3283/40
70
(2. 75)
70
(2. 75)
54. 0
(2. 12)
8.3
0.3 3
11 2.34
(4. 42)
59. 0
(2. 32)
Dimensions LTC 3384/21
Ordering information
LTC 3384/21 Zoom Lens
1/3-inch, 6 – 60 mm, DC-iris, CS-mount F1.4-360, 4-pin
Order number LTC3384/21
LTC 3293/20 Zoom Lens
1/2-inch, 8 - 120 mm, Video-iris, C-mount F1.6-1000, 4-
pin
Order number LTC3293/20
LTC 3293/30 Zoom Lens
1/2-inch, 8 – 120 mm, Video-iris, C-mount F1.6-1000,
4-pin, pre-position and manual override
Order number LTC3293/30
LTC 3293/40 Zoom Lens
1/2-inch, 12 – 240 mm, Vidoe-iris, C-mount F1.6-720,
4-pin
Order number LTC3293/40
LTC 3293/50 Zoom Lens
1/2-inch, 12 – 240 mm, Video-iris, C-mount F1.6-720,
4-pin, pre-position
Order number LTC3293/50
LTC 3283/40 Zoom Lens
1/2-inch, 7.5 – 75 mm, Video-iris, CS-mount F1.4-360,
4-pin
Order number LTC3283/40
LTC 3283/50 Zoom Lens
1/2-inch, 7.5 – 75 mm, Video-iris, C-mount F1.2-512, 4-
pin, pre-position
Order number LTC3283/50
2 | Auto-iris Motorized Zoom Lenses

Auto-iris Motorized Zoom Lenses
LTC 3384/21 Zoom Lens LTC 3293/20 Zoom Lens LTC 3293/30 Zoom Lens LTC 3293/40 Zoom Lens
Image format 1/3-inch 1/2-inch 1/2-inch 1/2-inch
Zoom 10x 15x 15x 20x
Focal length 6 - 60 mm 8 - 120 mm 8 - 120 mm 12 - 240 mm
Iris range F1.4-360 F1.6-1000 F1.6-1000 F1.6-720
Min. object distance 1.3 m 1.5 m 1.5 m 2.8 m
Pre-position N/A N/A Yes N/A
Manual override N/A N/A Yes N/A
Lens mount CS C C C
Dimensions See drawing see drawing see drawing see drawing
Weight 380 g (0.84 lb) 800 g (1.76 lb) 800 g (1.76 lb) 2630 g (5.79 lb)
Temp. range -5°C to +50°C -10°C to +50°C -10°C to +50°C -10°C to +50°C
+23°F to 122°F (+14°F to 22°F +14°F to 122°F +14°F to 122°F
Iris characteristics
Iris control 4-pin video iris 4-pin video iris 4-pin video iris 4-pin video iris
Operating voltage 8 - 12 VDC 8 - 12 VDC 8 - 12 VDC 8 - 12 VDC
Response speed Approx.2 s Approx.1.5 s Approx.1.5 s Approx.1.5 s
Operating current 70 mA (max.) 50 mA (max.) 50 mA (max.) 50 mA (max.)
Input signal VS or V VS or V VS or V VS or V
Impedance 10 kOhm 10 kOhm 10 kOhm 10 kOhm
Iris accuracy Approx.8 s +20% (signal level) +20% (signal level) +20% (signal level)
Sensitivity 0.5-1.0 Vp-p 0.5-1.0 Vp-p 0.5-1.0 Vp-p 0.5-1.0 Vp-p
Zoom characteristics
Zoom control Motor drive Motor drive Motor drive Motor drive
Motorized spd.(app.) 8 s 6 sec 6 sec 10 sec
Operating voltage 12 VDC 12 VDC 12 VDC 12 VDC
Operating current 70 mA (max.) 55 mA (max.) 55 mA (max.) 55 mA (max.)
Focus characteristics
Focus control Motor drive Motor drive Motor drive Motor drive
Motorized spd.(app.) 5.5 s 8 sec 8 sec 10 sec
Operating voltage 12 VDC 12 VDC 12 VDC 12 VDC
Operating current 55 mA (max.) 55 mA (max.) 55 mA (max.) 55 mA (max.)
Angle of view 1/3-inch
camera (Wide – Tele)
3 | Auto-iris Motorized Zoom Lenses

LTC 3384/21 Zoom Lens LTC 3293/20 Zoom Lens LTC 3293/30 Zoom Lens LTC 3293/40 Zoom Lens
Horizontal 43.4°-4.5° 32°56’-2°20’ 32°56’-2°20’ 23°01’-1°10’
Vertical 32.7°-3.5° 24°49’-1°45’ 24°49’-1°45’ 17°13’-0°52’
Angle of view 1/2 -inch
camera (Wide – Tele)
Horizontal –43°29’-3°05’ 43°29’-3°05’ 30°52’-1°33’
Vertical –32°56’-2°20’ 32°56’-2°20’ 23°01’-1°10’
LTC 3293/50 Zoom Lens LTC 3283/40 Zoom Lens LTC 3283/50 Zoom Lens
Image format 1/2-inch 1/2-inch 1/2-inch
Zoom 20x 10x 10x
Focal length 12 - 240 mm 7.5 - 75 mm 7.5 - 75 mm
Iris range F1.6-720 F1.4-360 F1.2-512
Min. object distance 2.8 m 1.8 m 1.8 m
Pre-position Yes N/A Yes
Manual override N/A N/A N/A
Lens mount CCS C
Dimensions see drawing see drawing see drawing
Weight 2630 g (5.79 lb) 580 g (1.28 lb) 740 g (1.63 lb)
Temp. range -10°C to +50°C -10°C to +50°C -10°C to +50°C
+14°F to 122°F +14°F to 122°F +14°F to 122°F
Iris characteristics
Iris control 4-pin video iris 4-pin video iris 4-pin video iris
Operating voltage 8 - 12 VDC 8 - 12 VDC 8 - 12 VDC
Response speed Approx.1.5 s Approx.1.5 s Approx.1.5 s
Operating current 50 mA (max.) 50 mA (max.) 50 mA (max.)
Input signal VS or V VS or V VS or V
Impedance 10 kOhm 10 kOhm 10 kOhm
Iris accuracy +20% (signal level) +20% (signal level) +20% (signal level)
Sensitivity 0.5-1.0 Vp-p 0.5-1.0 Vp-p 0.5-1.0 Vp-p
Zoom characteristics
Zoom control Motor drive Motor drive Motor drive
Motorized spd.(app.) 10 sec 5.5 s 5.5 s
Operating voltage 10 sec 12 VDC 12 VDC
Operating current 55 mA (max.) 55 mA (max.) 55 mA (max.)
Focus characteristics
4 | Auto-iris Motorized Zoom Lenses

LTC 3293/50 Zoom Lens LTC 3283/40 Zoom Lens LTC 3283/50 Zoom Lens
Focus control Motor drive Motor drive Motor drive
Motorized spd.(app.) 10 sec 6.5 s 5.5 s
Operating voltage 12 VDC 12 VDC 12 VDC
Operating current 55 mA (max.) 55 mA (max.) 55 mA (max.)
Angle of view 1/3-inch
camera (Wide – Tele)
Horizontal 23°01’-1°10’ 34°38`- 3°46` 34°57`- 3°46`
Vertical 17°13’-0°52’ 26°81`- 2°50` 26°27`- 2°50`
Angle of view 1/2 -inch
camera (Wide – Tele)
Horizontal 30°52’-1°33’ 45°11`-4°58` 45°38`- 5°00`
Vertical 23°01’-1°10’ 34°38`-3°46` 34°57`- 3°46`
5 | Auto-iris Motorized Zoom Lenses
