Intrusion Alarm Systems | EN5040-T High-power Repeater

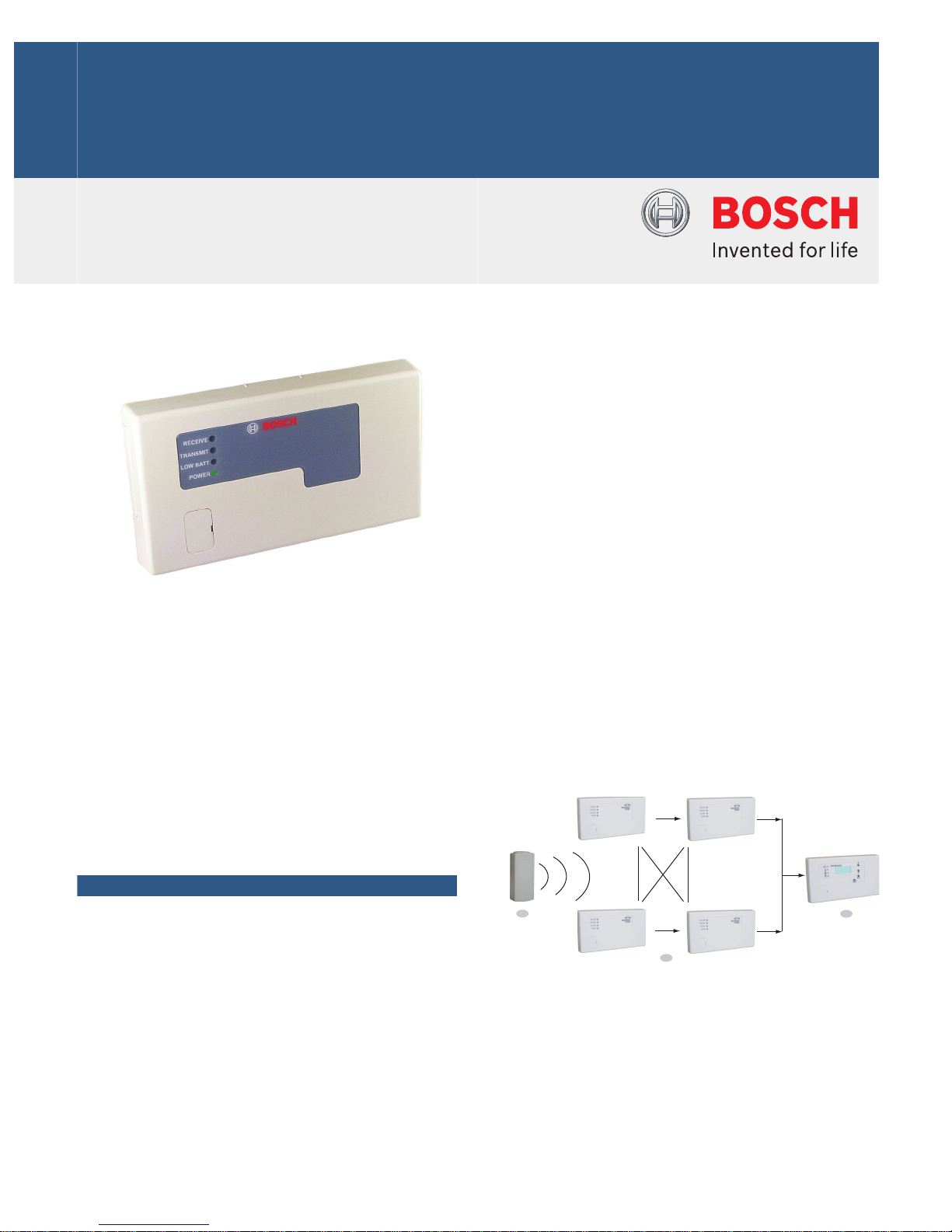

EN5040-T High-power Repeater
www.boschsecurity.com
uEasy installation; no wires or programming required
uSupervision for low battery, loss of line power,
tamper, and jams
uExpanded coverage by utilizing multiple repeaters
uSelf-configuring
uSophisticated signal management
The line-powered 900 MHz EN5040‑T High‑power
Repeater receives, decodes, and re-transmits signals
from Inovonics EchoStream platform transmitters. This
technology uses diversity reception and advanced
signal processing to reduce dead spots in transmission
areas. Each repeater acts as a range expander for any
transmission, allowing the installation to scale from
smaller commercial sites to large campuses with
several buildings. Each repeater includes an on-board,
state-of-the-art lithium-ion back-up battery. The
EN5040‑T High‑power Repeater includes a
transformer.
System overview
Powered by Inovonics
The Inovonics EchoStream platform, powered by
Inovonics wireless mesh network technology, ensures
superior range, reliability, and scalability for
commercial applications. Using a wide range of
transmitters and repeaters, this proven technology
provides flexibility and performance to meet the most
stringent requirements. This exclusive protocol is
available only on Inovonics EchoStream products.
Wireless 900 MHz Band
The Inovonics EchoStream platform sends redundant
information on several multi-frequency channels within
the FCC Part 15 900 MHz band, providing superior
range and reliability. In comparison, systems that use a
single frequency technology can only send information
on one narrow band channel. Any interference within
the band can cause missed signals. With wireless
registration, it is easy to add this technology to any
application.
Repeater Network
1
1
1
2
1
3
Use multiple repeaters to create a mesh network.

1
.
The transmitter sends a signal.
2
.
Repeaters receive the signal and re-broadcast it, allowing the user
to extend the range of the RF system to cover large areas such as
installations in campuses, sites with detached buildings, or
multiple story complexes.
3
.
The receiver hears the signal from the repeaters and processes
accordingly.
Functions
Installation
The installation is as easy as mounting the repeater
and plugging it in. No wires or programming are
required, although registration is recommended for a
fully supervised system.
Supervision and Expansion
The repeater supervises for low battery, loss of line
power, case tamper, and jam detection. An on-board
lithium-ion battery:
• Provides backup without additional expense
• Offers up to 24 hours of continuous operation when
line power is unavailable
• Reports power loss when programmed or supervised
to a slave receiver
Installers can employ multiple repeaters in a micro-
cellular network, providing coverage for applications
including large campuses with multiple-story buildings.
Signal Management
The repeater incorporates sophisticated signal
management, preventing ping-pong messages and
maximizing reliability.
Certifications and approvals
Inovonics Wireless Corporation also holds the following approvals:
FCC Conforms to FCC Part 15 regulations
Installation/configuration notes
Compatibility Information
The EN5040‑T High‑power Repeater is compatible with
the following products:
Receivers
EN4200 Serial Receiver
EN4204R LED Receiver
Transmitters
EN1210 Universal Transmitter (Single‑input)
EN1210EOL Universal Transmitter with EOL Resistor
EN1210SK Survey Transmitter
EN1210W Door-Window Transmitter with Reed Switch
EN1215EOL Universal Transmitter with Wall Tamper and EOL
Resistor
EN1215WEOL Door‑Window Transmitter with Wall Tamper,
Reed Switch, and EOL Resistor
EN1223D Water-resistant Pendant Transmitter
(Double‑button)
EN1223S Water-resistant Pendant Transmitter
(Single‑button)
EN1223SK Survey Pendant Transmitter
EN1233D Necklace Pendant Transmitter (Double‑button)
EN1233S Necklace Pendant Transmitter (Single‑button)
EN1235D Beltclip Pendant Transmitter (Double‑button)
EN1235S Beltclip Pendant Transmitter (Single‑button)
EN1235DF Fixed-location Transmitter (Double‑button)
EN1235SF Fixed-location Transmitter (Double‑button)
EN1242 Smoke Detector-Transmitter
EN1247 Glass-break Sensor Transmitter
EN1249 Billtrap Transmitter
EN1260 PIR Motion Sensor‑Transmitter (Commercial
and High‑end Domestic Applications)
EN1261HT PIR Motion Sensor‑Transmitter (High‑traffic
Areas)
EN1262 PIR Motion Sensor‑Transmitter (Residential and
Low‑traffic Commercial Applications)
EN1265 PIR Motion Sensor‑Transmitter (Ceiling‑mount
Applications)
Parts included
Quant. Component
1EN5040‑T Repeater
1 Transformer
1 Backup battery assembly (BAT850)
1 Hardware pack
1 Literature – Installation and Operation Manual
Technical specifications
Electrical
Power Requirements: 14 VAC, 250 mA
Backup Battery
• Capacity: 3.7 VDC nominal, 2.45 Ah
• Life: 24 hours typical
• Type: Rechargeable lithium-ion battery
2 | EN5040-T High-power Repeater

Environmental
Relative Humidity: Up to 90%, non‑condensing
Temperature (operating ): 0°C to +60 C (+32°F to +140°F)
Mechanical
Material: ABS
Closure: Latching with optional screws for high
security installations
Dimensions: 165 mm x 89 mm x 25 mm
(6.5 in. x 3.5 in. x 1 in.)
Weight: 204 g (7.14 oz)
Reception/Transmission Characteristics
Frequency: 902 MHz to 928 MHz
Trademarks
Trademark names are used throughout this document.
In most cases, these designations are claimed as
trademarks or registered trademarks in one or more
countries by their respective owners. Rather than
placing a trademark symbol in every occurrence of a
trademark name, Bosch Security Systems, Inc. uses
the names only in an editorial fashion and to the
benefit of the trademark owner with no intention of
infringing the trademark.
Inovonics is a trademark of Inovonics Wireless Corporation.
Ordering information
EN5040-T High-power Repeater
Line-powered 900MHz EN5040‑T High‑power Repeater
Order number EN5040-T
3 | EN5040-T High-power Repeater
