DinionXFD_Nv1_0.book Page 1 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 2
SAFETY PRECAUTIONS
Important Safeguards
1. Read these instructions.
2. Keep these instructions.
3. Comply with all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other equipment (including amplifiers) that produce heat.
Danger
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's enclosure
that may be of sufficient magnitude to constitute a risk to persons.
Warning
The exclamation mark within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Caution
To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.
DinionXFD_Nv1_0.book Page 2 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 3
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. Both
the wide blade and the third prong are provided for your safety. If the
supplied plug does not fit into your outlet, consult an electrician for
advice.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
equipment.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this equipment during lightning storms or when unused for
long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required
when the equipment has been damaged in any way, such as when
power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the equipment, the equipment has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
14. An all-pole mains switch with a contact separation of at least 3mm in
each pole shall be incorporated in the electrical installation of the
building.
Warning
To reduce the risk of fire or electric shock, this apparatus should
not be exposed to rain or moisture and objects filled with liquids,
such as vases, should not be placed on this apparatus.
DinionXFD_Nv1_0.book Page 3 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 4
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Note
Any change or modification of the equipment not expressly approved by
Bosch could void the user's authority to operate the equipment. For
additional information or to speak to a representative, please contact the
Bosch Security Systems location nearest to you or visit our web site at
www.boschsecuritysystems.com
DinionXFD_Nv1_0.book Page 4 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 5
Introduction
The DinionXF Day/Night is a high-performance smart surveillance color
camera. It incorporates 15-bit digital signal processing for outstanding
picture performance under all lighting conditions. The DinionXF Day/Night
is easy to install and ready to use, and offers the best solution for
demanding scene conditions. Features include:
• Day/Night camera with mechanically switching IR filter
• Three pre-programmed operation modes
• Noise elimination, true color reproduction
• Adaptive dynamic range optimization
• Bilinx™ bi-directional coaxial communications
• Genlock including sub-carrier locking
• Enhanced video motion detection
Type number overview
Type number LTC
0620/11
LTC
0620/21
LTC
0620/51
LTC
0620/61
Standard PAL NTSC PAL NTSC
Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz
CCD type 1/2"
Type number LTC
0495/11
LTC
0495/21
LTC
0495/51
LTC
0495/61
Standard PAL NTSC PAL NTSC
Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz
CCD type 1/3"
Caution
Ensure that your power supply matches the rated voltage of your
camera before installing.
DinionXFD_Nv1_0.book Page 5 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 6
Unpacking
Unpack carefully and handle the equipment with care. The packaging
contains:
• DinionXF Day/Night camera
• CS to C lens mount adapter
• CCD protection cap
• Spare lens connector (male)
• These instructions
Note
If equipment appears to have been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
DinionXFD_Nv1_0.book Page 6 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 7
Connections

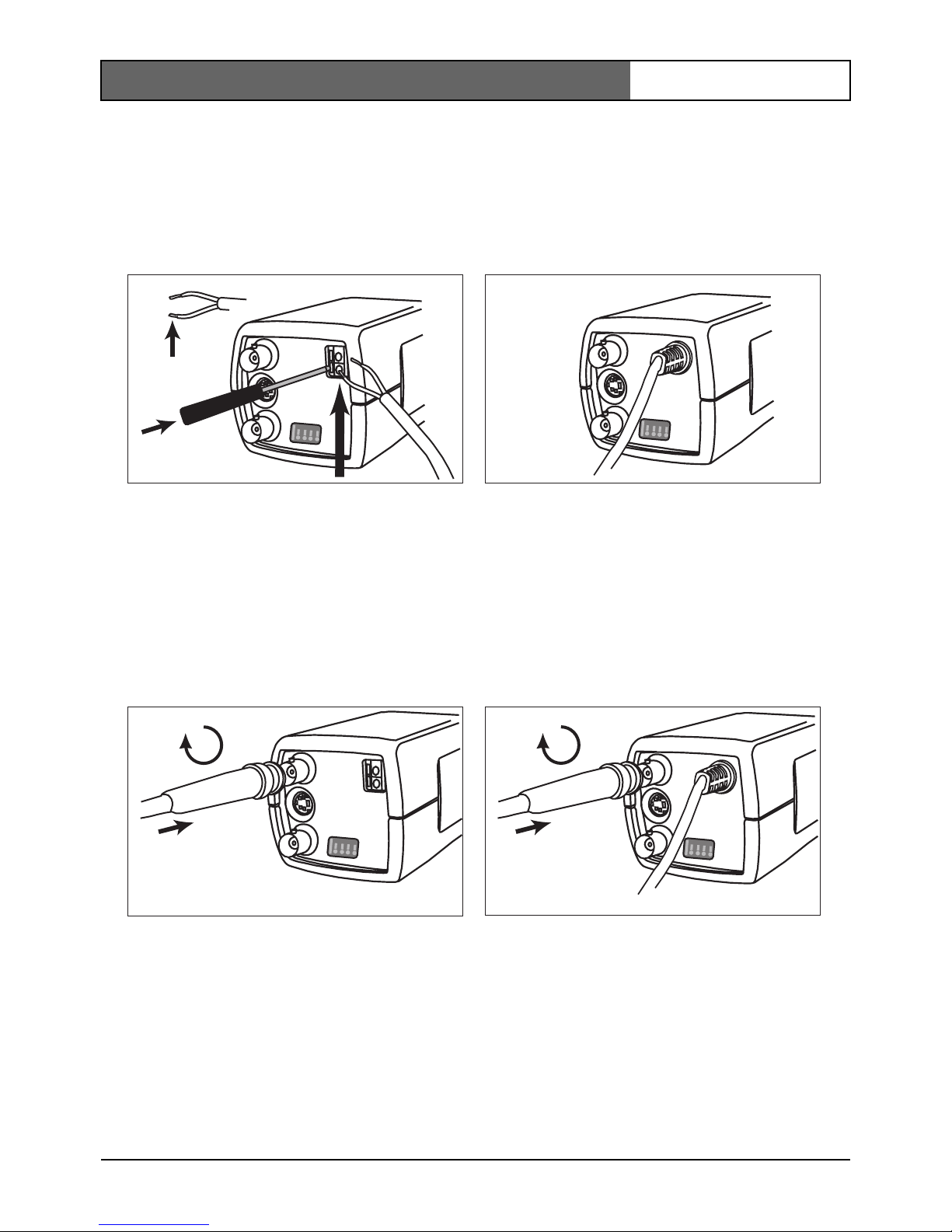

Power
Low voltage versions High voltage versions
For low voltage cameras:
• push in the tabs to open the quick-connectors (these connections are
not polarity sensitive).
• use AWG16 to 22 stranded wire or AWG16 to 26 solid wire; cut back
10mm (0.4") of insulation.
Composite video
VIDEO
SVHS
SYNC
DC12V
AC24V
ALARM
10mm
VIDEO
SVHS
SYNC ALARM
VIDEO
SVHS
SYNC
DC12V
AC24V
ALARM
VIDEO
SVHS
SYNC ALARM
DinionXFD_Nv1_0.book Page 7 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 8

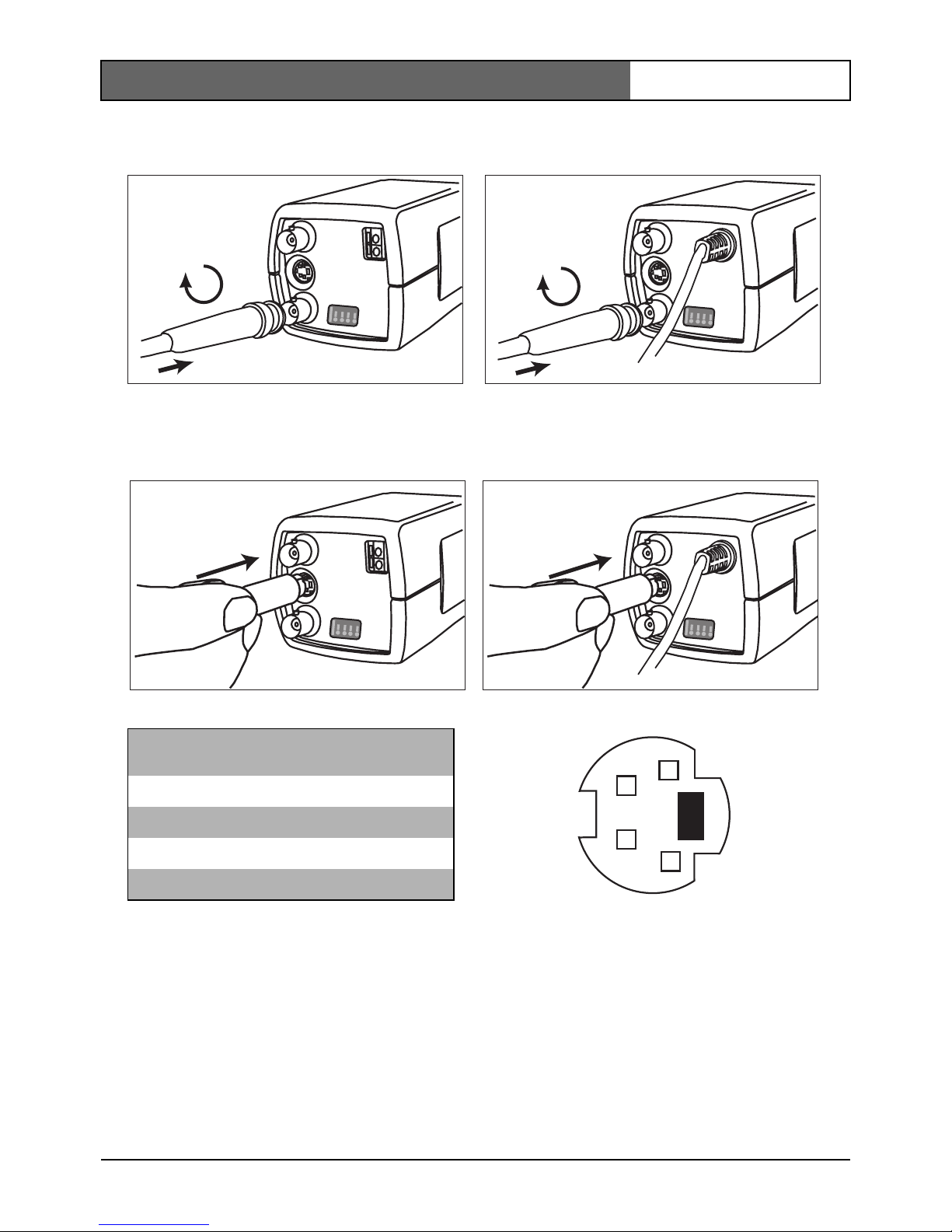

Sync
Y/C
VIDEO
SVHS
SYNC
DC12V
AC24V
ALARM
VIDEO
SVHS
SYNC ALARM
VIDEO
SVHS
SYNC
DC12V
AC24V
ALARM
VIDEO
SVHS
SYNC ALARM
1
2
4
3
Pin Y/C socket
1GNDY
2GND C
3Y
4 C
DinionXFD_Nv1_0.book Page 8 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 9
Alarm connector
• Max. wire diameter AWG 22-28 for both stranded and solid
• Default relay position n.o. (normally open), no alarm
• Alarm output relay switching capability: Max voltage 30VAC or
+40VDC. Max 0.5 A continuous, 10VA.
• Alarm in: TTL logic, +5V nominal, +40VDC max, DC coupled with
22kΩpull-up to +3.3V
• Alarm in: configurable as active low or active high
• Max. 42V allowed between camera ground and each of the relay pins.
Lens mounting
The camera accepts CS-mount lenses. C-mount lenses can be mounted
using the lens adapter ring. DC-iris lenses are recommended for the best
picture performance. The camera automatically detects the type of lens
used and optimizes performance accordingly. A spare male lens connector
is provided.
Caution
To avoid damaging the CCD sensor when using a C-mount lens,
make sure the supplied lens adapter ring is mounted onto the
camera before mounting the lens.
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
Alarm
Pin 1 Pin 4
Pin Alarm socket
1 Alarm in Ground
2Alarm in
3 Relay out contact 1
4Relay out contact 2
DinionXFD_Nv1_0.book Page 9 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 10
Note
If a short circuit is detected on the lens connector, the on-screen display
(OSD) failure message LENS SHORT CIRCUIT is shown. The lens circuit
is automatically disabled to avoid internal damage. Remove the lens
connector and check the pin connections.
Bosch
Bosch
Pin Video iris lens DC iris lens
1 Supply (11.5V ±0.5, 50mA max.) Damp -
2Not used Damp +
3 Video signal 1Vpp 1kOhm Drive +
4Ground Drive -
DinionXFD_Nv1_0.book Page 10 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 11

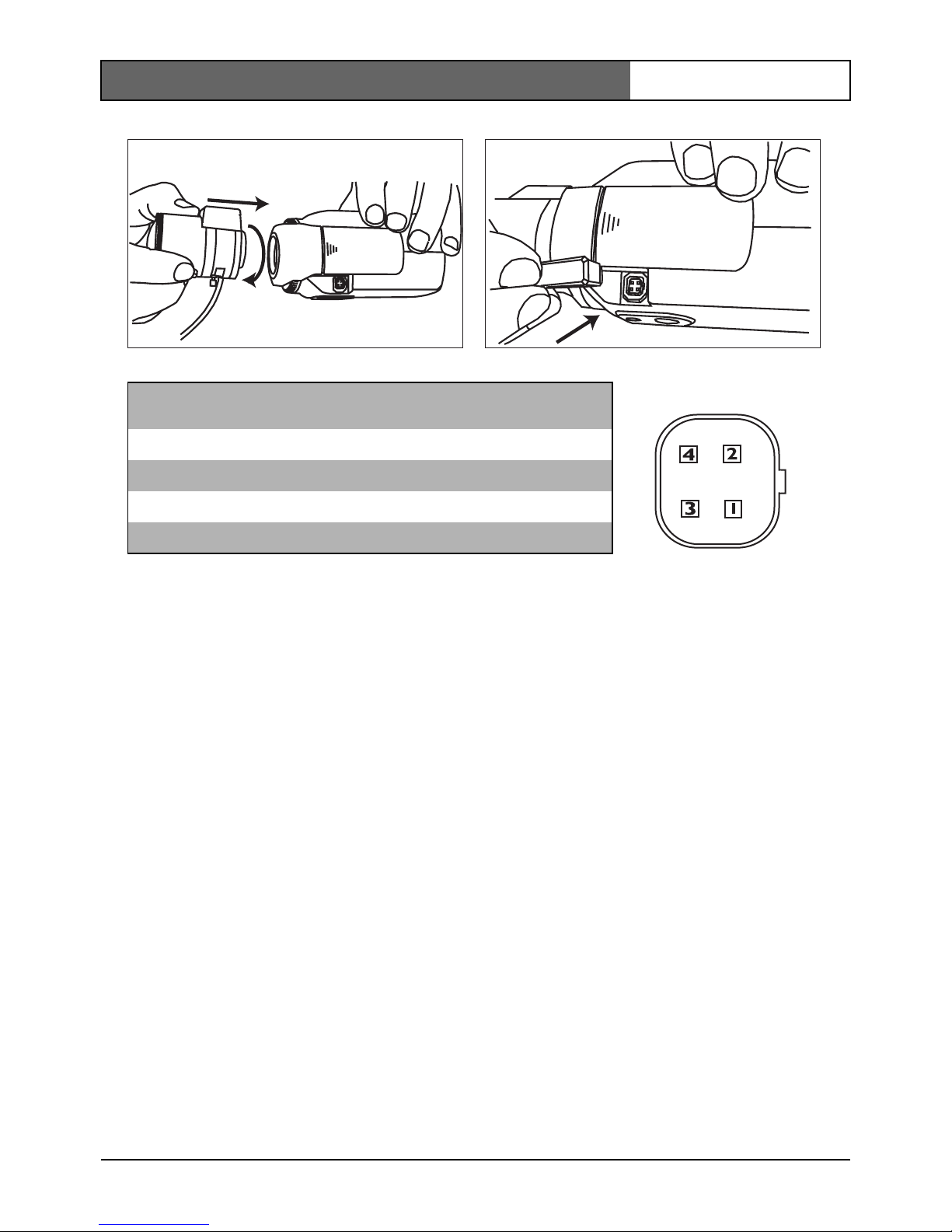

Back focus adjustment
To optimize picture sharpness in both bright and low-level lighting, adjust
the back focus. Use the camera's unique Lens Wizard (see Advanced Set-
up). This ensures that the object of interest always remains in focus even
when focusing at the maximum lens opening.
When back focusing vari-focus lenses, adjust to obtain a sharp picture in
both wide-angle and tele positions for both far and near focus.
When back focusing zoom lenses, ensure the object of interest remains in
focus throughout the entire zoom range of the lens.

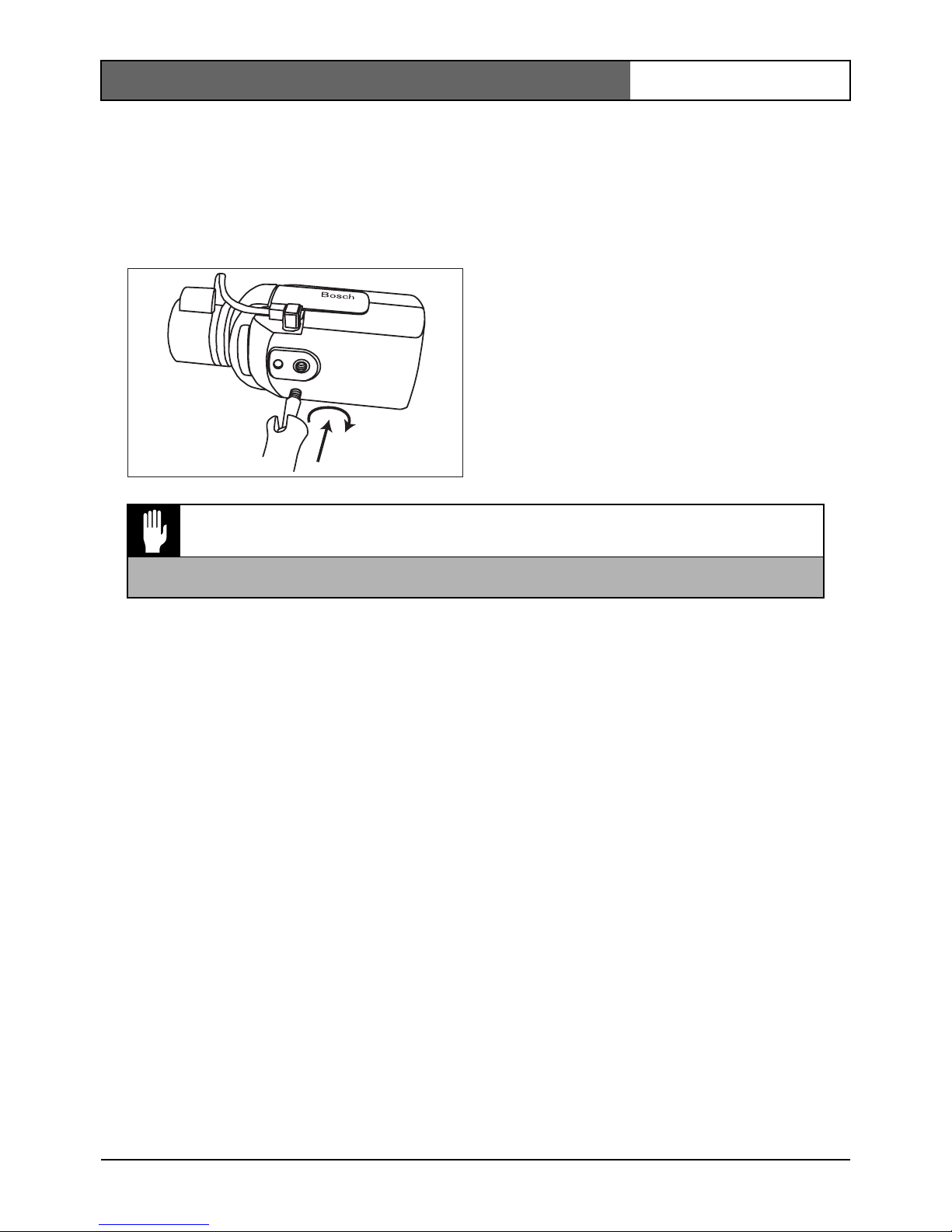

To adjust back focus:
1. Open the slide door at the side of the camera
2. Unlock the back focus locking button.
3. Turn the back focus adjustment as required.
4. Lock the back focus locking button.
Bosch
Bosch
Bosch
DinionXFD_Nv1_0.book Page 11 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 12
Mounting the camera
The camera can be mounted from the top or bottom. The bottom
mounting is isolated from ground. With outdoor scenes, a DC-iris lens is
recommended.
Day/Night switching
The DinionXF Day/Night Camera is equipped with a motorized IR filter.
The IR filter can be removed in low-light or IR illuminated applications.
If Auto switching mode is selected, the camera automatically switches the
filter depending on the observed light level. The switching level is
programmable. In Auto switching mode the camera prioritizes motion (the
camera gives sharp images without motion blur as long as the light level
permits) or color (the camera gives color pictures as long as the light level
permits). The camera recognizes IR illuminated scenes to prevent
unwanted switching to color mode.
There are four different methods of switching:
• via the alarm input,
• via Bilinx™ communication,
• as part of the programmable mode profile, or
• automatically, based on the observed light levels.
Caution
Do not point the camera/lens into direct sunlight.
DinionXFD_Nv1_0.book Page 12 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 13
Advanced Set-up
The DinionXF Day/Night normally provides an optimal picture without the
need for further adjustments. However, advanced set-up options are
available for getting the best results from the camera under special
circumstances. There are two main menus; a Mode menu and an Installer
menu.
The camera has three pre-programmed operating modes that can be
selected in the Mode menu. These modes are pre-programmed by default
but you can adjust them according to your preferences. The Mode menu
allows you to select and set-up the picture enhancement functions for each
mode. If you are not happy with your changes, you can always recall the
default values for the mode.
The camera also has an Installer menu in which the installation settings
can be set.
The Mode and Installer menus have functions that can be selected
directly or submenus for more detailed set-up.
Accessing and navigating menus
Five keys, located behind the side panel, are used for navigating through
the various menus.
To access the set-up menus, press the menu/select key (center).
The main menu appears on the OSD. Use the arrow keys for navigation.
When the Bilinx™ communications link is active, the buttons on the
camera are disabled. You can also set up Bilinx™ so that the camera
buttons remain disabled even when Bilinx™ is not actively controlling the
camera. This prevents unauthorized change of the camera settings.
Bosch
Bosch
DinionXFD_Nv1_0.book Page 13 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 14
Menu Structure
Mode
Mode
ALC
Enhance
Color
BLC
VMD
Mode ID
Defaults
Exit
ALC
ALC level
Shut/Gain
Peak / average
ALC speed
Shut/Gain
Shutter
Defshut
Sens up
Gain
Max. gain
Day/Night
ENHANCE
Autoblack
Blacklevel
Contour
DNR
XF-dynamic
Day/Night
Switch level
Priority
IR Contrast
Mono burst
COLOR
White balance
WB speed
R-gain
G-gain
B-gain
Saturation
BLC
BLC
BLC level
BLC area
Area
VMD
VMD
Area
Active
Motion
Sensitivity
Area
DEFAULTS
Confirm
DinionXFD_Nv1_0.book Page 14 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 15
Installer
Lens Wizard
I/O
Sync
Camera ID
Defaults
Exit
Lens wizard
Lens type
Detected
Set back focus
Set level
I/O
Sync input
Communication
Cable comp
Comp level
Alarm
Alarm
Alarm in
Active
Action
Alarm out
Sync
Sync
Detected sync
V phase
H phase
Subphase
Camera ID
Camera ID
ID position
MAC address
All Defaults
Confirm
DinionXFD_Nv1_0.book Page 15 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 16
Hints for menu navigation
How to use the 5 keys
• Press the menu/select key to access the menus or to move to the next
or previous menu.
• Press the menu/select key for approximately 1.5 seconds to open the
Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set parameters.
• When in a menu, quickly pressing the menu/select key twice restores
the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item and
hold down the menu/select key until the menu display disappears.

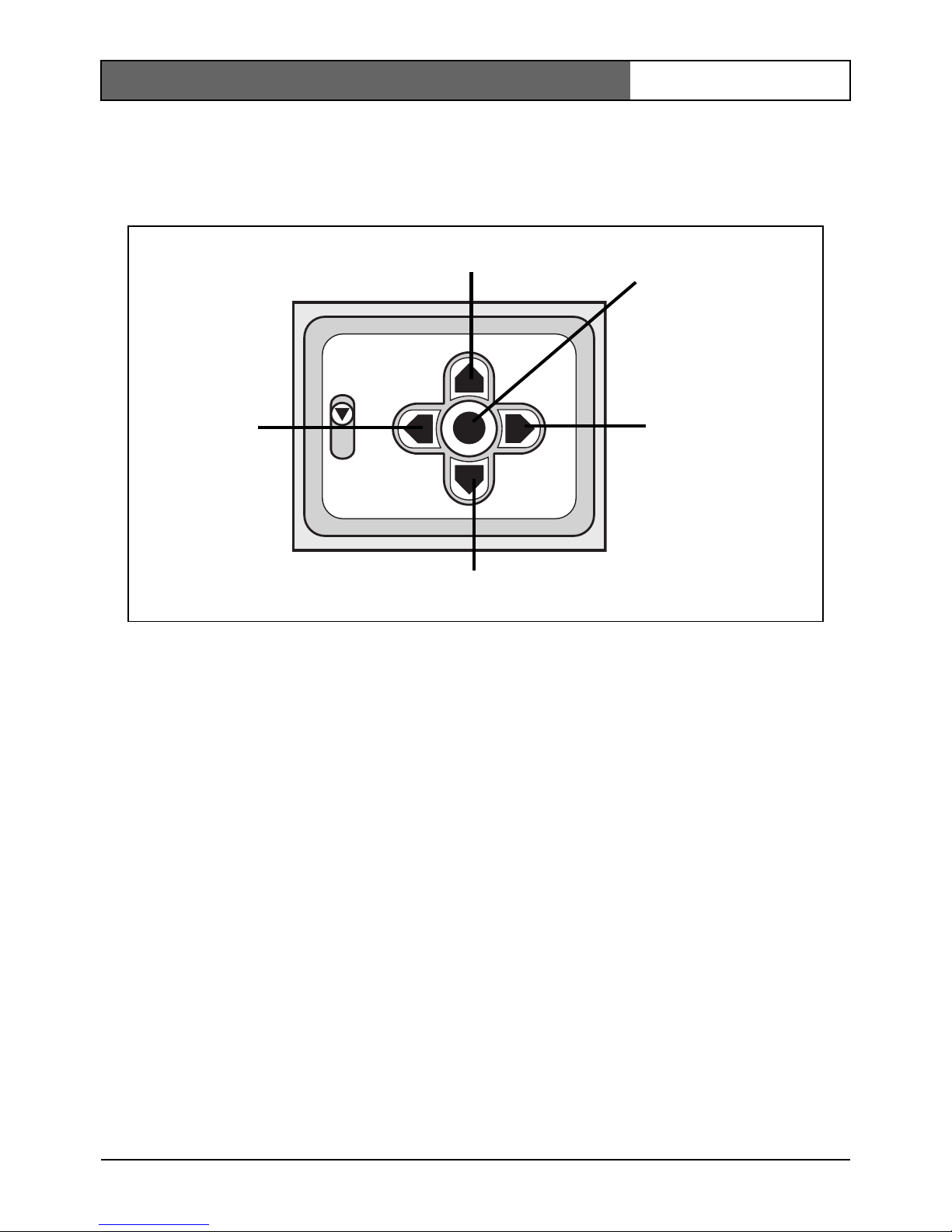

Lock
Menu/select key
Right key
Down key
Up key
Left key
DinionXFD_Nv1_0.book Page 16 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 17
Mode menu
ALC submenu
Function Selection Description
MODE 1, 2, 3 Select operating mode
ALC Select submenu Select to access the video level control menu
ENHANCE Select submenu Select to access the picture enhancement menu
COLOR Select submenu Select to access the color control menu
BLC ON, OFF,
Select submenu
•To enable Back Light Compensation (BLC)
operation set to ON
•Select to access the BLC menu
VMD OFF, SIL, OSD
Select submenu
•To enable Video Motion Detection (VMD)
operation set to SIL (silent) or OSD (monitor
alarm generates on-screen message)
•Select to access the VMD menu
MODE ID 10 character string Editable name for the selected mode
DEFAULTS Select submenu Return all settings for the selected mode to
factory defaults
EXIT Exit the menu
Function Selection Description
ALC LEVEL -15 - 0 - +15 Adjusts the video output level
SHUTGAIN Select submenu Select to access the Shutter and Gain control
menu
PEAK
AVERAGE
-15 - 0 - +15 Adjust the balance between peak and average
video control
ALC SPEED Slow, Medium, Fast Adjust the speed of the video level control loop.
EXIT Return to MODE menu
DinionXFD_Nv1_0.book Page 17 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 18
ALC --> Shutter/Gain submenu
Note
If SENS UP is active, some noise or spots may appear in the picture. This
is normal camera behavior. SENS UP may cause some motion blur on
moving objects.
If the camera is in monochrome mode, all color related menu items are
disabled and cannot be accessed.
Function Selection Description
SHUTTER AES, FL, FIXED •AES - auto-shutter - the camera automatically
sets the optimum shutter speed for manual iris
lenses
•FL - flickerless mode avoids interference from
light sources (recommended for use with video
iris or DC iris lenses only)
•FIXED - allows a user defined shutter speed
DEFSHUT 1/60 (1/50), 1/100,
1/120, 1/250,
1/500, 1/1000,
1/2000, 1/5000,
1/10K
Only available if SHUTTER is AES. The camera
tries to maintain the selected shutter speed as
long as the light level of the scene permits.
FIX SHUT 1/60 (1/50), 1/100,
1/120, 1/250,
1/500, 1/1000,
1/2000, 1/5000,
1/10K
Only available if SHUTTER is FIXED. Selects
shutter speed.
SENSUP OFF, 2x, 3x, …,10x Selects the factor by which the sensitivity of the
camera is increased.
GAIN AGC, FIXED •In AGC mode the camera automatically sets the
gain to the lowest possible value needed to
maintain a good picture
•In FIXED mode the gain is set at a predefined
not scene dependent value
MAXGAIN 0, 1, ... 26 Available in AGC mode only. Selects the
maximum value the gain can have during AGC
operation.
FIXGAIN 0, 1, ... 26 Available in FIXED gain operation only. Selects
the gain setting.
DAY/NIGHT Select submenu Select to access the day/night control menu
EXIT Return to the ALC menu
DinionXFD_Nv1_0.book Page 18 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 19
Day/Night submenu
Enhance submenu
Function Selection Description
DAY/NIGHT COLOR,
MONO,
AUTO
• In COLOR mode the camera will always give a color image.
•In MONO mode the IR filter is removed, giving full IR
sensitivity in a monochrome image.
•In AUTO mode the camera switches the filter depending
on the scene illumination level.
LEVEL -15 - 0 - +15 To set the video level at which the camera switches to
monochrome operation in AUTO DAY/NIGHT mode.
PRIORITY COLOR,
MOTION
In AUTO mode:
•COLOR: the camera gives a color image as long as the
light level permits.
•MOTION: the camera avoids motion blur as long as the
light level permits.
IR
CONTRAST
NORMAL,
ENHANCED
•In ENHANCED mode the camera will optimize contrast
in applications with high IR illumination levels.
•In NORMAL mode the camera will optimize contrast in
mono application with visible light illumination.
MONO
BURST
ON, OFF •If selected OFF The Color Burst in the video signal is
switched OFF in monochrome mode of the camera.
•If selected ON the Color Burst remains active even in
Monochrome mode of the camera.
EXIT Return to Shutter/Gain submenu.
Function Selection Description
AUTO BLACK ON, OFF Autoblack ON automatically increases the
visibility of details
BLK LEVEL -50, ... 0, ...+50 Adjusts the black level between 0 and approx
110mV. Zero position of slider corresponds to the
factory default black level
CONTOUR -15 - 0 - +15 Adjusts the sharpness of the picture. 0
corresponds to the default position.
DNR (dynamic
noise reduction)
AUTO, OFF In AUTO mode the camera automatically reduces
the noise in the picture. This may cause some
motion blur on moving objects.
XF-DYN (dynamic
range enhancement)
OFF, LOW,
MID, HIGH
In XF-DYN mode the camera automatically
optimizes the contrast in the picture.
EXIT Return to Mode menu
DinionXFD_Nv1_0.book Page 19 Friday, January 7, 2005 10:56 AM

DinionXF | Installation Manual
Bosch Security Systems | 2004-01 | V1.0
EN | 20
Color submenu
Back Light Compensation (BLC) submenu
Selecting an area
To set-up an area for BLC (or VMD), access the area menu by selecting the
AREA option from the BLC (or VMD) menu. Upon entering the AREA
Function Selection Description
WHITE
BALANCE
ATW, MANUAL,
AWB HOLD
•ATW: Auto tracking white balance allows the
camera to constantly adjust for optimal color
reproduction.
•AWB HOLD: Puts the ATW on hold and saves
the color settings.
•In MANUAL mode the Red, Green and Blue gain
can be manually set to a desired position
WB SPEED Slow, Medium, Fast Adjust the speed of the white balance control
loop.
RED gain -5 - 0 - +5 •ATW mode and AWB hold mode: adjusts the
Red gain to optimize the white point.
BLUE gain -5 - 0 - +5 •ATW mode and AWB hold mode: adjusts the B
gain to optimize around the white point.
RED
GREEN
BLUE
-50 - 0 - +50 Controls all the colors individually for manual
white balance only.
SAT +15, … 0, … +5 Adjusts the color saturation. -15 will lead to a
monochrome image
EXIT Return to Mode menu
Function Selection Description
BLC ON, OFF When ON, the video level is optimized for the
selected area of the image. Parts outside this area
may be underexposed or overexposed (this is
normal).
BLC LVL -15,..0,..+15 BLC LEVEL adjust the balance between the
selected BLC area and its surrounding.
AREA Select submenu Select to access the Back Light Compensation
area menu (see selecting an area).
EXIT Return to Mode menu
DinionXFD_Nv1_0.book Page 20 Friday, January 7, 2005 10:56 AM
