Bosch LTC0485/11 User manual

DinionXF – LTC 0 610 & LT C 0 4 8 5 s e r i e s c a m e r a s
Installation Instructions
15-bit digital color camera
EN
Manuel d’installation
Caméra numérique couleur
15 bits
FR
Installationshandbuch
15-Bit digitale Farbkamera
DE
Installatiehandleiding
15-bits digitale kleurencamera
NL
Manual de instalación
Cámara digital en color de
15 bits
ES
Manuale di installazione
Telecamera digitale a colori
15 bit
IT
Manual de Instalação
Câmara digital policromática
de 15 bits
PT
安装说明
15 位数码彩色摄像机
ZH
DinionXFFrontPage.fm Page 1 Friday, January 21, 2005 4:13 PM

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 3
SAFETY PRECAUTIONS
Important Safeguards
1. Read these instructions.
2. Keep these instructions.
3. Comply with all warnings.
4. Follow all instructions.
5. Do not use this equipment near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers,
stoves, or other equipment (including amplifiers) that produce heat.
Danger
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's enclosure
that may be of sufficient magnitude to constitute a risk to persons.
Warning
The exclamation mark within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Caution
To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 4
9. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding type plug has two blades and a third grounding prong. Both
the wide blade and the third prong are provided for your safety. If the
supplied plug does not fit into your outlet, consult an electrician for
advice.
10. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
equipment.
11. Only use attachments/accessories specified by the manufacturer.
12. Unplug this equipment during lightning storms or when unused for
long periods of time.
13. Refer all servicing to qualified service personnel. Servicing is required
when the equipment has been damaged in any way, such as when
power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the equipment, the equipment has been
exposed to rain or moisture, does not operate normally, or has been
dropped.
14. An all-pole mains switch with a contact separation of at least 3mm in
each pole shall be incorporated in the electrical installation of the
building.
Warning
To reduce the risk of fire or electric shock, this apparatus should
not be exposed to rain or moisture and objects filled with liquids,
such as vases, should not be placed on this apparatus.

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 5
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Note
Any change or modification of the equipment, not expressly approved by
Bosch authorization, could void the user's authority to operate the
equipment. For additional information or to speak to a representative,
please contact the Bosch Security Systems location nearest to you or visit
our web site at www.boschsecuritysystems.com

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 6
Introduction
The DinionXF is a high-performance smart surveillance color camera. It
incorporates 15-bit digital signal processing for outstanding picture
performance under all lighting conditions. The DinionXF is easy to install
and ready to use, and offers the best solution for demanding scene
conditions. Features include:
• Three pre-programmed operation modes
• Noise elimination, true color reproduction
• Adaptive dynamic range optimization
• Bilinx™ bi-directional coaxial communications
• Genlock including sub-carrier locking
• Enhanced video motion detection
Type number overview
Type number LTC
0610/11
LTC
0610/21
LTC
0610/51
LTC
0610/61
Standard PAL NTSC PAL NTSC
Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz
CCD type 1/2"
Type number LTC
0485/11
LTC
0485/21
LTC
0485/51
LTC
0485/61
Standard PAL NTSC PAL NTSC
Supply voltage 24 VAC or 12 VDC 230 VAC 50Hz 110 VAC 60Hz
CCD type 1/3"
Caution
Ensure that your power supply matches the rated voltage of your
camera before installing.

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 7
Unpacking
Unpack carefully and handle the equipment with care. The packaging
contains:
• DinionXF camera
• CCD protection cap
• Spare lens connector (male)
• These instructions
Note
If equipment appears to have been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 8
Connections
Power
Low voltage versions High voltage versions
For low voltage cameras:
• push in the tabs to open the quick-connectors (these connections are
not polarity sensitive).
• use AWG16 to 22 stranded wire or AWG16 to 26 solid wire; cut back
10mm (0.4") of insulation.
Composite video
VIDEO
SVHS
SYNC
DC 12V
AC 24V
ALARM
10mm
VIDEO
SVHS
SYNC ALARM
VIDEO
SVHS
SYNC
DC 12V
AC 24V
ALARM
VIDEO
SVHS
SYNC ALARM

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 9

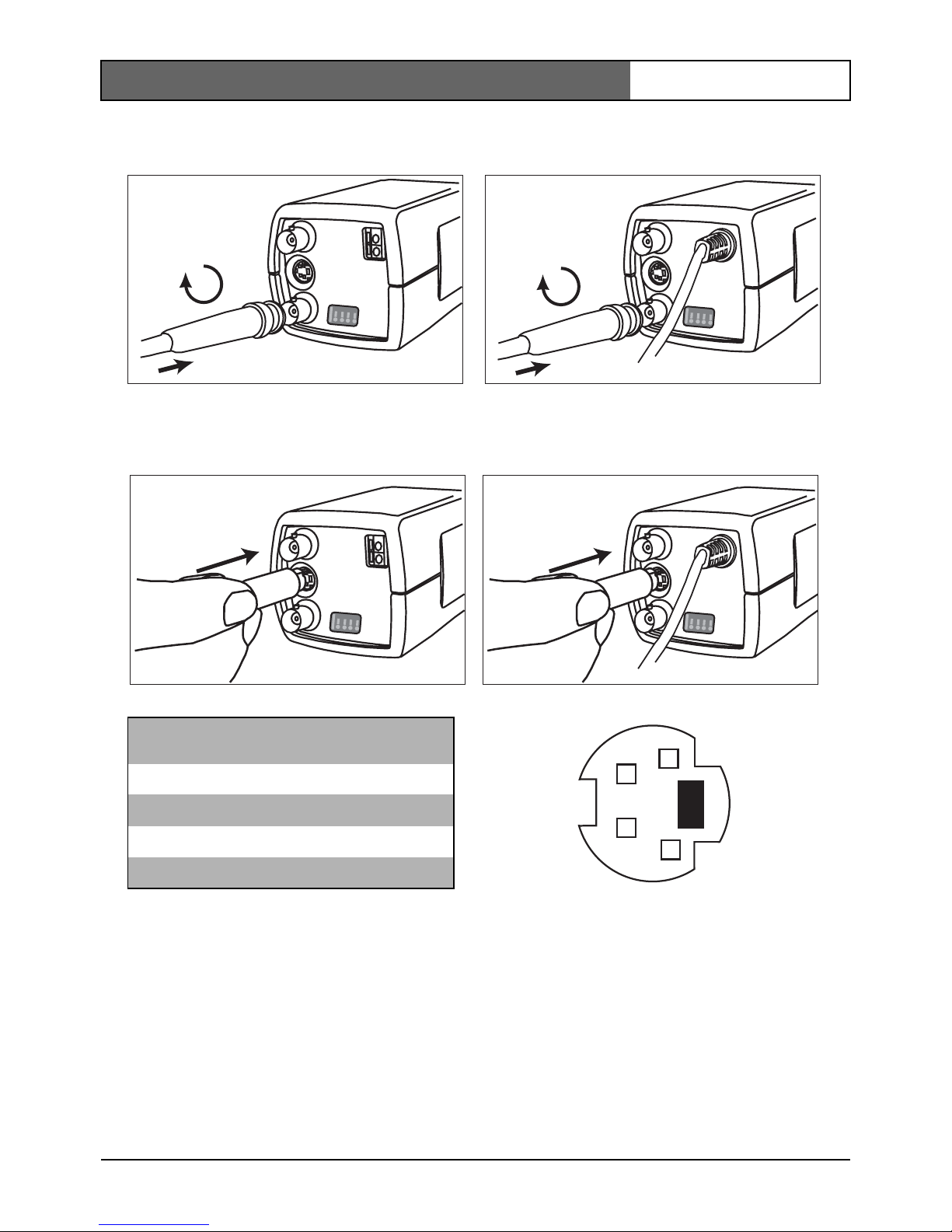

Sync
Y/C
VIDEO
SVHS
SYNC
DC 12V
AC 24V
ALARM
VIDEO
SVHS
SYNC ALARM
VIDEO
SVHS
SYNC
DC 12V
AC 24V
ALARM
VIDEO
SVHS
SYNC ALARM
1
2
4
3
Pin Y/C socket
1GNDY
2GND C
3Y
4 C

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 10

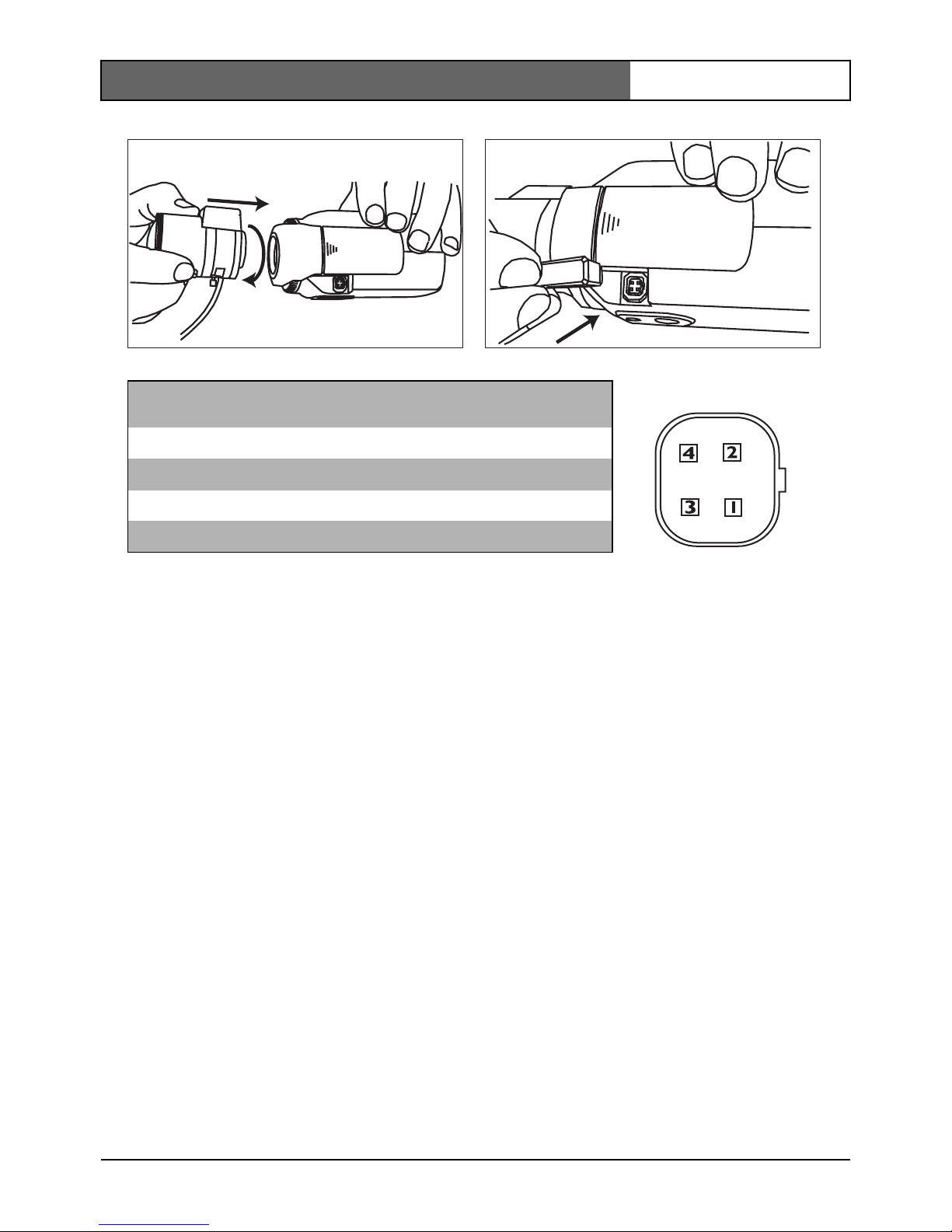

Alarm connector
• Max. wire diameter AWG 22-28 for both stranded and solid
• Default relay position n.o. (normally open), no alarm
• Alarm output relay switching capability: Max voltage 30VAC or
+40VDC. Max 0.5 A continuous, 10VA.
• Alarm in: TTL logic, +5V nominal, +40VDC max, DC coupled with
22kΩpull-up to +3.3V
• Alarm in: configurable as active low or active high
• Max. 42V allowed between camera ground and each of the relay pins.
Lens mounting
The camera accepts both C and CS-mount lenses. DC-iris lenses are
recommended for the best picture performance. The camera automatically
detects the type of lens used and optimizes performance accordingly.
A spare male lens connector is provided.
Caution
To avoid damaging the CCD sensor when using a C-mount lens,
turn the red back focus ring counterclockwise until it stops (see
back focus adjustment) before mounting the lens.
Lenses weighing more than 0.5 kg (1.1lbs) must be separately
supported.
Alarm
Pin 1 Pin 4
Pin Alarm socket
1 Ground
2Alarm in
3 Relay out contact 1
4Relay out contact 2

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 11
Note
If a short circuit is detected on the lens connector, the on-screen display
(OSD) failure message LENS SHORT CIRCUIT is shown. The lens circuit
is automatically disabled to avoid internal damage. Remove the lens
connector and check the pin connections.
Bosch
Bosch
Pin Video iris lens DC iris lens
1 Supply (11.5V ±0.5, 50mA max.) Damp -
2Not used Damp +
3 Video signal 1Vpp 1kOhm Drive +
4Ground Drive -

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 12
Back focus adjustment
To optimize picture sharpness in both bright and low-level lighting, adjust
the back focus. Use the camera's unique Lens Wizard (see Advanced Set-
up). This ensures that the object of interest always remains in focus even
when focusing at the maximum lens opening.
When back focusing vari-focus lenses, adjust to obtain a sharp picture in
both wide-angle and tele positions for both far and near focus.
When back focusing zoom lenses, ensure the object of interest remains in
focus throughout the entire zoom range of the lens.
To adjust back focus:
1. Open the slide door at the side of the camera
2. Unlock the back focus locking button.
3. Turn the back focus adjustment as required.
4. Lock the back focus locking button.
Bosch
Bosch
Bosch

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 13
Mounting the camera
The camera can be mounted from the top or bottom. The bottom
mounting is isolated from ground. With outdoor scenes, a DC-iris lens is
recommended.
Caution
Do not point the camera/lens into direct sunlight.

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 14
Advanced Set-up
The DinionXF normally provides an optimal picture without the need for
further adjustments. However, advanced set-up options are available for
getting the best results from the camera under special circumstances. There
are two main menus; a Mode menu and an Installer menu.
The camera has three pre-programmed operating modes that can be
selected in the Mode menu. These modes are pre-programmed by default
but you can adjust them according to your preferences. The Mode menu
allows you to select and set-up the picture enhancement functions for each
mode. If you are not happy with your changes, you can always recall the
default values for the mode.
The camera also has an Installer menu in which the installation settings
can be set.
The Mode and Installer menus have functions that can be selected
directly or submenus for more detailed set-up.

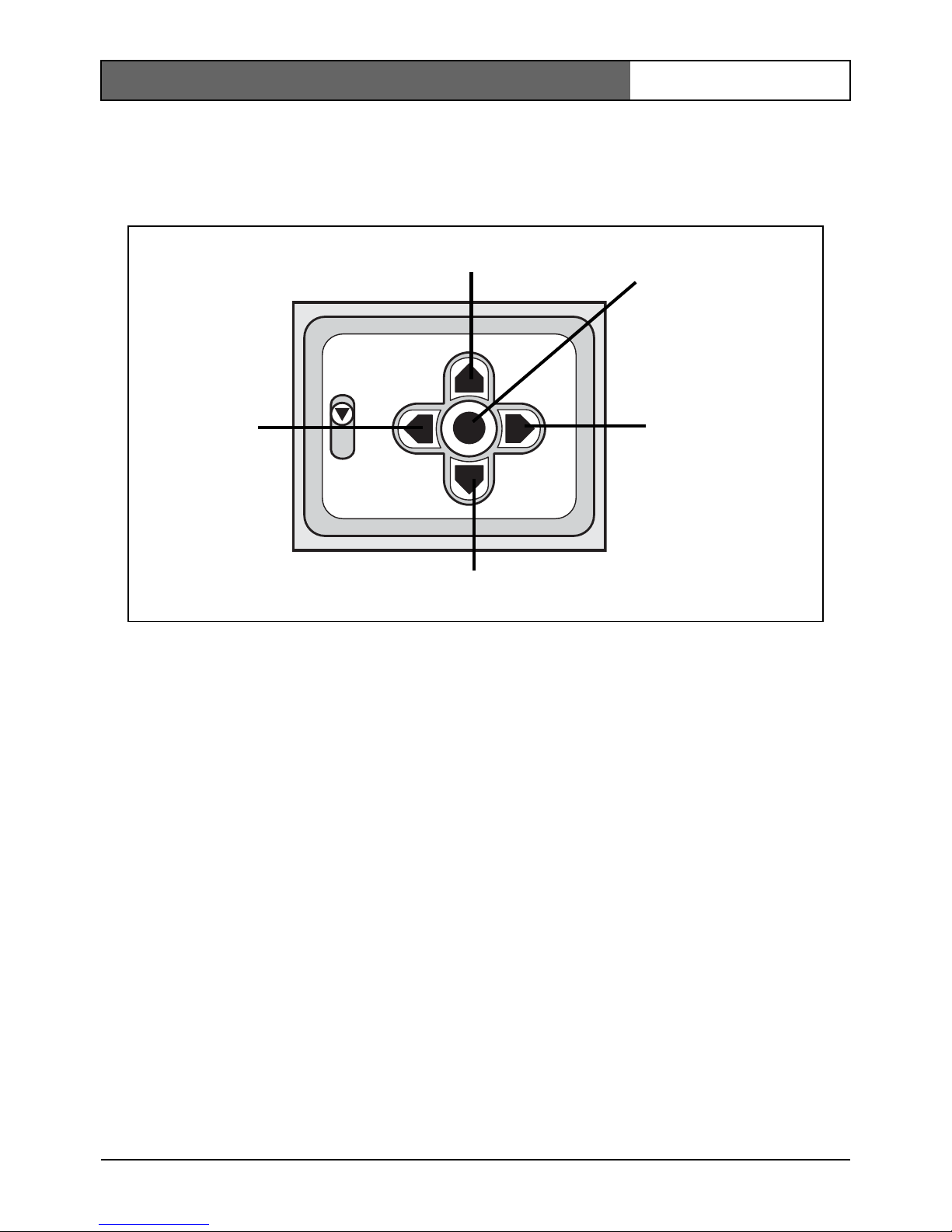

Accessing and navigating menus
Five keys, located behind the side panel, are used for navigating through
the various menus.
To access the set-up menus, press the menu/select key (center).
The main menu appears on the OSD. Use the arrow keys for navigation.
When the Bilinx™ communications link is active, the buttons on the
camera are disabled. You can also set up Bilinx™ so that the camera
buttons remain disabled even when Bilinx™ is not actively controlling the
camera. This prevents unauthorized change of the camera settings.
Bosch
Bosch

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 15
Menu Structure
MODE
ALC
ENHANCE
COLOR
BLC
VMD
MODE ID
DEFAULTS
MODE x ALC
ALC LEVEL
SHUT/GAIN
PEAK / AVERAGE
ALC SPEED
MODE x SHUTGAIN
SHUTTER
DEFSHUT
SENS UP
GAIN
MAX GAIN
NIGHTSENSE
MODE X ENHANCE
AUTO BLACK
BLACK LEVEL
CONTOUR
DNR
XF-DYNAMIC
MODE X COLOR
WHITE BALANCE
WBSPEED
R GAIN
G-GAIN
B-GAIN
SATURATION
MODE X BLC
BLC
BLC LEVEL
BLC AREA
MODE X VMD
VMD
AREA
ACTIVE
MOTION
SENSITIVITY
MODE X DEFAULTS
CONFIRM

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 16
INSTALL
LENS WIZARD
I/O
SYNC
CAMERA ID
DEFAULTS
INSTALL LENS WIZARD
LENS TYPE
DETECTED
SET BACK FOCUS
SET LEVEL
INSTALL I/O
SYNC INPUT
COMMUNICATION
CABLE COMP
COMP LEVEL
ALARM
INSTALL I/O ALARM
ALARM IN
ACTIVE
ACTION
ALARM OUT
INSTALL SYNC
SYNC
DETECTED SYNC
V PHASE
H PHASE
SUB PHASE
INSTALL CAMERA ID
CAMERA ID
ID POSITION
MAC ADDRESS
ALL DEFAULTS
CONFIRM

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 17
Hints for menu navigation
How to use the 5 keys
• Press the menu/select key to access the menus or to move to the next
or previous menu.
• Press the menu/select key for approximately 1.5 seconds to open the
Installer menu.
• Use the up or down keys to scroll up or down through a menu.
• Use the left or right keys to move through options or to set parameters.
• When in a menu, quickly pressing the menu/select key twice restores
the selected item to its factory default.
• To close all menus at once from any menu, select the Exit item and
hold down the menu/select key until the menu display disappears.
Lock
Menu/select key
Right key
Down key
Up key
Left key

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 18
Mode menu
ALC submenu
Function Selection Description
MODE 1, 2, 3 Select operating mode
ALC Select submenu Select to access the video level control menu
ENHANCE Select submenu Select to access the picture enhancement menu
COLOR Select submenu Select to access the color control menu
BLC ON, OFF,
Select submenu
•To enable Back Light Compensation (BLC)
operation set to ON
•Select to access the BLC menu
VMD OFF, SIL, OSD
Select submenu
•To enable Video Motion Detection (VMD)
operation set to SIL (silent) or OSD (monitor
alarm generates on-screen message)
•Select to access the VMD menu
MODE ID 10 character string Editable name for the selected mode
DEFAULTS Select submenu Return all settings for the selected mode to
factory defaults
EXIT Exit the menu
Function Selection Description
ALC LEVEL -15 - 0 - +15 Adjusts the video output level
SHUTGAIN Select submenu Select to access the Shutter and Gain control
menu
PEAK
AVERAGE
-15 - 0 - +15 Adjust the balance between peak and average
video control
ALC SPEED Slow, Medium, Fast Adjust the speed of the video level control loop.
EXIT Return to MODE menu

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 19
ALC --> Shutter/Gain submenu
Function Selection Description
SHUTTER AES, FL, FIXED •AES - auto-shutter - the camera automatically
sets the optimum shutter speed for manual iris
lenses
•FL - flickerless mode avoids interference from
light sources (recommended for use with video
iris or DC iris lenses only)
•FIXED - allows a user defined shutter speed
DEFSHUT 1/60 (1/50), 1/100,
1/120, 1/250,
1/500, 1/1000,
1/2000, 1/5000,
1/10K
Only available if SHUTTER is AES. The camera
tries to maintain the selected shutter speed as
long as the light level of the scene permits.
FIX SH UT 1/60 (1/50), 1/100,
1/120, 1/250,
1/500, 1/1000,
1/2000, 1/5000,
1/10K
Only available if SHUTTER is FIXED. Selects
shutter speed.
SENSUP OFF, 2x, 3x, …,10x Selects the factor by which the sensitivity of the
camera is increased.
GAIN AGC, FIXED •In AGC mode the camera automatically sets the
gain to the lowest possible value needed to
maintain a good picture
•In FIXED mode the gain is set at a predefined
not scene dependent value
MAXGAIN 0, 1, ... 28 Available in AGC mode only. Selects the
maximum value the gain can have during AGC
operation.
FIXGAIN 0, 1, ... 28 Available in FIXED gain operation only. Selects
the gain setting.
NIGHTSENSE OFF, FORCED,
AUTO
Nightsense™ extends the low-light performance
of the camera.
•In AUTO mode, the camera automatically inches
to monochrome in low-light conditions.
•In FORCED mode, the camera remains in high-
sensitivity monochrome operation.
EXIT Return to the ALC menu

DinionXF | Installation Manual
Bosch Security Systems | 2003-10 | V0.5
EN | 20
Note
If SENS UP or NIGHTSENSE is active, some noise or spots may appear in
the picture. This is normal camera behavior. SENS UP may cause some
motion blur on moving objects.
If GAIN is set to FIXED, NIGHTSENSE will not become active.
If NIGHTSENSE is active, all color related menu items are disabled and
cannot be accessed.
Enhance submenu
Color submenu
Function Selection Description
AUTO
BLACK
ON, OFF Autoblack ON automatically increases the
visibility of details
BLK LEVEL -50, ... 0, ...+50 Adjusts the black level between 0 and approx
110mV. Zero position of slider corresponds to the
factory default black level
CONTOUR -15 - 0 - +15 Adjusts the sharpness of the picture. 0
corresponds to the default position.
DNR AUTO, OFF In AUTO mode the camera automatically reduces
the noise in picture. This may cause some motion
blur on moving objects.
XF-DYN OFF, LOW, MID,
HIGH
In XF-DYN mode the camera automatically
optimizes the contrast in the picture.
EXIT Return to MODE menu
Function Selection Description
WHITE
BALANCE
ATW, MANUAL,
AWB HOLD
•ATW: Auto tracking white balance allows the
camera to constantly adjust for optimal color
reproduction.
•AWB HOLD: Puts the ATW on hold and saves
the color settings.
•In MANUAL mode the Red, Green and Blue gain
can be manually set to a desired position
WB SPEED Slow, Medium, Fast Adjust the speed of the white balance control
loop.
RED gain -5 - 0 - +5 •ATW mode and AWB hold mode: adjusts the
Red gain to optimize the white point.
