Bosch EX7 User manual

INSTALLATION
INSTRUCTIONS
EX7/8
Ceiling / Wall Mount Camera
MAN-7-8-05
IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.
2. Keep this instruction.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with manufacturer instructions.
8. Do not install near any heat sources such as
radiators, heat registers, stoves or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized
or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong is
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the power where they exit from
the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with
the apparatus. When a cart is used, use caution
when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has
been damaged in a way, such as power-supply
cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture,
does not operate normally, or has been dropped.

IMPORTANT
For best results, please read this Instruction Booklet
prior to installing the EX7/8 Camera
WARNING !
CSA Certified / UL Listed CLASS 2 power adaptors must
be used in order to comply with electrical safety standards.
Bosch Security Systems, Inc. will not be responsible for
injuries or damages resulting from the
improper installation or use of any product
sold by Bosch Security Systems, Inc their agents,
distributors or dealers.

NOTE: This equipment has been tested and found to
comply with the limits for a digital device, pursuant to part
15 of the FCC rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. As part of its’ normal operation this
device can generate radio frequency energy and if not
installed and used in accordance with the installation
manual may cause interference to radio communications.
However, there is no guarantee that interference will not
occur on a particular installation. If the device does cause
interference to radio or television reception the user is
encouraged to try to correct the interference by one or more
of the following measures:
1) Fit Ferrite beads on all cable to and from the power
supply box, within the box walls.
2) Route the composite cable between the camera and the
power supply in steel conduit piping over the entire run of
the cable up to and including connection to a deep conduit
base fitted under the camera and a conduit fitting adaptor in
the wall of the PSU box.
3) Contact BOSCH Service Center for further advice.
INDEX PAGE

Description……………………………………………..….1
Unpacking……………………………………………..…..2
Parts List…………………………………………………..2
Items Required for Installation…………………………..2
Initial Preparations………………………………………..3
Guidelines…………………………………………………3
Mechanical Specifications……………………………….4
SECTION
1. Camera Housing –
Internal Modules, Locations and Access…………..5
2. Power Input Wiring Connections……………………6
3. Mounting – Camera Housing………………………..7
4. Camera Lens – Settings and Adjustments…………9
5. Camera Re-Assembly………………………………..13
6. Troubleshooting Guide……………………………….14
7. Mounting Hole Template ……………………………16
8. General Specifications ………………………………17

- 1 -
DESCRIPTION
The EX7/8 Ceiling or Wall Mount Camera features one
or two CCD sensors to view “coming and going” images.
This is ideal for use in prison corridors, school hallways
and underground parking garages. The camera is
extremely durable due to its welded metal housing
shape and polycarbonate viewing windows. The EX7/8
is also weatherproof, making it perfect for outdoor use.
Cameras are available in monochrome & color.
Voltage regulator circuits automatically allow 12V dc or
24V ac operation without any wiring changes. Its’ wider
voltage range also provides protection from voltage
surge, transient spikes, and reverse voltage.
The difference between the EX7 and the EX8 is the EX7
Camera is a single sensor version and the EX8 is a dual
sensors version.

- 2 -
UNPACKING
Care should be taken when unpacking the shipped unit.
Check the parts list and confirm all items have been located.
Inspect the equipment thoroughly to ensure nothing was
damaged in transit.
Contact BOSCH Service Center if a problem is noted, see
the rear page of this booklet for contact numbers.
PARTS LIST (items supplied with unit)
Camera unit.
One security Allen key.
Installation Instructions.
ITEMS REQUIRED FOR INSTALLATION (not supplied)
Phillips screwdriver.
Small slotted screwdriver.
Hardware for camera mounting (bolts, etc.)

- 3 -
INITIAL PREPARATIONS
•Determine the operating voltage at the installation
site. The camera‘s Voltage Regulator Board
accepts both 12VDC and 24VAC input without
change to internal connections.
See Section 2, Input Power Connections.
•Determine the optimum location for the camera.
See Section 3, Mounting-Camera Housing.
•The factory default is set for ceiling mount. For
unique designation wall mount, see section 4.
•All cameras have been tested prior to shipment.
The factory default is set for ceiling mount. After
the wiring has been reconnected, it is advisable to
check the camera’s operation before installation.
GUIDELINES
Four requirements must be met before the EX7/8 can
be installed. The sections listed below will aid the
installer in setting up the camera for these requirements.
Section 2. Power Input Wiring Connections
Section 3. Mounting-Camera Housing
Section 4. Camera Lens – Settings and Adjustments
Section 5. Camera Re-Assembly

- 4 -
MECHANICAL SPECIFICATIONS
(See Section 8 - General Specifications, for more
information)
SIDE VIEW
FRONT VIEW

- 5 -
1. CAMERA HOUSING – INTERNAL MODULES,
LOCATIONS and ACCESS
Step 1.1 - Remove the four security screws holding the
welded housing to the chassis assembly. Use the
supplied Allen key.
Step 1.2 - Carefully separate the housing from the chassis
assembly, ensuring the wires are not displaced
and the camera lens is not damaged.
FIGURE 1 – 1
Camera Chassis Assembly –
Fixed Lens& Vari Focal “Auto-Iris” Lens
Section 4 explains how to adjust the lens for tilt and
focus.

- 6 -
2. INPUT POWER / VIDEO OUTPUT CONNECTIONS
The camera unit is pre-connected with an electrically
isolated power boards for 24VAC or 12VDC operation
with no wiring change or wiring polarity. See Figure 2-1
for wiring details.
Note:
Input voltage is 10.5VDC to 40VDC for DC input.
The AC input range is 12VAC to 28VAC.
NOTE: Section 3 explains the camera’s mounting
procedure. It would be advantageous to the installer if
the power and video wires from their remote source
could be routed into the electrical box at this time. This
would make the connections to the camera easier
during the mounting process.

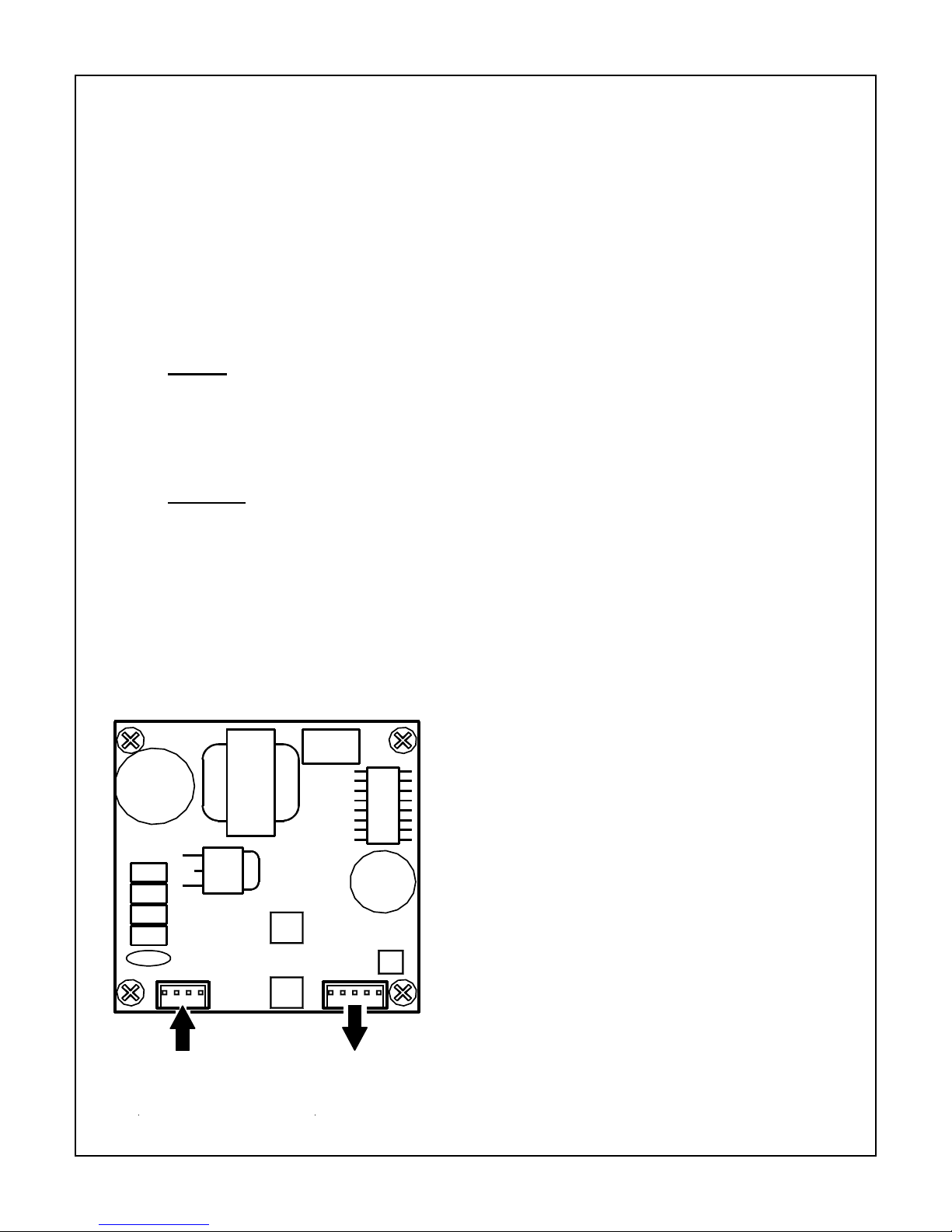

FIGURE 2-1
12VDC or 24VAC
Electrically Isolated
Board
Power
IN Power OUT

- 7 -
3. MOUNTING – CAMERA HOUSING
Caution: Ensure the selected location is protected from
falling objects, accidental contact with moving objects,
and unintentional interference from personnel. Follow all
applicable building codes.
The following installation guidelines must be followed:
•Locate the camera such that it cannot be easily interfered
with, either intentionally or accidentally.
•Select a mounting surface capable of supporting the
combined weight of the camera and mounting hardware
under all expected conditions of vibration and
temperature. Installations on drywall must use #8 screws
and #8 drywall nylon plugs or a superior connection.
•Secure all cabling.
The mounting holes are configured for a single-gang
electrical box or a ceiling electrical box. See Section 7 for
the mounting template.

- 8 -
Step 3.1 Feed the camera’s power & video cables through
the foam gasket at the bottom of the camera
chassis.
Step 3.2 Connect these cables to the power & video cables
that have been routed from their remote location
into the electrical box.
Step 3.3 Mount the camera housing to the electrical box
and ceiling as shown in Figure 3-1 below.

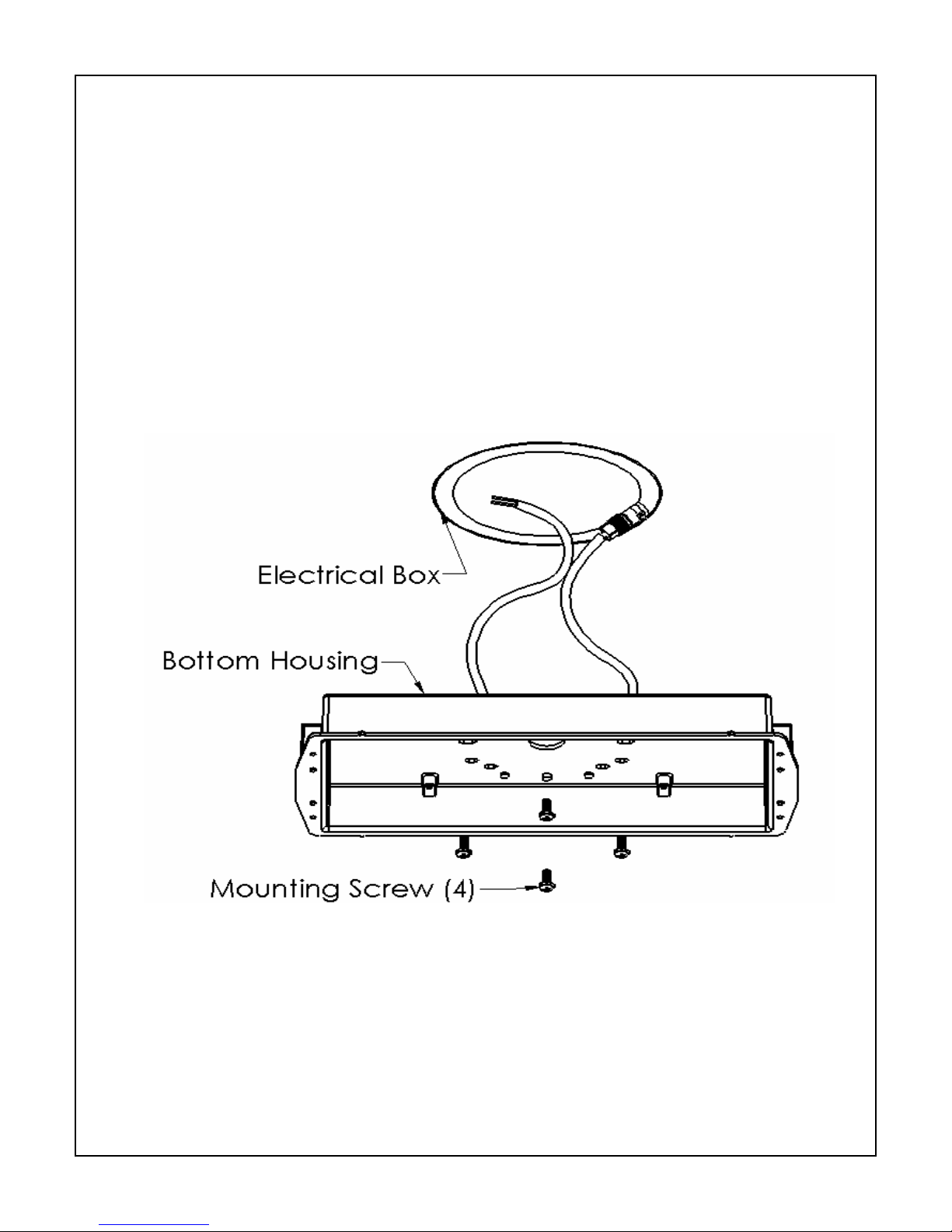

FIGURE 3 – 1
Camera Chassis Mounting (Camera / Lens Assembly not
shown for clarity)

- 9 -
4. CAMERA LENS – SETTINGS and ADJUSTMENTS
For optimum picture quality, the lens should be as close
as possible to the inside face of the viewing window, without
touching.
For unique designation wall mount, rotate the camera to
desire location.
Power should be applied when performing the following
adjustments.
4.1 Lens Clearance and Tilt Adjustments
Step 4.1.1 - Loosen the screws which secure the camera’s
“slide and tilt” bracket.
Step 4.1.2 -Slide the bracket to its new location, tilt the lens
and re-tighten the screws. See Figures 4-1 .
FIGURE 4 – 1
Tilt and Slide Adjustments –
Fixed Lens& Vari Focal “Auto-Iris” Lens
Rotate for unique
designation

- 10 -
4.2 Vari Focal and “Auto-Iris” Control Adjustments
Step 4.2.1 - Loosen the lens set screws for focus/zoom
adjustments. See Figure 4-2
Step 4.2.2 - The set screw marked N ←→ ∞is used for
image focus.
Step 4.2.3 - The set screw marked T←→ W is used for
telephoto or wide-angle settings.
Step 4.2.4 - Re-tighten the set screws after focus
adjustments have been completed.
Step 4.2.5 - Locate the “Auto-Iris” adjustment controls as
shown in Figure 4-3 and adjust as per Table
A.
FIGURE 4 – 2 Lens Focus Adjustment

- 11 -

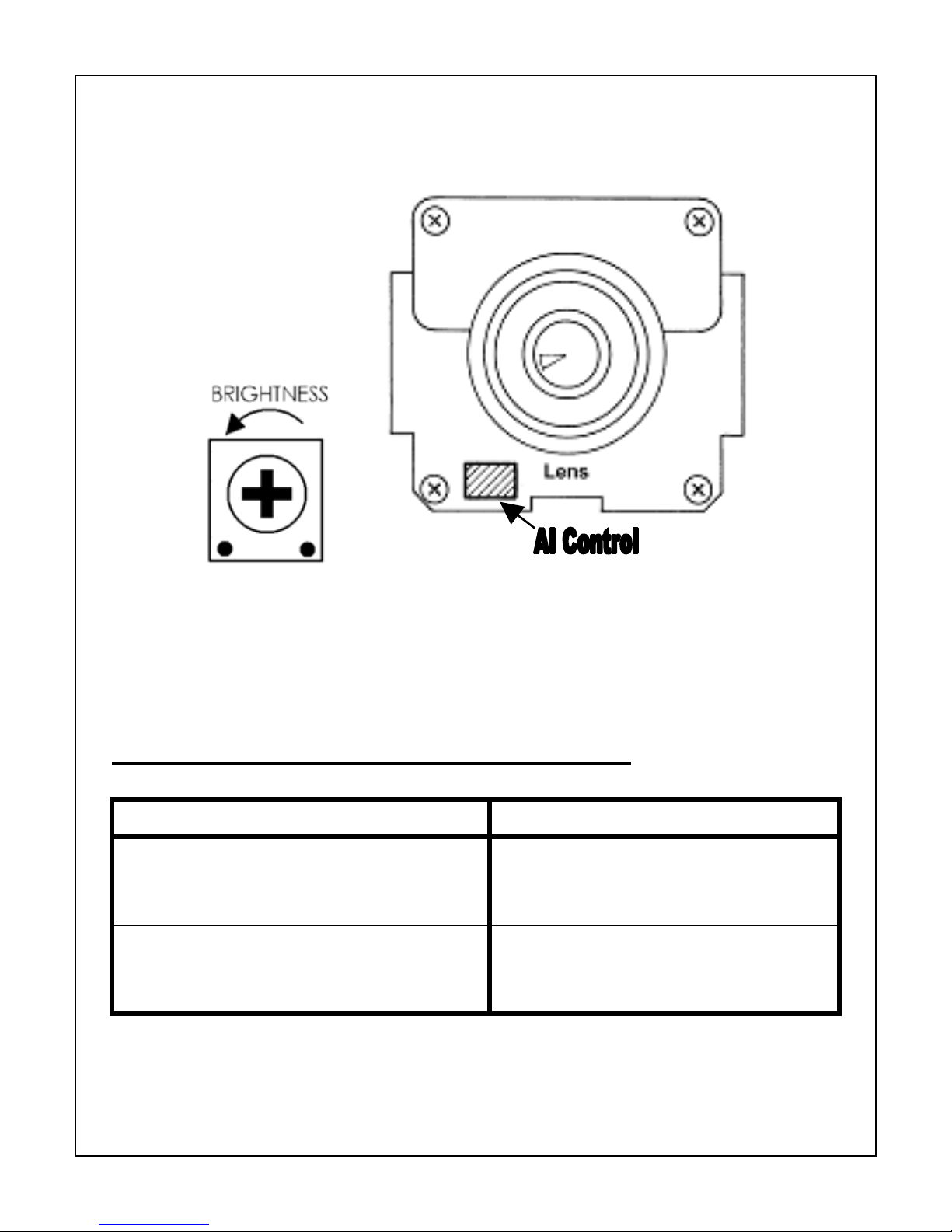

FIGURE 4 – 3
Adjustments, AI Control
Table A – Brightness Level Adjustment
Brightness LEVEL Adjustment
For a brighter picture Turn towards “H”
For a darker picture Turn towards “L”

- 12 -
Use a Neutral Density filter or Infra-Red Pass filter to cover
the lens during focusing to simulate low light conditions on
scene for correct 24-hour focusing. For camera with vari-
focal lens, the camera should be focused with the lens iris
fully opened to simulate the worst possible depth of field.
Using a Neutral Density filter or Infra-Red Pass filter will
ensure the iris is fully open for correct setup and adjustment.
Note that statement above is applicable only for Day/Night or
IR version cameras.

- 13 -
5. CAMERA RE-ASSEMBLY
Make sure all wires are properly connected and tightened
into the terminal blocks, all holes are sealed against
moisture penetration, and all mounting screws are tight.
Step 5.1 -Gently press the camera housing in place. Ensure
the lens is not touching the inside of the viewing
window.
Step 5.2 -Tighten the housing in place with the four security
screws and the supplied Allen key.
Step 5.3 -Wipe the viewing window with a soft cloth to
remove any smudges or dirt.
Step 5.4 -Check the camera for proper operation.

- 14 -
6. TROUBLESHOOTING GUIDE -CAMERA
PROBLEM POSSIBLE
CAUSE
LIKELY SOLUTION
No Video
1. Power
Supply:
-Connections
-Voltage
Range
2. Video
Connections
Check the input power
connections at the terminal
block, ensuring no wires are
loose.
The supply range is:
12 – 28VAC OR
10.5 – 40VDC.
Measure the voltage at the
terminal block.
Determine if the wiring polarity
at the “Video Connector”
terminal block is correct.
Check BNC connector.
If still no video, connect the
camera directly to the monitor.
Check the video signal. If okay,
the problem is with the
interconnections.
If still no video, contact BOSCH
Service Center. See rear page
