Bosch LTC 1461-21 User manual

FlexidomeXT series
Installatiehandleiding
Vandaalbestendige
dome-
bewakingscamera
Manuale d'installazione
Dome di
sorveglianza
Antivandalismo
Manual de instalação
Dome de vigilância
antivandalismo
NL
IT
PT
Installation manual
Vandal resistant
surveillance dome
Manuel d'installation
Dôme de surveillance
antivandalisme
Installationshandbuch
Vandalismusresistente
Überwachungskuppel
Manual de instalación
Domo de vigilancia
antivandálico
EN
FR
DE
ES

FlexidomeXT | Installation Manual EN | 2
SAFETY PRECAUTIONS
Danger
The lightning flash with arrowhead symbol, within an equilateral
triangle, is intended to alert the user to the presence of
uninsulated “dangerous voltage” within the product's enclosure
that may be of sufficient magnitude to constitute a risk to persons.
Caution
To reduce the risk of electric shock, do not remove cover (or
back). No user-serviceable parts inside. Refer servicing to
qualified service personnel.
Warning
The exclamation mark within an equilateral triangle is intended to
alert the user to the presence of important operating and
maintenance (servicing) instructions in the literature
accompanying the appliance.
Important Safety Instructions
1. Read these Instructions: All the safety and operating instructions
should be read before the unit is operated.
2. Keep these Instructions: The safety and operating instructions should
be retained for future reference.
3. Heed all Warnings: All warnings on the unit and in the operating
instructions should be adhered to.
4. Follow all Instructions: All operating and use instructions should be
followed.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 3
8. Protect the power cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
apparatus.
9. Only use attachments/accessories specified by the manufacturer.
10. Unplug this apparatus during lightning storms or when unused for long
periods of time.
11. Refer all servicing to qualified service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
12. Power Sources: This unit should be operated only from the type of
power source indicated on the marking label. If you are not sure of the
type of power supply you plan to use, consult your appliance dealer.
13. Power Line: An outdoor system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or where
it can fall into such power lines or circuits.
14. Overloading: Do not overload outlets and extension cords as this can
result in a risk of fire or electric shock.
15. Object and Liquid Entry: Never push objects of any kind into this unit
through openings as they may touch dangerous voltage points or short-
out parts that could result in a fire or electrical shock. Never spill liquid
of any kind on the unit.
16. Replacement Parts: When replacement parts are required, be sure the
service technician has used replacement parts specified by the
manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric shock or other
hazards.
17. Safety Check: Upon completion of any service or repairs to this unit,
ask the service technician to perform safety checks to determine that
the unit is in proper operating condition.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 4
FCC Information
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates, uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into and outlet on a circuit different form that
to which the receiver is connected.
• Consult the dealer or an experienced radio/ TV technician for help.
Shielded interface cables and A.C. power cord, if any, must be used in
order to comply with emission limits.
Note
Any change or modification not expressly approved by Bosch of the
equipment authorization could void the user's authority to operate the
equipment. For additional information or to speak to a representative,
please contact the Bosch Security Systems location nearest you or visit our
web site at www.boschsecuritysystems.com
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 5
1 Introduction
The LTC 136x and LTC 146x series FlexidomeXT cameras are small,
discreet, high-security surveillance domes containing high-performance
¼-inch CCD cameras with integral varifocal lenses. The integrated unit is
easily mounted to an electrical box or to a wall or ceiling. The sturdy
construction and high impact resistant polycarbon dome protect the
camera module from damage. The camera comes ready to use and has
line-lock, phase adjustment, and backlight compensation controls to ensure
the highest quality image and performance.
Type number overview
Type number LTC 136x/10LTC 146x/11 LTC 136x/20LTC 146x/21
Standard CCIR
Monochrome
PAL
Color
EIA
Monochrome
NTSC
Color
Rated supply
voltage
12~24 VAC,
50Hz or 12~33 VDC
12~24 VAC,
60Hz or 12~33 VDC
Lens LTC 1361 and LTC 1461: 2.8-6 mm F1.4-360
LTC 1462: 2-4 mm F1.4-360; LTC 1463: 3-6 mm F1.2-360
LTC 1464: 4-9 mm F1.4-360
CCD type 1/4 inch
2 Unpacking
Unpack the equipment carefully and handle with care. The packaging
contains:
• Integrated FlexidomeXT camera/housing unit
• Mounting hardware kit
• Special screwdriver for tamper resistant screw
• Adapter plate
• Lens adjustment cap
• Installation manual
Note
If equipment appears to have been damaged during shipment, repack it in
the original packaging and notify the shipping agent or supplier.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 6
3 Disassembly
The FlexidomeXT camera/housing unit consists of the following parts:
Trim ring
Sealing ring
Dome
Inner liner
Camera module
and mounting
base
Caution
The camera module is a sensitive device and must be handled
carefully. Do not drop when disassembling the unit.
To disassemble the unit proceed as follows:
• Using the special screwdriver, loosen the tamper resistant screw in the
side of the trim ring. (Leave the screw in place.)
• Rotate the trim ring counterclockwise and remove it.
• Unscrew the dome counterclockwise and remove it from the base
together with the sealing ring.
• Remove the inner liner by depressing the two retention tabs near the
base of the liner.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 7
4 Mounting the unit
The unit is mounted in several different ways depending on the type of
surface, whether an electrical box is used and whether the connection is via
the rear or the side (raised from the surface).
Caution
Installation should only be performed by qualified service
personnel in accordance with the National Electrical Code or
applicable local codes.
If the connection is from the side, use the optional raised mounting base
(LTC 1347) and mount the FlexidomeXT onto this base.
Tips
• Use the mounting base as a template to mark the position of the four
screw holes and the center hole for the wires.
• Ensure that the mounting surface is level and smooth so that the rubber
gasket at the back of the mounting base forms a watertight seal.
• Partially screw in two screws for the keyholes and use them to
temporarily hang the camera while the connections are made.
The following drawings show the different ways of mounting the unit.

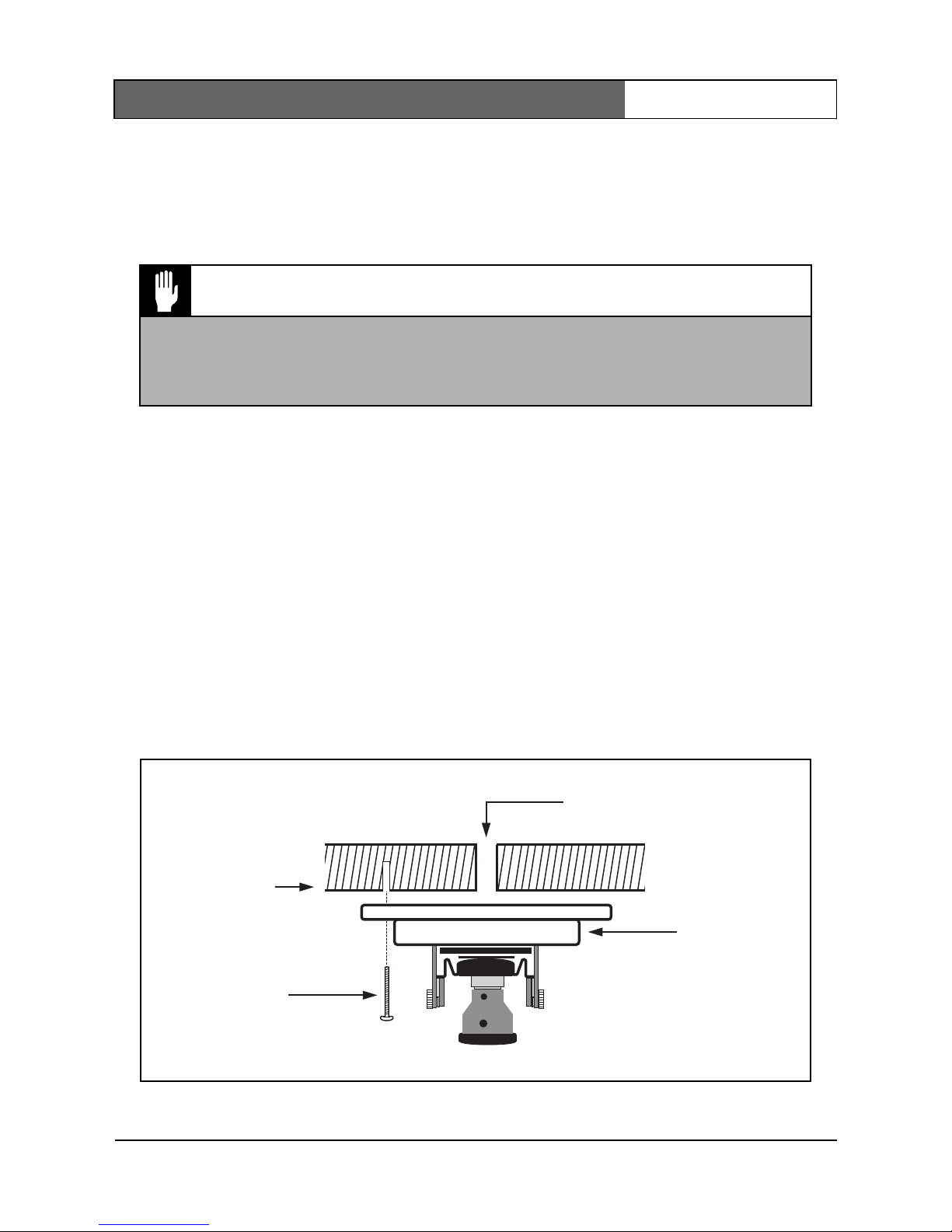

Figure 4-1 Rear connection - solid surface
Wires
Solid surface
(four pre-drilled
8mm holes)
Four screws
(supplied)
Mounting
base
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 8
Figure 4-2 Rear connection - weak surface
Thin surface
(for example, a
suspended ceiling)
Four screws
(M5, not supplied)
Figure 4-3 Connection to an electrical box
Electrical box
Four screws
(M5, supplied)
Mounting base
Adapter plate
Wires
Adapter
plate
Mounting
base
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 9

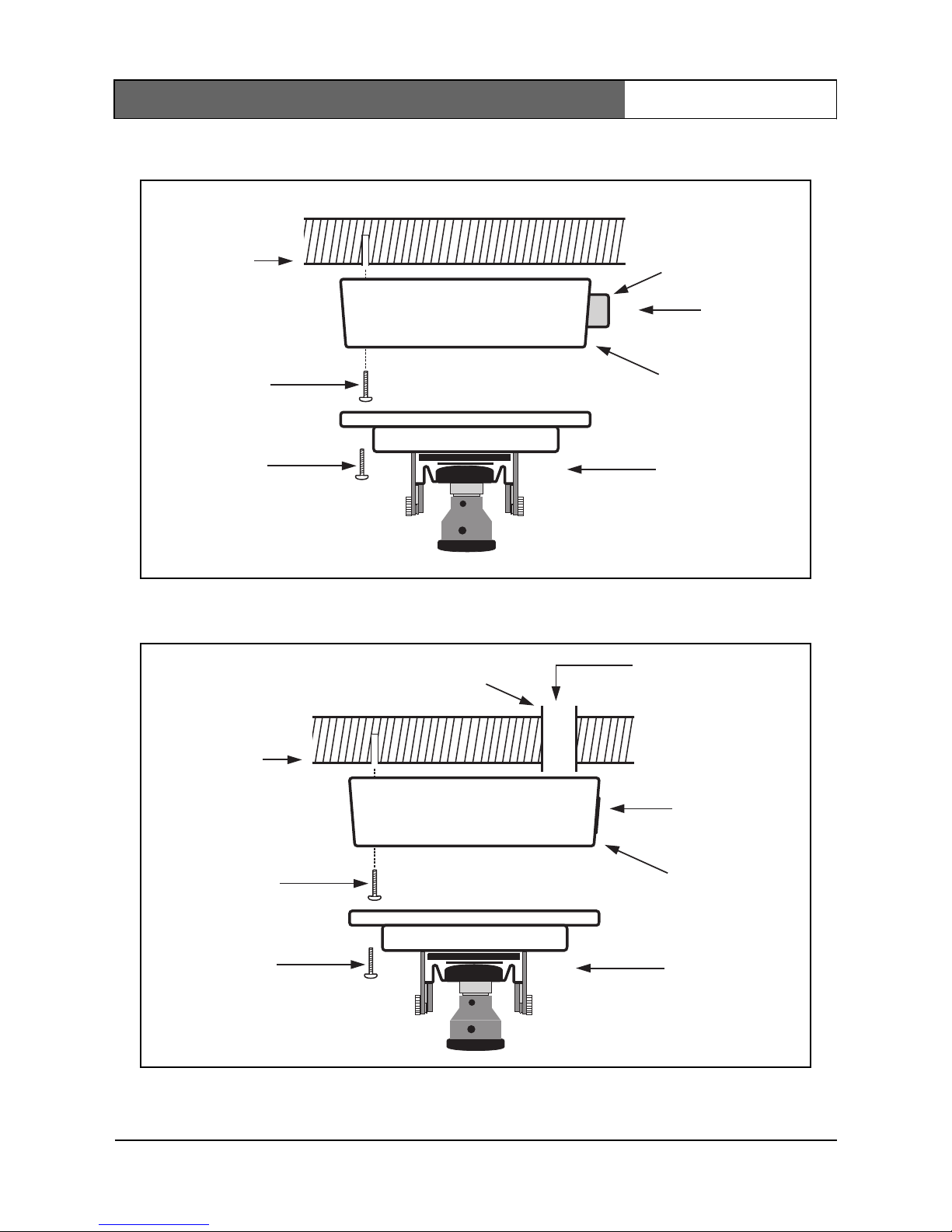

Figure 4-4 Raised mounting - side connection
Wires
Four screws
(M5, supplied)
Raised
mounting base
(LTC 1347/00)
Conduit
grommet
Four screws
(supplied)
Camera unit
and base
Solid surface
(four pre-drilled
8mm holes)
Figure 4-5 Raised mounting - rear connection
Cap
Four screws
(M5, supplied)
Raised
mounting base
(LTC 1347/00)
Conduit
Four screws
(supplied)
Camera unit
and base
Solid surface
(four pre-drilled
8mm holes)
Wires
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 10
Raised mounting - side connection
When using the raised mounting base with a side connection:
• Remove the cap covering the side entrance.
• Use the conduit grommet to attach the conduit to the mounting base.
• Run the power and video wires through separate rubber grommets into
the connection box area.
Raised mounting - rear connection
When using the raised mounting base with a rear connection:
• Leave the cap covering the side entrance in place.
• Run the power and video wires through separate rubber grommets into
the connection box area.
Note
In order to ensure a watertight cable entry, use round cables of between 5
and 6 mm (0.2 - 0.24 inch) for power and video connection.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 11
5 Connection and set-up
Power and video connections
The wiring harness has a BNC connector to accept the video coax cable
(with male BNC connector) and two stripped wires for connection to a low
voltage power source.
Caution
Before proceeding, be sure to disconnect the power from the
cable to be installed into the unit. Be sure that the unit is of the
proper voltage type for the power source being used.
The easiest way to connect the low voltage power lines and the video
connection is as follows:
• Bring the building connections through the surface wire hole so that
they hang clear.
• Partially insert two screws into the pre-drilled holes (or adapter plate).
• Using the keyholes, hang the mounting base on one screw temporarily
and tilt the base slightly to gain access to the cable connections.
• Connect the BNC connector of the camera module to the video coax
cable.
• Connect the stripped power wires to the power supply connector.
Note
For a DC supply the polarity is not important. For an AC supply try to
maintain a consistent wiring polarity in multiple camera systems to help
avoid rolling when switching.
• Push the connections back through the surface wire hole.
• Secure the mounting base to the surface with four screws.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 12
Setting up the camera
You may connect a monitor to the miniature 2.5 mm jack on the printed
circuit board cover to help set up the camera. This jack provides a
composite video signal, via the optional cable S1460 (2.5 mm plug to BNC
female).
Thumbwheels
Monitor jack
V-phase adjust
DIP switches
Focus
Focal length
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 13
DIP switches
Use the four DIP switches on the printed circuitboard to set the following
functions:
1. BLC – Back Light Compensation (factory default: Off)
2. WB – White Balance (factory default: On)
3. NC – Night Sense (factory default: On)
4. LL – Line Lock (factory default: On)
If line lock is set to On, then you can adjust the V-phase to synronize the
picture with other AC powered cameras in the system. Use a small
screwdriver to rotate the V-phase control on the printed circuit board.
Camera positioning
The physical default position of the camera is that the top of the image
corresponds to the indication TOP.
Caution
The CCD image sensors are highly sensitive and require special
care for proper performance and extended lifetime. Do not expose
them to direct sunlight or bright spotlights in operating and non-
operating conditions. Avoid bright lights in the field of view of the
camera.
The camera module position can be adjusted along three axes. When
adjusting the camera position ensure that the picture display on the
monitor is level. Set the camera to the desired position by performing the
following steps:
• For horizontal adjustment, rotate the camera module in the base. Do
not rotate more than 360°.
• For vertical adjustment, loosen thumbscrews, position camera, then
gently tighten thumbscrews to secure camera.
• To obtain a horizontal horizon (for tilted ceilings or sidewall
mounting), rotate the base of the lens as necessary to align the picture
shown on the monitor. Do not rotate more than 360°.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 14
Focal length and focus
Before adjusting, place the adjustment cap on the lens to ensure that the
image sharpness is the same as when the dome is in place.
• To set the field of view of the varifocal lens, loosen the focal length
screw and turn the mechanism until the required view is displayed on
the monitor. (Image goes out of focus.)
• Focus the image on the monitor by loosening the focus screw and
turning the mechanism until the image is in focus.
• Readjust the focal length if necessary.
• Repeat these two adjustments until the desired view is in focus.
• Tighten both screws.
Remove the adjustment cap from the lens and the S1460 adapter cable
from the monitoring jack.
Closing the unit
When the camera position is set and all adjustments have been made, close
the unit.
• Place the inner liner in position and align the opening with the lens.
• Screw the dome into place and if necessary clean its surface with a soft
cloth.
• Place the sealing ring and the trim ring over the dome.
• Align the tamper resistant screw in the trim ring with a thread hole in
the mounting base.
• Use the special screwdriver supplied to tighten the tamper resistant
screw.
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 15
6 Technical specification
Type number LTC 136x/10LTC 146x/11 LTC 136x/20LTC 146x/21
Standard CCIR
Monochrome
PAL
Color
EIA
Monochrome
NTSC
Color
Rated supply
voltage
12-24 VAC, 50Hz or
12-33 VDC
12-24 VAC, 60Hz or
12-33 VDC
Lens LTC 1361 and LTC 1461: 2.8-6 mm F1.4-360
LTC 1462: 2-4mm F1.4-360; LTC 1463: 3-6 mm F1.2-360
LTC 1364 and LTC 1464, 4-9 mm F1.4-360
Imager ¼-inch Interline CCD
Resolution 570 TVL 540 TVL 570 TVL 540 TVL
Video output 1 Vpp, 75 Ohm
BLC BLC ON or OFF selectable
ALC lens DC iris
Power
consumption
<_ 2 W
Weight Camera: 500g (1.1 lbs)
Mounting base: 400g (0.88 lbs)
Operating
temperature
-30 ºC to +50 ºC (-22 ºF to +122 ºF)
Storage
temperature
-40 ºC to +70 ºC (-40 ºF to +158 ºF)
Environmental
protection
IEC 60529, IP66 (NEMA 4)
Impact protection IEC 60068-2-75, 50 Joules
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 16

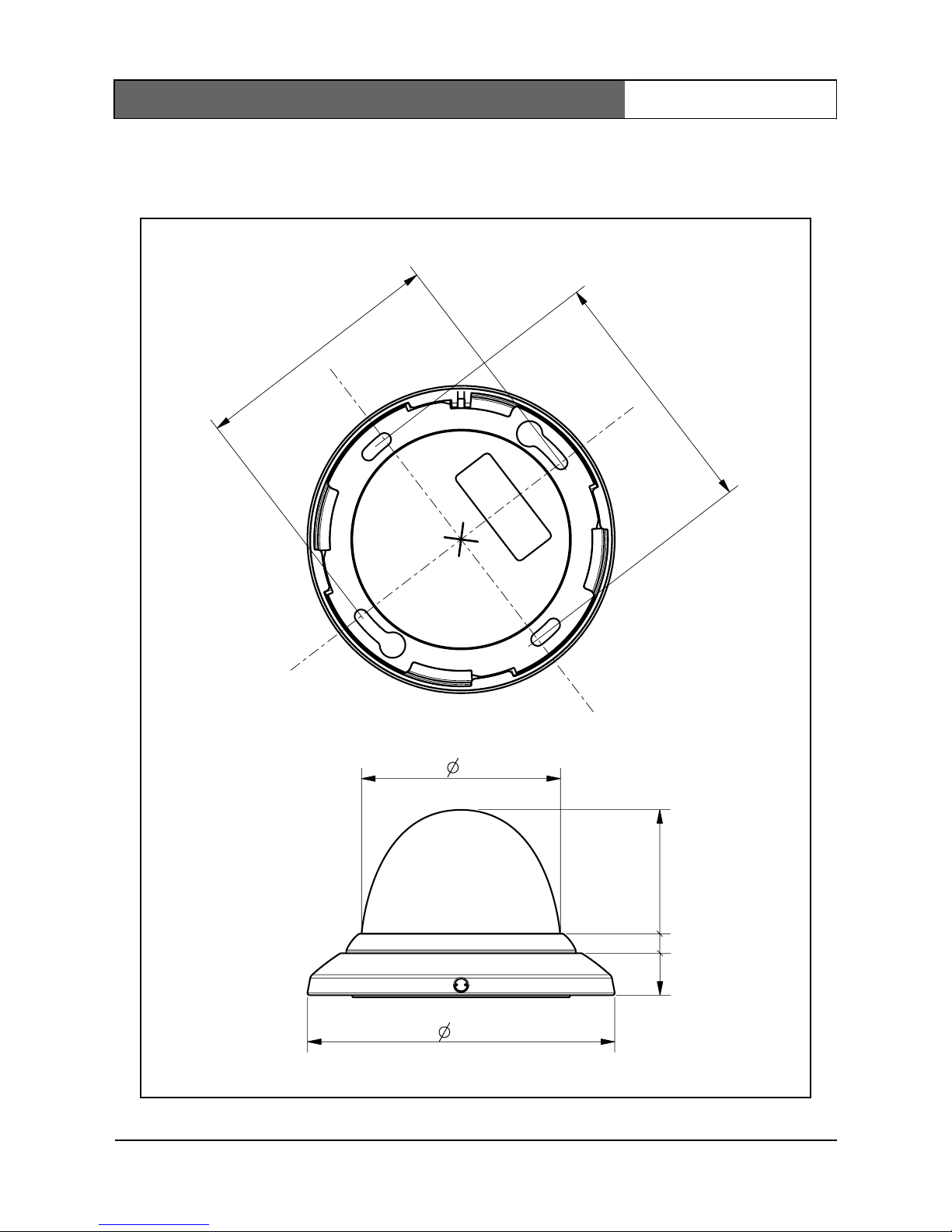

Dimensions (mm)
Figure 6-1 FlexidomeXT
93
144
58920
118
118
(4.65”)
(4.65”)
(3.66”)
(5.67”)
(0.77”) (0.35”) (2.28”)
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 17

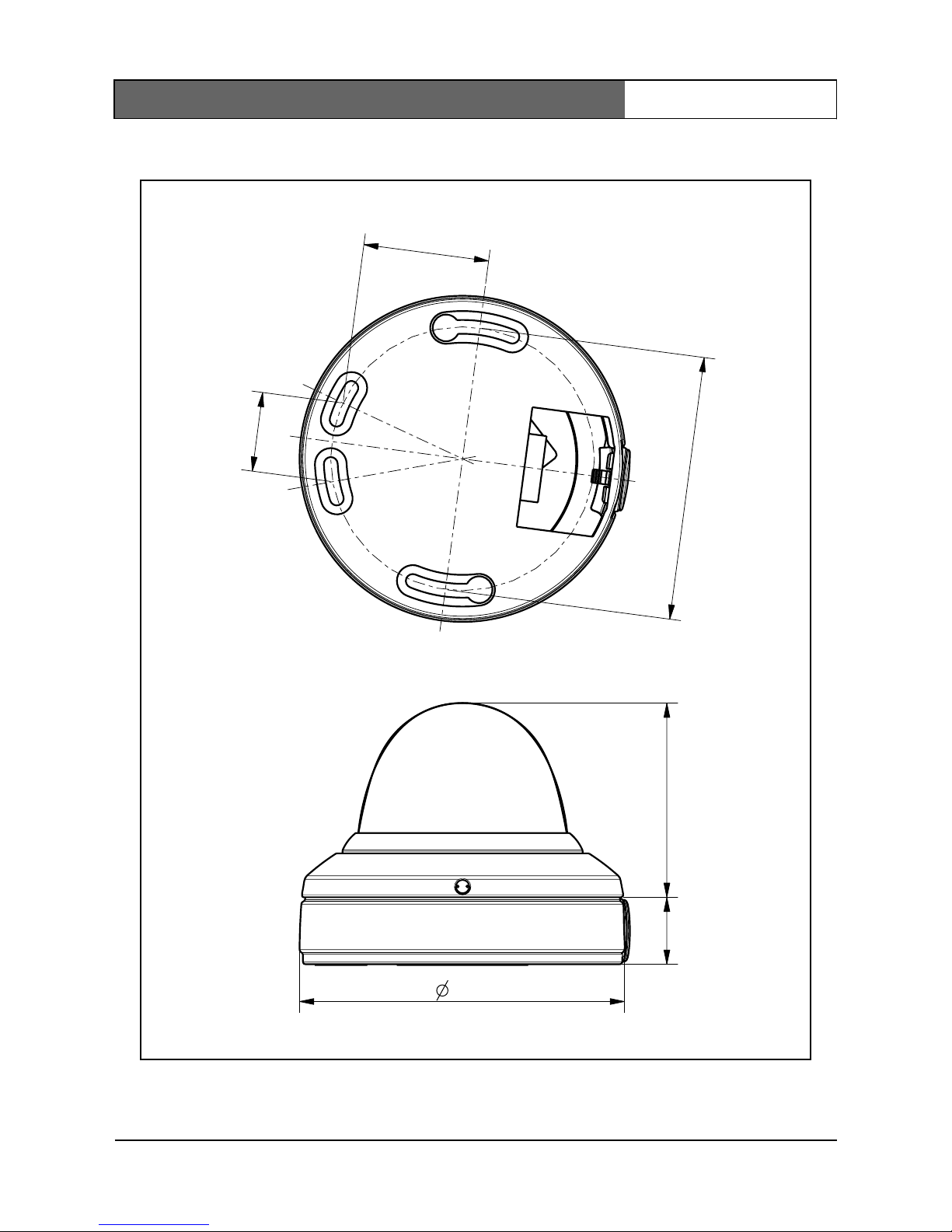

Figure 6-2 FlexidomeXT with LTC 1347 mounting base
146
87
30
56
36
118
(1.42”)
(2.2”)
(4.65”)
(5.75”)
(1.18”) (3.43”)
Bosch Security Systems | 2005-02 | V2.0

FlexidomeXT | Installation Manual EN | 18
Bosch Security Systems | 2005-02 | V2.0

Bosch Sicherheitssysteme GmbH
Ludwig-Bölkow-Allee
85521 Ottobrunn
Germany
www.bosch-sicherheitssysteme.de
© 2005 Bosch Security Systems B.V.
Subject to change. Printed in Portugal.
3122 165 23212 05-05
Bosch Security Systems B.V.
P.O. Box 80002
5600 JB Eindhoven
The Netherlands
www.boschsecuritysystems.com
