DHI 635 H
Internet: http://www.bosch-hausgeraete.de
Bosch Info-Team: de Tel. [phone] (E0,12/Min. DTAG)
Operating and
installation instructions

2

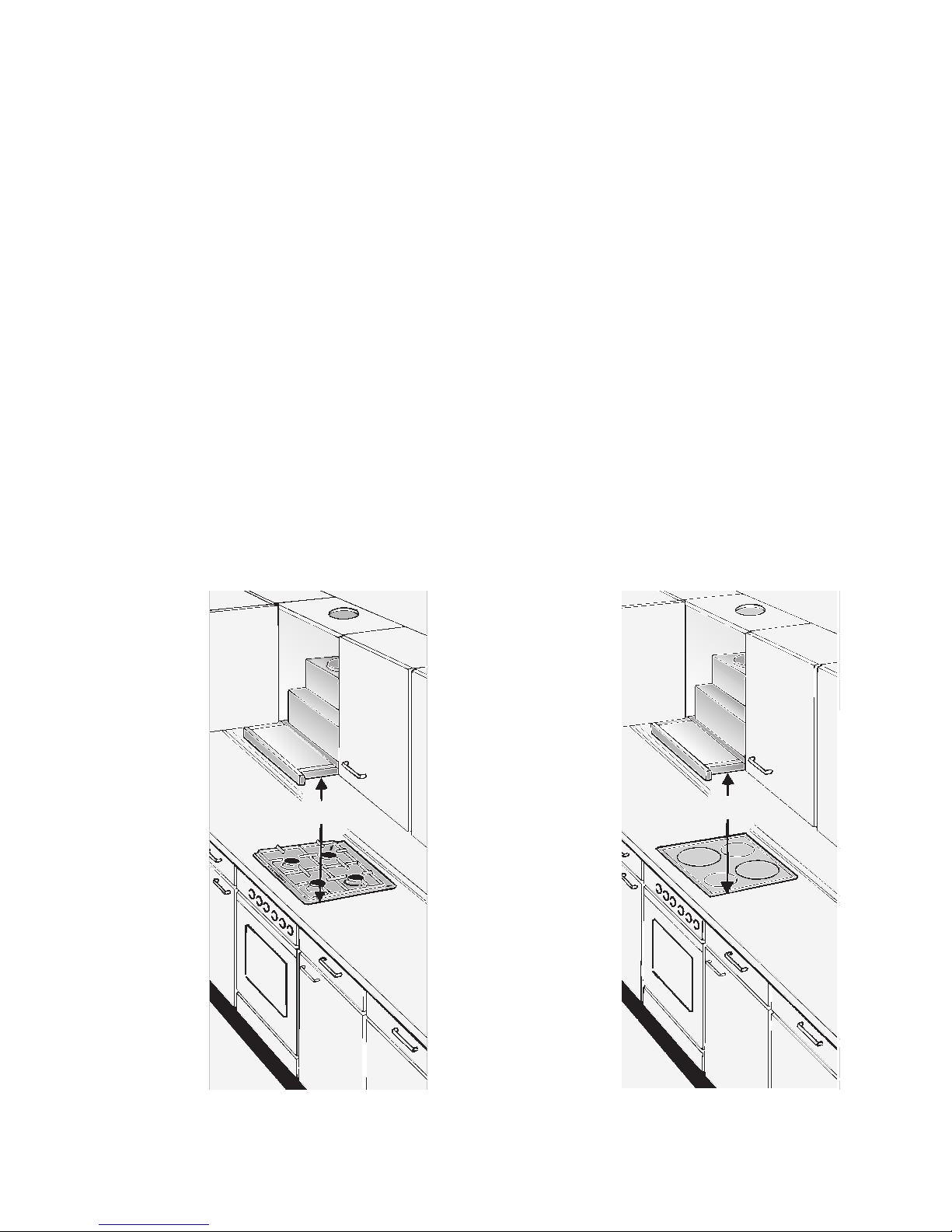

Abb. 1
ELECTRO
Fig. 1
GAZ
mind. 650 min. 430

3
Appliance description
Operating modes

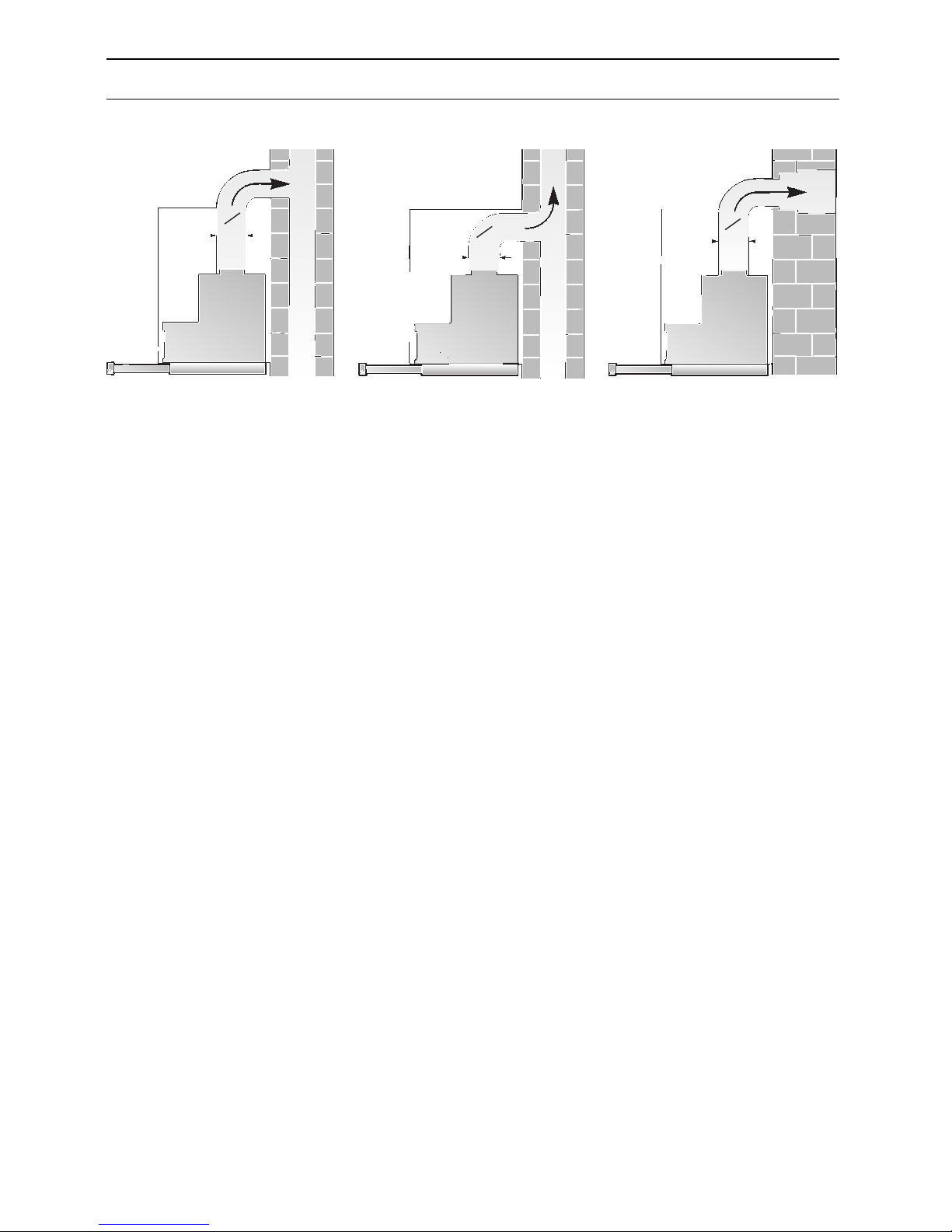

Exhaust-air mode:
❑The extractor-hood fan extracts the
kitchen vapours and conveys them
through the grease filter into the
atmosphere.
❑The grease filter absorbs the solid
particles in the kitchen vapours.
❑The kitchen is kept almost free of grease
and odours.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
Operating modes
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and via the air-
intake/exhaust-air wall box or by other
technical measures, such as reciprocal
interlocking, etc.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself is
no guarantee that the limiting value will not
be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
Unrestricted operation is possible if the
extractor hood is used in recirculating mode
– with activated carbon filter.
Circulating-air mode:
❑An activated carbon filter must be fitted
for this operating mode (see Filters and
maintenance).

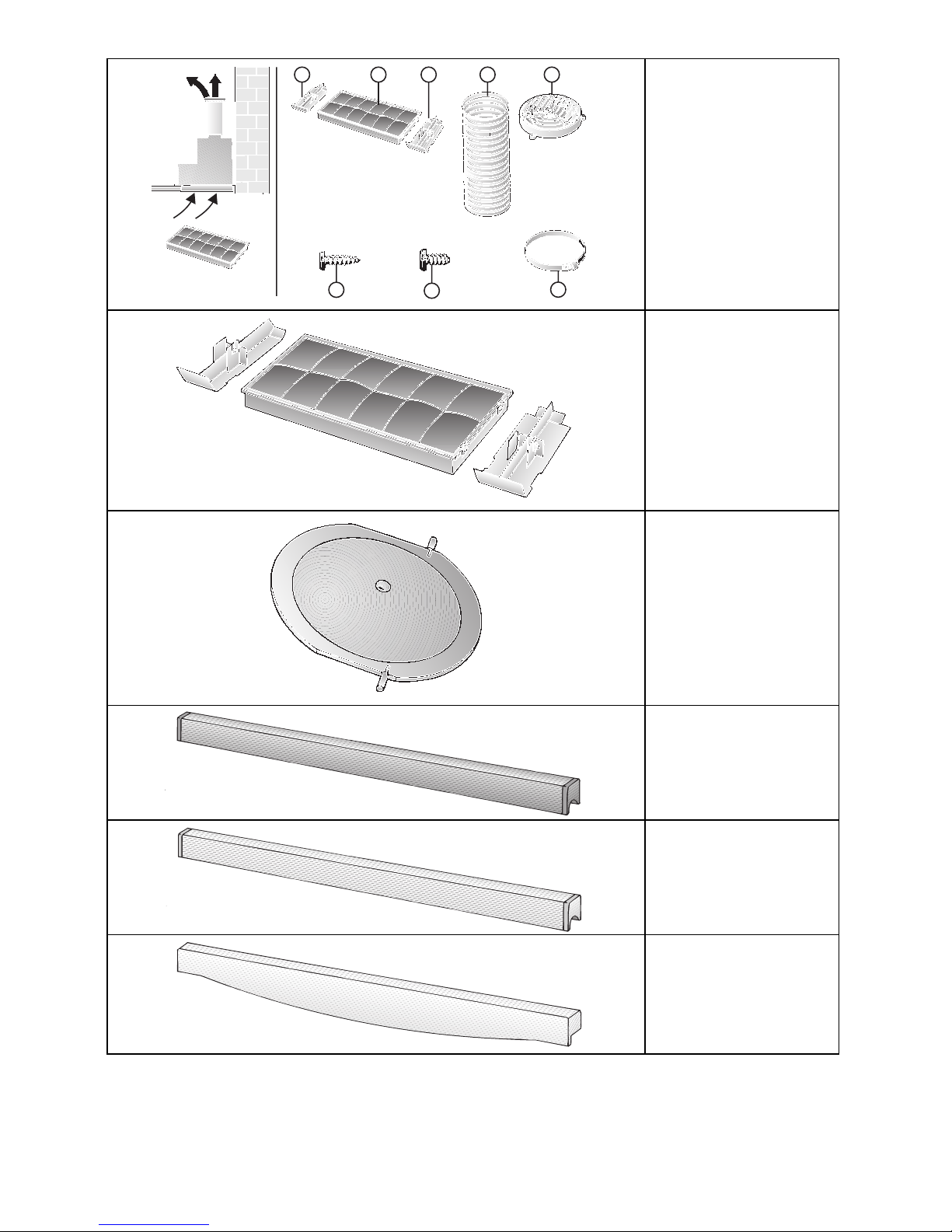

The complete installation set and
replacement filters can be obtained from
specialist outlets.
The corresponding accessory numbers
can be found at the end of these
operating instructions.
❑The extractor-hood fan extracts the
kitchen vapours which are purified in the
grease filter and activated carbon filter
and then conveyed back into the
kitchen.
❑The grease filter absorbs the grease
particles in the kitchen vapours.
❑The activated carbon filter binds the
odorous substances.
If no activated carbon filter is installed,
it is not possible to bind the odorous
substances in the cooking vapours.
Instructions for use:
Light switch
Wall
cupboard
Filter drawer
Ventilator
switches

4
Before using for the first time
Important notes:
❑The Instructions for Use apply to several
versions of this appliance. Accordingly,
you may find descriptions of individual
features that do not apply to your
specific appliance.
❑This extractor hood complies with all
relevant safety regulations.
Repairs should be carried out by
qualified technicians only.
Improper repairs may put the user at
considerable risk.
Do not flambé food directly under the
extractor hood.
Risk of grease filter catching fire due
!to flames.
The hotplates must always be covered
with a utensil.
Restrictions apply to the use of the
extractor hood over a solid-fuel burner
(coal, wood, etc.). (See Installation
instructions).
Gas hobs / Gas cookers
Do not use all the gas hotplates
simultaneously for a prolonged period
(max. 15 minutes) at maximum thermal
load, otherwise there is a risk of burns if the
housing surfaces are touched or a risk of
damage to the extractor hood. If the
extractor hood is situated over a gas hob,
operate the hood at maximum setting if
three or more gas hotplates are operated
simultaneously.
❑Before using your appliance for the first
time, please read these Instructions for
Use carefully. They contain important
information concerning your personal
safety as well as on use and care of the
appliance.
❑Please retain the operating and
installation instructions for a subsequent
owner.
Do not use the appliance if damaged.
The appliance is not intended for use
by young children or infirmed persons
without supervision.
Young children should be supervised to
ensure they do not play with the appliance.
If the connecting cable for this
appliance is damaged, the cable must be
replaced by the manufacturer or his
customer service or a similarly qualified
person in order to prevent serious injury to
the user.
The appliance may be connected to
the mains by a qualified technician only.
Dispose of packaging materials
properly (see Installation instructions).
This extractor hood is designed for
domestic use only.
Light bulbs must always be fitted when
the extractor hood is in use.
Defective bulbs should be replaced
immediately to prevent the remaining bulbs
from overloading.
Never operate the extractor hood
without a grease filter.
Overheated fat or oil can easily catch
fire.
If you are cooking with fat or oil, e.g. chips,
etc., never leave the cooker unattended.

5
Kitchen fumes are best eliminated by:
❑Switching ON the fan
when you start cooking.
❑Switching OFF the fan
several minutes after you finish cooking.
Switching ON the fan:
1. Pull out the filter drawer by the handle.
❑The fan is now operating.
2. Select the desired fan setting.

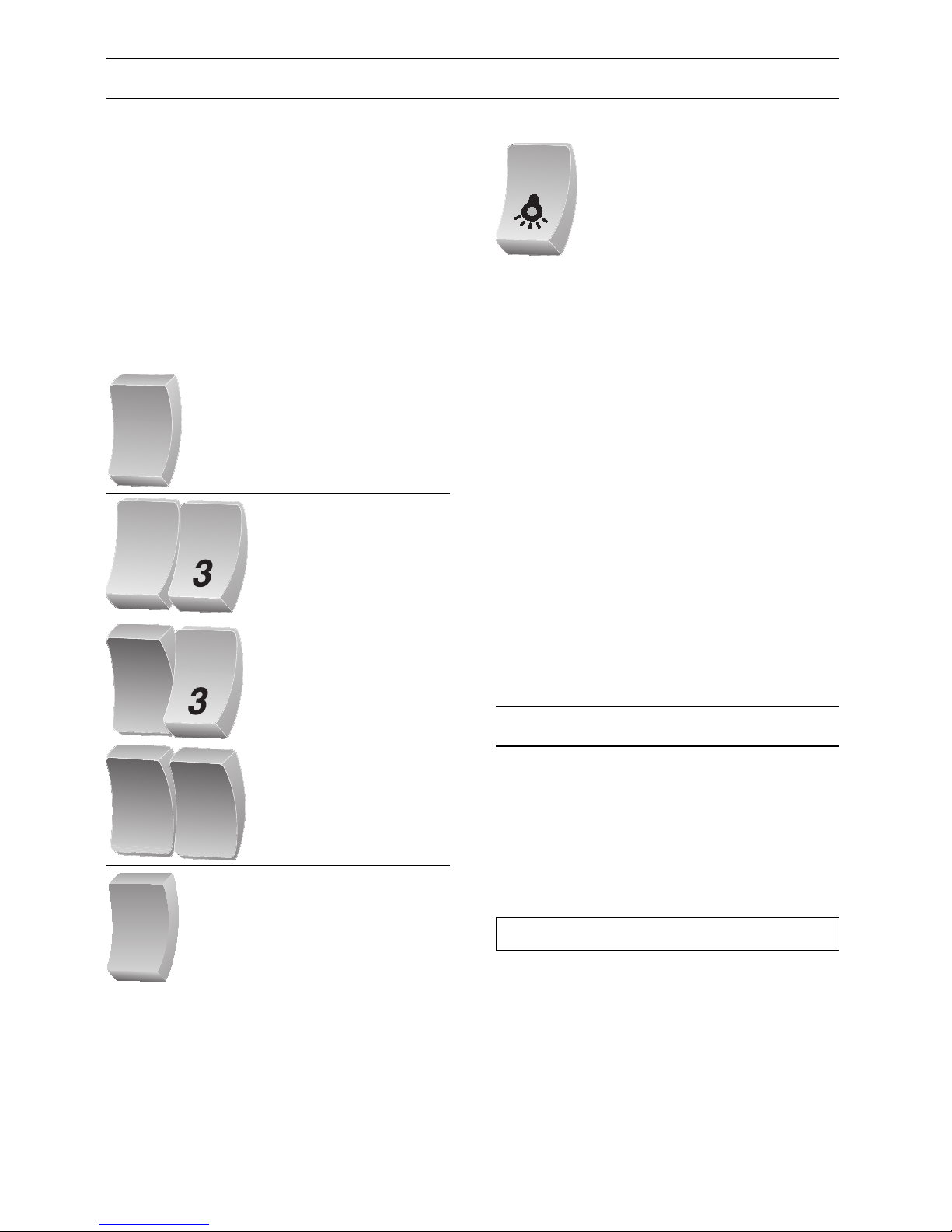

Controls on the various models:
Operating the extractor hood
Light:
Note: the light can be used at any time,
even if the filter drawer has been pushed in.
0
Setting 3
Setting 1
Setting 2
OFF
ON
Setting 1
Setting 2
Setting 3
Setting 1
OFF
Setting 2
Switching OFF the fan:
❑Push in the filter drawer all the way.
Note: If the filter drawer is pulled out again,
the fan starts operating at the last selected
setting.
2
2
3
2
2
1
0
2
3
1
If you encounter a problem
If you have any questions or if a fault
occurs, please call Customer Service.
(See list of Customer Service
representatives).
When you call, please quote the following:
E-Nr. FD
Enter the relevant numbers into the box
above. The E-Nr. (product no.) and FD
(production date) are shown on the
nameplate which can be seen inside the
extractor hood after the filter frame has
been detached.

6
Removing and installing the filter
frames
Removal:
1. Pull out the filter drawer all the way.
2. Press the detents on the filter frames all
the way in the direction of the arrow.
Filters and maintenance
❑If there are two grease filters, remove
the front one first.
3. Fold the filter frame down at the side and
remove.
Installation:
1. Pull out the filter drawer all the way.
2. Insert the filter frame at an angle into the
holder, fold up and attach by pressing
the detent all the way.
❑If there are two grease filters, first
insert the rear filter frame and then the
front filter frame (profiled edge) into the
filter drawer.
Ensure that the grease filters are
securely positioned on both sides.
Metal-mesh grease filters have been
installed to filter grease particles out of
the kitchen fumes.
The filter mats are made of incombustible
metal.
Attention:
As grease accumulates in the filter, there is
an increased risk of the filter catching fire
and the extractor hood may malfunction.
Important:
By cleaning the metal grease filters at
appropriate intervals, the possibility of them
catching fire as a result of a build-up of heat
such as occurs when deep-fat frying or
roasting is taking place, is reduced.
Cleaning the metal-mesh grease filters:
During normal operation (1 to 2 hours daily),
the metal-mesh grease filters should be
cleaned every 8 – 10 weeks.
❑The filters can be cleaned in the
dishwasher.
However, the filters may be slightly
discoloured.
Important:
If the metal-mesh grease filters are very
dirty, do NOT wash them in the
dishwasher with other pots and pans.
❑When cleaning by hand, soak the filter
mats for several hours in a hot soap
solution.
Then brush them off, rinse thoroughly
and allow to drip dry.
❑To ensure the best possible results,
use only original filters.

7
Filters and maintenance
3. Insert the activated carbon filter from
below into the extractor-hood housing
and lock into position on both sides.
Ensure that the edge of the
activated carbon filter is underneath.
4. Re-install the grease filter (see Filters and
maintenance).
Removal:
The activated carbon filter is removed in
reverse sequence.
Press the locking hooks outwards.
Replacing the activated carbon filter:
During normal operation (1 to 2 hours daily),
the activated carbon filter should be
replaced approx. 1 x year. The activated
carbon filter can be obtained from
specialist retailers (see Optional
accessories).
❑To ensure the best possible results,
use only original filters.
Disposal of the old activated carbon
filter:
❑Activated carbon filters do NOT contain
any pollutants, i.e. they can be disposed
of as household rubbish.

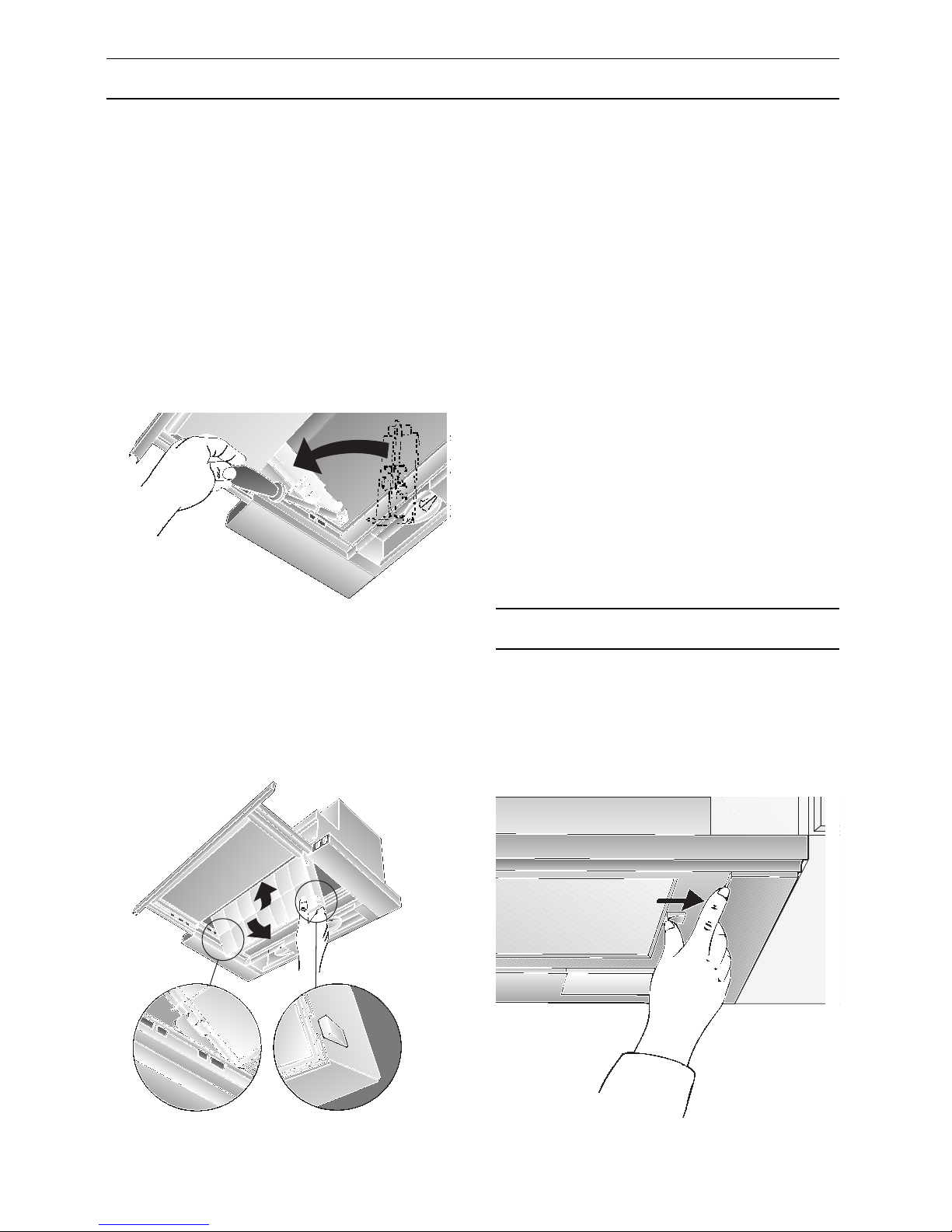

Activated carbon filter:
For filtering odours during circulating-air
mode.
The activated carbon filter is installed above
the grease filter(s) in the extractor hood.
1. Remove the grease filter(s) (see Filters
and maintenance).
2. Insert the two enclosed plastic holders
into the right and left sides of the
extractor-hood housing and attach each
holder with a screw (required only if
installing an activated carbon filter for the
first time).
1.
2.
3.
Cleaning and care
For appliances with a glass plate in the
pull-out vapour extractor:
❑The glass plate is easily removed and
can be cleaned in a dishwasher.
❑To remove the lugs, push outwards.

8
Replacing the light bulb
1. Switch off the extractor hood and pull
out the mains plug or switch off the
electricity supply at the fuse box.
2. Pull out the filter drawer all the way.
3. Pull the lamp cover forwards.
4. Replace the bulb (standard filament bulb,
max 60 W, E14 bulb holder).
5. Re-insert the lamp cover.
6. Plug appliance into mains again or
switch on at the fuse box.
Cleaning and care
Disconnect the extractor hood from the
electricity supply by pulling out the mains
plug or switching it off at the fuse box.
❑At the same time as you clean the
grease filters, clean off any grease from
all accessible parts of the housing. This
significantly reduces the fire hazard and
ensures that the extractor hood
performs as effectively as possible.
❑Use a hot detergent solution or a mild
window cleaner to clean the canopy of
the extractor hood.
❑Do not scrape off any dirt that has dried
on but loosen it up with a damp cloth.
❑Do not use abrasive cleaning agents or
sponges that could cause scratches.
❑Note: Do not use alcohol (spirit) on pla-
stic parts, otherwise the surface may
become matt in appearance.
Caution: Ensure that the kitchen is ade-
quately ventilated. Avoid naked flames!
Clean the operating buttons with a mild
soapy solution and a soft, damp cloth only.
Do not use stainless-steel cleaner to clean
the operating buttons.
Stainless steel surfaces:
❑Use a mild non-abrasive stainless steel
cleaner.
❑Clean the surface in the same direction
as it has been ground and polished.
Do not use any of the following to clean
stainless steel surfaces: abrasive sponges,
cleaning agents containing sand, soda, acid
or chloride!
Aluminium, painted and plastic surfaces:
❑Use a soft, non-linting window cloth or
micro-fibre cloth.
❑Do not use dry cloths.
❑Use a mild window cleaning agent.
❑Do not use aggressive, acidic or caustic
cleaners.
❑Do not use abrasive agents.

9
Important information
Installation Instructions:
Additional information concerning gas
cookers:
When installing gas hotplates, comply
with the relevant national statutory
regulations (e.g. in Germany: Technische
Regeln Gasinstallation TRGI).
Always comply with the currently valid
regulations and installation instructions
supplied by the gas appliance
manufacturer.
Only one side of the extractor hood
may be installed next to a high-sided unit
or high wall. Gap at least 50 mm.
Minimum distance on gas hotplates
between the upper edge of the trivet
and lower edge of the extractor
hood: 650 mm, Fig. 1.
Old appliances are not worthless
rubbish. Valuable raw materials can be
reclaimed by recycling old appliances.
Before disposing of your old appliance,
render it unusable.
You received your new appliance in a
protective shipping carton. All packaging
materials are environmentally friendly and
recyclable. Please contribute to a better
environment by disposing of packaging
materials in an environmentally-friendly
manner.
Please ask your dealer or inquire at your
local authority about current means of
disposal.
The extractor hood can be used in
exhaust air or circulating air mode.
Always mount the extractor hood over
the centre of the hob.
Minimum distance between electric
hob and bottom edge of extractor hood:
430 mm, Fig. 1.
The extractor hood must not be
installed over a solid fuel cooker – a
potential fire hazard (e.g. flying sparks) –
unless the cooker features a closed,
non-removable cover and all national
regulations are observed.
The smaller the gap between the
extractor hood and hotplates, the greater
the likelihood that droplets will form on the
underside of the extractor hood.

10
Prior to installation
Exhaust-air mode
The exhaust air is discharged upwards
through a ventilation shaft or directly
through the outside wall into the open.
DExhaust air should neither be directed
into a smoke or exhaust flue that is
currently used for other purposes, nor into
a shaft that is used for ventilating rooms in
which stoves or fireplaces are also located.
Exhaust air may be discharged in
accordance with official and statutory
regulations only (e.g. national building
regulations).
Local authority regulations must be
observed when discharging air into smoke
or exhaust flues that are not otherwise in
use.
DWhen the extractor hood is operated
in exhaust-air mode simultaneously with
a different burner which also makes use
of the same chimney (such as gas, oil or
coal-fired heaters, continuous-flow heaters,
hot-water boilers) care must be taken to
ensure that there is an adequate supply
of fresh air which will be needed by the
burner for combustion.
Safe operation is possible provided that the
underpressure in the room where the
burner is installed does not exceed 4 Pa
(0.04 mbar).
This can be achieved if combustion air can
flow through non-lockable openings, e.g. in
doors, windows and via the air-
intake/exhaust-air wall box or by other
technical measures, such as reciprocal
interlocking, etc.
If the air intake is inadequate, there is a
risk of poisoning from combustion gases
which are drawn back into the room.
An air-intake/exhaust-air wall box by itself
is no guarantee that the limiting value will
not be exceeded.
Note: When assessing the overall
requirement, the combined ventilation
system for the entire household must be
taken into consideration. This rule does not
apply to the use of cooking appliances,
such as hobs and ovens.
Unrestricted operation is possible if the
extractor hood is used in recirculating
mode – with activated carbon filter.
O
100
120
O
100
120
O
100
120

11
Prior to installation
2. Insert the one-way flap into the bearing
apertures on the air-pipe connector.
If the exhaust air is going to be
discharged into the open, a telescopic
wall box should be fitted into the outside
wall.
For optimum extractor hood efficiency:
❑Short, smooth air exhaust pipe.
❑As few bends in the pipe as possible.
❑Diameter of pipe to be as large as
possible (ideal is l120 mm ) and no
tight bends in pipe.
If long, rough exhaust-air pipes,
many pipe bends or smaller pipe
diameters are used, the air extraction
rate will no longer be at an optimum
level and there will be an increase in
noise.
21 32
600
170
133
287
313
195
250
❑Round pipes:
We recommend
Internal diameter at least. 120 mm.
❑Flact ducts must have an internal
cross-section that equates to that of
round pipes with a 100/120 mm internal
diameter
There should be no sharp bends.
l100 mm approx. 078 cm2
l120 mm approx. 113 cm2
If pipes have different diameters:
❑Insert sealing strip.
❑For exhaust-air mode, ensure that
there is an adequate supply of fresh air.
Exhaust air flows upwards:
❑Cut a hole in the top of the wall cupbo-
ard, including a groove for the mains
cable.
– Template O Ilis enclosed –.
mind. 30
115 80
185
120
512
243 269
90
250
32
280
598
280-443
For operating in exhaust-air mode, a
one-way flap should be mounted inside the
extractor hood unless there is already one
fitted in the outlet duct or wall ventilation
box.
If no one-way flap was enclosed with the
hood, it can be obtained from a specialist
retailer (see section on optional accessories
in the user instructions).
Installing the one-way flap:
1. Cut out the protective grid in the air-pipe
connector.

12
Prior to installation
Connecting the l120 mm
exhaust-air pipe:
❑Cut out the protective grid in the air
outlet.
Circulating-air mode
❑With activated carbon filter if exhaust-air
mode is not possible.
The complete
installation set can
be obtained from
specialist outlets.
The corresponding
accessory numbers
can be found at the
end of these opera-
ting instructions.
O
100
120
Exhaust flows straight out at the
back:
– inside the wall cupboard –.
❑Cut a hole in the rear panel of the wall
cupboard, including a groove for the
mains cable.
Connecting the l100 mm
exhaust-air pipe:
❑Cut out the protective grid in the air
outlet.
❑Attach the reducing connector (enclosed
or can be obtained from specialist
retailers) to the air outlet.
Electrical connection
This is what you have to do:
1.Connect the green and yellow (Earth)
wire to the terminal in the plug marked
‘E’ or with the symbol ( ), or
coloured green or green and yellow.
2.Connect the blue (Neutral) wire to the
terminal in the plug marked ‘N’ or
coloured black.
3.Connect the brown (Live) wire to the
terminal marked ‘L’, or coloured red.
The extractor hood may only be
connected to an earthed socket that has
been installed according to the relevant
regulations. If possible, site the earthed
socket directly above the wall cupboard or
in its immediate vicinity.
Electrical data:
Are to be found on the name plate inside
the appliance after removal of the filter
frame.
Before undertaking any repairs,
always disconnect the extractor hood from
the electricity supply.
Length of the connecting cable: 1.30 m.
If it is necessary to wire the extractor
hood directly into the mains:
The extractor hood should only be
connected to the electricity supply by a
properly qualified electrician.
A separator must be installed in the
household circuit. A suitable separator is a
switch that has a contact gap of more than
3 mm and interrupts all poles. Such
devices include circuit breakers and
contactors.
This extractor hood corresponds to EC
regulations concerning RF interference
suppression.

13
Preparing the wall cupboard
Ensure that there is a minimum gap
between hob and extractor hood of 650
mm (for gas hobs) or 430 mm (for electric
hobs).
This extractor hood has been designed
for installation inside a wall cupboard with
the following dimensions:
Width: 600 mm
Depth: 280 bis 350 mm
Height: at least 300 mm.

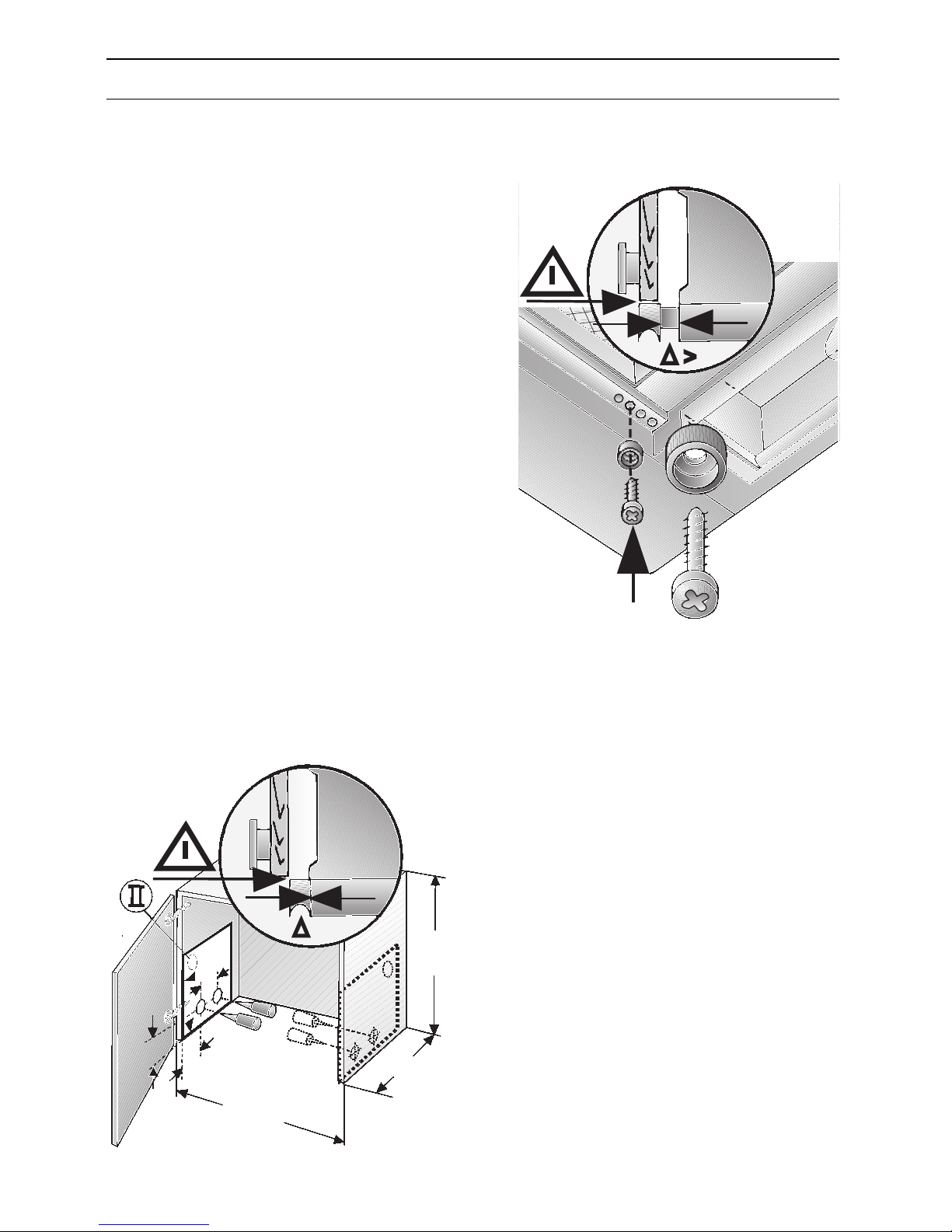

Preparation:
1. Remove bottom panel of cupboard – if
fitted.
 The stability of the cupboard must be
maintained.
2. Mark two points – right and left – on the
inside of the cupboard where the hood
is to be mounted, and start the hole with
a gimlet.
Details for drilling:
l2 mm – max. 10 mm deep.
Attention:
❑Use enclosed template O
II for
marking points where hood is to be
mounted.
❑The mounting points shown on the
template have been configured in such
a way as to allow a 20 mm thick handle
to be attached flush with the front edges
of the cupboard.
❑A stop allows the handle (Dimension ∆)
to be positioned further forwards.
21 32
600
170
280-350
min
d
300.
=0
0
If the cupboard depth is greater than
280 mm, the hood can be mounted further
back,
. . . if the light strip under the cupboard
. . . units is mounted further back,
. . . if the handle is more than 20 mm thick.
Position the template O
II further back.

14
Preparing the wall cupboard Installation inside the wall
cupboard

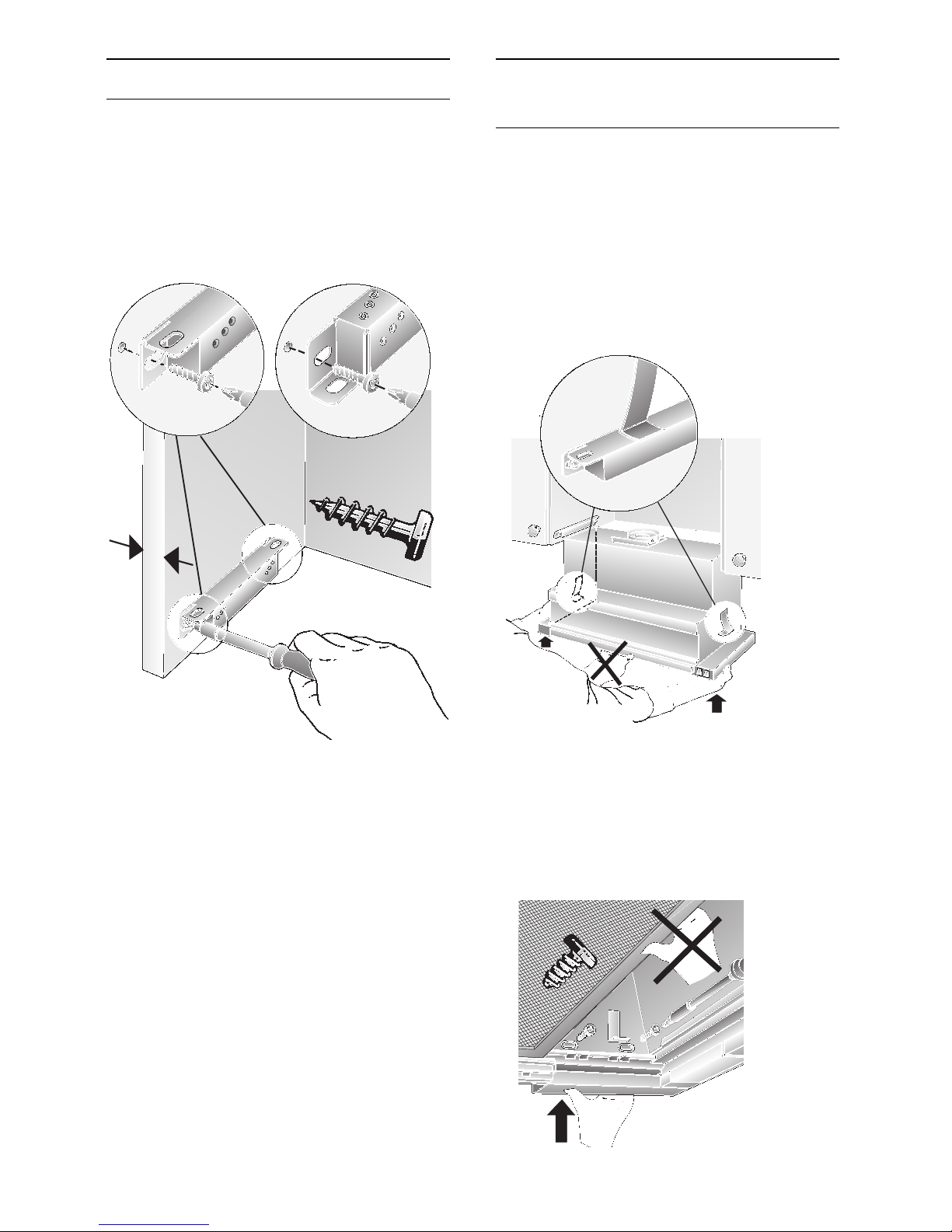

3. Align and screw on the enclosed
mounting rails.
Note the thickness of the sides of the
cupboard (16 mm or 19 mm).
dimension X.
1. Remove the filter frames (see Operating
Manual).
2. If the hinges are no longer accessible
when the extractor hood has been
installed, align the cupboard doors.
3. Lift and push the extractor hood from
below into the cupboard until the
installation aids on the left and right lock
into position.
If the interior depth of the cupboard is
less than 280 mm, the 250 mm high rear
panel must be removed.
4. Pull out the filter drawer all the way.
5. Attach the extractor hood by screwing
in 2 screws on the left and right. Do
NOT tighten the screws. Raise the
extractor hood.
6. Align the extractor hood in the
cupboard and tighten the screws.
X
x=16mm x=19mm

15
Installation inside the wall cupboard
7. Feed the mains connection cable
through the aperture into the upper
cupboard and connect the pipe.
8. Connect to the power supply.
9. If required, shorten the wall cover to the
required size (e.g. saw off) and screw to
the upper cupboard.
Attaching a handle:
❑A handle must be attached to the
filter drawer.
❑This handle can either be a wooden strip
that matches the kitchen
cupboards or a the handle that is
available as an optional accessory (see
section on optional accessories in the
user instructions).
1. Mark two points on the handle with the
enclosed template O
III and make holes
with a bradawl.
If the holes are drilled:
l2 mm – max. 10 mm deep.
14,5
598
350
2. Align the handle and screw onto the
appliance with the two enclosed
screws.
3. Insert the filter frames (see Operating
Manual).
Note: The extractor hood housing inside
the wall cupboard can be boarded up (e.g.
with chipboard).
Please observe the following:
–The shelf must not be rest upon the
extractor hood housing.
–The board at the front should not be
attached to the housing.
–Provide access for customer service.
Removal:
The extractor hood is removed in reverse
sequence.
Note: In circulating-air mode the activated
carbon filter and plastic holder must be
removed in order to gain access to the
mounting screws and installation aids.
Weight in kg:
The manufacturer reserves the right to make design
alterations in the interests of technical development.
Exhaust air Re-circulating air
9,5 10,5

9000 022 199
Printed in Germany 0704 Es.
Robert Bosch Hausgeräte GmbH
296178
DHZ3450
7
12 3 4
56
3x 2x
2
086244
Metall:
DHZ3350
Aluminium:
DHZ3570
Plastic:
DHZ3520
