Extractor hood

en
2
Table of contents
[en]Instructions for installation and use
INSTRUCTION MANUAL.......................................................... 2
8Intended use................................................................... 2
(Important safety information ........................................ 3
7Environmental protection ............................................. 5
ÇOperating modes ........................................................... 5
1Operating the appliance................................................ 6
2Cleaning and maintenance ........................................... 8
3Trouble shooting............................................................ 9
4Customer service ........................................................ 10
INSTALLATION INSTRUCTIONS........................................... 11
(Important safety information ...................................... 12
KGeneral information..................................................... 13
5Installation.................................................................... 16
INSTRUCTION MANUAL
Produktinfo
Additional information on products, accessories,
replacement parts and services can be found at
siemens and in the online shop banyo.co.uk
8Intended use
Intendeduse Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
This appliance is intended for domestic use
and the household environment only. The
appliance is not intended for use outside. Do
not leave the appliance unattended during
operation. The manufacturer is not liable for
damage which is caused by improper use or
incorrect operation.
This appliance is intended for use up to a
maximum height of 2000 metres above sea
level.
This appliance may be used by children over
the age of 8 years old and by persons with
reduced physical, sensory or mental
capabilities or by persons with a lack of
experience or knowledge if they are
supervised or are instructed by a person
responsible for their safety how to use the
appliance safely and have understood the
associated hazards.
Children must not play with, on, or around the
appliance. Children must not clean the
appliance or carry out general maintenance
unless they are at least 8 years old and are
being supervised.
Keep children below the age of 8 years old at
a safe distance from the appliance and power
cable.
Check the appliance for damage after
unpacking it. Do not connect the appliance if it
has been damaged in transport.
This appliance is not intended for operation
with an external clock timer or a remote
control.

Important safety information en
3
(Important safety
information
Importantsafetyinformation :Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.

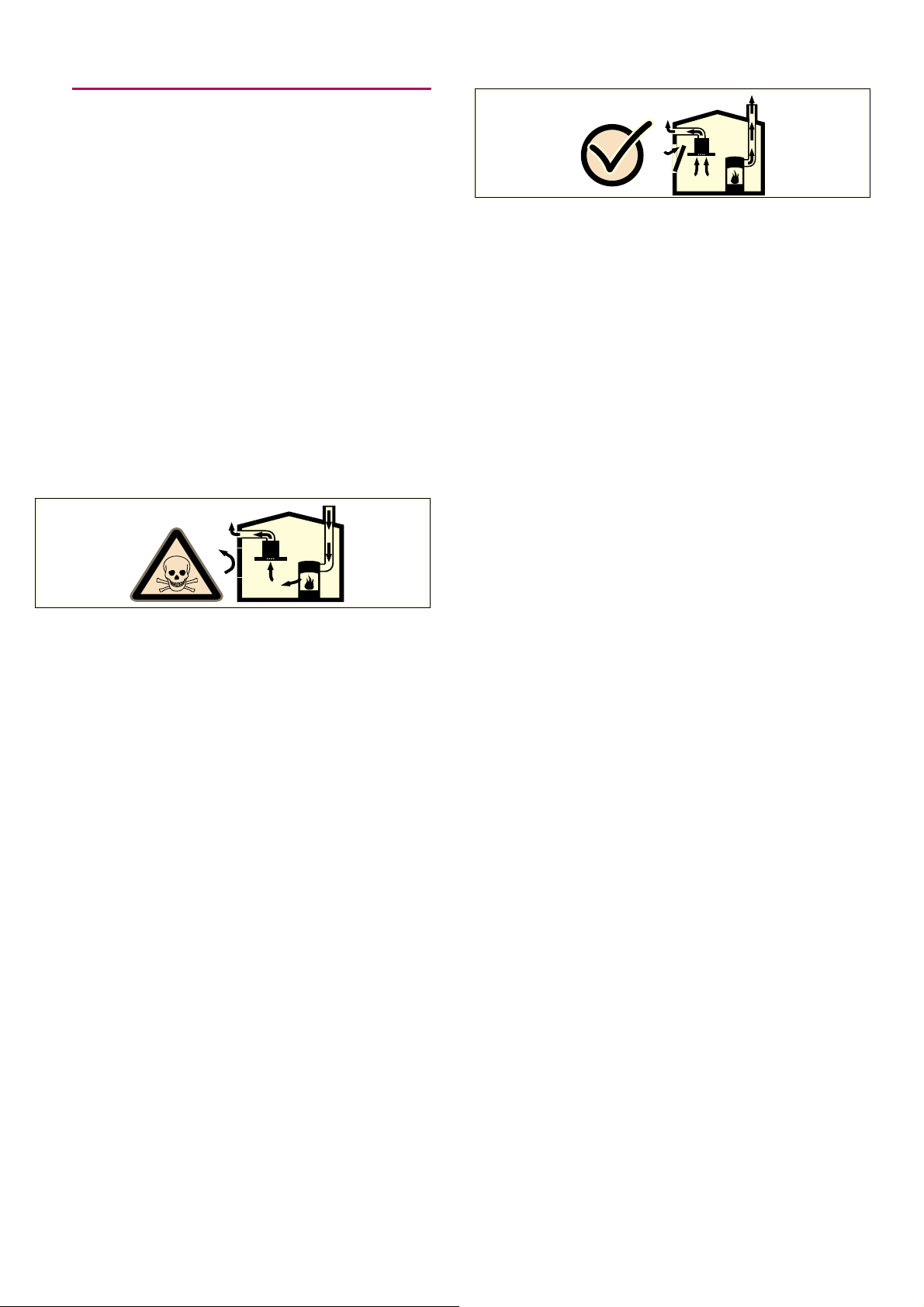

:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Risk of fire!
■Grease deposits in the grease filter may
catch fire.
Clean the grease filter at least every
2 months.
Never operate the appliance without the
grease filter.
Risk of fire!
■Grease deposits in the grease filter may
catch fire. Never work with naked flames
close to the appliance (e.g. flambéing). Do
not install the appliance near a heat-
producing appliance for solid fuel (e.g.
wood or coal) unless a closed, non-
removable cover is available. There must
be no flying sparks.
Risk of fire!
■Hot oil and fat can ignite very quickly. Never
leave hot fat or oil unattended. Never use
water to put out burning oil or fat. Switch off
the hotplate. Extinguish flames carefully
using a lid, fire blanket or something similar.
Risk of fire!
■When gas burners are in operation without
any cookware placed on them, they can
build up a lot of heat. A ventilation
appliance installed above the cooker may
become damaged or catch fire. Only
operate the gas burners with cookware on
them.
Risk of fire!
■Operating several gas burners at the same
time gives rise to a great deal of heat. A
ventilation appliance installed above the
cooker may become damaged or catch fire.
Never operate two gas burners
simultaneously on the highest flame for
longer than 15 minutes. One large burner of
more than 5 kW (wok) is equivalent to the
power of two gas burners.

en Important safety information
4
:Warning
Risk of burns!
The accessible parts become very hot when in
operation. Never touch hot parts. Keep
children at a safe distance.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■Items placed on the appliance may fall
down. Do not place any objects on the
appliance.
Risk of injury!
■The light emitted by LED lights is very
dazzling, and can damage the eyes (risk
group 1). Do not look directly into the
switched on LED lights for longer than
100 seconds.
:Warning
Risk of electric shock!
■A defective appliance may cause electric
shock. Never switch on a defective
appliance. Unplug the appliance from the
mains or switch off the circuit breaker in the
fuse box. Contact the after-sales service.
Risk of electric shock!
■Incorrect repairs are dangerous. Repairs
may only be carried out and damaged
power cables replaced by one of our
trained after-sales technicians. If the
appliance is defective, unplug the appliance
from the mains or switch off the circuit
breaker in the fuse box. Contact the after-
sales service.
Risk of electric shock!
■Do not use any high-pressure cleaners or
steam cleaners, which can result in an
electric shock.
Causes of damage
Caution!
Risk of damage due to corrosion. Always
switch on the appliance while cooking to avoid
condensation. Condensate can produce
corrosion damage.
Always replace faulty bulbs to prevent the
remaining bulbs from overloading.
Risk of damage due to ingress of humidity into
the electronic circuitry. Never clean operator
controls with a wet cloth.
Surface damage due to incorrect cleaning.
Clean stainless steel surfaces in the direction
of the grain only. Do not use any stainless
steel cleaners for operator controls.
Surface damage due to strong or abrasive
cleaning agents. Never use strong and
abrasive cleaning agents.
Risk of damage from returning condensate.
Install the exhaust duct in such a way that it
falls away from the appliance slightly
(1° slope).

Environmental protection en
5
7Environmental protection
Environmentalprotection Your new appliance is particularly energy-efficient. Here
you can find tips on how to save even more energy
when using the appliance, and how to dispose of your
appliance properly.
Saving energy
■During cooking, ensure that there is a sufficient
supply of air so that the extractor hood can work
efficiently and with a low level of operating noise.
■Adjust the fan speed to the intensity of the cooking
fumes. Only use intensive mode where this is
required. A lower fan speed means that less energy
is consumed.
■If there are intensive cooking fumes, select a higher
fan speed in good time. If cooking fumes have
already spread in the kitchen, the extractor hood
must be operated for longer.
■Switch off the extractor hood if you no longer require
it.
■Switch off the lighting if you no longer require it.
■Clean and, if required, replace the filter at regular
intervals in order to increase the effectiveness of the
ventilation system and to prevent the risk of fire.
Environmentally-friendly disposal
Dispose of packaging in an environmentally-friendly
manner.

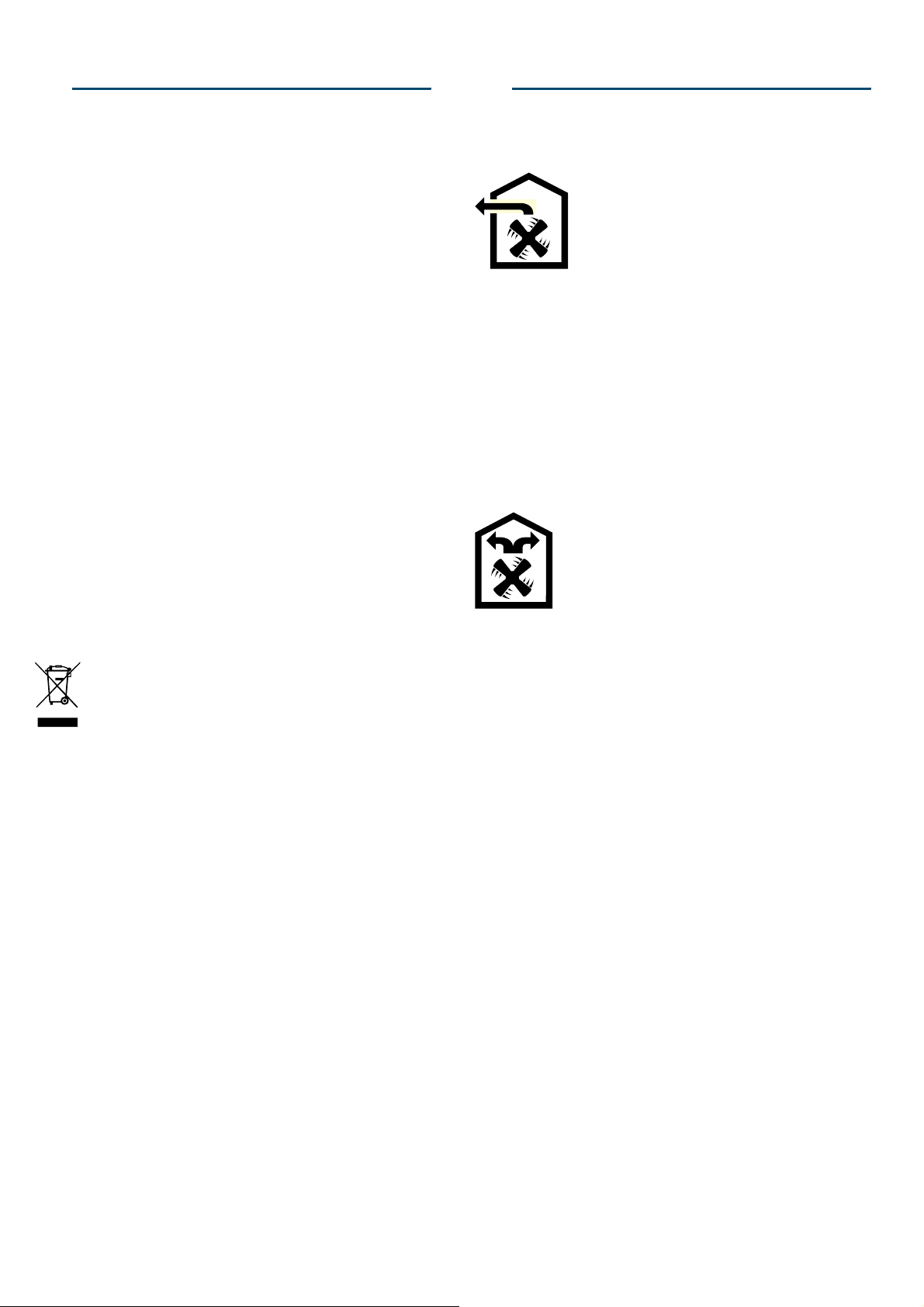

ÇOperating modes
Operatingmodes Exhaust air mode
Note: The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms which
contain heat-producing appliances.
■Before conveying the exhaust air into a non-
functioning smoke or exhaust gas flue, obtain the
consent of the heating engineer responsible.
■If the exhaust air is conveyed through the outer wall,
a telescopic wall box should be used.
Air recirculation
Note: To bind odours in air recirculation mode, you
must install an activated carbon filter. The different
options for operating the appliance in air recirculation
mode can be found in the brochure. Alternatively, ask
your dealer. The required accessories are available
from specialist retailers, from customer service or from
the Online Shop.
This appliance is labelled in accordance with
European Directive 2012/19/EU concerning
used electrical and electronic appliances
(waste electrical and electronic equipment -
WEEE). The guideline determines the
framework for the return and recycling of used
appliances as applicable throughout the EU.
The air which is drawn in is cleaned
by the grease filters and conveyed to
the exterior by a pipe system.
The air which is drawn in is cleaned by
the grease filters and an activated
carbon filter, and is conveyed back into
the kitchen.

en Operating the appliance
6

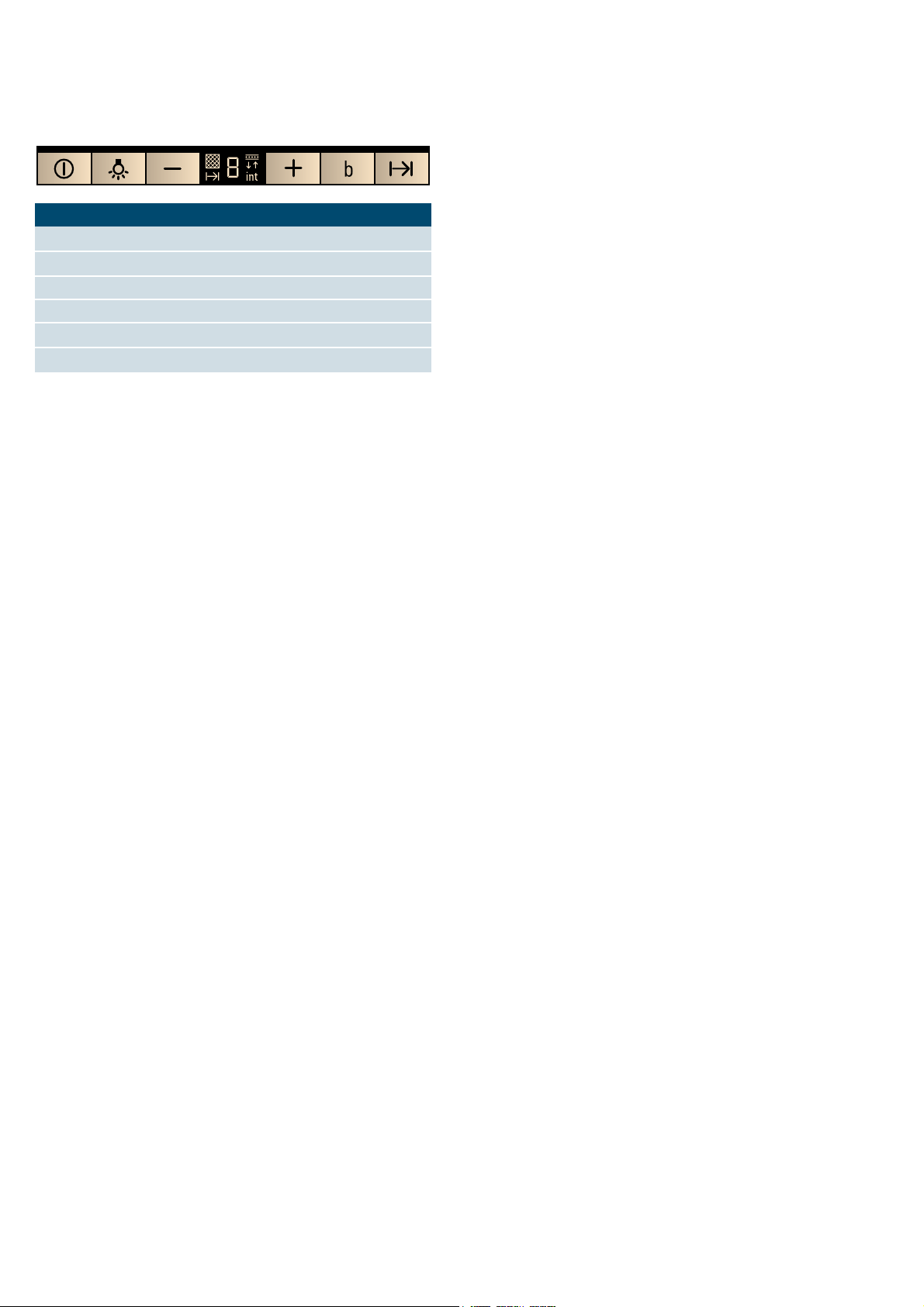

1Operating the appliance
Operatingtheappliance These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
Note: Switch on the extractor hood when you start
cooking and switch it off again several minutes after you
have finished cooking. This is the most effective way of
removing the kitchen fumes.
Control panel model 1
Control panel
Setting the fan
Switching on
Pull out the filter pull-out and press the #button. The
fan starts at setting ƒ.
Press the + or - button to change the fan strength.
Switching off
Press the #button. Slide the filter pull-out in.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Press the + button when the fan is at setting „.
The intensive setting2‚is activated. Pressing the +
button again activates the intensive setting 2 ƒ.
After approx. six minutes, the electronics automatically
reduce the fan to a lower setting . If you want to end the
intensive setting before the preset time expires, press
the - button until the required fan setting is reached.
Fan run-on time
If you slide in the filter pull-out, the run-on time will be
activated for as long as the extractor hood is operating.
After approx. 10 minutes, the fan switches off
automatically.
Lighting
The lighting can be switched on and off independently
of the fan.
Press the Abutton.
Setting the brightness
Press and hold the Abutton until the desired
brightness is reached.
Saturation display
When the metal grease filters or the activated charcoal
filter are/is saturated, an audible signal will sound for
approximately 4 seconds after the fan is switched off.
In addition, the corresponding symbol will appear on
the display:
■Metal grease filter:!
■Activated charcoal filter: "
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced.
For instructions on how to clean the metal grease filters,
please refer to the ~"Cleaning and maintenance"
on page 8 section.
The saturation indicators can be reset while they are
flashing. To do this, press the – button.
Switching over the display for circulating-air mode
For circulating-air mode, the electronic control display
must be switched over accordingly:
■The extractor hood must be connected and switched
off.
■Press the #and - buttons at the same time until the
™"display for starter sets for circulating-air mode
or
the ’"display for CleanAir circulating air modules
lights up.
■Repeatedly press the button combination to switch
the electronic control display back to exhaust air
mode (!display).
Audible signal
Switching on the acoustic signal
When the fan is switched off, press the #and + at the
same time for approx. three seconds. An
acknowledgement signal sounds.
Switching off the acoustic signal
Repeat the "Switching on the acoustic signal" process.
Explanation
#Fan on/off
- Reduce the fan settings/fan run-on time
+ Increase the fan settings/intensive setting 1, 2
ALight on/off/dimming

Operating the appliance en
7
Control panel model 2
Control panel
Setting the fan
Switching on
Pull out the filter pull-out and press the #button. The
fan starts at setting ƒ.
Press the + or - button to change the fan strength.
Switching off
Press the #button. Slide the filter pull-out in.
Intensive setting
You can use the intensive setting if there is a large
build-up of odours and fumes/vapours.
Press the + button when the fan is at setting „.
The intensive setting2‚is activated. Pressing the +
button again activates the intensive setting 2 ƒ.
After approx. six minutes, the electronics automatically
reduce the fan to a lower setting . If you want to end the
intensive setting before the preset time expires, press
the - button until the required fan setting is reached.
Boost function
The boost function is a short-term maximum power
setting which can be activated in any fan setting.
Press the &button. After approx. 20 seconds, the fan
switches back to the previously set fan setting.
Fan run-on time
Press the xbutton or slide the filter pull-out in while
the extractor hood is operating.
After approx. 10 minutes, the fan switches off
automatically.
Lighting
The lighting can be switched on and off independently
of the fan.
Press the Abutton.
Setting the brightness
Press and hold the Abutton until the desired
brightness is reached.
Saturation display
When the metal grease filters or the activated charcoal
filter are/is saturated, an audible signal will sound for
approximately 4 seconds after the fan is switched off.
In addition, the corresponding symbol will appear on
the display:
■Metal grease filter:!
■Activated charcoal filter: "
If you have not yet done so, the metal grease filters
should now be cleaned or the activated charcoal filter
replaced.
For instructions on how to clean the metal grease filters,
please refer to the ~"Cleaning and maintenance"
on page 8 section.
The saturation indicators can be reset while they are
flashing. To do this, press the – button.
Switching over the display for circulating-air mode
For circulating-air mode, the electronic control display
must be switched over accordingly:
■The extractor hood must be connected and switched
off.
■Press the #and xbuttons at the same time until
the
™"display for starter sets for circulating-air mode
or
the ’"display for CleanAir circulating air modules
lights up.
■Repeatedly press the button combination to switch
the electronic control display back to exhaust air
mode (!display).
Audible signal
Switching on the acoustic signal
When the fan is switched off, press the #and + at the
same time for approx. three seconds. An
acknowledgement signal sounds.
Switching off the acoustic signal
Repeat the "Switching on the acoustic signal" process.
Explanation
#Fan on/off
ALight on/off/dimming
- Reduce the fan settings
+ Increase the fan settings/intensive setting 1, 2
&Boost function (short-term maximum power)
xFan run-on time

en Cleaning and maintenance
8
2Cleaning and maintenance
Cleaningandmaintenance :Warning
Risk of burns!
The appliance will become hot during operation,
especially near the bulbs. Allow the appliance to cool
down before cleaning.
:Warning
Risk of electric shock!
Penetrating moisture may result in an electric shock.
Clean the appliance using a damp cloth only. Before
cleaning, pull out the mains plug or switch off the circuit
breaker in the fuse box.
:Warning
Risk of electric shock!
Do not use any high-pressure cleaners or steam
cleaners, which can result in an electric shock.
:Warning
Risk of injury!
Components inside the appliance may have sharp
edges. Wear protective gloves.
Cleaning agents
To ensure that the different surfaces are not damaged
by using the wrong cleaning agent, observe the
information in the table. Do not use any of the following:
■Harsh or abrasive cleaning agents,
■Cleaning agents with a high alcohol content,
■Hard scouring pads or cleaning sponges,
■High-pressure cleaners or steam cleaners.
Wash new sponge cloths thoroughly before use.
Follow all instructions and warnings included with the
cleaning agents.
Cleaning the metal mesh grease filters
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
:Warning
Risk of fire!
Grease deposits in the grease filter may catch fire.
Clean the grease filter at least every 2 months.
Never operate the appliance without the grease filter.
Notes
■Do not use any aggressive, acidic or alkaline
cleaning agents.
■When cleaning the metal mesh grease filters, also
clean the holder for the metal mesh grease filters in
the appliance using a damp cloth.
■The metal mesh grease filters can be cleaned in the
dishwasher or by hand.
By hand:
Note: You can use a special grease solvent for
stubborn dirt. It can be ordered via the Online Shop.
■Soak the metal mesh grease filters in a hot soapy
solution.
■Clean the filters with a brush and then rinse them
thoroughly.
■Leave the metal mesh grease filters to drain.
Area Cleaning agent
Stainless steel Hot soapy water:
Clean with a dish cloth and then dry with a
soft cloth.
Clean stainless steel surfaces in the grind
direction only.
Special stainless steel cleaning products are
available from our after-sales service or from
specialist retailers. Apply a very thin layer of
the cleaning product with a soft cloth.
Painted surfaces Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Do not use any stainless steel cleaners.
Aluminium and plastic Glass cleaner:
Clean with a soft cloth.
Glass Glass cleaner:
Clean with a soft cloth. Do not use a glass
scraper.
Controls Hot soapy water:
Clean using a damp dish cloth and dry with a
soft cloth/towel.
Risk of electric shock caused by penetrating
moisture.
Risk of damage to the electronics from pene-
trating moisture. Never clean operating con-
trols with a wet cloth.
Do not use any stainless steel cleaners.

Trouble shooting en
9
In the dishwasher:
Note: If the metal mesh grease filters are cleaned in the
dishwasher, slight discolouration may occur. This has
no effect on the function of the metal mesh grease
filters.
■Do not clean heavily soiled metal mesh grease filters
together with utensils.
■Place the metal mesh grease filters loosely in the
dishwasher. The metal mesh grease filters must not
be wedged in.

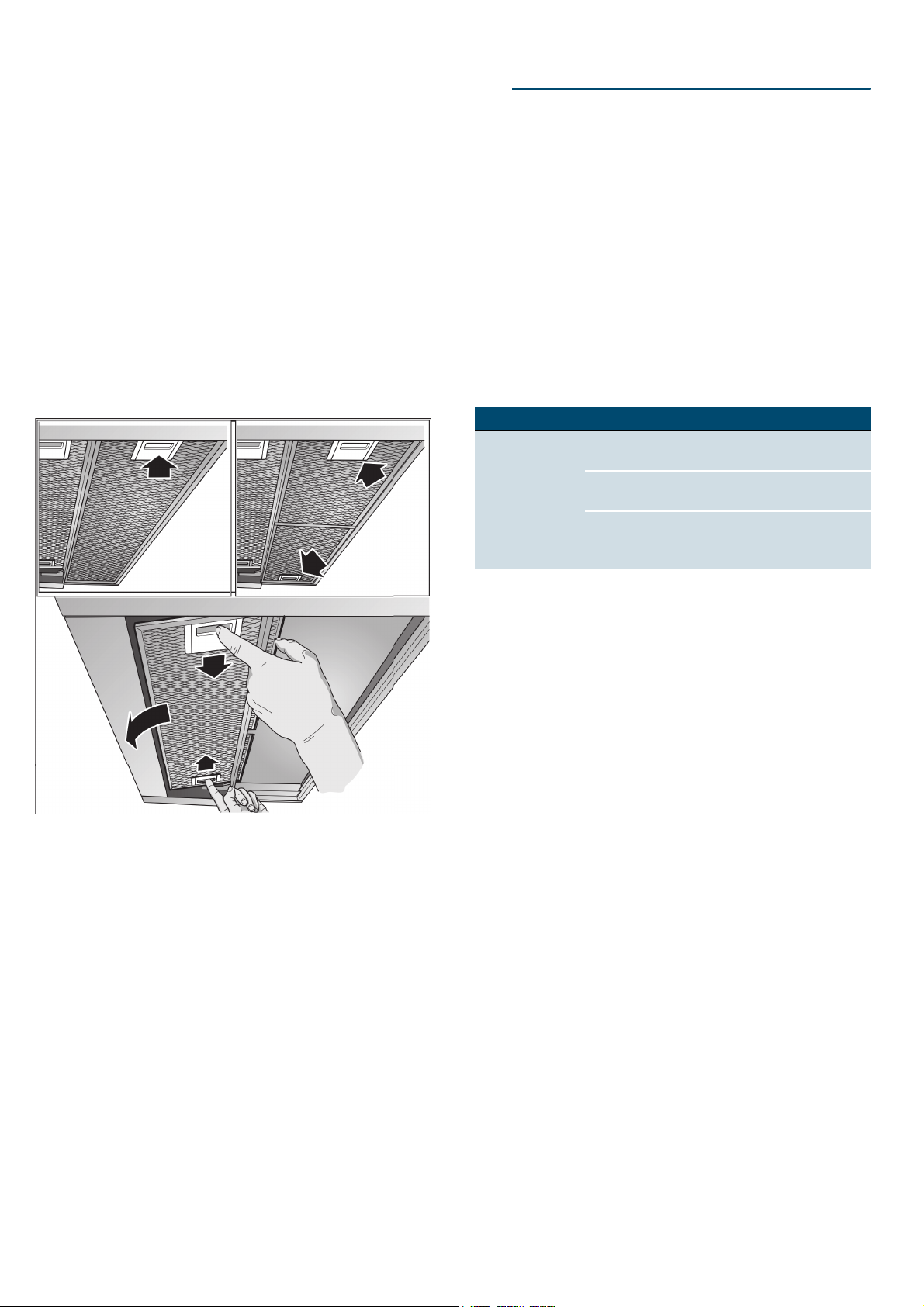

Removing metal grease filter
1. Open the lock and fold down the metal grease filter.
While doing this, place your other hand under the
metal grease filter.
2. Take the metal grease filter out of the holder.
Notes
– Grease may accumulate in the bottom of the
metal grease filter.
– Hold the metal grease filter level to prevent
grease from dripping out.
3. Clean the metal grease filter.
Installing the metal mesh grease filter
1. Insert the metal mesh grease filter.
While doing this, place the other hand under the
metal mesh grease filter.
2. Fold the metal mesh grease filter upwards, locking it
in place.
3Trouble shooting
Troubleshooting Malfunctions often have simple explanations. Please
read the following notes before calling the after-sales
service.
:Warning
Risk of electric shock!
Incorrect repairs are dangerous. Repairs may only be
carried out and damaged power cables replaced by
one of our trained after-sales technicians. If the
appliance is defective, unplug the appliance from the
mains or switch off the circuit breaker in the fuse box.
Contact the after-sales service.
Malfunction table
--------
LED lights
Defective LED lights may be replaced by the
manufacturer, their customer service or a qualified
technician (electrician) only.
:Warning
Risk of injury!
The light emitted by LED lights is very dazzling, and can
damage the eyes (risk group 1). Do not look directly
into the switched on LED lights for longer than 100
seconds.
Problem Possible cause Solution
The appliance
does not work
The plug is not
plugged in.
Connect the appliance to the
electricity supply
Power cut Check whether other kitchen
appliances are working
Faulty fuse Check in the fuse box to make
sure that the fuse for the
appliance is OK

en Customer service
10
4Customer service
Customerservice When calling us, please give the product number (E
no.) and the production number (FD no.) so that we can
provide you with the correct advice. The rating plate
with these numbers can be found inside the appliance
(remove the metal mesh grease filter to gain access).
You can make a note of the numbers of your appliance
and the telephone number of the after-sales service in
the space below to save time should it be required.
Please be aware that a visit by an after-sales engineer
will be charged if a problem turns out to be the result of
operator error, even during the warranty period.
Please find the contact data of all countries in the
enclosed customer service list.
To book an engineer visit and product advice
Rely on the professionalism of the manufacturer. You
can therefore be sure that the repair is carried out by
trained service technicians who carry original spare
parts for your appliances.
Accessories
(not included in the scope of delivery)
Note: These instructions apply to several appliance
models. It may be the case that an optional accessory
that is listed does not apply for your appliance.
Note: Observe the installation instructions in the
accessory.
--------
E no. FD no.
After-sales serviceO
GB 0344 892 8999
Calls charged at local or mobile rate.
IE 01450 2655
0.03 € per minute at peak. Off peak 0.0088 €
per minute.
Accessory Order number
Basic equipment:
Starter set for circulating-air mode
Easy-change filter for starter set
LZ45650
LZ45610
Basic equipment:
CleanAir air recirculation module
Throw-away filter for CleanAir recirculation mod-
ule
LZ46800
LZ46810
Lowering frame:
Appliance width: 60 cm LZ46600
Lowering frame:
Appliance width: 90 cm LZ49600
Installation set:
Upper cabinet: 90 cm LZ49200
Handle strip 60 cm (no cut out):
Stainless steel
White
Black
Black, Design
LZ46550
LZ46520
LZ46560
LZ46850
Handle strip 90 cm (no control panel cut-out):
Stainless steel
White
Black
Black, Design
LZ49550
LZ49520
LZ49560
LZ49850
Handle strip 60 cm (with control panel cut-
out):
Stainless steel (for control panel variant 1)
Stainless steel (for control panel variant 2)
LZ46650
LZ46750
Handle strip 90 cm (with control panel cut-out):
Stainless steel (for operating unit, variant 1)
Stainless steel (for operating unit, variant 2)
LZ49650
LZ49750

Customer service en
11
INSTALLATION INSTRUCTIONS
Installation instructions
These instructions apply to several appliance variants. It
is possible that individual features are described which
do not apply to your appliance.
■This appliance is installed in a upper cabinet.
■Follow the enclosed installation instructions for
additional special accessories (e.g. for circulating-air
mode).
■The surfaces of the appliance are sensitive. Avoid
damaging them during installation.
Appliance width 60 cm:
Appliance width 90 cm:
[
[
[
[
[
[
[
[
[
[
PP
[
PP

en Important safety information
12
(Important safety
information
Importantsafetyinformation Read these instructions carefully. Only then
will you be able to operate your appliance
safely and correctly. Retain the instruction
manual and installation instructions for future
use or for subsequent owners.
The appliance can only be used safely if it is
correctly installed according to the safety
instructions. The installer is responsible for
ensuring that the appliance works perfectly at
its installation location.
The width of the extractor hood must
correspond at least with the width of the hob.
For the installation, observe the currently valid
building regulations and the regulations of the
local electricity and gas suppliers.
When conveying the exhaust air, official and
legal regulations (e.g. state building
regulations) must be followed.
:Warning
Risk of death!
Risk of poisoning from flue gases that are
drawn back in. The exhaust air must not be
conveyed into a functioning smoke or exhaust
gas flue or into a shaft which is used to
ventilate installation rooms that contain
heating appliances. If the exhaust air is to be
conveyed into a non-functioning smoke or
exhaust gas flue, you must obtain the consent
of the heating engineer responsible.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in.
Always ensure adequate fresh air in the room
if the appliance is being operated in exhaust
air mode at the same time as room air-
dependent heat-producing appliance is being
operated.
Room air-dependent heat-producing
appliances (e.g. gas, oil, wood or coal-
operated heaters, continuous flow heaters or
water heaters) obtain combustion air from the
room in which they are installed and discharge
the exhaust gases into the open air through an
exhaust gas system (e.g. a chimney).
In combination with an activated vapour
extractor hood, room air is extracted from the
kitchen and neighbouring rooms - a partial
vacuum is produced if not enough fresh air is
supplied. Toxic gases from the chimney or the
extraction shaft are sucked back into the living
space.
■Adequate incoming air must therefore
always be ensured.
■An incoming/exhaust air wall box alone will
not ensure compliance with the limit.
Safe operation is possible only when the
partial vacuum in the place where the heat-
producing appliance is installed does not
exceed 4 Pa (0.04 mbar). This can be
achieved when the air needed for combustion
is able to enter through openings that cannot
be sealed, for example in doors, windows,
incoming/exhaust air wall boxes or by other
technical means.
In any case, consult your responsible Master
Chimney Sweep. He is able to assess the
house's entire ventilation setup and will
suggest the suitable ventilation measures to
you.
Unrestricted operation is possible if the vapour
extractor hood is operated exclusively in the
circulating-air mode.
:Warning
Danger of death!
Risk of poisoning from flue gases that are
drawn back in. If installing a ventilation system
in a room with a heat-producing appliance
connected to a chimney/flue, the electricity
supply to the hood must be equipped with a
suitable safety switch.

General information en
13
:Warning
Risk of fire!
Grease deposits in the grease filter may catch
fire. The specified safety distances must be
observed in order to prevent an accumulation
of heat. Observe the specifications for your
cooking appliance. If gas and electric hobs
are operated together, the largest specified
distance applies.
Only one side of the appliance may be
installed directly next to a high-sided unit or a
wall. The distance between the appliance and
wall or high-sided unit must be at least 50
mm.
:Warning
Risk of injury!
■Components inside the appliance may have
sharp edges. Wear protective gloves.
Risk of injury!
■The appliance may fall down if it has not
been properly fastened in place. All
fastening components must be fixed firmly
and securely.
Risk of injury!
■The appliance is heavy. To move the
appliance, 2 people are required. Use only
suitable tools and equipment.
:Warning
Risk of electric shock!
Components inside the appliance may have
sharp edges. These may damage the
connecting cable. Do not kink or pinch the
connecting cable during installation.
:Warning
Risk of electric shock!
It must always be possible to disconnect the
appliance from the electricity supply. The
appliance must only be connected to a
protective contact socket that has been
correctly installed. If the plug is no longer
accessible once the appliance has been
installed, or a fixed connection is required, the
installation must have an all-pole isolating
switch with a contact gap of at least 3 mm.
Only an electrician may install the fixed
connection. We recommend installing a
residual-current circuit breaker (RCCB) in the
appliance's power supply circuit.
:Warning
Danger of suffocation!
Packaging material is dangerous to children.
Never allow children to play with packaging
material.
KGeneral information
Generalinformation Exhaust air mode
:Warning
Risk of death!
Risk of poisoning from flue gases that are drawn back
in. The exhaust air must not be conveyed into a
functioning smoke or exhaust gas flue or into a shaft
which is used to ventilate installation rooms that contain
heating appliances. If the exhaust air is to be conveyed
into a non-functioning smoke or exhaust gas flue, you
must obtain the consent of the heating engineer
responsible.
If the exhaust air is conveyed through the outer wall, a
telescopic wall box should be used.
Exhaust duct
Note: The appliance manufacturer does not provide any
warranty for faults attributable to the pipe section.
■The appliance achieves its optimum performance by
means of a short, straight exhaust air pipe and as
large a pipe diameter as possible.
■As a result of long, rough exhaust air pipes, many
pipe bends or pipe diameters that are smaller than
150 mm, the optimum extraction performance is not
achieved and fan noise is increased.
■The pipes or hoses for laying the exhaust air line
must consist of non-combustible material.
Round pipes
An inner diameter of 150 mm, but at least 120 mm, is
recommended.
Flat ducts
The inner cross-section must correspond to the
diameter of the round pipes.
150 mm diameter, approx. 177 cm2
120 mm diameter, approx. 113 cm2
■Flat ducts should not have any sharp deflections.
■Use sealing strips for different pipe diameters.





en General information
14
Electrical connection
:Warning
Risk of electric shock!
Components inside the appliance may have sharp
edges. These may damage the connecting cable. Do
not kink or pinch the connecting cable during
installation.
The required connection data can be found on the
rating plate inside the appliance; to do this, remove the
metal mesh grease filter.
Length of the cable: approx. 1.30 m
This appliance complies with the EC interference
suppression regulations.
:Warning
Risk of electric shock!
It must always be possible to disconnect the appliance
from the electricity supply. The appliance must only be
connected to a protective contact socket that has been
correctly installed. If the plug is no longer accessible
once the appliance has been installed, or a fixed
connection is required, the installation must have an all-
pole isolating switch with a contact gap of at least
3 mm. Only an electrician may install the fixed
connection. We recommend installing a residual-current
circuit breaker (RCCB) in the appliance's power supply
circuit.
Preparing the units
■The fitted unit must be level and have sufficient load-
bearing capacity.
■The max. weight of the extractor hood is 18 kg.

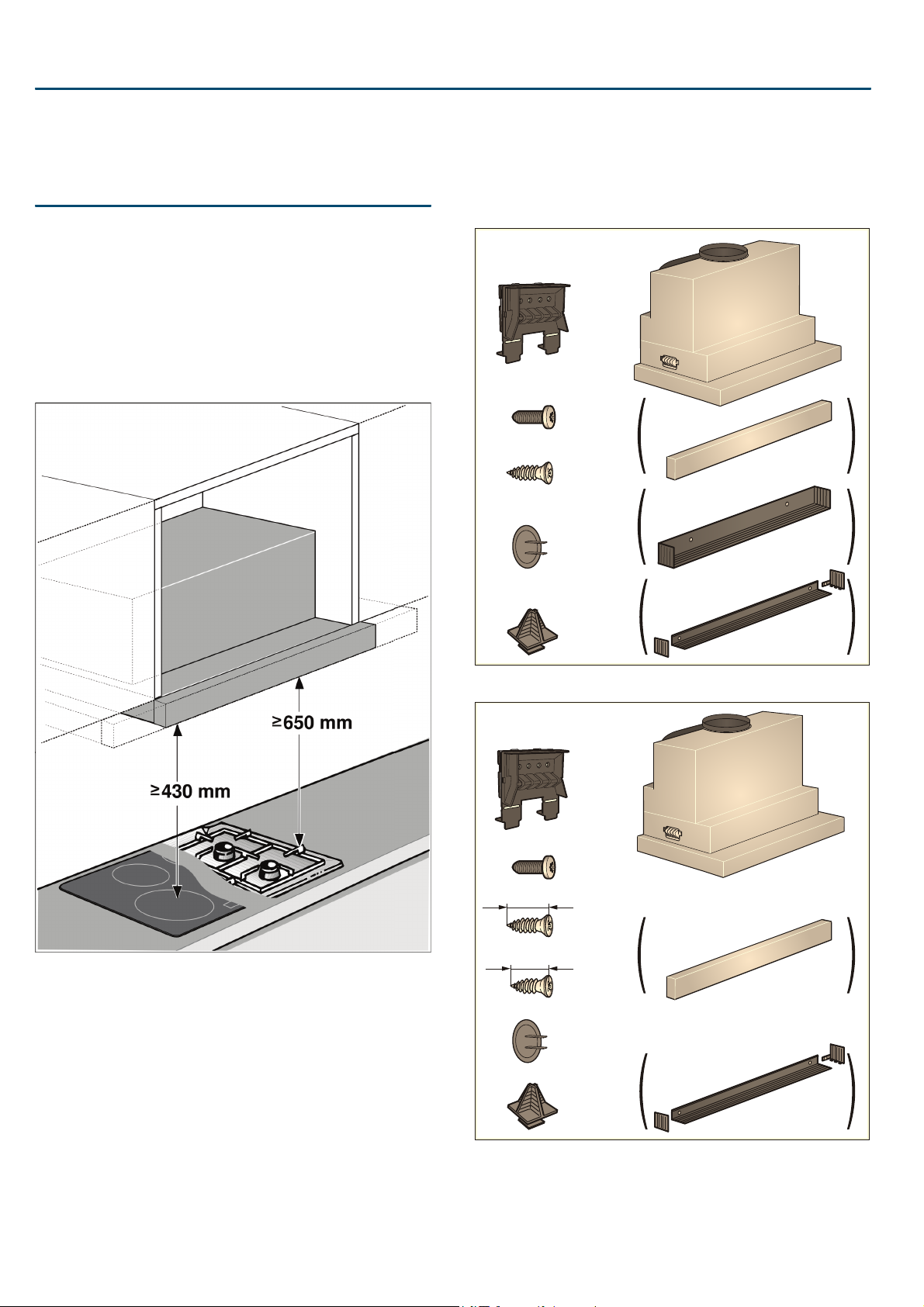

Appliance dimensions and safety clearances
■Observe the appliance's dimensions.
■Comply with the safety clearances.
If the installation instructions for the gas cooking
appliances specify a different distance, the largest
distance must always be provided for.
The fitted unit must be heat-resistant up to 90 °C.The
fitted unit must still be sturdy after the cut-outs have
been made.
To install the extractor hood in a wall-hanging
cupboard, the extractor hood must be provided with the
following dimensions:
1. Make the cut-out for the exhaust air pipe. To do this,
make an opening in the top or back panel of the
fitted unit with an additional recess for the power
cord.
2. If the cabinet base is in place, remove it. Mark the
fastening points on the inside of the cabinet and use
a bradawl to make indentations where the holes are
to be. To help you mark the fastening points, use the
fastening piece provided.
Width 600 mm
Depth Min. 320 mm
Depth Min. 350 mm with lowering frame
Height Min. 420 mm
Height Min. 600 mm with CleanAir air recirculation
module
Wall thickness 16 mm or 19 mm
PP

 PP
PLQ
 PP



General information en
15

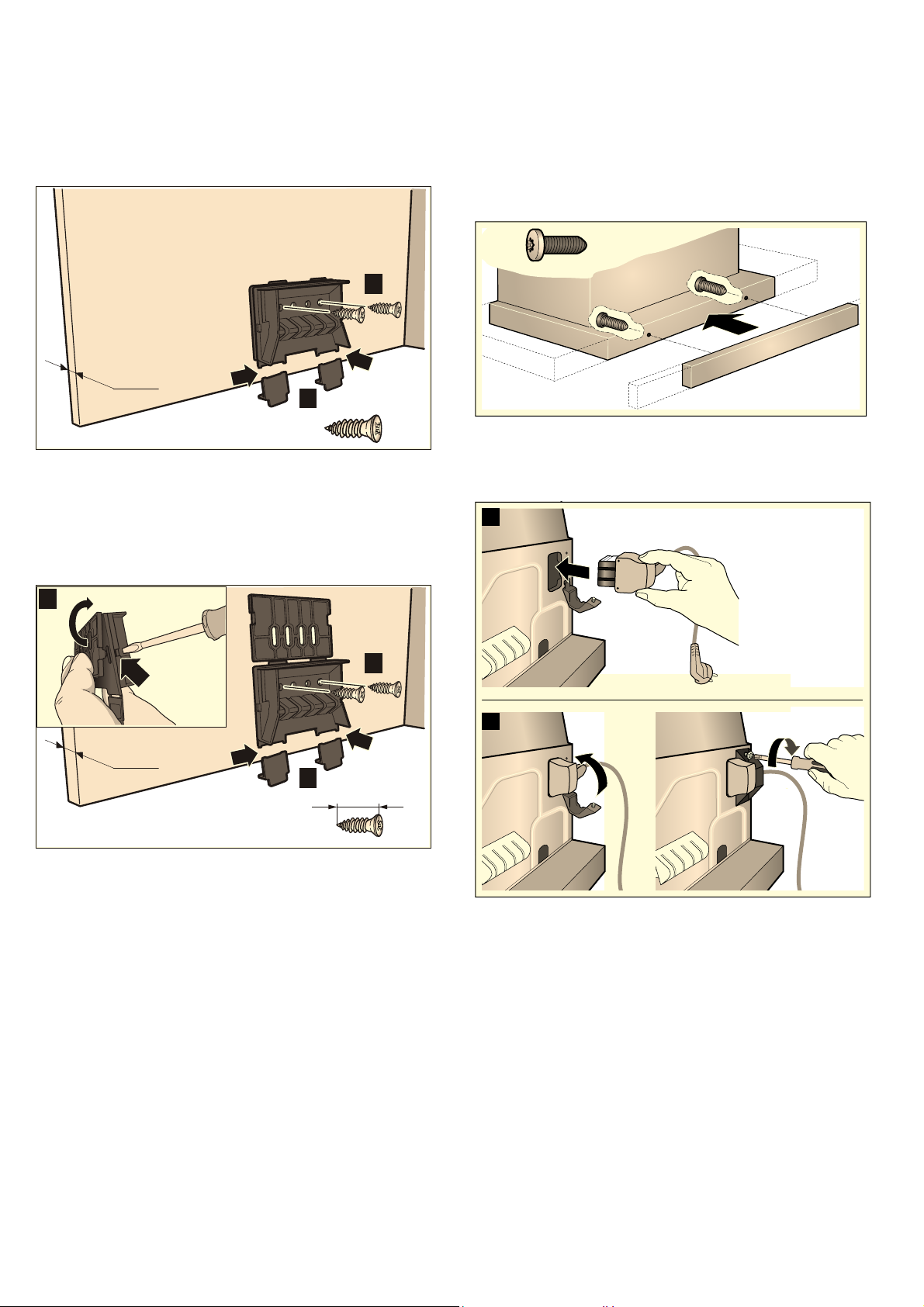

Body wall thickness: 16 mm
1. Screw the mounting pieces to the body on the left
and right. ¨
2. Remove the tabs from the bottom of the mounting
pieces. ©
Body wall thickness: 19 mm
1. Fold out the tabs on both of the mounting pieces. ¨
2. Screw the mounting pieces to the body on the left
and right. ©
3. Remove the tabs from the bottom of the mounting
pieces. ª
Preparing the appliance
A handle strip must be screwed to the filter pull-out. This
handle strip can be one that is provided with the
appliance, or one that is available as an accessory.
1. Use the screws provided to secure the handle strip
to the filter pull-out.
2. Connect the power cord provided to the
appliance.¨
3. Use the strain relief to secure the power cord in
place.©
$
%
[
PP
%
&
PP
[
PP
$
[
$
%

en Installation
16
5Installation

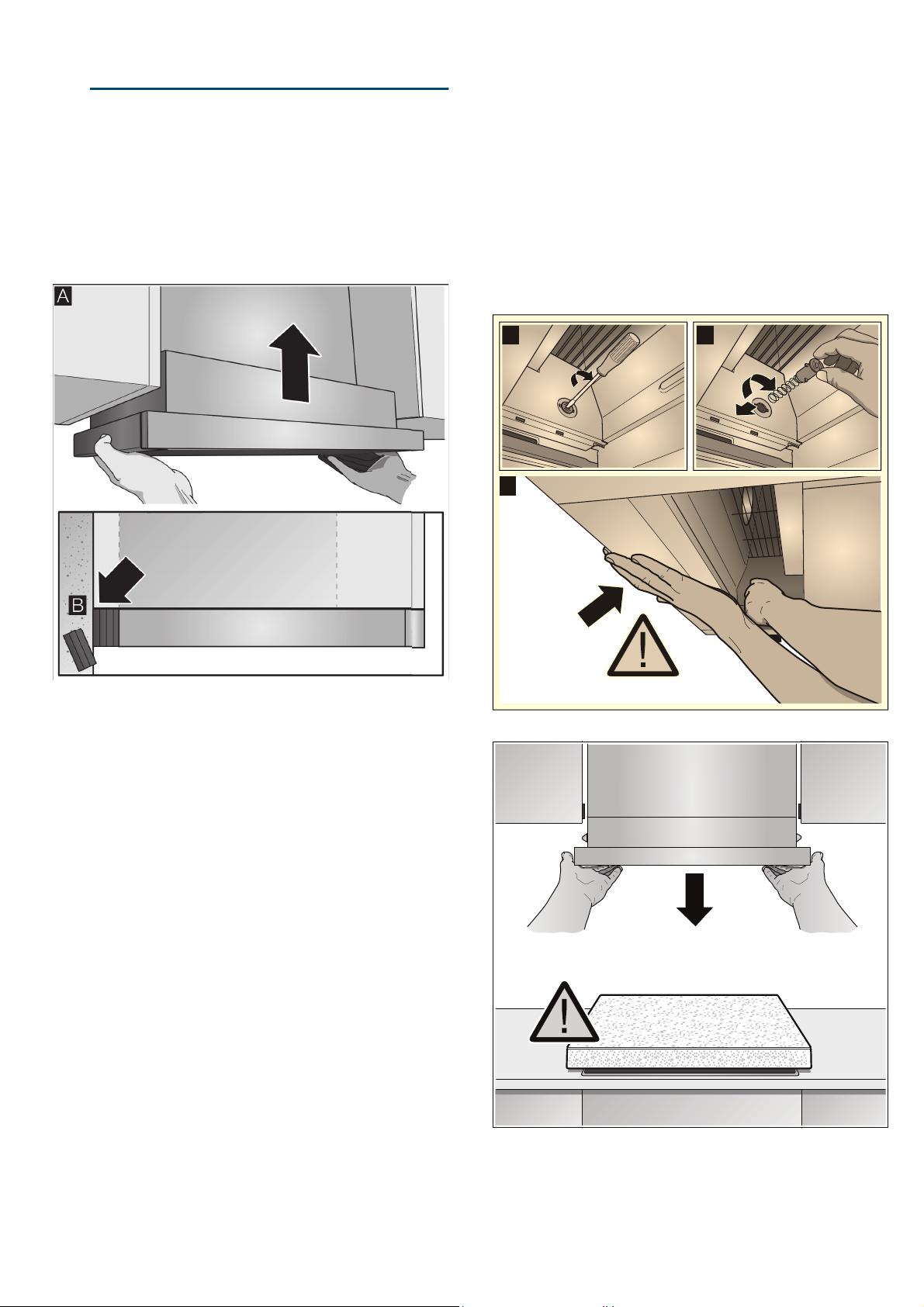

Installation Sliding the appliance up into place
1. Slide the appliance up into place and make sure it is
positioned correctly. ¨
2. Measure the distance between the appliance and
the wall, and mark this on the filler strip.
3. If required, shorten the filler strip to the required
dimension. ©
Sliding out the appliance
Note: Before you remove the appliance, protect the hob
with a piece of polystyrene from the packaging.
1. Use a flat-blade screwdriver to push in the fastening
bolt, and turn it 90° until it locks into place. ¨
2. Push in the fastening bolt gently with your fingers,
and turn it until it comes out of the housing along
with the spring.©
Pull gently on the fastening bolt; before you do this,
take hold of the appliance from beneath with the
other hand. ª
3. Carefully remove the appliance.
$ %
 
&

Installation en
17
4. Screw in the filler strip fully.
5. Push in the fastening bolt and turn it 90°.
Note: The fastening pieces on the left and right of
the appliance must be able to move.

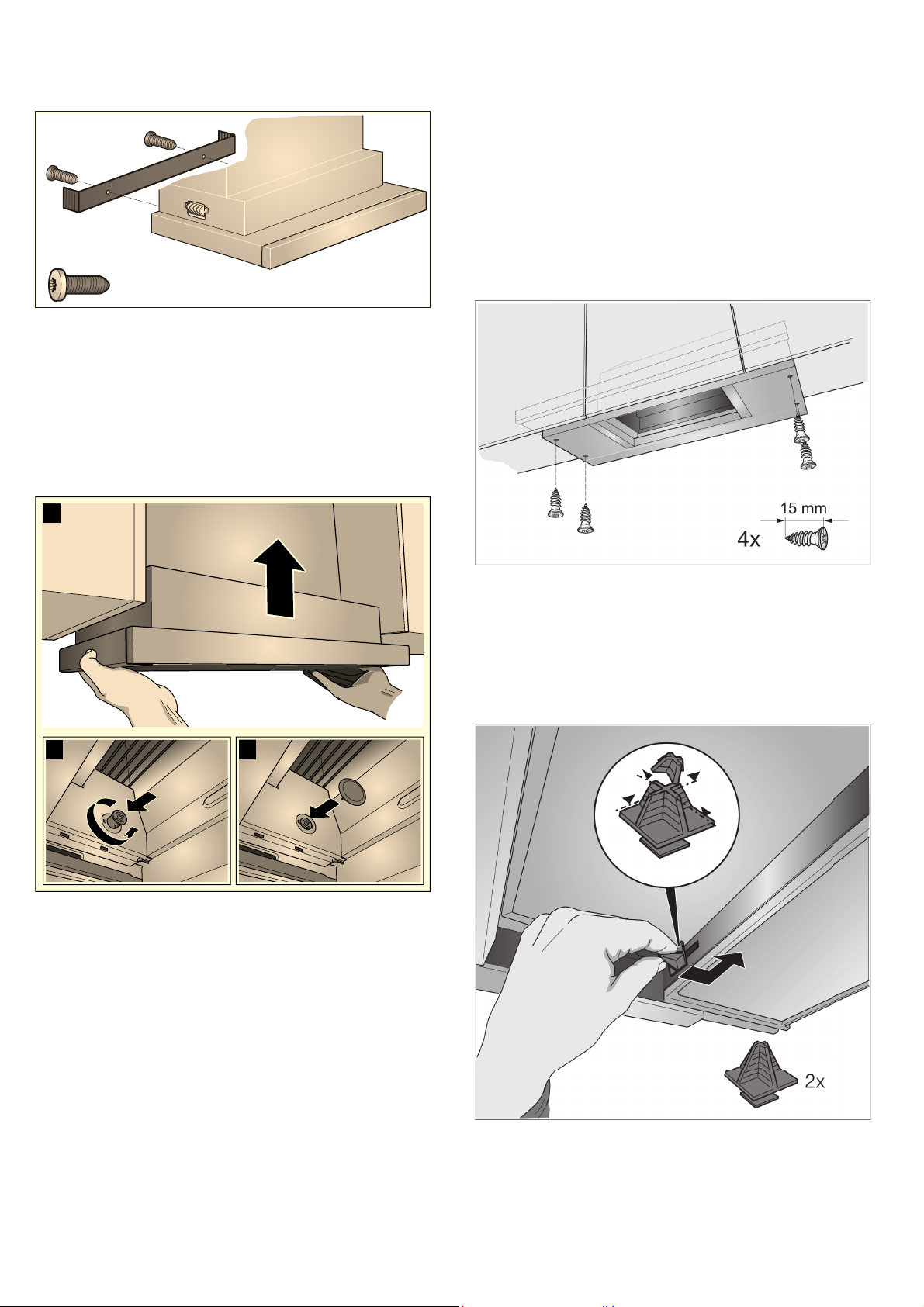

Final fitting stage
1. Slide the appliance up into place. ¨
2. Lock the fastening bolts on the left and right. ©

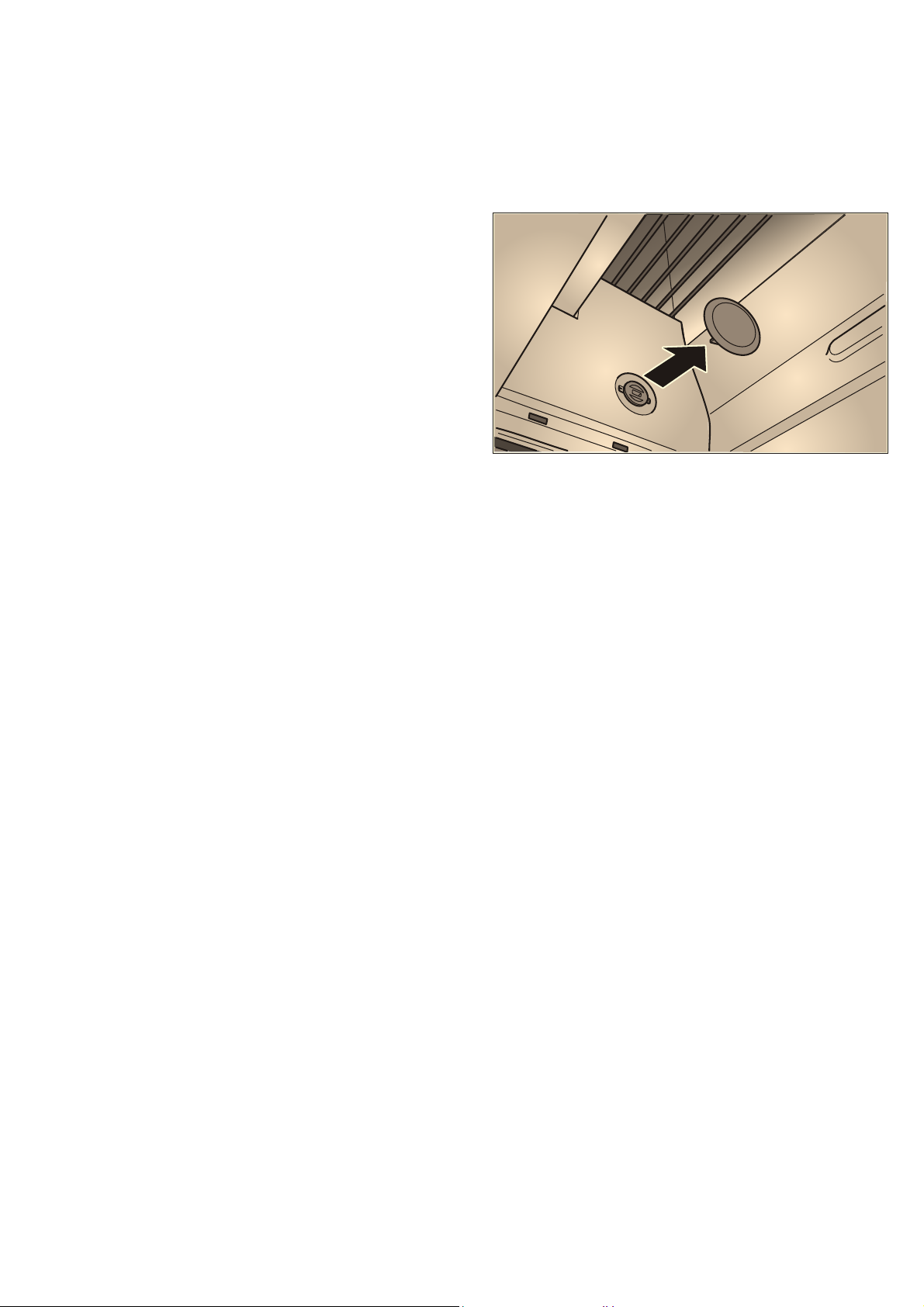

3. Fit the protective caps on the left and right. ª
4. Establish the electrical connection.
Note: The extractor hood's housing can be concealed
within the upper cabinet. In doing so, you must observe
the following:
■The intermediate floor must not be placed on the
extractor hood's housing.
■The front panel must not be secured to the housing.
■Access must be available in order to change the
filter and for the after-sales service.
Appliance width 90 cm:
You must also screw the appliance to the wall-hanging
cupboards either side of it.
Changing the filter pull-out's limit stop
On some versions of the appliance, the limit stop for the
filter pull-out can be changed. Spacers are included
with these appliances in order to position the
appliance's handle strip flush with the fitted unit.
1. Pull the filter pull-out towards you.
2. Shorten the spacer to the required dimension and
insert it into the slot specified.
[
%
$
&

en Installation
18
Connecting the pipes
Note: If an aluminium pipe is used, smooth the area
where it is to be connected before you connect it.
Exhaust air pipe, dia. 150 mm (recommended size)
Fit the exhaust air pipe directly to the air-pipe connector
and seal the joint.
Exhaust air pipe, dia. 120 mm
1. Fit the reducing connector directly to the air-pipe
connector.
2. Attach the exhaust air pipe to the reducing
connector.
3. Seal both joints appropriately.
Removing the appliance
1. Disconnect the electrical connection.
2. Disconnect the pipes.
3. Remove the metal grease filter.
4. Remove the protective caps from the fastening
elements.
5. Remove the appliance; see section entitled
"Removing the appliance".

6

BSH Hausgeräte GmbH
Carl-Wery-Straße 34, 81739 München, GERMANY
*9001057558*
9001057558 960211
0DQXIDFWXUHGE\%6++DXVJHUlWH*PE+XQGHU7UDGHPDUN/LFHQVHRI6LHPHQV$*
