Installation and operating instructions
RDH06101, RDH06111

Table of Contents
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
2
Table of Contents 1 Safety information
This appliance is intended for domestic
use and the household environment
only.
• Install and operate the appliance as
described in the text and illustrations.
We do not accept liability for damage
resulting from failure to heed these
instructions.
• This appliance is intended for use up
to an altitude of 2000 m above sea
level.
• The appliance may only be installed
and stored in a frost-free room (due to
residual water).
• The device is not suitable for
supplying water for showering.
WARNING:
Risk of electric shock!
Switch off the mains voltage supply
immediately if a fault occurs (RDH
06101,RDH 06111).
Immediately shut off the cold water
supply to the appliance should it leak.
These installation instructions are
intended for plumbers, heating
engineers and electricians. All
instructions must be observed. Failure
to comply with instructions may result in
1 Safety information 2
2 Product description 4
3 Installation instructions 5
3.1 Installation 5
3.1.1 Preparation for installation 5
4 Specifications 6
5 Operating instructions 7
5.1 Operating the appliance 7
5.1.1 To switch on 7
5.1.2 To switch off 7
5.1.3 To regulate the water temperature 7
5.1.4 Winter operation 7
5.2 Cleaning 7
5.3 Maintenance 7
6 Environmental protection/disposal 7
7 Guarantee 8

Safety information
3
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
material damage and personal injury,
including possible loss of life.
▶ Read the installation instructions
(heat source, heating controller, etc.)
before installation (chapter 3).
▶ Observe the safety instructions and
warnings.
▶ Observe national and regional
regulations, technical rules and
guidelines.
•The continuous-flow heater may
only be connected and put into
operation by a qualified
professional.
•In order to avoid potential sources
of danger, repairs and maintenance
may only be undertaken by a
suitably qualified specialist.
Improper repairs can lead to risk of
serious injury to the user.
•Never open the appliance without
disconnecting the power supply
beforehand.
• The statutory regulations of the
respective country, as well as those of
the local electricity and water
suppliers, must be adhered to.
• IEC 600364‑7‑701 (DIN VDE0100,
par 701) must be observed when
installing the appliance and/or
electrical accessories.
• Thecontinuous-flowheaterisaClass I
appliance and must be connected to
the protective earth.
• The appliance must be permanently
connected to the electrical
connections (RDH06101,
RDH06111). The conductor cross-
section must comply with the
installed appliance power.
CAUTION:
Earthed water pipes may give the
appearance of a connected protective
earth.
• To guarantee compliance to relevant
safety regulations, an all-pole
separator must be fitted during
installation, according to chapter 4.
The contact opening must be at least
3 mm.
• Ensure that the inlet water pressure,
maximum and minimum, is according
with the value specified by the
manufacturer (chapter 4).
• The water inlet of this appliance shall
not be connected to inlet water
obtained from any water heating
system.
• Do not use plastic pipes. Steel or
copper pipes are suitable for the cold-
water supply. Insulated copper pipes
are particularly suitable for the hot-
water pipes.
•Disconnect the electrical
connection cable from the supply
and shut off the water supply
before connecting the appliance!

Product description
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
4
•Connect the water supply and then
connect the electrical supply.
•The appliance must be
disconnected from the power
supply and the connection to the
water supply must be shut off when
any work is carried out.
• Do not touch electrically live parts
after installation.
• The appliance should be
disconnected from the electrical
mains supply when working on the
water supply. After service work is
complete, proceed as during the first-
time appliance start-up.
• No changes may be made to the
appliance.
• The appliance may only be used for
heating drinking water for household
use.
• The mixer and the warm water pipe
may be hot. Please inform and
instruct children appropriately.
• Do not use aggressive or abrasive
cleaning detergents!
• Do not use a steam cleaner.
Safety of electrical devices for
domestic use and similar purposes
The following requirements apply in
accordance with EN 60335-2-35 in
order to prevent hazards from occurring
when using electrical appliances:
“This appliance can be used by children
of 3 years and older, as well as by people
with reduced physical, sensory or
mental capabilities or lacking in
experience and knowledge, if they are
supervised and have been given
instruction in the safe use of the
appliance and understand the resulting
dangers. Children shall not play with the
appliance. Cleaning and user
maintenance must not be performed by
children without supervision.”
“If the power cable is damaged, it must
be replaced by the manufacturer, its
customer service department or a
similarly qualified person, so that risks
are avoided.”
Congratulations on purchasing this
BOSCH appliance. You have acquired a
top-quality product, which will give you
a lot of enjoyment.
Please read this installation and
operating instruction manual
carefully, then act accordingly! Store
for future reference.
2 Product description
This instruction manual describes various appliance models.
Only for permanently connected appliances: The appliance
complies with IEC 61000‑3‑12.
• The hydraulically controlled flow-through water heater is
suitable for either an open (depressurised) or closed
(pressurised) connection.
• The flow-through water heater continuously heats water
while it flows through the appliance.
• The appliance must not be operated with preheated water,
otherwise the overtemperature protection will be
triggered.
•RDH 06101, RDH 06111: These appliances are designed
for permanent electrical connection.

Installation instructions
5
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
Table 1
3 Installation instructions
Install the continuous-flow heater as described in the
illustrated section. Observe the instructions in the text.
3.1 Installation
I. Unpacking/scope of supply
• Unpack the appliance and check for transport damage.
• Dispose of the packaging and, where applicable, the old
appliance, in an environmentally conscious manner.
Table 2
3.1.1 Preparation for installation
CAUTION:
Important!
Only use the enclosed installation set.
• Shut off water supply. The electrical connection
(connection cable) must be disconnected from the power
supply. Unscrew the fuse or switch off the circuit breaker.
• There must be a clearance of approximately 60mm on all
sides of the appliance for installation.
• Observe the technical data for the appliance.
•RDH 06101: Unscrewthe screws onthe housing coverand
remove the lid.
II. Wall mounting
• Secure the appliance using the installation template,
screws and wall plugs so that it is vertical and flush against
the wall:
Table 3
•RDH 06101, RDH 06111: For an exposed electrical
connection,the differentmethodsof routingthe supply line
found on the assembly template must be observed.
•RDH 06101, RDH 06111: The sleeve must fit tightly round
the connection cable. If the sleeve is damaged during
installation, the holes must be sealed water-tight.
III. Water connection

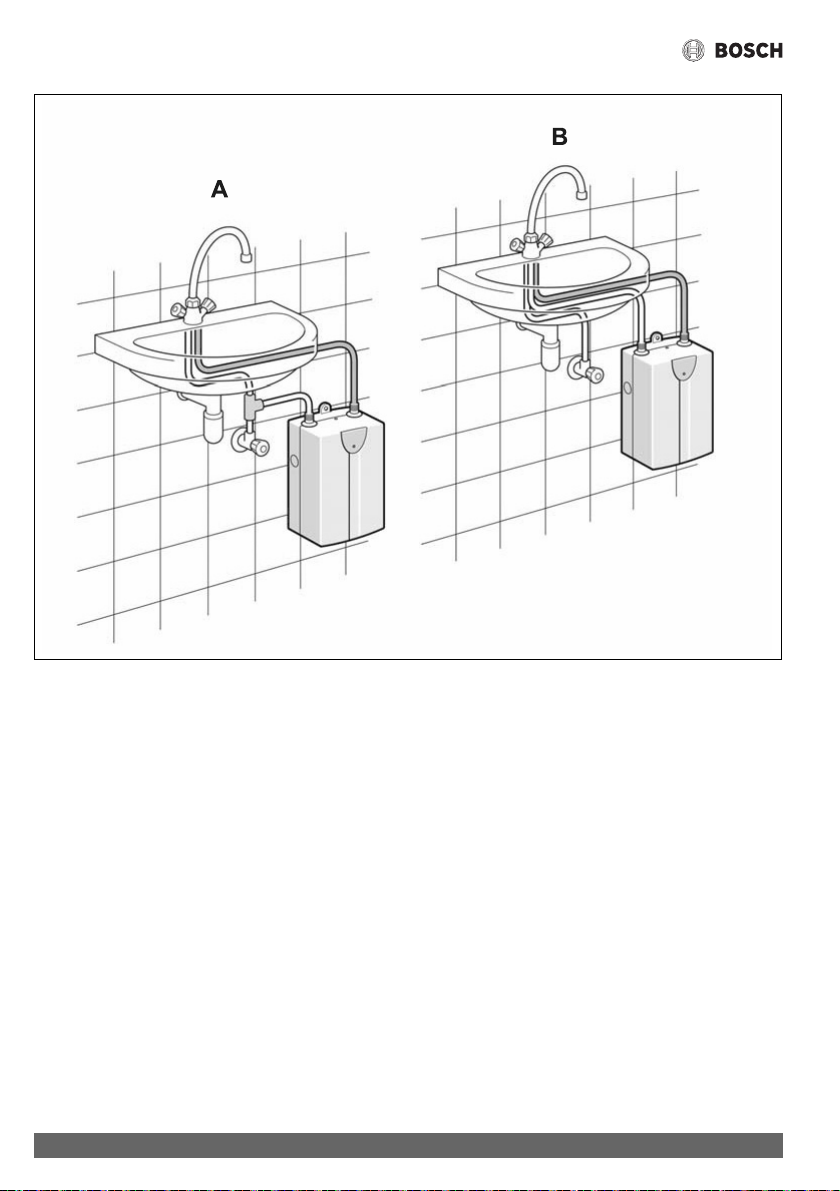

A Pressurised connection
BDepressurised connection
• Fit the jet regulator supplied.
• Check the inserted filter and sleeve in the water inlet.
• Ensure that the connection pipes are fitted to the adapter
along the axis of the pipes.
• Tighten the union nuts firmly to the adapter with an open-
jawed spanner.
The T-piece and flexible connecting hose (for pressurised
connection) are available from a specialist store.
For a depressurised connection, a depressurised fitting must
be used, e.g. fitting BZ13051 which can be obtained as
a special accessory.
IV. Electrical connection
C Flow switch
DTemperature limiter
RDH 06101, RDH 06111
The installation of non plug-in ready appliances must be
undertaken by the respective utility operator or by a qualified
specialist company, who can also assist you when you are
requesting the approval of the utility company for installation
of the appliance.
The appliances must be connected with a NYM-J3x4 (mm2)
mains lead. Leads with a larger cross-section must not be used.
• Connect the appliance in accordance with the connection
diagram on the strip terminal.
• Screw the housing cover back on.
•After installation, give the user the operating
instructions and explain how the appliance works.
RDH 06111 High level appliance
RDH 06101 Under counter appliances
1 Housing
2 Mounting (2 screws, 2 wall plugs)
3 Filter and sleeve (inserted in inlet)
4 Jet regulator and seal
5 Only for appliances with a permanent electrical
connection: Rubber grommet
1 Locate the appliance on the screw and press down.
2 Screw in the second screw through the mounting tab
and tighten.

Specifications
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
6
4 Specifications
Table 4
Type RDH 06101 RDH 06111
Model pressurised (closed) – depressurised (open)
Weight [kg] 1.8 1.8
Dimensions [mm] 250 x 144 x 100
Operating mode continuous
Mains connection Permanent electrical connection
Nominal voltage [V] 220 - 240
Nominal power (230V) [kW] 6.0 6.0
Class of protection in accordance with IEC 335-1 IP 24 (splash-proof)
Fuse protection [A] 32 32
Frequency [Hz] 50 50
Fittings connection [Zoll] 3/8 1/2
Minimum flow pressure [MPa (bar)] 0.1 (1.0)
Maximum flow pressure [MPa (bar)] 1.0 (10.0)
Water volume at switch-on approx. [l/min] 2.3 2.3
Water volume at switch-off approx. [l/min] 1.8 1.8
Typical warm water output at 37 °C [l/min] 3.0 3.0
Energy efficiency class A A
Load profile XXS XXS
Annual energy consumption [kWh] 489 489
Daily energy consumption [kWh] 2.270 2.270
Sound power level [dB] 15 15
Hot water heating energy efficiency [%] 38 38

Operating instructions
7
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
5 Operating instructions
Please read and observe the detailed safety instructions
at the start of these instructions!
Important: The appliance may never be exposed to frost!
WARNING:
Risk of electric shock!
Switch off the mains voltage supply immediately if a fault
occurs (RDH 06101, RDH 06111).
• Immediately shut off the cold water supply to the appliance
should it leak.
5.1 Operating the appliance
Flow-through water heaters in this product series work
automatically.
5.1.1 To switch on
• Open the tap fully.
The flow-through water heater switches on.
The water is heated as it flows through the appliance.
5.1.2 To switch off
• Close the tap, the appliance switches off.
5.1.3 To regulate the water temperature
• Open the tap fully, the appliance switches on.
• Now increase the temperature by reducing the water flow
volume.
5.1.4 Winter operation
NOTICE:
It is possible in winter that the supply temperature of the water
is reduced and the required outlet temperature is no longer
achieved.
• In order to compensate for this temperature reduction,
please reduce the water quantity on the tap until the
required water temperature is achieved.
5.2 Cleaning
• Simply wipe the appliance with a damp cloth.
Do not use acidic or abrasive cleaning materials.
• Clean dirt and lime deposits from the filter in the jet
regulator.
NOTICE:
It is normally not necessary to descale the appliance. However,
extremely hard water and the frequent flows of very hot water
can cause the appliance to scale up. In this case please contact
our after-sales service.
5.3 Maintenance
•In order to avoid potential sources of danger, repairs
and maintenance may only be undertaken by a suitably
qualified specialist.
•The appliance must be disconnected from the power
supply and the connection to the water supply must be
shut off when any work is carried out.
If you call the after-sales service for assistance, please specify
the E no. and FD no. of your appliance.
6 Environmental protection/disposal
Environmental protection is a fundamental corporate strategy
of the Bosch Group.
The quality of our products, their economy and environmental
safety are all of equal importance to us and all environmental
protection legislation and regulations are strictly observed.
We use the best possible technology and materials for
protecting the environment taking account of economic
considerations.
Packaging
Where packaging is concerned, we participate in country-
specific recycling processes that ensure optimum recycling.
All of our packaging materials are environmentally compatible
and can be recycled.
Used appliances
Used appliances contain valuable materials that can be
recycled.
The various assemblies can be easily dismantled. Synthetic
materials are marked accordingly. Assemblies can therefore be
sorted by composition and passed on for recycling or disposal.

Guarantee
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
8
Used electrical and electronic appliances
Electrical or electronic devices that are no
longer serviceable must be collected
separately and sent for environmentally
compatible recycling (in accordance with the
European Waste Electrical and Electronic
Equipment Directive).
To dispose of old electrical or electronic
devices, you should use the return and collection systems put in
place in the country concerned.
Batteries must not be disposed together with your household
waste. Used batteries must be disposed of in local collection
systems.
7 Guarantee
The guarantee conditions for this appliance are as defined by
our representative in the country in which it is sold.
Details regarding these conditions can be obtained from the
dealer from whom the appliance was purchased. The bill of sale
or receipt must be produced when making any claim under
the terms of this guarantee.
Subject to change without notice.

Guarantee
9
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
1
2
RDH06101 RDH06111

Guarantee
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
10
3

Guarantee
11
RDH06101, RDH06111 – 6 720 888 202 (2019/07)
4
RDH06101
RDH06111

Bosch Thermotechnik GmbH
Junkersstrasse 20-24
D-73249 Wernau
www.bosch-thermotechnology.com
6720888202
