Bosch Tronic 1000T ES 035-4 M 0 WIV-B Operating manual

User and Installation manual
Electrical storage water tank
Tronic 1000T / 2000T
6720817966-00.1V
ES 030/050/080/100/120 6...
6 720 818 420 (2016/09) EN

6 720 818 420 (2016/09) Tronic 1000T / 2000T
2 | Index
Index
1 Key to symbols and safety instructions . . . . . . . . . . 3
1.1 Key to symbols . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Security Measures . . . . . . . . . . . . . . . . . . . . . 3
2 Technical Characteristics and dimensions . . . . . . . 4
2.1 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Type overview . . . . . . . . . . . . . . . . . . . . . . . . 4
2.3 Appliance Description . . . . . . . . . . . . . . . . . . 4
2.4 Anticorrosion protection . . . . . . . . . . . . . . . . 4
2.5 Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.6 Specification . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.7 Product data on energy consumption . . . . . 6
2.8 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2.9 Appliance layout . . . . . . . . . . . . . . . . . . . . . 10
2.10 Electrical wiring diagram . . . . . . . . . . . . . . 10
3 Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4 Transport . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
4.1 Transport, storage . . . . . . . . . . . . . . . . . . . . 10
5 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.1 Important notes . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Siting the appliance . . . . . . . . . . . . . . . . . . . 10
5.3 Wall mounting . . . . . . . . . . . . . . . . . . . . . . . 11

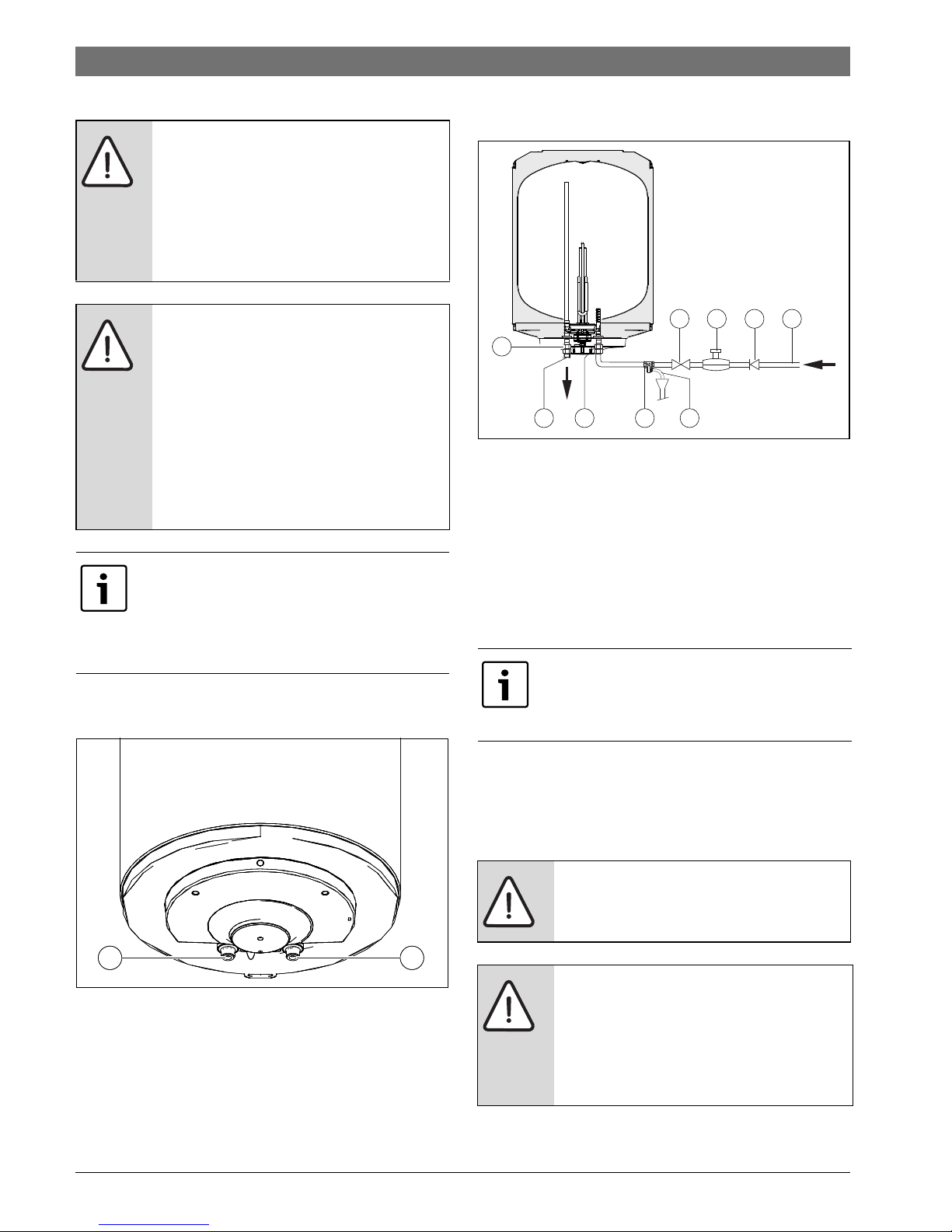

5.4 Water connection . . . . . . . . . . . . . . . . . . . . 12
5.5 Electrical connections . . . . . . . . . . . . . . . . . 13
5.6 Start-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6 Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
6.1 Turning the appliance on/off . . . . . . . . . . . 13
6.2 Setting the DHW temperature . . . . . . . . . . 13
6.2.1 Models without temperature selector . . . . 13
6.2.2 Models with temperature selector . . . . . . . 13
6.3 Emptying the appliance . . . . . . . . . . . . . . . 14
7 Environment / disposal . . . . . . . . . . . . . . . . . . . . . . . 14
8 Inspection/Maintenance . . . . . . . . . . . . . . . . . . . . . 15
8.1 User information . . . . . . . . . . . . . . . . . . . . . 15
8.1.1 Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.1.2 Safety valve verification . . . . . . . . . . . . . . . 15
8.1.3 Safety valve . . . . . . . . . . . . . . . . . . . . . . . . . 15
8.1.4 Maintenance and repair . . . . . . . . . . . . . . . 15
8.2 Periodic maintenance work . . . . . . . . . . . . 15
8.2.1 Functionality verification . . . . . . . . . . . . . . 15

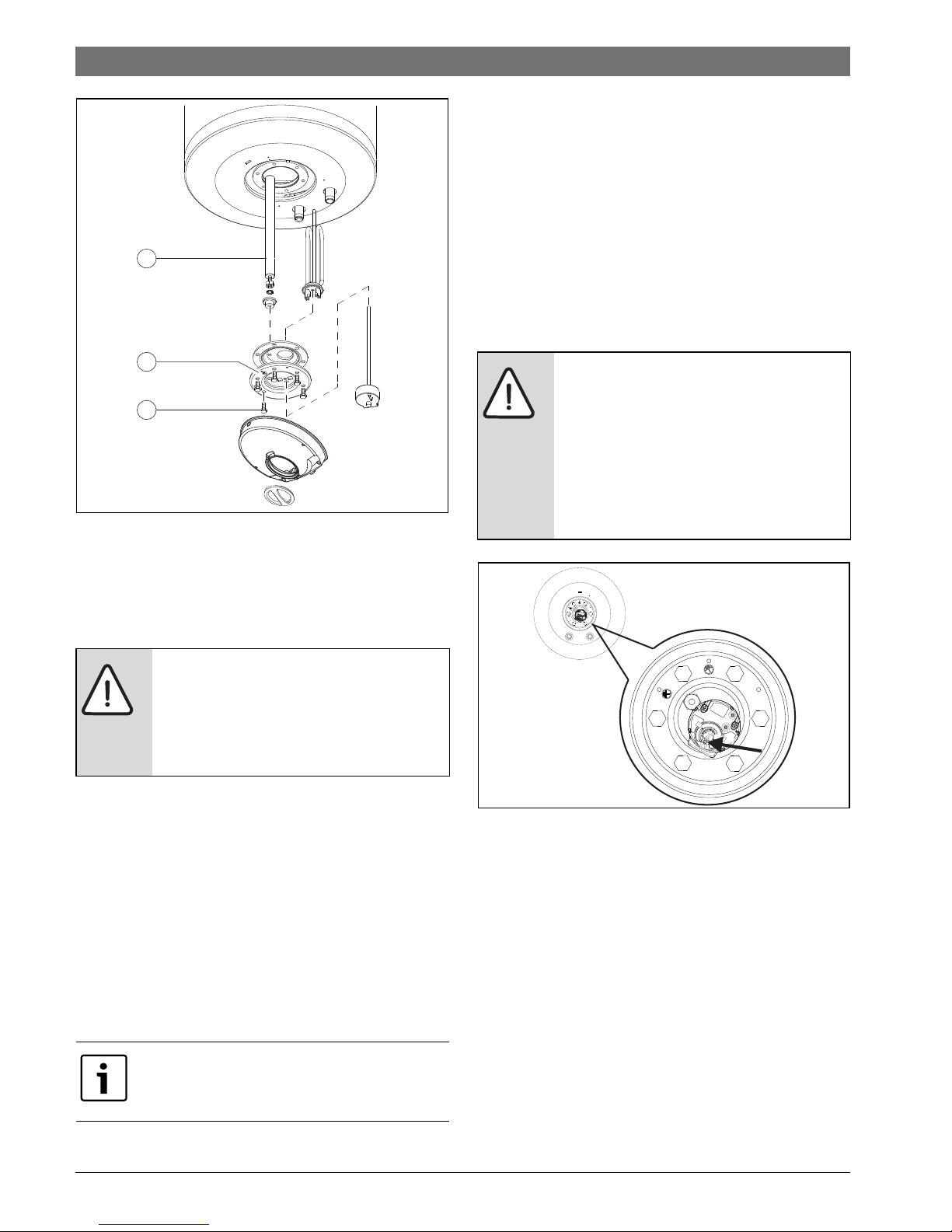

8.2.2 Magnesium Anode . . . . . . . . . . . . . . . . . . . . 15
8.2.3 Periodic cleaning . . . . . . . . . . . . . . . . . . . . . 16
8.2.4 Long standing - non working (more than 3
months) . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
8.3 Safety thermostat . . . . . . . . . . . . . . . . . . . . 16
8.4 Required actions after any maintenance work
has been carried out . . . . . . . . . . . . . . . . . .16
9 Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
9.1 Problem/Cause/Solution . . . . . . . . . . . . . . 17
10 Quick guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Key to symbols and safety instructions | 3
1 Key to symbols and safety instructions
1.1 Key to symbols
Warnings
The following keywords are defined and can be used in this
document:
•NOTICE indicates a situation that could result in damage to
property or equipment.
•CAUTION indicates a situation that could result in minor to
medium injury.
•WARNING indicates a situation that could result in severe
injury or death.
•DANGER indicates a situation that will result in severe
injury or death.
Important information
Additional symbols
1.2 Security Measures
Installation
▶ Installation must only be carried out by an authorised
service.
▶ IEC 60364-7-701 must be observed when installing the
appliance and or electrical accessories.
▶ The appliance must be installed in a room free from the risk
of frost.
▶ First connect the appliance hydraulically and fill with water,
then connect the power supply.
▶ During the installation isolate the appliance from the power
supply.
Installation and conversion
▶ Only permit an authorised service to install this appliance.
▶ Never obstruct the safety valve outlet.
▶Duringtheheat-up,watermaybe expelled from the safety
valve.
Maintenance
▶ Only authorised technicians are permitted to service this
appliance.
▶ Isolate the appliance from its power supply before
commencing any maintenance work on the appliance.
▶ Customers are responsible for the safety and
environmental compatibility of the appliance as well as its
maintenance.
▶ Use only original spare parts.
▶ To ensure compliance with all safety requirements, a
defective power cable may only be replaced by an
authorised service.
Instructing the customer (for the installer)
▶ Instruct the customer in the function and operation of this
appliance.
▶ It is the responsibility of customers to carry out regular
maintenance and inspections.
▶Theappliancemustbeserviced annually.
▶ Inform customers that they must not carry out any
modifications or repairs.
Safety of electrical appliances for
domestic use and similar purposes
The following requirements apply in
accordance with EN 60335-1 in order to
prevent hazards from occurring when using
electrical appliances:
“This appliance can be used by children of 8
years and older, as well as by people with
reduced physical, sensory or mental
capabilities or lacking in experience and
knowledge, if they are supervised and have
been given instruction in the safe use of the
appliance and understand the resulting
dangers. Children must not play with the
appliance. Cleaning and user maintenance
Warnings inthisdocument areidentifiedby a
warning triangle printed against a grey
background.
Keywords at the start of a warning indicate
the type and seriousness of the ensuing risk
if measures to prevent the risk are not taken.
This symbol indicates important information
where there is no risk to people or property.
Symbol Explanation
▶ Step in an action sequence
Cross-reference to another part of the document
•Listentry
–List entry (second level)
Table 1

6 720 818 420 (2016/09) Tronic 1000T / 2000T
4 | Technical Characteristics and dimensions
must not be performed by children without
supervision.”
“If the power cable is damaged, it must be
replaced by the manufacturer, its customer
service department or a similarly qualified
person, so that risks are avoided.”
2 Technical Characteristics and
dimensions
2.1 Intended use
The appliance was designed to heat and store DHW. Comply
with all regulations and standards related to drinking water
applicable in the country.
Use the appliance only in closed systems.
Only use adequate solar liquid in the heat exchanger coil (if
present).
Using the appliance for any other purpose will be considered
incorrect use. Bosch accepts no liability for any damage
resulting from such use.
2.2 Type overview
[ES] Electric Storage
[030] Capacity (liters)
[6] Version
[1200W] Power
[BO] Brand
[L1, M1] Design
[X] Standard diameter
[S] Slim
[K] Temperature regulator
[N] No temperature regulator
[N] No temperature indicator
[W] Wall mounted appliance
[V] Vertical installation
[H] Horizontal installation
[B] Bottom connections
2.3 Appliance Description
• Steel-glassed tank in conformity with the European
regulations
• Tank designed and built to withstand high pressures
• Exterior material: steel sheeting and / or plastic
• Easy handling
• Insulating material: polyurethane without CFC
• Anticorrosion protection: magnesium anode.
2.4 Anticorrosion protection
The inside of the tank is lined with homogeneous glass enamel,
completely neutral with regards to compatibility and contact
with potable water. This lining is neutral with regard to the use
with potable water. The existence of a magnesium anode
provides additional anticorrosion protection.
2.5 Accessories
Fig. 1
[1] Hook (2x)1)
[2] Sleeve (2x)1)
[3] Safety valve (8 bar)
[4] Galvanic isolator (2x)1)
Water characteristics Unit
Water hardness, min. ppm
grain/US gallon
°dH
120
7.2
6.7
pH, min. – max. 6.5 – 9.5
Conductivity, min. – max. μS/cm 130 – 1500
Table 2 Water characteristics
ES 030 6 1200W
1500W
BO L1
M1
X
S
N
K
NWV B
ES 050 61500W BO L1
M1
X
S
N
K
N W V
H
B
ES 080 6 2000W
1500W
BO L1
M1
X
S
N
K
NWV
H
B
ES 100 62000W
1500W
BO L1
M1
X N
K
N W V
H
B
ES 120 6 2000W BO L1 X N
K
NWV B
Table 3
1) Only some models
6720801526-01.2V
3
1
2
4

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Technical Characteristics and dimensions | 5
2.6 Specification
This appliance meets the requirements specified by the European Directives 2014/35/UE and 2014/30/UE.
Technical characteristics Unit ES 030.V ES 030.S ES 050.V ES 050.S ES 050.H ES 080.V
General characteristics
Capacity l30 30 50 50 50 80
Weight (empty) kg 11,5 12,5 15,0 17,0 15,0 20,0
Weight when full kg 41,5 42,5 65,0 67,0 65,0 100,0
Standby loss kWh/24h 0,69 0,63 0,98 0,92 1,05 1,45
Water details
Maximum permissible pressure bar 8
Water connections Pol. 1/2
Electrical characteristics
Nominal power W1200 1500 1500 1500 1500 2000
Heating time (T= 50 °C) 1h27m 1h10m 1h56m 1h56m 1h56m 2h20m
Voltage Vac 230
Frequency Hz 50
Monophasic electric current A5,2 6,5 6,5 6,5 6,5 8,7
Power cable (with plug) HO5VV - F 3 x 1,5mm2
Protection class I
Type of protection IP24
Water temperature
Temperature ranges °C until 65 °C
Table 4 Technical characteristics
Technical characteristics Unit ES 080.S ES 080.H ES 100.V ES 100.H ES 120.V
General characteristics
Capacity l80 80 100 100 120
Weight (empty) kg 25,0 20,0 24,0 24,0 28,0
Weight when full kg 105,0 100,0 124,0 124,0 148,0
Standbyloss kWh/24h1,381,521,731,842,06
Water details
Maximum permissible pressure bar 8
Water connections Pol. 1/2
Electrical characteristics
Nominal power W2000 1500 2000 1500 2000
Heating time (T= 50 °C) 2h20m 3h05m 2h55m 3h55m 3h30m
Voltage Vac 230
Frequency Hz 50
Monophasic electric current A8,7 6,5 8,7 6,5 8,7
Power cable (with plug) HO5VV - F 3 x 1,5mm2
Protection class I
Type of protection IPX4
Table 5 Technical characteristics

6 720 818 420 (2016/09) Tronic 1000T / 2000T
6 | Technical Characteristics and dimensions
2.7 Product data on energy consumption
The following product data complies with the requirements of EU Regulations 811/2013, 812/2013, 813/2013 and 814/2013
as supplement to the Directive 2010/30/EU.
Water temperature
Temperature ranges °C until 65 °C
Product data
Symbol
Unit
7736503313 7736503314 7736503315 7736503316 7736503317 7736503318 7736503319 7736503320
Product type – –
ES 030 6 1500W
BO L1X- NNWVB
ES 050 6 1500W
BO L1X- NNWVB
ES 050 6 1500W
BO L1X- NNWHB
ES 080 6 2000W
BO L1X- NNWVB
ES 080 6 1500W
BO L1X- NNWHB
ES 100 6 2000W
BO L1X- NNWVB
ES 100 6 1500W
BO L1X- NNWHB
ES 120 6 2000W
BO L1X- NNWVB
Emissions of nitrogen oxides NOxmg/kWh 0 0 0 0 0 0 0 0
Sound power level, indoors LWA dB(A)151515 15 15 15 15 15
Declared load profile – – S M M L M L L L
Water heating energy efficiency class – – C C C C C C C C
Water heating energy efficiency wh %32 37 36 37 36 37 38 37
Annual electricity consumption AEC kWh 606 1 441 1 459 2 815 1 466 2 828 2 755 2 809
Daily electricity consumption (average
climate conditions)
Qelec kWh 2,762 6,562 6,643 12,819 6,678 12,880 12,545 12,792
Annual fuel consumption AFC GJ 0 0 0 0 0 0 0 0
Daily fuel consumption Qfuel kWh 0 0 0 0 0 0 0 0
Smart control enabled? – – No No No No No No No No
Mixed water T= 40 °C V40 l39 69 70 130 89 167 141 167
Storage volume V l 30 50 50 80 80 100 100 120
Thermostat temperature (factory setting) Tset °C 74 61 62 66 58 65 59 60
Indication about ability working only
during off-peak hours
– – No No No No No No No No
Table 6 Product data on energy consumption
Technical characteristics Unit ES 080.S ES 080.H ES 100.V ES 100.H ES 120.V
Table 5 Technical characteristics

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Technical Characteristics and dimensions | 7
Product data
Symbol
Unit
7736503321 7736503322 7736503323 7736503346 7736503347 7736503348 7736503349
Product type – –
ES 030 6 1500W
BO L1S- NNWVB
ES 050 6 1500W
BO L1S- NNWVB
ES 080 6 1800W
BO L1S- NNWVB
ES 030 6 1500W
BO M1X- KNWVB
ES 050 6 1500W
BO M1X- KNWVB
ES 050 6 1500W
BO M1X- KNWHB
ES 080 6 2000W
BO M1X- KNWVB
Emissions of nitrogen oxides NOxmg/kWh 0 0 0 0 0 0 0
Sound power level, indoors LWA dB(A) 15 15 15 15 15 15 15
Declared load profile – – S M L S M M L
Water heating energy efficiency class – – C C C C C C C
Water heating energy efficiency wh %33 37 37 32 37 36 37
Annual electricity consumption AEC kWh 587 1 440 2 792 606 1 441 1 459 2 815
Daily electricity consumption (average
climate conditions)
Qelec kWh 2,673 6,559 12,716 2,762 6,562 6,643 12,819
Annualfuelconsumption AFCGJ00000 0 0
Daily fuel consumption Qfuel kWh 0 0 0 0 0 0 0
Smart control enabled? – – No No No No No No No
Mixed water T= 40 °C V40 l42 84 131 39 69 70 130
Storage volume V l 30 50 80 30 50 50 80
Thermostat temperature (factory setting) Tset °C 61 65 62 74 61 62 60
Indication about ability working only
during off-peak hours
– – No No No No No No No
Table 7 Product data on energy consumption
Product data
Symbol
Unit
7736503350 7736503351 7736503352 7736503353 7736503354 7736503355 7736503353
Product type – –
ES 080 6 1500W
BO M1X- KNWHB
ES 100 6 2000W
BO M1X- KNWVB
ES 100 6 1500W
BO M1X- KNWHB
ES 120 6 2000W
BO M1X- KNWVB
ES 030 6 1500W
BO M1S- KNWVB
ES 050 6 1500W
BO M1S- KNWVB
ES 080 6 1800W
BO M1S- KNWVB
Emissions of nitrogen oxides NOxmg/kWh 0000000
Sound power level, indoors LWA dB(A)15151515151515
Declared load profile – – M L L L S M L
Water heating energy efficiency class – – C C C C C C C
Water heating energy efficiency wh %36 37 38 37 33 37 37
Annual electricity consumption AEC kWh 1 466 2 828 2 755 2 809 587 1 440 2 792
Table 8 Product data on energy consumption

6 720 818 420 (2016/09) Tronic 1000T / 2000T
8 | Technical Characteristics and dimensions
Daily electricity consumption (average
climate conditions)
Qelec kWh 6,678 12,880 12,545 12,792 2,673 6,559 12,716
Annualfuelconsumption AFCGJ0000000
Daily fuel consumption Qfuel kWh 0000000
Smart control enabled? – – No No No No No No No
Mixed water T= 40 °C V40 l89 167 141 167 42 84 131
Storage volume V l 80 100 100 120 30 50 80
Thermostat temperature (factory setting) Tset °C 58 65 59 60 61 65 62
Indication about ability working only
during off-peak hours
– – No No No No No No No
Product data
Symbol
Unit
7736503350 7736503351 7736503352 7736503353 7736503354 7736503355 7736503353
Table 8 Product data on energy consumption

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Technical Characteristics and dimensions | 9
2.8 Dimensions
Fig. 2 Dimensions in mm (Vertical installation)
Fig. 3 Dimensions in mm (Horizontal installation)
Appliance A B C D E F G
ES030... 433 440 457 257 243 240 300
ES030.S... 380 390 607 407 385 340 380
ES050... 433 440 622 422 407 240 300
ES050.S... 380 390 860 660 638 340 380
ES080... 433 440 869 669 654 240 300
ES080.S... 380 390 1236 1036 1013 340 380
ES100... 433 440 1031 831 816 240 300
ES120... 433 440 1194 994 979 240 300
Table 9
C
D200
F
B
A
100
½"
E
6720817966-01.1V
G
min. 250
A
min. 500 6720817966-02.1V
343
Appliance A
ES050... 165
ES080... 350
ES100... 495
Table 10

6 720 818 420 (2016/09) Tronic 1000T / 2000T
10 | Regulations
2.9 Appliance layout
Fig. 4 Appliance composition (ex. model with temperature
regulator)
[1] Tank
[2] Insulating material - polyurethane
[3] Heating element
[4] Hot water outlet ½ ” male
[5] Cold water inlet½ ” male
[6] Magnesium anode
[7] Safety and control thermostat
[8] Galvanic isolator
2.10 Electrical wiring diagram
Fig. 5 Electric circuit diagram
3Regulations
The country’s regulations currently in force must be fulfilled for
the installation of the electric appliances.
4Transport
▶ Do not drop the appliance.
▶ Remove the appliance from the packaging only at the place
of installation.
4.1 Transport, storage
• The equipment should be stored in protected areas against
negative temperatures.
5Installation
5.1 Important notes
5.2 Siting the appliance
Dispositions relative to the place of installation
• Comply with country-specific requirements
• Never install the appliance above a heat source.
6720817966-06.1V
7
5
4
8
3
1
2
6
230V~
2L + PE
L1
L2
PE
6720817966-09.1V
Installation, power connection and
commissioning must only be carried out by a
service approved for such work by the local
entities.
CAUTION:
▶ Do not drop the appliance.
▶ Remove the appliance from the
packaging only at the place of
installation.
▶ Wherever applicable, comply with the
IEC 60364-7-701 norm on installing the
appliance and / or any electric
accessories.
▶ Chose a sufficiently robust wall to
support the appliance with the tank full,
see page 5.
CAUTION: Damage to the heating elements!
▶ Firstly connect all the water connections
and fill the appliance.
▶ Connect the appliance to the electric
point, assuring connection to earth.
CAUTION:
▶ Chose a sufficiently robust wall to
support the appliance with the tank full,
see page (page 5).

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Installation | 11
• Never install the appliance in rooms where the ambient
temperature can fall below 0 °C.
• If the appliance is to be fitted in a room or location where
the ambient temperature is higher than 35°C, provide
sufficient ventilation.
• Install the appliance near the most frequently used draw-
off point to keep energy losses and waiting times to a
minimum.
• Install the appliancein a room thatpermits the replacement
of the magnesium anode, and necessary maintenance
procedures.
Protection area 1
▶ Do not install in protection area 1.
▶ Install the appliance outside the protection area.
Fig. 6 Protection areas
5.3 Wall mounting
Vertical installation
Fig. 7 Vertical installation
Horizontal installation
Fig. 8 Horizontal installation
CAUTION:
▶ Make sure that the appliance is
connected to the DB board (electrical
board) with a connection to the earth
cable.
CAUTION: Appliance fall!
▶ Use sleeves and hooks (according with
the type of wall) that can hold the
appliance with the tank full.
60 cm
60 cm
225 cm
6720815708-05.1V
Appliance A
Standard diameter models 240
Slim diameter models 340
Table 11
In case of horizontal installation ensure that
water outlet/inlet are vertical and facing
downwards.
Appliance A
ES050... 165
ES080... 350
ES100... 495
Table 12
A
6720817966-08.1V
A
6720817966-05.1V

6 720 818 420 (2016/09) Tronic 1000T / 2000T
12 | Installation
5.4 Water connection
▶ Identify the piping for hot and cold water, in order to avoid
a possible change (Fig. 9).
Fig. 9
[1] Cold water inlet (right hand side)
[2] Hot water outlet (left hand side)
▶ Use the appropriate connection accessories to do the
hydraulic connection to the appliance.
Fig. 10 Water connection
[1] Galvanic isolator
[2] Hot water outlet
[3] Safety valve
[4] Drain connection
[5] Cut off valve
[6] Reduction valve
[7] Non return valve
[8] Connection to the water line
In the case of freezing:
▶ Switch off the appliance.
▶Purgetheappliance(chapter 6.3).
Safety valve
CAUTION: Damage to appliance
connections through contact corrosion!
▶ Use galvanic isolators in your water
connections. These will avoid galvanic
electric currents between the hydraulic
link metals and, consequently corrosion
of these.
NOTICE: Material damage!
▶ Install a filter at the water inlet in areas
where the water contains particles or
sediments.
▶ Install a thermostatic regulator on the
output pipe of the device if PER pipes are
used. It will be set according to the
performance of the material used.
▶ The pipes used must support 10 bars (1
MPa) and 100 °C.
It is recommended:
▶ to purge the system before appliance
installation, the existence of sand can
cause a reduction in flow or even cause a
total obstruction.
12
6720817966-03.1V
12
In order to avoid problems caused by sudden
pressure changes, we recommend the
installation of a non return valve at the
appliance (Fig. 10, [7]).
DANGER:
▶ Install a safety valve at the water inlet of
the appliance (Fig. 10).
NOTICE:
NEVER OBSTRUCT THE PURGE OUTLET OF
THE SAFETY VALVE.
Never install any accessory between the
safety valve and the cold-water inlet (right
hands side) of the appliance.
6720817966-07.1V
1
2 1 3 4
5678

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Use | 13
5.5 Electrical connections
All adjusting devices, verification and safety mechanisms were
submitted to a rigorous test in factory and are ready to work.
▶ Connect the appliance via a socket with earth connection.
5.6 Start-up
▶ Verify that the appliance has been correctly installed and
assembled.
▶ Open the water inlet valves.
▶ Open all the hot water taps in order to ensure all the air is
out of the connections.
▶ Control the tightness of all the connections and ensure that
the appliance fills to its full capacity.
▶ Connect the appliance to the electric current.
▶ Inform the customer of any user information of the
appliance and handling.
6Use
Fig. 11 User interface
[1] Functioning indicator
[2] Temperature selector (models with temperature
selector)
6.1 Turning the appliance on/off
Turn on
▶ Plug the appliance to a socket with earth connection.
Turn off
▶ Unplug the appliance.
6.2 Setting the DHW temperature
6.2.1 Models without temperature selector
The water outlet temperature is factory preset to the value
indicated in tables 6, 7 and 8.
6.2.2 Models with temperature selector
The water outlet temperature can be regulated until 65 °C.
If the pressure at the cold water inlet is
superior to that of 80% of the maximum
pressure of the appliance at, ie: 6,4 bar:
▶ Install a reducing valve (Fig. 10).
The safety valve will trigger every time
the water pressure in the appliance
exceeds 8 bar (0,5 bar). A facility for
draining the expelled water must be
provided.
DANGER:
By electrical discharge!
▶ Before working on the electrical
components, firstly cut the power,
(fuse, circuit breaker or other).
CAUTION:
Electrical protection!
▶ The appliance should dispose of an
independent connection to the DB
board (electric board), protected by a
30 mA differential circuit breaker and
earthing.
The electrical connection must be realized in
accordance with the current country laws
regarding electrical installations.
CAUTION: The firststart-up of the appliance
must be carried out by an authorized
technician, which will provide the user with
all the necessary information to the best
working and handling of the device.
Once the water has reached the selected
temperature level, the appliance stops
heating up (the indicator switches off).
When the water temperature is below the
desired value, the appliance re-starts the
heating cycle (the indicator switches back
on) until it reaches the desired temperature
selected.
6720817966-04.1V
2
1

6 720 818 420 (2016/09) Tronic 1000T / 2000T
14 | Environment / disposal
Increasing the temperature
▶ Turn the temperature selector to the left.
Fig. 12 Increasing the temperature
Decrease the temperature
▶ Turn the temperature selector to the right.
Fig. 13 Decrease the temperature
6.3 Emptying the appliance
▶ Turn off the appliance from the electric supply.
▶ Switch off the water cutting valve and open a hot water tap.
▶ Open the safety valve (Fig. 14).
▶ Wait until the appliance is completely empty.
Fig. 14 Manual activation of the safety valve
7 Environment / disposal
Environmental protection is a fundamental corporate strategy
of the Bosch Group.
The quality of our products, their efficiency and environmental
safety are all of equal importance to us and all environmental
protection legislation and regulations are strictly observed.
We use the best possible technology and materials for
protecting the environment taking into account of economic
considerations.
Packaging
We participate in the recycling programmes of the countries in
which our products are sold to ensure optimum recycling.
All of our packaging materials are environmentally friendly and
can be recycled.
Old electrical and electronic appliances
Electrical or electronic devices that are no
longer serviceable must be collected
separately and sent for environmentally
compatible recycling (in accordance with the
European Waste Electrical and Electronic
Equipment Directive).
To dispose of old electrical or electronic
devices, you should use the return and
collection systems put in place in the country
concerned.
DANGER: Burn risk!
Open a hot water tap to and verify the
temperature of the water in the appliance
before opening the safety valve.
▶ Wait until the water temperature
decreases in order to avoid burns or any
other damage.
6720810314-03.1V
+
6720810314-04.1V
-
6720643873-06.1V

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Inspection/Maintenance | 15
8 Inspection/Maintenance
8.1 User information
8.1.1 Cleaning
▶ Never use abrasive, corrosive or solvent cleaning
detergents.
▶ Use a soft cloth to clean the exterior of the appliance.
8.1.2 Safety valve verification
▶ Verify that the water is expelled during the heating process
through the safety purge valve.
▶ Never obstruct the safety purge valve outlet.
8.1.3 Safety valve
▶ Manually open the safety valve at least once a month (Fig.
14).
8.1.4 Maintenance and repair
▶ It is the responsibility of the client to regularly call out
technical assistance or an authorized technician to perform
periodic maintenance.
8.2 Periodic maintenance work
▶ Only make use of genuine replacement parts.
▶ Order the replacement parts in accordance with the parts
catalogue for the appliance.
▶ When carrying out maintenance work change the
disassembled joints and replace these with new ones.
8.2.1 Functionality verification
▶ Verify the good working order of all the elements.
8.2.2 Magnesium Anode
▶ Switch off the circuit breaker feeding the appliance.
▶ Before starting, verify that the appliance is disconnected
from the electric current.
▶ Completely drain the appliance (section 6.3).
▶ Remove the lid of the appliance, by unscrewing the fixing
screws.
▶ Disconnect the connecting cables to the thermostat.
▶ Remove the flange fastening screws [1].
▶ Remove the flange [2].
▶ Verify the magnesium anode and replace it if necessary [3].
Maintenance must only be carried out by an
authorized technician.
WARNING:
Ensure the purging of the water does not
cause any damage to persons or goods.
WARNING:
Before carrying out any maintenance work:
▶ Turn off all electric current.
▶ Turn off the water cut off valve
(Fig. 10).
CAUTION: Damages to the glass enamel!
Never clean the enamel interior of the
appliance with decalcifying agents. The
magnesium anode ensures anti corrosion
protection. There is no need for alternative
products for the protection of the enamel.
This appliance disposes of an anti-corrosion
magnesium anode in the inside.
WARNING:
It is forbidden to operate the appliance
without an installed magnesium anode.
WARNING:
The magnesium anode needs to be annually
tested and replaced if necessary, failing to
do so will result in the termination of the
warranty. The appliance without this type of
protection will not be covered by the
manufactures warranty.

6 720 818 420 (2016/09) Tronic 1000T / 2000T
16 | Inspection/Maintenance

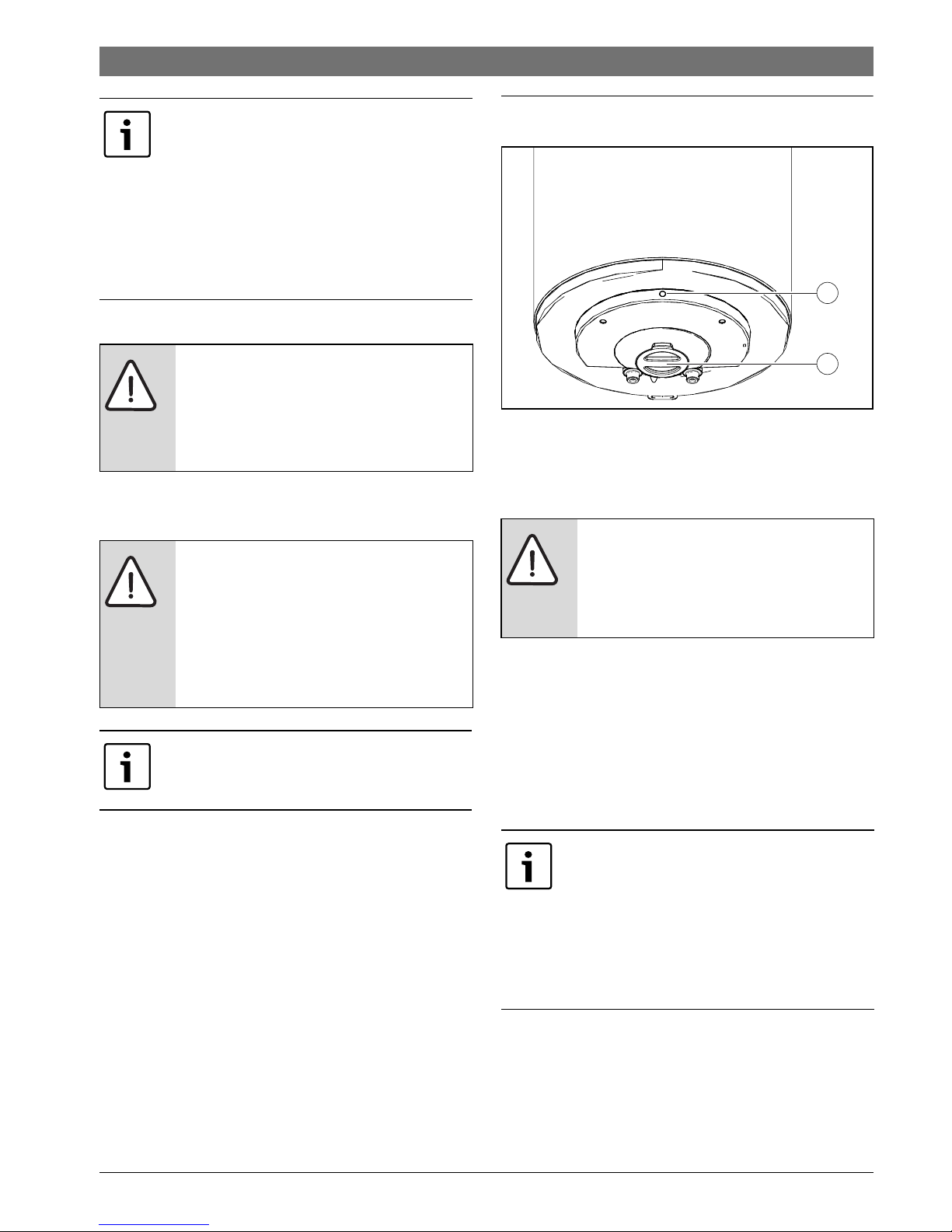

Fig. 15 Access and identifying internal components
[1] Fastening screw
[2] Flange
[3] Magnesium anode
8.2.3 Periodic cleaning
▶ Turn off all hot water taps.
▶ Inform all residents of the danger of burns.
▶ Position the thermostat on the maximum position (
Fig. 12).
▶ Wait until the indicator turns off.
▶ Open all the hot water taps, starting with the nearest one to
the furthest one from the appliance, and purge all the hot
water from inside the appliance, at least 3 minutes.
▶ Turn off all the hot water taps, and position the thermostat
on the normal working position.
8.2.4 Long standing - non working (more than 3 months)
▶ Switch off the electric current to the appliance.
▶ Drain the appliance completely.
▶ Fill the appliance until the water comes out from all the hot
water taps.
▶ Turn on the appliance to the electric current.
8.3 Safety thermostat
The appliance is equipped with an automatic safety
thermostat. If for any reason the water temperature inside the
appliance exceeds the safety limit, the switch will trigger and
cut all electric current supplying the appliance, thus avoiding
any accidents.
Fig. 16 Reactivate button
8.4 Requiredactions after anymaintenance work
has been carried out
▶ Refasten and check the fastness of all the water
connections.
▶ Turn on the appliance.
DANGER: Burn risk!
During the periodic cleaning process the hot
water may cause serious burns.
▶ Carry out this operation outside working
hours.
After a long period of inactivity you should
change the water inside the appliance (more
than 3 months).
2
672087523-07.1V
1
3
DANGER: The reactivation of the appliance
should only be done by an authorized
technician!
The action to manually re-start or reactivate
should only be done once the cause of which
initiated this action has been identified and
rectified.To reactivate the device:
▶ Press the button firmly (Fig. 16).
6720810887-01.1V

6 720 818 420 (2016/09)Tronic 1000T / 2000T
Problems | 17
9Problems
9.1 Problem/Cause/Solution
In the following diagram there are some solutions described for
possible problems / troubleshooting (these should only be
performed by authorized technicians).
DANGER:
Assembly, maintenance and repairs should
only be carried out by authorized
technicians.
Problem Cause Solution
Cold water Very hot water Insufficient capacity Continuous draining from the safety valve Rust coloured water Water with a scent (bad smell) Noise in the appliance
XPlant or circuit breaker surcharge
(capacity exceeded).
▶ Verify if the device is connected to a
dedicated electric point to supply
sufficient electric current to the
device.
X X Incorrect temperature regulating through
the thermostat.
▶ Regulate the thermostat.
XThermostat temperature safety active. ▶ Replace or re-install the thermostat.
X Damaged heating element. ▶ Replace the heating element.
XIncorrect functioning of the thermostat ▶ Replace or re-install the thermostat.
X X X Device incrustation and / or from the
safety group.
▶ Perform a descaling of the appliance.
▶ If necessary replace the safety group.
X X X Hydraulic system pressure. ▶ Verify the system pressure.
▶ If necessary install a pressure
reducing valve.
X X Hydraulic system capacity. ▶ Verify the piping.
XAppliance corrosion. ▶ Drain the appliance and check for
interior corrosion.
▶ Replace the magnesium anode.
X Bacteria development. ▶ Drain, clean the device.
▶ Disinfect the appliance.
XDevice incorrectly dimensioned for the
consumption.
▶ Replace by another, following the
consumption.
Table 13

6 720 818 420 (2016/09) Tronic 1000T / 2000T
18 | Quick guide

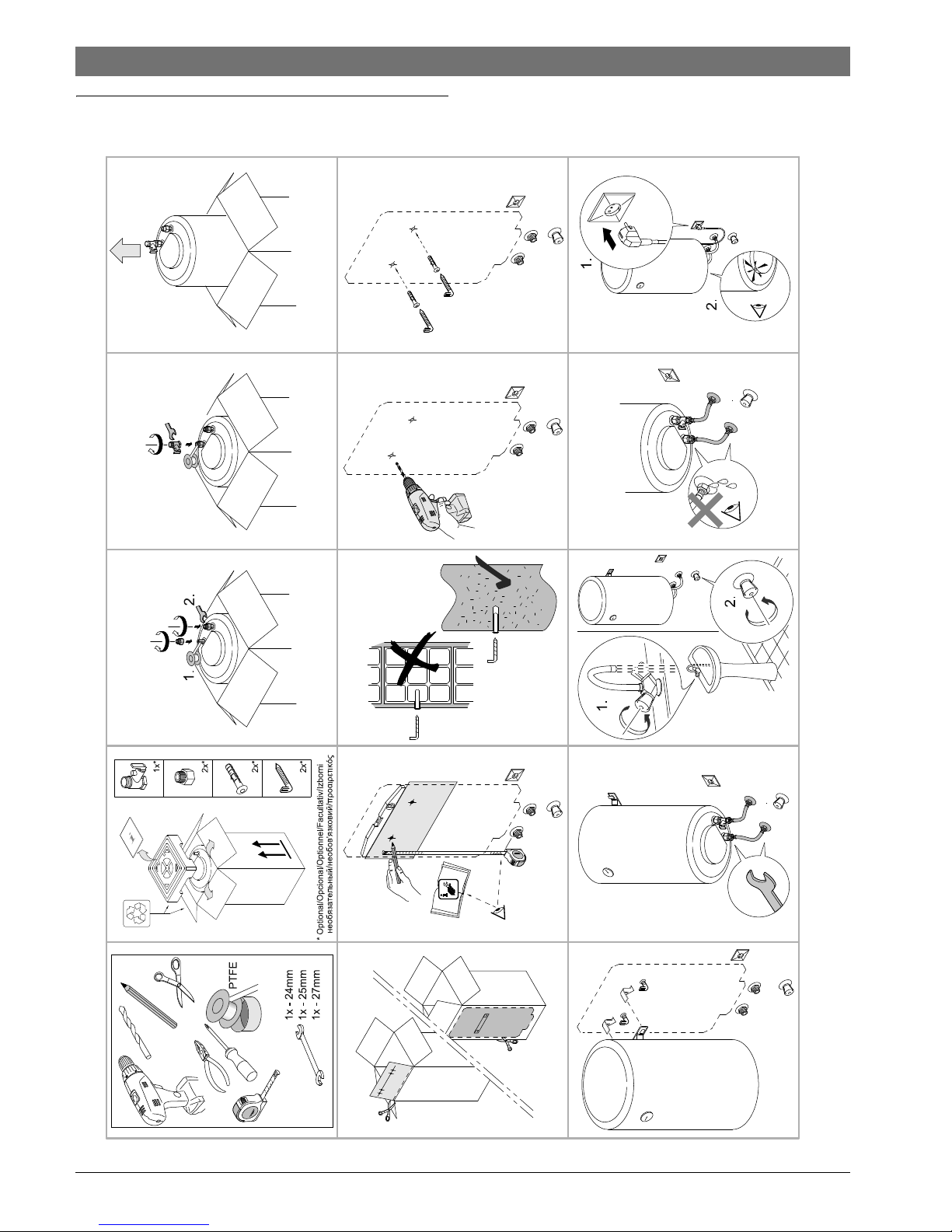

10 Quick guide
6720818423-01.1V

6 720 818 420 (2016/09)Tronic 1000T / 2000T
| 19
Notes

Bosch Thermotechnik GmbH
Junkersstrasse 20-24
D-73249 Wernau
www bosch-thermotechnology com
