Boser HS-1770 User manual

HS-1770
VIA V4 Eden processor
mITX Board
•CompactFlash•DDRII•PCI Slot•
•CRT/LVDS•TV-Out•Dual LAN•
•Audio•SPDIF•Serial ATA•
•ATA/33/66/100•RS-232/422/485•
•4 COM•USB2.0•PC/104•WDT•

Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The manufacturer will
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e., electronic, mechanical, photocopying, recording)
of this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
T
Tr
r
ra
a
ad
d
de
e
em
m
ma
a
ar
r
rk
k
ks
s
s
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2008 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.9, May 19, 2009

Table of Contents
Chapter 1 General Description ..................................1
1.1 Major Features....................................................................... 2
1.2 Specifications ........................................................................ 3
1.3 Board Dimensions................................................................. 4
Chapter 2 Unpacking ..................................................5
2.1 Opening the Delivery Package............................................. 5
2.2 Inspection............................................................................... 5
Chapter 3 Hardware Installation ..............................7
3.1 Before Installation ................................................................. 7
3.2 Board Layout ......................................................................... 8
3.3 Jumper List ............................................................................ 9
3.4 Connector List ....................................................................... 9
3.5 Configuring the CPU ........................................................... 10
3.6 System Memory ................................................................... 10
3.7 VGA Controller .................................................................... 10
3.8 PCI E-IDE Drive Connector................................................. 12
3.9 Serial ATA Connector ......................................................... 13
3.10 Floppy Disk Drive Connector ............................................. 14
3.11 Serial Port Connectors ....................................................... 15
3.12 Ethernet Connector............................................................. 16
3.13 USB Connector.................................................................... 17
3.14 CMOS Data Clear................................................................. 17
3.15 Power and Fan Connectors................................................ 18
3.16 Keyboard/Mouse Connectors ............................................ 19
3.17 System Front Panel Control ............................................... 19
3.18 Watchdog Timer .................................................................. 20
3.19 TV-Out Function .................................................................. 21
3.20 PC/104 Connectors ............................................................. 22
3.21 Audio Connectors ............................................................... 24
3.22 CompactFlashConnector................................................ 25
3.23 DiskOnChipTM Address Setting.......................................... 26
3.24 8-bit I/O Function................................................................. 27

Chapter 4 AMI BIOS Setup..................................... 31
4.1 Starting Setup...................................................................... 31
4.2 Using Setup ......................................................................... 32
4.3 Main Menu............................................................................ 33
4.4 Advanced Settings .............................................................. 34
4.5 Advanced PCI/PnP Settings............................................... 40
4.6 Boot Settings ....................................................................... 41
4.7 Security Settings ................................................................. 42
4.8 Advanced Chipset Settings................................................ 43
4.9 Exit Options ......................................................................... 46
Chapter 5 Software Utilities..................................... 47
5.1 VGA Driver Installation ....................................................... 47
5.2 Audio Driver Installation..................................................... 49
5.3 USB2.0 Driver Installation .................................................. 53

Declaration of Conformity -- CE Mark
BOSER Technology hereby acknowledges that compliance testing in
accordance with applicable standards of the EU’s EMC Directive,
89/336/EEC, was successfully completed on a sample of the equipment
identified below:
Equipment Class: Information Technology Equipment
Product Model Series: HS-1770
This Product Complies With: EN55022: Class A for Radiated emissions
EN50082-2: Heavy Industrial EMC Immunity
We, the undersigned, hereby declare that the equipment specified above
conforms to the above directives and standards.
Manufacturer:
BOSER TECHNOLOGY CO., LTD.

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion of
the system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the HS-1770 to ensure
harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of
the pad. Please inquire from your local supplier for additional assistance in
finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTIONS.

1
Chapter 1
General Description
The HS-1770 is a VIA CX700(M) chipset-based board designed. The
HS-1770 is an ideal all-in-one mITX board. Additional features include
an enhanced I/O with CF, CRT/LVDS, TV-Out, dual LAN, audio,
SPDIF, SATA, 4 COM, USB2.0, and PC/104 interfaces.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-1770 to support data transfers of 33, 66 or 100MB/sec. to one
IDE drive connection. Designed with the VIA CX700(M), the board
supports VIA V4 Eden 1GHz CPU.
The VIA CX700(M) with 32/64/128MB shared main memory supporting
CRT/Panel displays up to 1920 x 1440. It also supports 18-bit single
channel/36-bit dual channel LVDS interface supporting up to 1600 x
1200.
System memory is also sufficient with the one DDRII socket that can
support up to 1G.
Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission. And two external RJ-45 connectors
for 10/100 Based Ethernet use.

2
To ensure the reliability in an unmanned or standalone system, the
watchdog timer (WDT) onboard HS-1770 is designed with software
that does not need the arithmetical functions of a real-time clock chip. If
any program causes unexpected halts to the system, the onboard WDT
will automatically reset the CPU or generate an interrupt to resolve
such condition.
1.1 Major Features
The HS-1770 comes with the following features:
 VIA V4 Eden processor 1.0GHz
 One DDRII socket with a max. capacity of 1GB
 VIA CX700(M) system chipset
 Winbond W83697UF super I/O chipset
 VIA CX700(M) graphics controller
 24-bit/48-bit LVDS Panel display interface
 Dual Intel® 82551QM or RealTek RTL8100C Ethernet controller
 VIA VT1708A HD CODEC
 VIA CX700(M) Serial ATA controller
 Fast PCI ATA/33/66/100 IDE controller
 SPDIF, CF card adapter, DOC, 4 COM, 6 USB2.0, PC/104
 TV-Out function
 Hardware Monitor function

3
1.2 Specifications
 CPU: VIA V4 Eden processor 1.0GHz
 Front Side Bus: Supports 400MHz FSB
 Memory: One DDRII socket supporting up to 1GB
 Chipset: VIA CX700(M)
 I/O Chipset: Winbond W83697UF
 CompactFlash: One, Type I/II IDE interface adapter
 PCI Slot: One standard PCI slot
 8-bit I/O: 8-bit input/output (parallel port)
 VGA: VIA CX700(M) with 32/64/128MB shared main memory supporting
CRT/Panel displays up to 1920 x 1440
 LVDS Panel: Supports 24-bit single channel/48-bit dual channel LVDS
interface up to 1600 x 1200
 TV-Out: Supports PAL or NTSC TV systems
 Ethernet: Dual Intel® 82551QM or RealTek RTL8100C 10/100 Based
LAN
 Audio: VIA VT1708A HD audio controller with SPDIF port
 Serial ATA: VIA CX700(M) controller and with two ports supporting a
transfer rate up to 150MB/sec.
 IDE: One 2.0-pitch 44-pin IDE connector
 FDD: Supports up to two floppy disk drives
 Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
 PC/104: PC/104 Bus connector for 16-bit ISA Bus
 USB: 6 USB2.0 ports, internal x 2 and external x 4
 Keyboard/Mouse: PS/2 6-pin Mini DIN or 6-pin header
 DiskOnChip: DiskOnChip socket supporting memory sizes of up to
288MB (only for PCB v0.3 or above)
 BIOS: AMI PnP Flash BIOS
 Watchdog Timer: Software programmable time-out intervals from
1~256 sec.
 CMOS: Battery backup
 Hardware Monitor: Winbond W83697UF (only for PCB v0.3 or above)
 Board Size: 17.0(L) x 17.0(W) cm

4

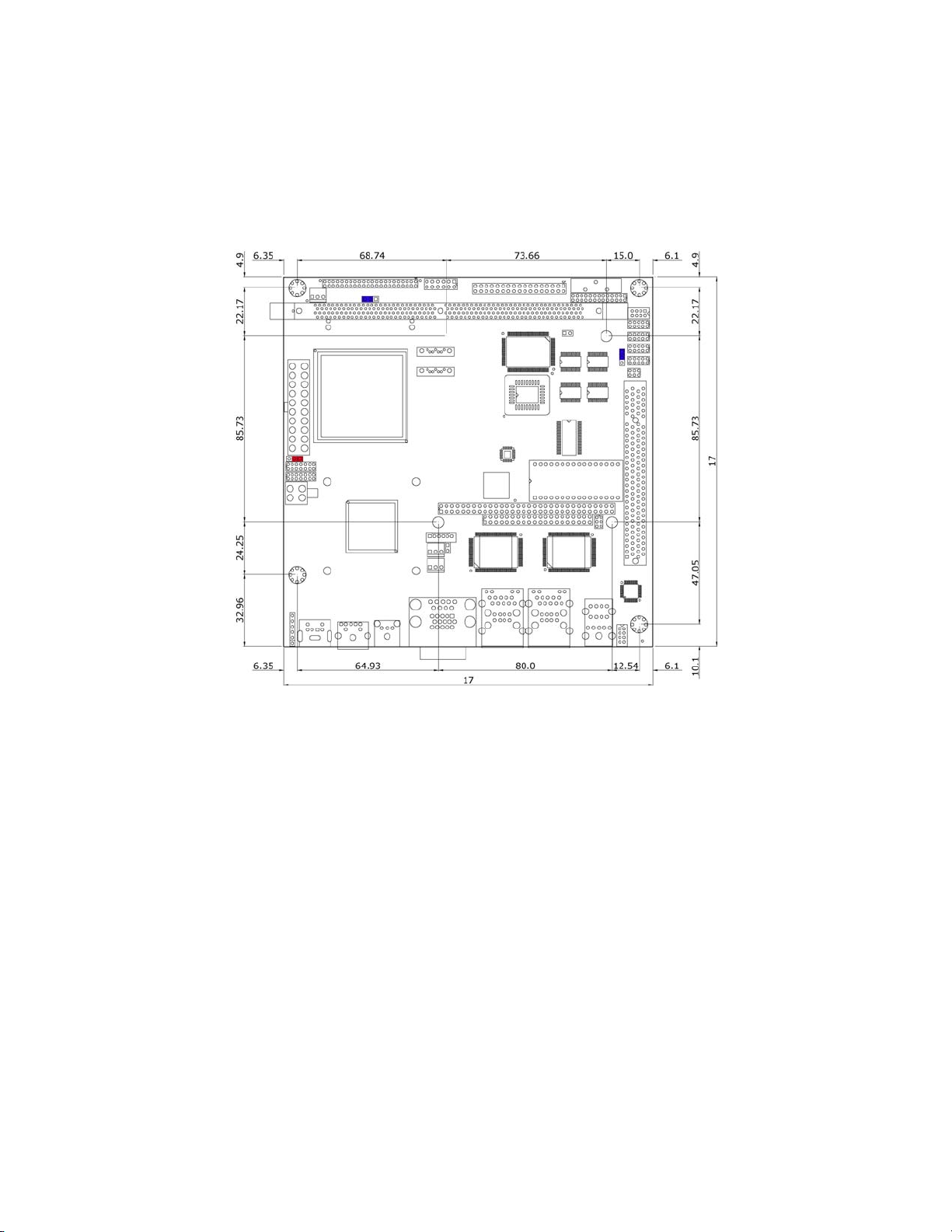

1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-1770 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-1770 delivery package
contains the following items:
 HS-1770 Board x 1
 Utility CD Disk x 1
 Cables Package x 1
 Jumper Bag x 1
 User’s Manual

6
Cables Package
NO. Description QTY.
1 COM DB9-10P (2.0-pitch) 1
2 SPK 8-pin(2.0-pitch) phone jack x 2 1
3 1-to-2 Mini DIN cable 1
4 SATA device cable 1
5 34P(2.54)*3 FDC cable 1
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.
Option Accessories
NO. Description
1 1-to-2 USB cable with bracket
2 COM DB9-10P (2.0-pitch)
3 SATA power cable
4 40-pin to 44-pin IDE flat cable

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-1770. This chapter also contains information related to
jumper settings of switch, and watchdog timer selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper. (JP9 open)
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

8

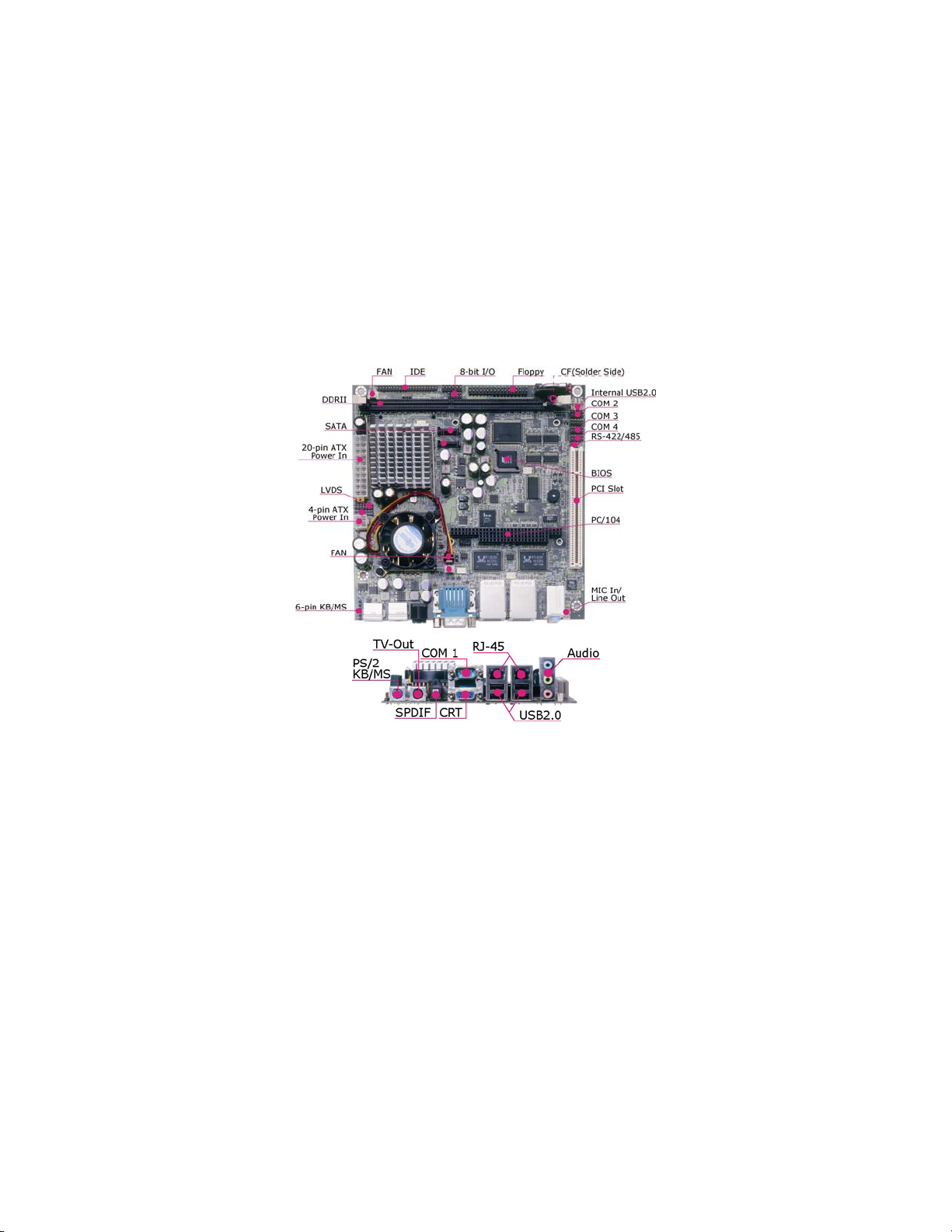

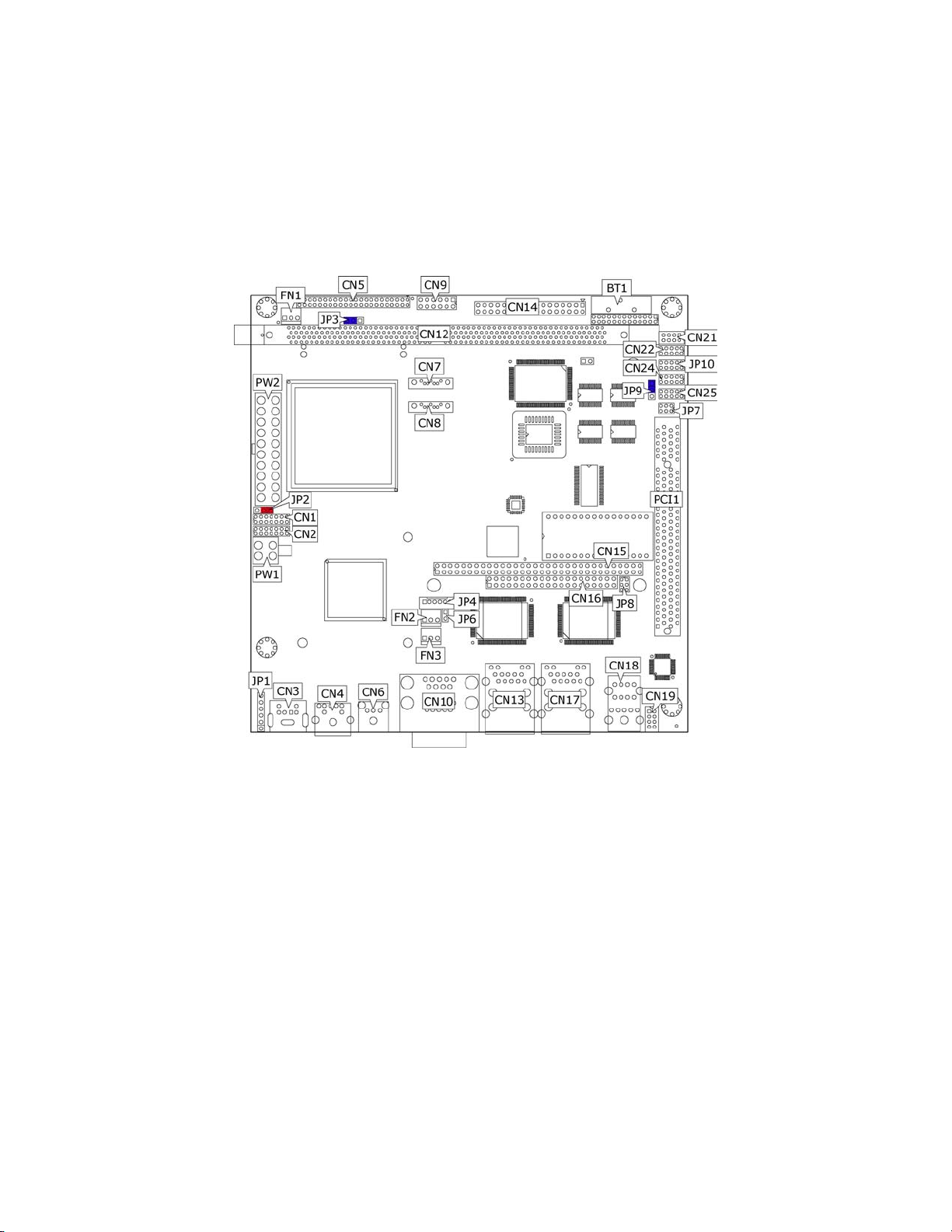

3.2 Board Layout

9
3.3 Jumper List
Jumper Default Setting Setting Page
JP2 Panel Voltage Select: +3.3V Short 1-2 10
JP3 CF Use Master/Slave Select: Slave Short 2-3 26
JP6 Display Out Function Select: CRT Open 22
JP9 Clear CMOS: Normal Operation Short 1-2 17
JP10 COM4 Use RS-232 or RS-422/485
Select: RS-232 Open 15
JP8(1-4) DOC Address Select: D000 Short 1-2, 3-4 26
U33(SW7/SW8) Single Channel/Dual Channel LVDS
Panel Select: Single Channel Off 10
U33(SW1/SW2)
U34(SW8)
CRT/TV Output Mode Select: RGB for
CRT
SW1Off
SW2On
SW8Off
22
3.4 Connector List
Connector Definition Page
CN1/CN2 LVDS Panel Connector 10
CN3/JP1 PS/2 6-pin Mini DIN/6-pin KB/MS Connector 19
CN4 TV-Out Connector 22
CN5 IDE Connector 12
CN6 SPDIF Connector 25
CN7/CN8 Serial ATA Connector 13
CN9 System Front Panel Control 20
CN10 15-pin CRT Connector & COM 1 (DB9) 10/15
CN11 8-bit I/O Port 27
CN12 DDRII Socket 10
CN13/CN17 RJ-45 & Dual USB2.0 Port 16/17
CN14 Floppy Connector 14
CN15/CN16 PC/104 Bus 64-pin/40-pin Connector 23
CN18 External Audio Connector 25
CN19 MIC In/Line Out Connector 25
CN21 Internal USB2.0 Port 17
CN22/CN24/CN25 COM 2~COM 4 Connector (5x2 header) 15
CN26 CompactFlash Connector 26
FAN1~FAN3 Fan Power In Connector 18
PW1/PW2 4-pin/20-pin ATX Power In Connector 18
JP4 Inverter Power In Connector 10
JP7 RS-422/485 Connector 15
PCI1 Standard PCI Slot ----

10
3.5 Configuring the CPU
The HS-1770 embedded with VIA V4 Eden processor 1.0GHz. User
don’t need to adjust the frequently and check speed of CPU.
3.6 System Memory
The HS-1770 provides one DDRII socket at locations CN12. The
maximum capacity of the onboard memory is 1GB.
3.7 VGA Controller
The HS-1770 provides two connection methods of a VGA device.
CN10A offers a single standard CRT connector and CN2/CN1 are the
LVDS interface connectors onboard reserved for flat panel installation.

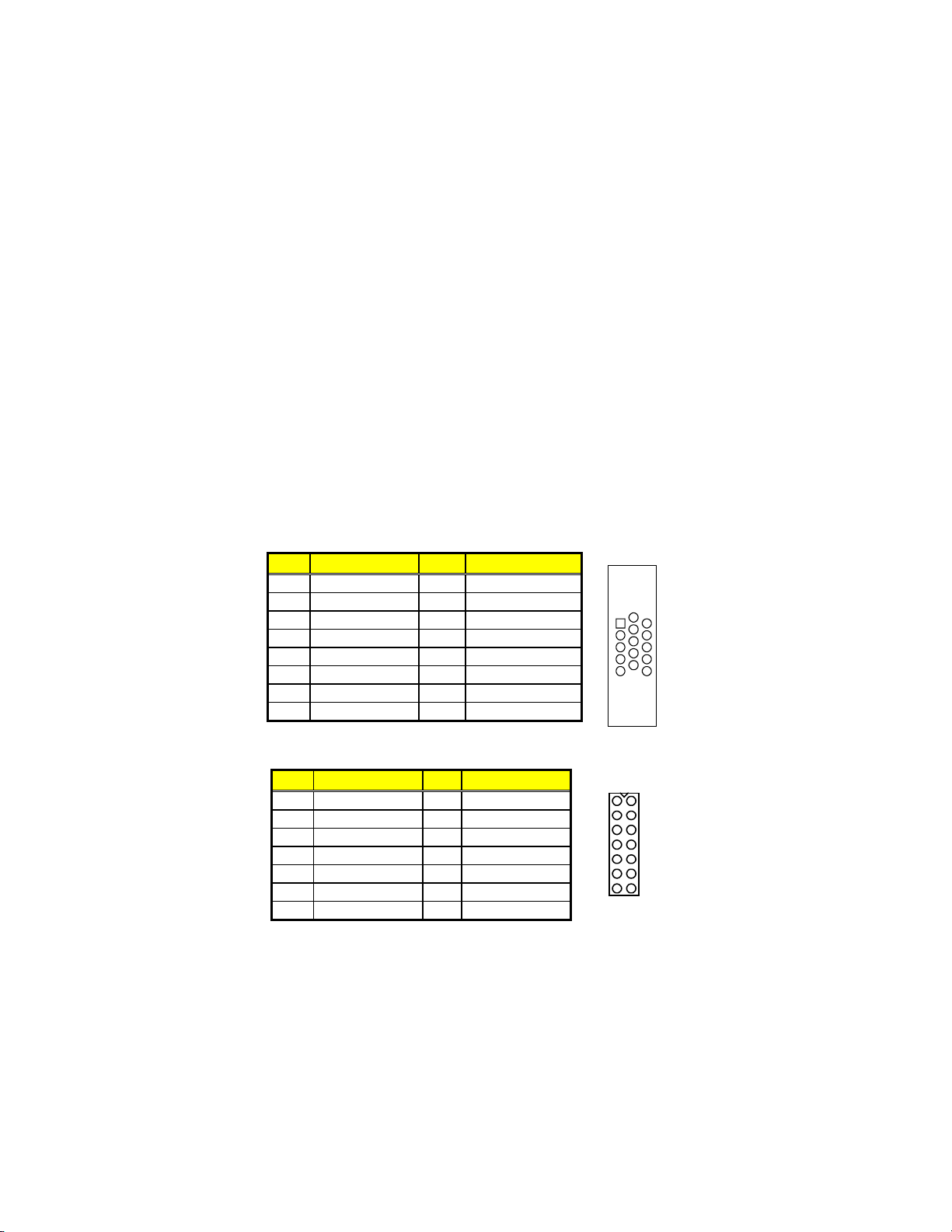

 CN10A: CRT Connector
PIN Description PIN Description
1 Red 2 Green
3 Blue 4 N/C
5 GND 6 GND
7 GND 8 GND
9 N/C 10 GND
11 N/C 12 SDA
13 HSYNC 14 VSYNC
15 SCL
1
515
10
611
 CN2/CN1: LVDS Interface Connector
PIN Description PIN Description
1 VLCD 2 VLCD
3 GND 4 GND
5 Y0-/Z0- 6 Y0+/Z0+
7 Y1-/Z1- 8 Y1+/Z1+
9 Y2-/Z2- 10 Y2+/Z2+
11 CLK- 12 CLK+
13 Y3-/Z3- 14 Y3+/Z3+
12
13 14

11
NOTE: LVDS cable should be produced very carefully. Y0- & Y0+ have to
be fabricated in twister pair (Y1- & Y1+, Y2- & Y2+ and so on)
otherwise the signal won’t be stable. Please set the proper voltage
of your panel using JP2 before proceeding on installing it.
 U33(SW7/SW8): Single Channel/ Dual Channel LVDS Panel
Select
Settings
Options SW7 SW8
Single Channel (default) OFF OFF
Dual Channel ON OFF
NOTE: If use CN2 only, it just supports 24-bit single channel LVDS panel;
If you want to use 48-bit dual channel LVDS panel, please use CN2
and CN1 combined.
The HS-1770 has an onboard jumper that selects the working voltage
of the flat panel connected to the system. Jumper JP2 offers two
voltage settings for the user.
 JP2: Panel Voltage Select
Options Settings
+3.3V (default) Short 1-2
+5V Short 2-3
1
3
 JP5: Inverter Power In Connector
PIN Description
1 +12V
2 +12V
3 VDDEN
4 GND
1
4

12
3.8 PCI E-IDE Drive Connector
CN5 is a standard 44-pin 2.0-pitch connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-1770.
A maximum of two ATA/33/66/100 IDE drives can be connected to the
HS-1770 via CN5.

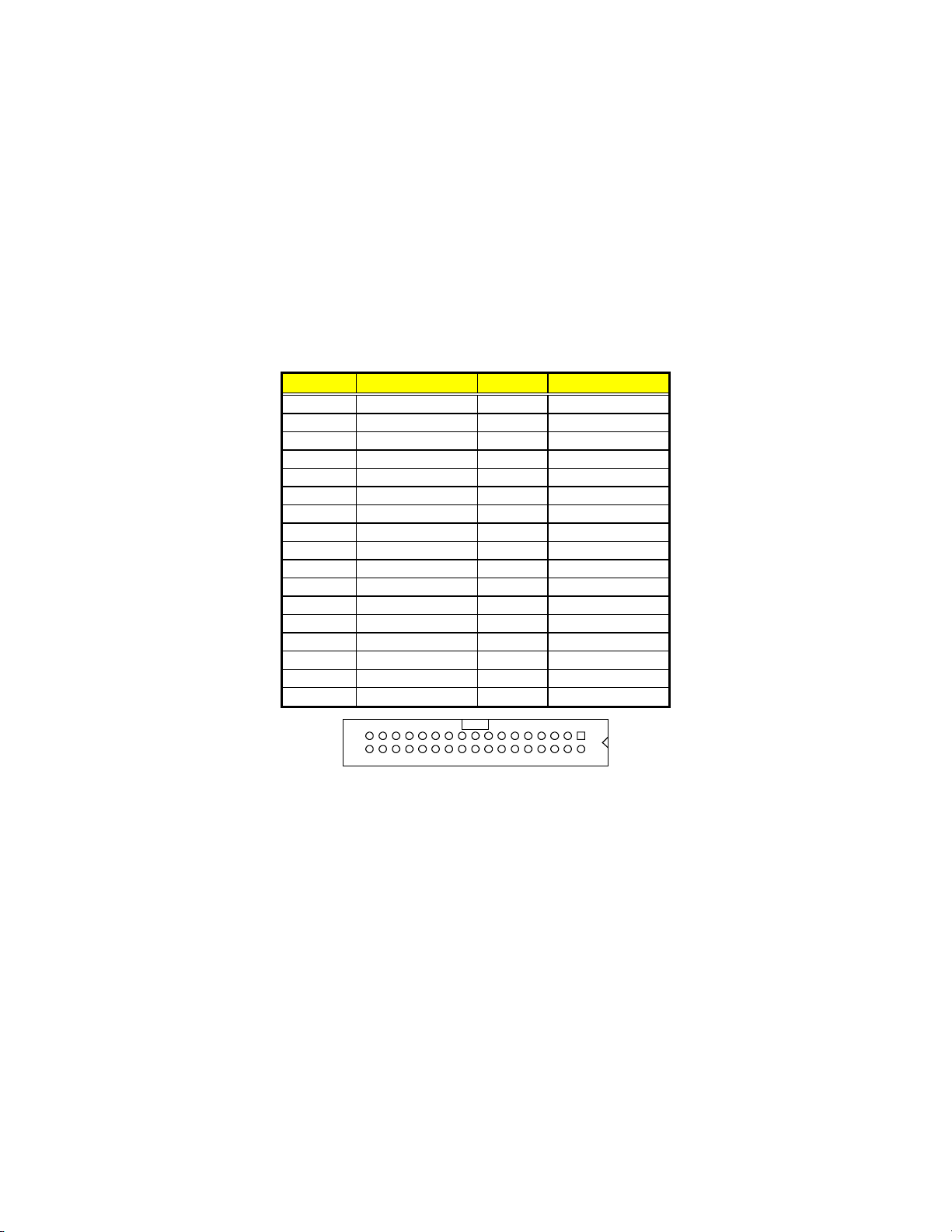

 CN5: IDE Connector
PIN Description PIN Description
1 IDERST 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDDREQ 22 GND
23 IOW# 24 GND
25 IOR# 26 GND
27 PIORDY 28 470Ωwith GND
29 PDDACK# 30 GND
31 IRQ14 32 N/C
33 PDA1 34 PD33/66
35 PDA0 36 PDA2
37 PDCS1# 38 PDCS3#
39 HDD Active 40 GND
41 VCC 42 VCC
43 GND 44 N/C
1
2
43
44

13
3.9 Serial ATA Connector
You can connect the Serial ATA device that provides you high speeds
transfer rates (150MB/sec.). If you wish to use RAID function, please
note that these two serial ATA connectors just support RAID0 and only
compatible with WIN XP.

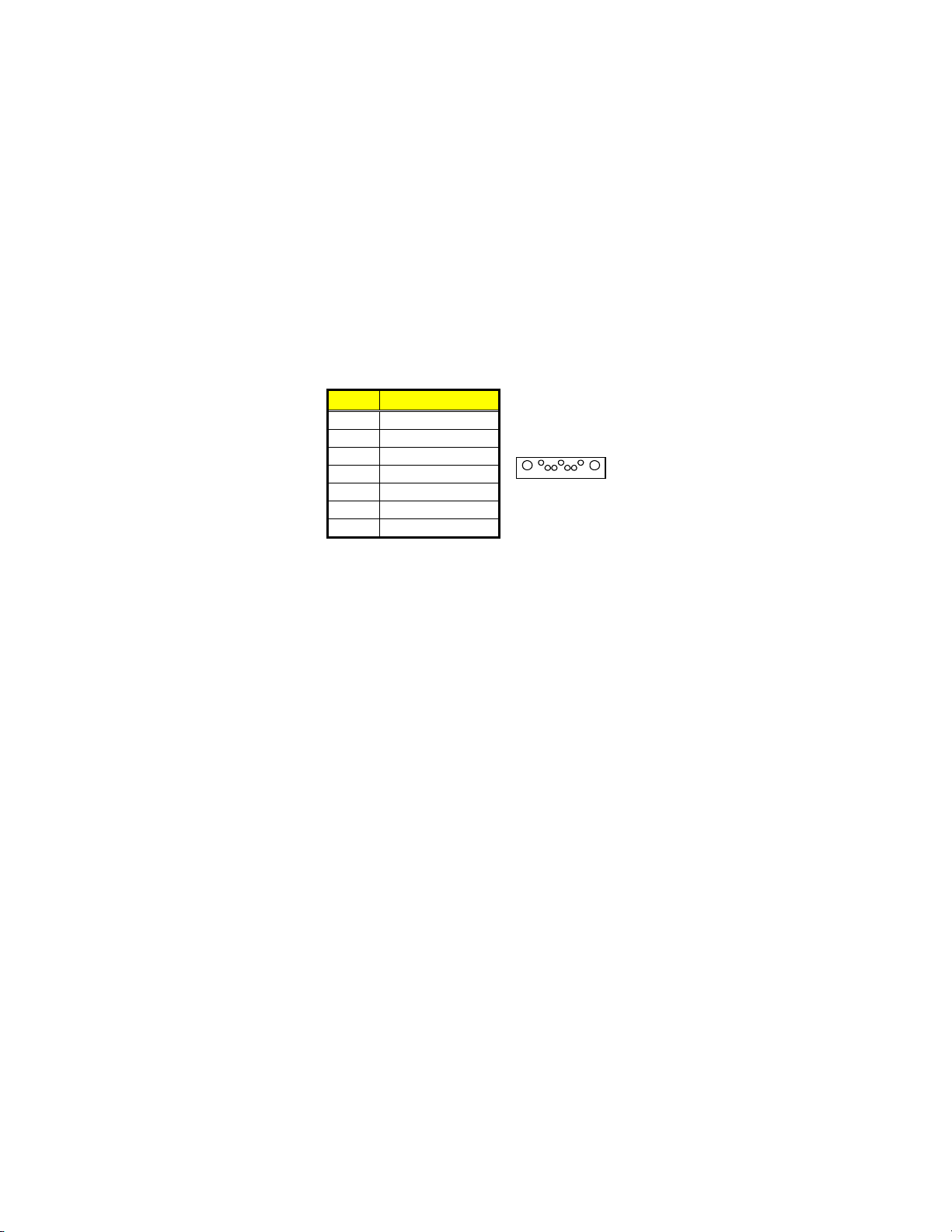

 CN7/CN8: Serial ATA Connector
PIN Description
1 GND
2 SATATXP
3 SATATXN
4 GND
5 SATARXN
6 SATARXP
7 GND
17

14
3.10 Floppy Disk Drive Connector
The HS-1770 uses a standard 34-pin header connector, CN14, for
floppy disk drive connection. A total of two FDD drives may be
connected to CN14 at any given time.
 CN14: Floppy Connector
PIN Description PIN Description
1 GND 2 DRVDEN0
3 GND 4 N/C
5 GND 6 DRVDEN1
7 GND 8 INDEX#
9 GND 10 MTR0#
11 GND 12 DS1#
13 GND 14 DS0#
15 GND 16 MTR1#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WDATA#
23 GND 24 WGATE#
25 GND 26 TRAK00#
27 GND 28 WRTPRT#
29 GND 30 RDATA#
31 GND 32 HDSEL#
33 GND 34 DSKCHG#
1
2
33
34
