Boser HS-4600 User manual

HS-4600
Pentium
™
II/III Embedded Little Board
•133MHz FSB•CRT/Panel•LAN•Sound•4 COM•
•RS-232/422/485•PC/104•GPS•IrDA•USB•DGIO•
•TV Out•DOC•WDT•CTM•Hardware Monitor•

C
C
Co
o
op
p
py
y
yr
r
ri
i
ig
g
gh
h
ht
t
t D
D
Di
i
is
s
sc
c
cl
l
la
a
ai
i
im
m
me
e
er
r
rs
s
s
The accuracy of contents in this manual has passed thorough checking and review
before publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is
not liable for any infringements of patents or other rights resulting from its use. The
manufacturer will not be responsible for any direct, indirect, special, incidental
or consequential damages arising from the use of this product or
documentation, even if advised of the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation,
and storage of any form and means (i.e., electronic, mechanical, photocopying,
recording) of this document, in whole or partly, is prohibited, unless granted
permission by BOSER Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the
contents of this document without due notice. BOSER Technology Co., Ltd.
assumes no responsibility for any errors or omissions that may appear in this
manual, nor does it make any commitment to update the information contained
herein.
T
T
Tr
r
ra
a
ad
d
de
e
em
m
ma
a
ar
r
rk
k
ks
s
s
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
Award is a registered trademark of Award Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or
registered trademarks of their respective companies or owners.
© Copyright 2003 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 2.1, March 06, 2003

Table of Contents
Chapter 1 General Description..............................1
1.1 Major Features.................................................................. 2
1.2 Specifications ................................................................... 4
1.3 Board Dimensions............................................................ 5
Chapter 2 Unpacking .............................................7
2.1 Opening the Delivery Package........................................ 7
2.2 Inspection.......................................................................... 7
Chapter 3 Hardware Installation ..........................9
3.1 Before Installation ............................................................ 9

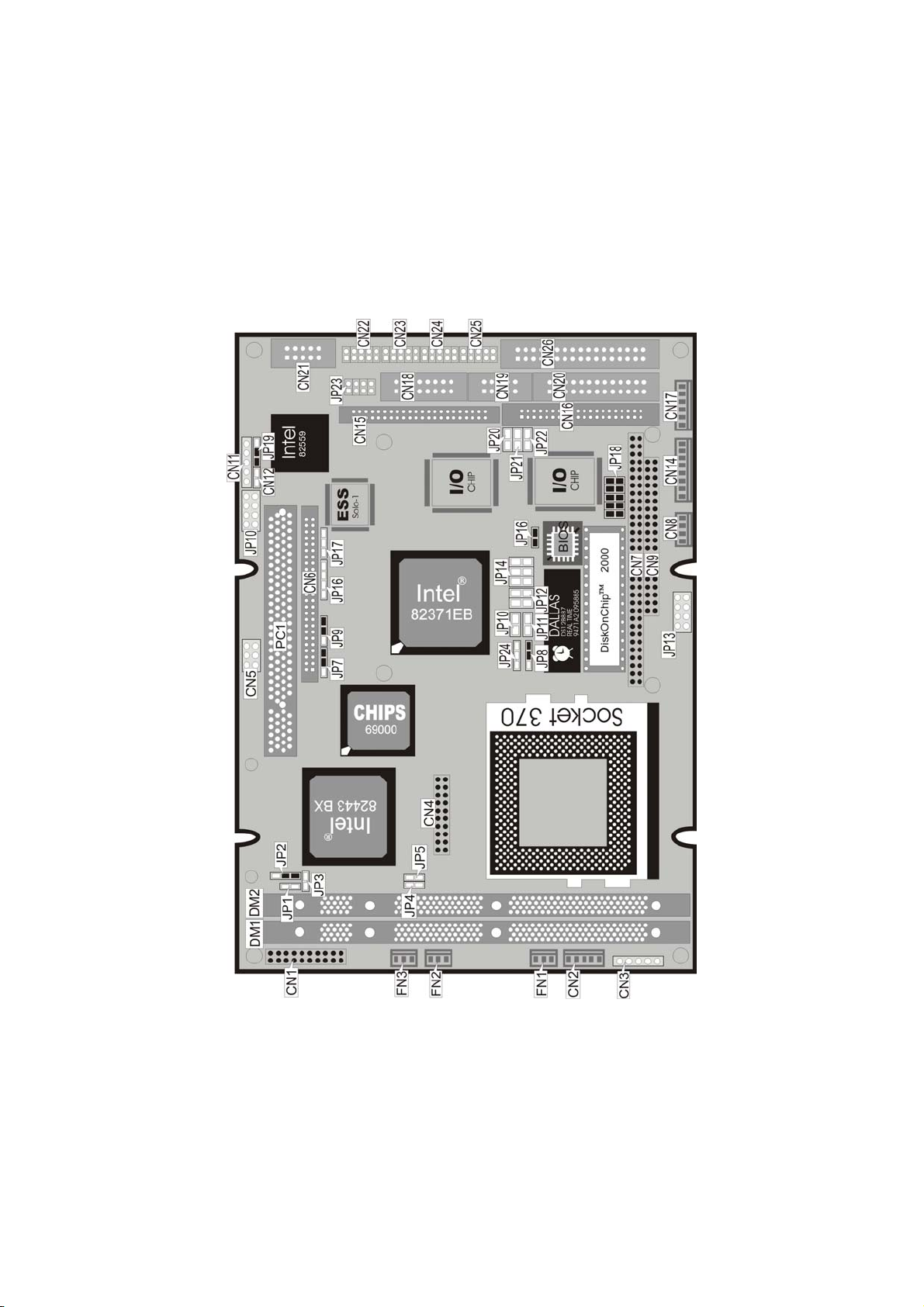

3.2 HS-4600 Board Layout ................................................... 10
3.3 HS-4600 Jumper List...................................................... 11
3.4 HS-4600 Connector List................................................. 12
3.5 DiskOnChipAddress Setting ..................................... 13
3.6 Configuring the CPU ...................................................... 13
3.7 Watchdog Timer ............................................................. 14
3.8 CMOS Data Clear ............................................................ 16
3.9 PAL System or NTSC System ....................................... 16
3.10 Hardware Monitor........................................................... 17
3.11 VGA Controller................................................................ 17
3.12 Serial Port Connectors .................................................. 19
3.13 Keyboard & Mouse Connector...................................... 21
3.14 Front Panel Connector................................................... 22
3.15 PCI E-IDE Drive Connector............................................ 23
3.16 Parallel Connector.......................................................... 25
3.17 Keylock Connector......................................................... 25
3.18 GPS Connector............................................................... 26
3.19 Floppy Disk Drive Connector ........................................ 28
3.20 Audio Connectors .......................................................... 29
3.21 Fast Ethernet Connector ............................................... 30
3.22 PC/104 Bus Connection................................................. 31
3.23 USB Connector ............................................................... 33
3.24 IrDA Connector ............................................................... 33
3.25 Power and FAN Connectors.......................................... 34
3.26 DIO Connector ................................................................ 35

Chapter 4 Award BIOS Setup .............................37
4.1 Starting Setup ................................................................. 37
4.2 Using Setup..................................................................... 38
4.2.1 Getting Help ............................................................................................ 39
4.3 Main Menu ....................................................................... 39
4.4 Standard CMOS Setup ................................................... 41
4.5 BIOS Features Setup...................................................... 45
4.6 Chipset Features Setup ................................................. 51
4.7 Power Management Setup............................................. 56
4.7.1 PM Timers ................................................................................................ 58
4.7.2 Reload Global Timer Events............................................................ 59
4.8 PNP/PCI Configuration Setup ....................................... 60
4.9 Load BIOS Defaults........................................................ 61
4.10 Load Setup Defaults....................................................... 62
4.11 Integrated Peripherals ................................................... 63
4.12 Supervisor/User Password Setting .............................. 67
4.13 IDE HDD Auto Detection ................................................ 69
4.14 Save & Exit Setup........................................................... 70
4.15 Exit Without Saving........................................................ 71
Chapter 5 Software Utilities.................................73
5.1 VGA Driver Installation for Win 95/98........................... 73
5.2 VGA Driver Installation for Win NT4.0.......................... 75
5.3 Audio Driver Installation for Win 98/95 ........................ 78
5.3.1 Win98.......................................................................................................... 78
5.3.2 Win95.......................................................................................................... 78
5.4 Audio Driver Installation for Win NT4.0 ....................... 80
5.4.1 WinNT ......................................................................................................... 80
5.5 Network Driver Installation for Win 95/98 .................... 82
5.5.1 Win98..........................................................................................................82
5.5.2 Win95..........................................................................................................82
5.6 Network Driver Installation for Win NT4.0 ................... 84
Chapter 6 The GPS Receiver...............................87

S
S
Sa
a
af
f
fe
e
et
t
ty
y
y I
I
In
n
ns
s
st
t
tr
r
ru
u
uc
c
ct
t
ti
i
io
o
on
n
ns
s
s
Integrated circuits on computer boards are sensitive to static electricity.
To avoid damaging chips from electrostatic discharge, observe the
following precautions:
 Do not remove boards or integrated circuits from their anti-static
packaging until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion
of the system unit chassis for a few seconds. This helps to discharge any
static electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR
clip of the strap to the end of the shielded wire lead from a grounded
object. Please wear and connect the strap before handle the HS-4600 to
ensure harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or
parts or tools outside the computer. You may also use an anti-static bag
instead of the pad. Please inquire from your local supplier for additional
assistance in finding the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

This page is intentionally left blank.

1
Chapter 1
General Description

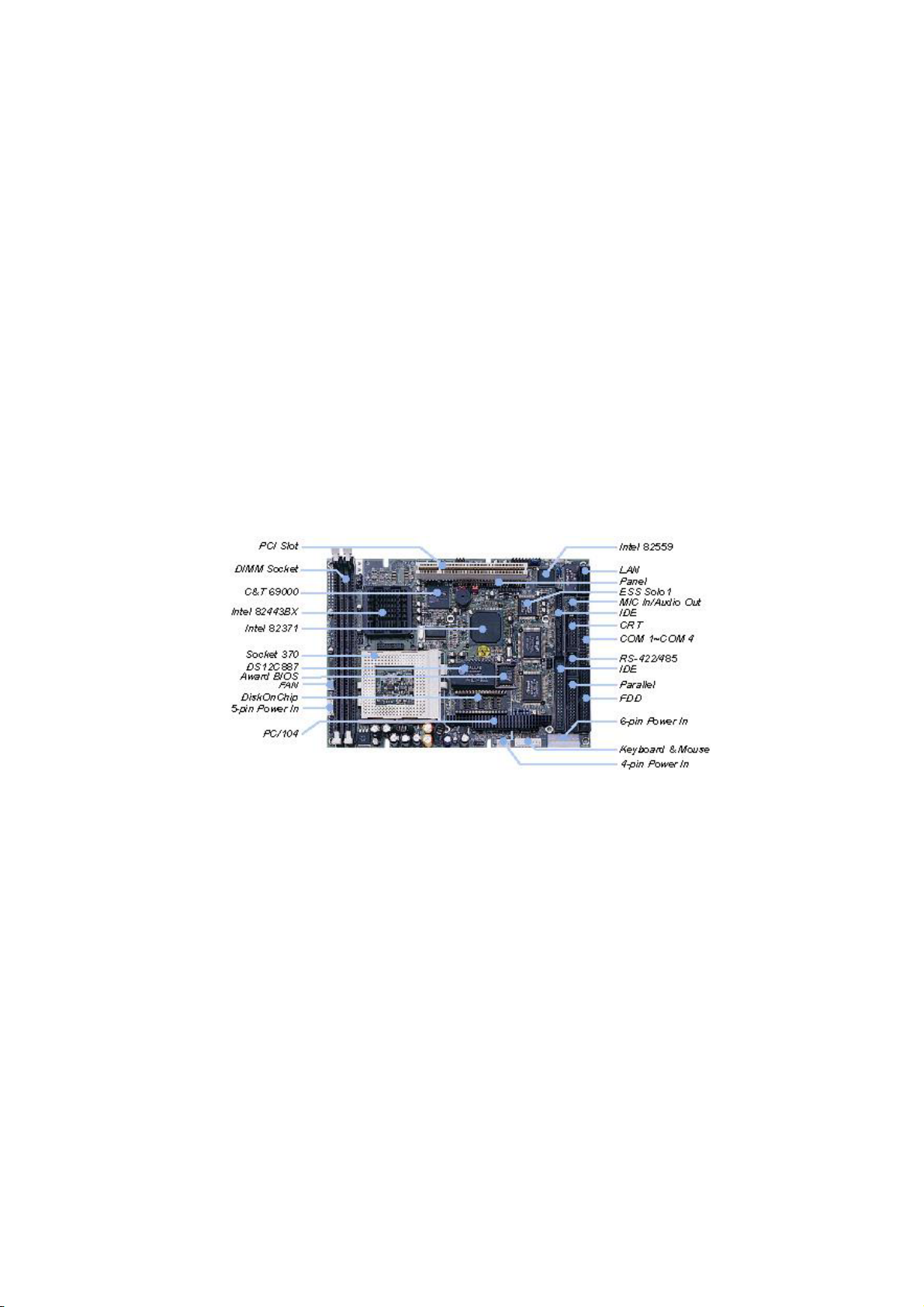

The HS-4600 is an embedded little board that features support for
Intel® Pentium®II/III microprocessors. The board design combines
together all necessary input and output factors that make it an ideal
all-in-one industrial single board computer. Its 100MHz FSB
architecture accommodates microprocessors of up to 133MHz FSB. A
special feature bundled with the HS-4600 is its provision for a GPS
system application. The board provides a 20-pin internal I/O connector
for convenient installation of Rockwell’s "Jupiter" Global Positioning
System (GPS) Receiver.
To meet the sound quality required by most sound applications, its ESS
Solo1 3D sound interface/adapter provides the perfect solution. Its IDE
architecture offers DMA33 access of mode 4 to IDE drives, at
33.3MB/sec data transfer rate on all four IDE drives. For easy network
connection, the HS-4600 has a 10/100 Base TX LAN controller to serve
this need. The HS-4600 also deploys a single Flash chip for the system
BIOS. Modifying the Flash BIOS is possible and implemented via the
Utility Update.

2
Additional onboard connectors include an IrDA port providing a faster
data transmission, a DOS-compatible DiskOnChipsocket with a
maximum capacity of 144MB, a CRT/VGA connector for C&T69000
display controller –compatible CRTs/panels providing up to a maximum of
1280x1024, 256colors resolution, and two DIMM socket up to 512MB. To
ensure the reliability in an unmanned or standalone system, the
Watchdog Timer (WDT) onboard HS-4600 is designed with pure
hardware that does not need the arithmetical functions of a real-time
clock chip. If any program causes unexpected halts to the system, the
onboard Watchdog Timer (WDT) will automatically reset the CPU or
generate an interrupt to resolve such condition.
1.1 Major Features

3
The HS-4600 comes with the following features:
 Socket 370 for Intel®Celeron/Coppermine266MHz~1GHz
CPU
 100MHz system clock rate provides up to 133MHz
 Two DIMM sockets provide maximum system memory of up to
512MB
 Fast PCI DMA33 IDE controller supporting four IDE disk drives
including large size hard disks, CD-ROM, tape backup etc.
 Three RS-232 and one RS-232/422/485 serial ports with 16C550
UART and 16byte FIFO
 One enhanced bi-directional parallel port supporting
SPP/ECP/EPP

Onboard PS/2 Keyboard and PS/2 Mouse connectors
 SMC37C669 super I/O chipset
 C&T69000 CRT/Panel display controller
 Intel®82559 100 Base TX LAN controller
 ESS Solo1 3D Sound
 Onboard 8bit Digital In/Out function
 Supports TV Out function
 DiskOnChipTM memory size support of up to 144MB

Rockwell GPS modules socket support
 PC/104 Bus connector
 One standard PCI Slot
 Hardware Monitor support
 ATX Power Function support

4
1.2 Specifications
 CPU：Socket 370 for Intel®CeleronTM / CoppermineTM 266MHz~1GHz
CPU
 Bus Interface：PCI Bus
 Bus Clock Rate：100MHz System Clock Rate provides up to 133MHz
 Memory：Two DIMM sockets provides up to 512MB
 Chipset：Intel®82443BX, Intel®82371
 I/O Chipset：SMC 37C669
 PCI Slot：One standard PCI Slot
 VGA：C&T69000 with 2MB memory support CRT/Panel up to
1280x1024, 256colors
 IDE：Four IDE disk drives support DMA33 transfer rate up to 33.3MB/sec
 Floppy：Support up to two floppy disk drives
 Parallel Port：Support SPP/ECP/EPP
 LAN：Intel®82559 100 Based LAN
 Sound：ESS Solo1 3D Sound
 Serial Port：Three RS-232 and one RS-232/422/485 serial ports include
16C550 UART with 16byte FIFO
 PC/104：PC/104 connector for 16bit ISA Bus
 GPS：Support one Rockwell GPS module socket
 IrDA：One IrDA TX/RX header
 USB：Support two USB ports
 Digital I/O：8bit Digital I/O (HS-4600TV only)
 TV Out：Support PAL or NTSC system (HS-4600TV only)
 Keyboard/Mouse：8-pin connector support standard PC/AT Keyboard
and PS/2 Mouse
 DiskOnChip：Socket for DiskOnChipand memory size up to 144MB
 BIOS：Award Y2K PnP Flash BIOS
 Watchdog Timer：Set 1, 2, 10, 20, 110, 220 seconds activity trigger with
Reset or NMI
 CMOS：DS12C887 or equivalent device
 ATX Power：Support ATX Power Function
 Power Connector：One 4-pin +5V/+12V and one 6-pin –5V/-12V
connector
 Maximum Power Consumption：+5V@6A、+12V@100mA

5
 Operating Temperature：0~60°C
 Hardware Monitor：Winbond W83783S
 CPU Temperature Monitor：Winbond W83783S
 Board Size：8”(L) x 5.75”(W)
1.3 Board Dimensions
Units: mm
IQC QA
PASS
Q n
Model:HS4600 VER: 2.0
+
BZ
+
83.9 9
41.4 5
146.1
3.5
55
1.6 21.9
86.4 80 26.9
526.6 34.3 29.3 73.7 29.4 5
203.3

6
This page is intentionally left blank.

7
Chapter 2
Unpacking
This chapter explains unpacking the board, checking the equipment
and documentation and where to go from there.
2.1 Opening the Delivery Package
The HS-4600 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, ROM-Disk, and keyboard controller chip
to ensure that they are firmly seated. The HS-4600 delivery package
contains the following items:
 HS-4600 Industrial Single Board Computer
 One Printer port Flat Cable
 Two IDE port Flat Cable
 One FDD port Flat Cable
 One 40-pin COM ports Cable
 One Panel Connection Flat Cable
 One Front Panel Cable
 One Ethernet Cable
 One PS/2 Keyboard and Mouse Transfer Cable
 One MIC/SPK Cable
 Utility CD Disk
 User’s Manual

8
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

9
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-4600. This chapter also contains information related to
jumper settings of switch, watchdog timer, and the DiskOnChip
address selection etc.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to take
before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter for
the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.

10
3.2 HS-4600 Board Layout

11
3.3 HS-4600 Jumper List
Jumper Definition Page
JP1 NTSC Clock Select 16
JP2 PAL System or NTSC System 16
JP3 TV Out Enabled/Disabled Select 16
JP4 Host Communications Protocol Select for GPS 26
JP5 Host Communications Protocol Select for GPS 26
JP6 Thermal Input 17
JP7 Panel Voltage Select 17
JP8 Watchdog Timer Active Type Select 14
JP11 Clear CMOS 16
JP12 RS-422/485 Receiver Enabled/Disabled Select 19
JP13 Front Panel Signal Connector 22
JP14 RS-422/485 Transceiver Enabled/Disabled Select 19
JP15 Audio In Connector 29
JP16 Temperature Enabled/Disabled Select 17
JP17 AUX In Connector 29
JP18 (1-4) DiskOnChipAddress Select 13
JP18 (5-10) WDT Out Period Select 14
JP19 LAN Enabled/Disabled Select 30
JP20 COM3 Enabled/Disabled Select 19
JP21 COM4 Enabled/Disabled Select 19
JP22 COM2 Enabled/Disabled Select 19
JP23 MIC In / Audio Out Connector 29
JP24 I2C Connector ----

12
3.4 HS-4600 Connector List
Connector Definition Page
CN1 Digital I/O Connector 35
CN2 5-pin ATX Power Connector 34
CN3 Keylock Connector 25
CN4 GPS Connector 26
CN5 S-Video Connector 16
CN6 Panel Connector 17
CN7 PC/104 64-pin Connector 31
CN8 4-pin Power Connector 34
CN9 PC104 40-pin Connector 31
CN10 USB Connector 33
CN11 IrDA Connector 33
CN12 2-pin ATX Power ON/OFF Switch 34
CN14 8-pin Keyboard/Mouse Connector 21
CN15 Primary IDE Connector 23
CN16 Secondary IDE Connector 23
CN17 6-pin Power In Connector ----
CN18 CRT Connector 17
CN19 RS-422/485 Connector (5x2 Header) 19
CN20 Parallel Connector 25
CN21 LAN Connector (5x2 Header) 30
CN22 COM1 Connector (5x2 Header) 19
CN23 COM2 Connector (5x2 Header) 19
CN24 COM3 Connector (5x2 Header) 19
CN25 COM4 Connector (5x2 Header) 19
CN26 Floppy Connector 28
FN1 FAN Power Connector 34
FN2 FAN Power Connector 34
FN3 FAN Power Connector 34

13
3.5 DiskOnChipAddress Setting
The DiskOnChipfunction allows the system to boot or operate
without a FDD or a HDD. DiskOnChipmodules may be formatted as
drive C or A. With DiskOnChip, user may also execute DOS
commands such as FORMAT, SYS, COPY, XCOPY, DISCOPY and
DISKCOMP etc.
The U11 location onboard the HS-4600 is the DiskOnChipmodule
socket. Jumper JP18 assigns the address setting of the installed
module. Setting the 4 pins of JP18 allows you to select the starting
memory address of the DiskOnChip(D.O.C.). If you have additional
memory devices in the system, please set both at different memory
address mapping to avoid the mapping area conflicts.
 JP18 (1-4): DiskOnChipAddress
PIN Address
Short1-2 D000 (default)
Short 3-4 D800
3.6 Configuring the CPU
The HS-4600 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-4600 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.

14
3.7 Watchdog Timer
There are three access cycles of Watch-Dog Timer as Enable, Refresh
and Disable are the three access cycles of Watchdog Timer. The
Enable cycle proceeds via READ PORT 443H whereas the Disable
cycle proceeds via READ PORT 043H. A continued Enable cycle after
a first Enable cycle means Refresh.
Once the Enable cycle is active, a Refresh cycle is requested before
the time-out period. This restarts counting of the WDT period. When the
time counting goes over the period preset of WDT, it will assume that
the program operation is abnormal. A System Reset signal to re-start or
a NMI cycle to the CPU transpires when such error happens. Jumper
JP8 is used to select the active function of Watchdog Timer.
 JP8: Watchdog Timer Active Type Setting
JP8 Description
Short 1-2 Active NMI
Short 2-3 System Reset (default)
Open Disabled Watchdog Timer
 JP18 (5-10): Watchdog Timer Out Period Select
Period PINS 5-6 PINS 7-8 PINS 9-10
*1 sec SHORT SHORT SHORT
2 sec OPEN SHORT SHORT
10 sec SHORT OPEN SHORT
20 sec OPEN OPEN SHORT
110 sec SHORT SHORT OPEN
220 sec OPEN SHORT OPEN
The Watchdog Timer is disabled after the system Power-On. It can be
enabled via an Enable cycle and reading the control port (443H), or via
a Refresh cycle and reading the control port (443H), or via a Disable
cycle and reading the disable control port (043H).
