Boser HS-4701 User manual

HS-4701
Pentium®4 Embedded
Engine Board
•Mini AGP•DDR•PCI Slot•DIO•
•CRT/LVDS Panel•TV-Out•
•LAN•Audio•ATA/33/66/100•
•RS-232/422/485•4COM•USB2.0•
•WDT•H/W Monitor•

Copyright Disclaimers
The accuracy of contents in this manual has passed thorough checking and review before
publishing. BOSER Technology Co., Ltd., the manufacturer and publisher, is not liable for
any infringements of patents or other rights resulting from its use. The manufacturer will
not be responsible for any direct, indirect, special, incidental or consequential
damages arising from the use of this product or documentation, even if advised of
the possibility of such damage(s).
This manual is copyrighted and BOSER Technology Co., Ltd. reserves all
documentation rights. Unauthorized reproduction, transmission, translation, and
storage of any form and means (i.e., electronic, mechanical, photocopying, recording) of
this document, in whole or partly, is prohibited, unless granted permission by BOSER
Technology Co., Ltd.
BOSER Technology Co., Ltd. reserves the right to change or improve the contents of
this document without due notice. BOSER Technology Co., Ltd. assumes no
responsibility for any errors or omissions that may appear in this manual, nor does
it make any commitment to update the information contained herein.
T
T
Tr
r
ra
a
ad
d
de
e
em
m
ma
a
ar
r
rk
k
ks
s
s
BOSER is a registered trademark of BOSER Technology Co., Ltd.
ISB is a registered trademark of BOSER Technology Co., Ltd.
Intel is a registered trademark of Intel Corporation.
AMI is a registered trademark of AMI Software, Inc.
All other trademarks, products and or product names mentioned herein are
mentioned for identification purposes only, and may be trademarks and/or registered
trademarks of their respective companies or owners.
© Copyright 2003 BOSER Technology Co., Ltd.
All Rights Reserved.
Edition 1.3, October 19, 2004

Table of Contents
Chapter 1 General Description………………………1
1.1 Major Features....................................................................2
1.2 Specifications .....................................................................3
1.3 Board Dimensions..............................................................4
Chapter 2 Unpacking…………………………………5
2.1 Opening the Delivery Package..........................................5
2.2 Inspection............................................................................5
Chapter 3 Hardware Installation……………………7
3.1 Before Installation ..............................................................7
3.2 Board Layout ......................................................................8
3.3 Jumper List .........................................................................9
3.4 Connector List ....................................................................9
3.5 Configuring the CPU ........................................................10
3.6 System Memory ................................................................10
3.7 VGA Controller .................................................................10
3.8 PCI E-IDE Drive Connector..............................................11
3.9 Floppy Disk Drive Connector ..........................................14
3.10 Serial Port Connectors ....................................................15
3.11 Parallel Connector............................................................16
3.12 Ethernet Connector..........................................................17
3.13 USB Connector.................................................................17
3.14 CMOS Data Clear..............................................................18
3.15 Power and Fan Connectors.............................................18
3.16 Keyboard/Mouse Connectors .........................................19
3.17 System Front Panel Connectors.....................................19
3.18 External Speaker ..............................................................20
3.19 Audio Connectors ............................................................20
3.20 Digital Input/Output..........................................................21
3.21 TV Out Function ...............................................................22
3.22 Mini AGP Connector ........................................................22
3.23 PCI Expansion Slot ..........................................................22

Chapter 4 Award BIOS Setup……………………...23
4.1 Starting Setup...................................................................23
4.2 Using Setup ......................................................................24
4.3 Main Menu.........................................................................25
4.4 Standard CMOS Setup.....................................................26
4.5 Advanced CMOS Setup ...................................................27
4.6 Advanced Chipset Setup.................................................28
4.7 Power Management Setup ..............................................29
4.8 PCI / Plug and Play Setup................................................30
4.9 Peripheral Setup...............................................................31
4.10 PC Health Status ..............................................................32
4.11 Frequency/Voltage Control .............................................32
Chapter 5 Software Utilities………………………..33
5.1 IDE Driver Installation......................................................33
5.2 VGA Driver Installation....................................................38
5.3 LAN Driver Installation ....................................................46
5.4 Audio Driver Installation..................................................55

Safety Instructions
Integrated circuits on computer boards are sensitive to static electricity. To
avoid damaging chips from electrostatic discharge, observe the following
precautions:
 Do not remove boards or integrated circuits from their anti-static packaging
until you are ready to install them.
 Before handling a board or integrated circuit, touch an unpainted portion of the
system unit chassis for a few seconds. This helps to discharge any static
electricity on your body.
 Wear a wrist-grounding strap, available from most electronic component
stores, when handling boards and components. Fasten the ALLIGATOR clip
of the strap to the end of the shielded wire lead from a grounded object.
Please wear and connect the strap before handle the HS-4701 to ensure
harmlessly discharge any static electricity through the strap.
 Please use an anti-static pad when putting down any components or parts or
tools outside the computer. You may also use an anti-static bag instead of the
pad. Please inquire from your local supplier for additional assistance in finding
the necessary anti-static gadgets.
NOTE: DO NOT TOUCH THE BOARD OR ANY OTHER SENSITIVE
COMPONENTS WITHOUT ALL NECESSARY ANTI-STATIC
PROTECTION.

This Page is intentionally left blank.

1
Chapter 1
General Description
The HS-4701 is an Intel®82845GE/82801DB chipset-based board
designed for PCI Bus PGA 478 Intel®Pentium®4 up to
2.4GHz(400MHz FSB)/3.06GHz(533MHz FSB) CPU compatibility.
These features combine and make the HS-4701 an ideal all-in-one
industrial single board computer. Additional features include an
enhanced I/O with CRT/LVDS Panel, DIO, LAN, Audio and 4COM
ports interface.
Its onboard ATA/33/66/100 to IDE drive interface architecture allows
the HS-4701 to support data transfers of 33, 66 or 100MB/sec. to each
IDE drive connection. Designed with the Intel® 82845GE/82801DB
core logic chipset, the board supports all PGA 478 Pentium®4 CPU
series operating up to 2.4GHz(400MHz FSB)/3.06GHz(533MHz FSB).
The display controller is Intel®82845GE with 1MB or 8MB memory
supporting CRT display up to 1280 x 1024 at 32-bit colors, it also
provides LVDS panel interface.
System memory is also sufficient with the two DDR sockets that can
support up to 2GB.
Additional onboard connectors include an advanced USB2.0 port
providing faster data transmission, and one internal 5x2 connector for
10/100 Base-TX Ethernet use.

2
1.1 Major Features
The HS-4701 comes with the following features:
 PGA 478 for Intel®Pentium®4 up to 2.4GHz(400MHz FSB)/
3.06GHz(533MHz FSB) CPU
 Intel®82845GE/82801DB system chipset
 Two DDR sockets with a max. capacity of 2GB
 Winbond W83627, SMC SP37E760 super I/O chipset
 Fast PCI ATA/33/66/100 IDE controller
 Three RS-232 and one RS-232/422/485 serial ports
 Intel 82845GE CRT display controller
 Supports LVDS Panel interface
 Intel 82562 10/100 Based LAN
 AC97 3D audio controller
 Supports USB2.0, two connectors
 Supports Hardware Monitor function
 Supports 16-bit Digital Input/Output function (optional)
 Supports TV-Out function (optional)

3
1.2 Specifications

CPU: PGA 478 for Intel®Pentium®4 up to 2.4GHz(400MHz FSB)/
3.06GHz(533MHz FSB)
 Bus Interface: PCI and Mini AGP Bus
 Memory: Two DDR sockets supporting up to 2GB
 Chipset: Intel®82845GE/82801DB
 I/O Chipset: Winbond W83627, SMC SP37E760
 PCI Slot: One standard PCI slot
 Digital I/O: 16-bit Digital Input/Output port (optional)
 VGA: Intel 82845GE with 1MB or 8MB memory supporting CRT display
up to 1280 x 1024 at 32-bit colors

Panel Display: Supports LVDS Panel interface

IDE: Four IDE disk drives supporting ATA/33/66/100 and with transfer
rates of up to 33/66/100MB/sec.
 FDD: Supports up to two floppy disk drives
 Parallel: One enhanced bi-directional parallel port supporting
SPP/ECP/EPP

LAN: Intel®82562 10/100 Based LAN

Audio: AC97 3D audio controller

Serial Port: 16C550 UART-compatible RS-232/422/485 x 1 and RS-232
x 3 serial ports with 16-byte FIFO
 USB: Supports USB2.0, two connectors
 TV-Out: Supports PAL or NTSC TV systems (optional)
 Keyboard/Mouse: 8-pin connector supporting standard PC/AT
keyboard and PS/2 mouse

BIOS: Award PnP Flash BIOS

Watchdog Timer: Software program time-out intervals from 1~256 sec.

CMOS: Battery backup

Power Connector: One 4-pin and one 20-pin ATX power connector

Operating Temperature: -10~+60°C

Hardware Monitor: Winbond W83627

Board Size: 20.3 x 14.6 cm

4

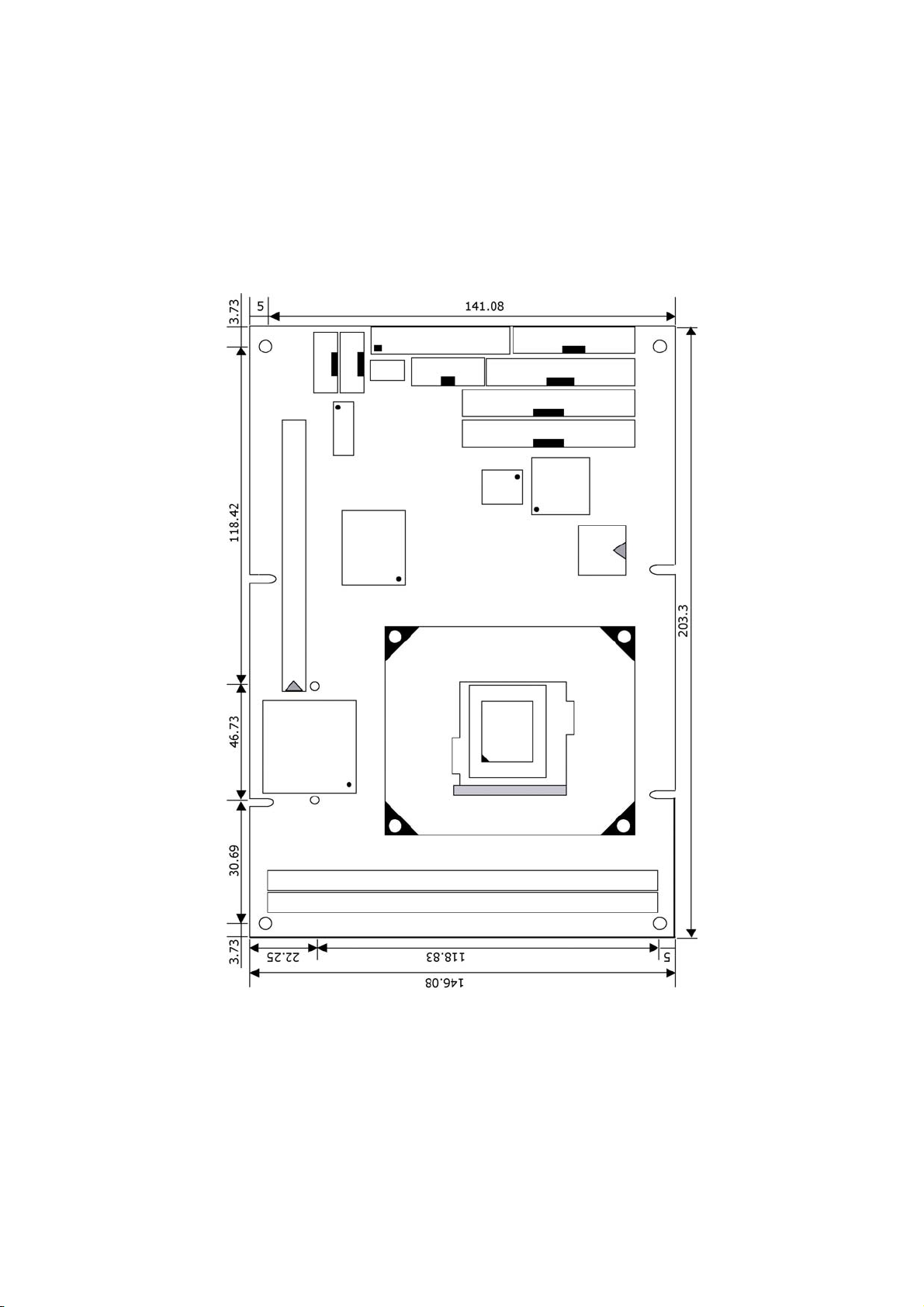

1.3 Board Dimensions

5
Chapter 2
Unpacking
2.1 Opening the Delivery Package
The HS-4701 is packed in an anti-static bag. The board has
components that are easily damaged by static electricity. Do not
remove the anti-static wrapping until proper precautions have been
taken. Safety Instructions in front of this manual describe anti-static
precautions and procedures.
2.2 Inspection
After unpacking the board, place it on a raised surface and carefully
inspect the board for any damage that might have occurred during
shipment. Ground the board and exercise extreme care to prevent
damage to the board from static electricity.
Integrated circuits will sometimes come out of their sockets during
shipment. Examine all integrated circuits, particularly the BIOS,
processor, memory modules, and keyboard controller chip to ensure
that they are firmly seated. The HS-4701 delivery package contains the
following items:

HS-4701 Board x 1
 Utility CD Disk x 1

ATA/100 IDE flat cable x 2
 FDD flat cable x 1

Parallel flat cable x 1
 VGA cable +DB15 x 1

10-pin LAN cable + RJ-45 connector x 1
 8-pin USB split type cable with bracket x 1

MIC/Audio 8-pin cable + 2 phone jacks x 1
 4-in-1 COM Port cable + DB9 connectors x 1

PS/2 K/B & Mouse split-type cable x 1
 Jumper Bag x 1

User’s Manual

6
It is recommended that you keep all the parts of the delivery package
intact and store them in a safe/dry place for any unforeseen event
requiring the return shipment of the product. In case you discover any
missing and/or damaged items from the list of items, please contact
your dealer immediately.

7
Chapter 3
Hardware Installation
This chapter provides the information on how to install the hardware
using the HS-4701.
3.1 Before Installation
After confirming your package contents, you are now ready to install
your hardware. The following are important reminders and steps to
take before you begin with your installation process.
1. Make sure that all jumper settings match their default settings
and CMOS setup correctly. Refer to the sections on this chapter
for the default settings of each jumper.
2. Go through the connections of all external devices and make
sure that they are installed properly and configured correctly
within the CMOS setup. Refer to the sections on this chapter
for the detailed information on the connectors.
3. Keep the manual and diskette in good condition for future
reference and use.
4. Make sure your power supply is using for P4 only. One of 4-pin
connector is for +12V lead which should connect to PW2 and
20-pin ATX connector to PW1.

8
3.2 Board Layout

9
3.3 Jumper List
Jumper Default Setting Setting Page
JP1 Bus Clock Rate Select: Auto Detect Short 1-2 10
JP2 Clear CMOS: Normal Operation Short 1-2 18
J3 Only for Debug ---- ----
J6 Use RS-232 or RS-422/485 Select:
RS-232
Short 1-3, 2-4,
7-9, 8-10 15
3.4 Connector List
Connector Definition Page
CN1 MIC In/Audio Out Connector 20
CD2 Line In Connector 20
CN2 External Speaker Connector 20
CN3 HDD LED Connector 19
CN4 2-pin ATX Power On/Off Switch 18
CN5 Reset Connector 19
CN6 Green LED Connector 19
CN7 Digital I/O Connector 21
CN8 Internal LAN Connector 17
CN9 RS-422/485 Connector 15
CN10 Internal CRT Connector 10
CN11 COM 1 Connector 15
CN12 COM 2 Connector 15
CN13 COM 3 Connector 15
CN14 COM 4 Connector 15
DM1/DM2 188-pin DDR Sockets 10
FDC1 FDD Connector 14
FN1/FN2/FN3 Fan Connectors 18
IDE1/IDE2 IDE Connectors 11
J1 Inverter Power Connector 10
J2 TV-Out Connector 21
J4 LVDS Connector 10
J5 LVDS Connector 10
J7 Mini AGP Connector 21
PW1 20-pin ATX Connector 18
PW2 4-pin ATX Connector 18
PCI1 PCI Expansion Slot 21
KB1 8-pin KB/MS Connector 19
LPT1 Parallel Connector 16
USB1/USB2 USB Connectors 17

10
3.5 Configuring the CPU
The HS-4701 offers the convenience in CPU installation with its
auto-detect feature. After installing a new microprocessor onboard, the
HS-4701 automatically identifies the frequency and clock speed of the
installed microprocessor chip, thereby eliminating the need for user to
do additional CPU configuration or hardware settings related to it.
 JP1: Bus Clock Rate Select
Options Settings
Auto Detect (default) Short 1-2
100MHz Short 2-3
133MHz Empty
13
3.6 System Memory
The HS-4701 provides two DDR sockets at locations DM1 and DM2.
The maximum capacity of the onboard memory is 2GB.
3.7 VGA Controller
NOTE 1: HS-4701 does not support DSTN/STN Panel.
NOTE 2: HS-4701 does not support 640*480 TFT Panel.
NOTE 3: There are specific panel cable and inverter for each different LCD.
If clients need for others LCD (different from TOSHIBA
LTM10C348F), please contact with your sales.
The onboard Intel 82845GE with 1MB or 8MB memory supporting CRT
display up to 1280 x 1024 at 32-bit colors. The HS-4701 provides two
connection methods of CRT and LVDS Panel device. CN10 offers an
internal CRT connector, and J4, J5 offer two LVDS Panel connectors.
 CN10: Internal CRT Connector
PIN Description PIN Description
1 Red 2 GND
3 Green 4 GND
5 Blue 6 GND
7 GND 8 DDCDTA
9 GND 10 HSYNC
11 GND 12 VSYNC
13 GND 14 DDCK
15 GND 16 N/C
2
16
1
15
Red
Green
Blue
GND
GND
GND
GND
GND
GND
GND
GND
DDCDTA
HSYNC
VSYNC
DDCK
N/C

11
 J1: Inverter Connector
PIN. Description
1 VCC12
2 VCC12
3 VCC5
4 ENABKL
5 ENAVDD
5 GND
1
VCC12
6
VCC12
VCC5
ENABKL
ENAVDD
GND
 J4: LVDS Connector
PIN Description PIN Description
1 VCC3 2 VCC3
3 GND 4 GND
5 A4M 6 A4P
7 A5M 8 A5P
9 A6M 10 A6P
11 CLK2M 12 CLK2P
13 A7M 14 A7P
VCC3
GND
A4M A5M A6M
CLK2M
VCC3 GND
A4P A5P A6P CLK2P
A7M A7P
14
13
2
1
 J5: LVDS Connector
PIN Description PIN Descriptio
n
1 VCC3 2 VCC3
3 GND 4 GND
5 A0M 6 A0P
7 A1M 8 A1P
9 A2M 10 A2P
11 CLK1M 12 CLK1P
13 A3M 14 A3P
14
13
2
1
VCC3
GND
A0M A1M A2M
CLK1M
VCC3 GND A0P A1P A2P CLK1P
A3M A3P
3.8 PCI E-IDE Drive Connector
IDE1 and IDE2 are standard 40-pin connector daisy-chain driver
connector serves the PCI E-IDE drive provisions onboard the HS-4701.
A maximum of four ATA/33/66/100 IDE drives can connect to the
HS-4701 via IDE1 and IDE2.

12
 IDE1: Primary IDE Connector
PIN Description PIN Description
1 IDERST# 2 GND
3 PDD7 4 PDD8
5 PDD6 6 PDD9
7 PDD5 8 PDD10
9 PDD4 10 PDD11
11 PDD3 12 PDD12
13 PDD2 14 PDD13
15 PDD1 16 PDD14
17 PDD0 18 PDD15
19 GND 20 N/C
21 PDREQ 22 GND
23 PDIOW# 24 GND
25 PDIOR# 26 GND
27 PIORDY 28 470ΩPull GND
29 PDDACK# 30 GND
31 IRQ14 32 N/C
33 PDA1 34 P66DET
35 PDA0 36 PDA2
37 PDCS#1 38 PDCS#3
39 IDEACTP# 40 GND
IDERST#
PDD7 PDD6 PDD5 PDD4 PDD0
GND
PDREQ
PDIOW#
PDIOR#
PIORDY
PDDACK#
IRQ14
PDA1
PDD3 PDD2 PDD1
PDA0
PDCS#1
IDEACTP#
GND PDD8 PDD9 PDD10 PDD11 PDD15 N/C GND ’ GND GND 470ΩPull GND GND N/C P66DET PDD12 PDD13 PDD14 PDA2 PDCS#3 GND
1
240
39

13
 IDE2: Secondary IDE Connector
PIN Description PIN Description
1 IDERST# 2 GND
3 SDD7 4 SDD8
5 SDD6 6 SDD9
7 SDD5 8 SDD10
9 SDD4 10 SDD11
11 SDD3 12 SDD12
13 SDD2 14 SDD13
15 SDD1 16 SDD14
17 SDD0 18 SDD15
19 GND 20 N/C
21 SDREQ 22 GND
23 SDIOW# 24 GND
25 SDIOR# 26 GND
27 SIORDY 28 470ΩPull GND
29 SDDACK# 30 GND
31 IRQ15 32 N/C
33 SDA1 34 S66DET
35 SDA0 36 SDA2
37 SDCS#1 38 SDCS#3
39 IDEACTP# 40 GND
IDERST#
SDD7 SDD6 SDD5 SDD4 SDD0
GND
SDREQ
SDIOW#
SDIOR#
SIORDY
SDDACK#
IRQ15
SDA1
SDD3 SDD2 SDD1
SDA0
SDCS#1
IDEACTP#
GND SDD8 SDD9 SDD10 SDD11 SDD15 N/C GND ’ GND GND 470ΩPull GND GND N/C S66DET SDD12 SDD13 SDD14 SDA2 SDCS#3 GND
1
240
39

14
3.9 Floppy Disk Drive Connector
The HS-4701 uses a standard 34-pin header connector, FDC1, for
floppy disk drive connection. A total of two FDD drives may be
connected to FDC at any given time.
 FDC1: FDD Connector
PIN Description PIN Description
1 GND 2 RWC#
3 GND 4 N/C
5 GND 6 DS1#
7 GND 8 Index#
9 GND 10 MOA#
11 GND 12 DSB#
13 GND 14 DSA#
15 GND 16 MOB#
17 GND 18 DIR#
19 GND 20 STEP#
21 GND 22 WD#
23 GND 24 WE#
25 GND 26 TRACK0#
27 GND 28 WP#
29 N/C 30 RDATA#
31 GND 32 HEAD#
33 N/C 34 DSKCHG#
GND GND GND GND GND GND GND GND GND GND GND GND GND
RWC# N/C DS1# INDEX# MOA# DSB# DSA# MOB# DIR# STEP# WD# ’ WE# TRACK0# WP# RDATA#
1
234
33
GND
N/C
GND
N/C
HEAD# DSKCHG#
