TIPS
Here are some tips to show you how easy it is to use this touch sense panel:
This radio is equipped with the most advanced "TOUCH SENSE PANEL", so that it is easy and
convenient to use while driving.
Using a very light touch on the radio panel will activate that feature. You will not need to
"PRESS" hard on the panel to make this radio change features.
Some of the buttons that have dual functions, will need to be "TOUCHED" from 2 to 3 seconds
to activate the second level function
The best area to "TOUCH" on the panel to make it activate is the illuminated or lighted area. For
example, just touch the illuminated to play the next track or return to the previous
track.

E - 2
Keep the volume level Iow enough to be aware
of the road and traffic conditions.
Do not expose the product to water or
excessive moisture. This could cause electrical
shorts, fire or other damage.
Parking in direct sunlight can produce very
high temperatures inside your vehicle. Give the
interior a chance to cool down before starting
playback.
This product is designed to operate with a 12
volt DC, negative ground battery system (the
regular system in a North American car).
Avoid inserting any foreign objects into the slot
of this player. Failure to follow this may cause
malfunction or permanent damage due to the
precise mechanism of this unit.
In some countries, it's unlawful to operate a
vehicle while video is displayed in the
driver's viewing area. Please always switch
the unit's display to "Font Type Display"
mode by pressing the DISP button while
driving.
For safety reason, the driver should only
enjoy / watch the video while the car is in
parking mode.
USE OF CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OR PROCEDURES OTHER
THAN THOSE SPECIFIED HEREIN MAY
RESULT IN HAZARDOUS RADIATION
EXPOSURE.
DO NOT OPEN COVERS AND DO NOT
REPAIR BY YOURSELF PLEASE REFER
SERVICING TO A QUALIFIED
TECHNICIAN.
This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. Patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless
otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
In order to avoid any accident, the driver
must not watch video while driving. This unit
is designed to not allow watching video
while driving. Park your car in a safe place
and engage the ‘PARKING BRAKE WIRE’
before watching video.
Warnings
When Driving
When Car Washing
When Parked
Use the Proper Power Supply
Protect the Disc Mechanism
CAUTION
CAUTION
THIS MOBILE MultiMedia PLAYER IS A
CLASS I LASER PRODUCT. THIS UNIT USES
A VISIBLE/INVISIBLE LASER BEAM WHICH
COULD CAUSE HAZARDOUS RADIATION IF
EXPOSED DIRECTLY. BE SURE TO
OPERATE THE MOBILE MultiMedia PLAYER
CORRECTLY AS INSTRUCTED.
CAUTION
NOTE:
1. TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, DO NOT EXPOSE
THIS EQUIPMENT TO RAIN OR
MOISTURE.
2. TO REDUCE THE RISK OF FIRE OR
ELECTRIC SHOCK, AND ANNOYING
INTERFERENCE, USE ONLY THE
RECOMMENDED ACCESSORIES.
3. THIS DEVICE IS INTENDED FOR
CONTINUOUS OPERATION.

E - 3
Installation
INSTALLATION CAUTION
1. Before finally installing the unit, connect the
wiring temporarily and make sure it is all
connected properly and the unit and works
properly.
2. Use only the parts included with the unit to
ensure proper installation. The use of un-
authorized parts can cause mal functions.
3. Consult with your nearest dealer if install-
ation requires the drilling of holes or other
modifications of the vehicle.
4. Install the unit where it does not get in the
driver's way and cannot injure the
passenger if there is a sudden stop.
5. If installation angle exceeds 30° from
horizontal, the unit might not give its
optimum performance.
6. Avoid installing the unit where it would be
subject to high temperature, such as from
direct sunlight, or from hot air, from heater,
or where it would be subject to dust dirt or
excessive vibration.
7. Be sure to remove the front panel before
installing the unit.
Fitting the outer sleeve
Fitting the support strap
Remove the transit screws
from the top of the car radio.
Connect the fixing screw to the
rear of the car radio.
Remove the outer sleeve
and place into the
dashboard.
Bend the support strap to
suit the dashboard
aperture and fix to the
underside of the dash
board using the screw
and washer.
Make sure that it is not
angled more than 30°.
Slide the car radio into the
outer sleeve and connect the
spring washer and nut to the
fixingscrew.
DON’T FORGET! Bend the metal tabs on the
outer sleeve outwards and downwards to stop
the sleeve from moving.
30°
Removing the detachable
front panel
Attaching the detachable
front panel
Press the panel release button
on the front panel.
Attach the front panel at the right
hand side first, and then push
the front panel forwards to
lock it securely into place.
DON’T FORGET!
Always turn off the
car radio before
removing the front
panel.
Fixing Screw
Spring Washer
and 5mm Nut
Screw and Washer
Removing the unit
Din Rear-mount
Insert fingers into the
groove in the front of frame
and pull out to remove
the frame.
Insert the levers supplied with
the unit into the grooves at
both sides of the unit as
shown in figure until
they click. Pulling the
levers makes it possible
to remove the unit from
the dashboard.
Frame
a
b
screw
dashboard
bracket
screw hook
hook
Installation using the screw holes on the sides of
the unit.Fastening the unit to the factory radio
mounting bracket.
NOTE: The mounting box, outer trim ring and
half-sleeve are not used for this method
installation.
Panel Release
button
2
1
NOTE: If the D.C.P is dirty,
wipe off the dirt with soft,
dry cloth only. And use a
cotton swab soaked in
isopropyl alcohol to clean
the socket on the back of
the D.C.P.
U
PSH

SUB
WOOFER
SUB-W OUT
SUB-WOOFER OUTPUT BLUE
VIDEO IN
CAMERA IN
YELLOW
YELLOW
AUDIO IN (1) R
AUDIO (1) INPUT (RIGHT)
AUDIO IN (1) L
AUDIO (1) INPUT (LEFT)
VIDEO OUT (1)
VIDEO (1) OUTPUT
RED
WHITE
YELLOW
VCR or MultiMedia
or
GAME CONSOLE
FUSE
E - 4
VIDEO INPUT
CAMERA INPUT
Connecting the System
Wiring Diagram-audio/video Connections
PARKING
BRAKE ( )
PINK
2.5m extension wire
Connect to Parking Brake.
Ground
Brake Switch

AMP
FUSE
L-CHL-CHR-CH R-CH
BATTERY(+)
POWER ANTENNA
IGNITION(ACC)
GROUND
RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER ( )
RIGHT FRONT SPEAKER (+)
RIGHT FRONT SPEAKER ( )
LEFT FRONT SPEAKER ( )
LEFT FRONT SPEAKER (+)
LEFT REAR SPEAKER ( )
LEFT REAR SPEAKER (+)
12345678910
11 12 13 14 15 16 17 18 19 20
Figure 1Pin View
20 PIN HARNESS PIN CHART
PIN WIRE COLOR FUNCTION / LABEL
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
GREY / BLACK
GREY
VIOLET
VIOLET/BLACK
ORANGE
GREEN
GREEN / BLACK
RED
BLACK
RED
WHITE
WHITE / BLACK
BLUE/WHITE
BLUE
YELLOW
BLACK
WHITE
RED
BLACK
WHITE
RIGHT FRONT SPEAKER ( )
LEFT REAR SPEAKER (+)
LEFT FRONT SPEAKER (+)
POWER AMPLIFIER REMOTE (+)
CHASSIS GROUND
LEFT FRONT PRE-AMPLIFIER LINE OUT
LEFT REAR PRE-AMPLIFIER LINE OUT
LEFT FRONT SPEAKER ( )
POWER ANTENNA
BATTERY (+)
RIGHT FRONT PRE-AMPLIFIER LINE OUT
FRONT PRE-AMPLIFIER LINE OUT COMMON
RIGHT FRONT SPEAKER (+)
RIGHT REAR SPEAKER (+)
RIGHT REAR SPEAKER ( )
LEFT REAR SPEAKER ( )
IGNITION (ACC)
REAR PRE-AMPLIFIER LINE OUT COMMON
RIGHT REAR PRE-AMPLIFIER LINE OUT
ISO CONNECTOR WIRING CHART
PIN WIRE COLOR FUNCTION / LABEL
A4
A5
A7
A8
B1
B2
B3
B4
B5
B6
B7
YELLOW
BLUE
RED
BLACK
VIOLET
VIOLET / BLACK
GREY
GREY / BLACK
WHITE
WHITE / BLACK
GREEN
GREEN / BLACK
ISO CONNECTOR 4 PIN + 8 PIN
FEMALE WITH MALE TERMINAL
B8
20-PIN
AUDIO/POWER
HARNESS
(See Figure 1 )
ISO
CONNECTOR
(See Figure 2)
GREY
FRONT
CHANNEL
REAR
CHANNEL
BLACK
Connect to power amplifier, If not used,
Tape bare end of wire.
POWER
AMPLIFIER
REMOTE
RCA-TO-RCA
CABLES
(Not supplied)
WHITE
RED
WHITE
RED
4
2
6
8
1
3
5
7
CONNECTOR B CONNECTOR A
4
2
6
8
1
3
5
7
Figure 2
20 PIN AUDIO / POWER HARNESS
ANTENNA
JACK
ANTENNA
EXTENDER
CABLE
(Not supplied)
E - 5
BLUE/WHITE
STRIPE
REVERSE OVERRIDE WIRE (+)
ORANGE
P
R
N
D
2
L
Gearbox
Switch
Reverse gear signal
Connect to Back Lamp Lead +
REVERSE(+)
OVERRIDE
WIRE
Connecting the System
Wiring Diagram - Power / Speakers (ISO)

This unit is equipped with the most advanced
full logic motorized slide down system. You can
enjoy this advance technology with just a
single press of the button. Please read
carefully the following operation instruction
before operating the unit.
Open / Close The Panel
Loading a CD
Press the button to slide down (EJECT
/TILT) closed panel or to slide up (close) an
opened panel.
In the slide down position, the disc slot become
accessible.Insert a CD through the disc slot,
the CD will be automatically loaded and the
panel will also close automatically & playback
will begin. If no CD is inserted, press Open
button again to slide up the panel.
E - 6
Panel Control Operation
WARNING
Always use the button to slide up/
down the front panel. Never try to slide
up or down the front panel manually,
this will cause serious & permanent
damage to the slide down mechanism,
and this will void the warranty.
Do not try to detach / remove the front
panel (by pressing the detach button) or
attach the front panel when the panel is in
the slide down position. This may cause
serious & permanent damage to the unit &
panel. Only attach or detach the front
panel when the panel is in the slide up
position.
Ejecting a CD
Press Open to slide down the panel, if a CD is
loaded, it will be ejected automatically. No
further key press is needed.
If the ejected CD is not being removed, after 10
seconds it will be reloaded automatically. And
the panel will automatically slide up after disc
has been reloaded.
End user can adjust the panel viewing angle of
the display to obtain the optimum viewing angle
inside the vehicle. Long press the button
to enter into the Angle options, then rotate the
Volume Konb to adjust the level “0” to “8”.
If the ejected disc remains in the slot, the
button will not function, so closing the panel
by using button is prevented unless the
disc is removed or reloaded.
CAUTION
Panel Open/Close Operation Panel Tilt Adjustment

Name Of Buttons and Theirs Functions
USB / A/V IN JACK DOOR
E - 7
Source Unit
No. Item Decriptions
MUTE
POWER OFF
PLAY / PAUSE
VOLUME KNOB
PANEL RELEASE
POWER ON
ESC
PRESET LIST
DISPLAY
SYSTEM MENU
INFO
Press this button to turn the mute On / Off.
Long press this button to turn Off the unit.
Press this button to Pause / resume Play the music under Media
player mode.
Rotate the encoder volume knob to increase and decrease the
volume. ( The maximum volume level is “46”. )
Press this button to remove the control panel.
Press this center button to turn On the unit.
Press this button to quick return previous menu or mode.
Under tuner mode, press this button to list up stored station.
Press this button briefly will be enter the Motion picture display
mode and Clock / Date dispaly.
Long press this button to access into the Menu mode.
Long press this button to access the information functions.
BAND
MUSIC FILE LIST
MultiMedia/
MP4 LIST
CAPTURE
Under tuner mode, press this button to access the Band function.
Under the Media player mode, press this button to list searching
of Tracks or Files on the Media playback mode.
Under the MultiMedia/MP4 mode, press this button to list searching
of MultiMedia Root Menu or Files on the playback mode.
During video/image playback, press this button can capture
images and store them (up to 10 images) to set as wallpaper. You
can also capture an image from an auxiliary video device, if
connected.

Name Of Buttons and Theirs Functions
E - 8
Under the tuner mode, press and hold momentarily to enter into
the Auto Seek / Manual Seek mode..
Under the Disc mode, press these buttons to skip a chapter /
track / scene / image / file.
Under the Disc mode, press and hold momentarily to fast forward
/ backward the video disc.
&
Press this button to eject the Disc.
TUNE UP/DOWN
FILE UP/DOWN
FAST FORWARD/
BACKWARD
EJECT
PANEL TILT Long press this button to entering adjust the panel viewing angle.
Press this button to select different source playback mode, by
rotate the encoder knob to select the desire playback mode.
Once the desire playback appears, press Select button as
confirm the selection.
SOURCE
Press this button to enter into the function mode.
This unit can support playback MP3/WMA/JPEG/MPEG4/DIVX
format which are stored on the USB memory stick.
This unit is allowed to connect with external Audio/Video system
such like Digital Camera or Game Console. User can connect the
external A/V system thru the A/V in jack on front panel.

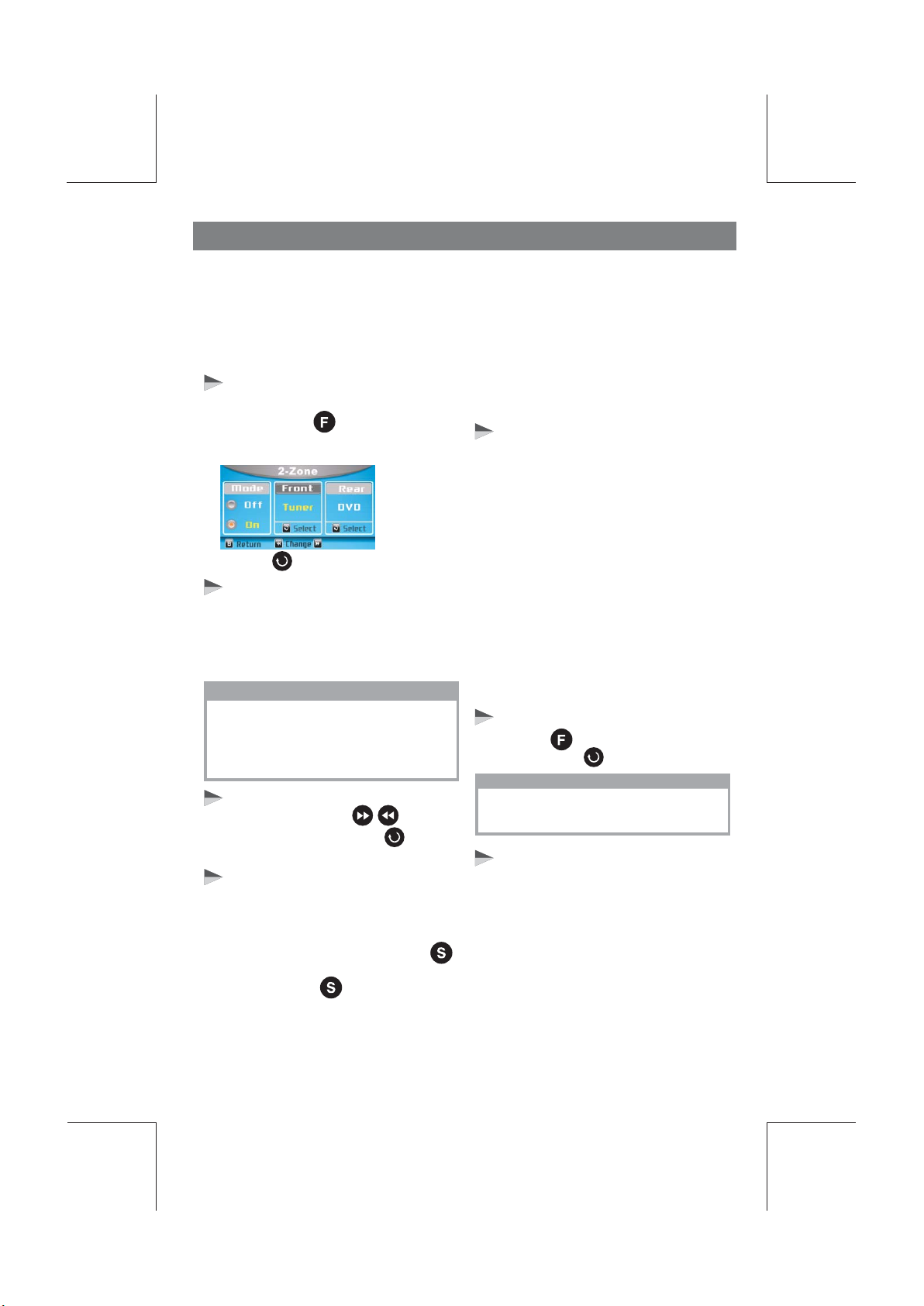

Long press this button to access the Dual zone operations.
( The USB slot behind the
USB/AV-IN jack door.)
(The AV-IN slot behind
the USB/AV-IN jack door.)
FUNCTION
USB SLOT
AV-IN JACK
2-ZONE

E - 9
Name Of Buttons and Theirs Functions
No. Button Item Decriptions
1POWER ON
OFF
EJECT
MENU
SOURCE
2 ZONE
MODE
VOLUME +
VOLUME -
2-ZONE
Press this button to turn the mute On / Off.
When the unit is power on, long press this button to turn Off
the unit. Once the unit power off, press this button to turn On
the unit.
Press the EJECT button to eject the disc or loading the disc.
Long press the MENU button to enter into the main menu mode.
Press the MENU button to enter into the Bluetooth dial opertions.
Press this button to enter into the SOURCE mode. Long press
this button to enter into the Bluetooth transfer mode.
Once the Daual zone turn on, press this button to change Front
zone or Rear zone.
Press this button to increase the volume.
Press this button to decrease the volume.
Press this button to access the Dual zone operations.
Under the tuner mode, press this button to access the Manual
Seek mode.
Under the media player mode, press this button fast forward
through the music under media player mode.
2
3
4
5
7
8
6
POWER
MENU
2ZONE
Remote Control
L
1
5
11
6
17
3
18
20
21
16
22
7
23
10
2
4
13
14
12
15
19
24
25
26
27
8
9
