Safety information
CAUTION:
WARNING:
Region Management Information
DISC NOTES
Handling and Cleaning
Disc Cleaning
This mobile DVD player is a Class 1 laser product. However, this mobile DVD player uses a
visible/invisible laser beam which could cause hazardous radiation exposure if directed. Be sure
to operate the mobile DVD player correctly as described in this manual.
Use of controls or adjustments or performance of procedures other than those specified may
result in hazardous radiation exposure.
Do not open covers and do not attempt to repair this product yourself. Refer servicing to
qualified personnel.
- To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
- To reduce the risk of fire or electric shock, and annoying interference, use only the
recommended accessories.
- This device is intended for continuous operation.
This product incorporates copyright protection technology that is protected by method claims of
certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited viewing uses only unless
otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
This mobile DVD Player is designed and manufactured to respond to the Region Management
Information that is recorded on a DVD disc. If the Region number described on the DVD disc
does not correspond to the Region number of this Mobile DVD Player, this Mobile DVD Player
cannot play this disc.
You can playback the following discs:
DVD VIDEO/DVD AUDIO
VIDEO CD/AUDIO CD
MP3/WMA/JPEG/MPEG4
- Dirt, dust, scratches and warped discs will prevent proper operation.
- Do not place stickers or make scratches on discs.
- Do not bend discs.
- A disc should always be kept in its case when not in use to prevent damage.
- Do not place discs in the following places:
1. Direct sunlight.
2. Dirty, dusty and damp areas.
3. Near car heaters.
4. On the seats or dashboard.
Use a dry soft cloth to wipe the surface. If the disc is quite dirty, use a soft cloth slightly
moistened with isopropyl (rubbing) alcohol. Never use solvents such as benzene, thinner or
conventional record cleaners as they may mar the surface of the disc.
User’s Manual page 2-

Preparing new discs with rough spots
Notes:
DIN mounting options
Remove transit screws before installation
A new disc may have rough edges on its inside and outside edges. If a disc with rough edges is
used, the disc will not be properly seated and the player will not play the disc. Therefore, remove
the rough edges in advance by using a ballpoint pen or pencil as shown on the right. Press the
side of the pen or pencil against the inside and outside edges of the disc.
- Choose a mounting location where the unit will not distract the driver.
- Before the installation of the unit, connect the wiring temporarily and make sure it is all
connected properly and the unit and the system works.
- Use only the parts included with the unit to ensure proper installation. The use of unauthorized
parts can cause malfunctions.
- Consult with your dealer if installation requires the drilling of holes or other modifications of the
vehicle.
- Install the unit where it does not get in the driver’s way and cannot injure the passenger if there
is a sudden stop, like an emergency stop.
- If installation angle exceeds 30° from horizontal, the unit may not perform properly.
- Avoid installing the unit where it will be subject to high temperature, such as from direct
sunlight, or from hot air, from the heater, or where it would be subject to dust, dirt or excessive
vibration.
This unit can be installed either from the ‘Front’ (conventional DIN Front-mount) or the ‘Rear’
(DIN Rear-mount installation using the threaded holes on the sides of the chassis). For details,
refer to the following illustrated installation methods.
Before installing the unit, please remove the two transit screws.
Installation
User’s Manual page 3-

1. DIN front-mount (method A)
Installation opening
Installing the unit
RELEASE

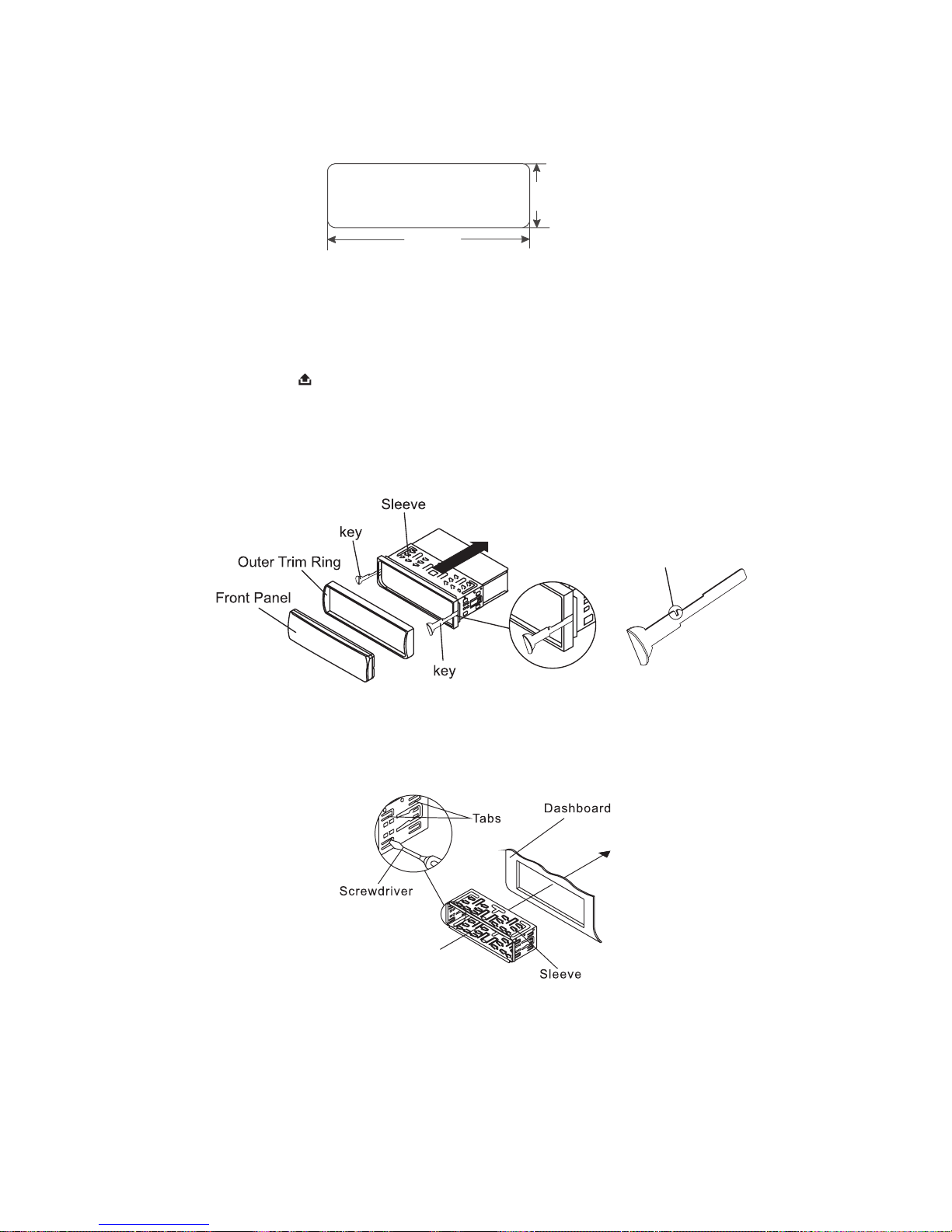

This unit can be installed in any dashboard opening with dimensions as shown below:
Be sure to test all connections first, then follow these steps to install the unit.
1. Make sure the ignition is turned off. Disconnect the cable from the vehicle battery negative (-)
terminal.
2. Disconnect the wire harness and the antenna.
3. Press the ( ) on the front panel and remove the control panel (for details, refer to
‘Using the Detachable Front Panel’).
4. Lift the top of the outer trim ring. Then pull it out to remove it.
5. The two supplied keys release tabs inside the unit’s sleeve so you can remove it. Insert the
keys as far as they will go (with the notches facing up) into the appropriate slots at the center
of the left and right sides of the unit. Then slide the sleeve off the back of the unit.
6. Mount the sleeve by inserting it into the opening of the dashboard and bend open the tabs
located around the sleeve with a screwdriver. Not all tabs will be able to make contact, so
examine the opening to determine which tabs will be most effective. Bend open the
appropriate tabs behind the dashboard to secure the sleeve in place.
7. Reconnect the wire harness and the antenna, being careful not to pinch any wires or cables.
8. Slide the unit into the sleeve until it locks into place.
9. To further secure the unit, use the supplied metal strap to secure the back of the unit in place.
Use the supplied hardware (Hex Nut (M5mm) and Spring Washer) to attach one end of the
strap to the mounting bolt on the back of the unit. If necessary, bend the metal strap to fit your
vehicle’s mounting surface. Then use the supplied hardware (Tapping Screw (5x25mm) and
Plain Washer) to attach the other end of the metal strap to a solid metal part of the vehicle
under the dashboard. This strap also helps ensure proper electrical grounding of the unit.
(182 mm)
(53 mm)
73
/
1
6”
23
/
32
”
Notch
User’s Manual page 4-

10. Reconnect the cable to the vehicle battery’s negative (-) terminal. Then replace the outer
trim ring and install the unit’s front panel (see the steps of ‘to install the front panel’).
1. Make sure the ignition is turned off, and then disconnect the cable from the vehicle battery
negative (-) terminal.
2. Remove the metal strap attached to the back of the unit (if present).
3. Press the release button to remove the front panel.
4. Lift the top of the outer trim ring then pull it out to remove it.
5. Insert both of the supplied keys into the slots at the middle left and right sides of the unit then
pull the unit out of the dashboard.
If your vehicle is a Nissan or Toyota, follow these mounting instructions: Use the screw holes
marked T (Toyota) or N (Nissan) located on both sides of the unit to fasten the unit to the factory
radio mounting brackets supplied with your car.
Fasten the unit to the factory radio mounting brackets. Align the screw holes on the bracket with
the screw holes on the unit, and then tighten the screws (5x5mm) on each side.
Note: The outer trim ring, sleeve and the metal strap are not used for method B installation.
Removing the unit
2. DIN rear-mount (method B)
Left hand side Right hand side
5mm MAX
N
TN
T
5mm MAX
N/T
NT
T
User’s Manual page 5-

Using the detachable front panel
Removing the detachable front panel
The front panel of the unit may be removed as a theft deterrent. After removing the front
panel, use the case provided to prevent the front panel from getting damaged.
1. Press the ( ) button to open the front panel.
2.
3. Store the front panel in its protective case.
Hold the right side of the front panel with the plate facing forwards.
First attach the right side of the front panel to the unit by inserting it into the right notch.
RELEASE
Attaching the front panel
Then push the left side of the front panel inwards to fix it in the right place.
Many vehicles are fitted with ISO connectors behind the dashboard, which makes it
easier to connect your car radio.
These connections can be found in the dashboard where the car radio will be fitted. Use
these cables to connect the car radio.
Should your car not be fitted with these ISO connectors, we strongly advise you to
consult your car dealer or a specialist to obtain the right adaptor. Once you have these
cables, you will need to connect your loudspeakers and the power supply to the
ISO connector, following the connection instructions below.

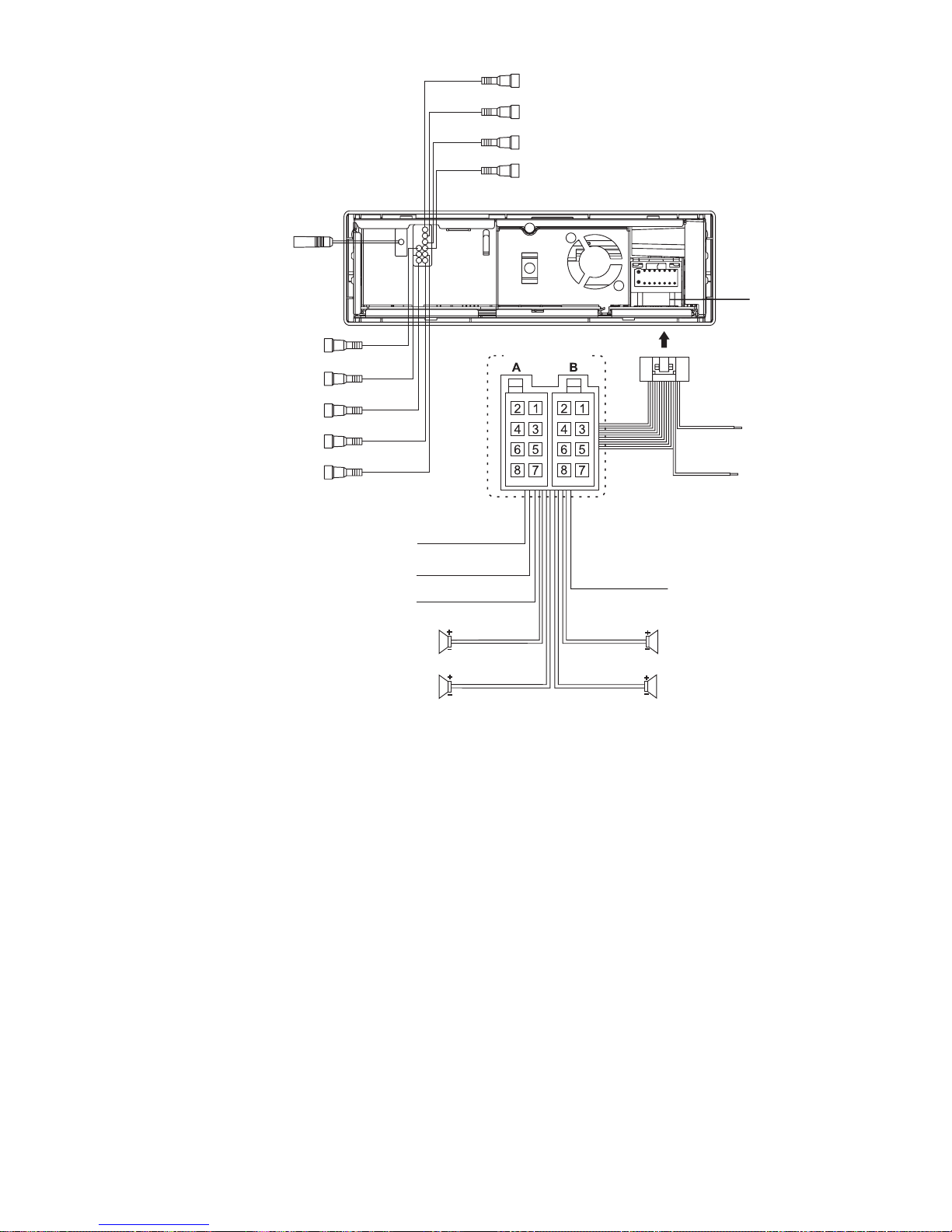

Wiring diagram
NOTE:
INCORRECT WIRING OR OPERATION WILL VOID THE WARRANTY OF THIS UNIT.
The manufacturer cannot be held responsible in the event of a malfunction if the
connections are not made properly.
Pull off the front panel.
Be sure it is
fully inserted. If not, the display or some of the keys may not function properly.
front panel
protective case
REL button
User’s Manual page 6-

ISO connector:
Part A:
A1:
A2:
A3:
A4:
A5:
A6:
A7:
A8:
Part B:
B1:
B2:
B3:
B4:
B5:
B6:
B7:
B8:
No Connect
No Connect
No Connect
Battery B+ (Yellow)
Antenna (Blue)
No Connect
Accessory (Red)
Ground B- (Black)
Rear Right + (Violet)
Rear Right - (Violet/Black)
FrontRight+(Grey)
Front Right - (Grey/Black)
Front Left + (White)
Front Left - (White/Black)
Rear Left + (Green)
Rear Left - (Green/Black)
ISO CONNECTOR
MEMORY B+ (YELLOW)
ACC B+ (RED)
POWER B+ FOR
RADIO ANTENNA ( )BLUE
GROUND B- (BLACK)
Radio Antenna Socket
PARKING BRAKE WIRE B
()
-
PINK/BLACK
Subwoofer output
Socket (Green)
Coaxial digital audio output
Socket (Orange)
RCA connector to front left
output (White)
RCA connector to front right
output (Red)
RCA connector to rear right output (Red)
RCA connector to rear left output (White)
Video output socket 1 (Yellow)
Video output socket 2 (Yellow)
FUSE 15A
WHITE
WHITE / BLACK
GREEN
GREEN / BLACK
VIOLET
VIOLET / BLACK
GREY
GREY / BLACK
FRONT
4 ohm
LEFT
SPEAKER
REAR
4 ohm
RIGHT
SPEAKER
FRONT
4 ohm
REAR
4 ohm
Video input To car rear view
camera (Yellow)
REVERSING CAMERA
ACTIVAION WIRE B+ (PINK)
15
User’s Manual page 7-

User’s Manual page 8-
WATCHING THE VIDEO MONITOR IS FORBIDDEN WHILE DRIVING:

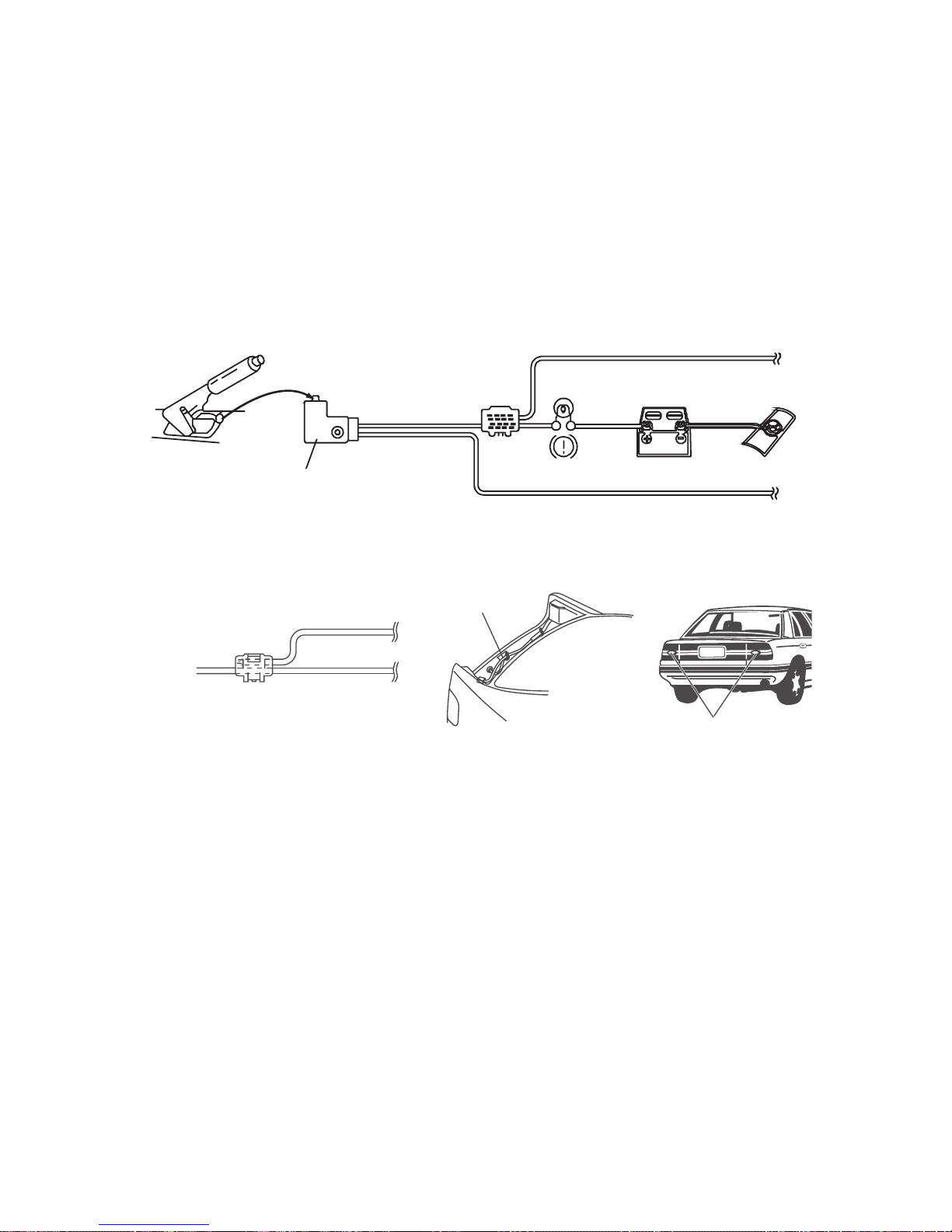

Connecting the Parking Brake line to the parking brake system built in the car
The “PARKING BRAKE” wire must be connected to the parking brake system of your car. The
LCD screen will display video images ONLY when the parking brake is engaged.
If the parking brake is not engaged, the screen will display the message “DISABLED WHILE
DRIVING”. This is a safety feature designed to prevent the driver from watching a video while
driving. The video output of this unit is not affected by this.
Note: In Radio Mode or CD/MP3 Mode images will be displayed on the monitor whether or not
the parking brake is engaged.
Connecting the reversing line to taillight on the car
Taillight
To Car Battery
To reversing line
To taillight
Taillight line
After connecting, at power on state, when you start up the reverse gear, the unit will
receive the picture from car rear view camera.
Parking Brake
Parking Brake switch
(Inside the car)
Parking Brake line (Pink/Black)
To metallic body or chassis of your car
Car Battery
Parking brake
indicator Light

1.
- Turn the unit on by pressing any button except the (Release) button.
When the unit is switched on, press and hold down the button to go to standby mode.
- Press the ( ) button to shut off the sound output.
Press it again to resume previous sound level.
2
Flashes when the front panel is removed.
3.
Press the button to display the main menu (or root
menu). Then you can access all the features (Such as
RADIO, BT, DISC, SD, USB, AV IN.) by tapping on
the touch screen icons. Touch an icon to select a
source. Touch the icon “ ” icon to exit the menu and
return to the previous mode. : The GPS, AV2, and
TV(MTV)function are not available for this unit.
4.
Adjust the volume by pressing the button.
Turning the unit on/off
Mute on/off: MUTE
ANTI-THEFT LED indicator
Select source
SRC
Note
Sound adjustment
VOL + /VOL -
.
X
User’s Manual page 9-

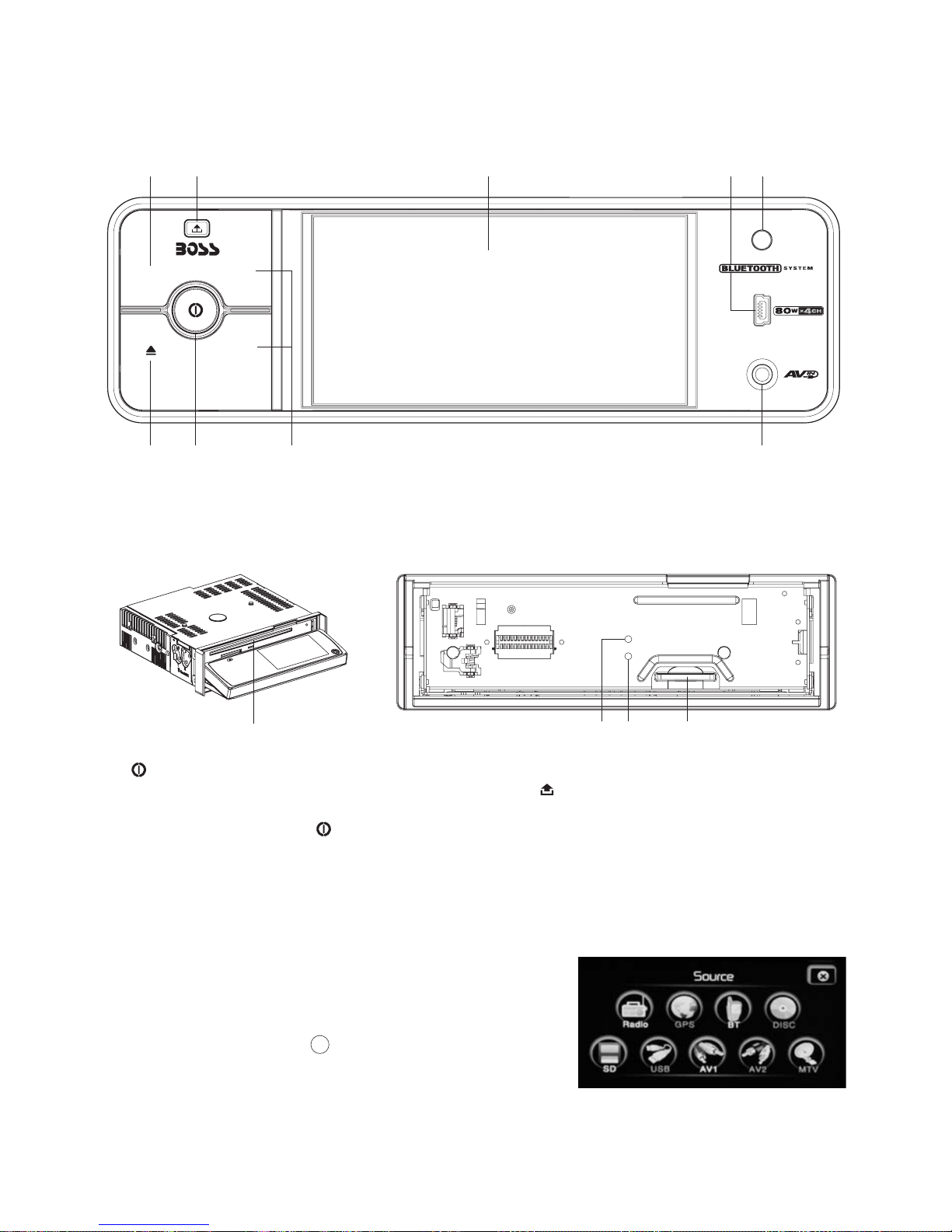

Car radio
after sliding down the front panel after removing the front panel
12 10213
+
-
6
8
35
11
1
79
4
Operations
Features and controls
Front panel
BV8728B
SRC VOL
VOL
