Boss Audio Systems ELITE BECPA10W User manual

Works with
Apple CarPlay
BECPA10W
USER MANUAL
Wireless Apple Carplay & Android Auto™
BLUETOOTH ®I 340 WATTS I SINGLE-DIN
MP3-COMPATIBLE DIGITAL MEDIA AM/FM RECEIVER
FEATURING 10.1" (257 mm) CAPACITIVE TOUCHSCREEN
AND MULTICOLOR ILLUMINATION OPTIONS
A workswith
1 1, androidauto
0 Bluetooth ®
''t'ff Fi)e
CERTIFIED

®
AUDIO SYSTEMS
Thank you for Choosing BOSS Audio Systems!
IMPORTANT! Fill Out And Keep For Your Records.
CD
IMPORTANT
Record the serial number of the product:
Model:
Serial Number:
Date of Purchase:
The serial number is located on the top part of the chassis.
1

Contents
Contents. ... . ...... .. .................................. .. 2 Gestures & Control.............................................17 Media Player Source Switching........................22
Notes............. ..... . .. .................................................4
CarP lay Display. .. ................................................ 18
Media ..... . ......... .. ... .. .... ......... ... ......... ... 23
Cautions............................................................. 5-7 Disable Apps...................................................
.... 18
Warnings .... ......... .. .............................................. 23
About this Manual.................................... .. ......... 7
California Prop. 65 ... ............................................ 7 Android
AutorM .......... . .......... . .. . ....... ... ... . .. 19
Warnings............................................................. 19
USB Playback...................................................... 23
Navigating Me nu..... .... .................. .. ....... ... .. ....... 23
Basic Product Operation............ ......... 8 Using An
droid Au to .. ......................................... 19 Photos
... ...............................................................23
What comes in the box.................. ... . .. ................8
Product Basics.................. ... ................ .... . .... .. 9-16 Bluetooth®
....... ... ....... ...... .... .. .. .. ..... . .. .. .. .... .20
Radio ..... .............. ... .... ............ .. ... .. .......24
Unit Installa ti on .............................................. 11
Cau ti ons........................................... .. .................. 20
Display Over view .... ........... .. .............................. 24
Operation instruction......................................12 Setup &
Co nnections........................................ .. 20
Controls............................................................... 24
Display screen disassembly instructions........ 13 Phonebook
... ................... .. .................. .. .. .. ........... 20 Tuning......
...... .. ................. ... .. ............................ .. 24

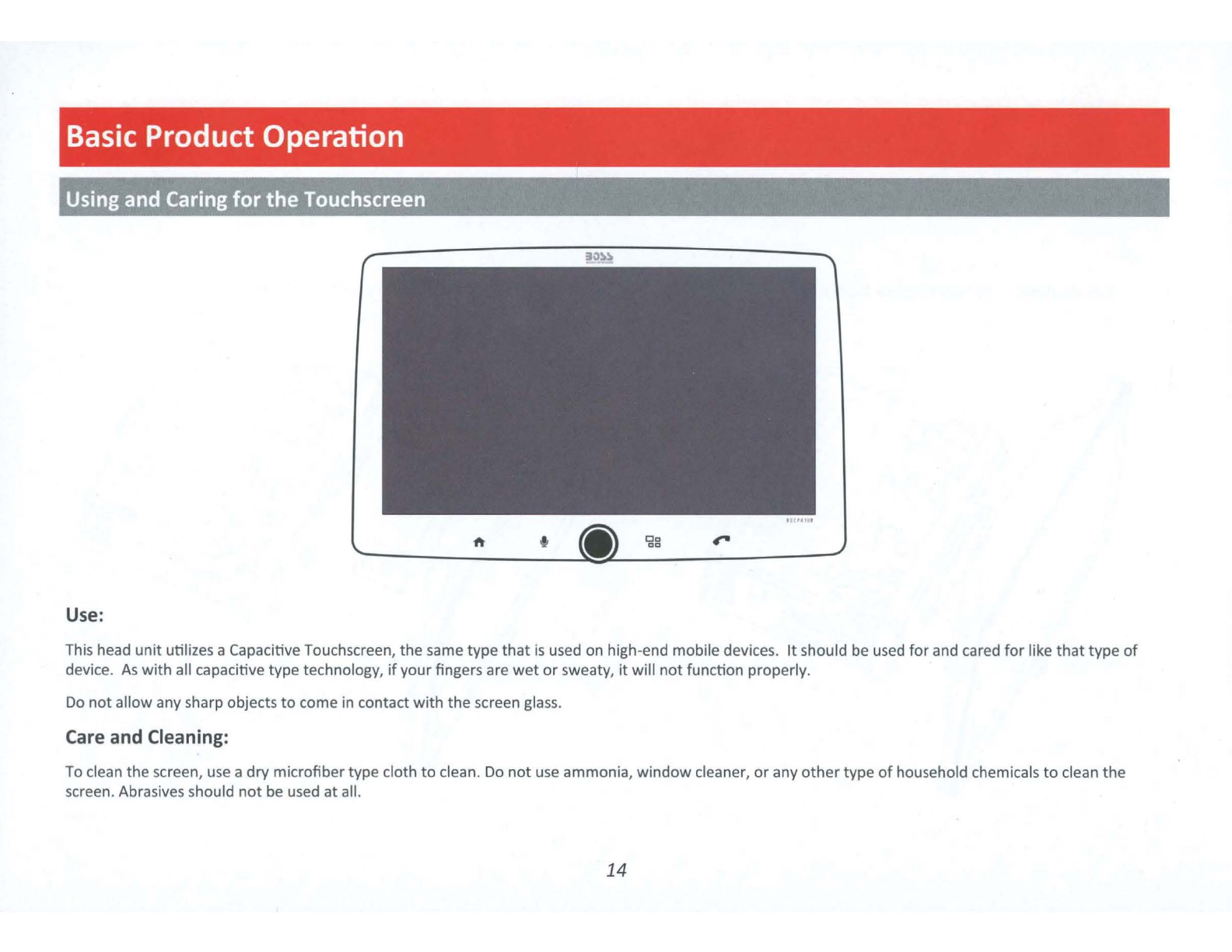

Using and Caring for the Touchscreen........... 14
Device Status. .. .. .. .. ... ............... .. .......................... 20
Ba nds .. .. . .... . .... .....................................................24
Product Setup.....................................................15 Calling...................................................................21 Presets..........
.. ......... .. ....................... .. ................. 24
Navigating the Me nus.......................................16 History..........
..... ........ .. .........................................21 Favorites
.... ..........................................................24
Apple CarPlay ..................................... 17 Private
Mo de.......................................................21
Warnings.............................................. .. ... . ... ......17 Audio.................................................................... 22
Using Ca rPl ay......................................................18 Track Control.......................................................22
2

Contents
AV IN ....................................................25
Display Settings .................................28 Connections ................. . ... .. ... . .... ... .. . ...... . ... 30
Playback............ .. ..................... ... ........ .. ............... 25
Illumination Control..........................................28 Cautions & Warnings
.. .... .. .. ......... .. ............... 30-35
Camera ........................................... .. ... 25 Gamma........................................
.. ..... .................28 Power/SWC .........................................................
30
Warnings..... .. . ... . .. .. .. ... . .. . .. ... .. .. .......... .. . ... ....... .. .. 25
Reverse View............................. .... . .. ............... .. .. 25
LED Touch Buttons............................................ 28
LED Animation................................................... 28
Speaker .... .. .. ......................................................... 31
Audio Pre-amp/AV IN/Radio/GPS ....................32
GeneraI Settings .................................26 Bluetooth®
Settings .............................. 29
Camera/USB/MIC.............. .. ................................ 33
Cautions.............. ... . .. .................................. ... . .... .26
System Language.............. .. .............. .. ................26
De vice Na me . .. . .. ..... .... .. ............. ...... ...... .. ... ... ..... 29 Parking Brake...................................................
.... . 34
Time Zone............ .. .............................................26 Camera
................................................... .. ... 29 Hands-free Mic...................................................35
Date & Time...................................................... .. 26 Rear Camera
lnput ............................................29
SWC Compatibility .............. .. .........36
Auto Adjust Daylight Saving................. .. ......... 26
System Tone ... ........... .. ............................ ... ........ 26
Front Camera Input............................. ... ..... .. . ... 29
Pa rking Assist Guide......................................... 29
Troubleshooting .................................37
Power Off Delay............. ... .................................. 26
Parking Assist Guide Adjust............................. 29
Specifications .. .................... ... ..... .. ...... 39
Audio ............................. ... .................... 27 Rear
View Delay........... .. .................................... 29
EQ ...................... . .............. . ...... . .... . .......... . .. ... .... . .. 27
Radio Settings ........................................... 29
Balance/Fader .. . ... ....................................... .. ...... 27 Region
.... ..:............................................ .... . .. ........29
Subwoofer.. .... . .... ................................................ 27
Loudne ss ................................................ .. ............ 27
Internal Amp ......... ..... .. . .... ............... .... ................27
Volume.......... .. ...................................... ... ... .. .......27
So urce Lev el............. ... ........................................ 27
3

' Important
This symbol with "WARNING" is intended to
alert the user to the presence of critical
instructions/procedures. Failure to observe
the instructions/procedures can result in
injury, death, damage to the product and/or
property.
&wARNING
This symbol with "CAUTION" is intended to
alert the user to the presence of important
instructions/procedures. Failure to observe
the instructions/procedures can result in
injury or damage to the product and/or
property.
&cAUTION
fJII Wo rkswith
m Apple CarPlay
A. works wi th
1 _, androidauto
0 Bluetooth $
4
Use of the Apple CarP lay logo means that
this user interface meets Apple
performance standards.
Apple is not responsible for the operation of
thi sdevice or its compliance with sa fety and
regul atory standards. Please note that the use
of this product with iPhone may affect
wireless performance.
iPhone* isatrademark of Apple Inc ., registered in the
U.S. and other countries.
Apple Ca rPlay isa trademark of Apple Inc.
Android Auto isatrademark of Google L LC.
The Bluetooth* word mark and logos are
registered trademarks owned by Bluetooth
SIG , Inc. and any use of such marks by
BOSS Audio Systems is under license.
Othertrademarks and trade names are those
of their respective owners.

Caution
Precautions
BE SURE TO OBSERVE THE FOLLOWING GUIDELINES: Do not turn up the volume so high that you can't hear what 's around you.
Use caution or temporarily discontinue use in potentially hazardous situations.
Do not operate mobile video equipment while driving a motorized vehicle -safe driving and safety consideration of others should always be your highest
priority.
Set your volume control at a low setting, then slowlyincrease the sound until you can hear it comfortably without distortion, or ear discomfort.
In the event you should notice smoke, strange noises or odor from this product, or any other abnormal signs, immediately turn off the power and consult your
dealer or the nearest authorized BOSS AUDIO SYSTEMS Service Center.
Using this product in this condition may result in permanent damage to the system.
Installation Precautions
BOSS AUDIO SYSTEMS does not recommend to install the product yourself.
We recommend to have it professionally installed by a certified professional.
Always consult with a professional installer.
Do not attempt to install or service this product by yourself. Installation or servicing of this product by persons wi thout professional training and
experience in electronic equipment and motorized vehicle accessories may be dangerous and could expose you to the risk of electric shock, i njury or other
hazards.
Refer any repairs to a qualified BOSS AUDIO SYSTEMS Service Center.
5

I
'
'
Caution

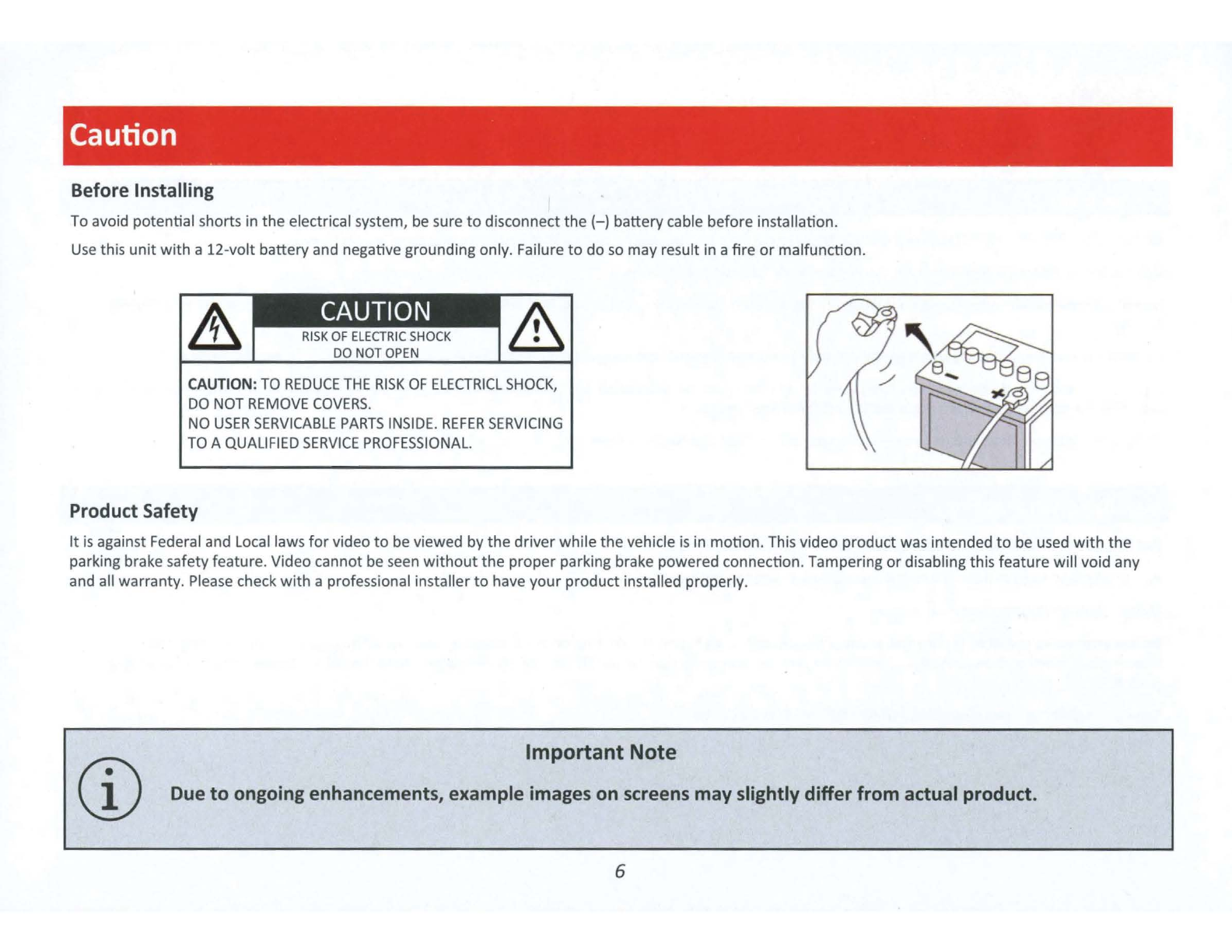

Before Installing
To avoid potential shorts in the electrical system, be sure to disconnect the( - ) battery cable before installation.
Use this unit with a 12- volt battery and negative grounding only. Failure to do so may result in afire or malfunction.
CAUTION: TO REDUCE THE RISK OF ELECTRICL SHOCK,
DO NOT REMOVE COVERS .
NO USER SERVICABLE PARTS INSIDE. REFER SERVICING
TO A QUALIFIED SERVICE PROFESSIONAL.
Product Safety
It is against Federal and Local laws for video to be viewed by the driver while the vehicle is in motion.This video product was intended to be used with the
parking brake safety feature. Video cannot be seen without the proper parking brake powered connection.Tampering or disabling this feature will void any
and all warranty. Pl ease check with a professional installer to have your product installed properly.
CD
Important Note
Due to ongoing enhancements, example images on screens may slightly differ from actual product.
6

Caution
Images and Video
Watching video while driving is against Federal, State, and Local laws.
Drive safely, know and obey traffic rules. Watching this screen and making selections while driving can lead to a serious accident.
Check surroundings for safety while camera images are displayed.
Do not use features of this product while driving ifit cannot be operated safely and legally in your location. Before operation of smartphone Apps accessible
from this device, read safety instructions in your Owner's Manual. When using navigation Apps stay alert to observe real world conditions.
About this manual
To entirely understand how to properly use your new BOSS Audio Systems product, it is recommended to read this user manual, and keep it in a safe place
for future reference.
-Read the entire manual
-Keep the manual
-Follow all instructions
-Clean with a dry cloth only
- Do not use or operate near water
-Do not defeat any safety features
California Residents (Proposition 65}
This product may contain chemicals known to the State of California to cause cancer, birth defects or other reproductive harm.
7

Basic Product Operation
I

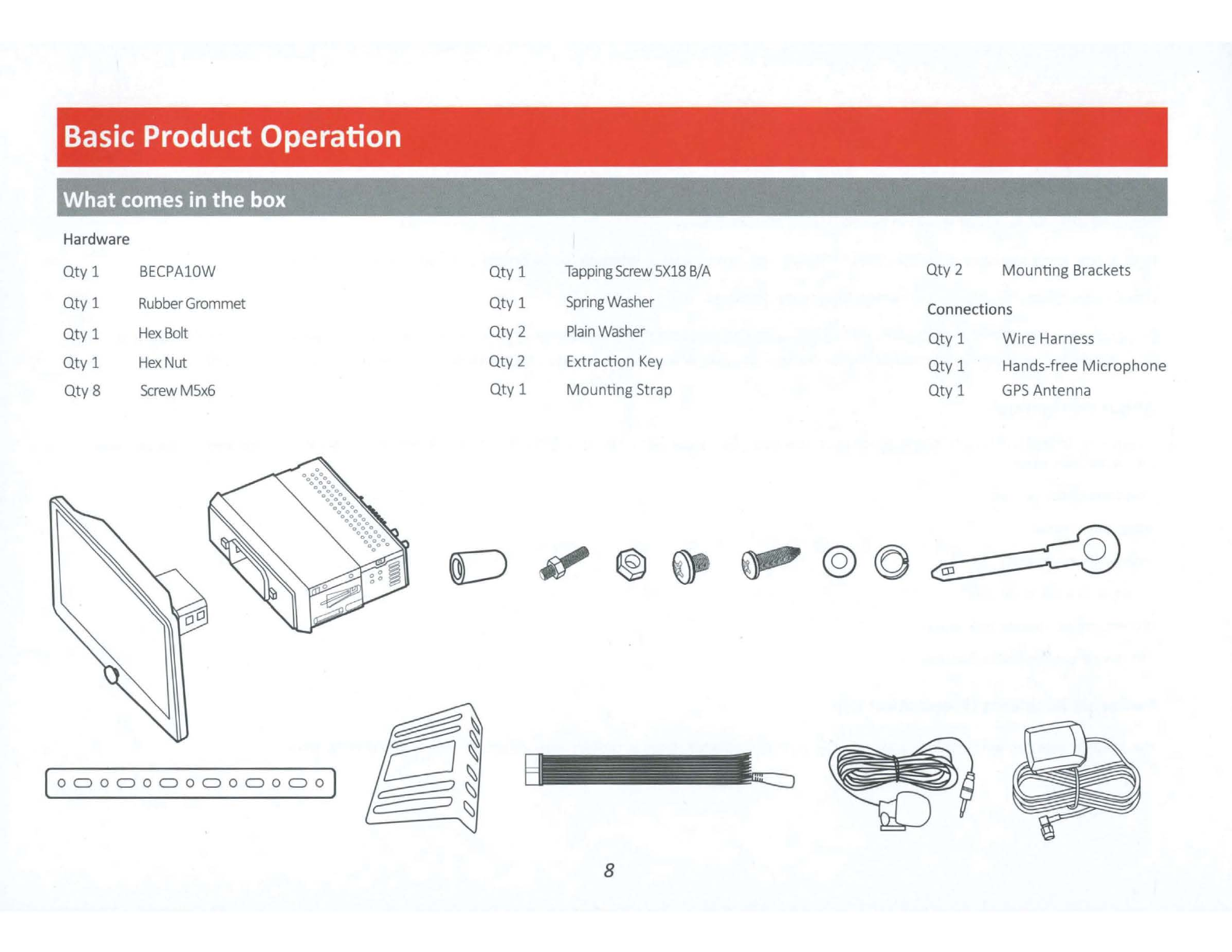

What comes in the box
Ha r dwar e
Qty 1 BECPAlOW Qty 1 TappingScrew
SX18 B/A
Qty 2
Mounting Brackets
Qty 1 RubberGrommet Qty 1 SpringWasher
Connection s
Qty 1
Hex Bolt
Qty 2 Plain Washe r
Qty 1 Wire Harness
Qty 1 Hex Nut Qty 2 Extraction Key
Qty 1 Hand s-free Microphone
Qty 8 ScrewMSx6
Qty 1
Mounting Strap
Qty 1 GPS Anten na
[ OCJOCJOCJOCJOCJOCJO ]
8

I Basic Product Operation

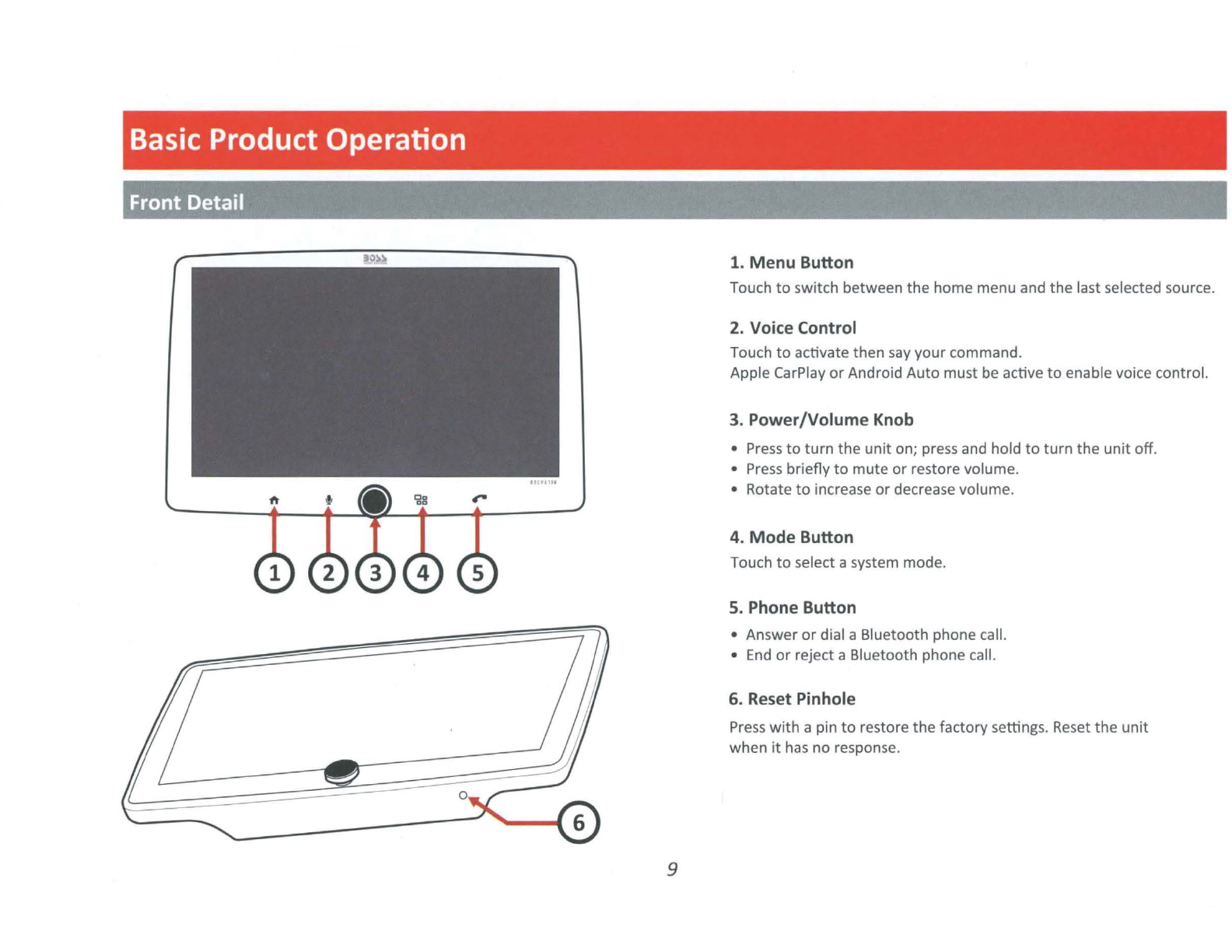

Front Detail
0
9
1. Menu Button
Touch to switch between the home menu and the last selected source.
2. Voice Control
Touch to activate then say yourcommand.
Apple CarPlay or Android Auto must be active to enable voi ce control.
3. Power/Volume Knob
• Press to turn the unit on; press and hold to turn the unit off .
• Press br iefly to mute or restore volume.
• Rotate to increase or decrease volume.
4. Mode Button
Touch to select a system mode.
5. Phone Button
• Answer or dial a Bluetooth phone call.
• End or reject a Bluetooth phone call.
6. Reset Pinhole
Press with a pin to restore the factory settings. Reset the unit
when it has no response.

Basic Product Operation

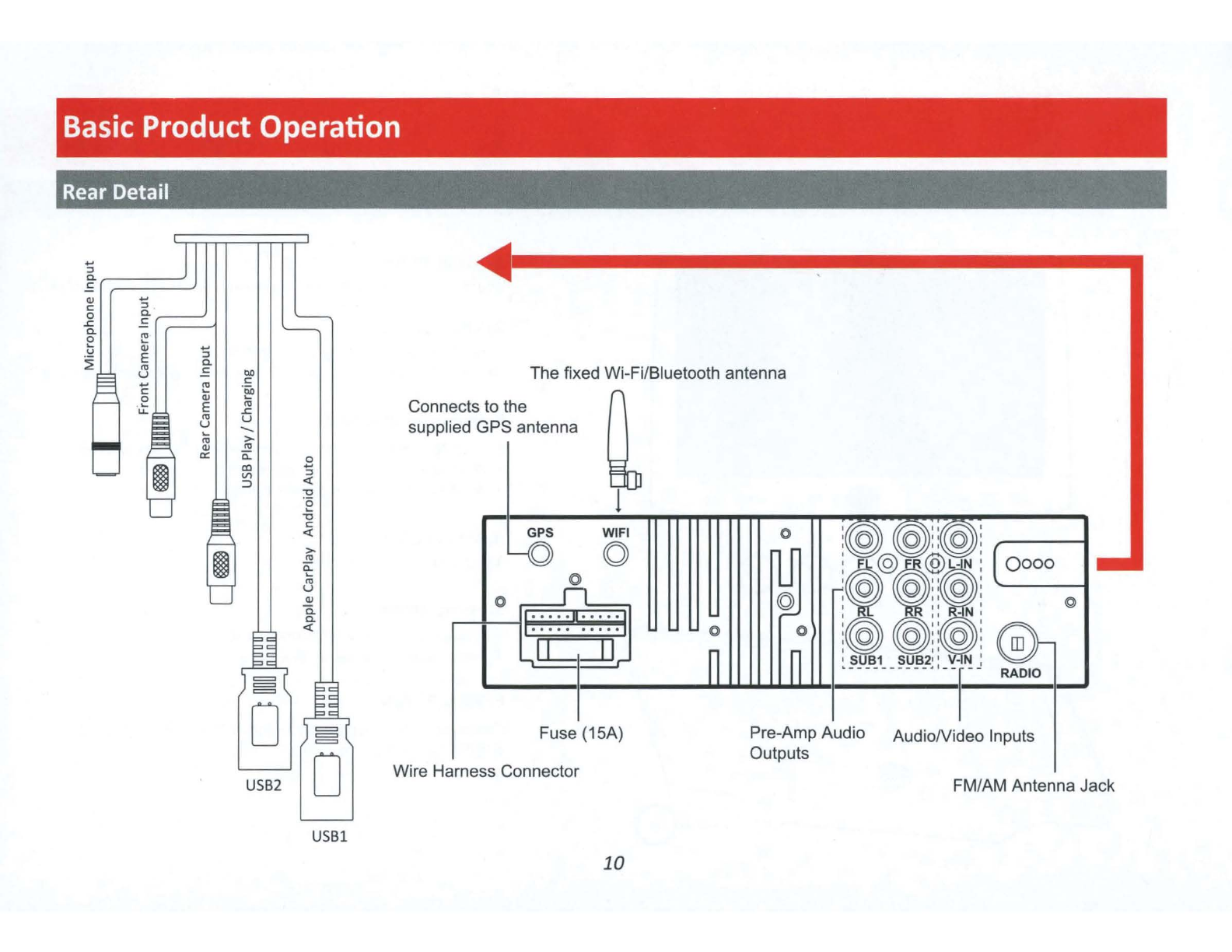

Rear Detail
....
:::,
a.
..!:
QJ
....
C:
:::,
0
a.
..c:
..!:
a.
IO
0 ....
....
QJ
....
u E
:::,
~
a.
IO
..!:
u
IO
Qi
E
IO
u
....
IO
QJ
a:
I
t:ll)
C:
·00
....
IO
..c:
u
-....
>
IO
a:
co
V1
::::,
0
USB2
0
USBl
The fixed Wi-Fi/Bluetooth antenna
Connects to the
supplied GPS antenna
1
WIFI
(Q)
0
.-------1::::: :::::
Fuse (15A)
Wire Harness Connector
10
FM/AM Antenna Jack

Basic Product Operation
Unit Installation
THE UNIT IS INSTALLED TO BE AN ANTI-THEFT ONE. THE CHASSIS OF THE UNIT WEARS A SLIDING METAL HOUSING. PLEASE DO THE
CONNECTION OF THE POWER, SPEAKERS AND ANTENNA ACCORDING TO THE REQUIREMENT OF THE INSTRUCTION BOOK, THEN
INSTALL THE SLIDING METAL HOUSING IN THE CAR AS FOLLOWS.
oss
, ssoss
-. §. : 00
, 0
METAL STRAP i --- 0
4 0---
0
TO BOOST UP THE CAPABILITYOF /
ANTI-JAMMING, PLEASE FIX THE/
METAL STRAP ON THE METAL
CONNECTED TO THE BOTTOM
BRACKETOF THE CAR.
DASH BOARD
SLIDING METAL HOUSING
TO DRAW THE CHASSIS OUT OF
THE SLIDING METAL HOUSING ,
INSERT THE LEFT AND RIGHT KEY
PLATES INTO THE RIGHT POSITION
OF THE 2 SIDES OF CHASSIS .
11
SELECT THE PROPER TAB
FOR FIXING THE SLIDING
METAL HOUSING.
UNIT CHASSIS
PLASTIC TRIM OUT

Basic Product Operation
Operation instruction
0o o 0 O
□ o oo
0
•
~=~
-~
,
, \
,
(
\
\ \
\ \ \
\\ \ \\
\ \ \ \ \ \
ooooooooeoooeooeooo
0 0 0000000000000000
0000000000000000000
12
The up and down
position of the display
screen can be freely
adjusted l
;-, ......
I 'I
I
I
0 o o0
0
00 Olill
•

Basic Product Operation -- CAUTION!
Display screen removal
1.Hold down the two release buttons 2.Gently pulling
the display panel forward
13

Basic Product Operation
Using and Caring for the Touchscreen
Use:
This head unit utilizes a Capacitive Touchscreen, the same type that is used on high-end mobiledevices. It should be used for and cared for like that type of
device. As with all capacitive type technology, if your fingers are wet or sweaty, it will not function properly.
Do not allow any sharp objects to come in contact with the screen glass.
Care and Cleaning:
To clean the screen, use a dry microfibertype cloth to clean. Do not use ammonia, window cleaner, or any other type of household chemicals to clean the
screen. Abrasives should not be used at all.
14

Basic Product Operation
Product Setup (Date & Time)
Setup Option A: CarPlay Method
Connect your iPhone to this unit through
Apple CarPlay in a wired or wireless way.
After CarPlay connection, date and time
will automatically set.
Time zone must be set manually.
The default is Pacific Time zone.
•
•
Setup Option B: Date and Time
•
•
. ·- ~ .,
• ' )1
. . . ~ ...
''• ,..
r ~, -~~
' ' ....... i:,;_ -
15
Additional Setup
General > Language
Audio> EQ, OtherAudio Settings
Display> Illumination, Brightness

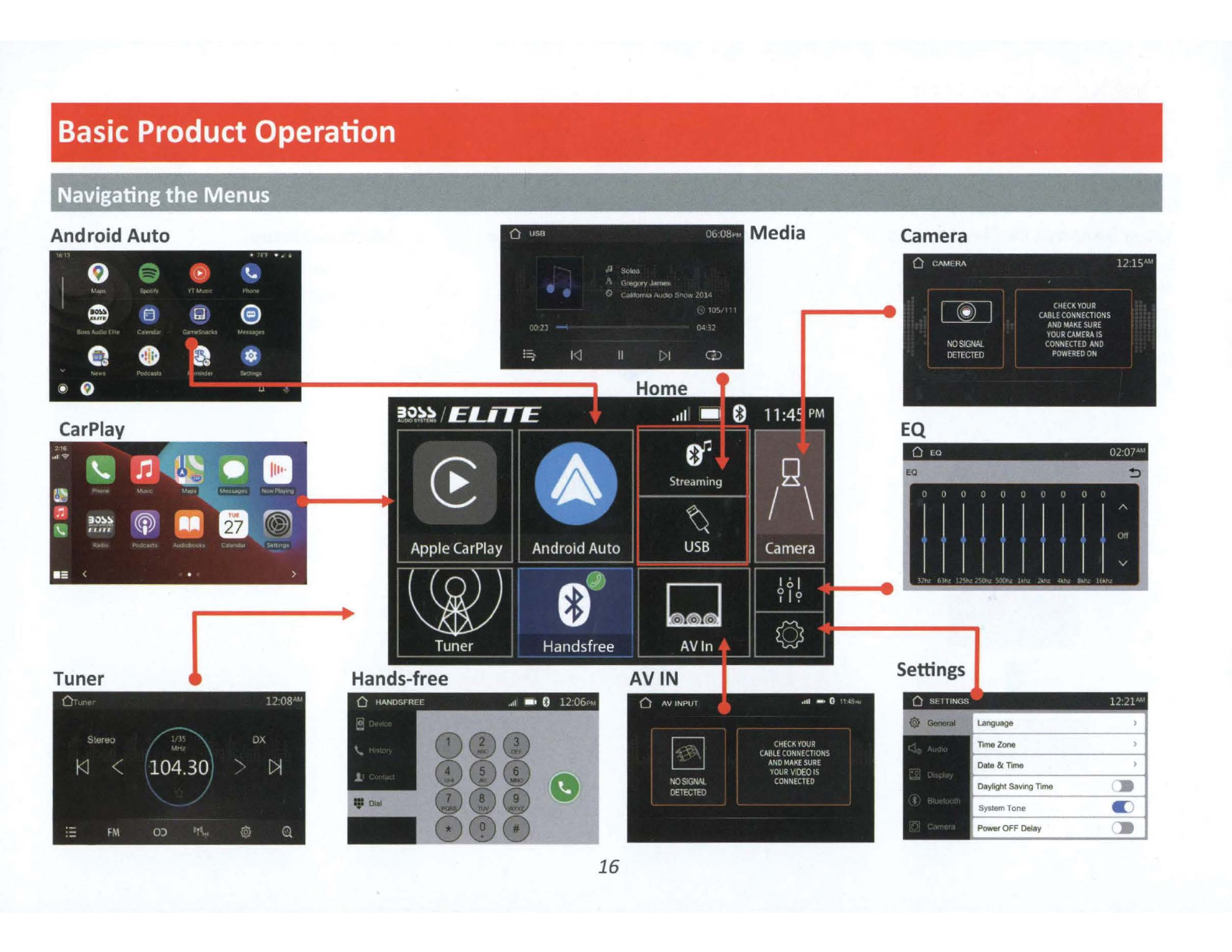

Basic Product Operation
Navigating the Menus
Android Auto
Camera
EQ
0 Ill llc L),'
I • Tuner Settings
·- Ill
-
..
C)
-- --
<>
16

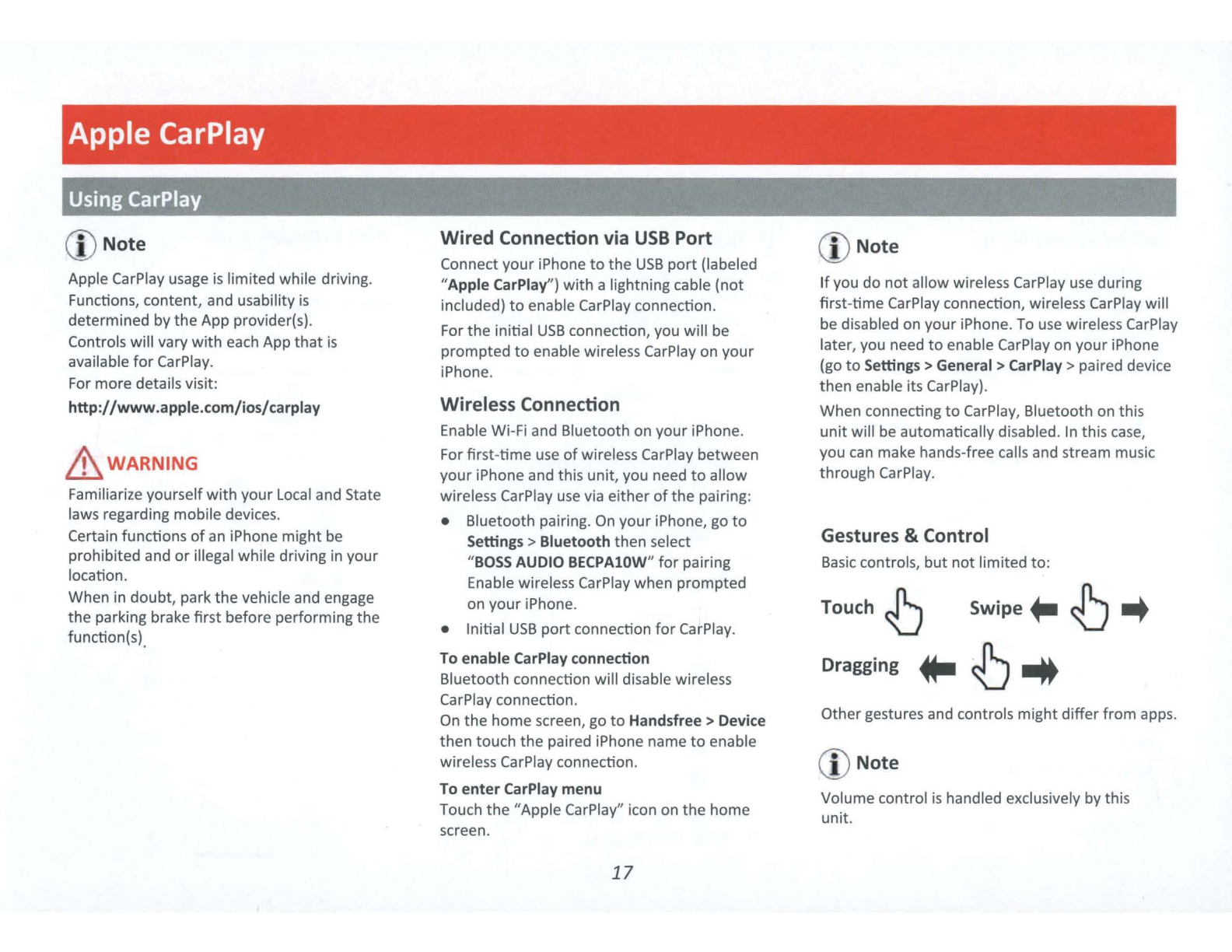

Apple CarPlay
Using CarPlay
CD Note
Apple CarPlay usage is limited while driving.
Functions, content, and usability is
determined by the App provider(s).
Controls will vary with each App that is
available for CarPlay.
For more details visit:
http ://www.apple.com/ios/carplay
&WARNING
Familiarize yourself with your Local and State
laws regarding mobile devices.
Certain functions of an iPhone might be
prohibited and or illegal while driving in your
location.
When in doubt, park the vehicle and engage
the parking brake first before performingthe
function(s)
Wired Connection via USB Port
Connect your iPhone to the USB port (labeled
"Apple CarPlay") with a lightningcable (not
included) to enable CarPlay connection.
Forthe initial USB connection, you will be
prompted to enable wireless CarPlay on your
iPhone.
Wireless Connection
Enable Wi-Fi and Bluetooth on your iPhone.
For first-time use of wireless CarPlay between
your iPhone and this unit, you need to allow
wireless CarPlay use via either of the pairing:
• Bluetooth pairing. On your iPhone, go to
Settings > Bluetooth then select
" BOSS AUDIO BECPAl0W" for pairing
Enable wireless CarPlay when prompted
on your iPhone.
• Initial USB port connection for CarPlay.
To enable CarPlay connection
Bluetooth connection will disable wireless
CarPlay connection.
On the home screen, go to Handsfree > Device
then touch the paired iPhone name to enable
wireless CarPlay connection.
To enter CarPlay menu
Touch the "Apple CarPlay" icon on the home
screen.
17
CD Note
If you do not allow wireless CarP lay use during
first-time CarPlay connection, wireless CarPlay will
be disabled on your iPhone. To use wireless CarPlay
la ter, you need to enable CarPlay on your iPhone
(go to Settings> General > CarPlay > paired device
then enable its Ca rPlay).
When connecting to CarPlay, Bluetooth on this
unit will be automatically disabled. In this case ,
you can make hands-free calls and stream music
through CarPlay.
Gestures & Control
Basi ccontrols, but not limited to :
Touch ~ Swipe +- ~ -+
Dragging fl- ~ -i
Othergestures and controls might differ from apps.
(D Note
Volume control is handled exclusively by this
unit.

Apple CarPlay
Using CarPlay
CarPlay Display Setup
1. Using your iPhone:
Settings >General >CarPlay
2. Touch and Hold each App icon to move.
To remove an App, Touch
,,114G
( General CarPlay
If your car supports wireless CarPlay, press and holdtha
voice control button on yoursteenng wheel to st art CarPlay
setup.
MY CA R
BOSS AUDIO BECPA10W
CD NOTE
On ly Apps wi th th e
removed from CarP la
On ly Apps wi th the
in carplay.
icon can be
icon ca n be added
(Back
Custom ize Reset
Add and or ga nize apps to sh ow in CarPlay's
hom e screen.
INCLUOE
'9 Phone
,n Music
A ... Maps
C Messages
I• Now Pl ay i ng
~ Rad io
• C:, Audlobooks
18 Ca lendar
A Settings
• Podcasts
IAOIIE APP$
0 ~ NetEase Mus ic
18
How to Disable Apps
1. U si ng your iPhone:
Settings >Notifications > App to Disable
18 :50
( Not1f1c at 1ons Messages
Allow No ti fic ations 0
Al. EAT S
□
~
D
Lock Screen
No ti t lel bonCen ter
Banners
• • •
Ban ner Style Temporary >
Sounds Note >
Badges
C)
( Show inCarPlay 0 )
°''""'
ShowPreviews When Unlocked (Default) >
Notnication Groupi ng Automat,c: >
Repea t Al erts Once >

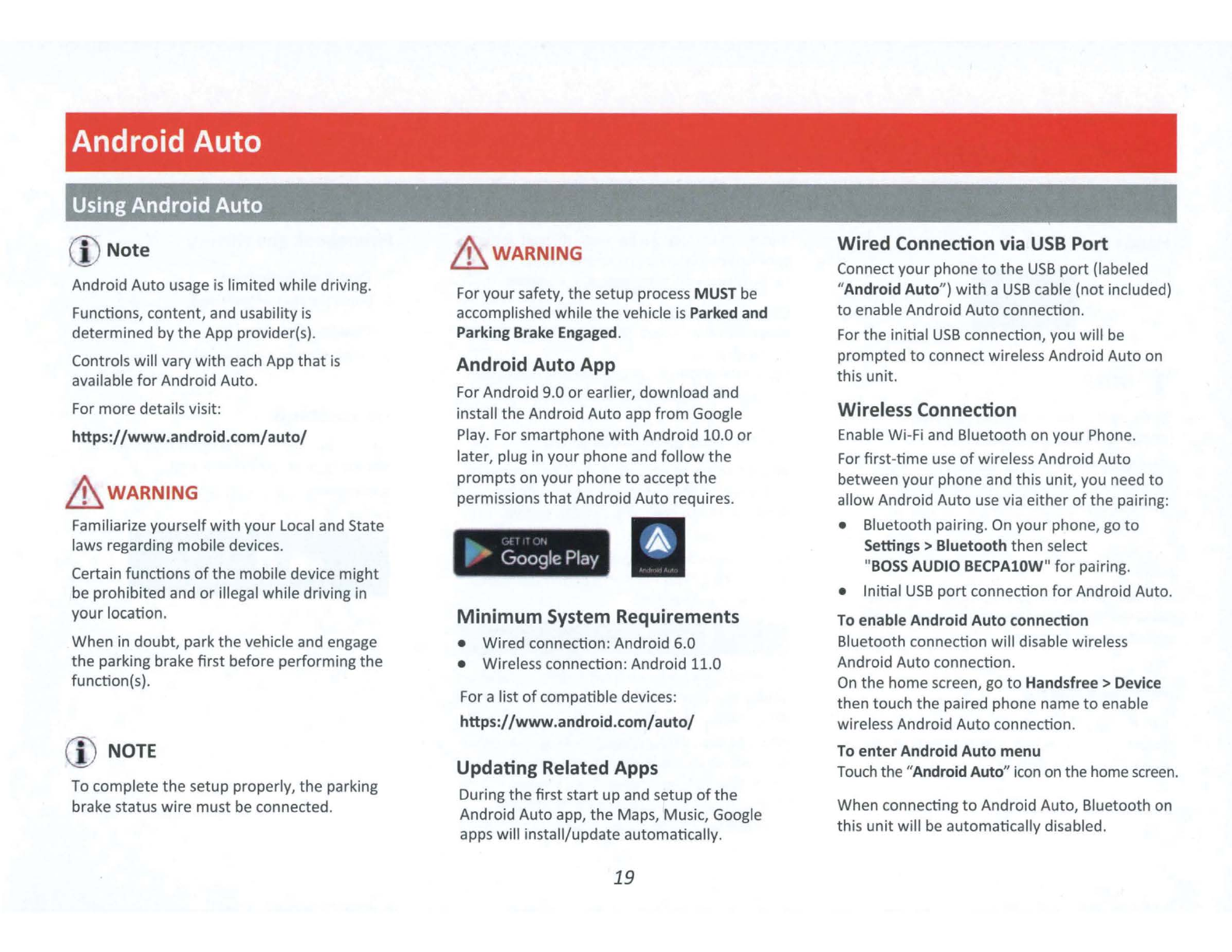

Android Auto
Using Android Auto
CD Note
Android Auto usage is limited while driving.
Functions, content, and usability is
determined by the App provider(s).
Controls will vary with each App that is
available for Android Auto.
For more details visit:
https://www.android . com/auto/
&WARNING
Familiarize yourself with your Local and State
laws regarding mobile devices.
Certain functions of the mobile device might
be prohibited and or illegal while driving in
your location.
When in doubt, park the vehicle and engage
the parking brake first before performing the
function(s).
CD NOTE
To complete the setup properly, the parking
brake status wire must be connected.
&WARNING
For your safety, the setup process MUST be
accomplished while the vehicle is Parked and
Parking Brake Engaged.
Android Auto App
For Android 9.0 or earlier, download and
install the Android Auto app from Google
Play. For smartphone with Android 10.0 or
later, plug in your phone and follow the
prompts on your phone to accept the
permissions that Android Auto requires.
: • Google Play
Minimum System Requirements
• Wired connection: Android 6.0
• Wireless connection: Android 11.0
For a list of compatible devices:
https://www.android.com/auto/
Updating Related Apps
During the first start up and setup of the
Android Auto app, the Maps, Music, Google
apps will install/update automatically.
19
Wired Connection via USB Port
Connect your phone to the USB port (labeled
"Android Auto") with a USB cable (not included)
to enable Android Auto connection.
For the initial USB connection, you will be
prompted to connect wireless Android Auto on
this unit.
Wireless Connection
Enable Wi-Fi and Bluetooth on your Phone.
For first-time use of wireless Android Auto
between your phone and this unit , you need to
allow Android Auto use via either of the pairing:
• Bluetooth pairing. On your phone, go to
Settings > Bluetooth then select
"BOSS AUDIO BECPAl0W" for pairing.
• Initial USB port connection for Android Auto.
To enable Android Auto connection
Bluetooth connection will disable wireless
Android Auto connection.
On the home screen, go to Handsfree > Device
then touch the paired phone name to enable
wireless Android Auto connection.
To enter Android Auto menu
Touch the "Android Auto" icon on the home screen.
When connecting to Android Auto, Bluetooth on
this unit will be automatically disabled.
