Boss Audio Systems ELITE BV755B User manual

USEB!S M~UA ~
B~ZSSB
BLUETOOTH®
DVD/MP3/CD AM/.FM RECEIVER
www.bossaudio.com
800-999-1236 US iroll-free
805-75h 4853 Customer; Ser:vice
tech supRort: www.bossaudio.com/supRort/technical
iPod
03
and iPhonetiare trademarks of Apple, Inc. registered in the U.S. and other countries. BOSS Audio Systems is not affiliated with Apple, Inc.
The Bluetooth<ll word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by BOSS Audio Systems is under license.
Other trademarks and trade names are those of their respective owners.
USER'S MANUAL
BV755B
BLUETOOTH® I DVD/MP3/CD
AM/FM RECEIVER
FEATURING 6.2" (157 mm) WIDESCREEN TOUCHSCREEN
DIGITALTFT MONITOR
go~ .~ ELITE 10:30•"
-0
~
a
.. ,~
◊
TUNER DISC AUXIN PHONE
®
~
("'7 ~ -
STREAMING USB
SD
REAR CAM
. •
0Rluetooth =·"'"'
~ ,: , ~ ~ ~ ~
[ DOUBLE DIN ] s;.,™ O Bluetooth®
10~S
AUDIO SYSTEMS
ELJ1E

To ensure safety while driving
and to comply with laws,
drivers should not watch video or
operate the video device while driving.

Unit Installation
25
26
Wires Connection Description
Media
Media Playing—CD Audio
Source Menu of CD
USB/SD Music/Video/Picture
Bluetooth Pair device
4
4
5
19
19
Playing—video/disc Form Playing
Congratulations on your purchase of a Boss Audio Systems
Multimedia Receiver.
It has been designed, engineered and manufactured to bring you
the highest level of performance and quality, and will offer you
years of entertainment pleasure.
R
0
CONTENTS
General lnformation..........................................................................1
Safety Notice.....................................................................................2
Accessories........................................................................................3
Remote Control Operation............................................................. 4
.................................................................................6
.......................................................7
Panel Introduction............................................................................8
Main Menu Operation Instruction................................................ 9
Access Setup lnterface..................................................................
11
Clock Setup................................................................................. 11
General Setup............................................................................. 12
Audio Setup................................................................................13
Disc Setup...................................................................................13
Other Setup................................................................................1
SWC-Steering Wheel Control Setting..................................1
Radio Operation..............................................................................1
DISC/CD/USB/SD Playback........................................................ 17
............................ 17
.......................................................18
Bluetooth Operation........................................................................20
Bluetooth Operation Menu...................................................... 20
Bluetooth Dialing........................................................................
21
Bluetooth Call.............................................................................. 21
Bluetooth Phone Book..............................................................22
Bluetooth Phone Call History.................................................. 23
Bluetooth Music Streaming-A2DP.........................................23
................................................................23
Photo...............................................................................................24
Camera/Aux/AV Menu..................................................................
Troubleshooting............................................................................

BV755B
SPECIFICATIONS
Model No.
Fixed front panel 6.2 inch TFT screen
FM/AM Radio
RBDS
DVD fully compatible with
DVDNCD/CD/MP3/MPEG4/JPEG
Front USB & SD reader support
General Built-in Bluetooth
features
AUX Input
AV Input
AV output
Rear view camera
Front, Rear and Subwoofer Pre-Amp Output
4*80W AMP power output maximum
Steering wheel control
TFT screen 800*480pixel
SD 32G
Working power 12V
Max Output
4*80W
Working Temperature I
-20°C~ 70°C I -4 °F~158°F
Size 96.5*170.5*144mm
Weight 1.92kg / 4.23Ibs
Compatible Media
Picture JPG/JPEG/BMP
Disc CD/CD-R/CD-RW /DVD/DVD±R/DVD±RW
Audio file MP3/WAV
.AVI
MP3
MPEG-4
Video file
MPG AC-3 MPEG-4 Visual
MPEG-1/2
1

SAFTY NOTICE
Please read and understand the following safety information before
operating this unit.
(S) The device is suitable for 12V power supply (requires grounding).
Do not connect it to 24V power supply
in trucks or buses, or else it will
be damaged.
0 Please use genuine discs, instead of incompatible and poor discs,
or else it will damage the device or shorten the service life.
0 Without the guide of qualified personnel, do not replace the fuse,
or else it may damage the device or cause fire.
&. Please follow the traffic laws and regulations and do not watch
program or operate the device when you are driving, to avoid
accidents (excluding passengers watching through rear monitor).
0 To ensure safety and operate the device normally, please ask
qualified personnel to install the device. do not disassemble or repair
the device without authorization, to avoid damage and accidents.
Please contact local car audio distributor for details.
(S) Do not put the device in moist environment orwater, to avoid
electric shock, damage and fire due to short circuit.
(S) The mechanical drive part of the monitor uses automatic precision
transmission component. Do not pull, push or rotate the device by
force or impact the TFT screen to avoid damaging the device.
ODo not insert the audio plug of the vehicle into the master unit
directly. please convert with the dedicated end cable provided by our
company.
OWhen install the unit, prevent metal objects falling into the master
unit from the vents to avoid short circuit and damaging the device.
Safety Statement
(S) For the safety of you and others, do not watch programs or operate
the device when you are driving. It is prohibited by the laws and
regulations.
0 The backing monitor function should be used as auxiliary means.
we are not responsible for any accidents occurred during backing.
2

Power Cable
ACCESSORIES
Below are the photos with the accessories included in the box.
Remote Control
Mounting Brackets
Trim Ring/Touch Pen
3
Mounting Hardware
Screw
CM5*6mm 8pcs

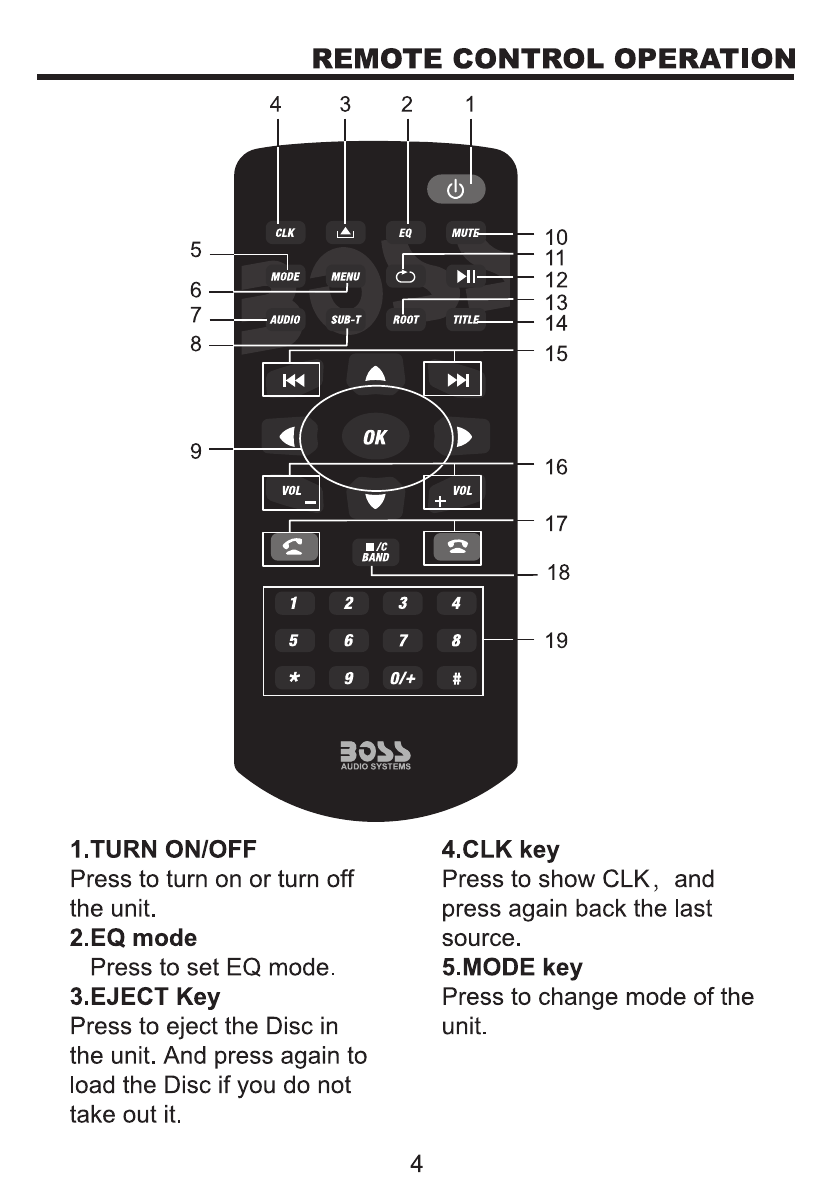

REMOTE CONTROL OPERATION
4 3
CLK
~
MOOE MENU
•
AUDIO
SUB-T
.
•
1.TURN ON/OFF
Press to turn on or turn off
the unit.
2.EQ mode
Press to set EQ mode.
3.EJECT Key
Press to eject the Disc in
the unit. And press again to
load the Disc ifyou do not
take out
it.
2
EQ
~
ROOT
4
1
<!)I
Ml/Ti---
► II-
TITLE---
10
11
12
13
14
15
16
17
18
19
4.CLK key
Press to show CLK, and
press again back the last
source.
5.MODE key
Press to change mode of the
unit.

REMOTE CONTROL OPERATION
6.MENU key
Press Menu to return to the
home menu.
7.Audio KEY
Press to change switch
language
in DVD mode, and
switch left, right or stereo
in
VCD mode.
8.SUBTITLE Changing Key
Switch the subtitle during
playing ifthe Disc have
multiple subtitle.
9.Direction and
OK key
Ifthere is a Disc with root list
menu,press direction key to
move up/down/left/right, and
press OK to confirm.
10.MUTE key
Press to mute the unit and
press again to restore the
volume.
11.REPEAT key
Under DISC/MusicNideo
mode, press to set the repeat
mode.
12.Play/Pause
Press to switch play pause.
13.ROOT key
DVD playing mode, press to
go into root list menu; VCD
playing mode, press to turn
on/off PBC function.
5
14.TITLE key
Under DVD playing mode,
press to enter into title list
menu.
15.Under Disc/music/video
mode, press to choose
previous/next song.
Under music list menu, press
to choose PRE/NEXT music.
Under RADIO mode, press to
search frequency
forward/backward.
16.VOLUME UP/DOWN key
Press to adjust volume up
and volume down.
17.Receiving calls/call out;
hang up.
18.STOP/C/BAND
In disc playing mode, press to
STOP, press "ok" to start;
In radio mode press to
change band between
FM1/FM2/FM3/AM1/AM2;
Press to enter RADIO mode,
except DVD mode.
Delete wrong number when
in
phone mode.
19.Number key
Enter phone number
in phone
mode.

UNIT INSTALLATION
Bracket
1.Put the 2 brackets to the left and right side of the unit;
2.Use screws to fix the brackets to the unit.
Bracket
Screw
3. Once the screws are attached, the brackets can be adjusted
forward or aft depending on the installation requirements.
6

WIRES CONNECTION DESCRIPTION
The Description of the Input/Output Interface
SWC 3.5MM JACK
ANTENNA
VIDEO
OUT REAR
CAMERA
INPUT
FRONT PRE-AMP
OUTPUT
REAR PRE-AMP
OUTPUT
A/V INPUT
SUBWOOFER
OUTPUT
A
FL
RL
V-OUT1 V-OUT2
SUB2 CAMERA
RR SUB1 V-IN
FR L-IN R-IN
Connector A
0 0
0
~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~ ~
0
0 0 0
- -
o~ ~ ~ ~ k
Q
0 a.
11 11
0 0
YELLOW. . ... (B+)12V
GREEN/BLACK ....... LEFT REAR(-)
RED........ . ACC(+12V)
ORANGE ............... ILLUMINATION
LT.GREEN
......... PARKING BRAKE
VIOLET/WHITE ........ REVERSE(+)
GREY...... . . RIGHT FRONT(+)
GREY/BLACK ...... RIGHT FRONT(-)
VIOLET.. . .... RIGHT REAR(+)
VIOLET/BLACK ...... RIGHT REAR(-)
BLUE
.................. ANT. CONT STEERING WHEEL CONTROL
BLACK .................. GROUND
BLUE/WHITE... . . P. CONT
WHITE. . ..... LEFT FRONT(+)
WHITE/BLACK ...... LEFT FRONT(-)
GREEN.. . ...... LEFT REAR(+)
7

6

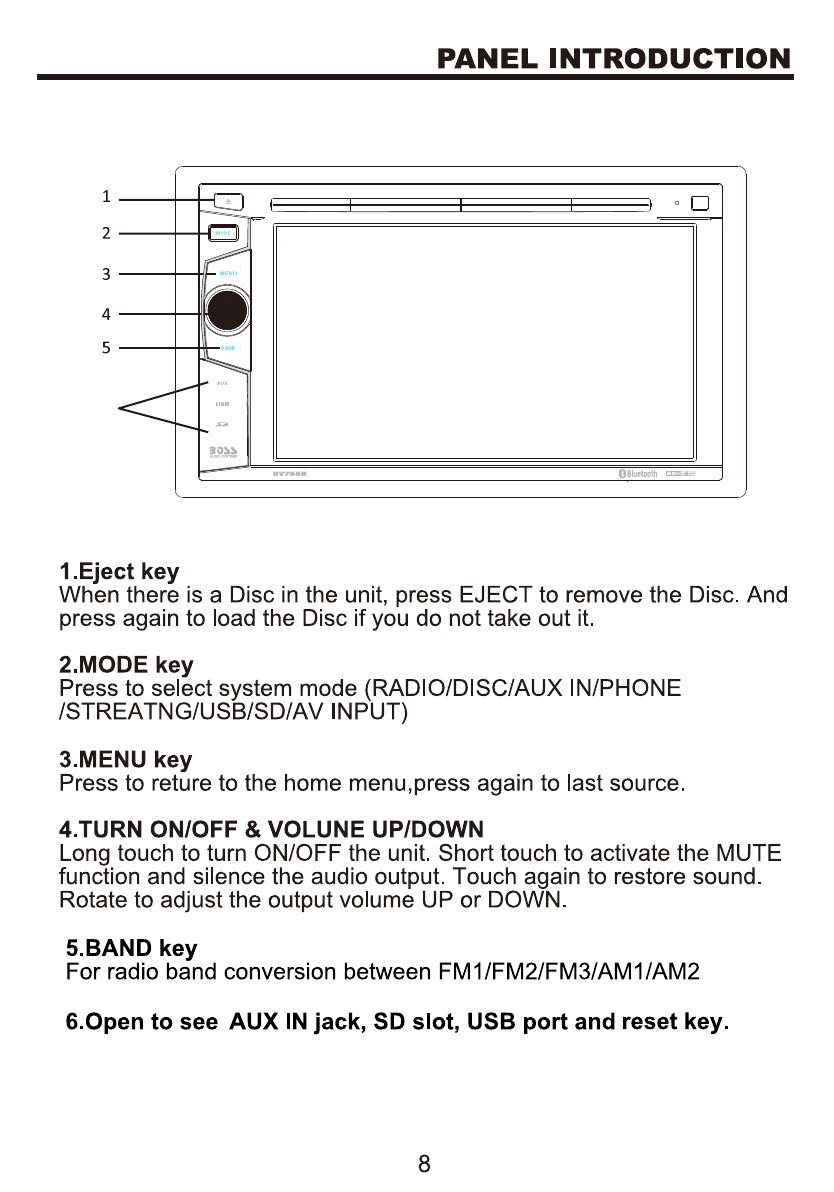

PANEL INTRODUCTION
◊o
0Bluetooth~
1.Eject key
When there is a Disc
in the unit, press EJECT to remove the Disc. And
press again to load the Disc if you do not take out
it.
2.MODE key
Press to select system mode (RADIO/DISC/AUX IN/PHONE
/STREATNG/USB/SD/AV INPUT)
3.MENU key
Press to reture to the home menu,press again to last source.
4.TURN ON/OFF &VOLUNE UP/DOWN
Long touch to turn ON/OFF the unit. Short touch to activate the MUTE
function and silence the audio output. Touch again to restore sound.
Rotate to adjust the output volume UP or DOWN.
5.BAND key
For radio band conversion between FM1/FM2/FM3/AM1/AM2
6.Open to see AUX
IN jack, SD slot, USB port and reset key.
8

Boss Audio BV755B
10
Tuner
MAIN MENU OPERATION INSTRUCTION
MAIN MENU 1 5 4 1 3 6
30~~ El i"TE
I
11 :59
@
~
(I
.. , "(
TUNER DISC AUX IN
►
/1'l\
(m
STREAMING
USB SD
7 8 9
1.Shows the present time of the unit.
2.Press to go into main menu
2.
-0
C'
PHONE
2
~ -
RE AR CAM
3. Aux in Interface 4. Disc Interface
ft AUX IN_ ____ 1_1'~ 30 ~ ___ -_ 0
5.
ft TU N ER
MAKE SURE Y OUR
DEVICE VOLUME IS
TURNED UP
Interface
Today's Hit Music
~
105 .1 MHz
87.50 90.10 98.10
~
107.9
"'
,0
8
(< j )) ~.~
0 )
Band Scan AS/PS LOCIDX ST
~
87.5
(if§)
ABOS
7. BT Music Interface
ft BT Mu sic 11 30
~
0
J'l Gr
eatest Hits
0 Other
J.
Aqua
I ◄
►
► I
9
ft DI SC
£1...iTE
n Greatest H its
O Othe r
J. Aqua
"' 00 "' 0 "" 2:0 -" 5 ======== -- ~00 : 03:24
6. Phone setup Interface
ft PH ONE 11 30
!:: Keypad Power
Phone
Book Auto
Connect
Recents Auto Answe r
¢1, Setu p
8. USB Interface
ft USB
El...1TE
00-02:05
I O I I ◄ I
J:1 Gr eatest Hits
0 Othe r
.I. Aq ua
00:03:24

MAIN MENU OPERATION INSTRUCTION
MAIN MENU 2 11 12
9. SD Interface
ELITE
00:02:05
:E., 0
n Grea test Hits
O Other
J. Aqua
00:0324
11. AV Interface
ft AV INPUT
NO SIGNAL
DETECTED
CHECK YOUR
CABLE CONNECTIONS
AND MAKE SURE
YOUR DEVICE IS
CONNECTED AND
POWERED ON
10
2
10. Camera Interface
ft CA ME RA
NO SIGNAL
DETECTED
CHECK YOUR
CABLE CONNECTIONS
AND MAKE SURE
YOUR CAMERA IS
CONNECTED AND
POWERED ON
12. Settings Interface
-A- SE TTIN GS 12: 00 "'
~ 0
0 Cl ock
Reve r se Tr igger
ON .
(J, General
Wallpape r >
..
Au dio
Radio Region a A
mer ica D
0 Disc
Back light a Normal D
i
Ot her
OS D La ng uage a
En gl is h D

8
ACCESS SETUP INTERFACE
There are five menu in setup:
CLOCK SETUP-Menu 1
it SETTINGS
12: 0Q 'M
0 Clock AM/PM
~
General Cock
Mode
~
Audio
Hour
0 Disc min
i
Other
-
Cl
Cl
0
12
00
2
a
b
C
d
1.Setup function area:Clock setup, General setup, Audio setup,
Disc setup, Other setup.
2.Subsidiary function area: Move up and down to see the
general setup items.
a. Press to setAM/PM at 12hr mode.
b. Press to set clock mode: 24/12 hr.
c. Press to set hour.
d. Press to set minute.
GENERAL SETUP-Menu 2
it SETTINGS
12: 0Q 'M
-0
F ~
0 Clock Reverse
Trigger
ON
~
General
I Wallpaper
~
Audio
IRadio Region ICl America
0 Disc Backlight ICl Normal
i
Other
I
OSD Language
a
English
L
11
>
D
1
2
3
4
5

Sliding up or down
11
America/EU/Latin.
8
5. Touch OSD language to select English/Spanish .
8.
ACCESS SETUP INTERFACE
ft SETTINGS
0 Clock
r SWC
~ General
Key Beep
-4
Audio
0 Disc
i
Other
L_
12:00 AM
-7
6
7
1. Reverse trigger: Turn on ifyou have a rear view camera.
Turn off ifyou havn't.
2. Touch to set wallpaper
3. Touch to choose radio field between:
4. Backlight dimmer selection: Night /Dark /Normal/Bright.
6. Touch to enter SWC menu.
7. Beep ON: When turned on, an audible beep tone confirms
each function selection.
to enter into some other setup subsidiary
functions.
AUDIO SETUP-Menu 3
ft SETTINGS
12:oo •M
r - -
-7
0 Clock
Audio
~ General
I Subwoofer
-4
Audio
I RADIO Level
0
Disc
I DISC Level
i
Other
USB Level
L_
- -
12
-0
a
120Hz
a 0
a 0
a 0
>
D
D
1
2
3
4
5

Sliding up or down
11
10
2. Press Subwoofer to select: OFF,80Hz,120Hz,160Hz
3-10
ACCESS SETUP INTERFACE
ft SETTINGS
12 : QQ '" -0
r 7
0
Clock
1
SD Level a 0
~
I a
General
PHONE Level 0
~
Audio
I STREAMING Level
I a 0
0 D
isc
I AUX IN Level
I a 0
i
Other
AV INPUT Level a 0
L
,,....,....
X
A Balance
111
, t-
Fade
)
V Loud •
User ,,....,.... X
·11 0 0 0 0 0 0 0 0
111 11
o 111 11
60 150 400 1K 3K 7K 15K 20K
1. Press to enter into EQ set up menu.
. Press to set preset VOL.
D
D
D
D
D
11. to enter previous functions.
DISC SETUP-Menu 4
ii-SETTINGS
12:00 '"
:ae 0
0 Clock
Parent Lock 1
~
General
◄
Audio
0
Disc
i
Othe r
6
7
8
9
1.Touch to set up the level of the DVD. Default password is 0000
13

ACCESS SETUP INTERFACE

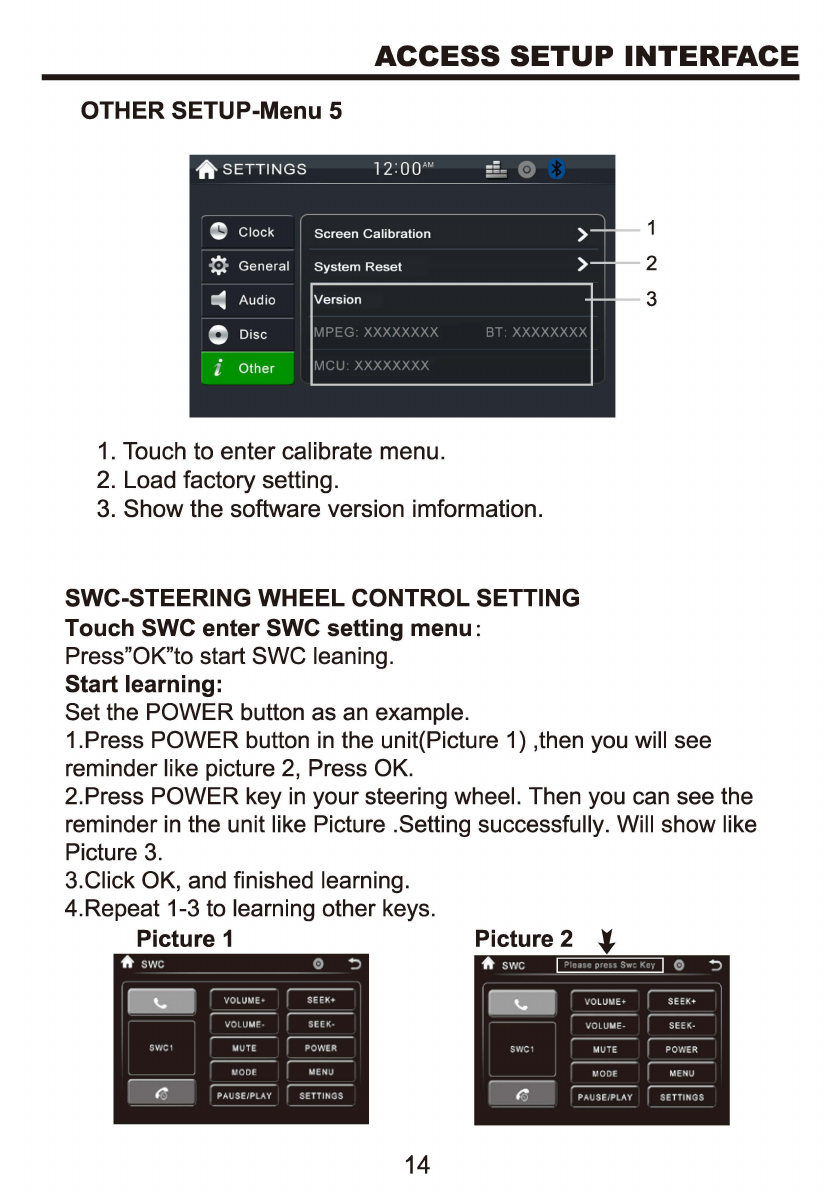

OTHER SETUP-Menu 5
ft SETTINGS
12 :00 AM
-0
0 Clock
Screen Calibration
>
~
General
System Reset
>
Version
I , ; X , , , , > ; ~ f Y , > ,
' ( / ,
1. Touch to enter calibrate menu.
2. Load factory setting.
3. Show the software version imformation.
SWC-STEERING WHEEL CONTROL SETTING
Touch SWC enter SWC setting menu:
Press"OK"to start SWC leaning.
Start learning:
Set the POWER button as an example.
1
2
3
1.Press POWER button in the unit(Picture 1) ,then you will see
reminder like picture 2, Press OK.
2.Press POWER key in your steering wheel. Then you can see the
reminder in the unit like Picture .Setting successfully. Will show like
Picture 3.
3.Click OK, and finished learning.
4.Repeat 1-3 to learning other keys.
Picture 1 Picture 2 ,¥,
*SWC e
~
*
swc
-VO
LUME• SEEK + -
VOLUME•
VOLU•ff-
SEEK- VOLUME'-
swc·
"'1UTE POWER
swc·
MUTE
t.'ODf
l,.lENU
l.'ODf
l:J
PAUSE:PLAV SETT IN GS 4
PAl;SEoPLAV
14
e
~
SEEK +
SEEK-
POWER
PdHIU
SETT IN GS

TUNER
TUNER
TUNER
OPERATION
Picture 3 ,J
*SWC
., ',,. ~' .,
-VO L
UME•
VOLUliff-
swc·
'-1UTE
t,• ODE
~
PALiSE;PLA'I'
87.50
(:)
SEEK +
SEEK-
POWER
MENU
SETT IN GS
~
SWC1: Select different SWC
resistance to meet different cars. If
you cannot finish all key
pairing,you can press to select
SWC2 SWC3,until all keys can
learn.
NOTE: Click SWC1 you will lost all
KEY learning before.
11 :30 _ (:)
105 .1 MHZ
4
90.10
98 . 10 ~ 107.9
6 7 8 9 10 11
1.Show the present mode. Touch t.:l to go back home.
2.Show RBDS
PS and PTY.
3.Short press to seek backward. Long press to enter manual mode
and backward
in step.
4.Short press to seek forward. Long press to enter manual mode and
forward
in step.
5.Preset stations area, long press to save current station.
6.Band changing:Click to change band between
FM1/FM2/FM3/AM1/AM2.
?.Search the stations, play the searched one for 5S and go on to
search next one and repeat this.
8.Short press for PS, long for AS.
9. LOC/DX: Touch to select Local or Distant broadcasting stations.
10.Stereo on/off:Click to turn on/offstereo when receiving a stereo
signal.
15

TUNER
OPERATION

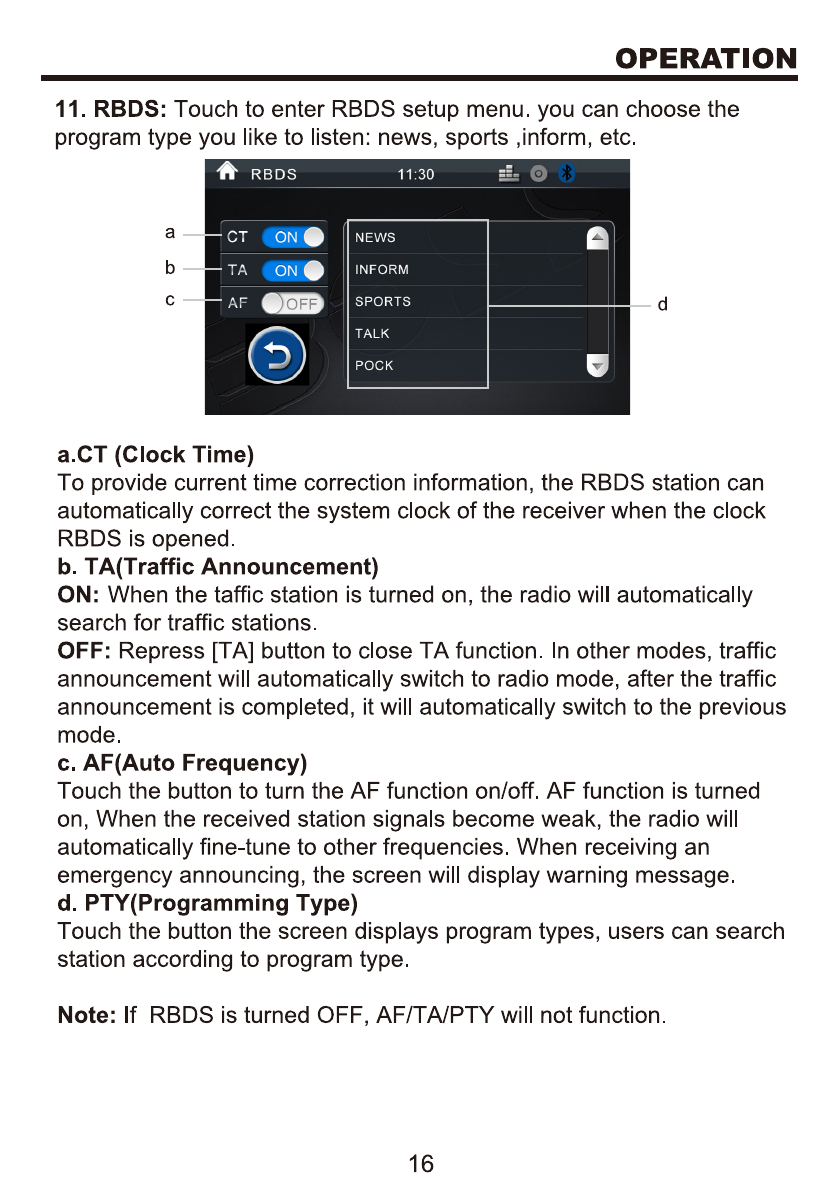

11. RBDS: Touch to enter RBDS setup menu. you can choose the
program type you like to listen: news, sports ,inform, etc.
a
b
C
ft RBDS
CT
ON.
TA
ON.
AF
...
(?)
a.CT (Clock Time)
I
11 : 30
-0
NEWS a
INFORM
SPORTS
d
TALK
POCK
To provide current time correction information, the RBDS station can
automatically correct the system clock
of the receiver when the clock
RBDS is opened.
b. TA(Traffic Announcement)
ON: When the taffic station
is turned on, the radio will automatically
search for traffic stations.
OFF: Repress [TA] button to close TA function. In other modes, traffic
announcement will automatically switch to radio mode, after the traffic
announcement
is completed, it will automatically switch to the previous
mode.
c. AF(Auto Frequency)
Touch the button to turn the AF function on/off. AF function is turned
on, When the received station signals become weak, the radio will
automatically fine-tune to other frequencies. When receiving
an
emergency announcing, the screen will display warning message.
d. PTY(Programming Type)
Touch the button the screen displays program types, users can search
station according to program type.
Note: If RBDS is turned OFF, AF/TNPTY will not function.
16

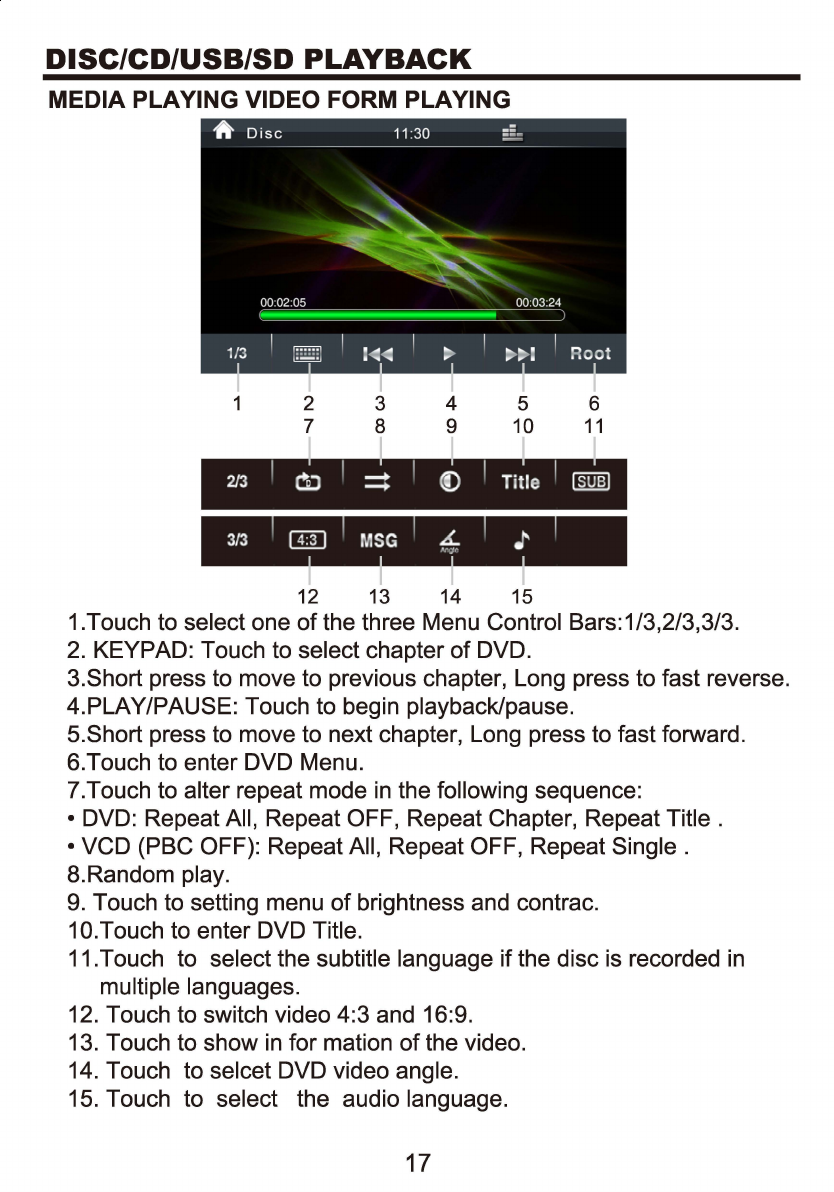

DISC/CD/USB/SD PLAYBACK
MEDIA PLAYING VIDEO FORM PLAYING
It Disc
11 :30
00:02:05 00:03:24
1/3 I ~ I I ◄◄ I ~
►► I I Root
2/3 I OJ I :::: I © I Title I [§QID
3/3 (TI] MSG L J'
,,,,
12 13 14 15
1.Touch to select one of the three Menu Control Bars:1/3,2/3,3/3.
2. KEYPAD: Touch to select chapter of DVD.
3.Short press to move to previous chapter, Long press to fast reverse.
4.PLAY/PAUSE: Touch to begin playback/pause.
5.Short press to move to next chapter, Long press to fast forward.
6.Touch to enter DVD Menu.
?.Touch to alter repeat mode in the following sequence:
• DVD: Repeat All, Repeat OFF, Repeat Chapter, Repeat Title.
• VCD (PBC OFF): Repeat All, Repeat OFF, Repeat Single.
8.Random play.
9. Touch to setting menu of brightness and contrac.
10.Touch to enter DVD Title.
11.Touch to select the subtitle language ifthe disc is recorded in
multiple languages.
12. Touch to switch video 4:3 and 16:9.
13. Touch to show in formation of the video.
14. Touch to selcet DVD video angle.
15. Touch to select the audio language.
17
