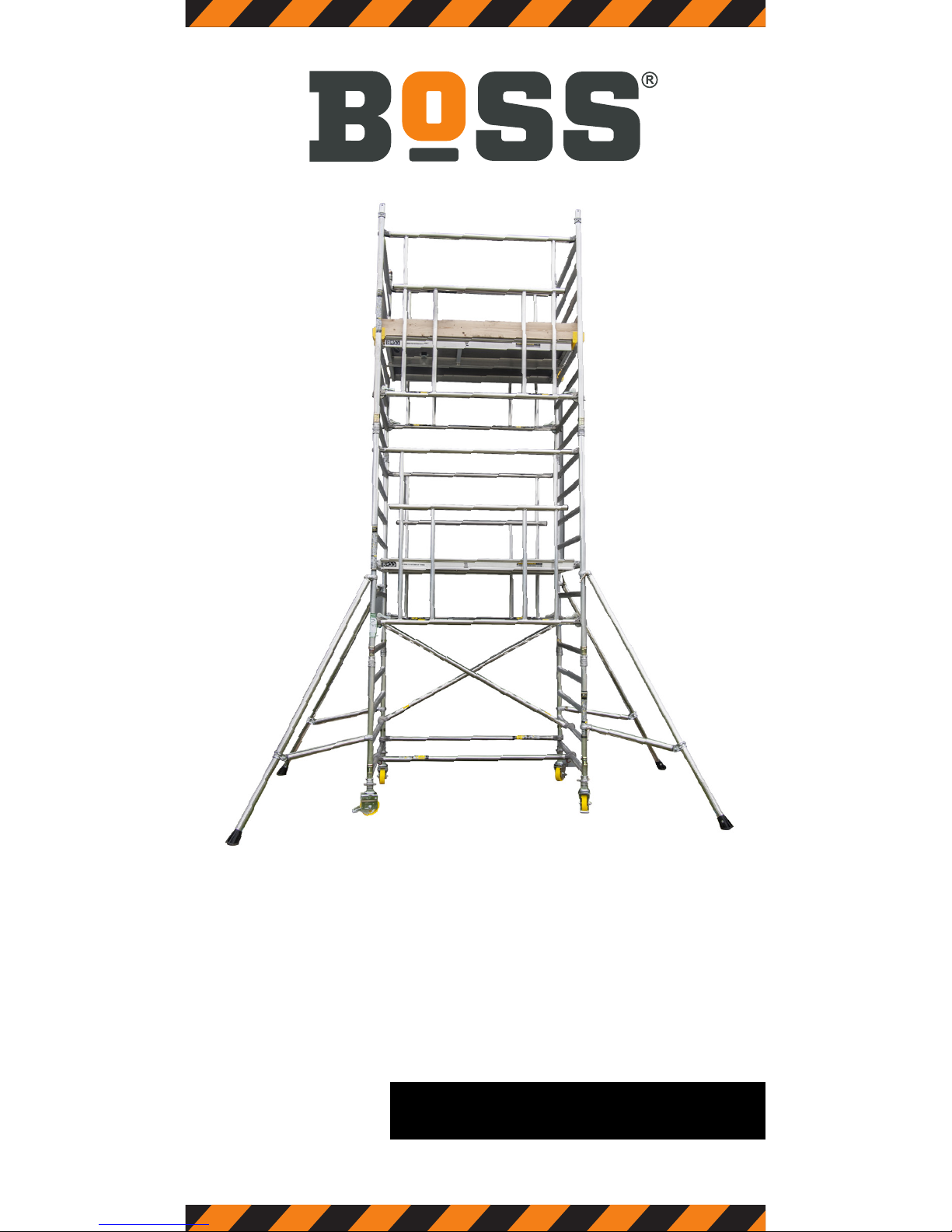

BOSSCO CLIMA AGR User manual

CLIMA AGR
Mobile Aluminium Tower with
Climbing Frames 1450/850
Camlock Advanced Guardrail
USER GUIDE

1BoSS Clima AGR User Guide
Contents
Safety First
Safety Checklist
Quantity Schedules
Assembly and Dismantling Procedure
Toe Boards
Stabilisers and Outriggers
2
8
9
15
23
24

2
bossaccesstowers.com
Safety First
Please read this user guide carefully.
Please note that diagrams are for illustrative purposes only.
User guides are also available to download from our website at
bossaccesstowers.com.
BoSS Mobile Aluminium Towers are light-weight scaffold towers
used throughout the building and construction industry for both
indoor and outdoor access solutions where a stable and secure
platform is required. Ideal for maintenance and installation work
or short-term access, the highly versatile towers provide a strong
working platform for a variety of heights.
This user guide provides you with step by step instructions to
ensure your system is erected easily and safely, using the AGR
(Advance Guard Rail) method.
The law requires that personnel erecting, dismantling or altering
towers must be competent. Any person erecting a BoSS Mobile
Tower must have a copy of this user guide. For further information
on the use of mobile access and working towers consult the
PASMA operators’ code of practice.
If you need further information, design advice, additional
user guides or any other help with this product, please
contact the manufacturer on [phone] or email
[email protected].
Introduction
Instruction Manual
EN 1298-IM-EN
AFS 2013:4
Compliances
Following examination by the SP Technical Research Institute
of Sweden, this Mobile Access tower has been issued with a
Type Examination Certicate No 249405 in accordance with
the requirements of Ordinance AFS 2013:4 Stallningar, type
examination rules SPCR 064 for temporary structures and SS-EN
1004:2005 including appurtenant standards. This tower is certied
to EN1004:2004.

BoSS Clima AGR User Guide
3
Check that all components are onsite, undamaged and that
they are functioning correctly - (refer to Checklist and Quantity
Schedules). Damaged or incorrect components should not be
used.
Check if the ground on which the mobile access tower is to be
erected and moved is capable of supporting the tower.
The safe working load is 275kgs (606lbs), per platform level,
uniformly distributed up to a maximum of 950kgs (2100lbs), per
tower (including self-weight).
Towers must be climbed from the inside using the rungs
directly below the trapdoor during assembly and use.
It is recommended that towers should be tied to a solid
structure when left unattended.
Adjustable legs should only be used for levelling.
Tower components should be lifted using a reliable lifting
material (e.g. strong rope) employing a reliable knot (e.g. clove
hitch) to ensure safe fastening and always lift within the footprint
of the tower.
Assembled mobile towers should not be lifted with a crane or
other lifting device.
Safety First
Preparation and inspection
Safe use
Inspect the equipment before use to ensure that it is not
damaged and that it functions properly. Damaged or incorrect
components should not be used.
Lifting of equipment

bossaccesstowers.com 4
Stabilisers or outriggers and ballast weights should always be
tted when specied.
The Quantity Schedules show the recommended stabilisation.
In circumstances where there is restricted ground clearance for
stabilisers/outriggers, contact your supplier for advice. Ballast
must be of solid materials (i.e. not water or loose sand) and
should not be positioned to overload individual legs. Ballast
should be secured against accidental removal where practicable,
and be supported on the lowest rung of the bottom frame.
The tower should only be moved by manual effort, and
only from the base.
When moving the tower, beware of live electrical apparatus,
particularly overhead, plus wires or moving parts of machinery.
No person or materials should be on the tower during
movement.
Caution should be exercised when wheeling a tower over
rough, uneven or sloping ground, taking care to unlock and
lock castors. If stabilisers are tted, they should only be
lifted a maximum of 25mm above the ground to clear ground
obstructions.
The overall height of the tower when being moved,
should not exceed 2.5 times the minimum base dimensions, or 4
metres overall height.
Before use, check the tower is still correct and complete.
After every movement of the tower use a spirit level to
check that it is vertical and level and set the adjustable legs as
required.
Do not move the tower in wind speeds over 7.7 metres
per second (17mph).
Safety First
Stabilisers / Ballast
Movement

BoSS Clima AGR User Guide
5
Beware of high winds in exposed, gusty or medium
breeze conditions. We recommend that in wind speeds over 7.7
metres per second (17mph), cease working on the tower and
do not attempt to move it. If the wind becomes a strong breeze,
expected to reach 11.3 metres per second (25mph), tie the tower
to a rigid structure. If the wind is likely to reach gale force, over
18 metres per second (40mph), the tower should be dismantled.
During use
Safety First
Wind
description
Beaufort
scale
Beaufort
no.
Speed in
mph
Speed in
m/sec
Medium breeze
Raises dust and
loose paper, twigs
snap off
4 8 - 12 4 - 6
Strong breeze
Large branches in
motion, telegraph
wires whistle
6 25 - 31 11 - 14
Gale force Walking is difcult 8 39 - 46 17 - 21
Beware of open-ended buildings, which can cause a funnelling
effect.
Do not abuse equipment. Damaged or incorrect components
should not be used.
Raising and lowering components, tools, and/or materials by
rope should be conducted within the lower base. Ensure that
the safe working load of the supporting decks and the tower
structure is not exceeded.
The assembled tower is a working platform and should not be
used as a means of access or egress to other structures.
Beware of horizontal forces (e.g. power tools) which could
generate instability. Maximum horizontal force 30kg.
The stairway towers, featuring an inclined staircase access, are
for frequent use by personnel carrying tools and/or materials.
Mobile towers are not designed to be suspended - please refer
to your supplier for advice.
Do not use boxes or stepladders or other objects on the platform
to gain extra height.

bossaccesstowers.com 6
Ties should be used when the tower goes beyond its safe height,
beyond the limits of the stabilisers/outriggers, or if there is a
danger of instability. They should be rigid, two way ties fastened
to both uprights of the frame with load-bearing right angled or
swivel couplers. Only couplers suitable for the 50.8mm diameter
tube of the tower should be used. Ideally, ties should be secured
to both faces of a solid structure by means of anchorages.
The tie frequency may vary depending on the application, but
they should (at a minimum) be every 4 metres height.
For further information on tying-in a tower please contact your
supplier or [email protected].
All components and their parts should be regularly inspected to
identify damage, particularly to joints. Lost or broken parts should
be replaced, and any tubing with indentation greater than 5mm
should not be used and put to one side for manufacture repair.
Adjustable leg threads should be cleaned and lightly lubricated to
keep them free running.
Brace claws, frame interlock clips, trapdoor latches and platform
wind-locks should be regularly checked to ensure they lock
correctly.
Refer to the BoSS User Guide for detailed inspection and
maintenance advice.
Components should be stored with due care to prevent damage.
Ensure components are not damaged by excessive strapping
forces when transported.
Safety First
Ties
Maintenance - storage - transport

BoSS Clima AGR User Guide
7
Safety First
End
Toe Board
BoSS Camlock Advance Guardrail
Side
Toe Board
Trapdoor
Adjustable Leg
4 Rung Frame
Castor
8 Rung
Frame
Stabiliser

bossaccesstowers.com 8
Safety Checklist
Mobile towers - AGR method
Checklist
Ensure all brace claws & camlocks operate and lock
correctly prior to erection
Inspect components prior to erection
Inspect tower prior to use
Tower upright and level
Castors locked and legs correctly adjusted
Diagonal braces tted
Stabilisers/outriggers tted as specied
Platforms located and wind-locks on
Toe boards located
Check guardrails are tted correctly-
See illustration below.
Ensure horizontal braces and guardrails are tted correctly.
Always t as shown.
Refer to this checklist before using each time.

BoSS Clima AGR User Guide
9

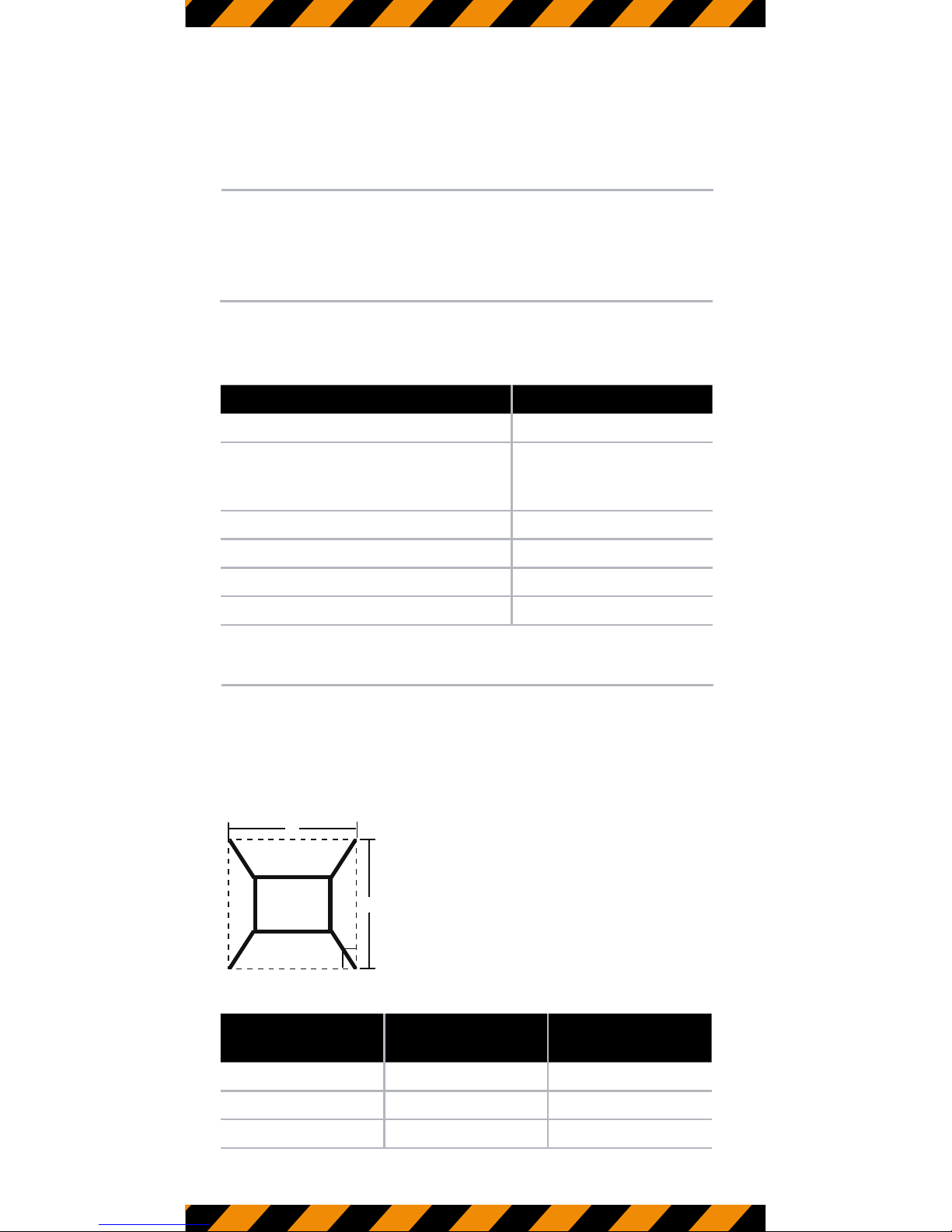

Quantity Schedule - 1450
BoSS Camlock AGR using Clima -
1450mm wide x 1.8 & 2.5m long
BoSS Clima 1450 to EN 1004: Available in 2 lengths - 1.8m and 2.5m
Internal or external use - towers under 2.5m are outside of the scope of EN 1004 Internal use only
Working height (m) Platform height (m)
4.2 2.2
4.7 2.7
5.7 3.7
6.2 4.2
6.7 4.7
7.7 5.7
8.2 6.2
8.7 6.7
9.7 7.7
10.2
8.2
10.7
8.7
11.7
9.7
12.2 10.2
12.7 10.7
13.7
11.7
14.2 12.2
125/150/200mm Castor 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4
250mm Adjustable Leg 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 1450 4 Rung Frame 2 2 2 2 2 2 2 2 2 2 2 1450 6 Rung Frame 2 2 2 2 2 2 2 2 2 2 1450 8 Rung Frame 2 2 2 4 4 4 6 6 6 8 8 8 10 10 10 12 1.8m / 2.5m Fixed Deck 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 1.8m / 2.5m Trap Deck 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 1.8m / 2.5m Horizontal Brace (Red) 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2.1m / 2.7m Diagonal Brace 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1.8m / 2.5m Side Toe Board 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1.2m End Toe Board 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Toe Board Holder 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 1.8m / 2.5m Camlock AGR 2 2 4 4 4 6 6 6 8 8 8 10 10 10 12 12 SP7 Fixed Stabiliser 4 4 4 4 4
SP10 Telescopic Stabiliser 4 4 4 4 4 4 4 4 4 4 4 Total Self-Weight of Tower (Kg) - 1.8m 136 155 196 201 220 261 279 297 338 343 362 403 408 427 468 473 Total Self-Weight of Tower (Kg) - 2.5m 153 177 226 231 255 303 321 345 393 398 422 471 475 499 548 553

bossaccesstowers.com 10
Quantity Schedule
1450 width towers
The MAXIMUM SAFE WORKING LOAD (the combined weight of
the users, tools and materials) that may be placed on the tower is
the total weight less the self-weight of the tower. The total weight
for the towers shown in the schedule is 950kg.
Example 1:
A 1450 Clima tower built using the AGR method with a 4.2m
platform height and a platform length of 1.8m has a self-weight of
201kg.
950kg
Total Weight -201kg
Self-weight =749kg maximum safe working load
(users, tools and materials)
Example 2:
A 1450 Clima tower built using the AGR method with a 11.7m
platform height and a platform length of 2.5m has a self-weight of
548kg.
For greater heights and loads, contact us for guidance.
Platform loading
On a 1450 tower a platform may comprise of a single deck or two
decks placed side by side. The maximum safe working load (the
combined weight of the users, tools and materials) that may be
placed on a platform is 275kg. This must be evenly distributed over
either one deck, or two decks placed side by side.
The quantities on page 9 will enable BoSS towers to be built safely
and therefore comply with the requirements of the Work at Height
Regulations. They include double guardrails to all platforms, and
toe boards will need to be added if any levels are used as working
platforms and for storage of materials.
EN 1004 requires platforms at least every 4.2m, and these
measures will exceed that requirement.
Number of working platforms allowed
950kg
Total Weight -548kg
Self-weight =402kg maximum safe working load
(users, tools and materials)

BoSS Clima AGR User Guide
11
There is no requirement for ballast on 1450 towers if using
stabilisers as detailed in the table on page 9.
Mobile Outriggers
MP16 outriggers can be used instead of SP15 stabilisers, as
detailed below. Mobile outrigger kits comprise:
Mobile outrigger kit
MP16 Mobile Outrigger 4
125/150/200mm Castor
(Use same diameter castors as on
tower)
4
250mm Adjustable leg 4
Plan Braces 4
The above components replace:
SP15 Stabiliser 4
Stabilisers
To improve rigidity, larger stabilisers can be used at a lower level
than shown in the table on page 9.
Angle of Stabiliser 1450 Tower
Double width 1450 Towers Dimension X
Platform length
1.8m
Platform length
2.5m
SP7 X= 3351 X= 3629
SP10 X= 4789 X= 5100
SP15 X= 5520 X= 5838
Quantity Schedule
1450 width towers
Ballast: Internal/external use
X
X
90°

bossaccesstowers.com 12
Quantity Schedule - 850
BoSS Camlock AGR using Clima -
850mm wide x 1.8 & 2.5m long
BoSS Clima 850 to EN 1004: Available in 2 lengths - 1.8m and 2.5m
Internal or external use - towers under 2.5m are outside of the scope of EN 1004 Internal use only
Working height (m) Platform height (m)
4.2 2.2
4.7 2.7
5.7 3.7
6.2 4.2
6.7 4.7
7.7 5.7
8.2 6.2
8.7 6.7
9.7 7.7
10.2
8.2
10.7
8.7
11.7
9.7
12.2 10.2
12.7 10.7
13.7
11.7
14.2 12.2
125/150/200mm Castor 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 250mm Adjustable leg 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 850 4 Rung Frame 2 2 2 2 2 2 2 2 2 2 2 850 6 Rung Frame 2 2 2 2 2 2 2 2 2 2 850 8 Rung Frame 2 2 2 4 4 4 6 6 6 8 8 8 10 10 10 12 1.8m / 2.5m Trap Deck 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 1.8m / 2.5m Horizontal Brace (Red) 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2.1m / 2.7m Diagonal Brace 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 1.8m / 2.5m Side Toe board 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 0.6m End Toe board 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 2 Toe board Holder 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 4 1.8m / 2.5m Camlock AGR 2 2 4 4 4 6 6 6 8 8 8 10 10 10 12 12 SP7 Fixed Stabiliser 4 4 4 4 4 SP10 Telescopic Stabiliser 4 4 4 4 4 4 4 4 4 4 Sp15 Telescopic Stabiliser 4
Total Self-Weight of Tower (Kg) - 1.8m 112 130 154 158 176 212 216 234 258 276 279 303 307 325 349 353 Total Self-Weight of Tower (Kg) - 2.5m 124 147 173 177 200 239 242 265 292 310 318 345 348 371 398 401

BoSS Clima AGR User Guide
13
The MAXIMUM SAFE WORKING LOAD (the combined weight of
the users, tools and materials) that may be placed on the tower is
the total weight less the self-weight of the tower. The total weight
for the towers shown in the schedule is 950kg.
Example 1:
An 850 Clima tower built using the AGR method with a 4.2m
platform height and a platform length of 1.8m has a self-weight of
158kg.
950kg
Total Weight -158kg
Self-weight =792kg maximum safe working load
(users, tools and materials)
Example 2:
An 850 Clima tower built using the AGR method with a 10.2m
platform height and a platform length of 2.5m has a self-weight of
348kg.
950kg
Total Weight -348kg
Self-weight =602kg maximum safe working load
(users, tools and materials)
For greater heights and loads, contact us for guidance.
On an 850 tower a platform comprises of a single deck only. The
maximum safe working load (the combined weight of the users,
tools and materials) that may be placed on a platform is 275kg,
evenly distributed over the deck.
The quantities on page 12, will enable BoSS towers to be built
safely and therefore comply with the requirements of the Work at
Height Regulations. They include double guardrails to all platforms,
and toe boards will need to be added if any levels are used as
working platforms and for storage of materials.
EN 1004 requires platforms at least every 4.2m, and these
measures will exceed that requirement.
Quantity Schedule
850 width towers
Number of working platforms allowed
Platform loading

bossaccesstowers.com 14
There is no requirement for ballast on 850 towers if using
stabilisers as detailed in the table on page 12.
MP16 mobile outriggers can be used instead of SP15 telescopic
stabilisers respectively, as detailed below.
Mobile outrigger kits comprise:
Mobile outrigger kit
MP16 Mobile Outrigger 4
125/150/200mm Castor
(Use same diameter castors as on
tower)
4
250mm Adjustable Leg 4
Plan Braces 4
The above components replace:
SP15 Stabiliser 4
To improve rigidity, larger stabilisers can be used at a lower level
than shown in the table on page 12.
Single Width 850 Towers Dimension X
Platform length
1.8m
Platform length
2.5m
SP7 X= 2994 X= 3201
SP10 X= 4458 X= 4734
SP15 X= 5195 X= 5485
Quantity Schedule
850 width towers
Ballast: Internal/external use
Mobile outriggers
Stabilisers
X
X
90°

BoSS Clima AGR User Guide
15
When building a BoSS Tower:
To comply with the Work at Height Regulations we show
assembly procedures with platforms every 2 metres in height,
and the locating of guardrails in advance of climbing onto a
platform to reduce the risk of a fall.
All platforms feature double guardrails on both faces of
either individual platforms or fully decked levels.
All guardrails should be 2 and 4 rungs (0.5m and 1.0m)
above platforms.
Never stand on an unguarded platform positioned above
the rst rung of a tower. If your risk assessment shows it
necessary, you may also need to guardrail platforms at this level.
Always start building with the smallest height frames
at the base of the tower:
Platform heights in
metres
Frame at
base
1st Deck 1st AGR
2.2, 4.2, 6.2, 8.2, 10.2, 12.2 4 rung 8th rung 6th rung
2.7, 4.7, 6.7, 8.7, 10.7 6 rung 2nd rung 3rd rung
3.7, 5.7, 7.7, 9.7, 11.7 4 + 6 rung 6th rung 2nd rung
Where all three frame heights are used in a tower, start with a
4 rung frames at the base, with the 6 rung frames next and the
8 rung frames on the top. Refer to the Quantity Schedules for
detail.
Assembly Procedure
AGR method
Assembly and dismantling procedures

bossaccesstowers.com 16
BoSS recommend two persons are used to build BoSS
Towers. Above 4m height, it is essential that at least two
persons are used. Only climb the tower from the inside.
Always start building with the smallest height frames at the
base of the tower:
Platform heights in
metres
Frame at
base
1st deck 1st AGR
2.2, 4.2, 6.2, 8.2, 10.2, 12.2 4 rung 8th rung 6th rung
2.7, 4.7, 6.7, 8.7, 10.7 6 rung 2nd rung 8th rung
3.7, 5.7, 7.7, 9.7, 11.7 4 + 6 rung 6th rung 2nd rung
Where all three frame heights are used in a tower, start with a
4 rung frames at the base, with the 6 rung frames next and the
8 rung frames on the top. Refer to the Quantity Schedules for
detail. The procedure illustrated shows a 1450 tower starting
with a 4 rung frame and a platform height of 4.2m. If building
an 850 tower, the following method can be used with single
decks at all levels.
Assembly Procedure
AGR method
Assembly for 850 & 1450 towers
Push four castors onto four adjustable legs. Insert adjustable legs
into two end frames as shown. Lock castor brakes. Base plates
can be tted to adjustable legs if it is not necessary to move the tower.
1
Unlocked
Locked

BoSS Clima AGR User Guide
17
Fit one horizontal brace (red) onto the vertical of an end frame, just
above the bottom rung, with the claw facing outwards.
Note: All locking claws must be opened before tting.
Position the second end frame as shown and t the other end of
the horizontal brace on to the vertical, just above the bottom rung.
Fit a second horizontal brace on the bottom rungs on the other side of
the frames to square the tower.
Assembly Procedure
2
3
Locked

bossaccesstowers.com 18
Fit two additional end frames and check the frame interlock
clips are engaged. Fit two diagonal braces (blue) in opposing
directions, from the 2nd rung to the 6th rung on the opposing side.
Ensure the frames are vertical and level by checking with a spirit level
and setting the adjustable legs as required.
IMPORTANT – Only use the adjustable legs to level the tower
and not to gain extra height.
Assembly Procedure
4
INTERLOCK CLIP
Locked Unlocked

BoSS Clima AGR User Guide
19

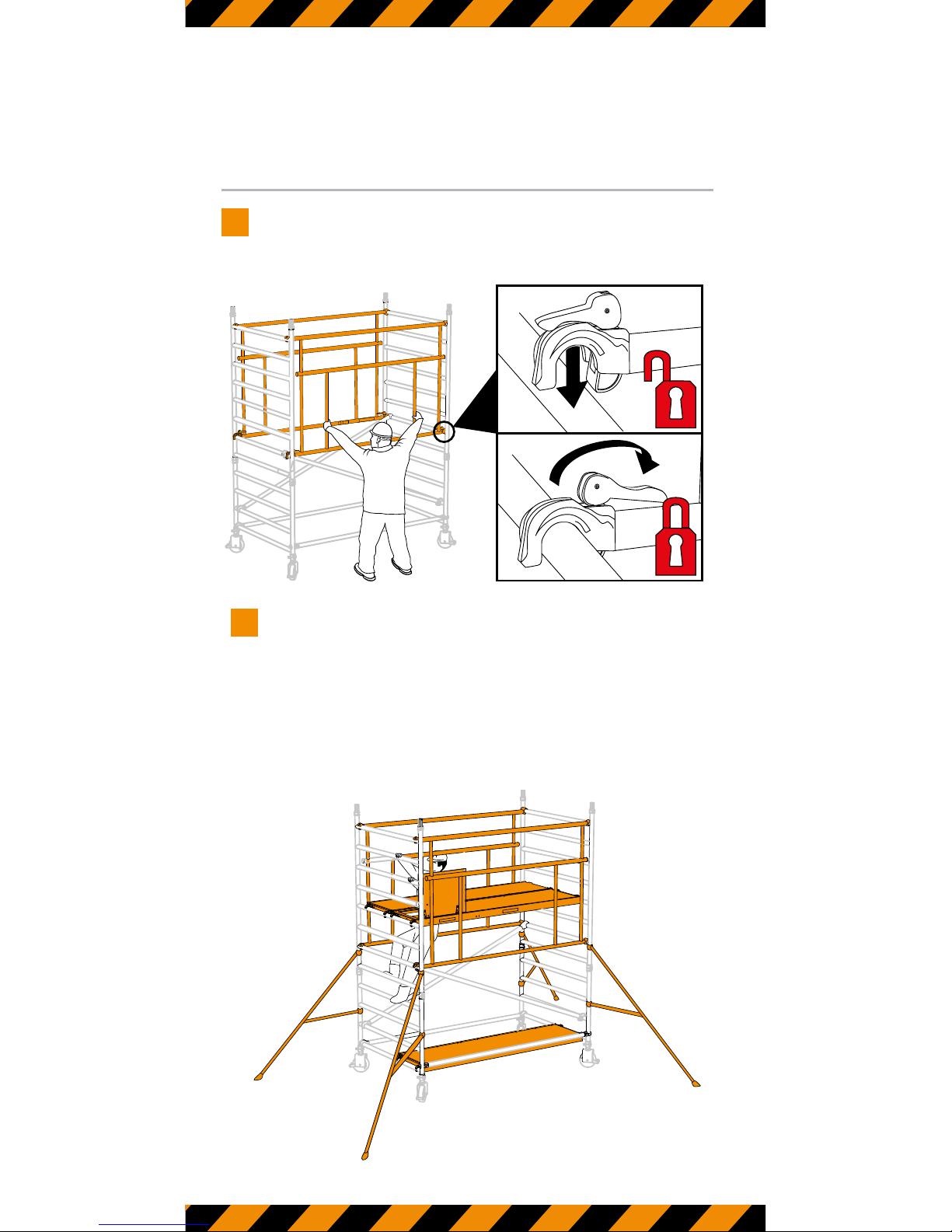

Fit an AGR on both sides of the tower. The bottom of the AGR
must be tted to the 6th rung of the tower, as shown. The AGR
should be placed up against the end frame verticals.
Assembly Procedure
Fit the stabilisers (See notes on page 28). If required, t a
temporary deck on the lowest rungs of the tower. Fit a trapdoor
deck on the 8th rung on one side of the tower. Ensure the trapdoor is
positioned with the hinges towards the outside of the tower as shown.
Fit a xed deck next to the trapdoor deck on the 8th rung. The platform
is now complete. Climb the end frame below the trapdoor on the inside
of the tower.
If tted remove the temporary deck from the lowest rungs.
5
6
