BOSSCO FDR-1 Deluxe Reverb User manual

FET
Owner’s Manual
DCAC
AC & BATTERY
POWERED
FDR-1_e1.book 1 ページ ２００７年１月５日 金曜日 午後６時７分

2
Thank you, and congratulations on your choice of the BOSS FDR-1 Deluxe Reverb.
Before using this unit, carefully read the sections entitled: “USING THE UNIT SAFELY” and
“IMPORTANT NOTES” (supplied on a separate sheet). These sections provide important in-
formation concerning the proper operation of the unit.
Additionally, in order to feel assured that you have gained a good understanding of every fea-
ture provided by your new unit, this manual should be read in its entirety. The manual should
be saved and kept on hand as a convenient reference.
About COSM (Composite Object Sound Modeling)
Composite Object Sound Modeling—or “COSM” for short—is Roland’s innovative and pow-
erful technology that’s used to digitally recreate the sound of classic musical instruments and
effects. COSM analyzes the many factors that make up the original sound—including its elec-
trical and physical characteristics—and creates a digital model that accurately reproduces the
original.
A battery is supplied with the unit. The life of this battery may be limited, however, since
its primary purpose is to enable testing.
Copyright © 2007 BOSS CORPORATION
All rights reserved. No part of this publication may be reproduced in any form without the
written permission of BOSS CORPORATION.
FDR-1_e1.book 2 ページ ２００７年１月５日 金曜日 午後６時７分

3
Main Features
● Uses COSM technology to model the amp sound of a Fender ® DELUXE REVERB ® .
● Makes it easy for you to enjoy that vintage Fender ® amp sound simply by connecting the
FDR-1 to your usual guitar amp.
● Features reverb and vibrato effects like those on an actual DELUXE REVERB ® amp.
* Reverb:An effect that adds reverberations to sound.
* Vibrato:An effect that changes the volume level in a cyclical way.
About the Fender® DELUXE REVERB®
fig.DeluxeReverb.eps
The DELUXE REVERB®amp was announced in 1963. It’s medium
wattage and pure tone made it a top choice throughout the ’60s,
’70s and ’80s, for use in recording sessions and live performances
in a full range of genres, from surf music, blues, and country to jazz,
soul, and even hard rock.
In addition to its characteristic clean and crisp tones, at high vol-
ume levels the amp delivers a lustrous overdrive sound that could
only come from the DELUXE REVERB®.
Among the several members of the series, the 1965 model is espe-
cially acclaimed and has captured the hearts of many guitarists.
Reissued in 1994, the DELUXE REVERB®is truly one of Fender’s
finest amps and a perennial best-seller to this day.
FDR-1_e1.book 3 ページ ２００７年１月５日 金曜日 午後６時７分

4
Panel Descriptions
fig.FDR-1_name1.eps
1. AC Adaptor Jack
This jack accepts the connection of an AC
adaptor (optionally available BOSS PSA-se-
ries). By using an AC adaptor, you can play
without being concerned about how much
battery power you have left.
* Use only the specified AC adaptor (PSA-
series), and make sure the line voltage at the
installation matches the input voltage specified
on the AC adaptor’s body. Other AC adaptors
may use a different polarity, or be designed for
a different voltage, so their use could result in
damage, malfunction, or electric shock.
* If the AC adaptor is connected while power is
on, the power supply is drawn from the AC
adaptor.
* If there is a battery in the unit while an AC
adaptor is being used, the FDR-1 will switch
over to battery-powered operation should the
line voltage be interrupted due to a power
blackout or power cord disconnection.
12
3 6
4
5
FDR-1_e1.book 4 ページ ２００７年１月５日 金曜日 午後６時７分

5
Panel Descriptions
2. CHECK Indicator
This indicator shows whether the effect is on
or off, and also doubles as the battery check
indicator. The indicator lights when the ef-
fect is on.
* If you’re powering the unit with a battery
and the CHECK indicator goes dim—or
doesn’t light at all—when you try to turn the
effect on, the battery is near depletion and
should be replaced. For instructions on
changing the battery, refer to “Changing the
Battery” (p. 14).
* The CHECK indicator shows whether the
effect is being applied or not. It does not
indicate whether the power to the device is on
or not.
3. OUTPUT Jack
This output jack is used for connecting to
guitar amps and other effects processors.
4. Pedal Switch
This switch turns the effect on/off.

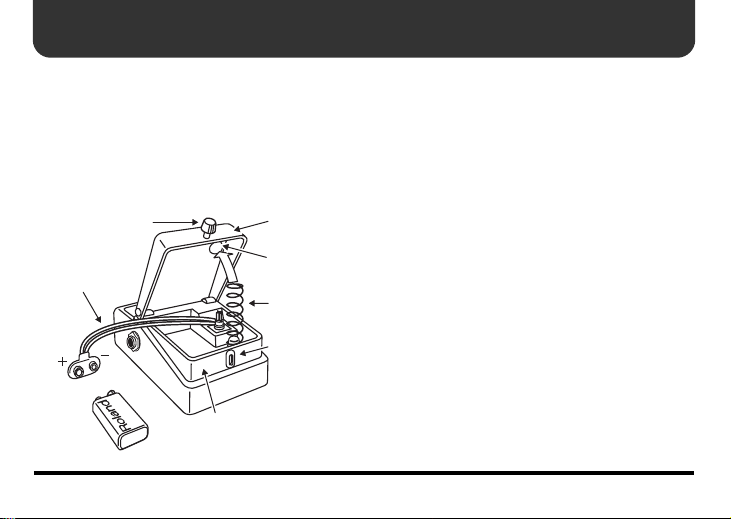

5. Thumbscrew
When this screw is loosened, the pedal will
open, allowing you to change the battery.
For instructions on changing the battery, re-
fer to “Changing the Battery” (p. 14).
6. INPUT Jack
These jacks are for connecting the output
from an electric guitar or other instrument or
effects device.
* These jacks double as power switch. Power to
the FDR-1 is turned on when you plug into
the INPUT jack; the power is turned off when
the cable is unplugged. When not using the
FDR-1, be sure to disconnect the plug from
the INPUT jack.
FDR-1_e1.book 5 ページ ２００７年１月５日 金曜日 午後６時７分

6
Panel Descriptions
fig.FDR-1_name1.eps
7. GAIN Knob
This adjusts the amount of distortion and the
volume level. Turning it clockwise makes
distortion stronger and increases the volume
level.
8. LEVEL Knob
This adjusts the volume of the effect sound.
* No sound is output when this knob is turned
completely counterclockwise.
9. TREBLE Knob
This knob controls the tone of the effect at
higher frequencies.
10. BASS Knob
This knob controls the tone of the effect at
lower frequencies.
11. REVERB Knob
This adjusts the amount of reverb effect that
is applied.
12. VIBRATO Knob
This adjusts the amount of vibrato effect (cy-
clical fluctuations in volume) that is applied.
Turning it clockwise makes the effect more
intense.
Turning the VIBRATO knob while depress-
ing the pedal switch changes the vibrato rate
(RATE setting mode).
Turning it clockwise increases the rate.
9
810
712
11
FDR-1_e1.book 6 ページ ２００７年１月５日 金曜日 午後６時７分

7
Connections
* Inserting a connecting plug into the INPUT jack
turns on the power to the unit.
* Raise the amp volume only after turning on the
power to all connected devices.
* The use of an AC adaptor is recommended as the
unit’s power consumption is relatively high. Should
you prefer to use a battery, please use the alkaline
type.
* To prevent malfunction and/or damage to speakers
or other devices, always turn down the volume, and
turn off the power on all devices before making any
connections.
* If there is a battery in the unit while an AC adaptor
is being used, normal operation will continue
should the line voltage be interrupted due to power
blackout or power cord disconnection.
* Some connection cables contain resistors. When
connection cables with resistors are used, the sound
level may be extremely low, or impossible to hear.
For information on cable specifications, contact the
manufacturer of the cable.
* Once the connections have been completed, turn on
power to your various devices in the order specified.
By turning on devices in the wrong order, you risk
causing malfunction and/or damage to speakers and
other devices.
When powering up:
Turn on the power to your guitar amp last.
When powering down:
Turn off the power to your guitar amp first.
* Always make sure to have the volume level turned
down before switching on power. Even with the
volume all the way down, you may still hear some
sound when the power is switched on, but this is
normal, and does not indicate a malfunction.
* When operating on battery power only, the CHECK
indicator will become dim when battery power gets
too low. Replace the battery as soon as possible.
FDR-1_e1.book 7 ページ ２００７年１月５日 金曜日 午後６時７分

8
Connections
Recommended Settings
fig.FDR-1-connenct-e.eps
* This unit is equipped with a protection circuit. A brief interval (a few seconds) after power-up is
required before the unit will operate normally.
AC Adaptor
BOSS PSA-series
(option)
9V DC/200 mA
Guitar Amplifier
(JC-120 etc.)
Electric Guitar
FDR-1_e1.book 8 ページ ２００７年１月５日 金曜日 午後６時７分

9
Connections
Recommended Settings for a Roland
JC-120
fig.FDR-1_JC-120.eps
Recommended Settings for a Fender ®
Combo Amp
fig.FDR-1_TWINREVERB.eps
Recommended Settings for a Stack
Amp
fig.FDR-1_JCM2000.eps
We recommend using a clean setting (no dis-
tortion) on the connected amp.
Set to OFF
BRIGHT
TREBLE MIDDLE BASS
MIN MAX MIN MAX
Set to OFF
MIN MAX
PRESENCE TREBLE MIDDLE BASS
MIN MAX MIN MAX MIN MAX MIN MAX
FDR-1_e1.book 9 ページ ２００７年１月５日 金曜日 午後６時７分

10
Operating the Unit
fig.FDR-1_operation1.eps
1. After you have made the
necessary connections (p.
7, p. 8), set the panel
knobs as shown in the
illustration.
2. Depress the pedal switch
to turn the effect on. (The
CHECK indicator lights
when the effect is on.)
fig.FDR-1_operation2.eps
3. Adjust the gain (the
amount of distortion)
with the GAIN knob.
* Setting both knobs at extremely
high levels may also result in
increased noise.
fig.FDR-1_operation3.eps
4. Adjust the tone with the
BASS knob and TREBLE
knob.
FDR-1_e1.book 10 ページ ２００７年１月５日 金曜日 午後６時７分

11
Operating the Unit
fig.FDR-1_operation4.eps
5. Adjust the output vol-
ume with the LEVEL
knob.
Normally, you should adjust
the LEVEL knob so there’s no
difference in the volume
when switching the effect on
and off.
fig.FDR-1_operation5.eps
6. Adjusts the amount of
vibrato effect (cyclical
fluctuations in volume)
with the VIBRATO knob.
f
i
g
.
F
D
R
-
1
_
o
p
e
r
a
t
ion6.eps
7. Adjusts the amount of
reverb effect with the
REVERB knob.
You can change the vibrato rate by turning the VIBRATO knob
while depressing the pedal switch (RATE setting mode). When
you’ve finished setting the rate, release the pedal switch, then
depress it again, holding it down for two or more seconds. The rate
will be stored in FDR-1.
When the vibrato rate is changed, the actual vibrato effect and the
indicated scale of VIBRATO knob might be different.
FDR-1_e1.book 11 ページ ２００７年１月５日 金曜日 午後６時７分

12
Operating the Unit
Setting the Vibrato Rate Using the Pedal Switch (RATE Setting Mode)
When Setting the Vibrato by Inputting the Tempo with the Effect On (CHECK indicator: Red)
fig.FDR-1_vibrato1.eps
* Vibrato rate for use with the tempo settings can be made in the range of 0.3–3.0 seconds.
* If you carry out Step 3 immediately after Step 2, Step 3 may inadvertently be interpreted as tempo input, thus
changing the RATE setting. Allow a brief interval to pass before progressing from Step 2 to Step 3.
* You can also set the rate by turning the VIBRATO knob while depressing the pedal switch (p. 11). When you’ve
finished setting the rate, release the pedal switch, then depress it again, holding it down for two or more seconds.
Off
Off
Red RedRed/Green Blinking
OnOn
Off Off→Rate confirmed
On
On
1 32
Tap the FDR-1’s pedal
switch in timing with the
tempo.
CHECK
Indicator
Effect
Pedal Switch
Rate Setting
Press and hold
the FDR-1’s
pedal switch
for at least two
seconds.
Press and hold
the FDR-1’s pedal
switch for at least
two seconds.
The rate is stored.
FDR-1_e1.book 12 ページ ２００７年１月５日 金曜日 午後６時７分

13
Operating the Unit
When Setting the Vibrato by Inputting the Tempo with the Effect Off (CHECK indicator: Off)
fig.FDR-1_vibrato2.eps
* Vibrato rate for use with the tempo settings can be made in the range of 0.3–3.0 seconds.
* If you carry out Step 3 immediately after Step 2, Step 3 may inadvertently be interpreted as tempo input, thus
changing the RATE setting. Allow a brief interval to pass before progressing from Step 2 to Step 3.
* You can also set the rate by turning the VIBRATO knob while depressing the pedal switch (p. 11). When you’ve
finished setting the rate, release the pedal switch, then depress it again, holding it down for two or more seconds.
Off RedRed/Green Blinking
OnOff
Off Off→Rate confirmed
On
On
1 32
Tap the FDR-1’s pedal
switch in timing with the
tempo.
CHECK
Indicator
Effect
Pedal Switch
Rate Setting
Press and hold
the FDR-1’s
pedal switch
for at least two
seconds.
Press and hold the
FDR-1’s pedal
switch for at least
two seconds.
Red
On
The rate is stored.
FDR-1_e1.book 13 ページ ２００７年１月５日 金曜日 午後６時７分

14
Changing the Battery
When the indicator goes dim or no longer
lights while the effect is on, it means that the
battery must be replaced. Replace the battery
following the steps below.
* The use of an AC adaptor is recommended as the
unit’s power consumption is relatively high. Should
you prefer to use a battery, please use the alkaline type.
fig.replace-battery.eps
1. Hold down the pedal and loosen the
thumbscrew, then open the pedal
upward.
* The pedal can be opened without detaching the
thumbscrew completely.
2. Remove the old battery from the battery
housing, and remove the snap cord con-
nected to it.
3. Connect the snap cord to the new battery,
and place the battery inside the battery
housing.
* Be sure to carefully observe the battery’s polarity (+
versus -).
4. Slip the coil spring onto the spring base on the
back of the pedal, and then close the pedal.
* Carefully avoid getting the snap cord caught in the
pedal, coil spring, and battery housing.
5. Finally, insert the thumbscrew into the
guide bush hole and fasten it securely.
Thumbscrew Pedal
Spring Base
Coil Spring
Guide Bush
Hole
Battery Housing
Battery Snap
Cord
Battery
Snap
9V Battery
FDR-1_e1.book 14 ページ ２００７年１月５日 金曜日 午後６時７分

15
Troubleshooting
The power won’t come on/
the CHECK indicator doesn’t light
● Is the specified adaptor (PSA-series,
sold separately) properly connected?
Check the AC adaptor connection (p. 7, p. 8).
* Never use any AC adapter other than one specified
for use with the FDR-1.
● Is the battery low or dead?
Replace it with a new battery (p. 14).
* The battery that is supplied with the unit is for
temporary use, intended primarily for testing the
pedal’s operation.
* The use of an AC adaptor is recommended as the
unit’s power consumption is relatively high. Should
you prefer to use a battery, please use the alkaline
type.
* To prevent unnecessary battery consumption, be
sure to disconnect the plug from the INPUT jack
when not using the effects unit (p. 5).
● Is your guitar properly connected to the
INPUT jack?
Check the connection once more (p. 7, p. 8).
* The power is switched on only when a cable is
plugged in to the INPUT jack.
* The CHECK indicator shows whether the effect is
being applied or not. It does not indicate whether
the power to the device is on or not.
No sound / low volume
● Is your instrument properly connected
to the FDR-1?
Check the connection once more (p. 7, p. 8).
● Is the LEVEL knob set too low?
The further counterclockwise you turn the
LEVEL knob, the more the volume is re-
duced when the effect is on. Turn the LEVEL
knob clockwise to increase the volume.
● Is the volume turned down on any guitar
amp or effects device you have connect-
ed?
Check the settings of the connected device.
● Is the battery low or dead?
Replace it with a new battery (p. 14).
Effect won’t turn off
● Could you be in the vibrato rate setting
mode (p. 12, p. 13)?
FDR-1_e1.book 15 ページ ２００７年１月５日 金曜日 午後６時７分

16
Setting Samples
Standard Crunch Sound
fig.FDR-1-sample1.eps
Hard Overdrive Sound
fig.FDR-1-sample1.eps
Surf Rock Sound
fig.FDR-1-sample1.eps
Vibrato Sound
fig.FDR-1-sample1.eps
For details about the vibrato rate, please refer to
p. 12, p. 13.
FDR-1_e1.book 16 ページ ２００７年１月５日 金曜日 午後６時７分

17
Setting Memo
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
FDR-1_e1.book 17 ページ ２００７年１月５日 金曜日 午後６時７分

18
Setting Memo
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
fig.FDR-1-memo.eps
FDR-1_e1.book 18 ページ ２００７年１月５日 金曜日 午後６時７分

19
Specifications
FDR-1: Deluxe Reverb
Nominal Input Level:....................... -20 dBu
Input Impedance:.............................. 1 M Ω
Nominal Output Level:.................... -20 dBu
Output Impedance: .......................... 2.2 k Ω
Recommended Load Impedance:... 10 k Ω or greater
Controls:............................................. Pedal switch, GAIN knob, LEVEL knob, TREBLE knob,
BASS knob, REVERB knob, VIBRATO knob
Indicators:.............................................CHECK indicator (for effect on/off status and battery check)
Connectors:........................................ INPUT jack, OUTPUT jack, AC adaptor jack (DC 9 V)
Power Supply:................................... DC 9 V: Dry battery 6F22 (9 V) type (carbon)/
Dry battery 6LR61 (9 V) type (alkaline)
AC Adaptor (PSA-series: optional)
Current Draw: ................................... 40 mA (DC 9 V)
* Expected battery life under continuous use:
Carbon: 2.7 hours, Alkaline: 9 hours
These figures will vary depending on the actual conditions of use.
Dimensions:....................................... 73 (W) x 129 (D) x 59 (H) mm /
2-7/8 (W) x 5-1/8 (D) x 2-3/8 (H) inches
FDR-1_e1.book 19 ページ ２００７年１月５日 金曜日 午後６時７分

20
Specifications
Weight: ............................................... 440 g /1 lb (including battery)
Accessories......................................... Owner’s manual, leaflet (“USING THE UNIT SAFELY,”
“IMPORTANT NOTES,” and “Information”),
dry battery/9 V type (6LR61)
* The battery that is supplied with the unit is for temporary
use, intended primarily for testing the unit’s operation.
We suggest replacing this with an alkaline dry cell.
Option ................................................ AC adaptor (PSA-series)
* 0 dBu = 0.775 Vrms
* In the interest of product improvement, the specifications and/or appearance of this unit are subject to change
without prior notice.
* Fender ® and DELUXE REVERB ® are the trademarks of FMIC. All rights reserved.
* All product names mentioned in this document are trademarks or registered trademarks
of their respective owners. In this document, their names are used solely to identify the
equipment whose sound is simulated by COSM.
FDR-1_e1.book 20 ページ ２００７年１月５日 金曜日 午後６時７分
