Botex DM-2512 User manual

DM-2512
DMX manager
User manual

Musikhaus Thomann
Thomann GmbH
Hans-Thomann-Straße 1
96138 Burgebrach
Germany
Telephone: [phone]
E-mail: [email protected]
Internet: www.thomann.de
27.12.2018, ID: 172666 (V2)

Table of contents
1 General information................................................................................................................................. 6
1.1 Further information........................................................................................................................... 7
1.2 Notational conventions.................................................................................................................... 8
1.3 Symbols and signal words............................................................................................................... 9
2 Safety instructions.................................................................................................................................. 11
2.1 Safety instructions........................................................................................................................... 11
3 Features....................................................................................................................................................... 15
4 Installation and starting up................................................................................................................ 16
5 Connections and controls................................................................................................................... 19
6 Operating.................................................................................................................................................... 23
6.1 Setting the operating modes....................................................................................................... 23
6.2 Setting the DMX address............................................................................................................... 26
7 Technical specications....................................................................................................................... 28
8 Plug and connection assignments.................................................................................................. 29
Table of contents
DM-2512 3
DMX manager

9 Protecting the environment.............................................................................................................. 30
Table of contents
4DM-2512
DMX manager

DM-2512 5
DMX manager

1 General information
This manual contains important instructions for the safe operation of the unit. Read and follow
the safety instructions and all other instructions. Keep the manual for future reference. Make
sure that it is available to all those using the device. If you sell the unit please make sure that
the buyer also receives this manual.
Our products are subject to a process of continuous development. Thus, they are subject to
change.
General information
6DM-2512
DMX manager

1.1 Further information
On our website (www.thomann.de) you will nd lots of further information and details on the
following points:
Download This manual is also available as PDF le for you to download.
Keyword search Use the search function in the electronic version to nd the topics of
interest for you quickly.
Online guides Our online guides provide detailed information on technical basics
and terms.
Personal consultation For personal consultation please contact our technical hotline.
Service If you have any problems with the device the customer service will
gladly assist you.
General information
DM-2512 7
DMX manager

1.2 Notational conventions
This manual uses the following notational conventions:
The letterings for connectors and controls are marked by square brackets and italics.
Examples: [VOLUME] control, [Mono] button.
The individual steps of an instruction are numbered consecutively. The result of a step is
indented and highlighted by an arrow.
Example:
1. Switch on the device.
2. Press [Auto].
ðAutomatic operation is started.
3. Switch o the device.
Letterings
Instructions
General information
8DM-2512
DMX manager

1.3 Symbols and signal words
In this section you will nd an overview of the meaning of symbols and signal words that are
used in this manual.
Signal word Meaning
DANGER! This combination of symbol and signal word indicates an
immediate dangerous situation that will result in death or
serious injury if it is not avoided.
NOTICE! This combination of symbol and signal word indicates a pos‐
sible dangerous situation that can result in material and
environmental damage if it is not avoided.
Warning signs Type of danger
Warning – high-voltage.
General information
DM-2512 9
DMX manager

Warning signs Type of danger
Warning – danger zone.
General information
10 DM-2512
DMX manager

2 Safety instructions
2.1 Safety instructions
This device is intended for merging multiple DMX signals, for distributing one DMX signal to
multiple DMX chains and for the extension of a DMX chain. Use the device only as described in
this user manual. Any other use or use under other operating conditions is considered to be
improper and may result in personal injury or property damage. No liability will be assumed for
damages resulting from improper use.
This device may be used only by persons with sucient physical, sensorial, and intellectual
abilities and having corresponding knowledge and experience. Other persons may use this
device only if they are supervised or instructed by a person who is responsible for their safety.
Intended use
Safety instructions
DM-2512 11
DMX manager

DANGER!
Danger for children
Ensure that plastic bags, packaging, etc. are disposed of properly and are not
within reach of babies and young children. Choking hazard!
Ensure that children do not detach any small parts (e.g. knobs or the like) from
the unit. They could swallow the pieces and choke!
Never let children unattended use electrical devices.
DANGER!
Electric shock caused by high voltages inside
Within the device there are areas where high voltages may be present. Never
remove any covers.
There are no user-serviceable parts inside.
Do not use the device if covers, protectors or optical components are missing or
damaged.
Safety
Safety instructions
12 DM-2512
DMX manager

NOTICE!
Risk of re
Do not block areas of ventilation. Do not install the device near any direct heat
source. Keep the device away from naked ames.
NOTICE!
Operating conditions
This device has been designed for indoor use only. To prevent damage, never
expose the device to any liquid or moisture. Avoid direct sunlight, heavy dirt, and
strong vibrations.
Safety instructions
DM-2512 13
DMX manager

NOTICE!
External power supply
The device is powered by an external power supply. Before connecting the
external power supply, ensure that the input voltage (AC outlet) matches the
voltage rating of the device and that the AC outlet is protected by a residual cur‐
rent circuit breaker. Failure to do so could result in damage to the device and pos‐
sibly the user.
Unplug the external power supply before electrical storms occur and when the
device is unused for long periods of time to reduce the risk of electric shock or
re.
Safety instructions
14 DM-2512
DMX manager

3 Features
DMX manager with the following features:
nFour operating modes: HTP, Backup, Merge and LTP
n2 × 3-pin DMX input on the front panel, 2 × 3-pin DMX input on the rear panel (not usable
in parallel)
n1 × 3-pin DMX output on the front panel, 1 × 3-pin DMX output on the rear panel (not
usable in parallel)
n19" rack-mountable
Features
DM-2512 15
DMX manager

4 Installation and starting up
Unpack and check carefully there is no transportation damage before using the unit. Keep the
equipment packaging. To fully protect the product against vibration, dust and moisture during
transportation or storage use the original packaging or your own packaging material suitable
for transport or storage, respectively.
Create all connections while the device is o. Use the shortest possible high-quality cables for
all connections. Take care when running the cables to prevent tripping hazards.
NOTICE!
Possible data transmission errors
For error-free operation make use of dedicated DMX cables and do not use ordi‐
nary microphone cables.
Never connect the DMX input or output to audio devices such as mixers or ampli‐
ers.
Installation and starting up
16 DM-2512
DMX manager

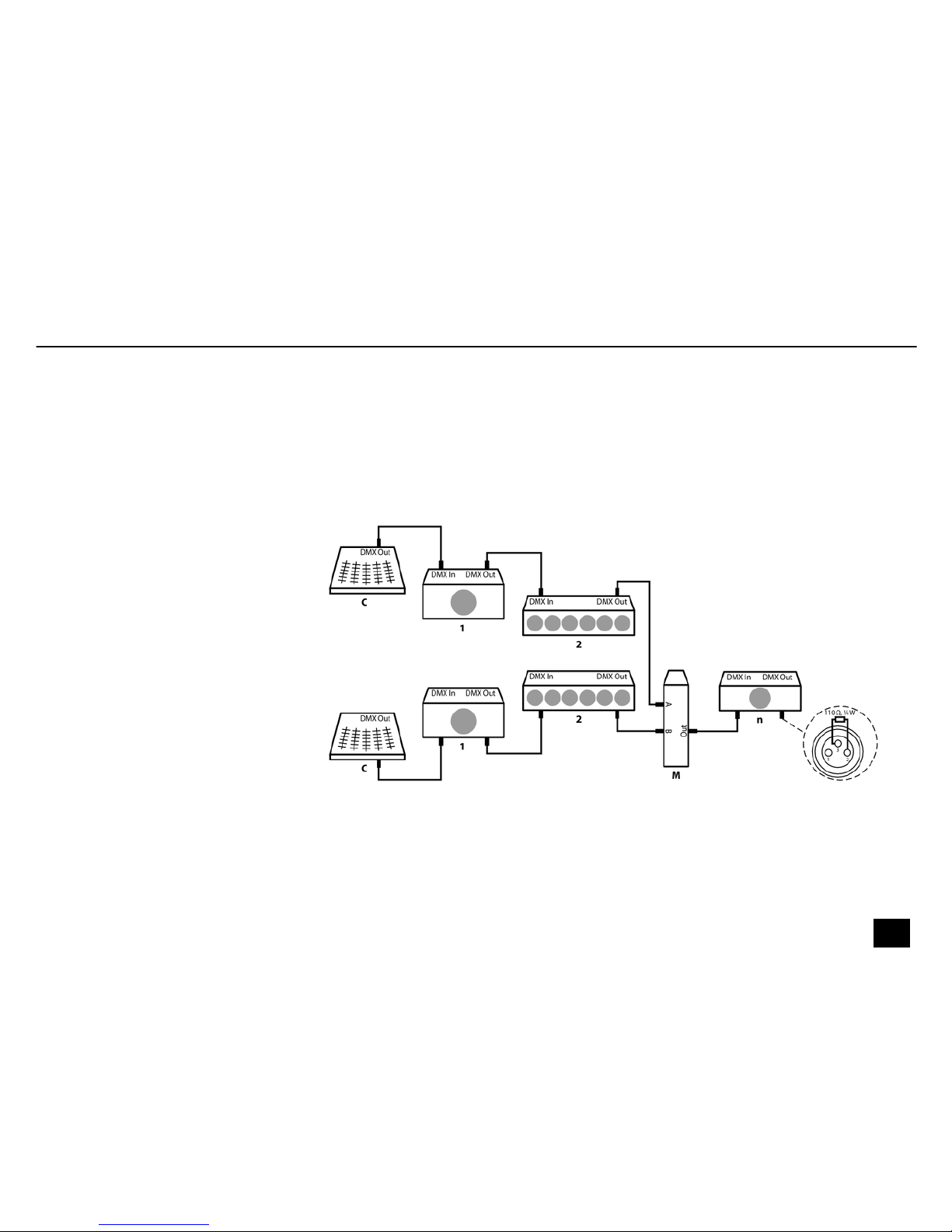

Connect the output of the rst DMX device to the input of the second one and so on, to form a
series connection. Connect the output of this DMX chain to input A on the front or back of the
DMX Manager. Connect the output of a second DMX chain to input B on the front or back of
the DMX Manager. Connect the output on the front or rear of the DMX Manager to the DMX
input of a DMX controller or other DMX device. Make sure that the output of the last DMX
device in the chain is terminated by a resistor (110 Ω, ¼W). Note that the ports on the front
and back can not be used in parallel.
Connections in ‘DMX’ mode
Installation and starting up
DM-2512 17
DMX manager

When the device and the DMX controller are operational, the DMX indicator in the display
shows that a DMX signal is being received on the input.
The unit has been designed for rack mounting in a standard 19" rack; it occupies one rack unit.
DMX indicator
Rack mounting
Installation and starting up
18 DM-2512
DMX manager

5 Connections and controls
Front panel
Connections and controls
DM-2512 19
DMX manager

1[POWER]
Main switch. Turns the device on and o.
2[POWER INDICATOR]
Indicator LED for operating status. Lights up once the device is turned on.
3[DMX INDICATOR] [A], [B]
2 × indicator LED for DMX input. The indicator LED of the respective channel lights up green as soon as a signal is
present.
4[DMX IN]
2 × DMX input, designed as XLR socket
5[DMX OUT]
1 × DMX output, designed as XLR socket
Connections and controls
20 DM-2512
DMX manager
