BOXLIGHT ProColor 554U User manual

Interactive Flat Panel Display
9Note:
- All the pictures in this manual are for reference only, subject to our available products.

2
Contents
Contents ..........................................................2
Safety Warning....................................................3
Part names and functions....................................5
Front ...............................................................5
Terminal Interface............................................5
Remote Control...............................................6
Remote Control Instruction..............................8
External Computer and Touch
Connection......................................................9
Connection and Setting.......................................9
Audio and Video Equipment..........................10
Audio and Video Equipment..........................10
USB Connection............................................10
RS232 Connection........................................10
LAN Connection............................................11
TF Card.........................................................11
Menu Operation................................................12
Menu Operation............................................12
Setting Menu.................................................12
Android Function...............................................15

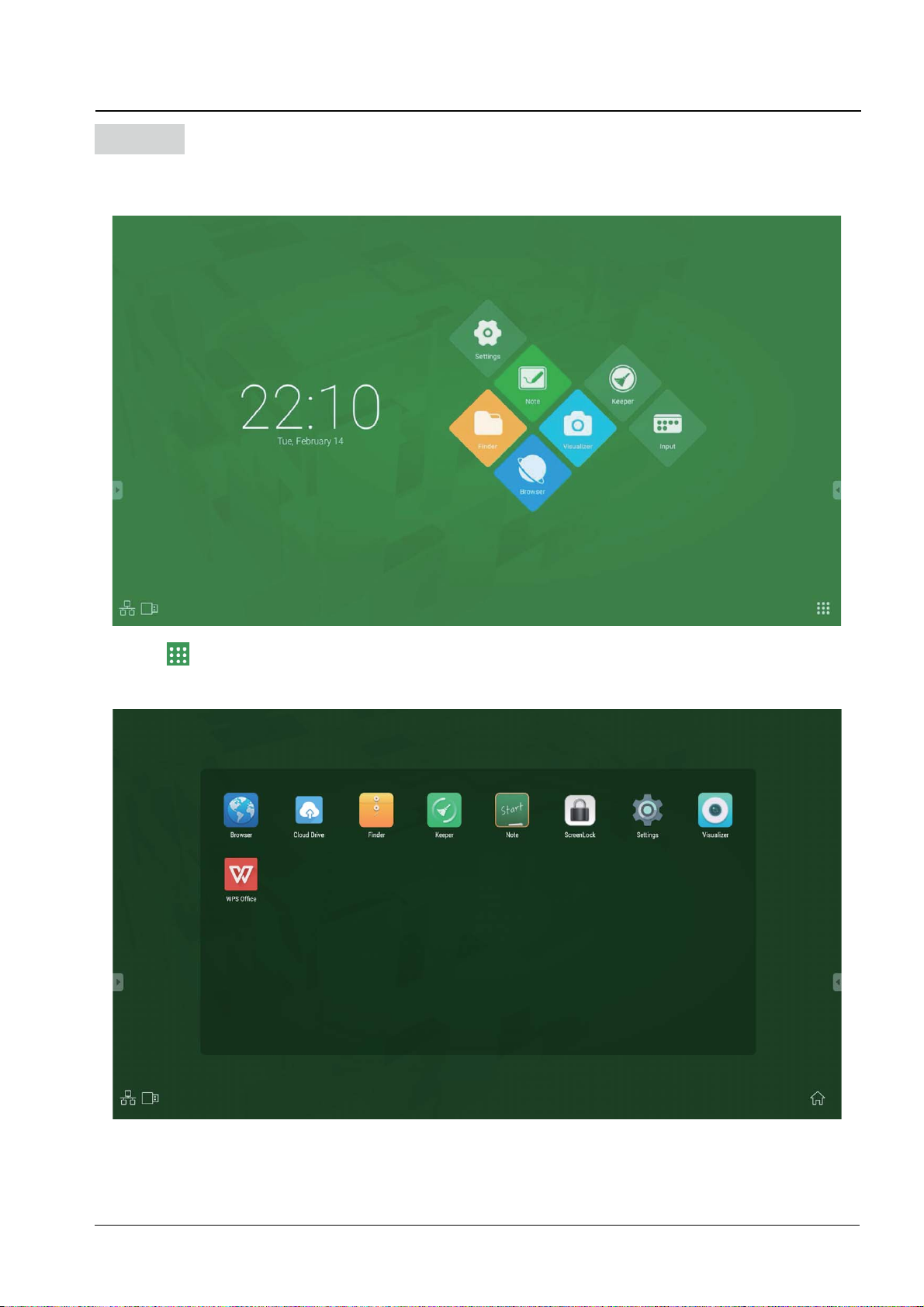

Home.............................................................15
Side Toolbar...................................................16
Note...............................................................22
Finder............................................................28
Visualizer.......................................................31
Keeper...........................................................31

3
Safety Warning
Safety Warning
Before operating, please read this manual thoroughly, and keep it for future reference.
Image shown in this manual is indicative only. There may be differences between the
pictures and the actual product, please prevail in kind.
Placement
Do not put heavy objects on top of the unit.
'RQRWSXWWKHXQLWQHDUDSSOLDQFHVWKDWJHQHUDWHPDJQHWLF¿HOGV
Do not expose the unit to direct sunlight and other sources of heat.
Do not place the unit on an unstable cart, stand, tripod, bracket, table, or shelf.
Do not put any liquid near or on the unit, make sure do not spill any liquid inside the unit.
Power Supply
Please keep power cable from physical or mechanical damage.
Please check and ensure AC source is connected with the ground.
This power cable comes with the device exclusively for this device only.
Please unplug power supply when the weather is thunder-storm or lightning.
Check that the unit’s operating voltage is identical with your local power supply.
Please use the original power cable from the accessory bag, don't modify or lengthen it.
Please unplug power supply, when there is nobody home or the unit will be in idle for a
long time.
LED Screen
Unplug the power cable before cleaning.
Clean the screen with a soft, dustless and dry cloth.
For deep clean, please contact an authorized service center.
Never use water or the spray type detergent to clean the unit.
Never use any other hard or sharp object to replace the touch pen.
Better for the panel lifetime and the display performance, do not display high brightness
image for long time.
Temperature
Normal operating temperature is 0 ~ 40ɗ.
Do not place the unit near or over a radiator or a heater.
If your unit is suddenly moved from a cold to a warm place, please unplug the power cable
and do not turn it on at least 2 hours, making sure the moisture inside the unit is all
evaporated.
Humidity
Do not expose the unit in rain, or place in high humidity area.
Please make sure indoor environment is dry and cool. Normal operating humidity is
10%~90%RH.
Ventilation
Please put the unit in a well-ventilated place, so the heating can be released easily.
Ensure that the unit has enough space for ventilation. Space requirement: left, right and
back >10cm, top> 20cm.
Earphone
Before using earphone, please turn down the volume in advance.
Using the earphone to listen loud sound for a long time might affect the hearing.

4
Safety Guide
Standby
It will enter standby mode but not turn off the unit after press the standby key.
Battery
Please make sure the battery gets proper disposal or recycle after using.
3OHDVHNHHSWKHEDWWHU\DZD\IURPNLGVDQGGRQWWKURZWKHEDWWHU\LQWR¿UH
Notes for Cleaning
There are vents on back cover, please do not use any liquid or spray directly during
cleaning.
Power Switch Status Signs
“I” means power on, “O” means power off.
Notes for Maintenance
7KLVPDFKLQHFDQRQO\EHPDLQWDLQHGE\FHUWL¿HGHQJLQHHU

5

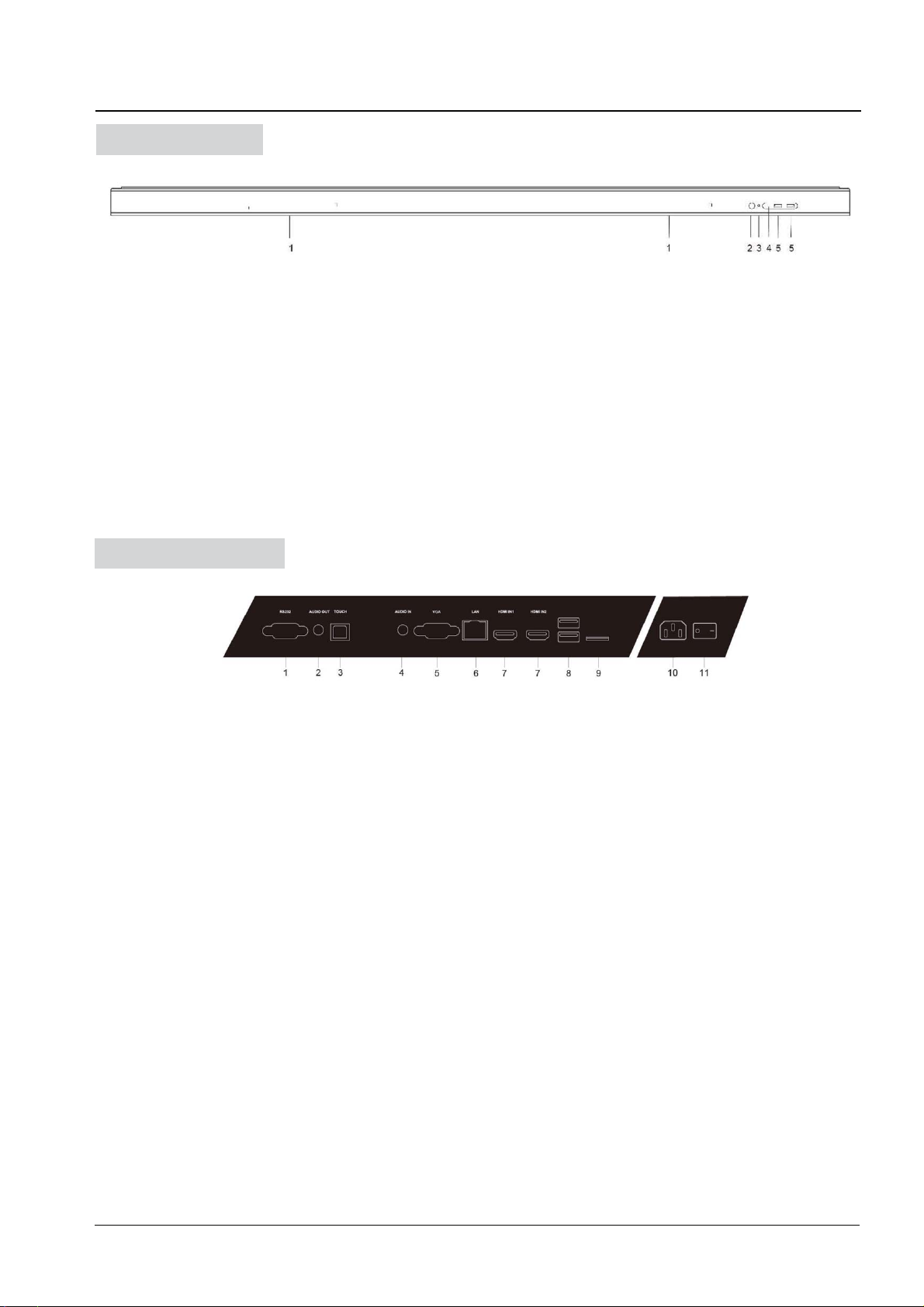

Part names and functions
Front
1. Magnetic zone
Area for placing the absorptive magnetic pen.
2. POWER
Tap to enter energy-saving,press at least 2
seconds to enter standby mode.
3. Power Indicator Light
Open the power supply when the power
indicator light is Always is normal
4. Remote control receiver
Receiving remote control signal.
*Do not place any objects to block remote
control receiving
5. USB
USB interface of Android & PC system.
Terminal Interface
1. RS232
Serial interface, used for mutual transfer of
data between devices.
2. AUDIO OUT
Audio output to the external speaker.
3. TOUCH
Touch signal output to the external
computer.
4. AUDIO IN
External computer audio input.
5. VGA
External computer image input.
6. LAN
Connect RJ45 terminals.
7. HDMI IN
+LJKGH¿QLWLRQPXOWLPHGLDLQWHUIDFHVLJQDO
input, connect to devices with HDMI
output interface (personal computer with
HDMI output, set-top box, or another video
device).
8. USB
Connect USB devices such as mobile hard
disk, U disk, USB keyboard and mouse,
USB drives, etc.
9. TF Card
For extended memory
10. AC IN
AC power input, connecting AC power
supply.
11. AC SWITCH
To open or shut downAC power supply. “I”
means power on, “O” means power off.

6
Part names and functions

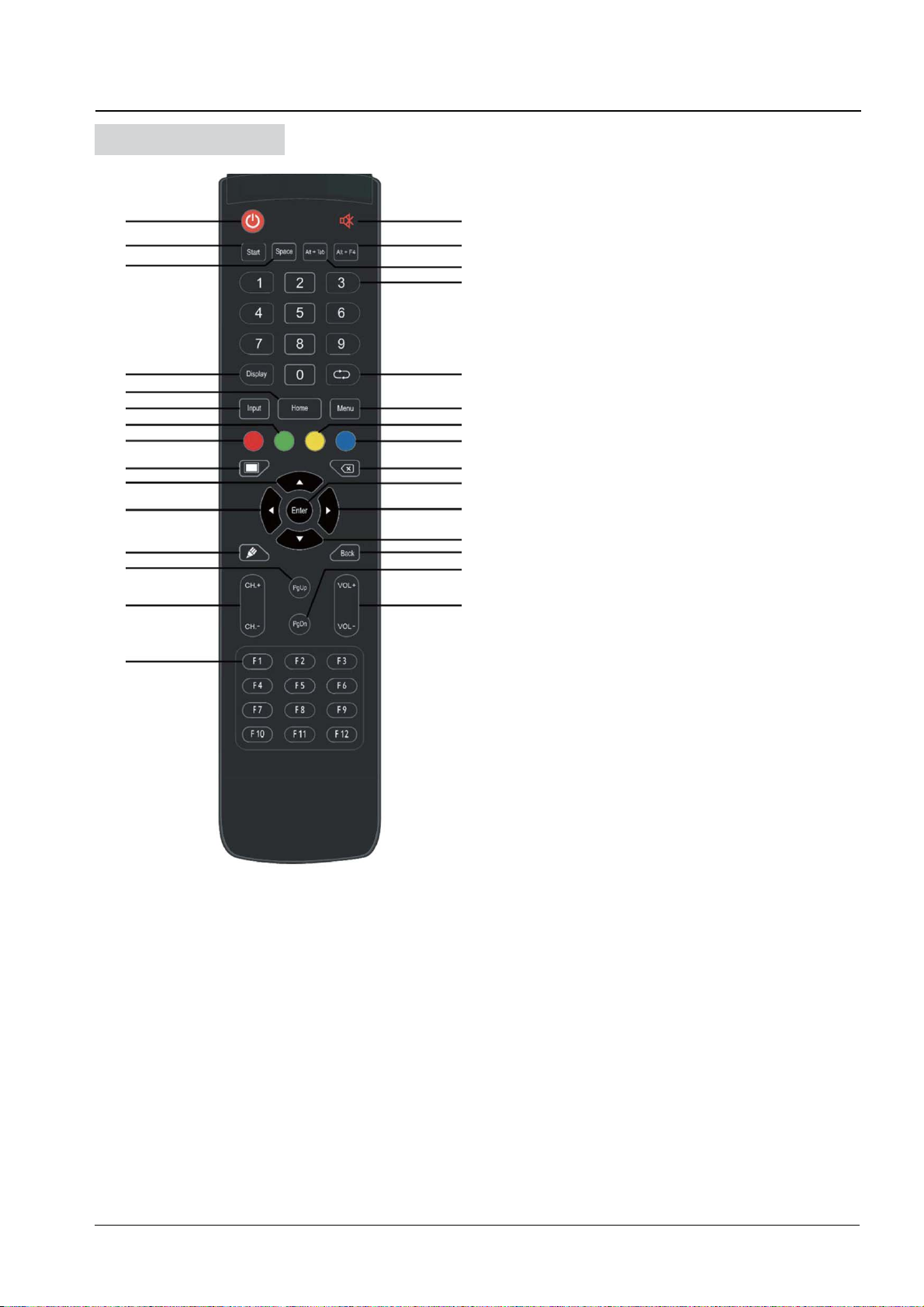

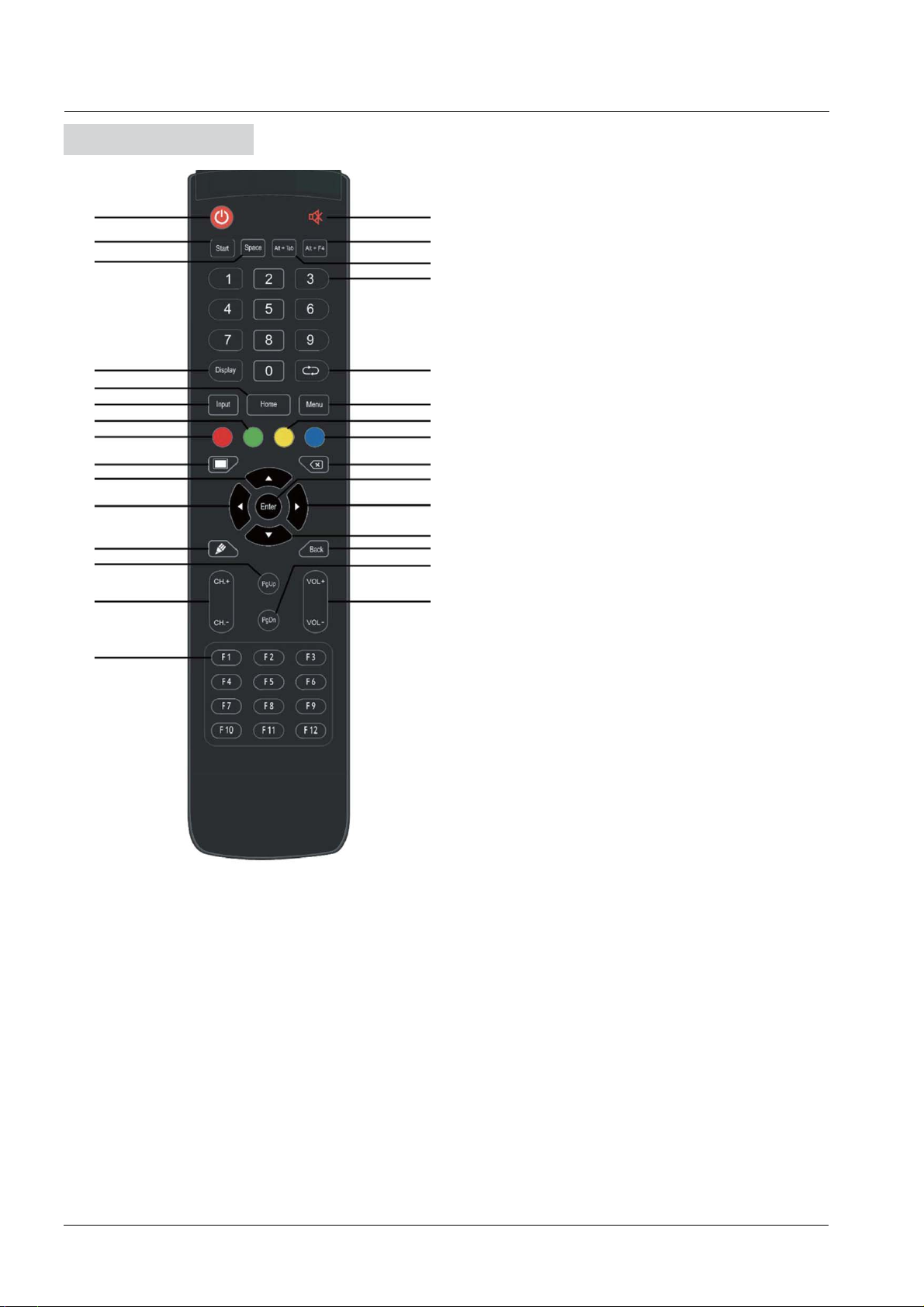

Remote Control
1
3
4
8
11 12
15
16
18
23
21
22
25
27
29
10
14
13
17
19
20
24
26
28
30
2
6
5
7
9
1. POWER
Power on/off.
2. Mute
Mute switch.
3. Start
Built-in computer Windows key.
4. Space
Built-in computer Space key.
5. Alt+Tab
Built-in computer space bar Alt + Tab
6. Alt+F4
Built-in computer program window close
button
7. Numeric keys
Numeric input keys.
8. Display
Display channel information
9. (NONE)
10. Input
Input signal source selection key, choose
different sources according to need.
11. Home
Android system main screen button
12. Menu
Setting menu button, press this button to
pop up.
13. Red
Lock and unlock Buttons and Touch
function
14. Green
Lock and unlock Buttons function
15. Yellow
Lock and unlock Touch function
16. Blue
Freeze and zoom
17. Blank
One key for blank screen
18. Backspace
Backspace key
19. S
Direction key, press this button for
upwards selection

7
Part names and functions
Remote Control
1
3
4
8
11 12
15
16
18
23
21
22
25
27
29
10
14
13
17
19
20
24
26
28
30
2
6
5
7
9
20. W
Direction key, press this button for left
selection
21. X
Direction key, press this button for right
selection
22. ź
Direction key, press this button for
downwards selection
23. Enter
&RQ¿UPDWLRQNH\SUHVVLWWRFRQ¿UP
selection state
*NOTE: All computer - related function keys are not available without a built-in computer.
24. Note
Quickly start Note software.
25. Back
Return key.
26. PgUp
Built-in computer page (previous page).
27. PgDn
Built-in computer page (next page).
28. (NONE)
29. VOL+/VOL-
Volume switch key.
30. F1-F12
Built-in computer F1 - F12 function keys.

8
Remote Control Instruction
Install Batteries
1) Open back cover of battery component on the back of remote control.
2) Install AAA type battery according to the corresponding electrode, make sure battery positive
and negative pole are correct ("+"to"+", "-" to "-"), please do not mix using old and new batteries.
3) After battery is installed, close the back cover of battery components, and make the following
clip buckled to the bottom.
Range of remote control
Remote control can work normally within the range of 8 meters distance, 30 degrees left and right
from the remote-control receiver; in order to protect environment, please dispose waste battery into
recycling box
Part names and functions
To ensure safe operation, please observe the following precautions:
Ɣ8VHWZR$$$RU/5W\SHDONDOLQHEDWWHULHV
Ɣ$OZD\VUHSODFHEDWWHULHVLQVHWV
Ɣ'RQRWXVHDQHZEDWWHU\ZLWKDXVHGEDWWHU\
Ɣ$YRLGFRQWDFWZLWKZDWHURUOLTXLGPDWWHU
Ɣ'RQRWH[SRVHWKHUHPRWHFRQWUROWRPRLVWXUHRUKHDW
Ɣ'RQRWGURSWKHUHPRWHFRQWURO
Ɣ,IWKHEDWWHU\KDVOHDNHGLQWKHUHPRWHFRQWUROFDUHIXOO\ZLSHWKHFDVHFOHDQDQG
install new batteries.
Ɣ5LVNRIH[SORVLRQLIWZREDWWHULHVDUHUHSODFHGE\DQLQFRUUHFWW\SH
Ɣ'LVSRVHRIXVHGEDWWHULHVDFFRUGLQJWRWKHLQVWUXFWLRQVRQWKHEDWWHU\RUORFDO
regulations or guides.

9
1) Use VGA cable to connect to VGA output port of external computer, and meanwhile use
headphone audio cable to connect to external computer audio output interface.
(Or use HDMI cable to connect to HDMI output port of external computer).
2) Use USB cable to connect to external computer USB port.
3) After cable connection, plug in power cord, and switch power on.
4) Start external computer.
5) Press POWER key, and the equipment is power on.
6) Press the INPUT key to switch to VGA/HDMI channel
5HFRPPHQGHGFRPSXWHUFRQ¿JXUDWLRQ
1GB Available Hard Drive
2.0GHz Processor, 1GB Memory
More than 256 color display cards
VGA OUT / HDMI OUT, Audio-OUT, USB Interface
Support Resolution 800*600,1024*768,1920*1080,3840*2160
* For the safety of you and the machine, please do not connect any power plug before
connection.
Connection and Setting

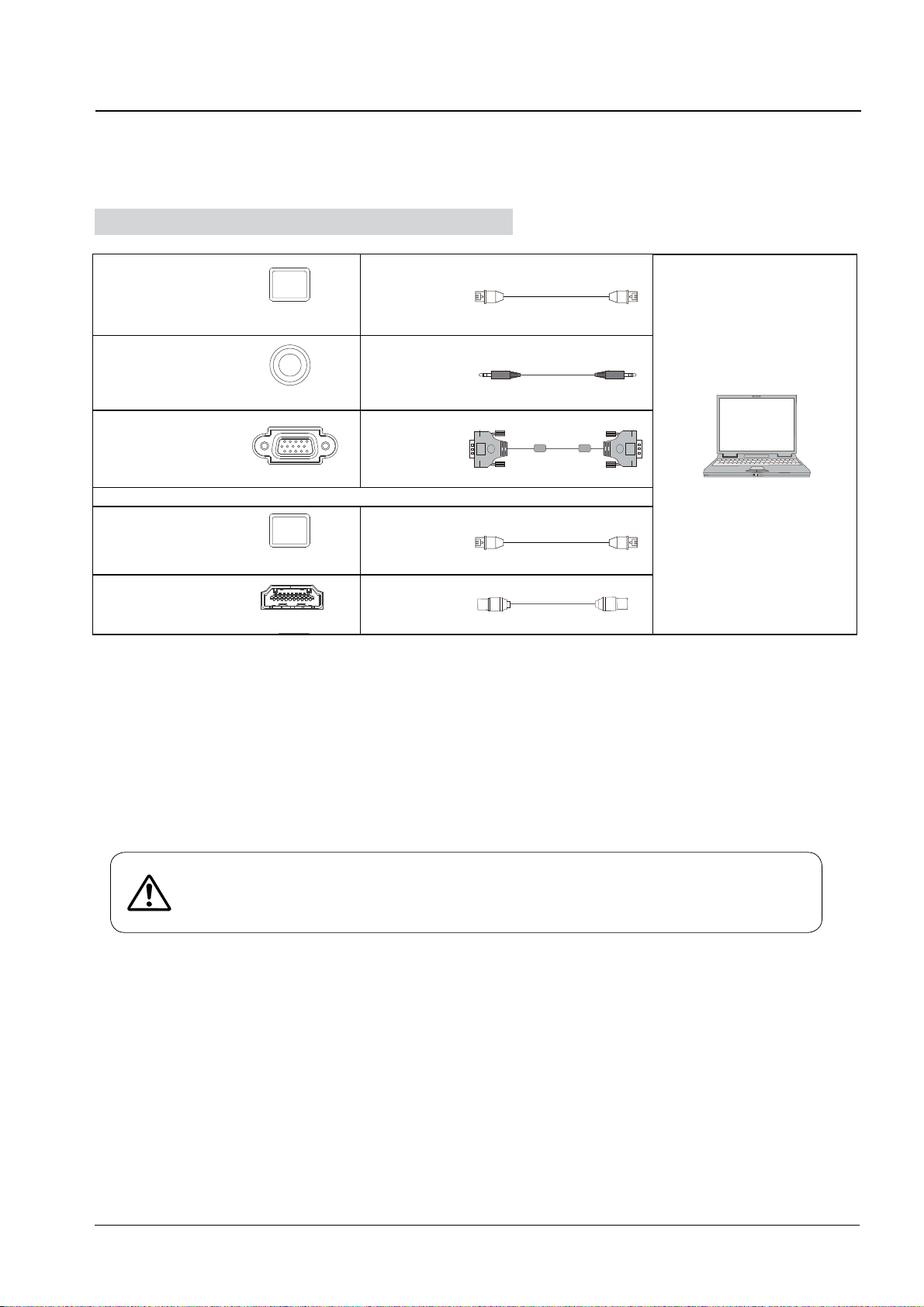

External Computer and Touch Connection
- External computer input, equipment's best resolution is 3840*2160.
- External computer can also connect to the equipment through the HDMI cable.
TOUCH
Touch
USB cable
Computer
AUDIO IN
AUDIO IN
Audio cable
VGA
VGA
VGAcable
or
TOUCH
Touch
USB cable
HDMI
HDMI
HDMI cable

10
Connection and Setting

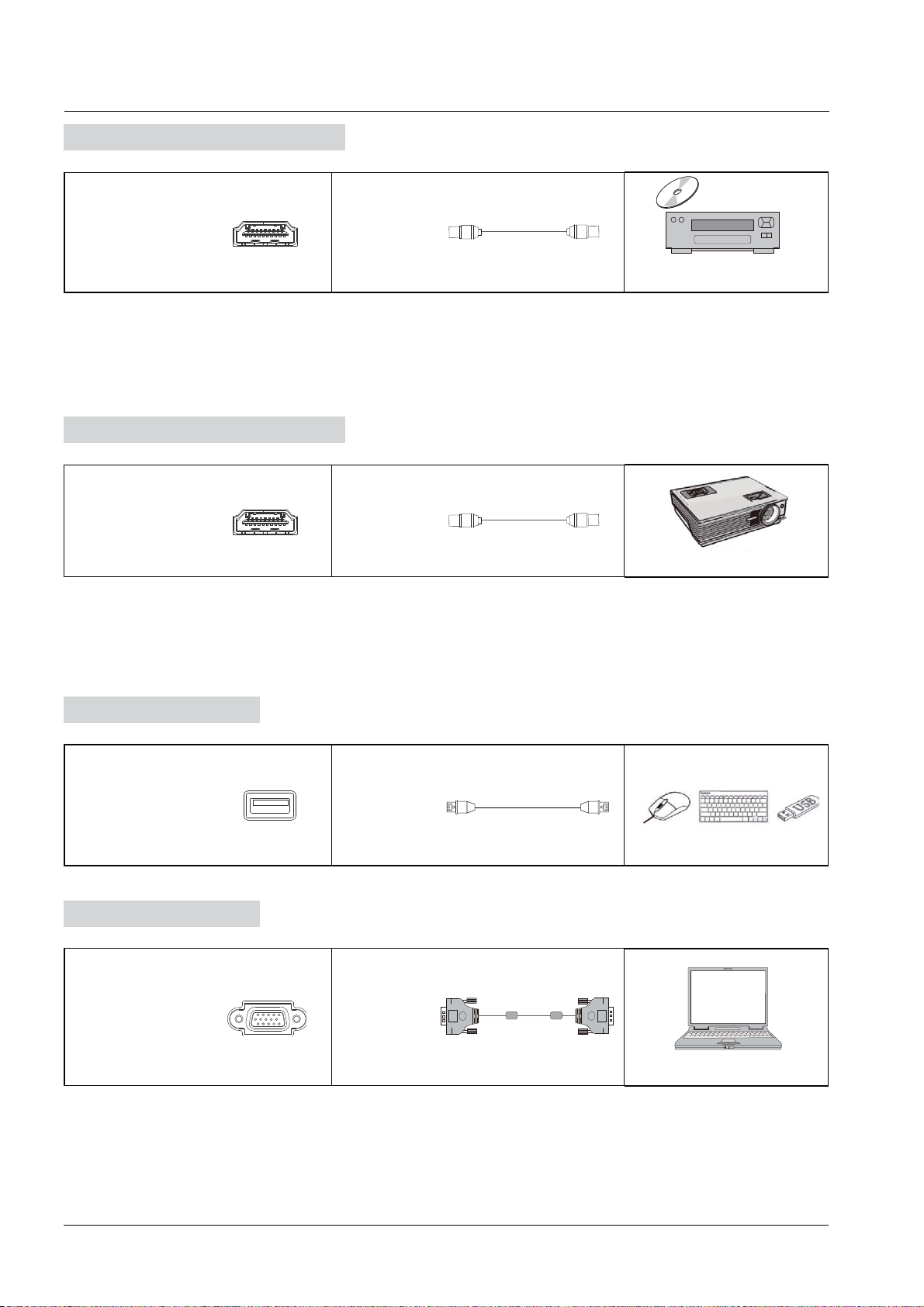

1) Use HDMI cable to connect audio and video equipment with HDMI output.
2) After cable connection, plug in power cord, and switch power on.
3) Press POWER to turn equipment on.
4) Press INPUT key to switch to HDMI port.
1) Use HDMI cable to connect audio and video equipment with HDMI input.
2) After cable connection, plug in power cord, and switch power on
3) Press POWER to turn equipment on
After using serial port cable to connect central control equipment and machine, certain function
of the machine can be controlled via central control equipment, such as: machine ON/OFF, and
adjustment of sound volume, etc.
Audio and Video Equipment
Audio and Video Equipment
RS232 Connection
HDMI HDMI cable
DVD Disc Player
HDMI HDMI cable
Projector
RS232 Serial Port
cable
Projector
USB Connection
USB USB cable
Internet

11
Connection and Setting

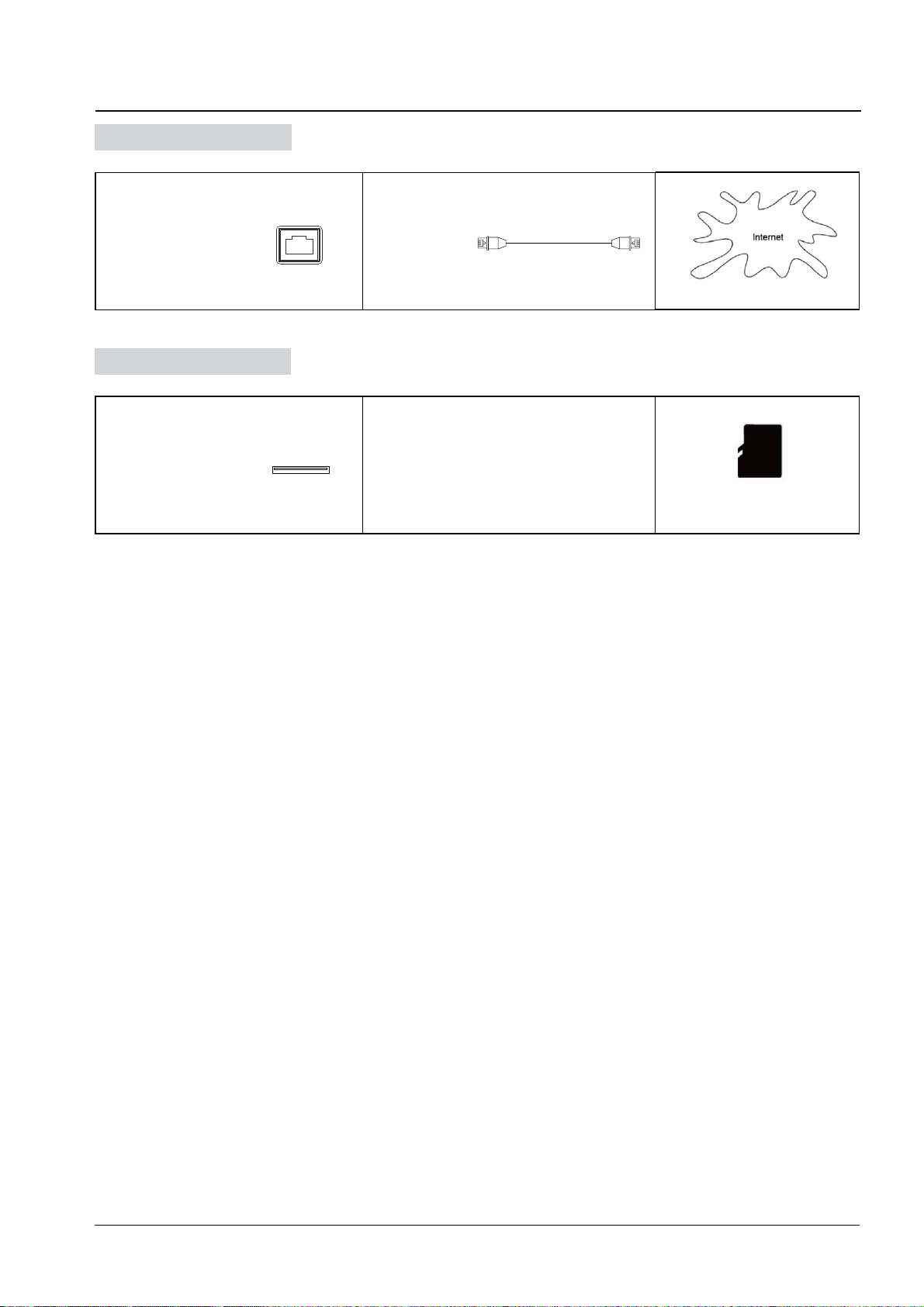

LAN Connection
TF Card
LAN Nwtwork cable
Internet
g
TF Card

12
Menu Operation
Menu Operation
Setting Menu
Touch Menu Operation
Call up Method
Take middle point position on the bottom of display screen as starting point, use touch pen
to drag towards screen center position to call up touch menu, as shown below.
I
- General Setting
Note: PC channel will only display when the equipment connects the built-in computer.
Ɣ3UHVV,1387EXWWRQRQUHPRWHFRQWURORUYLDWRXFK$PHWKRGWRFDOOXS*HQHUDO6HWWLQJPHQX
Ɣ3UHVVŸźŻŹEXWWRQRQUHPRWHFRQWUROWRVHOHFWWKHFKDQQHO\RXQHHG
Ɣ3UHVVWKH(QWHUEXWWRQRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRFRQ¿UPVHOHFWHGLQSXW
channel.
Ɣ3UHVVUHWXUQNH\RQUHPRWHFRQWURORUFOLFNEODQNDUHDRXWVLGHPHQXZLWKWRXFKSHQWRH[LWPHQX

13
Menu Operation
- Detail Setting Menu
<Audio>
<Screen>
Press Menu on remote control or click the icon on General Setting menu with touch pen to
call up detail setting menu. Detail setting menu includes Audio, Screen, Display and Adjust.
Ɣ3UHVVŹEXWWRQRQUHPRWHFRQWUROWRVHOHFW$XGLRVHWWLQJPHQX
Ɣ3UHVVŸźŻŹEXWWRQRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRVHOHFWWKHRSWLRQ
Ɣ3UHVV(QWHURQUHPRWHFRQWUROWRHQWHUDGMXVWPHQWPRGHDQGSUHVVŻŹEXWWRQRUGLUHFWO\
click with touch pen to adjust each option. Press Enter/Back to exit adjustment.
Ɣ3UHVV0XWHRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRRSHQRUFORVHPXWHVWDWH
Ɣ3UHVV%DFNRQUHPRWHFRQWURORUFOLFNEODQNDUHDRXWVLGHPHQXZLWKWRXFKSHQWRH[LWPHQX
Ɣ3UHVVŹEXWWRQRQUHPRWHFRQWUROWRVHOHFW6FUHHQVHWWLQJPHQX
Ɣ3UHVVŸźŻŹRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRVHOHFWWKHRSWLRQ
Ɣ3UHVV(QWHURQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRHQWHUWKHVHOHFWHGPRGH
Ɣ3UHVV%DFNRQUHPRWHFRQWURORUFOLFNEODQNDUHDRXWVLGHPHQXZLWKWRXFKSHQWRH[LWPHQX

14
Menu Operation
<Display>
<Adjust>
Ɣ3UHVVŹEXWWRQRQUHPRWHFRQWUROWRVHOHFW'LVSOD\VHWWLQJPHQX
Ɣ3UHVVŸźŻŹEXWWRQRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRVHOHFWWKHRSWLRQ
Ɣ3UHVV(QWHURQUHPRWHFRQWUROWRHQWHUDGMXVWPHQWPRGHDQGSUHVVEXWWRQŻŹRUGLUHFWO\
click with touch pen to adjust each option. Press Enter/Back to exit adjustment.
Ɣ3UHVV%DFNRQUHPRWHFRQWURORUFOLFNEODQNDUHDRXWVLGHPHQXZLWKWRXFKSHQWRH[LWPHQX
Ɣ3UHVVŹEXWWRQRQUHPRWHFRQWUROWRVHOHFW$GMXVWVHWWLQJPHQX
Ɣ3UHVVŸźŻŹEXWWRQRQUHPRWHFRQWURORUGLUHFWO\FOLFNZLWKWRXFKSHQWRVHOHFWWKHRSWLRQ
Ɣ3UHVV(QWHURQUHPRWHFRQWUROWRHQWHUDGMXVWPHQWPRGHDQGSUHVVEXWWRQŻŹRUGLUHFWO\
click with touch pen to adjust each option. Press Enter/Back to exit adjustment. You can also
click the “Auto” icon to adjust automatically.
Ɣ3UHVV%DFNRQUHPRWHFRQWURORUFOLFNEODQNDUHDRXWVLGHPHQXZLWKWRXFKSHQWRH[LWPHQX

15
Click the button on the right bottom to access the apps, as shown below:
OS is an application operating system for intelligent tablet computers. You can instantly access the
Launcher interface by opening the machine, as shown below:
Android Function
Home

16
Side Toolbar
Android Function
Click the button with or on Side Toolbar of both sides to call it out. For example, below
picture is shown how to call out the Side Toolbar on the right side. The functions of the Side
Toolbar include the Back key, Home key, recent tasks, quick whiteboard, annotation tools, screen
freezing, small tools and touch menu.
A valid path can be set for the Side Toolbar on the Settings-Other Settings.
.
1
2
3
4
5
6
7
8
1. Back
To return to the previous page.
2. Home
To return to the desktop.
3. Recent Tasks
To pop out the window and display the recently operated tasks.
You can delete all the progresses by one key or delete progresses by dragging left or right.
4. Quick Note
Click to open Note. You can write, erase, select objects, etc. For details, please see “3 Note”.
5. Annotation Tools
Show in the screen left, or in the right. The annotation toolbar as below:
- Annotation : After accessing this mode, you access the annotation mode completely, and you
can directly write and note on the interface. You can switch the pen color by
clicking it.
- Clean : Click to clean the whole screen.
- Screenshot saving : Click to save the current screenshot.
- Exit : Click to exit the annotation mode.

17
Android Function

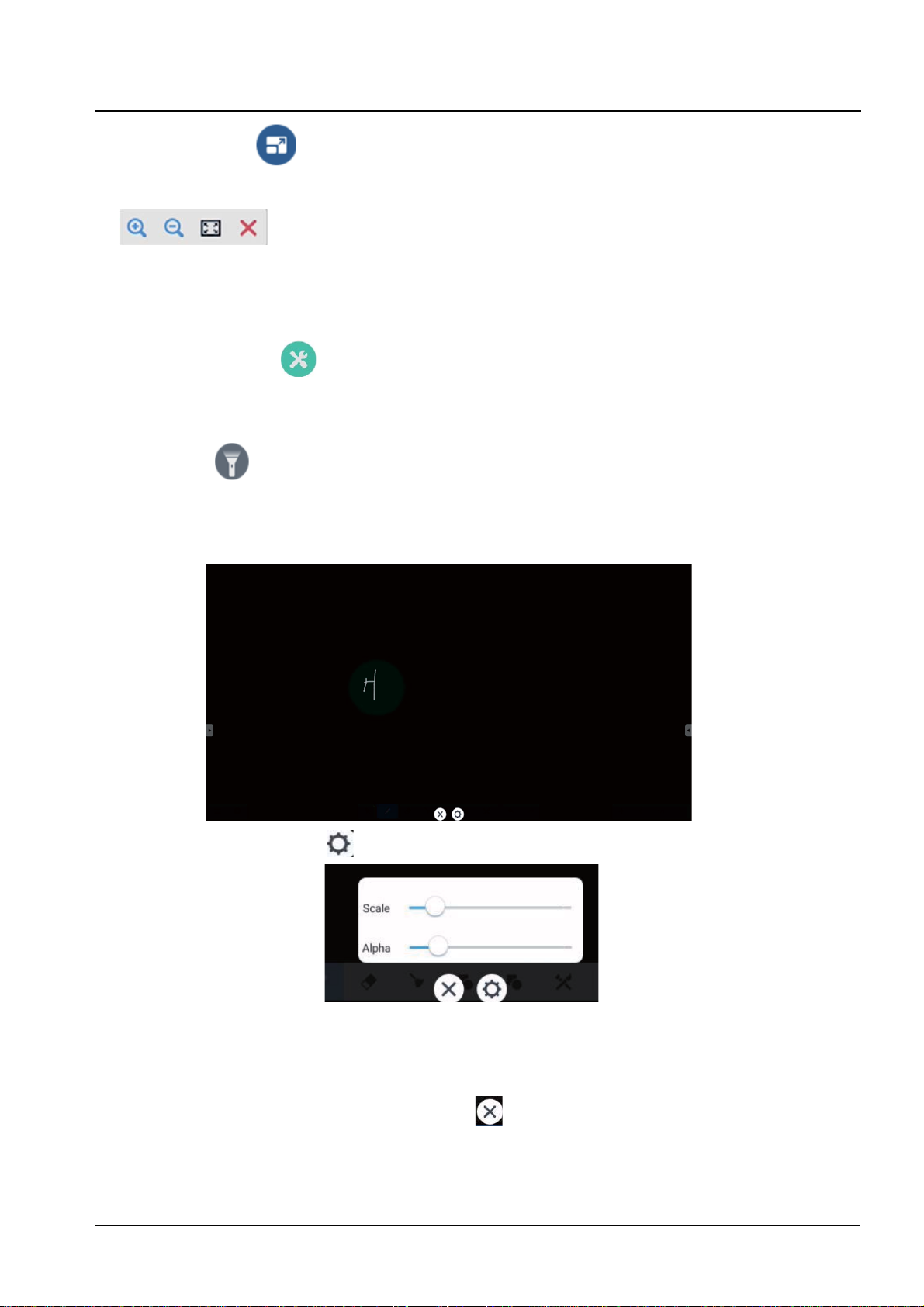

6. Screen Freezing
To pop out the screen freezing tools. You can freeze the screen, and at the same time
zoom in or out the current screen.
- Zoom in click : to zoom in the current screen.
- Zoom out Click: to zoom out the current screen.
- Return Click : to return to the original size of the screen.
- Exit : to exit the screen freezing.
8. More Tool Function
To pop out the tool choice box, including spotlight, count down, stop watch, and air
class.
- Sport light
To open the spotlight, as shown in right picture. The spotlight can be used to make
audience focus their attention on the location you need to emphasize.
Drag in the black area to move the location emphasized by the spotlight.
Setting. Click to pop out the window, as shown below:
> Scale: Drag the slider to adjust the range of the spotlight. You also can adjust
WKHUDQJHRIWKHVSRWOLJKWE\WZR¿QJHUV
> Alpha: Drag the slider to set the transparency of the part sheltered by the
spotlight.
Turn off the spotlight. Click to turn off the spotlight.

18
Android Function
-Count Down
-Stop Watch
to start the stop watch. Such functions as stop
watch, pausing the stop watch, continuing the
stop watch, lap , and reset are included. When
you touch the other area and the Stop watch
will move to the bottom of the window. Click X
button to exit the stop watch.
- AirClass
to enter the Air class. The APP will show as above.
> Scan QR code
Students can just scan the QR code to join the class with their phone. Besides, they can
type the URL in their browser to join the class as well.
Please make sure their phones are on the same LAN with the IFP, otherwise they will not
succeed in joining the class.
To open CountDown, as shown in below picture.
User can set time to count down.

19
Android Function
> How to connect with the IFP?
Click “Settings > Wirekess hotspot”and make sure that the mobil device are on the same
/$1ZLWK,)3:KHQ¿QLVHGVHWWLQJSOHDVHXVHWKHPRELOGHYLFHWRVFDQWKH45FRGHRQWKH
screen.
> Enter the class
After most of students joined the class, you can click the “ENTER THE CLASS” button to
enter the class. Then button panel as above will show.
(1) Voter : Click the button, and the answer bar appears on the lowest corner of the
teaching interface. Click “single choice” or “multiple choice” to select the question
type.

20
Android Function
(1-1) Single Choice
As default, “Single choice” button will be checked. In single choice mode, students can
only submit a single answer for the question.
(1-2) Multiple Choices
When “Multiple choice” button checked, students can submit more then a single
answer for the question.
(1-3) Begin
Click“BEGIN”to start answering question. After students answer the question, their
names turn blue. Clicking a name item, name of it will be shown in a pop up window.
Until “FINISH” button clicked, students can submit their answer again and again. But
ZKHQWKHTXHVWLRQ¿QLVKHGRQO\WKH¿QDOVXEPLVVLRQZRXOGEHDFFHSWHG
(1-4) Finish
&OLFN)LQLVKWR¿QLVKDQVZHULQJTXHVWLRQVWKHQ\RXFDQDFFHVVWKHDQVZHUVVWDWLVWLFV
page with full screen.
(1-5) Choose Right Answer(s)
Choose the right answer(s), and calculate the accuracy. And the bar of wrong
answer(s) will be marked red.
Clicking the bar of any answers, the names of whom voted for the answer will be
shown in a pop up window.
(1-6) Explain
Click the explanation button on the answers statistics to access the teaching
page. Users can view the question explanation while checking the answers situation.
Click the small “Answers statistics” window for back to the full screen “Answers
statistics”
(1-7) Exit
Click the to on full screen “Answers statistics” window of small “Answers statistics”
window to exit the voter.
