Jelly Mini Boy
Instruction manual
Jelly Mini Boy - Digital Airmix
Hotline:
In case of malfunction please call our Hotline-No.:
Phone: [phone] / 96 37 38
Fax: [phone] / 96 37 35
Before starting operation carefully read
and adhere to this instruction manual
and the safety advice!
Edition: 12.08
Article-No.: 3246

2Contents
Jelly Mini Boy - Digital Airmix Edition 12.08
1. General hints........................................... 3
2. Basic safety advice ................................ 4
2.1 Obligations and liability............................. 4
2.2 Safety symbols ......................................... 4
2.2.1 General danger symbol ............................ 4
2.2.2 Attention symbol....................................... 4
2.2.3 Hint symbol............................................... 4
2.3 Designated operation ............................... 4
2.4 Improper use ............................................ 5
2.5 Informing safety measures ....................... 5
2.6 Training the personnel.............................. 5
2.7 Safety measures during
common operation.................................... 5
2.8 Danger by electric energy ........................... 5
2.9 Danger from residual energy.................... 5
2.10 Cleaning, maintenance, repair and
remedy of faults ........................................ 5
2.11 Constructional change of the machine..... 5
2.12 Cleaning the machine and disposal ......... 6
3. Description of the implement................ 7
3.1 Implement diagram................................... 7
3.2 Functional description .............................. 8
3.3 Identification of the machine................... 10
3.4 Technical data ........................................ 11
3.5 Technical features .................................. 11
3.6 General requirements on the
compressed-air source........................... 12
4. Putting into operation .......................... 13
4.1 Operation................................................ 13
4.2 The agent hose....................................... 14
4.3 Recommendations for processing
fat glazes containing chocolate .............. 14
4.4 Filling the storage tank ........................... 15
4.5 Connecting the implement to an
external compressed air source ............. 16
4.6 Switching the Implement on/off .............. 17
4.7 Setting the processing temperature ....... 18
4.8 Adjust the agent-hose's heating
temperature ............................................ 19
4.9 Setting the spraying pressure................. 20
4.10 Adjusting the agent pressure.................. 21
4.11 The spraying procedure ......................... 22
4.11.1 Adjust spray gun for rotary, flat or wide
spraying .................................................. 23
4.11.2 Setting the agent quantity....................... 23
5. Cleaning, maintenance and repair ..... 24
5.1 Cleaning - daily after having finished the
operational procedure ............................ 25
5.1.1 Cleaning the air- and agent-nozzle........ 26
5.2 Maintenance........................................... 27
5.2.1 Weekly ................................................... 27
5.3 Replacing the air filter ............................ 27
5.4 Activate the safety switch....................... 28
5.5 Storage tank cover sealing .................... 29
5.5.1 Repair the leaking seal of the
storage tank cover ................................ 29
5.5.2 Exchanging the seal of the
storage tank cover ................................ 29
5.6 Opening the implement housing ............ 30
5.7 Remedy leaking pressurised
connections ............................................ 30
5.8 Exchanging the agent-hose ................... 31
5.9 Trouble shooting .................................... 32
6. Spare part list ....................................... 34
6.1 Spray gun............................................... 34
6.2 Spare parts............................................. 36
7. Circuit diagrams................................... 38
8. Guarantee ............................................. 42
EC Conformity Declaration................................. 43

General hints 3
Jelly Mini Boy - Digital Airmix Edition 12.08
1. General hints
Identification data
Model: Jelly Mini Boy - Digital Airmix
Model-No.:
Year of construction:
Capacity:

The identification data are o
f
documentary value and may not be
changed or disguised.
Manufacturer
Name of company: boyens backservice GmbH
Street: Gildestraße 76-80
Town: D-49479 Ibbenbüren
Phone: [phone] / 96 37-0
Fax: [phone] / 96 37-16
http:// www.boyensbackservice.de
e-mail: [email protected]
Spare parts ordering and after-sales service
Address as above
Phone: [phone] / 96 37-38
Fax: [phone] / 96 37-35
Documentary data
Documentary number of the instruction manual:
Version: Jelly Mini Boy - Digital Airmix
Edition: 12.08
Purpose of this document
This instruction manual acquaints the operator of a
Jelly Mini Boy with
 the way of function,
 the operation,
 the safety notes
 and the maintenance.
Operator personnel
This implement may only be operated, maintained
and repaired by persons, who are acquainted with
this and who have been informed about any
associated dangers.
Storing the instruction manual
Always keep this instruction manual with the
machine!
The instruction manual must always be at hand!
Transport and take-over
Only transport the Jelly Mini Boy standing upright.
Protect the implement against moving to and fro on
the loading area.
The transport and storage temperature must be at
least +2°C and at most +50°C. The maximum
atmospheric humidity during storage may not exceed
90%.
Check the delivery immediately on receipt with the
aid of the shipping documents for
 completeness and
 possible damage.
In case of damage in transit or loss, immediately
arrange for the damage to be recorded by the
forwarding agent for the purpose of asserting
compensation claims.
Copyright © 2008 by
boyens backservice GmbH
Gildestraße 76-80
D-49479 Ibbenbüren
Germany
All rights are reserved

4Basic safety advice
Jelly Mini Boy - Digital Airmix Edition 12.08
2. Basic safety advice
This instruction manual contains the most important
information for a safety conscious operation of this
implement.
2.1 Obligations and liability
Observe the information contained in the instruction
manual: A basic requirement for a safety conscious
handling and a trouble-free operation of this
implement is the knowledge of the basic safety hints
and safety advice. This instruction manual, especially
the safety hints, must be observed by all persons who
operate the implement. In addition, the rules and
regulations for the prevention of accidents applicable
at the place of application have to be observed.
Dangers when operating the implement:
The Jelly Mini Boy has been designed according to
the state of art and the approved safety regulations.
Nevertheless dangers for the health and life of the
user or third parties or impairments to the implement
or other material assets may arise during its use.
The implement may only be used
 for the intended use
 in a perfect condition as far as safety is
concerned.
Faults which might affect safety must be remedied
immediately.
Guarantee and liability:
In principle, our "General conditions of sale and
delivery" are applicable". These have been available
to the user at the latest since conclusion of the
contract. Warranty and liability claims for personal
injury or damage to property shall be excluded if they
result from one or several of the following reasons:
 use contrary to the intended use of the implement,
 incorrect assembly, putting into operation,
operation and maintenance of the implement,
 use of the implement with faulty safety equipment
or improperly fitted or inoperative safety devices
and guards,
 non-adherence to the information in the instruction
manual with regard to transport, storage,
assembly, putting into operation, operation,
maintenance and setting up the implement,
 arbitrary structural changes to the implement,
 inadequate monitoring of implement wearing
parts,
 inadequately executed repair work,
 unforeseen calamities caused by the influence of
foreign objects and force majeure.
2.2 Safety symbols
In the instruction manual the following terms and
signs for dangers are used:
2.2.1 General danger symbol
This symbol indicates a direct danger for life and
health of persons. Not adhering to these hints will
cause severe danger for health up to injuries with
high danger to life.
2.2.2 Attention symbol

This symbol gives important hints for the appropriate
handling of the implement. Not adhering to these
hints may cause faults on the implement itself or in its
environment.
2.2.3 Hint symbol

This symbol offers you hints for operation and
especially useful information. They will help you to
make best use of all functions on your implement.
2.3 Designated operation
The implement is exclusively intended for ordinary
use in baking factories for the refinement of bakery
products with any material that can be sprayed only
when heated. It is possible to spray heated fat glazes,
aspic, butter and special types of jelly. Spraying of
other agents, apart from air and water to clean the
implement, requires the prior explicit written
permission of Messrs. boyens backservice GmbH.
Any use beyond the one stipulated above shall be
considered use contrary to the intended use. The
manufacturer does not accept any liability for
personal injuries and damage to property resulting
from this. The operator himself carries the full risk for
this.
Intended use also means:
 observing all hints in the instruction manual and
 adhering to the inspection and maintenance work.

Basic safety advice 5
Jelly Mini Boy - Digital Airmix Edition 12.08
2.4 Improper use
Using the implement for other purposes than
stipulated above is prohibited. In case of improper
use, danger for human beings and animals may
result. Such improper using includes, e.g.:
 heating or spraying of, e.g. acids and solvent
agents or
 other liquids, especially inflammable ones.
2.5 Informing safety measures
Always keep the instruction manual on the
implement. In addition make available and observe
the generally and locally applicable accident
prevention and environmental protection advice.
Further more adhere to the general health- and
labour medical regulations and hygienic precautions.
Keep all safety- and danger hints on the implement
readable and clean and exchange if necessary.
2.6 Training the personnel
Only trained and advised personnel may operate this
implement. The responsibility of the personnel must
be clearly determined for operating, conversion and
maintenance. Semi-skilled personnel may only
operate the implement under supervision of an
expert.
2.7 Safety measures during common
operation
Only operate the implement with all guards fully
functioning. Check the implement for externally
noticeable damage at least once a day.
Never leave your implement unattended when the
implement is connected to the power supply.
During the spraying interruptions protect the spray
gun.
Never pull the implement on the power supply cable
or the material supply hose. Never pull the plug by
jerks on the cable off its plug-connection. Protect the
electric power supply cable and the agent hose from
heat and sharp edges. Only use a faultless electric
power supply cable.
Only spray aiming at the product, never aiming at
human beings or animals.
Keep children, animals and other persons away from
the operation area of the implement - always ensure
a sufficient clearance.
2.8 Danger by electric energy
Operations on the electric supply may only be
executed by a skilled electrician. Check the electric
equipment of your implement at regular intervals.
Immediately remove loose connections and scorched
cables.
2.9 Danger from residual energy
Be aware of pneumatic and electric/electronic
residual energies and take corresponding measures
when advising the operator personnel. Detailed hints
will be given once more in the individual chapters of
this instruction manual.
2.10 Cleaning, maintenance, repair and
remedy of faults
Carry out the prescribed cleaning-, maintenance and
monitoring work right in time. Prior to all
maintenance-, monitoring- and repair work
 pull the electric net work plug off the socket.
 actuate the spray gun, and thus deflate the
residual air pressure in the system.
 when disposing condensate, observe the
prescriptions of the water resources law.
Check prior slackened bolted connections for firm
seating. After having finished maintenance work,
check the guards for function.
2.11 Constructional change of the
machine
Never change anything on the implement, do not add
anything to the implement and do not convert the
implement without approval of the manufacturer.
All conversions require the written approval of
Messrs. boyens backservice GmbH.
Immediately exchange faulty implement parts.
Only use original spare- and wearing parts.
When using non original parts it cannot be
guaranteed that they had been designed and
manufactured in such a way that they correspond to
the operational and safety prescriptions.

6Basic safety advice
Jelly Mini Boy - Digital Airmix Edition 12.08
2.12 Cleaning the machine and
disposal
For cleaning only spray air and water. Spraying other
materials requires the prior explicit and written
approval of Messrs boyens backservice GmbH.
Handle and dispose of all agents and material in an
appropriate manner.
To clean the implement, only use
 a moist sponge or a moist cloth.
 never a high pressure cleaning device.

Description of the implement 7
Jelly Mini Boy - Digital Airmix Edition 12.08
3. Description of the implement
3.1 Implement diagram
(1) Storage tank cover with bleed valve
(2) Storage tank cover closure
(3) Air filter
(4) Heat box for spray gun with spray gun retainer
(5) Spray gun
(6) Compressed air hose for spraying pressure
(blue)
(7) Agent-hose (red)
(8) Implement on/off
(9) Digital temperature setting device
(10) Temperature control lamp
(11) Safety switch
(12) Compressed air connection for external
compressed air source with ball valve
(13) Adjusting screw for spraying pressure
(14) Square plug (power supply for heat box)
(15) Power connection cable
(16) Temperature setting device for agent-hose

8Description of the implement
Jelly Mini Boy - Digital Airmix Edition 12.08
3.2 Functional description
The compressed-air supported Jelly Mini Boy
Airmix is a closed compressed air system for low-fog
spraying of heated fat glazes, aspic, butter and
special types of jelly.
The Jelly Mini Boy consists of:
 the pressurised storage tank (1) the so-called
agent boiler,
 the dry running heater,
 the compressed-air supported spraying system
Airmix, consisting of the red agent-hose and the
blue compressed air-hose (2 and 3) with the spray
gun (4),
 the heat box (5) for the spray gun.
An external compressed air source creates an agent
pressure up to maximum 5 bar in the agent boiler (1).
The agent pressure is steplessly set between 0 and
5 bar with the turning knob (11) of the agent pressure
setting device inside the implement housing.
By the factory the agent pressure has been set to 4
bar.
The agent pressure presses the agent to be
processed from the agent boiler into the dry running
heater. The agent is heated in the dry running heater
to the set processing temperature.
From the dry running heater, the heat, sprayable
agent reaches the spray gun (4) via the heated red
agent-hose (2). The heating temperature for the
agent-hose is adjustable between 0.0 and 85.0°C.

The agent in the storage tank (1) is
being kept on a constant processing
temperature.
The processing temperature can be set via UP- and
DOWN-keys (5 and 6) between 25.0 and 88.0°C.
The temperature display (8) shows the actual
system-temperature in Degree Celsius.
By the factory the processing temperature has been
set to 82°C.
The Jelly Mini Boy is ready for operation when the
yellow (9) and the red signal lamp (10) goes out.

Description of the implement 9
Jelly Mini Boy - Digital Airmix Edition 12.08
Hold the spray gun at a distance of approx. 10 cm
above the product to be sprayed and pull the trigger
lever (1).
Depending on the size of the product to be sprayed,
the spray gun can be adjusted for rotary, flat or wide
spraying by means of the adjusting screw (2). The
spray pattern produced here depends on the preset
spraying pressure.
So that a symmetrical spray pattern arises, you must
individually adapt the spray pattern to agent to be
processed.
The spraying pressure is adjusted via the adjusting
screw (1). The spraying pressure may be set
between 0.5 bar and 4 bar.
The engagement depth of the agent quantity
adjusting screw (1) determines the amount of agent
sprayed by the spray gun.

10 Description of the implement
Jelly Mini Boy - Digital Airmix Edition 12.08
The heat box (1) for the spray gun keep warm the
spray gun which is replaced in the spray gun retainer.
In case of work interruptions this way prevents that
the agent will be congeal in the spray gun and clog
the agent channel.
3.3 Identification of the machine
You will find the type plate (1) on the back of the
implement. The CE mark is on the foil on the front o
f
the implement.

Description of the implement 11
Jelly Mini Boy - Digital Airmix Edition 12.08
3.4 Technical data
Power Supply: 230 V
Frequency: 50 Hz
Fuse in the feed line: 16 A
Length of power supply cable: 4 m
Heating capacity: 2,000 watt
Maximum permissible operating
pressure (PS): 5 bar
Minimum / maximum permissible
operating temperature (TS): +2°C to +88°C
Maximum humidity: 90%
Compressed air: Compressed air output 150 litres / min – 6 bar
Compressed air connection: Nominal width (NW) 7.2
Agent pressure: at least 2.5 bar, at most 5 bar
Set to maximum 4 bar at the factory
Spraying pressure: 0,5 - 5,0 bar
Pressure relief valve, integrated in
bleed valve Set to maximum 6 bar at the factory
Capacity of storage tank: 1.4 litres
Weight: 26 kg
Measurements:
Length:
Width:
Height:
485 mm
285 mm
330 mm
Length agent hose: 2.5 m
Agent-hose Silicone
Air hose Silicone
Spray gun Airmix
Transport and storing Operation
Temperature: + 2 to + 50°C + 2 to + 50°C
Humidity: maximum 90% maximum 90%
3.5 Technical features
Jelly Mini Boy Airmix:
 special dry running heater
 energy saving technique - due to a good hea
t
insulation the heat is retained for hours in case o
f
work interruptions
 heated agent-hose up to the spray gun
 spray gun with heat reflecting casing
 thermostat controlled heat adjustment
 adjustable heating temperature for the agent-hose
 adjustable spraying pressure
 low-maintenance technology
 tabletop model
 stainless special steel design
 absolutely hygienic acc. to HACCP
 simple operation
 most economic product processing
 clean working
 low-fog spraying of products
 compressed air inlet valve with non-return valve

12 Description of the implement
Jelly Mini Boy - Digital Airmix Edition 12.08
3.6 General requirements on the
compressed-air source
The compressed-air source must meet the following
features:
 Service pressure: 6 bar
 Compressed air
output: 150 litres per minute
 Compressed air
quality: free from oil and food safe

It is imperative that you use only clean,
dry and food safe compressed air to
operate the implement. Oil lubricated
compressors, possibly with pressure
vessel with uncoated inside,
contaminate the compressed air and
consequently the agent to be sprayed.
If no filter unit (maintenance unit) to
clean the compressed air and also no ai
r
dryer is available behind the
compressor, oil and rust particles get
into the stainless steel pressure vessel
and clog the spray gun's agent nozzle.

If your present compressed-air source
does not meet the above requirements,
we recommend you use our three-stage
special filter unit.
The three-stage special filter unit consists of:
1. 1 x DV 1000. Prefilter with filter element and
automatic condensate discharge with float valve
and differential pressure manometer.
2. 1 x DF 1000. Superfine filter with filter element
and automatic condensate discharge with float
valve and differential pressure manometer. Fo
r
higher quality compressed air for pneumatic
control systems.
3. 1 x DA 1000. Activated-carbon filter with filte
r
element, stopper and closing plate. For highest
quality compressed air as inhaled air, e.g. in
luxury food processing.
4. 2 x Filter housing threaded joint. Fo
r
connection of filter units.
5. 1 x Assembly kit. For wall fastening of filter units.
1 2 3
4
55

Putting into operation 13
Jelly Mini Boy - Digital Airmix Edition 12.08
4. Putting into operation

The implement is exclusively suited fo
r
operation with alternating current (230 V
/ 50 Hz). Never try to use other sources
of current. Ensure that the voltage of the
implement and your supply voltage are
the same.

Any work on the electric supply may
only be carried out by a skilled
electrician. Check the electric equipment
of your implement at regular intervals.
Immediately remove loose connections
and scorched cables.
- Check whether the electric circuit is protected by
fuse with 16 Ampere.
- If so, connect the implement with the aid of the
power plug to the power supply.
4.1 Operation
Only operate the implement with all
guards fully functioning. Check the
implement for externally noticeable
damage at least once a day.
Never leave your implement unattended
while the implement is connected to the
power supply and/or to an external
compressed-air system.
When operating the implement it is
imperative to observe the instructions
regarding the
 intended use
 training of personnel.
Never drag the implement along behind
you by the power supply cable or the
agent hose.

14 Putting into operation
Jelly Mini Boy - Digital Airmix Edition 12.08
4.2 The agent hose
The agent hose is a special hose for heating and
consists of the following components:
 Silicone for the fruit acid containing product.
 Silicone textile casing for stability.
 Resistance wires for heating.
Protect the agent hose against damage
by sharp-edged parts. Danger of injury
from penetrating jelly.
In case of damage always exchange the
entire agent hose.
The agent hose may never be
 shortened,
 patched
 or manipulated.
Changes on the agent hose will cause a
total failure of function.
4.3 Recommendations for processing
fat glazes containing chocolate

Rinse the implement with heated edible
oil or parting agent before you process
fat glazes containing chocolate. This
measure prevents the fat glaze
containing chocolate from undergoing a
chemical reaction with the wate
r
residues from cleaning. Such chemical
reactions can clog the implement's
agent channel.
- Fill 3 litres of edible oil or parting agent into the
storage tank.
- Set the spraying pressure to 0 bar.
- Spray the contents of the storage tank by means
of the spray gun.

Putting into operation 15
Jelly Mini Boy - Digital Airmix Edition 12.08

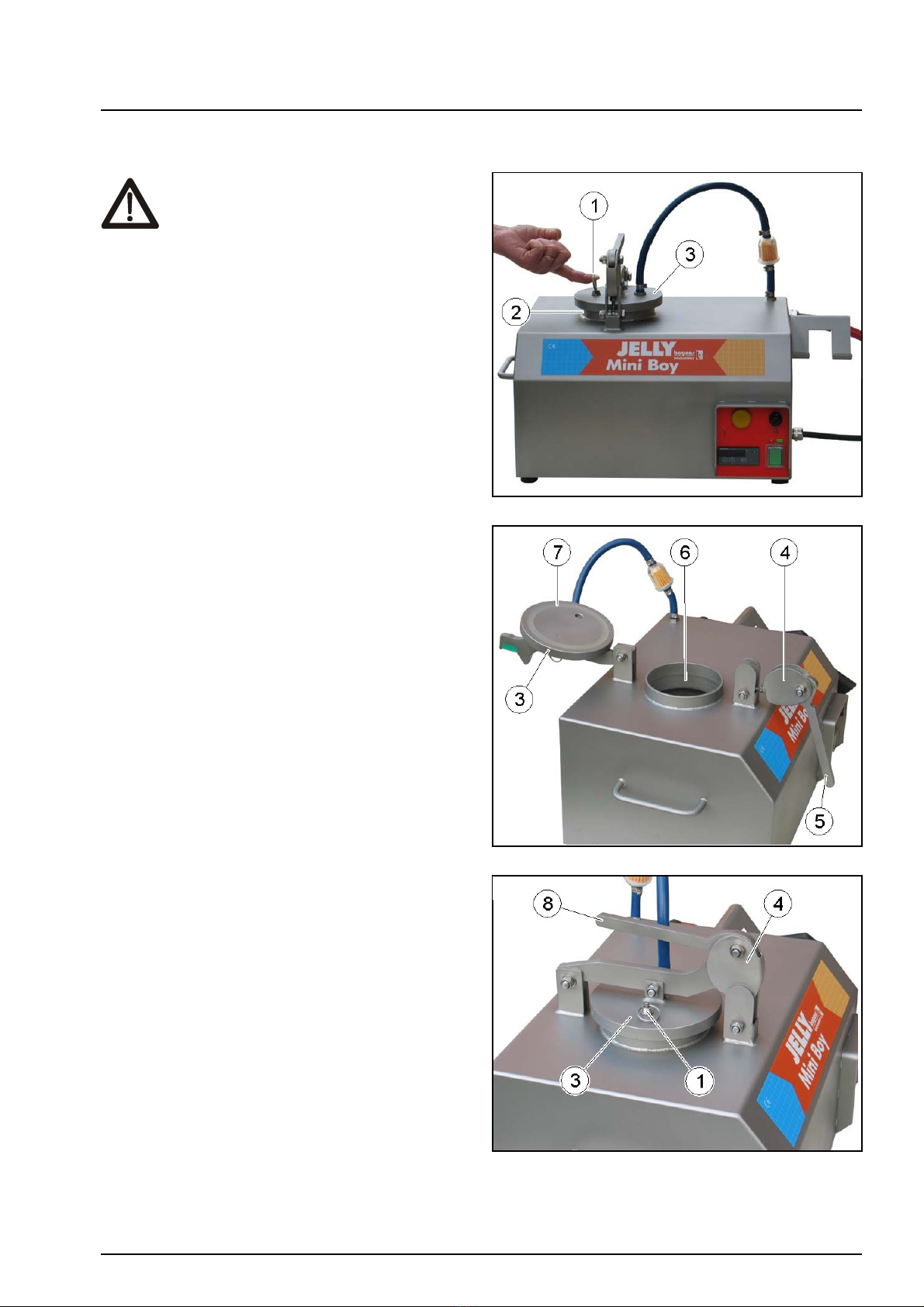

4.4 Filling the storage tank
Always pull the bleed valve (1) until the
excess pressure has been completely
discharged from the storage tank (2). I
f
the hissing noise stops, the storage tank
has been depressurised and you can
open the storage tank cover.
Only open the storage tank cover (3)
after the agent boiler has been
depressurised! Danger of injury from
discharging hot agent!
- Close the ball valve on the compressed ai
r
connection. Refer to chapter "Connecting the
implement to an external compressed air source",
page 16.
- Pull the bleed valve (1), until the hissing noise
stops.
- Swing the storage tank cover closure (4) into the
unlocking position (5).
- Open the storage tank cover (3).
- Fill the agent to be processed that has been
heated externally into the storage tank via the
storage tank opening (6).

The agent to be processed must be
 externally warmed up to processing
temperature.
 free of lumps.
 free of foreign objects.
If the agent is not free of lumps or free o
f
foreign objects, the agent nozzle in the
spray gun will choke.
- Clean the seal on the storage tank cover (7).
- Reseal the storage tank with the storage tank
cover (3).
- Swing the storage tank cover closure (4) into the
locking position (8).
- Check whether the bleed valve (1) is closed.
- Open the ball valve on the compressed air supply.

16 Putting into operation
Jelly Mini Boy - Digital Airmix Edition 12.08

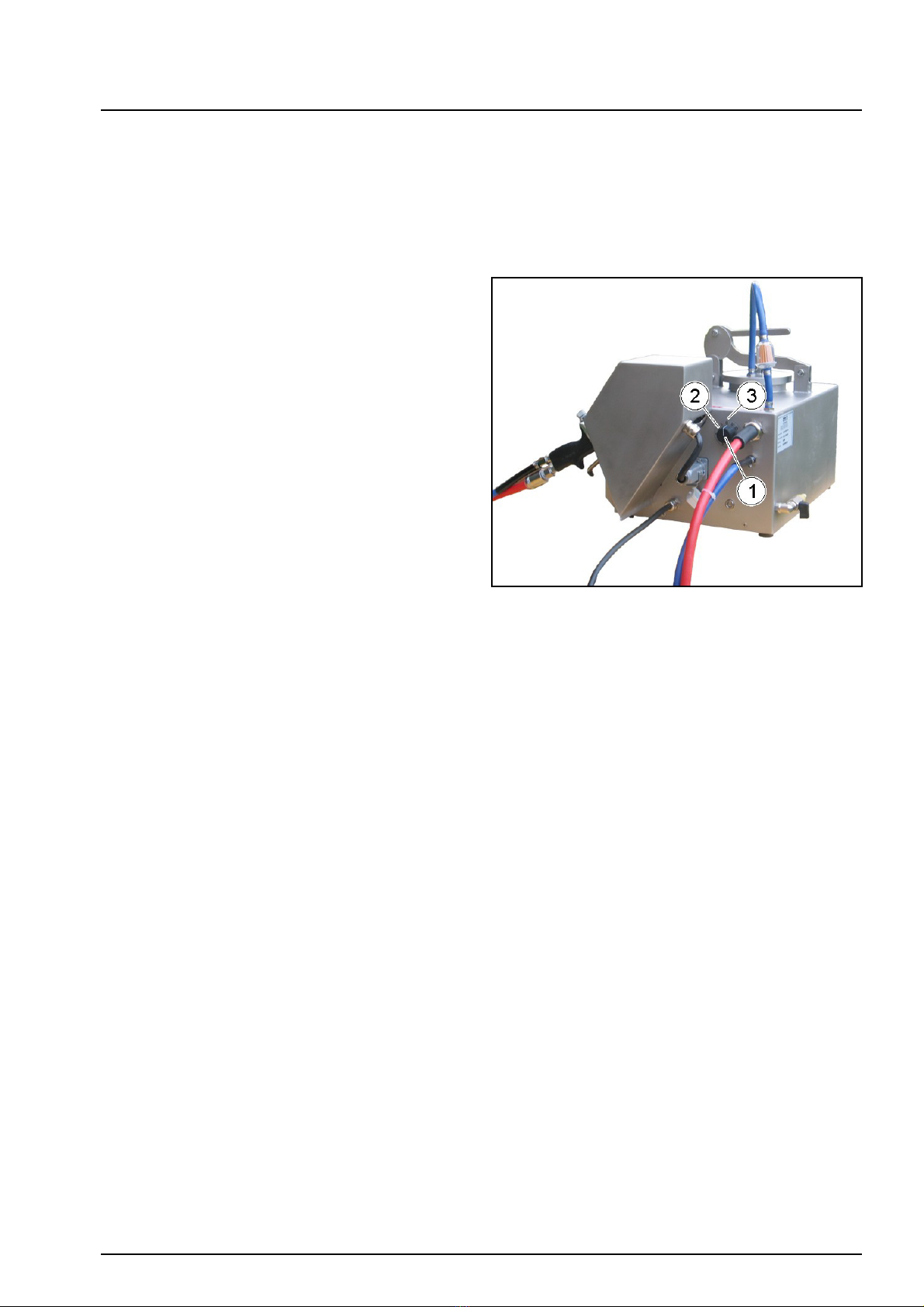

4.5 Connecting the implement to an
external compressed air source

It is imperative that you comply with the
chapter "General requirements on the
compressed air source", page 12.

During the spraying procedure, the
implement must be permanently
connected with the external compressed
air source as otherwise, spraying will
not be possible.
The bleed valve (1) in the storage tank
cover opens if the maximum permissible
implement pressure of 6 bar is exceeded.
- Connect the compressed air supply (2) to an
external compressed air source.
- Open the ball valve (3). The illustration on the
right shows the closed ball valve.

Putting into operation 17
Jelly Mini Boy - Digital Airmix Edition 12.08
4.6 Switching the Implement on/off
Switching on
- Press the green push switch (1).

If the green control lamp on the push
switch (1) lights up, the device is
switched on.

Dry running heater and agent-hose heat
up to the set processing temperature.
The Jelly Mini Boy is ready for operation
when the yellow (2) and the red signal
lamp (3) goes out. If the implement is
cold, the heating period will last approx.
5 to 8 minutes.

The heater and the fan of the heat box
(4) for the spray gun are turned on.

Excess pressure is generated inside the
storage tank, if the compressed ai
r
supply is connected with the external
compressed air source. The excess
pressure fills the dry running heater and
agent-hose with agent from the storage
tank.
Switching off
- Press the green push switch again (1).

If the green control lamp on the push
switch (1) goes out, the device is
switched off.

18 Putting into operation
Jelly Mini Boy - Digital Airmix Edition 12.08
4.7 Setting the processing
temperature
- Choose the desired processing temperature on
the temperature display (1).
- For this press the SET-key (2), hold pressed
and simultaneously press the UP- or DOWN-
key (3 or 4).

With the 1st pressure on the UP- o
r
DOWN-key the temperature display
moves in 0.1 °C steps into the desired
direction forward or backward. By
pressing the same key again, the display
continuously moves until the key is
released.
-
A
fter having obtained the desired processing
temperature first release the UP- or DOWN-key (3
or 4) and only then release the SET-key (2).

A change of the processing temperature
will only become effective if you
 when dialling the processing
temperature press the SET-key (2),
hold pressed and simultaneously
press the UP- or DOWN-key (3 or 4).
 when having obtained the desired
processing temperature first release
the UP- or DOWN-key (3 or 4) and
only then release the SET-key (2).

Putting into operation 19
Jelly Mini Boy - Digital Airmix Edition 12.08
4.8 Adjust the agent-hose's heating
temperature

The processing temperature and the
agent hose's heating temperature have
to be matched to each other to ensure a
trouble-free production process.
The heating temperature for the agent-hose is
adjustable between 0.0 and 85.0°C.
The agent-hose's heating temperature is adjusted by
means of the rotary switch (1). The figures on the
scale (2) are no direct temperature values, they are
only used for guidance during setting the heating
temperature. The set figure for the set heating
temperature is read off at the marking (3).
Figure 0 = The set heating temperature is 0°C.
Figure
11
= The set heating temperature is 85°C.

The agent hose's heating temperature to
be preset depends on the agent to be
processed.
 Increasing the heating temperature -
turn the rotary switch (1) clockwise.
 Reducing the heating temperature -
turn the rotary switch (1) anti-
clockwise.
- Turn the rotary switch (1) in the necessary
direction, until the processing temperature and the
heating temperature are matched to each other.

20 Putting into operation
Jelly Mini Boy - Digital Airmix Edition 12.08
4.9 Setting the spraying pressure

It is imperative that you comply with the
chapter "General requirements on the
compressed air source", page 12.

The spraying pressure may be set
between 0.5 bar and a maximum of 4
bar.
The consistency of the material to be
processed determines the necessary
spraying pressure. More viscous agents
require a higher spraying pressure.
Only a correctly set spraying pressure
will ensure a reasonable spray pattern.
Increase the spraying pressure, if you
want to enlarge the spray pattern.
Reduce the spraying pressure, if you
want to reduce the spray pattern.
- Spray out the agent by the spray gun.
- Simultaneously turn the adjusting screw (1) via
screwdriver until the agent will discharge from the
spray gun in the desired manner.

To adjust the spraying pressure, turn the
adjusting screw (1) into the desired
direction.
 Increasing the spraying pressure -
turn the adjusting screw anti-
clockwise.
 Reducing the spraying pressure -
turn the adjusting screw clockwise.
