Braemar ECOSTAR User manual

Quick start
- Insert 3 x AAA batteries supplied (see below).
- Set time and day on remote control (see below).
- Press ON/OFF button to turn the remote control on.
- Increase temperature setting by pressing the UP arrow button.
- The heater can be operated from either the remote control or
the controls on the heater front panel.
Page 1
Setting the time and day
With the remote control turned off, press and
hold the SET button for 3 seconds.
Press the UP or DOWN arrow button to
adjust to the current time - ensure that
AM/PM is correct.
Press the SET button when the time is
correct.
Press the UP or DOWN arrow button to
adjust to the current day.
Press the SET button when the day is correct
to return to normal operation.
Fitting the batteries
WED
SET
WED
SET
Remove the battery door from
the back of the remote control by
pushing the top of the battery
door and sliding down.
Fit the 3 AAA batteries supplied.
Ensure the battery orientation is
as shown.
Important
THESE INSTRUCTIONS MUST BE READ IN CONJUNCTION WITH THE
USER INSTRUCTIONS SUPPLIED WITH THE SPACE HEATER.

MANUAL mode operation
Press the ON/OFF button. If the room temperature is
less than the set temperature the heater will start. The
display will flash ON and WAIT during the start-up
sequence - the flame and fan symbols will appear
once the burners ignite and the room fan starts.
Turning the
heater ON
Press the ON/OFF button. The display will revert to
OFF mode. The room fan will continue to run until the
heater has cooled sufficiently.
Turning the
heater OFF
Increase set temperature: Press the UP arrow to
increase set temperature by 1oC.
Decrease set temperature: Press the DOWN arrow to
decrease set temperature by 1oC.
Adjusting the
room
temperature
When operating in MANUAL mode the heater will turn on and off
to maintain the set temperature until turned off by the user.
Page 2
Press the ECO button (with the remote control turned
on). "E" will flash on the display to show that ECO
mode is active. In ECO mode the heater will not run
at high gas rate.
To exit ECO mode press the ECO button again.
Selecting ECO
mode
Press the LOCK button. "L" will flash on the display
to show that the remote control is locked - this does
not lock the controls on the front of heater - these can
be locked independently. When CHILD LOCK is
active on the remote control all remote control
buttons other than OFF are disabled. If the remote
control is turned off while it is locked, it cannot be
turned back on until you exit CHILD LOCK.
To exit CHILD LOCK mode press the LOCK button
again.
Activating
CHILD LOCK
Press the HOME/AWAY button to switch between
HOME and AWAY. A different temperature can be set
for manual HOME and AWAY modes. Pressing the
HOME/AWAY button provides an easy way to switch
between the two set temperatures.
Using the
HOME/AWAY
feature

AUTO mode operation
Press the ON/OFF button and press the MAN/AUTO
button to set the remote control to AUTO mode. If the
room temperature is less than the set temperature for
the current time period the heater will start. The
remote control will display the time period and run
according to the temperature set for that time period.
The remote control will automatically advance to the
next time period and operate according to the set
temperature for the new time period.
Turning the
heater ON
Press the ON/OFF button. The display will revert to
OFF mode. The room fan will continue to run until the
heater has cooled sufficiently.
Turning the
heater OFF
Increase set temperature: Press the UP arrow to
increase set temperature by 1oC.
Decrease set temperature: Press the DOWN arrow to
decrease set temperature by 1oC.
Adjusting the
room
temperature
When operating in AUTO mode the heater will automatically turn
on and off to maintain the programmed temperature. It will also
automatically advance through the 4 time periods (WAKE, AWAY,
HOME and SLEEP) each day and adjust the set temperature to
the pre-programmed temperature for each time period.
Page 3
Refer "Selecting ECO mode" under "Manual mode
operation" on previous page.
Selecting ECO
mode
Refer "Activating CHILD LOCK" under "Manual mode
operation" on previous page.
Activating
CHILD LOCK
Press the HOME/AWAY button to switch between the
current and next time period. Following are examples
of how this can be used:
- If you leave home prior to the programmed AWAY
time, press HOME/AWAY to advance to the
AWAY period immediately.
- If you arrive home earlier than the programmed
HOME time press HOME/AWAY to advance to
the HOME period immediately.
Using the
HOME/AWAY
feature

Setting the AUTO program
Page 4
1.1 With the remote control turned ON, press
PROG button.
In each step during programming, the
option being changed flashes.
2.1 Press UP or DOWN arrow button to scroll
through the following day selection options:
- Individual weekdays: MON, TUE, WED, THU or FRI
- Weekday block: MONTUEWEDTHUFRI
- Individual weekend days: SAT or SUN
- Weekend block: SATSUN
- Seven-day block: MONTUEWEDTHUFRISATSUN
2.2 Press SET button to select displayed day/s.
2. Select the day or group of days to program
1. Enter programming mode
Time
period
WAKE
AWAY
HOME
Default
6:00 am
8:30 am
5:00 pm
Your setting Default
20
15
21
Your setting
Start time Set temperature (oC)
SLEEP 10:30 pm 15
Default program settings:
The table below shows the factory defult program settings. The heater
will operate with these settings in AUTO mode if you do not change the
settings. If you change the settings, record them in the table below for
future reference.
MON
SET
WED
SET
WED
SET
WAKE

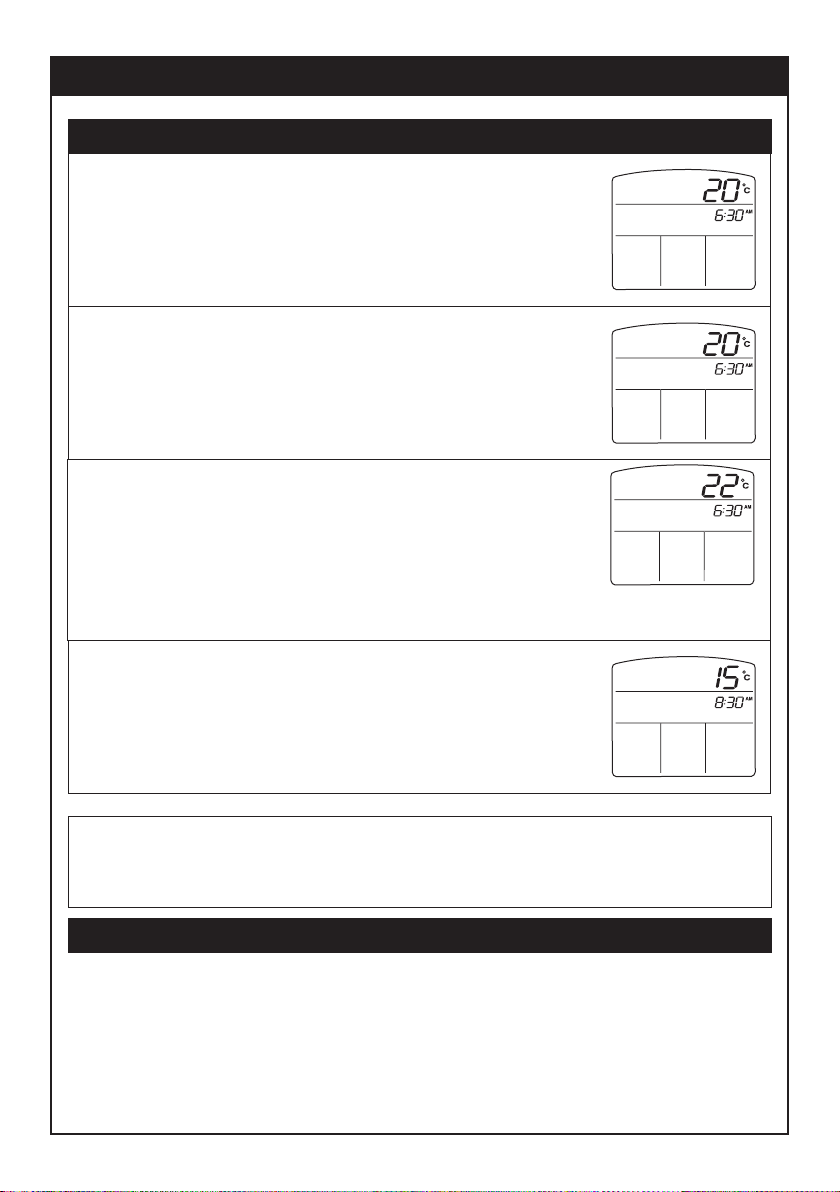

3.1 Press UP or DOWN arrow button to adjust
time to required start time for WAKE period.
In this example, the start time for the WAKE
time period has been adjusted to 6.30 am.
3.2 Press SET button to lock in time.
Setting the AUTO program
Page 5
3.3 Press UP or DOWN arrow button to adjust
temperature to required temperature for
WAKE period.
In this example, the temperature for the
WAKE time period has been adjusted to
22oC.
3.4 Press SET button to lock in temperature.
Display now changes to enable setting the
start time and temperature for the AWAY
time period.
Repeat steps 3.1 to 3.4 above for each time period - WAKE, AWAY,
HOME and SLEEP. Display returns to previous state once
programming the final time period is complete.
3. Select time and temperature for each time period
Resetting to factory default program settings
If you wish to restore the program settings to the factory-default values:
- With the remote control OFF, press and hold the small, recessed
button between ON/OFF and UP arrow buttons, and press the
PROG button.
WED
SET
WAKE
WED
SET
WAKE
WED
SET
WAKE
WED
SET
AWAY

Fault messages
Seeley International Pty Ltd has a policy of continuous product development and therefore reserves the right to make
changes to these specifications without notice. Whilst every care has been taken to assure the accuracy of the data
compiled in this document, Seeley International does not assume any liability for errors and/or omissions.
Manual part No: 634443-B
Braemar is a registered trademark of Braemar Industries Pty Ltd.
Seeley International Pty Ltd ACN 23 054 687 035
Albury manufacturing plant
77 North Street Albury, NSW 2640
Your Braemar Ecostar Space Heater uses inbuilt fault diagnosis software to
help determine the source of a fault. If the heater detects a fault the heater will
turn off and the remote control will flash RESET and a fault code (FC). The
control panel indicators on the front of the heater will also flash to indicate the
fault code. Please quote this fault code if requesting a service call - this may
enable the problem to be fixed over the phone.
FC Potential remedy
1 Press RESET on remote control.
2
5
7
9
10
11
12
13
15
19
Check flue terminal is not obstructed. Press RESET on remote
control.
Service call.
Check gas is turned on. Press RESET on remote control.
Service call.
Check inlet and outlet louvres are not obstructed. Press
RESET on remote control.
User reset.
User reset.
Check flue terminal is not obstructed. Press RESET on remote
control.
Check inlet and outlet louvres are not obstructed. Press
RESET on remote control.
Service call.
If a fault is repeated after a USER RESET or after switching the
power to the heater off and back on a service call may be required.
For Service call 1300 650 644, or contact your local Braemar dealer.
In the event of a power failure the heater will shut down. A manual
re-start will be required after restoration of the power supply.

Remote control button functions
ON/OFF
Press to turn heater on
or off.
Page 6
ON/OFF
HOME/AWAY
AUTO
ON
HEAT
HOME
WED
SET LOCKPROG
MAN/AUTO RESETECO
HOME/AWAY
In AUTO mode, press to
switch between current
and next time period.
In MANUAL mode, press
to switch between HOME
and AWAY.
SET
Used to enter time and
day setting mode, and to
accept values in program
setting mode.
ON/OFF
HOME/AWAY
AUTO
ON
HEAT
HOME
WED
PROG
Used to enter program
setting mode when the
remote control in ON.
MAN/AUTO
Press to switch between
MANUAL and AUTO
operation.
ECO
Press to enter or exit
ECO mode.
UP ARROW
Press to increase
temperature set point, or
to increase setting in
program setting mode.
DOWN ARROW
Press to decrease
temperature set point, or
to decrease setting in
program setting mode.
CHILD LOCK
Press to activate or
de-activate child lock.
RESET
Press to reset a fault
condition.
Each function is explained
in greater detail in the
following pages.
DOOR CLOSED
DOOR OPEN

Display features
Page 7
MON TUE WED THU SUNSATFRI
HEAT WAIT
RESET OFF
HOME
AWAY
WAKE
SLEEP
AUTO
ON
MAN
- Burners are alight:
- Inner flame flashing - low gas rate.
- Outer flame flashing - high gas rate.
- Temperature:
- Displays approximate current temperature.
- Temporarily displays set temperature when the
up or down arrow is pressed, reverts back to
current temperature after 5 seconds.
- Displays current time (once it has been set).
- Room fan symbol - rotates when room fan is
running.
- Replace batteries - 3 x AAA (good quality alkaline
batteries are recommended).
- Service call required.
- ON indicates that remote control has been turned
on. The heater will operate as required to achieve
the set temperature.
ON
- OFF indicates that remote control is turned
off. The heater will not operate.
OFF

Page 8
Display features
- When RESET is flashing, it will be accompanied
by a number in the time display, and flashing
LED's on the control panel on the front of the
heater. Take note of the number and press the
RESET button until RESET disappears.
RESET
- MAN indicates that MANUAL mode has been
selected. In manual mode the heater will run to
achieve your set temperature until the remote
control is turned off or the setting is adjusted.
MAN
- AUTO indicates that AUTOMATIC mode has been
selected. In automatic mode the heater will run to
achieve your pre-programmed set temperatures at
your pre-programmed times.
AUTO
- WAIT flashes in conjunction with ON from when a
call for heat signal has been sent to the heater
until the remote control detects that the heater is
on.
WAIT
- Four daily time periods:
- In AUTO mode they can be pre-programmed
with a start time and temperature each day.
- In MANUAL mode HOME and AWAY can be
used to set two different temperatures.
HOME
AWAY
WAKE
SLEEP
- Days of the week:
- Displays current day (once it has been set).
MON
TUE
WED
THU
FRI
SAT
SUN

BRAEMAR ECOSTAR GAS SPACE HEATER
OPERATING INSTRUCTIONS
FOR REMOTE CONTROL
ON/OFF
HOME/AWAY
AUTO
ON
HEAT
HOME
WED
