Branson TA00037774A Parts list manual

GENUINE PARTS
TA00037774A
2 SPOOL AUXILARY REMOTE HYDRAULIC KIT
__________________________________________________________________________________________
INSTRUCTION &
PARTS MANUAL

#
ITEM
Q
TY
DESCRIPTION
TA00037774A 1
REAR REMOTE VALVE
KIT
3 26106-080162 4 HEX FLANGE BOLT
4 TA00034056A 1 SCV 2
6 FBA3060000A4 2 ADAPTER (1/2)"
8 FBA3150000A3 4 QUICK COUPLER (1/2)"
TA00020859B 2 DUST COVER (1/2 RED)"
TA00020860B 2
DUST COVER (1/2
BLACK)"
9 TA00028226A 1 SCV 1
10 TA00036168A 2 ADAPTER (1/2) LONG"
11 26716-100002 2 HEX NUT
12 22217-100000 2 SPRING WASHER
13 TA00034089A 2 STUD BOLT
16 TA00036443B 1 BRACKET ASS'Y
17 26106-080122 2 HEX FLANGE BOLT
18 TA00036941A 1 BRACKET, SCV LEVER
19 26106-100162 2 HEX FLANGE BOLT
20 TA00036297A 1 LINK(2) ASS'Y
21 TA00034019A 1 LINK(1) ASS'Y
22 22272-000120 3 SNAP RING(E)
23 TA00034053A 1 BOSS B ASS'Y
24 TA00034062A 1 PLATE
25 22137-080000 4 PLAIN WASHER
26 22417-200200 4 COTTER PIN
27 TA00034052A 1 BOSS A ASS'Y
28 24550-016200 4 BUSH
29 TA00034042A 1 SHAFT ASS'Y
30 TA00034047B 1 LEVER A ASS'Y
31 TA00034049B 1 LEVER B ASS'Y
32 26106-080162 2 HEX FLANGE BOLT
33 TA00036954A 2 KNOB, SCV LEVER
34 TA00036949A 1 BRACKET

1. REMOVE RIGHT HAND FENDER, SEAT PLATE AND BACK PLATE. THE TWO BOLTS
HOLDING THE PRESSURE REGULATOR BLOCK MUST BE REMOVED. LOOSEN THE
LOCKING NUT ON THE 90° ADAPTER, BUT DO NOT REMOVE THE HOSE.
2. INSTALL THE 2 STUDS FROM AS SHOWN. BE SURE NOT TO LOOSE OR DAMAGE O-RINGS
ON THE BOTTOME OF PRESSURE REGULATING BLOCK
REMOVE
TWO BOLTS
LOOSEN NUT

3. STACK THE TWO VALVE BODY SECTIONS AS SHOWN, WITH THE BOTTOM SECTION
SPOOL ACTUATOR FACING THE FRONT OF TRACTOR AND TOP SECTION SPOOL
ACTUATOR FACING THE REAR OF TRACTOR. INSTALL THE PRESSURE REGULATING
BLOCK AND TIGHTEN THE LOCKING NUT ON THE 90° ADAPTER WITH EVERYTHING
ADJUSTED TO FIT.
4. INSTALL BRACKETS AS SHOWN. TIGHTEN SECURELY.
1
2
TIGHTEN
LOCKING
NUT
USE NUTS
AND LOCK
WASHERS
FROM KIT
TOP OF ROCK
SHAFT
HOUSING
SIDE OF
ROCK
SHAFT
HOUSING

5. INSTALL VALVE CONTROL LINKAGE TO THE HANDLE ASSEMBLY WITH COTTER PINS
AND FLAT WASHERS. WITH THE LINK WITH CUT OUT GOING ON THE UPPER MOST
LEVER
6. CONNECT VALVE LINKAGE TO SPOOL ACTUATORS. MAKE SURE THE FLAT SIDE OF
SPOOL ACTUATOR IS FACING FLAT SIDE UP TO CONNECT VALVE CONTROL LINKAGE.
7. .
LEVER W/
CUT OUT
TOP LEVER
MAKE SURE THAT
THE FLAT SIDE IS
FACING UP. THE
SPOOL ACUATOR
MAY HAVE TO BE
REMOVE AND
SWAPPED WITH
OTHER VALVE
BODY.

8. INSTALL THE LEVER ASSEMBLY ONTO THE BRACKET ASSEMBLY AS SHOWN. INSTALL
THE QUICK COUPLERS USING LONG AND SHORT ADAPTERS AND DUST PLUGS. THE
LONG ADAPTERS CAN EITHER GO TO ONE SIDE OR THE BOTTOM PORTS
LEVER BRACKET
WILL GO UNDER
THE SMALL
BRACKET
TIGHTEN
SECURELY
LONG ADATPERS
CAN GO TO ONE
SIDE OR BOTTOM

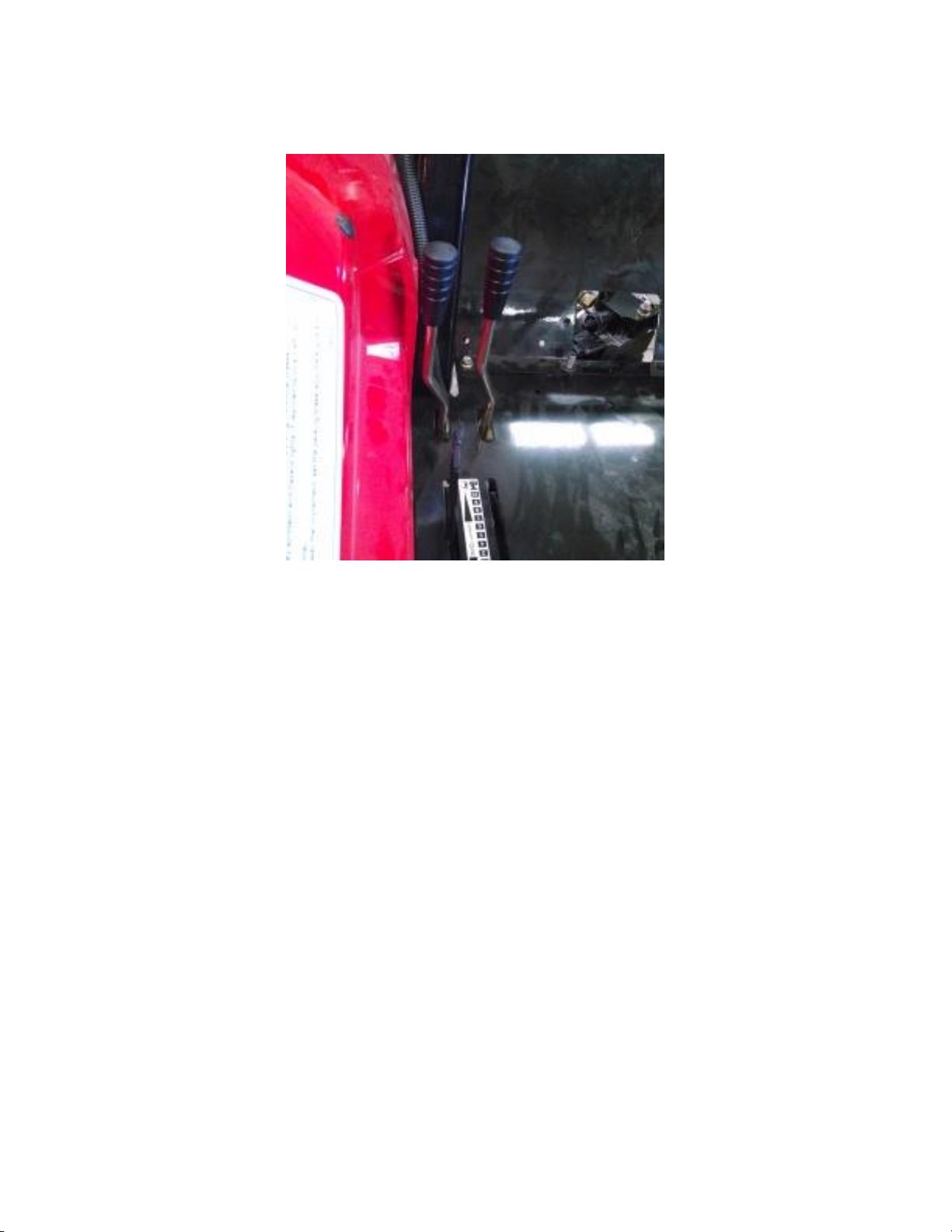

9. RE-INSTALL THE FENDER, SEAT PLATE AND BACK PLATE. SLIDE KNOBS ONTO LEVERS
STICKING THROUGH THE TWO SLOTS IN SEAT PLATE.
