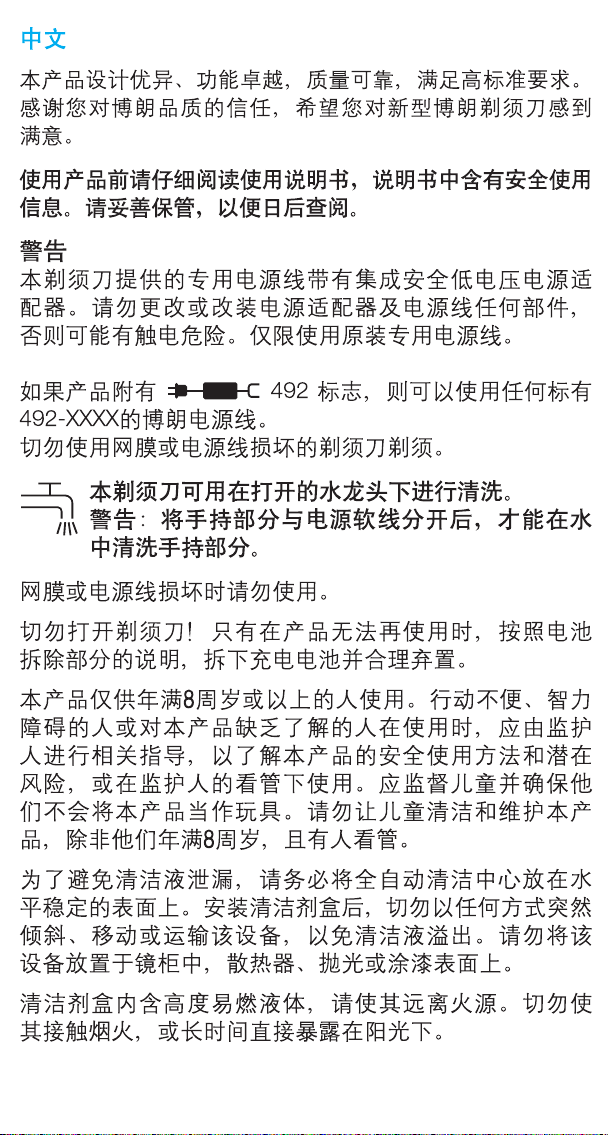

English
Our products are designed to meet the highest standards of quality,
functionality and design. We hope you enjoy your new Braun Shaver.
Read these instructions completely, they contain safety information.
Keep them for future reference.
Warning
Your shaving system is provided with a special cord set,
which has an integrated Safety Extra Low Voltage power sup-
ply. Do not exchange or tamper with any part of it, otherwise
there is risk of an electric shock. Only use the special cord set
provided with your appliance.
If the appliance is marked 492, you can use it with
any Braun power supply coded 492-XXXX.
Do not shave with a damaged foil or cord.
The shaver head is suitable for cleaning under running
tap water. Detach the shaver from the power supply
before cleaning the shaver head in water.
Do not use if the appliance, the foil or the power supply are
damaged.
Do not open the appliance! Only at the end of the product’s
useful life, disassemble the rechargeable battery for disposal
reasons as shown in the battery removal section.
This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have
been given supervision or instruction concerning the safe use
of the appliance and understand the hazards involved.
Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children unless they are
older than 8 years and supervised.
To prevent the cleaning fluid from leaking, ensure that the
Clean&Renew station is placed on a flat surface. When a
cleaning cartridge is installed, do not tip, move suddenly or
transport the station in any way as cleaning fluid might spill
out of the cartridge. Do not place the station inside a mirror
cabinet, nor over a radiator, nor place it on a polished or lac-
quered surface.
The cleaning cartridge contains a highly flammable liquid so
keep it away from sources of ignition. Do not smoke near the
station. Do not expose to direct sunlight for long periods of time.
15
91845292_7790cc_CN.indd 1591845292_7790cc_CN.indd 15 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 15 of 24

Do not refill the cartridge and use only
original Braun refill cartridges.
Important
Keep power supply, charging stand and
Clean & Charge Station dry.

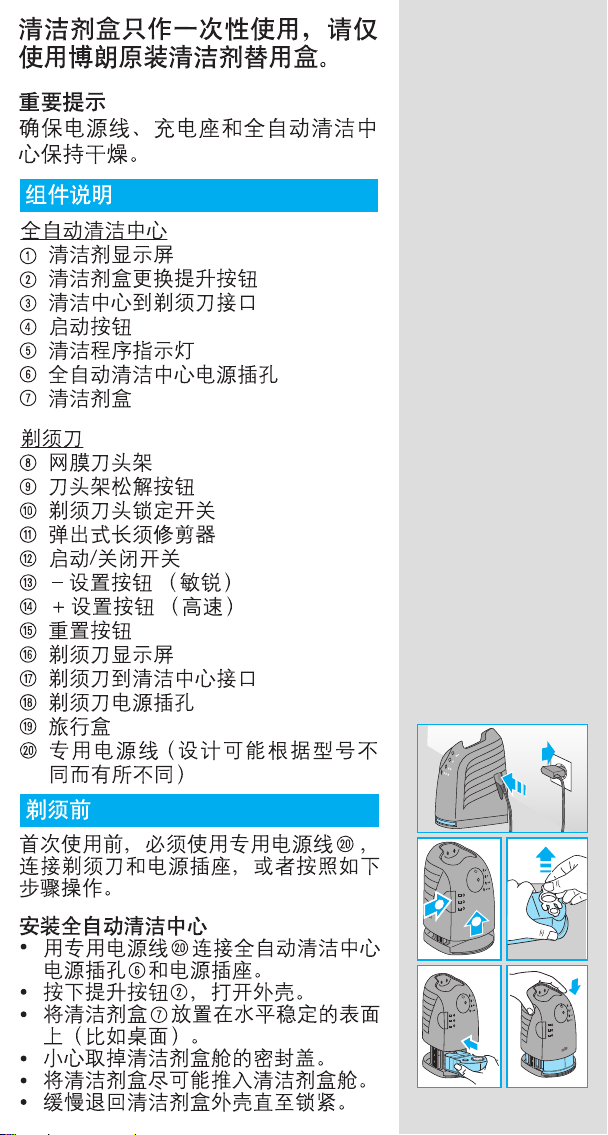

Description
Clean&Renew station
1Cleaning fluid display
2Lift button for cartridge exchange
3Station-to-shaver contacts
4Start button
5Cleaning program indicators
6Station power socket
7Cleaning cartridge
Shaver
8Foil & Cutter cassette
9Cassette release button
0Shaver head lock switch
qPop-out long hair trimmer
wOn/off switch
e– setting button (sensitive)
r+ setting button (intensive)
tReset button
zShaver display
uShaver-to-station contacts
iShaver power socket
oTravel case
pSpecial cord set (design can differ)
Before shaving
Prior to first use you must connect the shaver to
an electrical outlet using the special cord set p
or alternatively proceed as below.
Installing the Clean&Renew station
• Using the special cord set p, connect the
station power socket 6to an electrical outlet.
• Press the lift button 2to open the housing.
• Hold the cleaning cartridge 7down on a flat,
stable surface (e.g. table).
• Carefully remove the lid from the cartridge.
• Slide the cartridge into the base of the station
as far as it will go.
• Slowly close the housing by pushing it down
until it locks.
f
a
s
t
c
l
e
a
n
f
a
s t
c
l
e
a
n
f
a
s
t
c
l
e
a
n
2
1
16
91845292_7790cc_CN.indd 1691845292_7790cc_CN.indd 16 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 16 of 24

The cleaning fluid display 1will show how much
fluid is in the cartridge:
up to 30 cleaning cycles available
up to 7 cleaning cycles remaining
new cartridge required
Charging and cleaning the shaver
Insert the shaver head down into the cleaning
station. The contacts uon the back of the shaver
will align with the contacts 3in the cleaning
station. Important: The shaver needs to be dry
and free from any foam or soap residue!

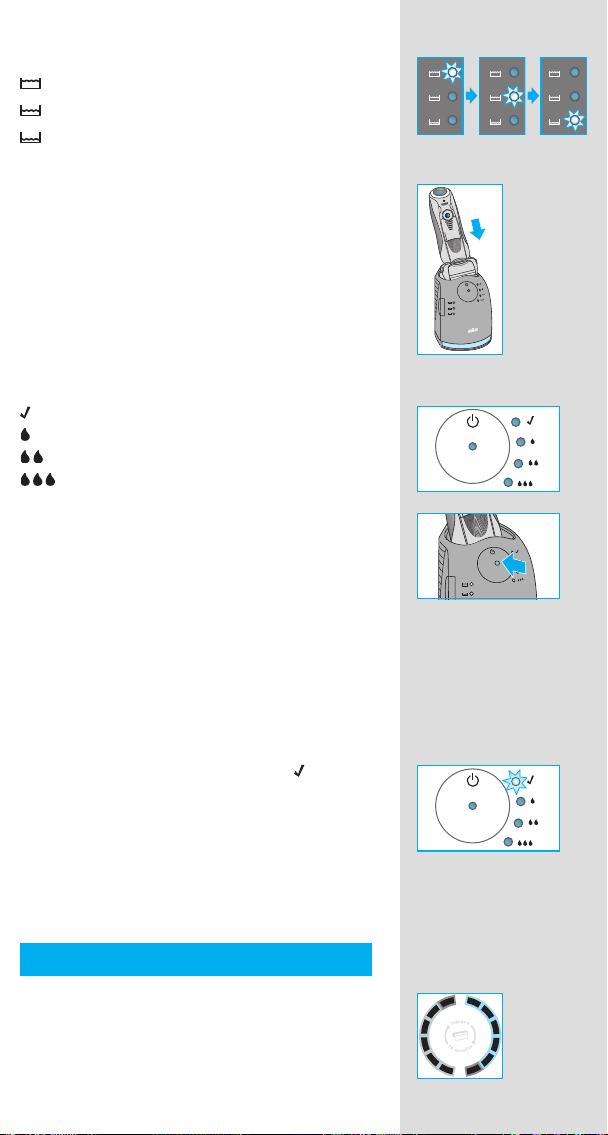

If required, the Clean&Renew station will auto-
matically charge the shaver. The hygiene status
of the shaver will also be analyzed and one of
the following cleaning program indicators 5will
light up:
shaver is clean
short economical cleaning required
normal level of cleaning required
high intensive cleaning required
If the station selects one of the required cleaning
programs, it will not start unless you press the
start button 4.For best shaving results, we
recommend cleaning after each shave.
Each cleaning program consists of several cycles,
where cleaning fluid is flushed through the shaver
head. Depending on your Clean&Renew station
model and/or program selected, the cleaning
time takes up to 16 minutes. Leave the shaver in
the station for drying. It takes several hours until
remaining moisture evaporates depending on the
climatic conditions.
When the program is finished, the blue indicator
will light up.
Stand-by mode
10 minutes after completing the charging or
cleaning session, the Clean&Renew station
switches to the stand-by mode: The indicators
of the Clean&Renew station turn off.

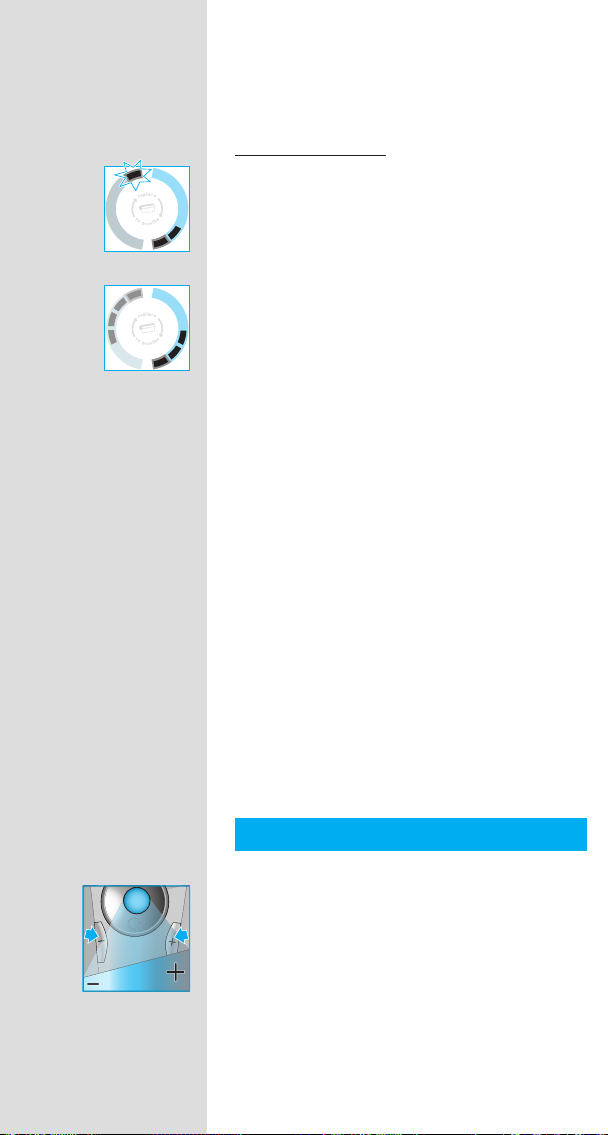

Shaver display
The shaver display zshows the charge status
of the battery on the left, and the hygiene status
on the right. 6 dark segments are shown on each
side when the battery is fully charged and the
shaver is hygienically clean.
trimmer
Series 7
h
y
g
i
e
n
e
b
a
t
t
e
r
y
17
91845292_7790cc_CN.indd 1791845292_7790cc_CN.indd 17 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 17 of 24

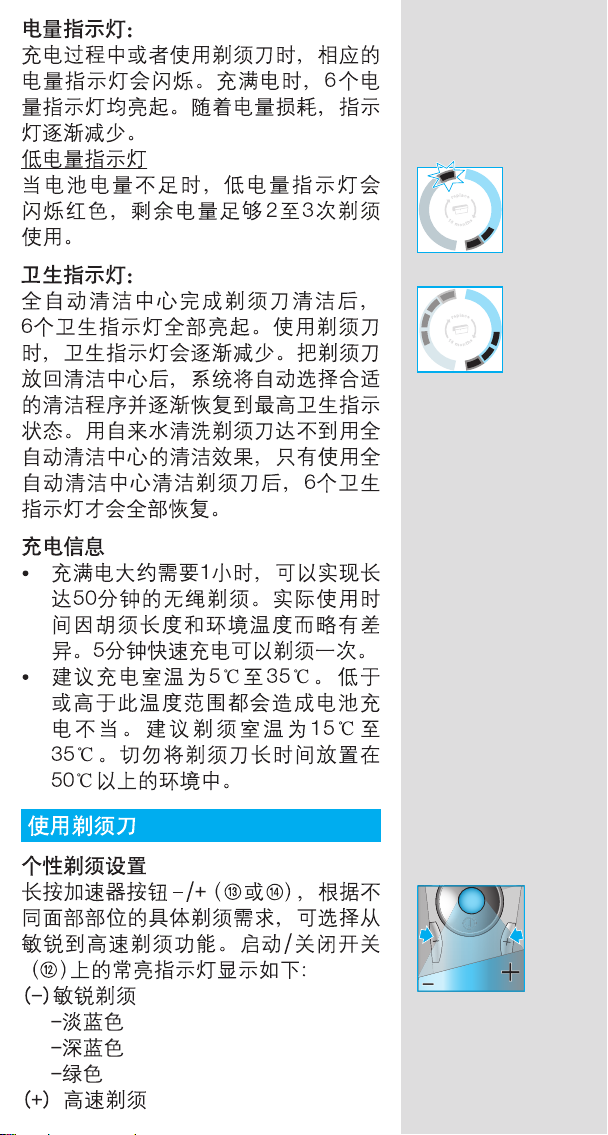

Battery segments:
During charging or when using the shaver, the
respective battery segment will blink. When
fully charged all 6 segments are shown. With
decreasing charge the segments gradually
disappear.
Low charge indicator
The low charge indicator provided with a red
frame blinks to indicate that the battery is
running low. The remaining battery capacity is
sufficient for 2 to 3 shaves.
Hygiene segments:
All 6 hygiene segments will appear after the
shaver has been cleaned in the Clean&Renew
station. When the shaver is being used, the
hygiene segments will gradually disappear.
Once the shaver is returned to the station, the
system will automatically select the appropriate
cleaning program and restore the segments
to maximum hygiene. Given that rinsing the
shaver under tap water is not as hygienic as the
cleaning station, the hygiene segments will only
restore themselves when the shaver has been
cleaned in the Clean&Renew station.
Charging information
• A full charge will take about 1 hour and
provides up to 50 minutes of cordless shaving
time. This may vary according to your beard
growth and environmental temperature.
5-minute quick charge is sufficient for a shave.
• Recommended ambient temperature for
charging is 5 °C to 35 °C. The battery may not
charge properly or at all under extreme low or
high temperatures. Recommended ambient
temperature for shaving is 15 °C to 35 °C. Do
not expose the shaver to temperatures higher
than 50 °C for extended periods of time.
Using the shaver
Personalizing your shaver
By holding down the accelerator button –/+
(
eor r
) you can adjust the shaving power to
your individual needs in the different areas of
your face from sensitive to intensive. The pilot
light in the on/off switch (
w
) changes within the
following range:
(–) sensitive shave
- light blue
- dark blue
- green
(+) intensive shave
h
y
g
i
e
n
e
b
a
t
t
e
r
y
h
y
g
i
e
n
e
b
a
t
t
e
r
y
18
91845292_7790cc_CN.indd 1891845292_7790cc_CN.indd 18 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 18 of 24

For a thorough and fast shave we recommend
the green (intensive) setting.
When switching on next time, the last used
setting will be activated.
Tips for the perfect dry shave
For best shaving results, Braun recommends you
follow 3 simple steps:
1. Always shave before washing your face.
2. At all times, hold the shaver at right angles
(90°) to your skin.
3. Stretch your skin and shave against the
direction of your beard growth.
How to use
Press the on/off switch wto operate the shaver:
• The pivoting shaver head and floating foils
automatically adjust to every contour of your
face.
• To shave hard to reach areas (e.g. under the
nose), first slide the shaver head to the back
position, afterwards move the head lock switch
0to the back. The pivoting head is locked at
this angle.
• To trim sideburns, moustache or beard, slide
the pop-out long hair trimmer qupwards.
Shaving with the cord
If the shaver has run out of power (discharged),
and you do not have the time to recharge it in the
Clean&Renew station, you may also shave with
the shaver connected to an electrical outlet via
the special cord set.
Cleaning
Automatic cleaning
After each shave, return the shaver to the
Clean&Renew station and proceed as described
above in the section «Before shaving».
All charging and cleaning needs are then
automatically taken care of. With daily use, a
cleaning cartridge should be sufficient for about
30 cleaning cycles.
The hygienic cleaning cartridge contains ethanol
or isopropanol (specification see cartridge),
which once opened will naturally evaporate
slowly. Each cartridge, if not used daily, should
be replaced after approximately 8 weeks to
ensure optimal disinfection.
release
90°
lock
lock
t
r
lock
12
trimmer
+
lock
trimmer
19
91845292_7790cc_CN.indd 1991845292_7790cc_CN.indd 19 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 19 of 24

The cleaning cartridge also contains lubricants,
which may leave residual marks on the outer foil
frame after cleaning. However, these marks can
be removed easily by wiping gently with a cloth
or soft tissue paper.

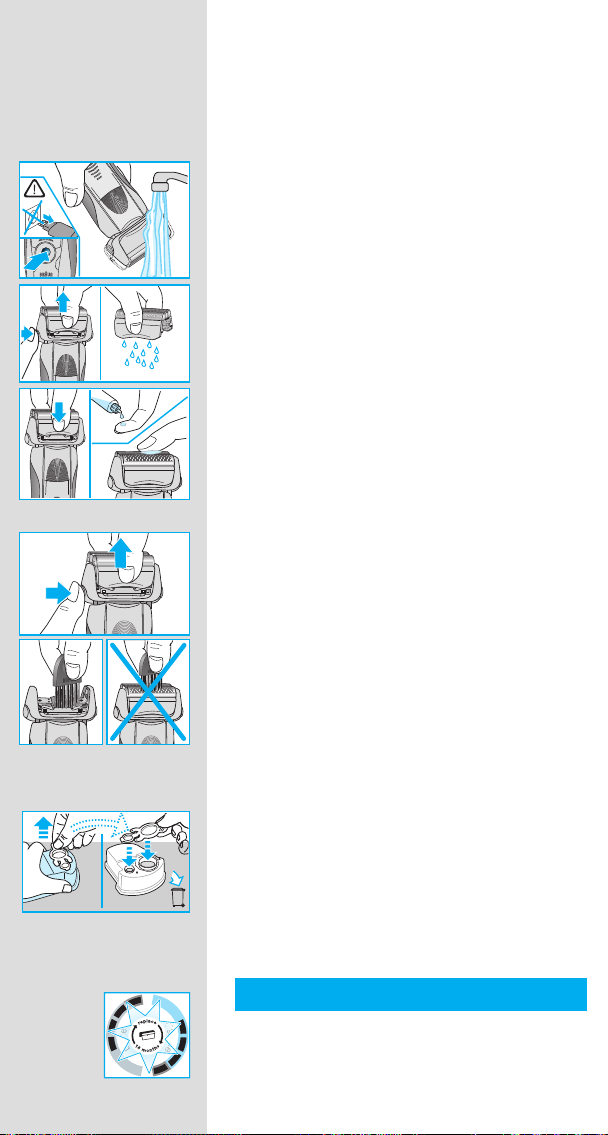

Manual cleaning
Rinsing the shaver head under running water
is an alternative way to keep the shaver clean,
especially when travelling:
• Switch the shaver on (cordless) and rinse
the shaver head under hot running water
until all residues have been removed.
You may use liquid soap without abrasive
substances. Rinse off all foam and let the
shaver run for a few more seconds.
• Next, switch off the shaver, press the release
button 9to remove the Foil & Cutter cassette
8and let it dry.
• If you regularly clean the shaver under
water, then once a week apply a drop of
light machine oil on top of the Foil & Cutter
cassette.
Alternatively, you may clean the shaver with a
brush:
• Switch off the shaver. Remove the Foil & Cutter
cassette 8and tap it out on a flat surface.
Using a brush, clean the inner area of the
pivoting head. However, do not clean the
cassette with the brush as this may damage it.
Cleaning the housing
From time to time clean the housing of the
shaver and the Clean&Renew station with a
damp cloth, especially inside the cleaning
chamber where the shaver rests.
Replacing the cleaning cartridge
After having pressed the lift button 2to open the
housing, wait for a few seconds before removing
the used cartridge to avoid any dripping.
Before discarding the used cartridge, make sure
to close the openings using the lid of the new
cartridge, since the used cartridge will contain
contaminated cleaning solution.
Keeping your shaver in top shape
Replacing the Foil & Cutter cassette / reset
To maintain 100% shaving performance, replace
the Foil & Cutter cassette 8, when the replace-
trimmer
er
re
le
a
s
e
trimmer
re
le
a
s
e
re
le
a
s
e
Series 7
Series 7
Series
Series
re
le
a
s
e
re
le
a
s
e
re
le
a
s
e
Series 7
Series 7
new old
h
y
g
i
e
n
e
b
a
t
t
e
r
y
h
y
y
y
g
g
g
y
y
n
e
e
b
b
b
t
t
t
t
e
e
e
r
yy
20
91845292_7790cc_CN.indd 2091845292_7790cc_CN.indd 20 19.04.18 08:5519.04.18 08:55
Business Use - P&G AUTHORIZED POA-00041822 Rev 001 Effective Date 2018-04-24 Printed 2018-07-25 Page 20 of 24
