A Shaver
Our products are designed to meet the highest standards
of quality, functionality and design. We hope you enjoy
your new Braun shaver. Your Braun Syncro is supplied
with a Braun Clean&Charge (please see section B).
SmartLogic Inside
The «SmartLogic» electronics inside your shaver analyzes
your personal shaving patterns and the type of beard you
have, and then adapts the battery care and cleaning
cycles to ensure optimal performance.
Warning
Your shaver is provided with a low voltage adaptation
system. Therefore you must not exchange or manipulate
any part of it. Otherwise there is risk of electric shock.
Technical specifications:
• Wattage via low voltage cord: 7 W
• Power supply via mains adapter, input voltage:
100-240 V 2 /50 or 60 Hz (automatic adaptation)
• Shaver input voltage: 12 V
Description
1 Foil protection cap 7 Display
2 Shaver foil 8 Info key
3 Cutter block 9 Pilot light
4 Foil release button 10 Shaver socket
5 Long hair trimmer 11 Power supply cord set
6 Switch

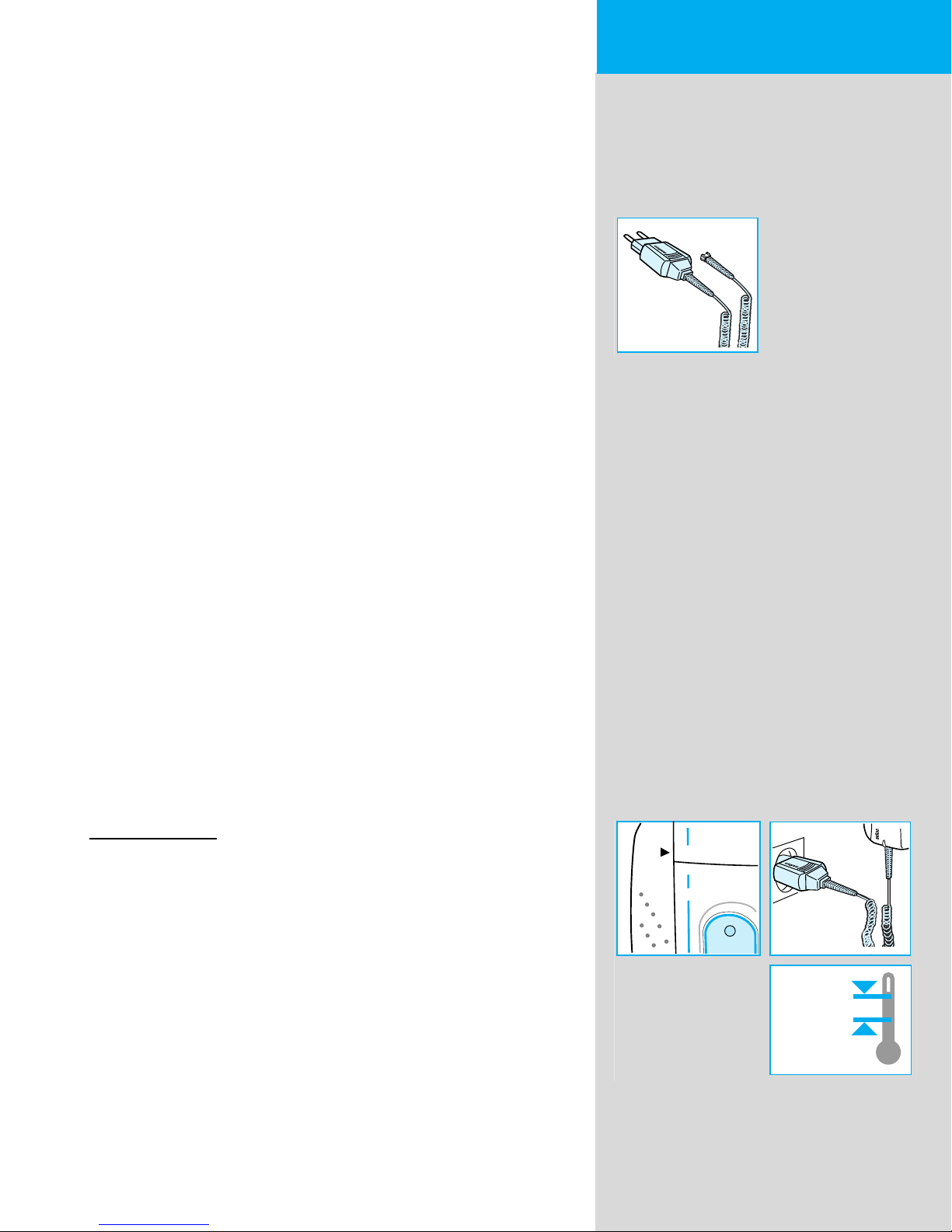

Charging the shaver
• First charging: Using the power supply cord set, connect
the shaver to the mains with the switch in position «0» and
charge it for at least 4 hours (plug might get warm). From
now on, the SmartLogic inside your shaver will ensure
optimal care of the battery.
• A full charge will give up to 50 minutes of cordless
shaving time depending on your beard growth.
However, the maximum battery capacity will only be
reached after several charging/discharging cycles.
• Best environmental temperature range for charging is
15 °C to 35 °C.
+35°C
+15°C
210
7570
English
5491391_7680_Korea Seite 13 Montag, 11. November 2002 2:42 14

14

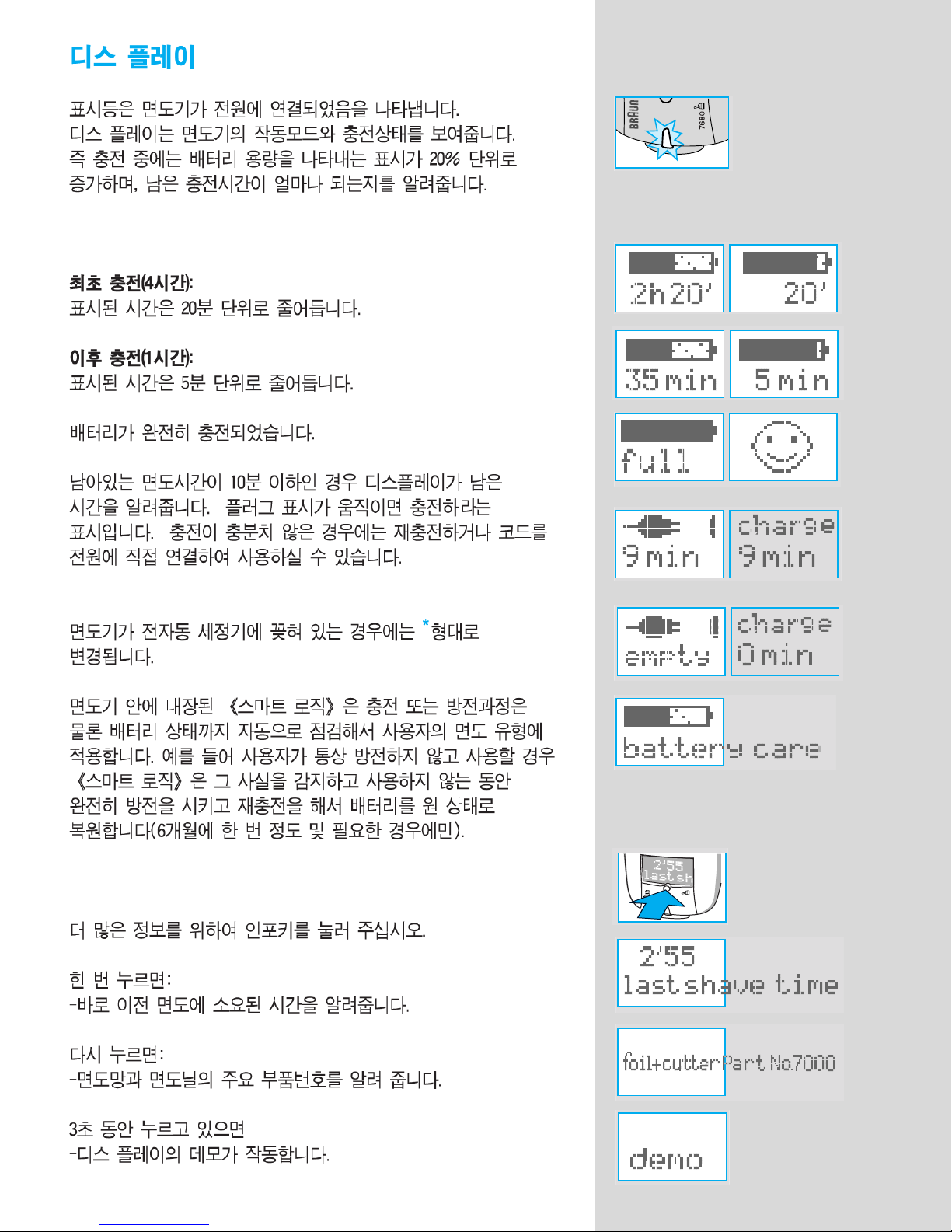

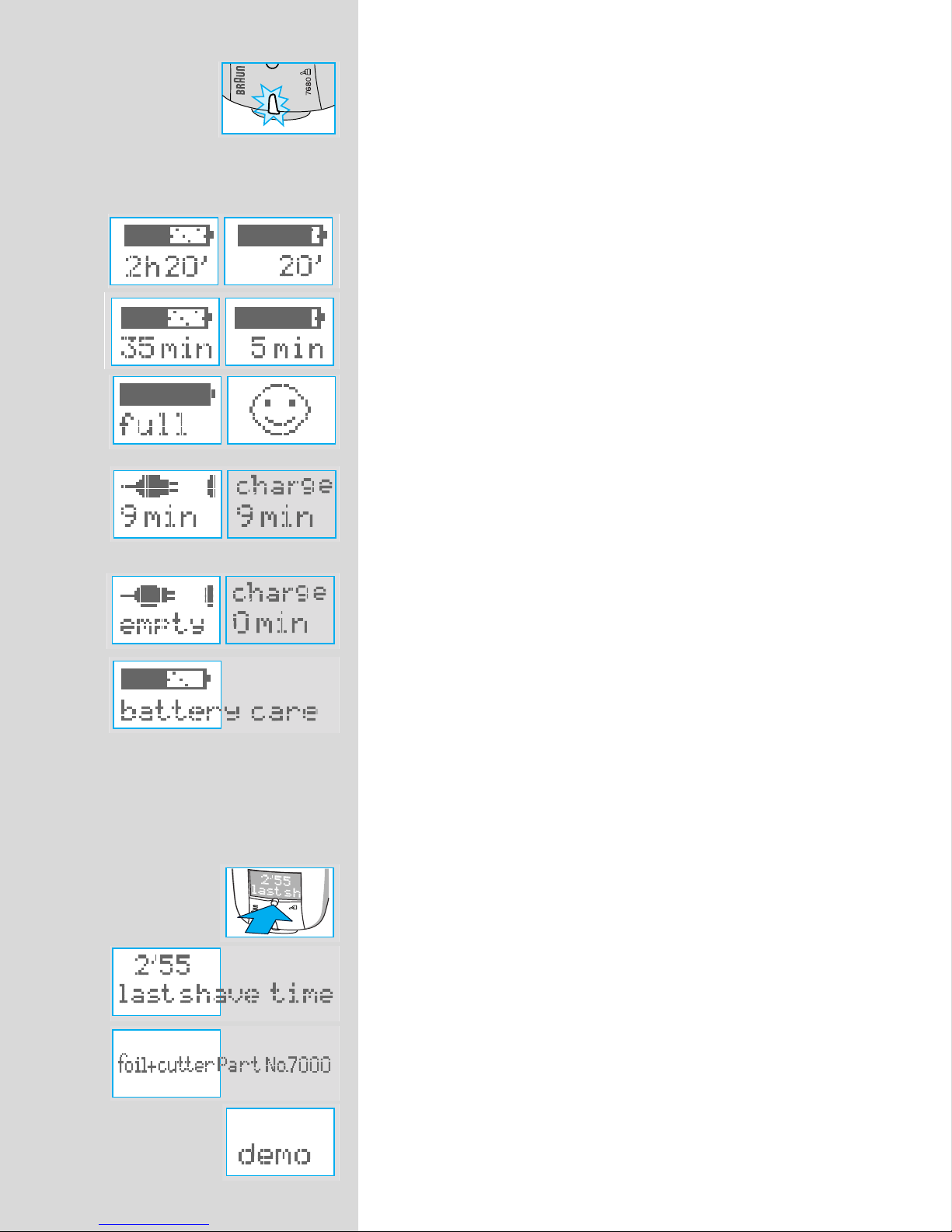

Display
The pilot light shows that the shaver is connected to the
mains.
The display shows the operation mode and charging
status of the shaver: During charging, the display shows
the battery capacity symbol increasing by 20% segments
and the charging time remaining (flashing):
First charging (4 h):
The display counts down in 20 min. steps.
Subsequent chargings (1 h):
The display counts down in 5 min. steps.
The battery is fully charged.
Below 10 minutes remaining shaving time, the display
shows the minutes left. The «moving»plug symbol in-
dicates that you should charge your shaver. If there is in-
sufficient battery charge for a cordless shave, either re-
charge the shaver or shave via the low voltage adapter
connected to the mains.
The display changes to this format when the shaver is in
the Clean&Charge.
The SmartLogic inside your shaver automatically monitors
the condition of the batteries as well as the charging/
discharging processes and adapts them to your personal
shaving patterns. For instance, if it is your routine to never
let the batteries run low, the SmartLogic will recognize this,
look for a pause when you are likely to not use the shaver
and completely discharge and then recharge your shaver
to recondition the batteries (every six months at the most,
and only when necessary).
For additional information, press the info key:
press once:
–to display the duration of the last shave
press again:
–to display the key part number for shaver foil and
cutter block
hold for 3 secs:
–to run a display demo
7680
*
*
*
5491391_7680_Korea Seite 14 Montag, 11. November 2002 2:42 14

15

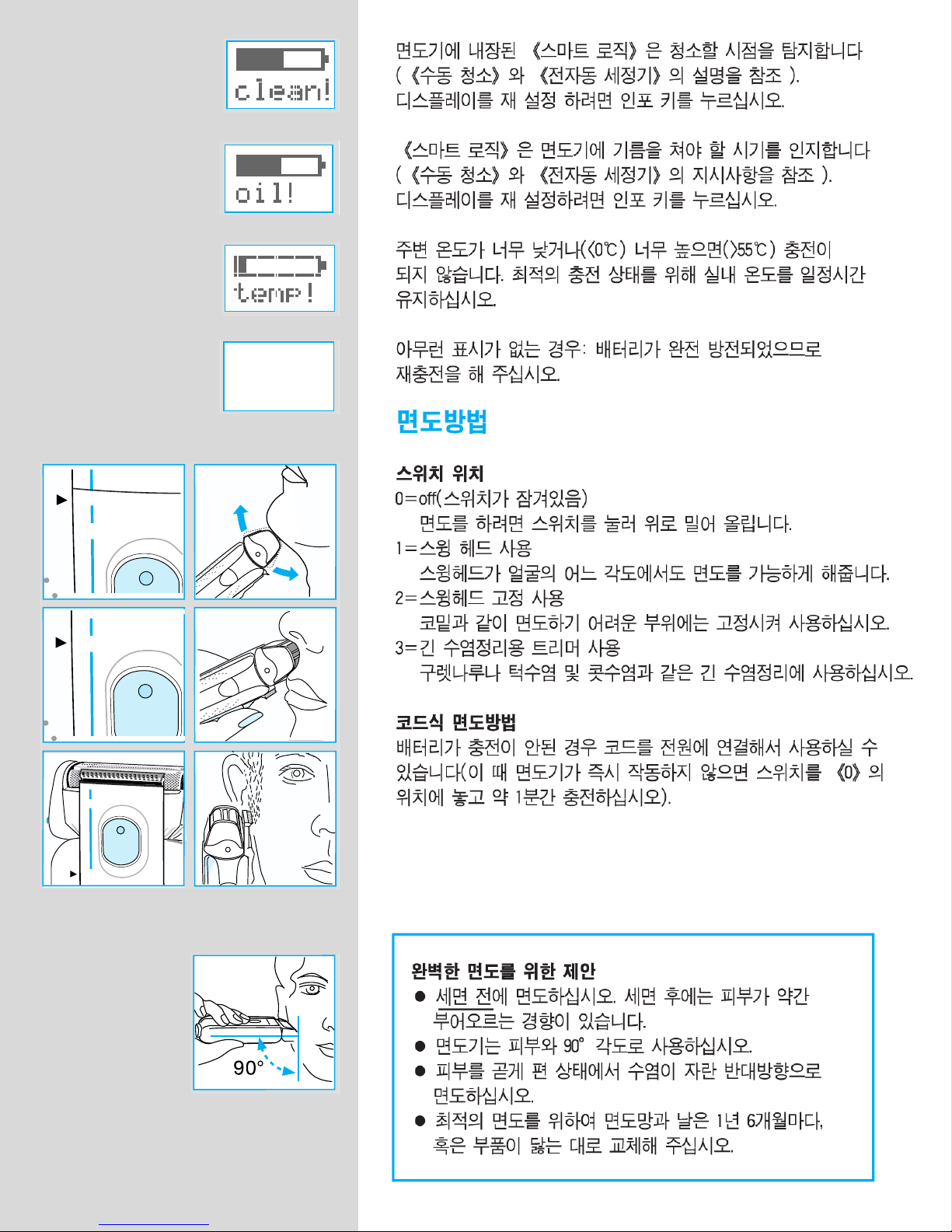

The SmartLogic inside your shaver will detect when the
shaver needs to be cleaned (refer to paragraph «Manual
cleaning»or to separate «Clean&Charge»use
instructions). To reset the display, push the info key.
The SmartLogic inside will recognize when the shaver has
to be lubricated (refer to paragraph «Manual cleaning»or
to separate «Clean&Charge»use instructions). To reset the
display, push the info key.
The shaver cannot be charged if the environmental
temperature is too low (<0 °C) or too high (>55 °C).
Allow the shaver to remain for some time at room
temperature for optimal charging conditions.
No display: The rechargeable battery is completely
discharged and has to be recharged.
Shaving
Switch positions
0 = Off (switch is locked)
Press and push up the switch to operate the shaver:
1 = Shaving with the pivoting head
The pivoting cutting system automatically adjusts
to every contour of your face.
2 = Shaving with the pivoting head locked at an angle
(to permit shaving in difficult areas,
e.g. under the nose)
3 = The long hair trimmer is activated
(for trimming sideburns, moustache and beard).
Shaving with the cord
If the rechargeable battery is discharged, you may also
shave with the shaver connected to the mains via the
power supply cord set.
(If the shaver does not run immediately, charge it with the
switch on position «0»for approx. 1 minute.)
Tips for the perfect shave
•We recommend that you shave before washing,
as the skin tends to be slightly swollen after washing.
•Hold the shaver at right angles (90°) to the skin.
•Stretch your skin and shave against the direction
of beard growth.
•Replace the shaver foil and cutter block every
1
1
/
2
years, or when the parts are worn, to ensure
optimum shaving performance.
21
2
a
u
t
o
m
a
t
i
c
l
o
c
k
2
1
31
5491391_7680_Korea Seite 15 Montag, 11. November 2002 2:42 14

16
Keeping your shaver in top shape
Automated cleaning
The Braun Clean&Charge takes care of all cleaning
and lubrication needs of your shaver. Please refer to
section B.
Manual cleaning
For easy cleaning after each shave, switch the shaver
off. Press the release buttons to lift the shaver foil (do
not remove the foil completely). Switch on
the shaver for
approx. 5-10 seconds so that the shaved stubbles can fall
out.
For a thorough cleaning (weekly), remove the shaver foil
and tap it out on a flat surface. Using the brush, clean the
cutter block and the inner area of the pivoting head. About
every four weeks, clean the cutter block with Braun
cleaning agents.
If your skin is very dry and you notice a reduced operation
time of the shaver or if the display shows «oil!», apply a
drop of light machine oil onto the shaver foil.
Replacing the shaving parts
The shaver foil and cutter block are precision parts that,
in time, are subject to wear. Replace your foil and cutter
block every 18 months and get a 25% better shave.*
(Shaver foil and cutter block: part No. 7000)
(* Overall evaluation from Braun users comparing their
shave with new parts and those used for 18 months.)
Accessories
available at your dealer or Braun Service Centres:
• Shaver foil and cutter block (part No. 7000)
oil
10
10
7000
Syncro
7000
5491391_7680_Korea Seite 16 Montag, 11. November 2002 2:42 14

17

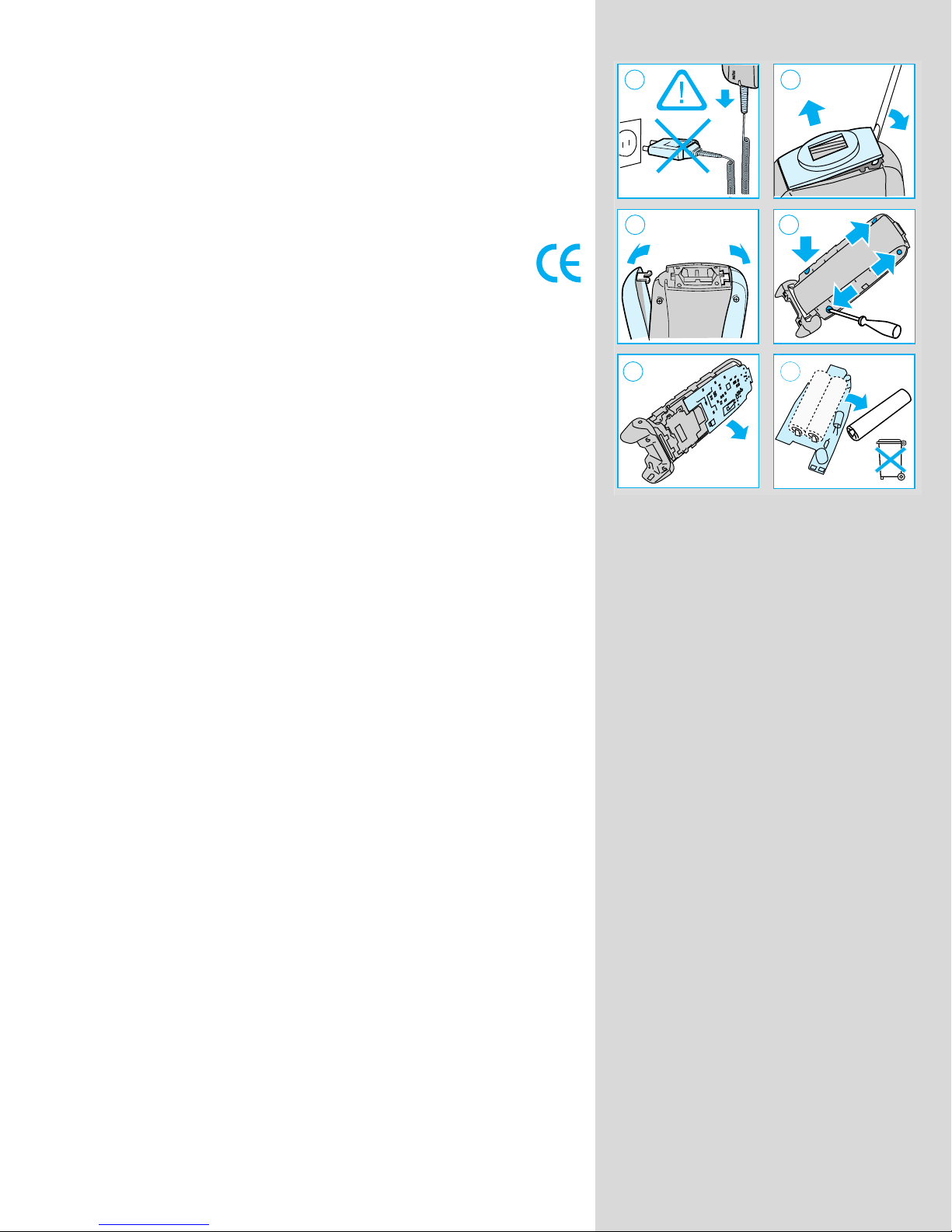

Environmental notice
This appliance is provided with nickel-hydride recharge-
able batteries. To protect the environment, do not dis-
pose of the appliance in the household waste at the end
of its useful life. Open the housing as shown, remove
and dispose of the batteries at your retail store or at
appropriate collection sites according to national or
local regulations.
Subject to change without notice.
This product conforms to the EMC-Requirements
as laid down by the Council Directive 89/336/EEC
and to the Low Voltage Regulation (73/23 EEC).
7XXX
12
4
56
3
5491391_7680_Korea Seite 17 Montag, 11. November 2002 2:42 14

18

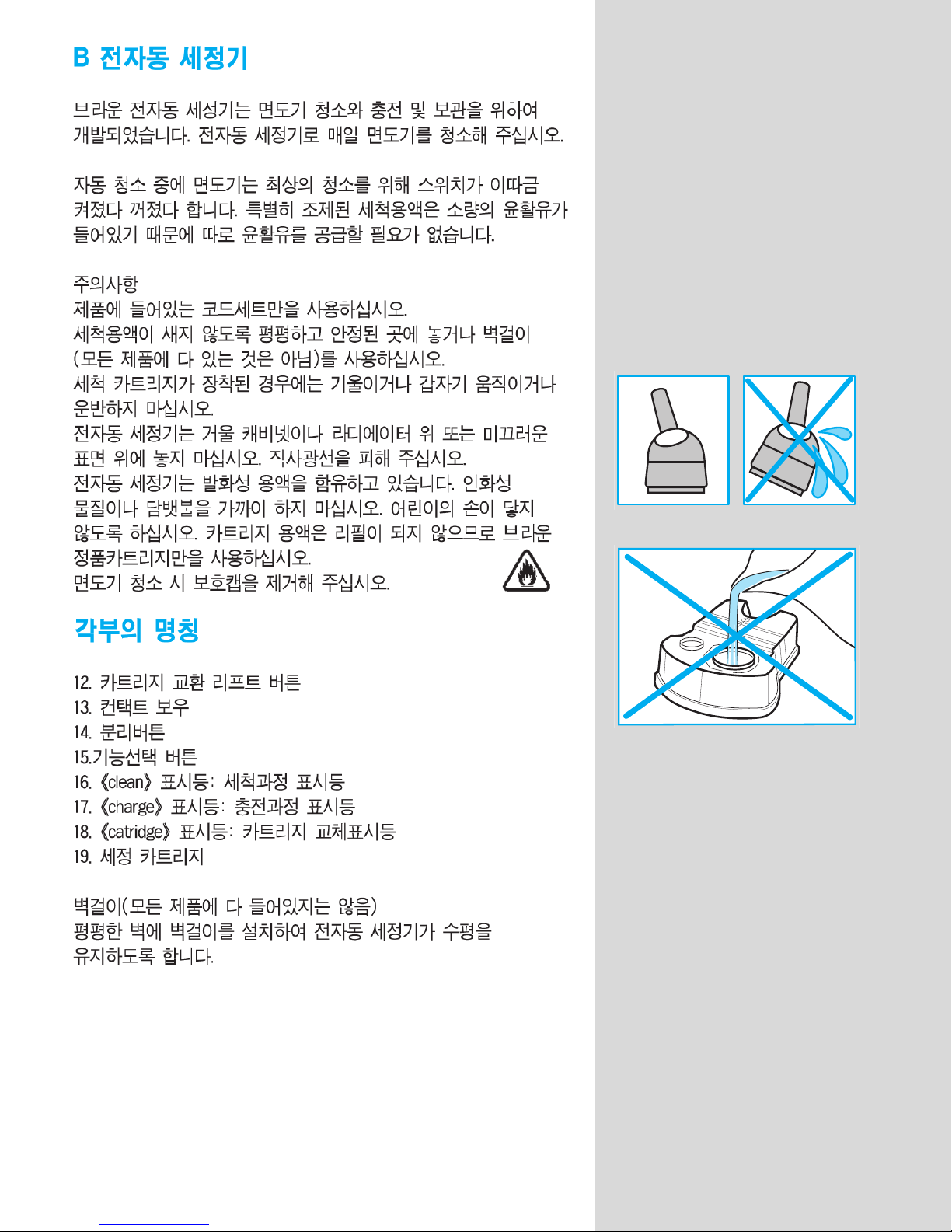

B Clean&Charge
Braun Clean&Charge has been developed for cleaning,
charging and storing your shaver. Clean your shaver daily
in the Clean&Charge.
During the automated cleaning process, the shaver is
switched on and off at intervals to obtain best cleaning
results. Since the specially formulated cleaning fluid
contains a small amount of oil, the cleaning procedure also
fulfills the lubrication needs of the shaver.
Important
•Only use the low voltage adaptation system supplied with
the shaver.
•In order to avoid any leakage of the cleaning fluid, place
the appliance on a flat, stable surface or use the wall
holder (not included in all versions). Do not tip, move
suddenly or transport in any way if a cleaning cartridge is
installed.
•Do not place the appliance in a mirror cabinet, nor store it
over radiators, nor place it on polished or laquered
surfaces. Do not expose to direct sunlight.
•The appliance contains highly flammable liquid.
Keep it away from sources of ignition. No smoking.
Keep out of reach of children. Do not refill cartridge.
Use only original Braun refill cartridge.
•When cleaning the shaver, its protection cap should be
removed.
Description
12 Lift button for cartridge exchange
13 Contact bow
14 Release button
15 Operation mode selector
16 «clean»light: cleaning process indicator
17 «charge»light:
charging process indicator
18 «cartridge»light: cartridge replacement indicator
19 Cleaning cartridge
Wall holder (not included in all versions)
Mount the wall holder with plugs and screws to a smooth
wall so that the standing surface for the Clean&Charge is
horizontal.
5491391_7680_Korea Seite 18 Montag, 11. November 2002 2:42 14

19
Technical specifications
•Power consumption:
•3 W when cleaning
•7 W when charging
•Power supply: 100-240 V 2 / 50 or 60 Hz
(automatic adaptation)
•Input voltage: 12 V
Before using Clean&Charge
Only applies for cordless shavers:
For the first charge of the shaver, connect
the low voltage supply cord directly to the shaver, charge
it for 4 hours and shave at least once.
Only then can the shaver be cleaned or recharged in the
Clean&Charge.
If the rechargeable batteries are discharged, select the
combined «clean»+ «charge»programme rather than the
«clean»programme alone.
Installing the cartridge

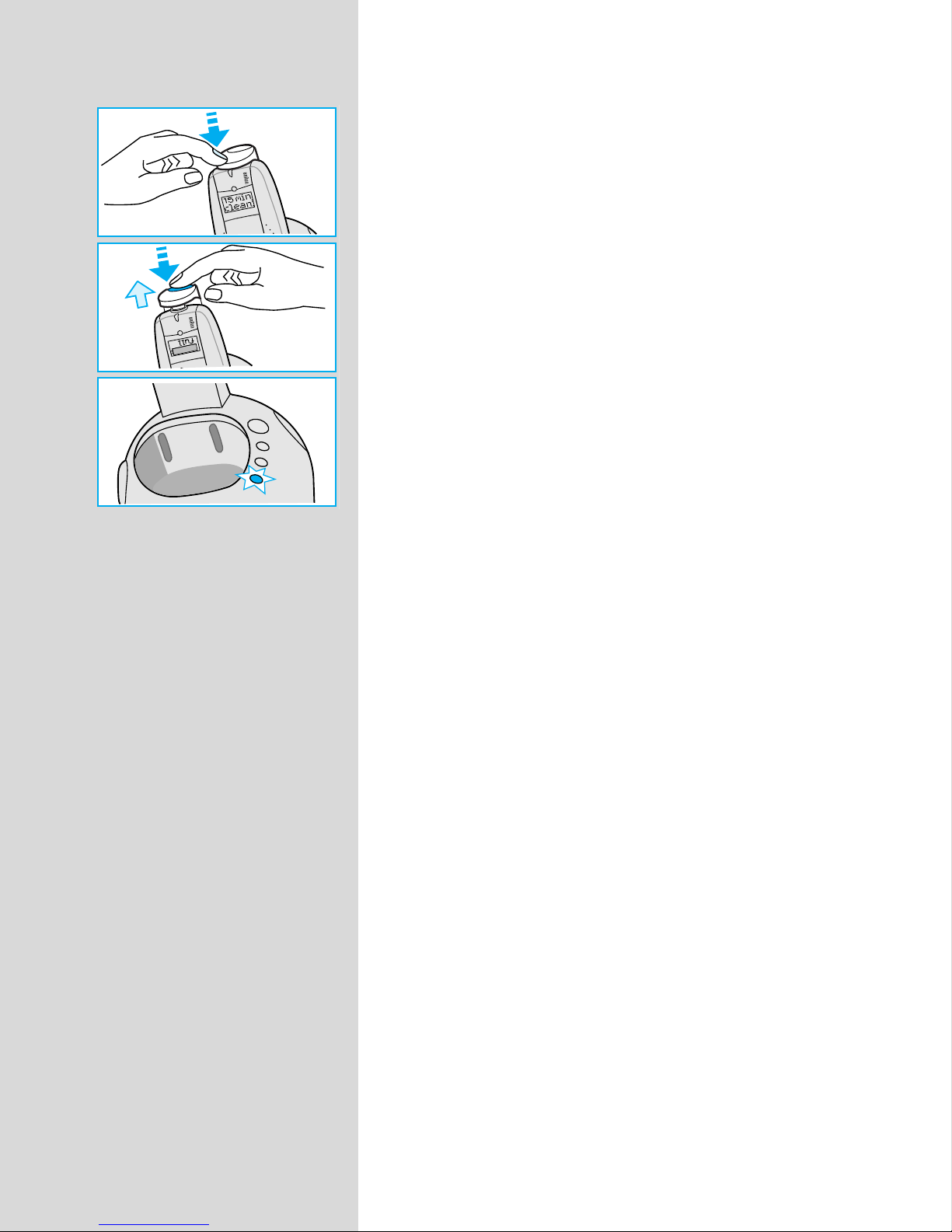

•Press the lift button (12) to open the housing.
•Hold the cartridge down on a flat, stable surface (e.g.
table). Carefully remove the lid from the cartridge. Slide the
cartridge into the base as far as it will go.
•Slowly close the housing by pushing it down until it locks.
Replacing the cartridge
After having pressed the lift button to open the housing,
wait for a few seconds before removing the used cartridge.
Before discarding the used cartridge, make sure to close
the openings using the lid of the new cartridge, since the
used cartridge will contain contaminated cleaning
solution.
Operating your Clean&Charge

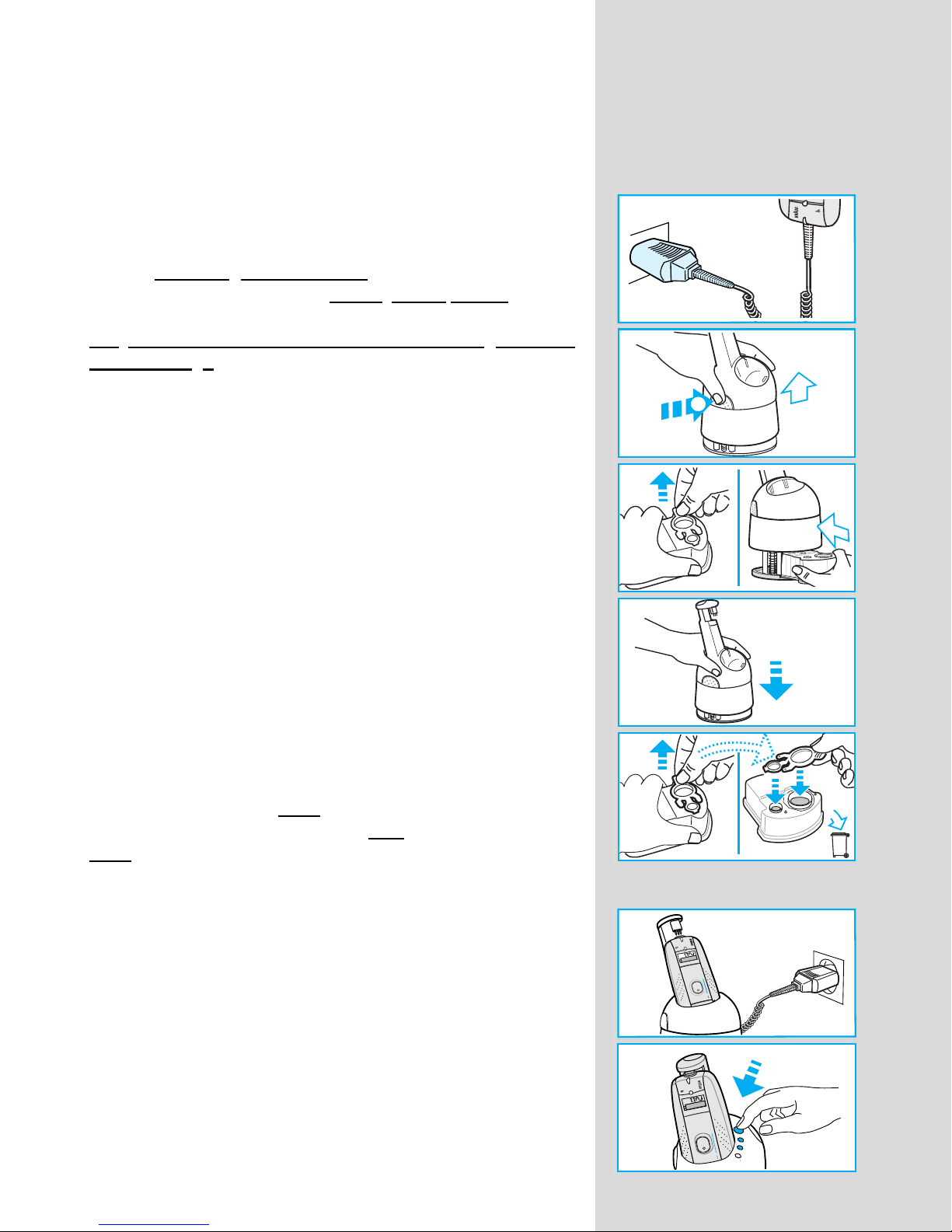

•Connect your Clean&Charge with the low voltage supply
cord to the mains electricity supply.
•Open the contact bow (13) by pressing the
release button (14). After shaving, switch the shaver off
and place it upside down into the Clean&Charge (without
having released the shaver foil).
•Select the operation mode by toggling with the mode
selector (15):
•«clean»(about 15 min)
•«clean»+ «charge»(about 75 min)
2
1
old
new
new
7680
a
u
t
o
m
a
t
i
c
l
o
c
k
3210
a
u
t
o
m
a
t
i
c
l
o
c
k
3210
on/off
clean
charge
cartridge
7680
7680
5491391_7680_Korea Seite 19 Montag, 11. November 2002 2:42 14

20
•«charge»(about 60 min)
•The corresponding lights will come on.
•(With cord shavers, only the «clean»function can be
selected.)
•Slide down the contact bow to connect the shaver and to
start the selected programme.
•If no programme is selected, the default function «clean»
will be started.
•Do not interrupt a running programme, as it leaves the
shaver wet and not fit for use. If interruption is needed
nonetheless, press the release button.
•After a programme has finished, the corresponding light
will go out. Prior to the next shave, press the release
button to release the shaver.
•When the «cartridge»light starts flashing, the remaining
fluid in the cartridge is sufficient for about 5 more cleaning
cycles. After these 5 cycles, the cleaning performance will
be reduced and the cartridge has to be replaced.
•When the «cartridge»light illuminates constantly, the
cleaning function is locked and a new cartridge has to be
installed.
Only then, the next cleaning cycle can be started.
•A cleaning cartridge should be sufficient for about 30
cleaning cycles. With daily use, the cleaning cartridge
should be replaced approx. every 4 weeks.
•The hygienic cleaning solution cartridge contains alcohol
which, once opened, will naturally evaporate slowly into
the surrounding air. Each cartridge, if not used daily,
should be replaced after approx. 8 weeks.
•Clean the housing from time to time with a damp cloth,
especially the opening where the shaver rests.
Subject to change without notice.
select
clean
charge
cartridge
5491391_7680_Korea Seite 20 Montag, 11. November 2002 2:42 14
