WOODPECKER II
1. RUN A CHECK THROUGH THE MACHINE REGULARLY TO ENSURE NORMAL USE
2.RESTART THE UNIT TO SAVE THE SETUP AFTER CHANGING THE SETTING

2/ 22
Bravo Amusement. Ltd. | Woodpecker II
CONTENTS
KEY COMPONENTS………………………………………………………….……………………3
SPECIFICATION………………………..………………………………………..…………….……4
HOW TO PLAY……………………………………………………………………..………….……5
INSTALLATION AND MAINTENANCE………………………..….………….…………….6
TROUBLE SHOOTING…………………………………………………….……………….….…10
MENU SETTING………………………………………………….…………………………….… 12
HARDWARE TEST…………………………………………….………………………..…………14
MAINBOARD GUIDE……………………………………………..…………………… ……… 15

3/ 22
Bravo Amusement. Ltd. | Woodpecker II
KEY COMPONENTS：
①CARTOON OUTLOOK : CAMBERED SURFACE MADE BY ACRYLIC LAMP
②JACKPOT DIGITAL BOARD: THE SCORES FOR LIGHTING UP 5 WOODPECKER LED
③FLASHING BONUS LIGHT: START RUNING AROUND AFTER THE PECK GAME FLASHING
BOUNS LIGHT
④WORMHOLE :THE LIGHT OF WORMHOLE WILL START TO SHINNING
⑤WOODEN-ROLL: WOODEN-ROLL WILL BE RUNNING IN ORDER TO
ATTRACT PLAYER(S)

4/ 22
Bravo Amusement. Ltd. | Woodpecker II
⑥NEW DESIGN JOYSTICK: MOLD BASE COMPONENTS-JOYSTICK ;EASY
TO CONTROL
⑦GAME TIME BOARD :SHOW GAME TIME
⑧COIN MECHANISM
⑨TICKET DISPENSER
SPECIFICATION：

5/ 22
Bravo Amusement. Ltd. | Woodpecker II
WEIGHT:250KG

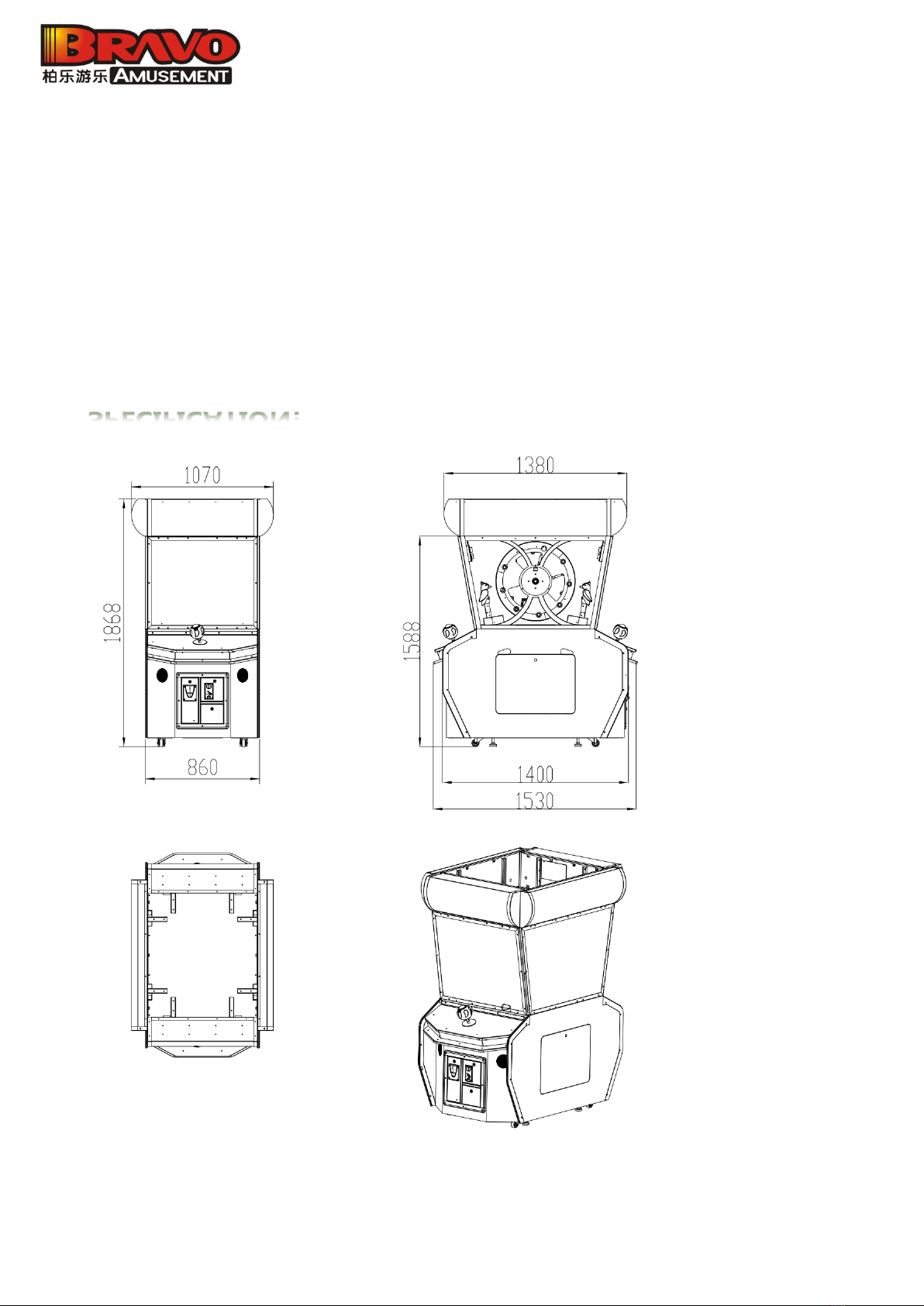

DIMENSION:L1550*W1080*H1900 (MM)
VOLTAGE POWER CURRENT AC220V±10%, 50HZ; 300W 2.3A（MAX）
OPERATION CONDITION TEMPERATURE：-10℃～+40℃
(INDOOR ONLY) HUMIDITY ：≤90%；
PRESSURE : 86PA～106PA;
NOTE :
GAME PARAMETERS ARE SUJECT TO CHANGE WITHOUT NOTICE
HOW TO PLAY
INSERT COIN(S) AND GAME STARTS
WOODEN-ROLL WILL START TO RUNNING
LIGHT OF WORMHOLE WILL START TO SHINNING
PLAYER(S) CONTROL JOYSTICK IN ORDER TO CONTROL
WOODPECKER SIDE BY SIDE
PRESS THE BUTTON
PECK THE BUG WITH LED AND WIN SCORES
EACH BONUS LIGHT IS LIT UP AFTER EACH PECK
FLASHING BONUS LIGHT STARTS RUNNING AROUND AFTER THE PECK GAME
WIN MORE SCORES AFTER CONSTANT PECKING
PUT MORE CREDIT AND MANAGE TO LENGTHEN THE BONUS LIGHT

6/ 22
Bravo Amusement. Ltd. | Woodpecker II
INSTALLATION AND MAINTENANCE：
1. OPERATION ZONE
THIS MACHINE REQUIRES SPACE FOR PLAYING THE GAME. BE SURE TO
LEAVE ENOUGH SPACE WHEN INSTALLING THE MACHINE.
2. LOCATIONS TO AVOID
3 .GAME LEVELING

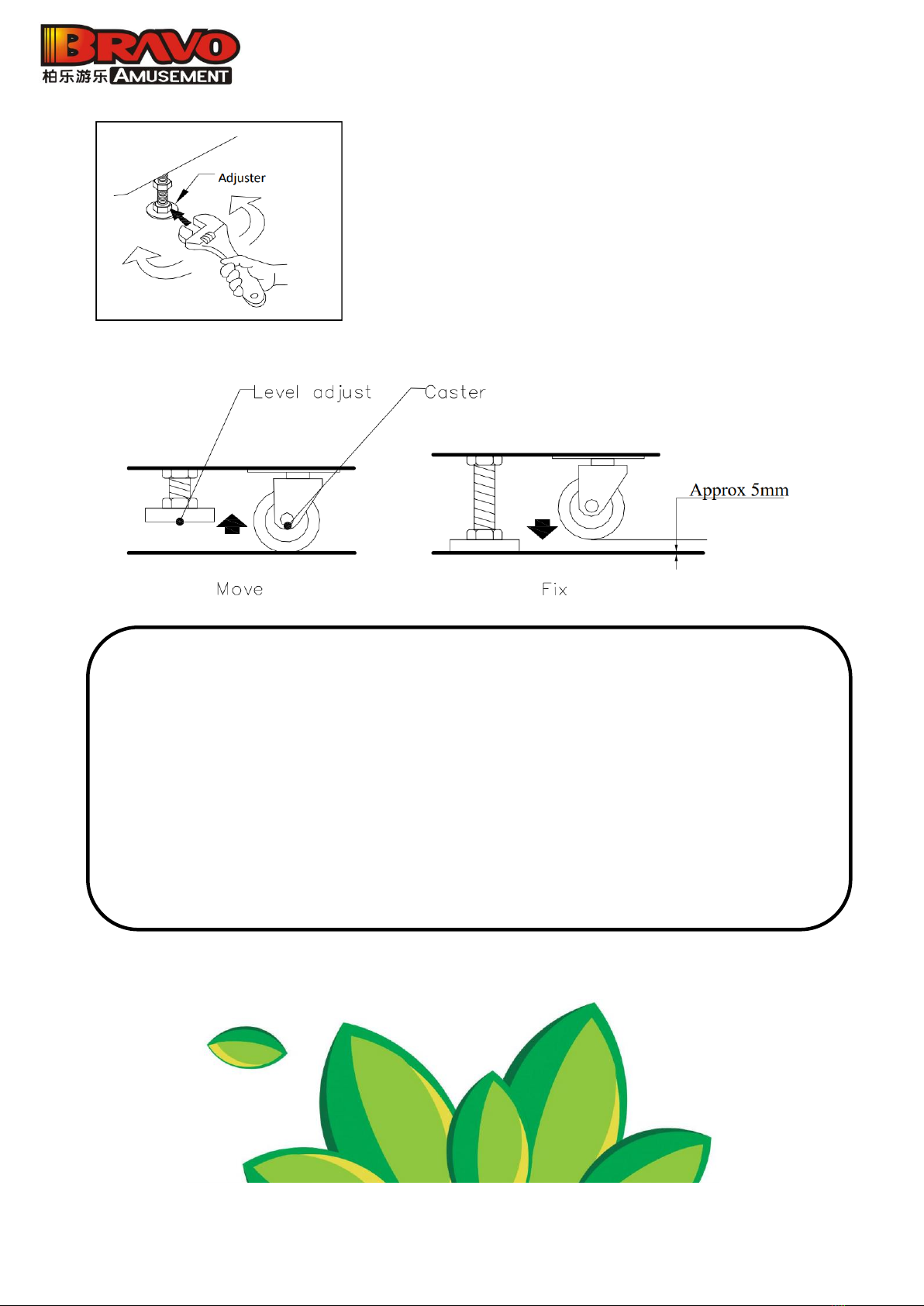

INSTALL THIS MACHINE ON A FLAT SURFACE. ADJUST LEVELERS TO
LIFT THE LEGS HIGHER THAN THE CASTERS AND LEVEL GAME.
MAKE SURE THAT THE MACHINE IS LEVEL WITH THE FLOOR. IF THE
MACHINE IS NOT LEVEL, THE GAME MAY NOT PLAY WELL.

7/ 22
Bravo Amusement. Ltd. | Woodpecker II
●DISCONNECT GAME POWER BEFORE MOVING.
●MAKE SURE ALL WHEELS ARE INTACT. REPLACE ANY WHEELS THAT ARE
DAMAGED OR BROKEN BEFORE MOVING THE GAME.
●WHEN MOVING THE GAME, DO NOT SLIDE THE GAME ACROSS THE FLOOR.
●ENSURE THE GAME IS LEVEL BEFORE CONNECTING THE POWER.
● IT IS REQUIRED TO WRAP WITH SOFT CUSHION WHEN CARRY THE MACHINE IN
LONG DISTANCE. THE PACKAGES STANDARD IS BASED ON SPECIFIC
CONDITIONS.

8/ 22
Bravo Amusement. Ltd. | Woodpecker II
4.CONNECTING THE POWER CORD
5.TERMINAL BOX

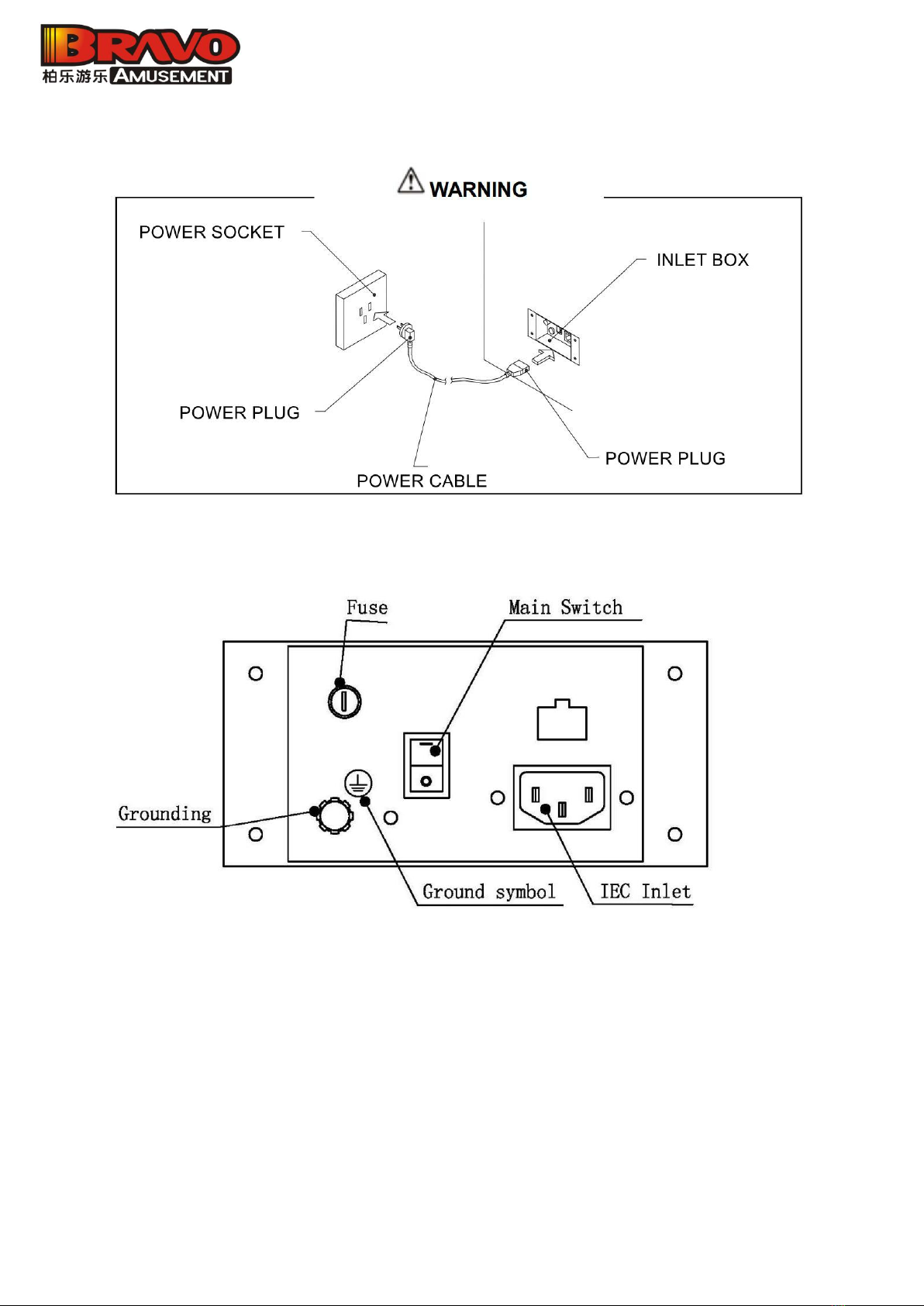

POWER SUPPLY RECEPTICAL: THE POWER SUPPLY RECEPTICAL IS LOCATED AT THE BOTTOM
RIGHT CORNER OF THE BACK OF THE MACHINE.
FUSE: THERE IS AN AC FUSE IN THE FUSE TUBE. ITS SPECIFICATION IS 6.3A, Φ5X20MM.

9/ 22
Bravo Amusement. Ltd. | Woodpecker II
󱛻󱛼󱛽WARNING

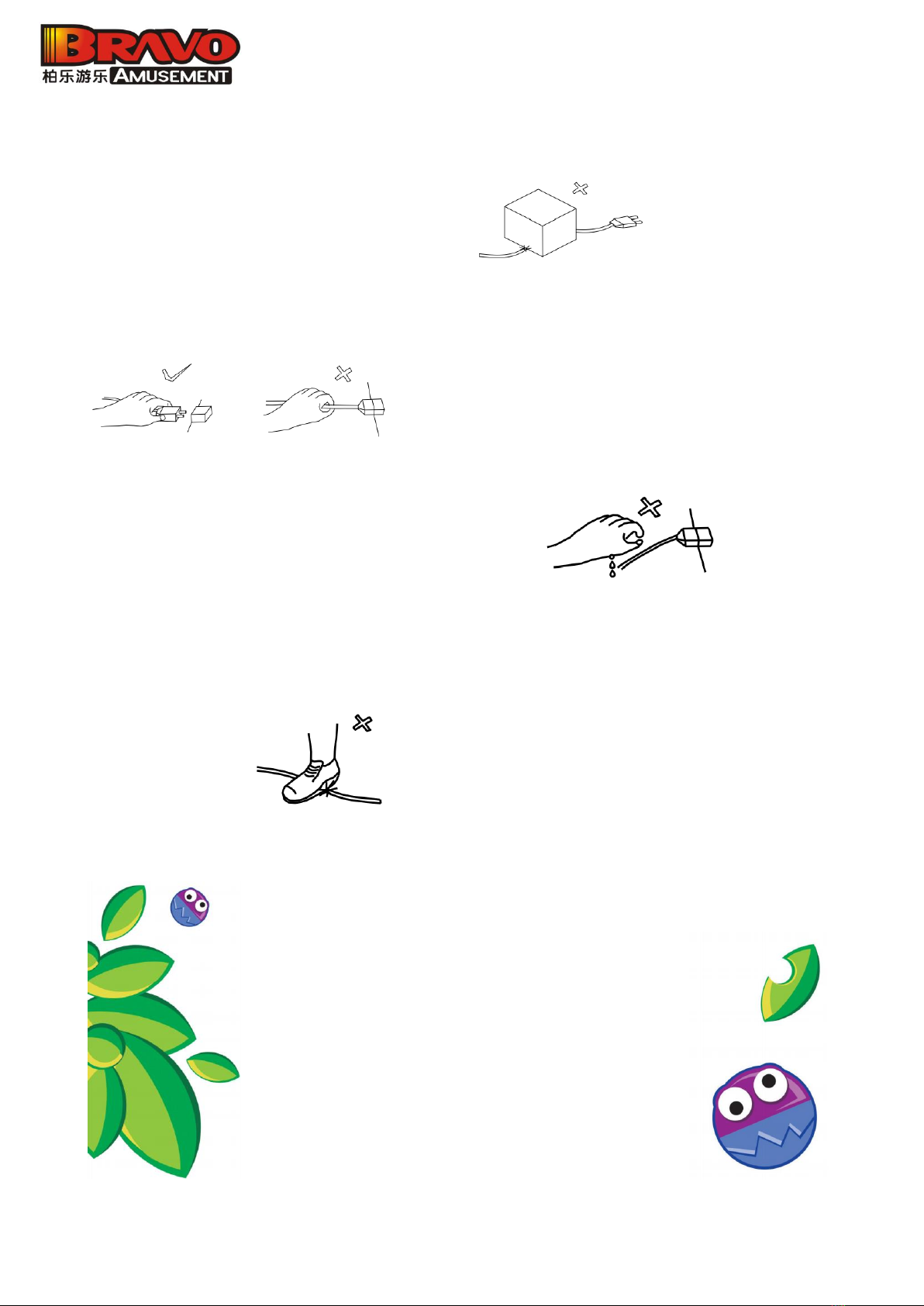

●DO NOT PUT HEAVY ITEMS ON POWER CORD
●HOLD THE POWER PLUG INSTEAD OF THE WIRE TO DRAW THE POWER CORD OUT OF THE
SOCKET.
●DO NOT TOUCH THE POWER PLUG WITH WET HANDS.
●DO NOT DRAW OR TWIST THE CORD OR INSTALL NEAR A HEAT
SOURCE.
●DO NOT PLACE THE CORD WHERE THE PLAYER CAN EASILY TRIP OVER OR COME IN
CONTACT WITH IT.
●OPERATE THIS GAME WITH THE CORRECT POWER AND FUSE CONFIGURATION.

10 / 22
Bravo Amusement. Ltd. | Woodpecker II
TROUBLE SHOOTING
NO.
PROBLEM
POSSIBLE CAUSE
SOLUTION
1
FAIL TO INSERT
COIN
1.INAPPROPRIATE COINS.
2.THE CABLE IS FAIL TO CONNECT.
3.THE COIN DEVICE HAS NOT
ADJUSTED ALREADY.
4.COIN JAMMING.
1.INSERT THE APPROPRIATE COINS
2.CONNECT THE CABLE AGAIN
3.ADJUST THE COIN DEVICE
4.TAKE OUT THE COIN JAMED IN THE
MACHINE
2
NO TICKETS OUT
1.THE TICKETS HAVE RUN OUT OF
ALREADY,
2.THE TICKET MACHINE DIDN’T
INPUT 12V VOLTAGE.
3.THE LINES OF DRIVE SIGNAL AND
ELIMINATE TICKET SIGNAL ARE
LOOSING.
4.THE MALFUNCTIONS OF THE
TICKET MACHINE DRIVE OR
ELIMINATE TICKET TERMINAL ON
THE MAINBOARD.
5.THE MACHINE IS NOT SET TO THE
TICKET MODE.
1.INPUT THE TICKETS AGAIN.
2.CHECK THE OUTPUT VOLTAGE AND
CIRCUIT OF THE POWER BOX
3.CHECK THE VOLTAGE CHANGE OF THE
SIGNAL LINE AND CIRCUIT.
4.REPLACE THE MAINBOARD OF THE
MACHINE.
5.SET TO THE TICKET MODE.
6.REPLACE THE TICKET DEVICE.
3
ROLLER NOT
FUNCTIONING
1.NO 220V/110V AND 12V POWER
SUPPLY TO SILICON CONTROLED
PLATE
2.CONTROLED PLATE BURN OUT
3.MOTOR BURN OUT
4.IC ON OUTPUT TERMINAL BURN
OUT
1.CHECK POWER OF 220V/110V AND 12V
AND CIRCUIT
2.REPLACE CONTROLED PLATE
3.REPLACE MOTOR
4.REPLACE RELATED IC OR MAIN BOARD
4
SCORE ERROR
1.NO POWER SUPPLY VOLTAGE FOR
12V IR
2.IR FOR SCORE BURN OUT
3.IC ON OUTPUT TERMINAL OF MAIN
1.CHECK POWER OF 12V AND CIRCUIT
2.REPLACE IR
3.REPLACE MOTOR
4.REPLACE RELATED IC OR MAIN BOARD

11 / 22
Bravo Amusement. Ltd. | Woodpecker II
BOARD BURN OUT
5
NO BUG HOLE
LIGHT
1.NO POWER SUPPLY FOR 12V
2. WORMHOLE LIGHT BURN OUT
3.IC OF INPUT OR OUTPUT
TERMINAL OF MAIN BOARD BURN
OUT
1.CHECK THE POWER SUPPLY AND
CIRCUIT OF 12V
2.REPLACE WORMHOLE LIGHT
3.REPLACE IC OR MAIN BOARD
6
NO SPOT LIGHT
1.NO 220V/110V AND 12V POWER
SUPPLY TO SILICON CONTROLED
PLATE
2.CONTROLED PLATE BURN OUT
3.SPOTLIGHT BURN OUT
4.IC ON OUTPUT TERMINAL OF MAIN
BOARD BURN OUT
1.CHECK POWER OF 220V/110V AND 12V
AND CIRCUIT
2.REPLACE CONTROLED PLATE
3.REPLACE SPOTLIGHT
4.REPLACE RELATED IC OR MAIN BOARD
7
NO SOUND
1.VOLUME IS TOO SMALL
2.VOLUME OUTPUT SIGNAL BROKEN
3.SPEAKER DAMAGE
4.AMPLIFIER DAMAGE
1.TURN THE VOLUME UP
2.GOOD CONNECT THE CIRCUIT
3.REPLACE SPEAKER
4.REPLACE MAIN BOARD
8
COLOURED LAMP
NO LIGHT
1.NO POWER SUPPLY FOR 12V
2.THE POWER ON CONTROLLER IS
SHUT DOWN
1.CHECK THE POWER SUPPLY AND
CIRCUIT OF 12V
2.OPEN THE POWER SWITCH ON
COTROLLER
9
1.NO POWER INPUT TO THE
MACHINE
2.THE POWER SWITCH IN NOT OPEN
3.THE POWER FUSE BURN OUT
4.NO VOLTAGE OUTPUT TO THE
POWER SUPPLY BOX
5.NO VOLTAGE SUPPLY TO THE MAIN
BOARD
6.MAIN BOARD DAMAGE
1.OPEN POWER SWITCH AND CONNECT
POWER PLUG
2.TURN ON THE POWER SWITCH
3.ELIMINATE SHORT CIRCUIT AND
REPLACE NEW FUSE
4.REPLACE POWER SUPPLY BOX
5.CONNECT THE HOST WIRE
6.REPLACE MAIN BOARD

12 / 22
Bravo Amusement. Ltd. | Woodpecker II
MENU SETTING
SETTING
1.PRESS"MENU" AND ENTER INTO SETTING(100,200,300...)
2.PRESS:"OPTION" SELECT (100，200，300…)
Menu
option
corresponding
value
Menu
option
corresponding
value
100
Number of credits
（credits per game）
100
Free play
800 JP value
increase
(pecking bugs)
800
0 + points (No)
101
1
801
0.33（3 bugs +1
point）
102
2
802
0.5（2 bug +1
point）
103
3
803
1（1bug +1
point）
104
4
804
2
（1bug+2points）
105
5
805
3
（1bug+3points）
200
Game time（SECONDS)
200
15
900 Save JP before
power off
900
No
201
20
901
Yes
202
25
A00 Winning
percentage
A01
5
203
30
A02
10
300
Standby effect interval
time:
Music playing, Tree
moving (seconds)
301
6
A03
15
302
20
A04
20
303
30
A05
25
304
40
A06
30
305
50
A07
35
306
60
A08
40
307
120
A09
45
308
/
A10
50
400
No tickets out
B01
5

13 / 22
Bravo Amusement. Ltd. | Woodpecker II
400
Number of tickets
（scores per ticket）
401
2
B00 winning ratio
after putting more
credits
B02
10
402
5
B03
15
403
10
B04
20
404
20
B05
25
405
30
B06
30
406
40
B07
35
407
50
B08
40
500
Maximum tickets per
game
501
10
B09
45
502
20
B10
50
503
30
C00 Clear out tickets
C00
No
504
40
C01
Yes
505
50
D00 save coin/tickets
no. when power off
D00
No
506
60
D01
Yes
507
70
508
No limit
000
Exit menu
(wait for 3s)
Press "MENU" to enter
"000" and wait 3 seconds.
The machine saves data
and restarts automatically
600
Minimum tickets per
game
600
1
601
3
602
5
603
10
604
20
700 JP basic points
701
100
error code：
E01：lack of tickets
E02：1p left motor or sensor faulty
E03：1p middle motor or sensor faulty
E04：1p right motor or sensor faulty
E05：2p left motor or sensor faulty
E06：2p middle motor or sensor faulty
E07：2P right motor or sensor faulty
702
200
703
300
704
400
705
500
706
600
707
700
708
800
709
900
710
1000

14 / 22
Bravo Amusement. Ltd. | Woodpecker II
HARDWARE TEST
PRESS "TEST" AND ENTER INTO SETTING ITEMS(1.2.3)
TEST
CONTENT
DISPALY
DESCRIPTION
ITEM NO.1
TEST DIGITAL PIPE
0-9
ITEM NO.2
INPUT TEST
2.XX
XX:CORRESPOND TO IO INPUT NUMBER
ITEM NO.3
OUTPUT TEST
3.XX
XX:CORRESPOND TO IO INPUT NUMBER
1P START BUTTON MINUS NUMBER OUTPUT
2P START BUTTON PLUS NUMBER OUTPUT
ITEM NO.4
MUSIC TEST
4.XX
XX:MUSIC PLAY NUMBERS
1P START BUTTON FIRST MUSIC
2P START BUTTON SECOND MUSIC
ITEM NO.5
EXIT MENU
PRESS “TEST” AND ENTER TO 000 AND THEN WAIT FOR
3S,DATA SAVED AND THE UNIT WILL START
AUTOMATICALLY

15 / 22
Bravo Amusement. Ltd. | Woodpecker II

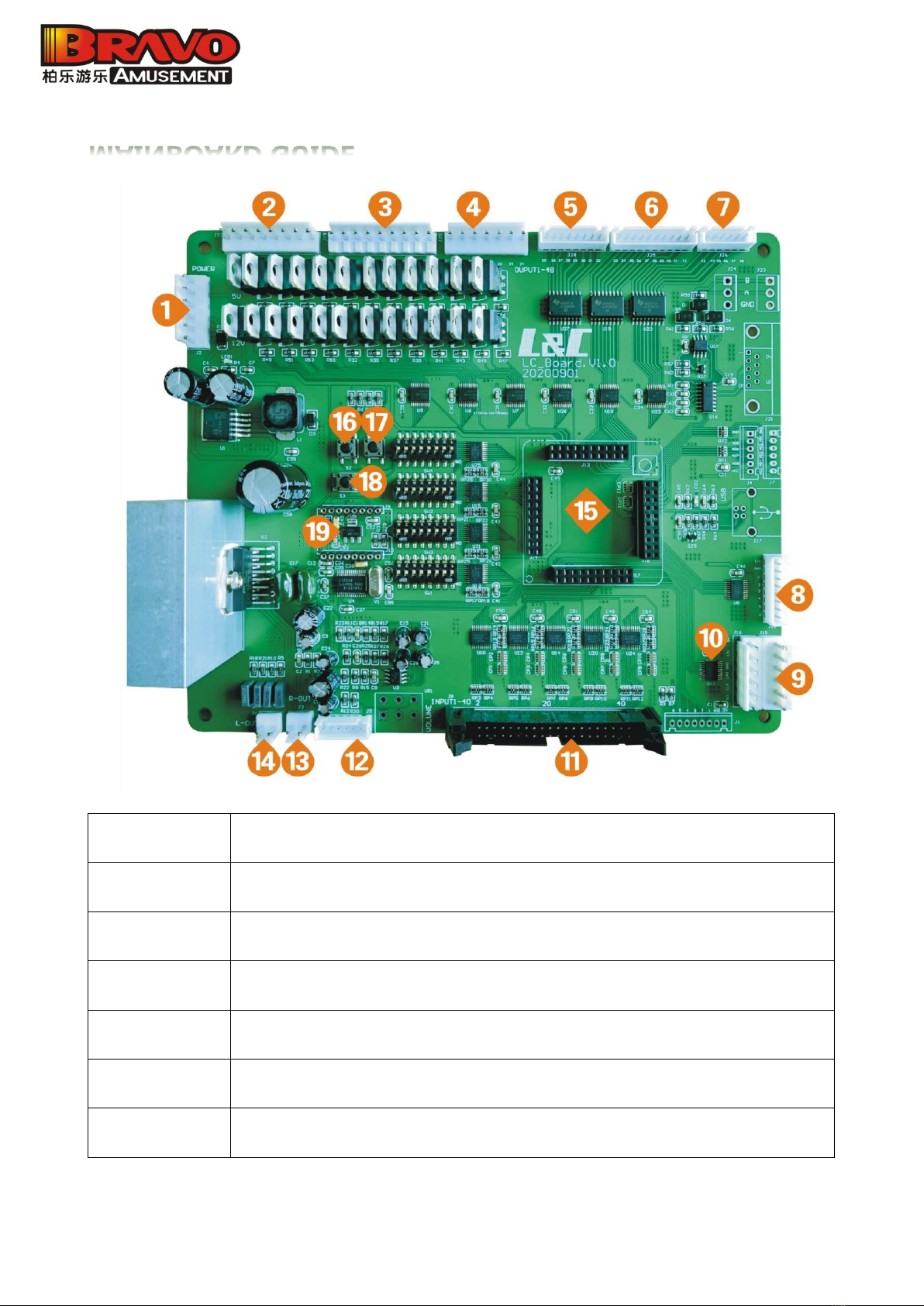

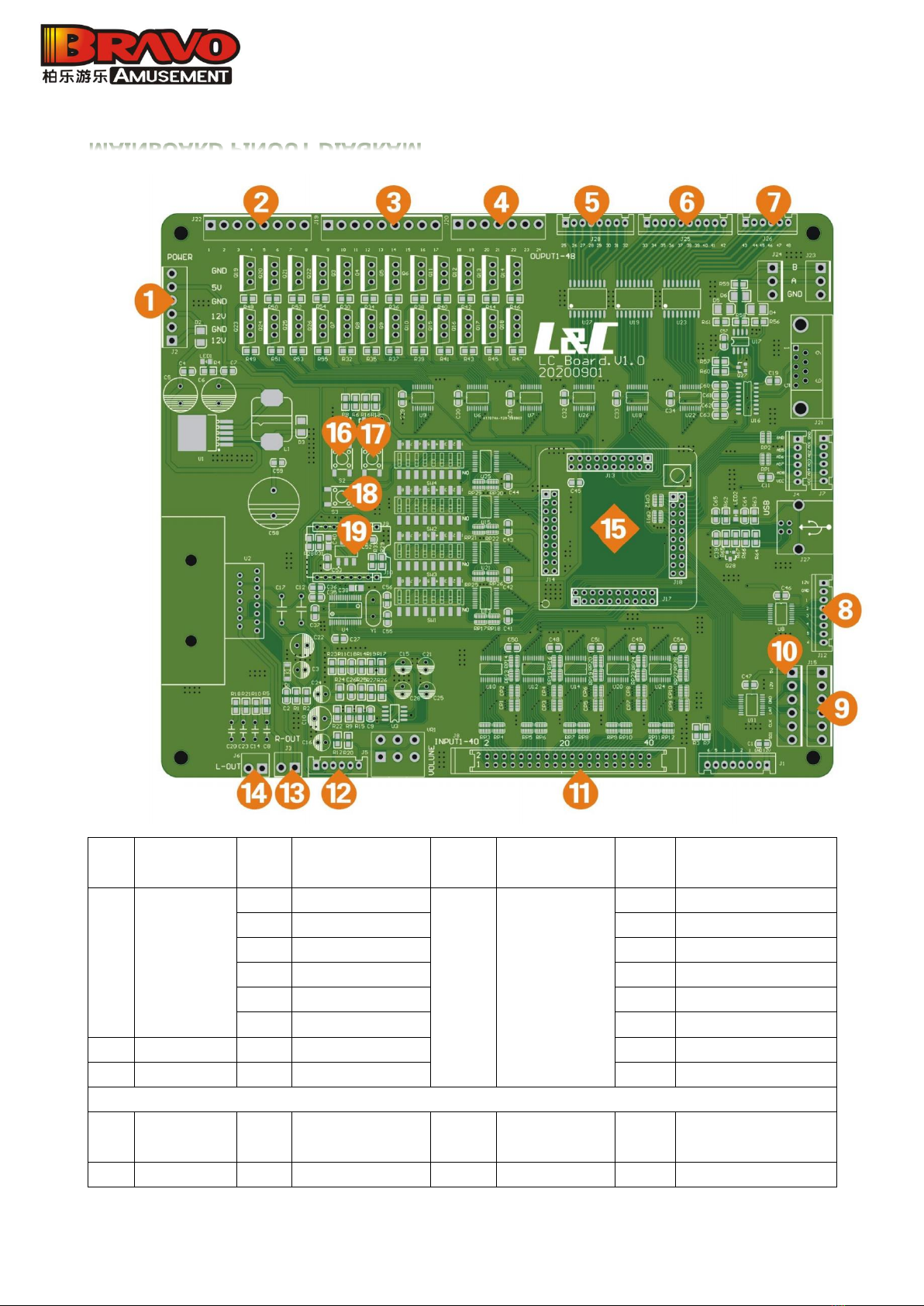

MAINBOARD GUIDE
NUMBER
NAME
1
MAINBOARD POWER SUPPLY 12V,0V
2
OUTPUT 1-8
3
OUTPUT 9-17
4
OUTPUT 18-24
5
OUTPUT 25-32
6
OUTPUT 33-42

16 / 22
Bravo Amusement. Ltd. | Woodpecker II
7
OUTPUT 42-48
8
/
9
DIGITAL PIPE
10
GLASS PANEL LIGHT
11
INPUT 1-40
12
POTENTIOMETER(VOLUME)
13
SPEAKER 1P
14
SPEAKER 2P
15
IC CHIP
16
/
17
/
18
/
19
MUSIC CHIP

17 / 22
Bravo Amusement. Ltd. | Woodpecker II
NUMBER
NAME
1
MOTOR TEST 1P DIREST ROTATION
2
MOTOR TEST 1P REVERSE ROTATION
3
MOTOR TEST 2P DIREST ROTATION
4
MOTOR TEST 2P REVERSE ROTATION
5
MOTOR CONTROL SIGNAL
6
MOTOR OUTPUT

18 / 22
Bravo Amusement. Ltd. | Woodpecker II
NUMBER
NAME
1
MAINBOARD POWER SUPPLY 12V,0V
2
BONUS FLASHING LIGHT
3
BONUS FLASHING LIGHT
4
BONUS FLASHING LIGHT
5
FLSHING LIGHT
6
FLSHING LIGHT
7
FLSHING LIGHT
8
SPEED ADJUSTMENT(LIGHT COLOR CHANGING SPEED)

19 / 22
Bravo Amusement. Ltd. | Woodpecker II
MAINBOARD PINOUT DIAGRAM
No.
Name
Pins
Items
No.
Name
Pins
Items
1
Power
supply（J2)
pin1
12V
2
1～8 outlet
(J22)
pin1
outlet1
pin2
Ground/zero
pin2
outlet2
pin3
12V
pin3
outlet3
pin4
Ground/zero
pin4
outlet4
pin5
5V
pin5
outlet5
pin6
Ground/zero
pin6
outlet6
pin7
outlet7
pin8
outlet8
No.
Name
Pins
Items
No.
Name
Pins
Items
3
pin9
outlet9
4
pin18
outlet18

20 / 22
Bravo Amusement. Ltd. | Woodpecker II
9～17 outlet
(J19)
pin10
outlet10
18～24
outlet
(J20)
pin19
outlet19
pin11
outlet11
pin20
outlet20
pin12
outlet12
pin21
outlet21
pin13
outlet13
pin22
outlet22
pin14
outlet14
pin23
outlet23
pin15
outlet15
pin24
outlet24
pin16
outlet16
pin17
outlet17
No.
Name
Pins
Items
No.
Name
Pins
Items
5
25～32
outlet
(J28)
pin25
outlet25
6
33～42 outlet
(J25)
pin33
outlet33
pin26
outlet26
pin34
outlet34
pin27
outlet27
pin35
outlet35
pin28
outlet28
pin36
outlet36
pin29
outlet29
pin37
outlet37
pin30
outlet30
pin38
outlet38
pin31
outlet31
pin39
outlet39
pin32
outlet32
pin40
outlet40
pin41
outlet41
pin42
outlet42
No.
Name
Pins
Items
No.
Name
Pins
Items
7
43～48
outlet
(J26)
pin43
outlet43
8
empty
pin44
outlet44
pin45
outlet45
pin46
outlet46
pin47
outlet47
pin48
outlet48
No.
Name
Pins
Items
No.
Name
Pins
Items
9
Digital pipe
（J15)
pin1
5V
10(j16)
glass panel
light
pin1
5V
pin2
12
pin2
12
pin3
ground/zero
pin3
ground/zero
pin4
signal1
pin4
signal1
pin5
signal2
pin5
signal2
pin6
signal3
pin6
signal3
No.
Name
Pins
Items
No.
Name
Pins
Items
