Tecway Max Roller User manual

Manual for Max Roller

1
Safety Attentions
1) Certain part of the game is with high voltage. Adjust the game by technician.
Do not open the game door unless maintenance or parts replacement is
required.
2) Please switch off the power before checking and maintenance.
3) Please switch off the power before opening the game door.
4) Fire extinguisher equipment must be nearby the game.
Installation
The game must be located properly to avoid damages.
Improper Locations:

2
Notes of Usage
1) The voltage range of the game should be 105V~115V or 215V~225V. The
proper voltage should be 110V/220V. The specific voltage accords to the
date plate on the back door of the game. The voltage must be correct;
otherwise it would be difficult to repair the damage.
2) The plug must be plugged in tightly and keep the power cords not be too tight
and damaged in order to prevent bodily injury, short-circuit and power
leakage.
3) To put the machine to normal operating, please properly adjust the coin
match and the game settings when use at the first time.
4) Please regularly check all the functions of the game when operate to prevent
dysfunction.
Notes of Maintenance
1) Be sure to check and maintance the game regularly.
2) Switch off the power before replacing the parts of the game.
3) The parts for replacement should be the same model as the old one.
4) Please check the connection and voltage output after replacing the power
supply.
5) The voltage range of the PCB should be 5.1V-5.4V.
6) Check whether the game has creepage and the voltage before repairing the
PCB.

3
Notes of Clean
1) Please use clean and soft cloth to clean the game.
2) Prevent damaging the surface of the game, please do not use the following
cleanser:
 Alterative Cleanser；
 Acidic Cleanser；
 Insecticide, sterilized water, alcohol or other chemical cleanser.
Notes of Moving and Shipping
1) Properly disassemble the game for necessary moving and shipping.
2) Prevent the game from hitting or being attrite during movement.
3) Protecting the case when move the game.

4
GAME INTRODUCTION
Max Roller is a very popular kiddie ride. It was created based on the popular
character of the popular cartoon “Poli Robocar”. Its outstanding appearance, unique
and exciting design makes itself very popular among the players.
PRODUCT FEATURES
Max Roller’s streamline and colorful design is very attractive to the players. We use
high-quality main board and efficient CPU to maintain the stability of the kiddie ride.

5
PLAYING TIPS & OPERATION
1. Insert the coins/ tokens into the coin selector, and the machine will start to
move automatically.
2. There are 4 buttons on the operative platform, each controls a vehicle in
the window during the game.
3. Stepping on the accelerator will make the machine move faster and the
sound will change.
4. Pushing the console would make a special sound effect.
脚踏开关
投币入口
装饰品
按键1对应车辆
按键3对应车辆
按键4对应车辆
按键2对应车辆
Accelerator
Coin Selector
按键4
按键2
方向盘
推杆
按键1
按键3
Decoration
Car 4
Car 2
For Car 1
Car 3
Car 1
For Car 2
For Car 3
For Car 4
Steering Wheel
Console

6
TECHNICAL PARAMETER
Voltage: AC 220V/ 110V (50/60Hz)
Max. Current: 0.5A/2.5A
(Note: Please refer to the nameplate located on the back of the games to check
actual usage of voltage)
Max. Power: 300W
Standby Power: 60W
Coin Size: Diameter φ21mm ~ φ31mm// Thickness 1.2mm ~ 2.5mm
Capacity of Coin Box: Approximately 1500 Coins ( for coin sizeφ25*1.5mm)
Location Required: 5 ~ 40℃, humidity is less than 90%. No contact with any
corrosive liquid, no any greasiness and dirt.
Dimension：L1700mm*W960mm*H1360mm
1700
960
1360

7
ACCESSORIES
REQUESTED SPACE FOR ISTALATION
The location should have sufficient space for the machine as below graphic:
Item Note Quantity
1 Fuse 5A (Small) 2
2 Key 1285# 2
3 Key 1396# 2
4 Powr cable 1
5
Manual for frequency
converter Goodrive 20 1
6 Manual
0.5m
0.96m
2.7
m
1.7
m
0.5
m
0.5
m
0.5m

8
CONSOLIDATE THE MACHINE
Place the stand against the floor, and it will lift the machine up approximately 5mm,
so the machine will stand still on the ground.
CHECK AND SET BEFORE CONNECTING THE POWER
1. Please check whether the parts of cabinet are loose caused by moving, and the
wire terminal should not drop out from the port.
2. Check whether the GND is connected.
3. Please check whether the resistance of power input at the both ends for GND is
more than 100 megohm.
4. Adjust the coin machine and check if it can work properly.
5. Connect the wires.
Attention
A. Please make sure the power cord is not pressed by wheel, foundation, etc.
Otherwise, it will damage the wire to cause short circuit, even fire. Do not use
strong power to extend and wring the wires. Do not make the wire be near to the
high temperature object. Properly put the wire to avoid any kicking or treading.
固定地脚
活动脚轮
5mm
Wheel
Stand
AAAA

9
B. Hold the plug to pull it out from the socket. Do not touch the plug with wet hands.
CHECK AFTER CONNECTING THE POWER
1. Make sure the input voltage is same as the one stated on name plate on the back
door of the game.
2. After connecting the power, please switch on the game.
3. Inserting coin to check if the coin machine cans work properly.
4. Visually check the game and confirm the display and light can work properly.
5. Enter into the setting program and set the game settings (include coin, game
time, game levels, etc.)
6. Insert coin to play the game, confirm the operation of the direction and the
machine movement is normal.
7. Check the sound if it is ok.
CHECK BEFORE OPERATION
Check the game before operation to prevent the game from working improperly when
operated.
Checking item：
1. Check if the cord is securely plugged in and without defects.
2. Check the location of game.
3. Check if the game case is without defects or burrs.
4. Check if the game without dirt and properly stuck on with marks

10
DAILY OPERATION
INPUT POWER TO OPERATE
1. Turn on the machine power switch.
2. Visually check the game and confirm the display can work properly.
3. Check the sound if it is ok.
4. Confirm the coin mech, control button and the machine movement is normal.
Warning：Before operation, please confirm all the items above are ok.
CHECK AFTER OPERATION
1. Check the display of the game and confirm it is proper.
2. Double check the coin mech, control button and the machine movement is
normal; If it has any problems, please solve the problem as soon as possible.
COLLECT COINS AND KEEP RECORD
1. Switch off the power and open the door of the coin box to take out the coins
2. Open the door of the coin mech to keep a record of the coins’ quantity.

11
GAME SETTING
1. Open the door on the chassis of the game and you will see below setting board:
主机板
SW2SW1
ON
OFFOFF
ON DIPONDIPON
1 2 3 654 7 8874 5 6321
主机板
Main Board
Main Board

12
Description
Choose the item which needs setting, toggle ON or OFF on the setting board
to start the setting.
There are 2 sets of switches on the main board, SW1 and SW2. Each set has
8 switches. Toggle ON or OFF to change the setting.
Please see attached list of setting items:
Description:
1. Coin: This setting decides how many coins for playing one game. If set to
“1”, it means insert 1 coin for 1 game.
2. Playing Time: This setting decides the playing time for 1 game.
3. Demo Music: This setting can decide if the background music is on or off
during the demo time.

13

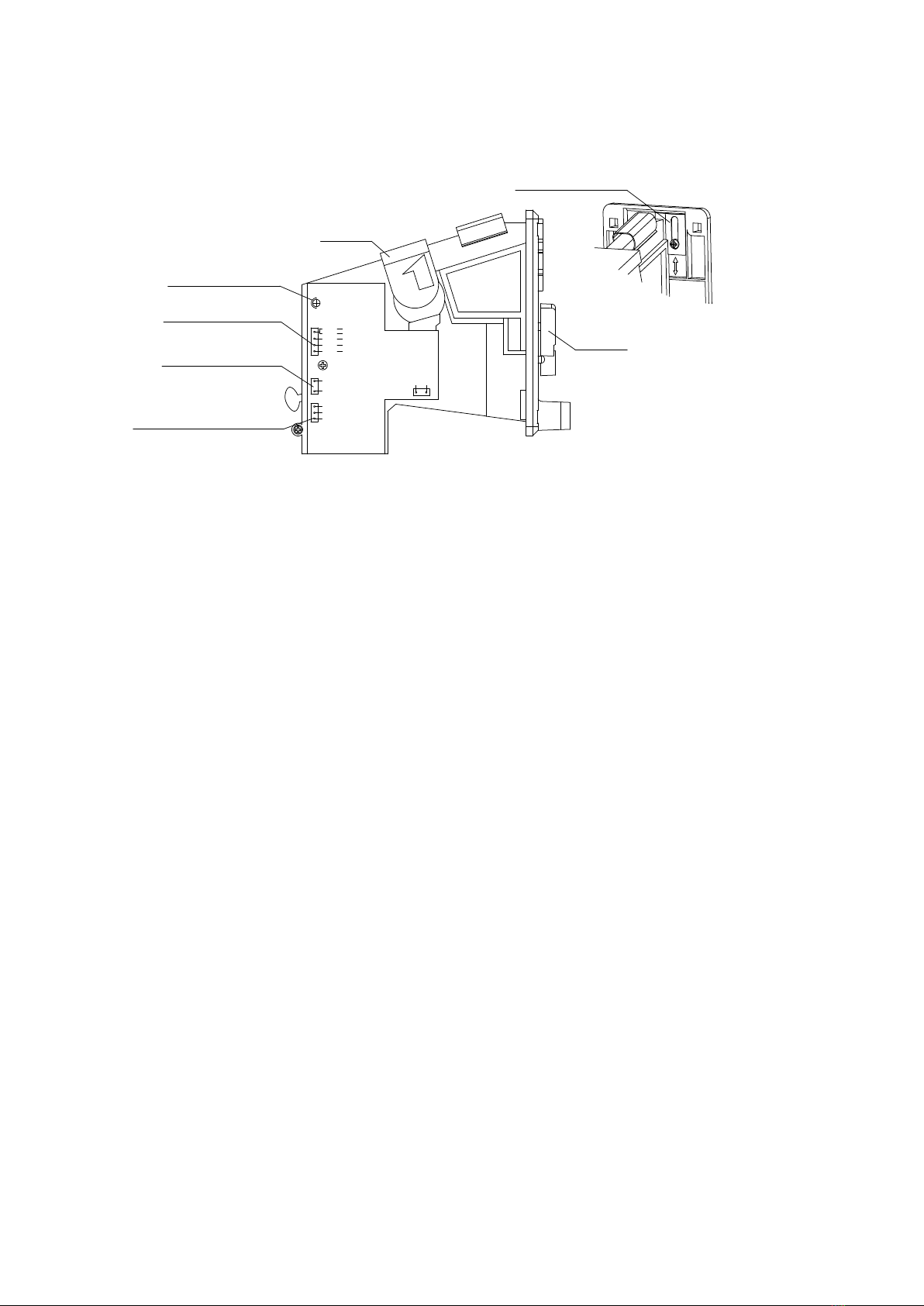

ADJUST THE COIN MECH
Descriptions:
1. Please take out the plastic coin from sample coin chute and replace it with token.
2. Remove the screws on back of coin entrance. Adjust the fixing chip on back of
coin entrance according to the token’s diameter, which prevent blocking the coin
mech as inserting the large coin in by mistake.
3. Turn the COIN Switch to “NO” (COIN Signal wire and GND should be
disconnected at usual time). Turning switch can be used as the coin mech
switch when the game is power on.
4. Adjust the adjusting switch of COIN Signal wave length to 50MS.
5. Adjust the micro-adjusting resistance of token tolerance. Clockwise: increasing
the sensitivity of token tolerance, that is, the range of accepting the token
tolerance will be larger. Counter clockwise: decrease the sensitivity, that is, the
range will be smaller and choose the token more strictly.
adjusting chip in
coin entrence
coin-return
pole
Adjusting Switch For
Coin Signal
Wavelength
switch for coin signal
Port For Power/Signal
Input
Micro-Resistance
sample
coin
chute
DC+12V
STRICT SLACK
Sensitivity
+-
COIN
Remove
REPLACE
Backward
SW3
100ms SLOW
25ms FAST
NOM
正常
MGN
精准
50ms MEDIUM
WHITE
COUNTER(+/-)
GROUND
N.C.
SW1
SW2
N.O.
COUNTER(-/+)
COIN SIGNAL
GRAY
BLACK
RED
GRAY

14
VOLUME ADJUSTMENT
Adjust the volume by turning the potentiometer on the sound board.
Adjust the volume: Open the coin selector, find out the sound board and adjust
the potentiometer with screw driver.
Note: Please adjust the potentiometer slowly and avoid twisting it
extremely fast, because it would damage the speaker by a sudden
increase on current output.
音量电位器
声音板
声音板
Sound Board
Sound Board
Sound Potentiometer

15
MAINTENANCE
1. Daily Check
ITEM DESCRIPTION
Coin mech Check whether the coin mech can work properly.
Start button Check whether the button work normally.
Control button Check whether the button work normally.
Motion Check whether the motion is proper
Sound Check whether the sound and the volume are ok.
Display Check if the displayed colors are proper.
Temperature&humi
dity Check if the temperature and humidity is proper
2. Daily Maintenance
ITEM DESCRIPTION
Cabinet Clean the cabinet with water and soft paper.
Monitor Clean the ABS for monitor with water and soft paper.
PCB Sweep the dust and dirty in the board with small brush
！warning
Please check and maintain the game by technicians.
Please power off the game when check and maintain.
Please do not put any tools into cabinet, otherwise it will cause problem.
After checking, please tightly screw the screws and close the door.

16
TROUBLESHOOTING
PROBLEM CAUSES SOLUTIONS
no sample coin insert sample coin
sensitivity for coin was
adjusted too high
adjust the sensitivity, screw the resistance
(turn right)
the coin mech is bad replace the coin mech
the wire of light's control is
loose. check the connection of light's control.
the light is bad replace the light.
the lights drive board failure maintain or replace the lights drive board
The connection of wire is bad. Properly reconnect the wires of motor.
The inverter is bad Repair or replace the inverter
The motor capacitor is bad Replace the motor capacitor
Motor is bad Replace the AC motor
the circuit of switch is blocked check and connect the switch
the switch is bad replace the switch
the monitor power line is loose reconnect the monitor power line
the monitor signal cable is not
connected connect the monitor signal cable
the main board is bad maintain or replace the main board.
the mointor is bad replace the monitor
the wire of speaker is loose. check the connection of speaker.
the volume is too low. adjust the volume on the setting interface.
the speaker is bad. check and replace the speaker.
no AC110V/220V input check the connection
the fuse is burnt. replace the fuse.
no output voltage of power
supply. repair or replace the power supply.
the main board is bad. replace the main board.
Can't insert
coin
Have no
sound.
No movement
for the whole
machine
The monitor
has no display
Button failure
The flash
lights do not
light up
Have no
movement

17
SCHEMATIC DIAGRAM
Bla4
Bla3 Br/W1
推杆开关
R/W3
Br/W3
O/W1
B2
G2
Y2 M电机2
M电机3
电机4
M
B/W4
G/W4
R/W4
O2-1
B/W4
G/W4
R/W4
O2-1
B/W4
G/W4
R/W4
CN1
CN3
CN2
CN3
CN2
Pu4
Grey4
O1
Bla6
R1
Bla11
O9
Y/G2-1
B2-1
Br2-1
Y/G2-1
O7
Bla8
Bla2-2
R/Bla2
Bla2-1 R/Bla1
Bla2-2
R/Bla2
4寸8Ω30W
Bla2-1
R/Bla1
R2
声音板
功率输出负极 功率输出正极
空脚
功率输出负极 功率输出正极
+5V
GND
GND
空脚
-12V
GND
GND
+12V
31245
CON1 6
7
8
5
4
3
2
1
CN3
电机1
+
-M
摇摆变频电机
变频器
Y/G3-1
G3-1
Bla3-1
R3-1
B2-1
Br2-1
W
V
U
IM
O/W1
Br/W3
R/W3
空
空
空空
空
空
空
空
Br/W2
R/W2
Bla/W1
Pu2
Grey2
Bla/W1
+10V
S4
S3
S2
A13
R01A
R01B
R01C
R02C
R02B
R02A
485-
485+
A12 W
A02
Y1 V
A01
HDI U
GND
N
COM
L
COM
PB
PW
S1
+24V
(+)
Y/G
油门开关
免费按键 Br1
+12
com
S2
S3
摇摆电机慢速信号
摇摆电机快速信号 S1
Br2
B2
G2
Pu2
Grey2
B/W2
G/W2
Y/W2
R/W2
Br/W2
Y/G
Grey/W1
Grey1
Y1
空
空脚
电机-
电机+
空脚
空脚
GND
空脚
反转
继电器
控制板
1
2
3
4
3
2
1
1
2
3
4
5
8
7
6
1
2
3
4
电机驱
动板
1
2
3
4
5
5 4 3 2 1
+12V
正转
CN1
喇叭跑马灯2
Bla5
喇叭跑马灯1
按键1 Br2
按键2 Pu3
按键3 Grey3
Pi1
按键4
2
3
44
3
2
11
车头三色灯板3
2
3
44
3
2
11
车头三色灯板2
O2-1
1
2
3
4
4
3
2
1
1
2
彩
色
灯
控
制
板
O2-1
R/W4
G/W4
B/W4
Bla7
O6
+12V
GND
信号1
信号2
信号3
+12V
信号1
信号2
信号3
+12V
2
3
44
3
2
11
车头三色灯板1
O5 后轮灯1
后轮灯2
后侧灯1
后侧灯2
压轮跑马灯1
压轮跑马灯2
压臂跑马灯1
压臂跑马灯2
压臂灯1
压臂灯2
O4 前侧灯1
前侧灯2
顶灯1
顶灯2
眼睛灯1
眼睛灯2
眼睛灯3
白光尾灯1
O3
白光尾灯2 Y/W2
红光尾灯1
红光尾灯2 G/W2
按键灯1 Br2
按键灯2 Pu3
按键灯3 Grey3
Pi1
按键灯4
Pi1
Grey3
Pu3
Y2 电机2
空脚
电机3
电机4
按键灯1
按键灯2
按键灯3
按键灯4
空
CN10
6
7
8
9
5
4
3
2
1
6
7
8
9
5
4
3
2
1
1
2
3
4
5
9
8
7
6
1
2
3
4
5
9
8
7
6
CN4
9
8
7
6
1
2
3
4
5
5
4
3
2
1
6
7
8
1234
CN3
CN2
CON1 IDC20P
COIN1
CN8
CN7
CN9
投币
免费
上限电眼1
下限电眼1
下限电眼2
下限电眼3
下限电眼4
空脚
空
油门
复位电眼
空脚
推杆
电机1反转
电机1正转
投币码表
尾灯（红光）
尾灯（白光）
摇摆电机快速信号
摇摆电机慢速信号
+5V
+5V
GND
+12V
GND
GND
GND
+12V
空
电机按键1
电机按键2
电机按键3
电机按键4
主机板
Br1
Pu1
G1
B1
Pu/W1
B/W1
G/W1
Y/W1
R/W1
Br/W1
R3
Bla9
Bla10
O8
电源输入
PE
N
L
2 2
33
11
滤波器
220V
E
电源盒 220V
O1-O9
R1-R3
复位电眼
3
2
1
投币码表
W1
1
2
3
上限电眼4
上限电眼3
3
2
1
上限电眼2
3
2
1
下限电眼1
3
2
1
上限电眼1
3
2
1
投币器
3
2
1
Bla15
Grey/W1
B1
G1
Y1
Grey1
Pu1
W1
B/W2O2
Bla1-11
+12V
+5V
GND

18
