UNIS Ultra Moto VR User manual

IMPORTANT
Operation Manual

Ultra Moto VR Manual
03/03/2020
1
WE ARE HERE TO ASSIST
For parts and service
Have Questions? Contact us!
UNIS SERVICE CENTER
Tel: [phone]
Email: [e-mail]
When contacting Service, you will need the following information
and the name of your authorized distributor.

Ultra Moto VR Manual
03/03/2020
2
CONTENT
IMPORTANT SAFETY INSTRUCTIONS.......................................................................3
1. SPECIFICATIONS....................................................................................................5
2. CONTENTS OF THE ACCESSORY KIT................................................................... 8
3. PART NAME............................................................................................................9
4. SET UP & INSTALLATION....................................................................................10
5. HOW TO PLAY......................................................................................................19
6. GAME OPTION..................................................................................................... 20
7. TROUBLESHOOTING............................................................................................25
8. MAINTENANCE & INSPECTION.......................................................................... 31
9. OVERALL CONSTRUCTION................................................................................. 53
10. AIR COMPRESSOR INSTRUCTION...................................................................88
11. WIRING DIAGRAM............................................................................................95

Ultra Moto VR Manual
03/03/2020
3
Thank you for purchasing Ultra Moto VR. We hope you enjoy the product.
This manual contains valuable information about how to operate and maintain your game
machine properly and safely. It is intended for the owner and/or personnel in charge of
product operation. Carefully read and understand the instructions.
If you need any help during installation and setup please utilize this manual and
troubleshooting guide. If the product fails to function properly, non-technical personnel
should under no circumstance attempt to service the machine. Contact your distributor or
manufacturer for help.
Before use, please read IMPORTANT SAFETY INSTRUCTIONS.
IMPORTANT SAFETY INSTRUCTIONS
To ensure the safe usage of this product, carefully read and
understand these instructions before operating your game.
Save these instructions for future reference.
Use this product only as described in this manual. Other uses not recommended may
cause fire, electric shock or personal injury. Unplug the game from the outlet when not in
use, when moving from one location to another, and before cleaning/servicing.
Explanations which require special attention are indicated by signs of warning. Depending
on the potential hazardous degree, the terms: NOTE,NOTICE, and WARNING are used.
NOTE: A NOTE indicates useful hints or information about product usage.
NOTICE: A NOTICE indicates potential damage to product and how to avoid the problem.
WARNING: A WARNING indicates a potential for product damage or serious personal Injury.
It is important to understand the meaning of the following HAZARD SIGNS before
continuing:
High Voltage and Shock Hazard:
High voltage can cause electric shock.
Turn off/unplug power before servicing.
High Temperature Hazard:
This part may cause scalding.
Do not touch. Surface may be hot.
No Touching Hazard:
This part may be hot or can cause electric shock.
Do not touch.

Ultra Moto VR Manual
03/03/2020
4
Use the following safety guidelines to help ensure your own personal safety and to help
protect your equipment and surrounding environment from potential damage.
This product is an indoor game machine. Do not install outdoors.
Avoid installing in the following places to prevent fire, electric shock, injury
and/or machine malfunctioning:
Places subject to rain/moisture, or places subject to high humidity.
Places subject to direct sunlight, or places subject to extremely hot or cold
temperatures to ensure that it is used within the specified operating range.
Places where inflammable gas may be present or in the vicinity of highly
inflammable/volatile chemicals or items that can easily catch fire.
On unstable or sloped surfaces. The machine may topple or cause unforeseen
accidents.
Vicinity of fire exits, fire extinguishers etc that may block/prevent safety measures.
IMPORTANT NOTE:
ALL REPAIRS MUST BE DONE TO ORIGINAL MANUFACTURER SPECIFICATIONS.
FAILURE TO DO SO VOID ALL WARRANTIES AND OPERATOR ASSUMES ALL
RISKS.
Note: The contents of this manual may be updated without notice.

Ultra Moto VR Manual
03/03/2020
5
93.78in
104.56in
84.72in
1. SPECIFICATIONS
Rated power supply: AC110V~ 50/60Hz; AC220V-240V~ 50/60Hz
Min. Power consumption: 800W
Max. Power consumption: 2300W
Dimension: W104.56×D84.72×H93.78 in
W2656 ×D2152 ×H2367 mm
Weight：Approximately 2204 lb/1000 kg
Part No: U110
Model No: V-017
NOTICE: After turning off the game, please wait at least 1 minute
before restarting again.
Note: Game specifications are subject to change without notice.

Ultra Moto VR Manual
03/03/2020
6
60.86in
24.73in
42.63in
60.86in
24.73in
42.63in
This machine will be divided into four parts during transportation.
L Monitor Assembly: W42.63×D24.73×H60.86in
W1083 ×D629 ×H1546 mm
R Monitor Assembly: W42.63×D24.73×H60.86in
W1083 ×D629 ×H1546 mm

Ultra Moto VR Manual
03/03/2020
7
39.52in
40.18in
61.10in
32.16in
23.89in
42.55in

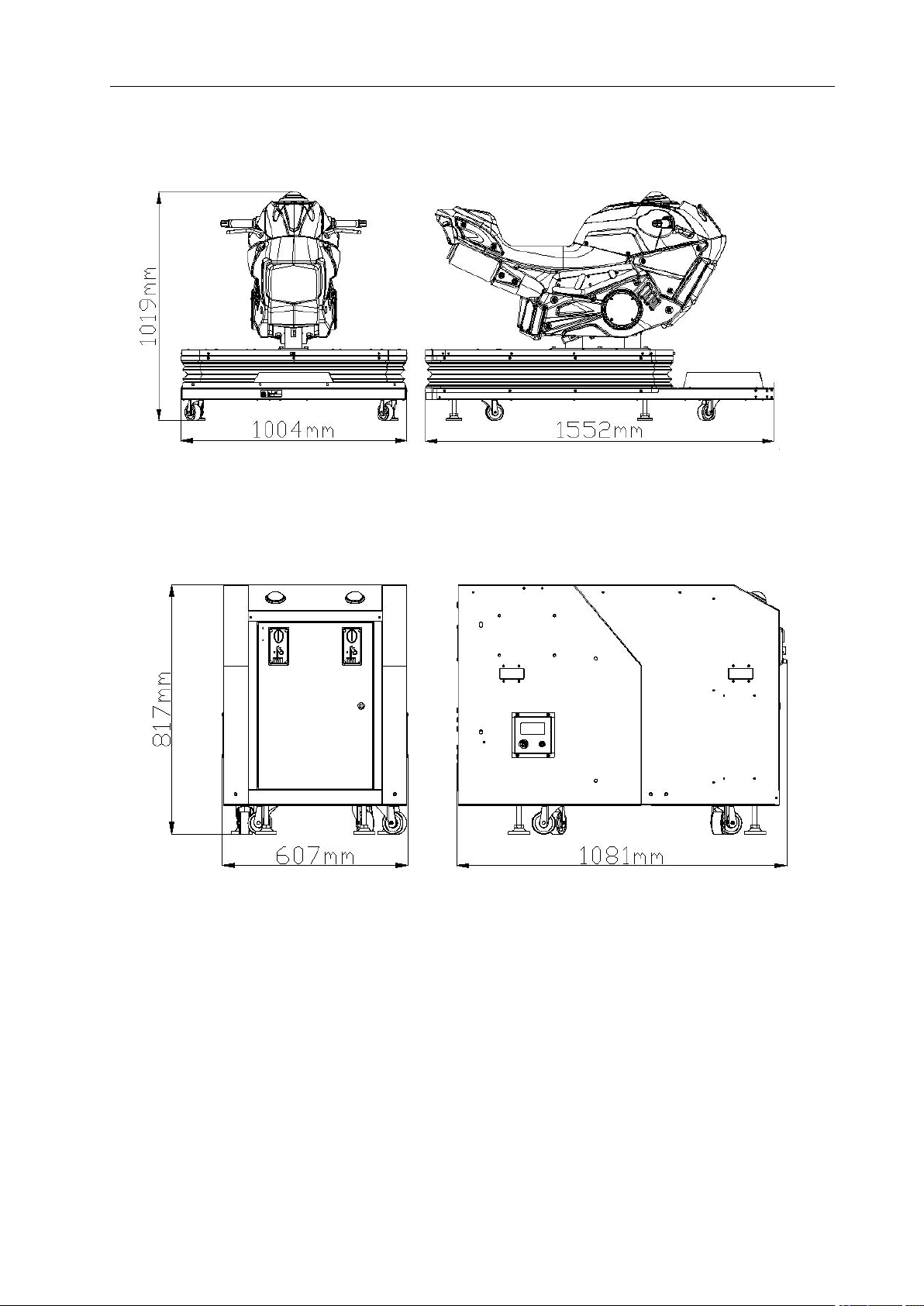

Moto Assembly: W39.52×D61.10×H40.18in
W1004 ×D1552 ×H1019mm
Middle Cabinet: W23.89×D42.55×H32.16 in
W607 ×D1081 ×H817mm
Note: Game specifications are subject to change without notice.

Ultra Moto VR Manual
03/03/2020
8
2. CONTENTS OF THE ACCESSORY KIT
Open the package and make sure all the items are included:
Following accessories
NOTE: Part models are subject to change without notice.
No.
Part No.
Code
Name
SPEC
Qty
1
U110-801-000
25300171002
Key
171
8
2
U110-802-000
25300172002
Key
171B
1
3
U110-803-000
41440000288B
Manual
GMP
1
4
U110-804-000
23301018023
Power cord
SJT 3x14AWG
1.8M (UL)
1
5
U110-805-000
21901000015
Fuse
Φ5×20mm
T6.3A
250VAC
2
6
U110-806-000
21108000009
Router
D-LINK 8 port
/
1
7
U110-496-000
23302000014
Network cable
T568A-T568A
L=2m
/
2

Ultra Moto VR Manual
03/03/2020
9
Button
Moto
Marquee Assembly
Monitor
Coin mechanism
Headset

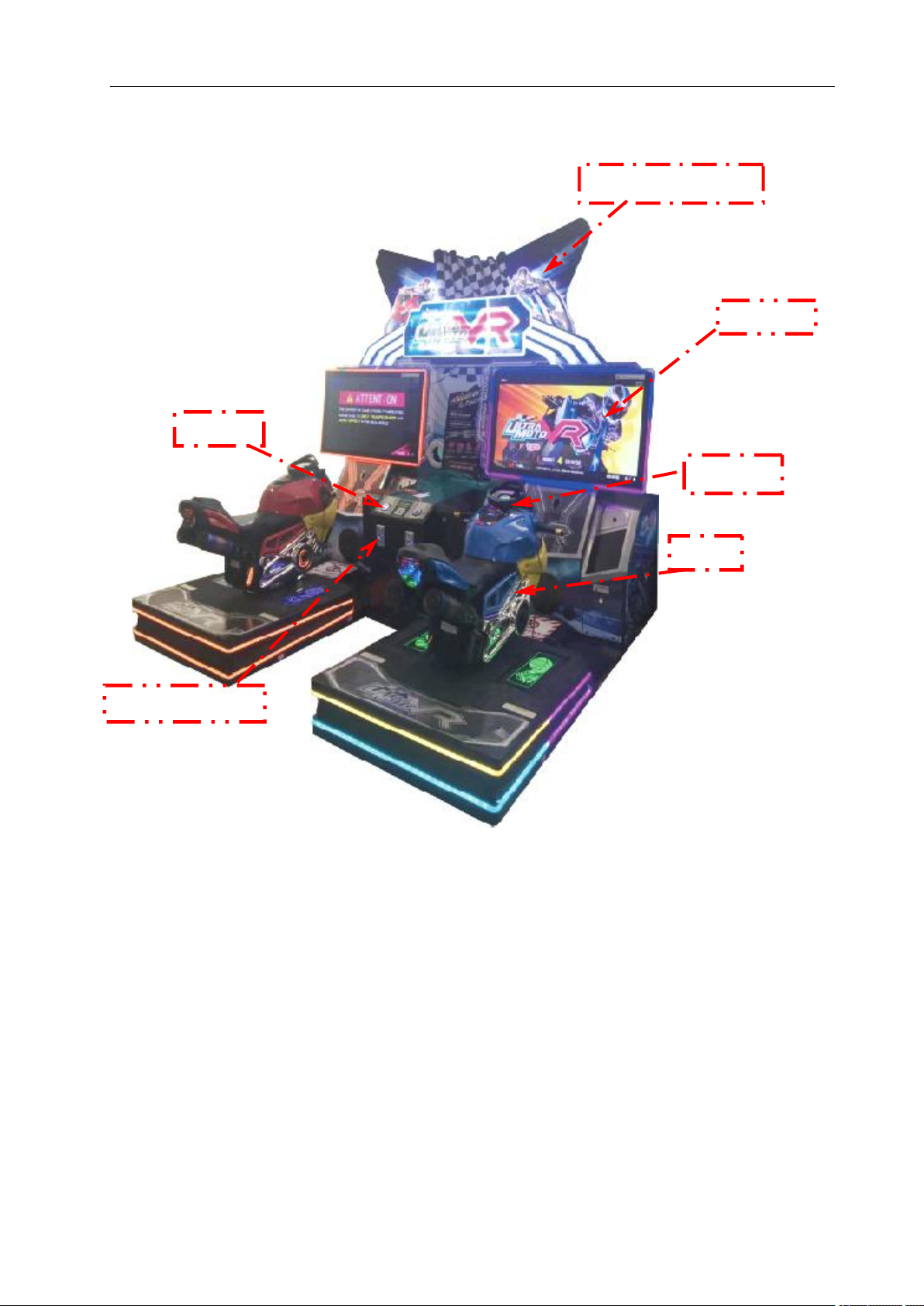

3. PART NAME
Key Components

Ultra Moto VR Manual
03/03/2020
10
Leveler
About 0.2 in/5mm
We do not recommend using power tools as they may cause damage.
NOTICE
Make sure the machine is level.
NOTICE
Leveler
Leveler
Leveler
4. SET UP & INSTALLATION
This product is an indoor game machine. Do not install outdoors.
Refer to IMPORTANT SAFETY INSTRUCTIONS (Pg. 3) for places to avoid.
Place the unit on a dry level surface.
Ventilation openings in the back of the unit must not be obstructed by objects or by
wall.
4.1 Transporting the Game
If you need to move the game, adjust the levelers back to an “up” position.
NOTICE
Be careful not to damage the machine during transport.
Always unplug the game before moving.
Keep the machine in upright position during transport.
For longer distance transport, package the game properly to prevent damages.
4.2 Level Adjustment
Install this game on a flat surface. If the game is installed on an unsuitable floor, it could
cause game malfunction.
To secure the game, loosen the nut, utilize wrench to adjust the leveler down until it
touches the floor, lifting the casters off the ground by 0.2 in/5mm. Repeat the same for all
levelers.

Ultra Moto VR Manual
03/03/2020
11
Your unit must be leveled to operate properly.
NOTICE
Play area
Service area
4.3 Play Zone
This machine requires space for playing and for maintenance as shown below.
Leave space around the game upon installation:
Service area: 20 in/500mm

Ultra Moto VR Manual
03/03/2020
12
L type
metal plate
Moto
assembly
Main
cabinet
Moto base
metal plate
Pedal sensor
cover
4.4 Machine Installation
Before processing with assembly assure you have the following tools.
No.
Name
1
Phillips screwdriver
2
Spanner
3
Allen wrench
Step 1 Remove Pedal sensor covers.
Utilize Phillips screwdriver to loosen the screws on the Pedal sensor cover, take Pedal
sensor cover off and keep it.
Note: It is the same installation method on the other Moto assembly.
Step 2 Connect Moto assemblies with Main cabinet.
Kit list:
No.
Name/Spec.
Qty
1
Cross recessed hexagon screw set
M6×20 black
8×2
2
Cross recessed hexagon screw set
M8×20 black
16×2
Align Moto assembly with Main cabinet. Connect all cables. Route the blue tube to the
back box through the hole indicated by circle.
Utilize Phillips screwdriver to tighten 4 screws (M6×20) to secure Moto base metal plate to
Main cabinet.
Utilize Phillips screwdriver to tighten 8 screws (M8×20) to secure L type metal plate to
Moto assembly and Main cabinet.
Note: It is the same installation method on both sides of Moto assemblies.

Ultra Moto VR Manual
03/03/2020
13
Left
Right
Monitor
side plastic
3 screws
4 screws

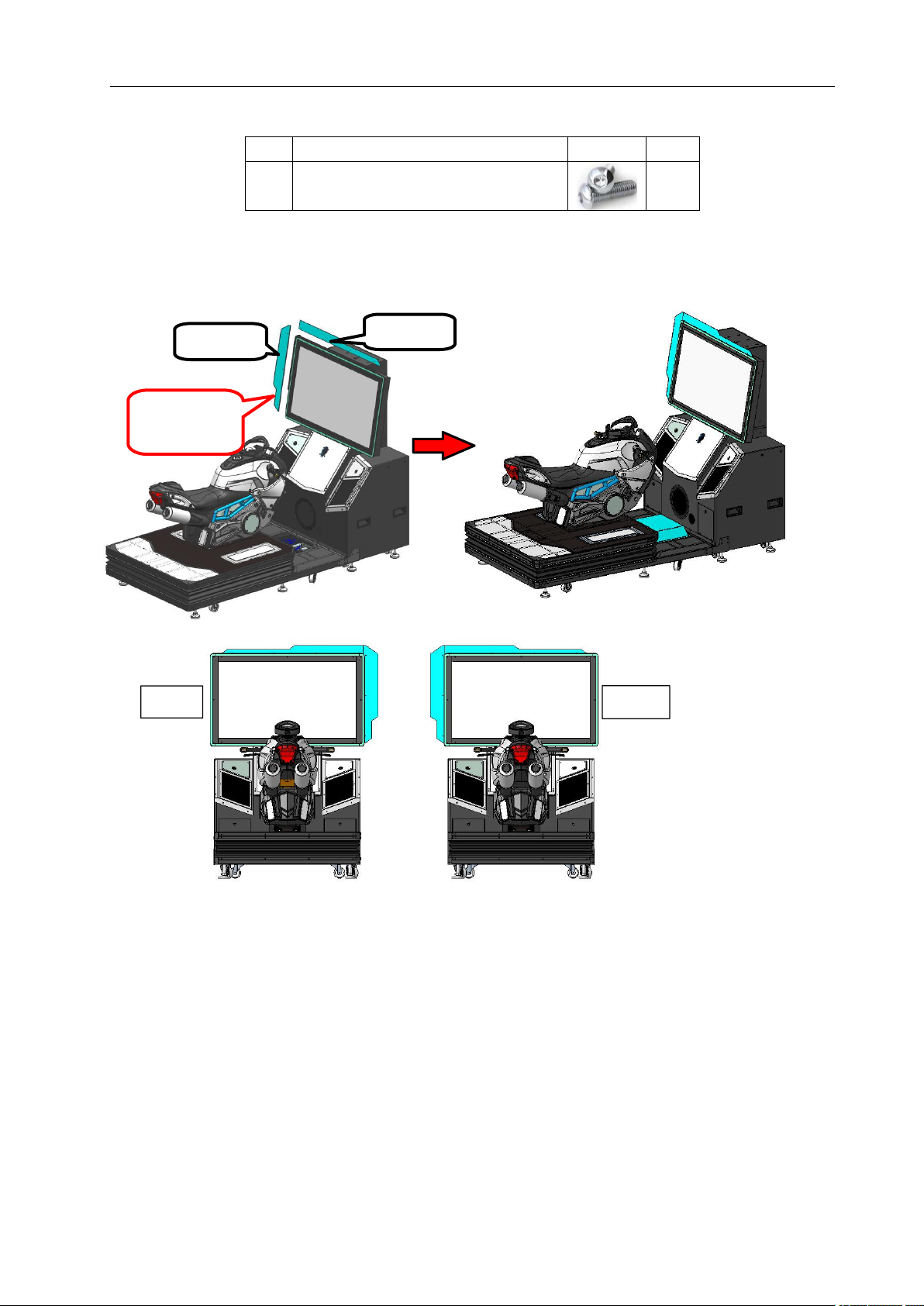

Step 3 Install Monitor side plastic and Pedal sensor covers.
Kit list:
No.
Name/Spec.
Qty
1
Hexagon flat round head screw
M4×20 stainless steel
7×2
Utilize Allen wrench to tighten 7 screws (M4×20) to secure 2 Monitor side plastics to the
right monitor. Install the Pedal sensor cover back.
Note: The installation position is different on the other Moto assembly.

Ultra Moto VR Manual
03/03/2020
14
Main
cabinet
Main
cabinet
Middle
cabinet
This picture is for
reference only.
Step 4 Connect Main cabinets with Middle cabinet.
Kit list:
No.
Name/Spec.
Qty
1
Cross recessed hexagon screw set
M8×20 black
4
Step 4-1 Utilize Phillips screwdriver to tighten 4 screws (M8×20) on the mounting metal
plates indicated by circles to secure Main Cabinets to Middle Cabinet.
Note: Utilize Spanner to fix the screws more tightly.
Step 4-2 Open the Middle cabinet back door and tighten 8 screws on the indicated
positions.

Ultra Moto VR Manual
03/03/2020
15
Thick
Thin
Step 5 Connect blue tubes to valves.
Connect 4 blue tubes on both sides indicated tightly as shown below.
Note: The size of 2 valves is different. The outer valve is larger. Please insert the thick tube to the
larger valve.
Step 6 Install VR headset.
Step 6-1 Place VR headset on the headset storage on the moto.
Note: It is the same method on the other Moto assembly.
Step 6-2 Utilize Phillips screwdriver to loosen cable buckle on the moto right side. Route
the headset cable through the cable buckle. Fix the cable buckles back.
Buckle
Buckle

Ultra Moto VR Manual
03/03/2020
16
Screw hole
Middle plastic
Step 6-3 Open front door on the Main cabinet right side. Route the headset cable into the
Main cabinet through the hole.
Locate the back box. Connect cables to the PC as shown below.
Note: It is the same installation method on the other Moto assembly.
Step 7 Install Middle plastic and Router.
Kit list:
No.
Name/Spec.
Qty
1
Cross recessed hexagon screw set
M4×12 black
2
2
Cross recessed hexagon screw set
M4×10 black
2
Step 7-1 Utilize Phillips screwdriver to fix 2 screws to secure Middle plastic to Middle
cabinets.
Step 7-2 Place Router and pressing plate on the back of the Middle plastic. Utilize Phillips
screwdriver to fix 2 screws to secure pressing plate. Insert the power cord to the socket.
Router

Ultra Moto VR Manual
03/03/2020
17
Top marquee
Screw hole
POP bracket

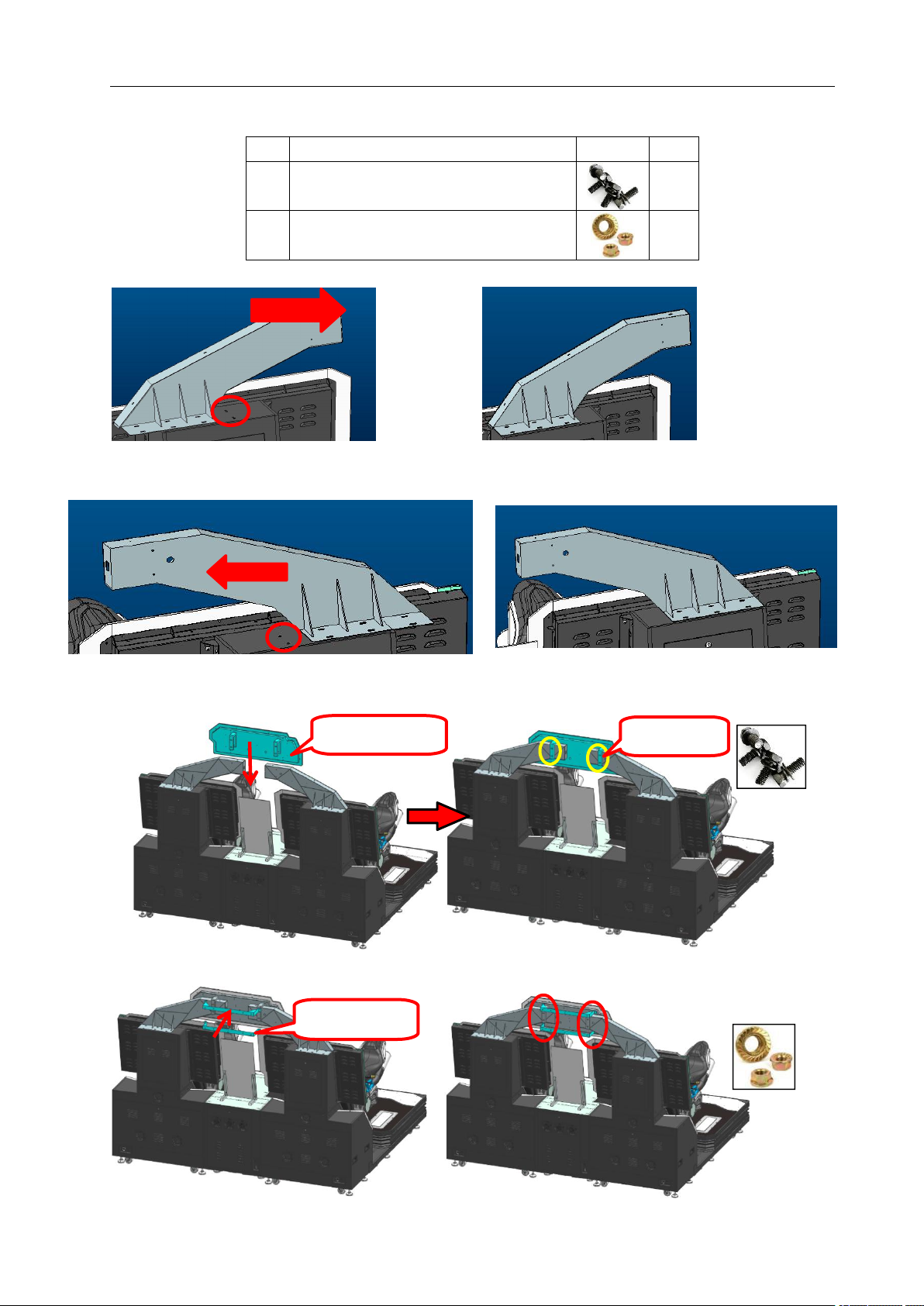

Step 8 Install Marquee assembly.
Kit list:
No.
Name/Spec.
Qty
1
Cross recessed hexagon screw set
M6×30 black
4
2
Flange nut
M4
14
Step 8-1 L Marquee: Marquee installation should be moved to the right.
Step 8-2 R Marquee: Marquee installation should be moved to the left.
Step 8-3 Place Top marquee on the L&R marquee and utilize Phillips screwdriver to tighten
4 screws (M6×30) to secure.
Step 8-4 Utilize Spanner to tighten 8 Flange nuts to secure 2 POP brackets to Top marquee.

Ultra Moto VR Manual
03/03/2020
18
POP plate
R DBV cabinet
L DBV cabinet
Door
Screw hole
Step 8-5 Place POP plate on the POP bracket. Utilize Spanner to tighten 6 flange nuts on
the POP plate.
Step 9 Install DBV box to Middle cabinet (As customer’s requirement).
Kit list:
No.
Name/Spec.
Qty
1
Cross recessed hexagon screw set
M6×10 black
12
Step 9-1 Utilize key to open L DBV door. Utilize Phillips screwdriver to tighten 6 screws to
secure L DBV box to Middle cabinet. Lock the L DBV door.
Note: It is the same installation method on the other DBV box.
Finish!

Ultra Moto VR Manual
03/03/2020
19
5. HOW TO PLAY
5.1 Insert coins to play. Put the headset on. Turn the headset and move to the desired
option.
5.2 Hold the throttle to begin. Lean to the left or right to make the moto turn.
5.3 When going through a bend, use the Left Brake to drift.
