User Guide
Magnetic Cabinet Sensor Light
Model Puyo
BRCLPUYO20SV133 / BRCLPUYO20BK225C2
BRCLPUYO20BK140 / BRCLPUYO20SV218C2
BRCLPUYO40SV119 / BRCLPUYO40BK201C2
BRCLPUYO40BK126 / BRCLPUYO40SV195C2
BRCLPUYO60BK720 / BRCLPUYO60SV744

EN
Specifications:
Input: DC5V
Power: 0,5 - 2W
Material: AL + ABS
Sensor: PIR
Dimmable: Stepless
Color temperature (CCT): 3000K
4000K
6000K

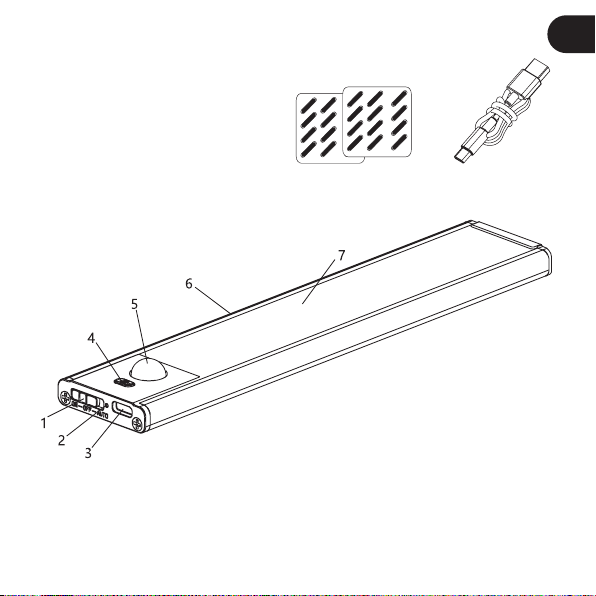

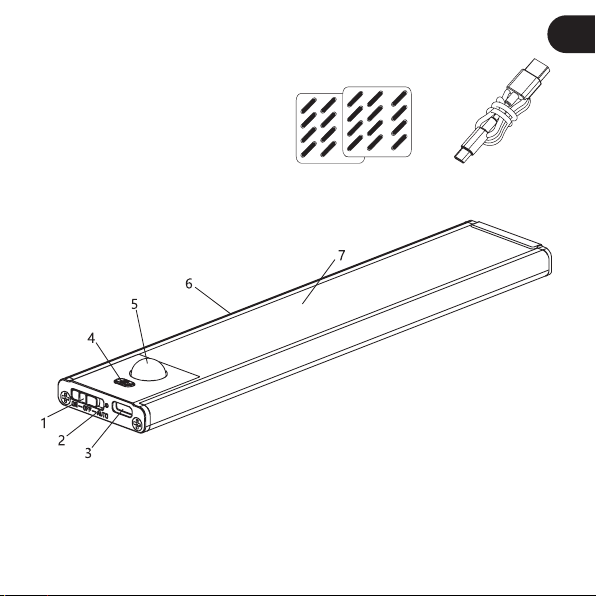

Overview:
Accessories:
Self-adhesive
metal plates: USB-C cable:
1. Switch
2. Charging status LED
3. USB-C Charging port
4. Dim and CCT switch
5. PIR sensor
6. Aluminium body
7. ABS diuser

EN
Instructions:
Switch: ON – OFF - AUTO
1. ON: Continiously on
2. OFF: Continiously o
3. AUTO: LED light switches on when PIR sensor detects movement.
This functionality only works when it is dark. The light will switch o
after 25 seconds without movement.
Product information:
This product features the following functionalities:
• Built-in polymer lithium battery.
• Indicator light (no.2). Red: The battery is charging.
Green: The battery is charged
• Three modes: ON - OFF - AUTO.
• Three colour temperatures: cold white – neutral white – warm white.
• Each colour temperature can be dimmed.
The product is suitable for cabinets, closets, bookcases, corridors,
verandas, bedrooms, etc.
Dim and CCT switch button
1. Long press to dim or increase
brightness.
2. Short press to switch color
temperature: cold white –
neutral white – warm white
Toggle switch
Dimmer and color button
Infrared body sensor

EN

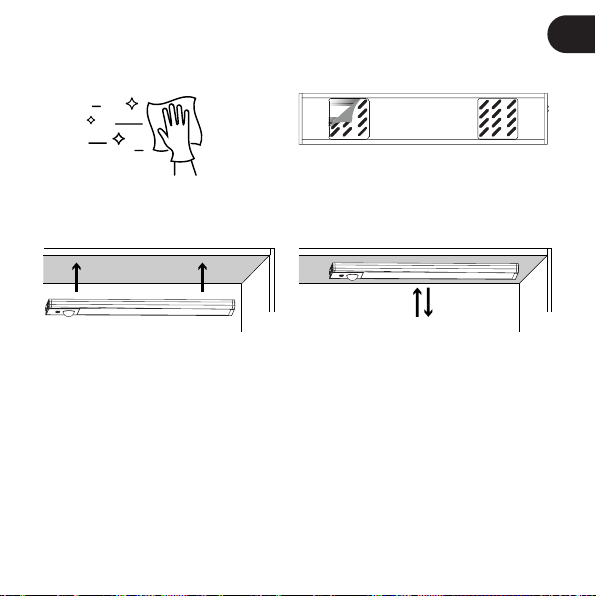

Installation:
1. Clean the surface where you want to place the light.
2. Remove the plastic covers from adhesive tape on the metal plates
(place the plates first on the magnetic parts on the back of the light
should they have moved during transport).
3. Place the led with the plates on the surface you want it.
4. The light can now easily be removed with the metal plates staying in
place. Allowing you to charge or clean the lamp.
1.
3.
2.
4.

EN
Safety warnings
• Do not install in an environment with high humidity, bright light, cold or
hot air flow near the inlet and outlet, so as not to aect the sensitivity of
the lamp.
• Use an adapter with an output voltage of 5V/1A to charge the product.
• The product has a built-in battery, do not disassemble it, exert pressure
on it, squeeze it or expose it to fire.
• The light source of this luminaire cannot be replaced. If it is necessary
to replace the light source (for example, at the end of the life of the light
source), the entire luminaire must be replaced.
• Keep the product out of the reach of children.
• If the product is defective during the warranty period, please do not
dismantle the product without permission, otherwise the warranty will
be void.
• If the battery and/or product swells, remove it immediately and dispose
of it separately, e.g., at the environmental center.
