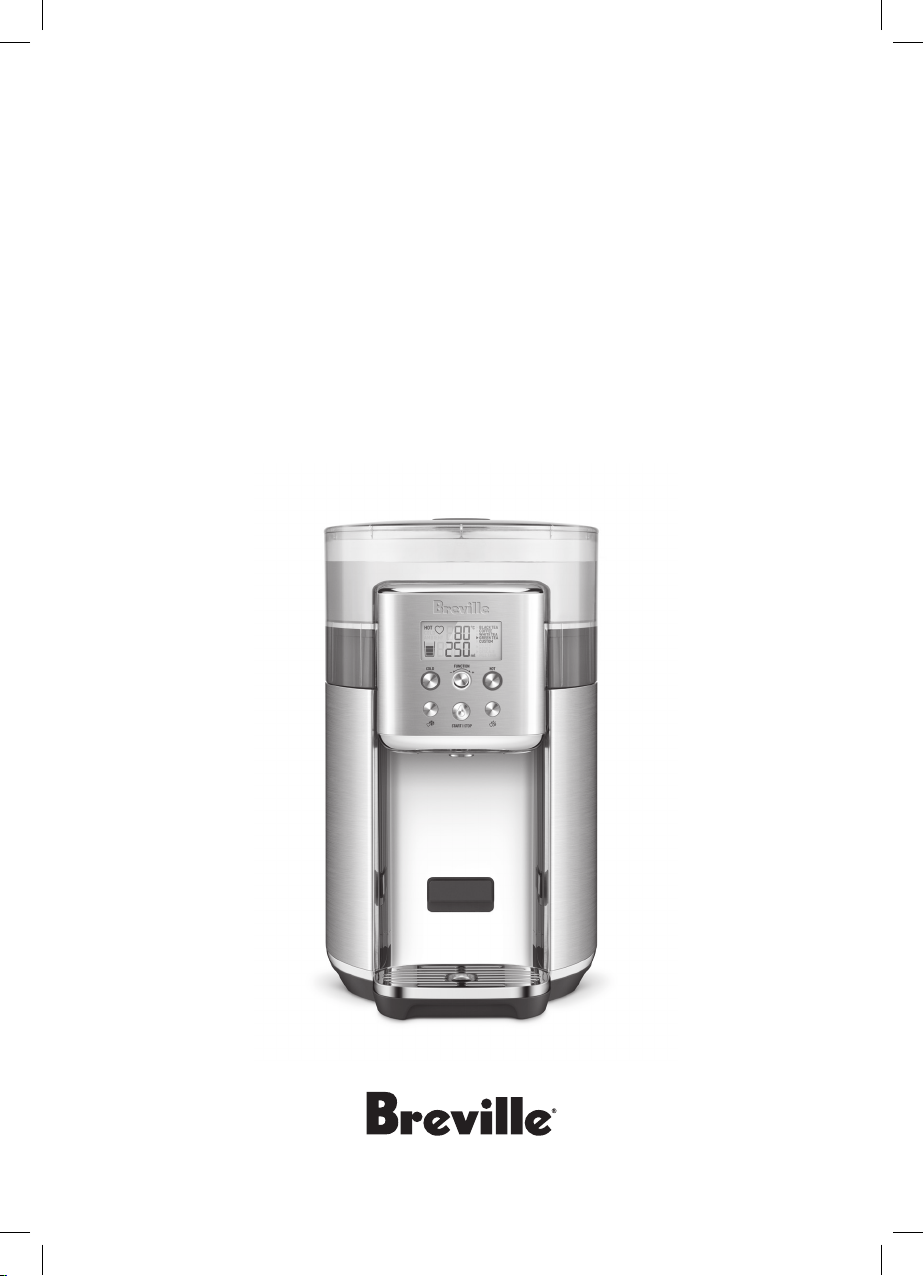

Breville AquaStation Chilled + Hot User manual

the AquaStation™Chilled + Hot
Instruction Book - Suits all LWA600 Models

2
BREVILLE
RECOMMENDS
SAFETY FIRST
At Breville we are very safety
conscious. We design and
manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition, we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions. Misuse
can cause potential injuries.
MAIN TECHNICAL SPECIFICATIONS
Product Model LWA600BSS
Filter Model LWA063WHT
Filter Life 90 days or approximately
200L, whichever comes first
Rated Voltage 220-240V
Rated Frequency 50Hz
Rated Power Consumption 1950-2300 Watts
Applicable Water Source Municipal tap water: 5~40°C
Product Dimensions
(LxWxH) Approx. 391 x 273x 455
Weight (kg) 10.28Kg
Tested against: NSF/ANSI Standard 42 for
the reduction of chlorine (taste and odour),
& NSF/ANSI 372, lead content.
Tested to remove/reduce microplastics, floating
particles/sediment, pesticides, chlorine, limescale
& heavy metals.
Testing was performed under standard laboratory
conditions. The contaminants or other substances
removed or reduced by this filter are not
necessarily in all users’ water. Filter performance
may vary based on local water conditions.
IMPORTANT
SAFEGUARDS
READ ALL INSTRUCTIONS
BEFORE USE AND SAVE
FOR FUTURE REFERENCE
• Carefully read all instructions
before operating and save for
future reference.
• Remove and safely discard
any packaging material and
promotional labels before using
the AquaStation™ Chilled + Hot
for the first time.
• Always ensure the appliance is
properly assembled before use.
2 Breville Recommends Safety First
8 Components
12 Features
14 Assembly
17 Operation
22 Tea Insights
23 Descaling
25 Care, Cleaning & Storage
27 Troubleshooting
Contents

3
Follow the instructions provided
in this book.
• The AquaStation™ Chilled +
Hot must be used only with
the Breville filter supplied or
replacement product code
LWA063.
• This appliance has been
designed specifically for the
purpose of filtering and heating
drinking quality water only.
Under no circumstances should
this appliance be used to heat
any other liquids.
• Do not place the appliance
near the edge of a bench or
table during operation. Ensure
that the surface is level, clean
and free of water and other
substances.
• Do not operate the appliance on
a sink drain board.
• Do not operate the appliance in
an enclosed space, or within a
cupboard.
• Never immerse the appliance,
power cord or power plug in
water, or allow moisture to come
into contact with these parts.
• Do not move the appliance
while it is switched on.
• Always ensure the appliance
returns to standby mode, then
turn the power off at the power
outlet and remove the power
plug from the power outlet
before attempting to move the
appliance, when the appliance
is not in use and before
cleaning and storing.
• Do not remove the water tank
from the power base during
operation.
• If the water tank is removed
from the power base during
water dispensing, the appliance
will automatically stop.
• Always fill the water tank with
water between the minimum
(MIN) and maximum (MAX)
as marked on the water tank.
• Too little water will result in the
appliance not operating and
‘Fill Tank’ will display on the
LCD screen. Filling above the
maximum mark (MAX) may
result in water splashing from
the water tank.
• Ensure the water level is
always above the MIN level for
optimum dispensing flow rate.
• The lid should always be
correctly fitted on the water
tank except when refilling.
• Do not place the appliance
in direct sunlight. Colour
fading and discolouration
may occur when the appliance
is consistently exposed to
sunlight.
• Care should be taken when
handling the appliance during

4
and after use, ensuring that the
appliance's spout and other
parts and surface areas are not
touched as these may still be
hot due to residual heat after
hot water dispensing.
• Allow the appliance to cool
down before moving or
cleaning any parts.
• Use in a well ventilated area.
This appliance emits hot
steam.
• Condensation from steam may
form on the LCD screen and
control panel; this is normal.
• Use caution when using the
descale feature as hot steam
may be released. Before
descaling, ensure the drip tray
is emptied and repositioned.
Refer to ‘Decaling’ section for
instructions.
• This appliance is intended to
filter tap water only. Do not put
water of unknow quality into
the appliance. Use only cold or
room temperature water.
Do not use for the preparation
of baby formula.
• Do not fill the water tank with
hot water. Water added to the
water tank should not be less
than 5°C or more than 40°C.
If water in the tank is outside
these temperatures, discard
and fill with cold tap water.
• Do not leave the appliance
unattended during operation.
• Do not remove filter whilst the
appliance is operating.
• Surface is subject to residual
heat after use.
WARNING
• Do not operate the appliance
on an inclined plane. Do not
move appliance unless the
appliance is turned off and
unplugged from the power
outlet.
• Keep the appliance and all
parts clean. Follow the cleaning
instructions provided in this
book.
• Any procedure not listed in
this instruction book should
be performed at an authorised
Breville Service Centre.
IMPORTANT SAFEGUARDS
FOR ALL ELECTRICAL
APPLIANCES
• Fully unwind the power cord
before use.
• Connect only to a 230V or
240V power outlet.
• The appliance must be used on
a properly grounded outlet. If
you are not sure, please consult
a qualified electrician.

5
• Do not, under any
circumstances, modify the
power plug or use a power plug
adapter.
• Do not place this appliance on
or near a heat source, such as a
hot plate, oven or heaters.
• Position the appliance at a
minimum distance of 20cm
away from walls, curtains and
other heat or steam sensitive
materials and provide adequate
space above and on all sides for
air circulation.
• Do not let the power cord hang
over the edge of a bench or
table, touch hot surfaces or
become knotted. Keep away
from hot gas or electric burners,
or where it could touch a heated
oven.
• This appliance is for household
use only. Do not use this
appliance for anything other
than its intended use. Do not
use in moving vehicles or boats.
Do not use outdoors. Misuse
may cause injury
• This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge
if they have been given
supervision or instruction
concerning use of the
appliance in a safe way and
understand the hazards
involved.
• Children should be supervised
to ensure that they do not play
with the appliance.
• Always turn the appliance to
the OFF position, switch off at
the power outlet and unplug
at the power outlet when the
appliance is not in use.
• Before cleaning, always turn the
appliance to the OFF position,
switch off at the power outlet,
unplug at the power outlet
and remove the power cord, if
detachable, from the appliance
and allow all parts to cool.
• To protect against electric
shock, do not immerse the
power cord, power plug or
appliance in water or any other
liquid or allow moisture to
come in contact with the parts,
unless it is recommended in
the cleaning instructions.
• Any maintenance other than
cleaning should be performed
at an authorised Breville
Service Centre
• It is recommended to regularly
inspect the appliance. To
avoid a hazard, do not use the
appliance if power cord, power
plug or appliance becomes

6
damaged in any way. Return the
entire appliance to the nearest
authorized Breville Service
Centre for examination and/or
repair.
• The installation of a residual
current device (safety switch)
is recommended to provide
additional safety protection
when using electrical
appliances. It is advisable that
a safety switch with a rated
residual operating current not
exceeding 30mA be installed in
the electrical circuit supplying
the appliance. See a qualified
electrician for professional
advice.
• During electrical storms,
the appliance should be
disconnected from the power
source at the wall socket to
prevent any electrical surges
that may arise during the storm
and which may inadvertently
cause damage to the appliance
and its electronic componentry.
• Cleaning and user maintenance
shall not be made by children
without supervision.
SPECIFIC INSTRUCTIONS
FOR WATER FILTER
• Filter cartridge should be kept
out of reach of children.
• Store any unused filter
cartridges in a dry place sealed
in the original packaging.
• Protect filter cartridges from
heat and direct sunlight. Only
remove from packaging before
using.
• Do not use a filter cartridge
that is damaged.
• Do not open filter cartridge
housing to access the material
inside.
• If you are absent for a
prolonged period of time,
empty and clean the water tank
and replace the filter cartridge
before next use.
• Refer to the filter installation
instructions found in the
'Assembly' section of these
instructions.

7
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS
BREVILLE ASSIST™ PLUG
• Your Breville appliance comes
with a unique Assist™ Plug,
conveniently designed with a
finger hole in the power plug
for easy and safe removal from
the power outlet. For safety
reasons, it is recommended
you plug your Breville
appliance directly into its own
electrical outlet on a dedicated
circuit separate from other
appliances. If the electric
circuit is overloaded with other
appliances, your appliance
may not function properly. Use
in conjunction with a power
strip or extension cord is not
recommended.

8
Components
A
C
D
F
H
I
E
M
N
O
GJ
P
K
L
B
A. Water tank lid
with easy-grip handle
B. The Activ360™ 4-Stage Filter
with pull ring for easy removal
C. Filter holder
D. Water tanks
Including a removable,
external 6L water tank plus an
internal 2L chilling chamber
(not shown)
NOTE - Total external tank capacity
is 6L, however, it is recommended
to always fill the external water tank
with water between the minimum
(MIN- 2L) and maximum (MAX- 5L)
as marked on the water tank.
Filling above the maximum mark
(MAX-5L) may result in water
splashing from the water tank.
E. LCD screen
F. Cold button
G. Function Dial
H. Cold Favourite button
I. Start/Stop button
J. Hot Button
K. Hot Favourite button
L. Dispensing spout
M. Dispensing area with drip
tray holder
20cm cup clearance height
with tray in place, 23cm
height if drip tray removed,
14cm height if hooked to drip
tray holder
N. Detachable magnetic drip
tray
Attaches to the base or can be
hooked to the tray holder (M)
O. Removable tray grill for
cleaning
P. Non-marking, non-slip feet
Not Shown
• Breville Assist™ Plug
• Drain Plug & Cap (Located
underneath unit)

9
Control Panel
COLD
HOT
AMBIENT
ml
°C
FUNCTION
FUNCTION DIAL/SELECT
Turn/Press FUNCTION dial to adjust/select
from the following:
MENU - When using HOT, turn dial to select
between pre-programmed menu options and
the custom setting; press the dial to confirm
selection.
TEMP - when using Custom, turn dial
clockwise to increase temp and anti-clockwise
to decrease temperature; press the dial to
confirm selection.
VOLUME - when using Ambient or Custom,
turn dial clockwise to increase volume and
anti-clockwise to decrease volume; press the
dial to confirm selection.
NOTE
TEMP & VOLUME cannot be adjusted once
water dispensing commences.
NOTE
The FUNCTION dial light will illuminate
solid white when the unit is switched on at the
power (to indicate the unit is operational). The
light ring will turn off when water is dispensing
or when the unit enters standby mode after 5
minutes of non-use.
START | STOP
START/STOP BUTTON
Press to start or stop dispensing filtered water
(ambient, chilled or hot water dispensing).
The water droplet light illuminates solid white
while dispensing, and will flash if hot water is
selected as a reminder that dispensing will not
commence until START/STOP is pressed.
HOT
HOT WATER BUTTON
Press once to access the hot water menu. The
HOT button light will illuminate and the hot
water menu will appear on the LCD screen.
The hot beverage menu offers programmed
ideal brew temperatures recommended for
black, white, green tea, coffee and custom.
Custom allows for manual selection of
temperature (45-100° Celsius) and volume
(100mls to 1.2L).
COLD
COLD WATER BUTTON
Press once to access cold settings. The
COLD button light will illuminate and the cold
water settings will appear on the LCD screen.
The COLD setting allows for manual selection
of temperature (5° to 15° Celsius) and
volume (100mls to 500mls). The COLD
button light will continuously flash when
reaching set temperature.
NOTE
The COLD button blue LED light ring will
continue to cycle on and off in AMBIENT/
COLD/HOT settings to indicate that the
compressor is turning on and off to maintain
the correct temperature.

10
NOTES
• Hot water temperature settings are measured
at the heating element, not the dispensed
temperature at the spout or in the cup.
• Cold water temperature settings are measured
in the chilling chamber, not the dispensed
temperature at the spout or in the cup.
• When dispensing ambient water, if START/
STOP is not pressed to stop water flow,
dispensing will automatically stop after 60
seconds.
• Ambient water temperature will vary. The
temperature dispensed will be influenced by
the external factors surrounding the unit itself.
An increase in the air temperature will cause
water tank temperature to increase as well.
• If the water temperature in the tank becomes
too warm, discard and replace with cold tap
water. Water temperature in the tank should
not be dispensed if above 40°C.
HOT & COLD FAVOURITE BUTTONS
The HOT & COLD FAVOURITE settings allow you to save your most used setting.
At the press of a button, your favourite program can be accessed time after time.
LCD SCREEN PROGRAM TABLE
Function Water
Dispensing
Flow Rate
per Min
^Preset
Temp °C
^Temp
Range °C
Temp +/-
Increments
Preset
Volume
MLS
Volume
Range
MLS
Volume +/- Increments
from 100-250mL increase
by 25mL, from 250-500mL
increase by 50mL, from
500mL+ increase by 100mL
Cold 1L 55 to 15 1°C 250mL~ 100-500 25mL
Ambient# 1L Temp of Water
inside Water
Tank
Temp of Water
inside Water
Tank
N/A 250mL~ 100-500 25mL
Black Tea 400mL 100°C N/A N/A 250mL 100-500 25mL
Coffee 400mL 95°C N/A N/A 250mL 100-500 25mL
White Tea 400mL 85°C N/A N/A 250mL 100-500 25mL
Green Tea 400mL 80°C N/A N/A 250mL 100-500 25mL
Custom 400mL N/A 45-100 5°C 250mL 100-1200 25mL
^Temperature is measured at the heating element and chilling chamber not from the spout.
#Ambient water temperature will vary.
~Without setting volume, unit will automatically stop pouring after 1 minute.
LCD SCREEN DISPLAY MENU
COLD
Appears on the screen only when the COLD
button has been selected
HOT
Appears on the screen only when the HOT
button has been selected.
CUP VOLUME INDICATOR
Appears on the screen only when volume is
being set to visually show the level of water
that will be dispensed into the cup.
AMBIENT
Displays on the screen as the default setting
when in standby mode and when dispensing
ambient filtered water.
FILTER RESET
Appears on the screen as a reminder to change
the filter cartridge once the filter life timer has
counted down.
