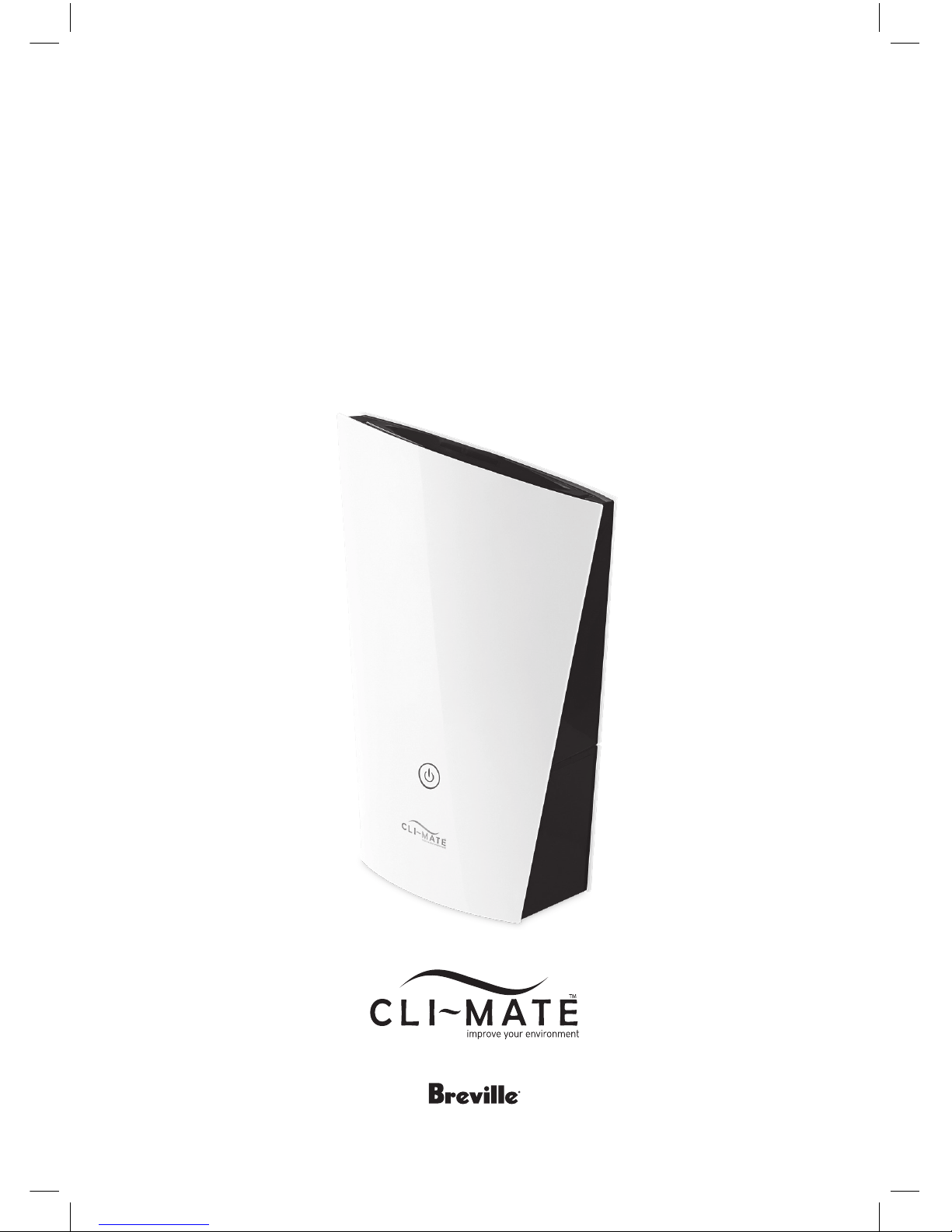

Breville Cli-mate CLI-AH100 User manual

Ultrasonic Humidification System
Instruction Book – CLI-AH100
by

2
CLI-MATE
RECOMMENDS
SAFETY FIRST
At Cli-Mate we are very
safety conscious. We design
and manufacture consumer
products with the safety of you,
our valued customer, foremost
in mind. In addition we ask
that you exercise a degree of
care when using any electrical
appliance and adhere to the
following precautions.
IMPORTANT
SAFEGUARDS
READ ALL
INSTRUCTIONS BEFORE
USE AND SAVE FOR
FUTURE REFERENCE
•All components need to
be installed in accordance
with the user manual
instructions for correct
performance of unit.
•This appliance should be
used in conjunction with
a safety switch.
•This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or
mental capabilities,
or lack of experience
and knowledge, unless
they have been given
supervision or instruction
concerning use of the
appliance by a person
responsible for their safety.
2 Cli-Mate Recommends
Safety First
6 Components
7 Functions
8 Care & Cleaning
9 Troubleshooting
Contents

3
•Do not operate any
appliance with a damaged
cord or plug or after the
appliance malfunctions, or
has been damaged in any
manner.
•If the supply cord
is damaged, it must
be replaced by the
manufacturer, its service
agent or similarly
qualified persons in order
to avoid a hazard.
•Children should be
supervised to ensure that
they do not play with the
appliance.
•Do not use appliance for
other than intended use.
•Do not disassemble, repair
or re-form the unit, it may
cause injury, fire or other
malfunctions. A qualified
service agent must make
all service adjustments.
Unauthorised
disassembling of the
product will void
the warranty.
•Unplug from outlet when
not in use and before
cleaning. Never plug in
or unplug unit with wet
hands.
•Do not use unit outdoors
or expose to greasy
or damp environments.
•Keep the rear air inlet
and outlet free from air
blocking materials such
as clothing, plastic bags
or papers. Air flow
is required for the unit
to operate effectively.
•Place unit on a flat
location at least 30cm
from wall or other
appliances.
•When the unit is in
operation, keep all body
parts, jewellery, hair and
loose clothing away from
the openings
•Unit must be placed
on a stable flat surface to
reduce possible excessive
vibration and noise.

4
•Keep the unit away
from fire, flammable gas,
combustible products
or vapours, and corrosive
substances.
•Do not operate the unit
without filters.
•When transporting the
air purifier, always hold
the handles on the side
of the unit.
•To protect against
fire, electric shock and
personal injury, do not
immerse cord, plugs,
or appliance in water
or other liquid.
•Do not place on or near
a hot gas, electric burner
or heating appliance.
•Check voltage to be sure
that the voltage indicated
on the nameplate agrees
with your voltage.
IMPORTANT
SAFEGUARDS
FOR ALL
ELECTRICAL
APPLIANCES
•Unwind the power cord
fully before use.
• Do not let the power
cord hang over the edge
of a bench or table, touch
hot surfaces, or become
knotted.
• To protect against electric
shock do not immerse
power cord, power plug
or appliance in water
or any other substance.
• This appliance is not
intended for use by
persons (including
children) with reduced
physical, sensory or mental
capabilities, or lack of
experience or knowledge,
unless they have been
given supervision or
instruction concerning
use of the appliance
by a person responsible
for their safety.

5
•Children should be
supervised to ensure
they do not play with
the appliance.
•It is recommended
to regularly inspect the
appliance. Do not use the
appliance if power cord,
power plug or appliance
becomes damaged in
anyway. Return the
entire appliance to
the nearest authorised
Cli-Mate Service Centre
for examination and/
or repair.
•Any maintenance other
than cleaning should
be performed at an
authorised Cli-Mate
Service Centre.
•This appliance is
recommended for
household use only.
Do not use this appliance
for anything other than
its intended use. Do not
use in moving vehicles
or boats. Do not use
outdoors. Misuse may
cause injury.
•The installation of
a residual current
device (safety switch)
is recommended to
provide additional safety
protection when using
electrical appliances.
It is advisable that
a safety switch with
a rated residual operating
current not exceeding
30mA be installed in the
electrical circuit supplying
the appliance. See your
electrician for professional
advice.
WARNING
Fully unwind the cord before use.
FOR HOUSEHOLD USE ONLY
SAVE THESE INSTRUCTIONS

6
Components
A. Mist Outlet Cover
B. Water Tank
A
C
D
B
E
C. Water Tank Cover
D. Power Button
E. Base

7
OPERATION INSTRUCTIONS
Before operation: Place the unit in the area to
be used in for half an hour before turning it
on. It is recommended to use the unit under
temperature of 20˚C, relative humidity less
than 80% RH.
1. Locate a flat stable location and
plug the power cord into the
appropriate electrical outlet.
2. Remove the water tank from the base
by lifting and pulling upwards then
turn water tank upside down.
3. Unscrew the water tank cover and fill
water tank with clean water. Important:
Use only clean, cool tap water to fill the
water tank. Do not use hot water. Filtered
or distilled water is recommended to avoid
scale build up if tap water is too hard.
4. Replace the water tank cover and position
the
water tank back onto the base.
5. Switch on the unit by pressing the power
button . The unit will begin to work on
default setting (Mist level 1-normal).
6. To select MIST LEVEL: Press the power
button again to
change the mist level from level 1 (normal)
to level 2 (high).
Press power button again
to turn off the unit.
7. When water level in the water tank is low,
the unit will sound an alarm for 3 seconds
and then automatically stop operation.
The power button will illuminate
red. Follow steps 2-5 to continue.
PRODUCT SPECIFICATIONS ULTRASONIC HUMIDIFICATION SYSTEM
MODEL CODE CLI-AH100
POWER SUPPLY 100-240V 50/60Hz
POWER CONSUMPTION 20W
WATER TANK CAPACITY 1.3 Litres
EVAPORATION RATE 150ml/h
NOISE LEVEL 10 Hours
Functions

8
Care & Cleaning
• Do not rinse the unit or immerse the unit
in water.
• Do not use detergent, soap, boiling water or
abrasive cleaners to clean any parts of the
unit. These will interfere with the proper
operation of the unit.
• Clean the surface of the device with
a soft cloth.
SCALE
To reduce the possibility of scale (white mineral
deposits) build-up on the surface of the water
basins, inner surface of the water tank and
transducer, the following is recommended:
• Change the water daily.
• If possible, use distilled or demineralised
water.
• Drain, clean and thoroughly dry all parts
of the unit before putting it into storage.
STORAGE
If you do not plan to use the unit for an
extended period of time empty water tank and
base completely. Do not store with water inside
base or water tank. Allow all components to
dry completely before storing. Store in a cool
dry location.
CAUTION: Before carrying out cleaning or maintenance of the product, always turn off and unplug
the cord from the power socket.
CLEANING THE TRANSDUCER
IMPORTANT
Do not spill water over the base of the unit
when rinsing transducer with clean water. Be
careful not to damage the Transducer during
cleaning. Do not use any brushes, sharp or
metal objects to scrape it or touch with bare
fingers.
If mineral deposits are evident on or around
the transducer,
clean the surface with a soft, clean cloth and a
small amount of undiluted white vinegar. To
remove mineral deposits, put 5-10 drops of
undiluted white vinegar on the surface of the
transducer. Leave to soak for 2-5 minutes. Use a
cotton swab to gently loosen up the scale of the
surface. Rinse the transducer with clean water
and wipe clean.
Transducer

9
PROBLEM POSSIBLE CAUSES EASY SOLUTION
No Power. • Unit is not plugged into
wall socket. • Check connection to wall socket.
Little or no mist
is produced. • No water in water tank • Fill water tank.
• Scale build up on transducer. • Clean scale build up as per
instructions.
• Water is too dirty or kept for
too long in the tank. • Clean water tank and refill with fresh clean water.
• The mist may not be clearly
visible depending on the balance
between the room temperature
and humidity.
Abnormal noise. • Very low water levels
in water tank. • Refill water tank.
• Unit is on an uneven surface. • Reposition the unit to a stable
flat surface.
White dust accumulation. • Hard water used. • Follow instructions on page 8.
Troubleshooting

10
Notes

11
Notes
