Breville Brita User manual

®

2
READ CAREFULLY AND KEEP FOR FUTURE REFERENCE
This product can be used by children aged 8 years and above, and
persons who require supervision, provided:
• they are familiar with the hazards associated with the product,
and,
• they receive instruction by a competent person on how to
safely use the product.
Children must not play with the product. Cleaning and user
maintenance must not be done by children unless they are aged 8
or older and are supervised.
Never use a power base other than the one supplied with the
appliance.
NeverllthekettleabovetheMAXmarking.Ifthekettleis
overlled,boilingwatermaybeejected.
Ifthesupplycordisdamaged,itmustbereplacedbythe
manufacturer,itsserviceagentorsimilarlyqualiedpersonsin
order to avoid a hazard.
Important Safety Instructions

3
!This appliance generates heat during use. Adequate precaution must be taken to
prevent the risk of burns, scalds, res or other damage to persons or property caused
by touching the exterior whilst in use or during cooling.
!Never use this appliance for anything other than its intended use. This appliance is for
household use only. Do not use this appliance outdoors.
!Always ensure that hands are dry before handling the plug or switching on the
appliance.
!Always use the appliance on a stable, secure, dry and level surface.
!Never use a power base other than the one supplied with the appliance.
!This appliance must not be placed on or near any potentially hot surfaces (such as a
gas or electric hob).
!Do not use the appliance if it has been dropped, if there are any visible signs of
damage or if it is leaking.
!Ensure the appliance is switched off and unplugged from the supply socket after use
and before cleaning.
!Always allow the appliance to cool before cleaning or storing.
!Never immerse any part of the appliance or power cord and plug in water or any
other liquid.
!Never let the power cord hang over the edge of a work top, touch hot surfaces or
become knotted, trapped or pinched.
!Never leave the appliance unattended when in use.
!Beware of steam coming from the spout or lid especially during relling. Never open
the lid during the boiling cycle.
!Never ll the appliance when it is positioned on the power base.
!Never use the appliance without sufcient water in it for it to operate correctly.
!Never allow the appliance to boil dry.
!Always operate the appliance with a cup or suitable container placed below the
dispensing nozzle.

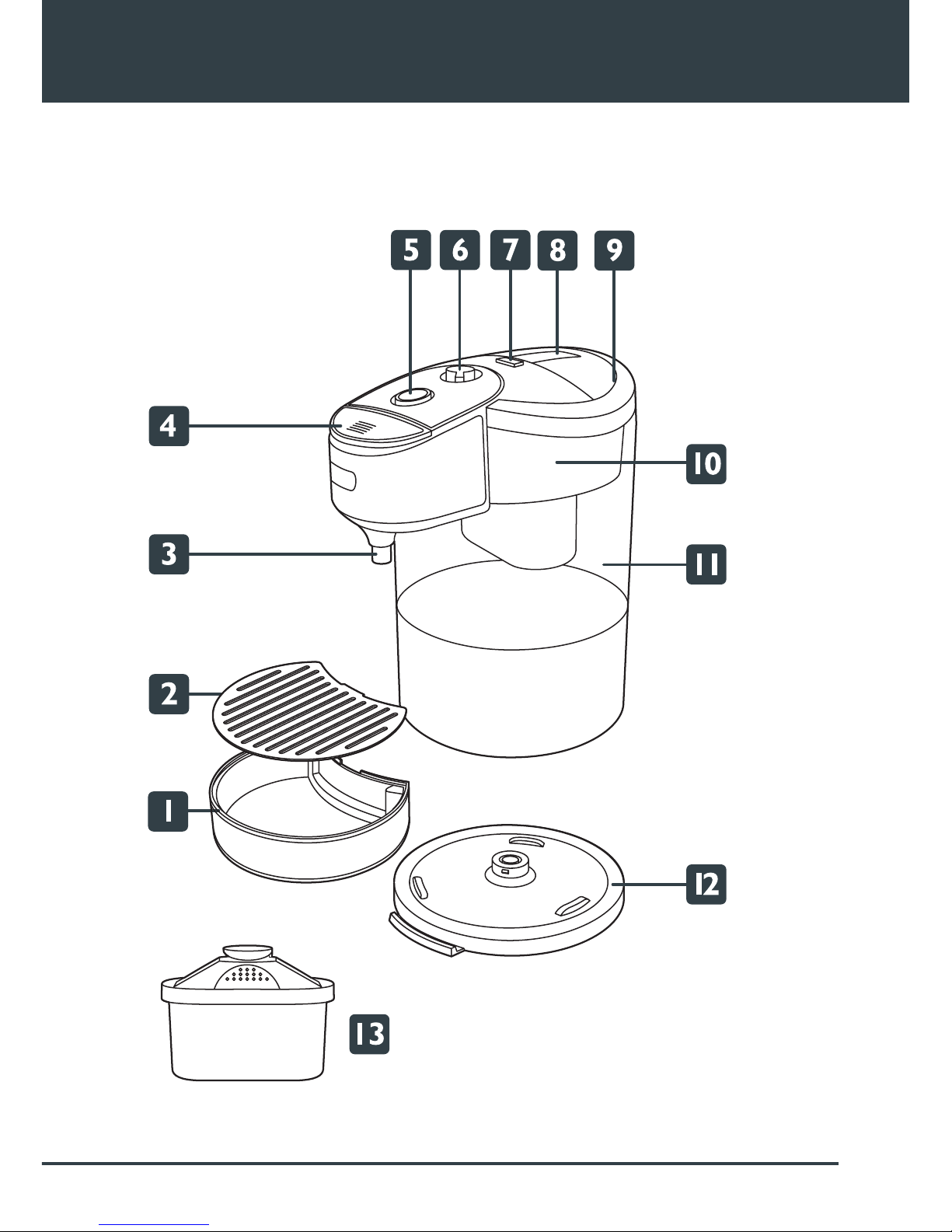

4
1. Removeable drip tray
No mess, just lift it off the power base and rinse under the tap. Holds over 1 cup of
water before it needs emptying.
2. Removable stainless steel drip tray cover
3. Dispensing nozzle
4. Stop button
Press to immediately stop the boil sequence or to stop water that is being
dispensed.
5. Start button
Press to start the boil sequence.
6. Dispensing control
This control allows you to select the amount of water dispensed by your Hot Cup.
Move it towards for less water or for more water.
7. Lidapreleasebutton
Press to open the lid ap only and ll the water tank.
8. BRITA®Memo
Shows you when you need to change the BRITA® MAXTRA® water lter cartridge.
9. Removable lid
The complete lid can be lifted off your Hot Cup to access the lter and lter funnel.
10.Filterfunnelandltercartridge(insidewaterchamber)
11. Water chamber
12. Power base
13.BRITA®MAXTRA®waterltercartridge
Identifying the Parts

5

6
Preparing the BRITA®MAXTRA®Cartridge
1. Remove the cartridge from its wrapping (it is normal for
the cartridge to appear moist during storage).
2. Immerse the cartridge in cold tap water and shake gently
to remove any air bubbles. There is no need to pre-soak
this cartridge before use.
3. Lift the complete lid off your Hot Cup and remove the
lter funnel. Insert the cartridge into the lter funnel
and push it rmly into place. When correctly tted, the
cartridge should remain in place when the funnel is turned
upside-down.
4. Fill the lter funnel with cold tap water up to the MAX
mark and allow it to lter through discarding the water.
Repeat this process, again discarding the water.
5. The BRITA® MAXTRA® cartridge is now ready for use.
You do not need to keep the lter cartridge immersed in
water. Ret the lter funnel and lter into your Hot Cup.
Replace the lid.
6. Always make sure that you have spare MAXTRA®
cartridges to hand. When buying new cartridges look for
the BRITA® MAXTRA®logo on the cartridge packaging.
7. When it is time to replace the BRITA® MAXTRA® lter
cartridge after 4 weeks use, simply lift the handle on top
of the cartridge and pull upwards to remove. BRITA®
cartridges are 100% recyclable. Visit www.brita.co.uk or
call the BRITA® Care team on 0844 742 4800 for further
information on participating retailers.
8. Repeat steps 1-5 with a new cartridge.

7
Using the BRITA®Memo Function
It is important to change your BRITA® lter cartridge regularly
to enjoy the benets of BRITA® ltered water. Filtering your
water improves the look and taste of hot drinks by reducing
limescale, chlorine, metals and other impurities.
The BRITA® Memo automatically reminds you when your
lter cartridge needs to be changed. BRITA®recommend to
exchange the MAXTRA® cartridge every 4 weeks.
When you have tted and prepared your lter cartridge, start
the Memo as follows:
1. Press and hold the START button until 4 bars appear on
the display and ash twice. The Memo is now set.
2. The ashing dot in the corner of the display indicates that
the Memo is working.
3. Every week, one bar will disappear to indicate the
remaining cartridge life. When only one bar is showing,
check that you have a replacement lter cartridge available.
4. After 4 weeks, all four bars will disappear and a ashing
arrow will appear to indicate that the cartridge should be
replaced.
Wash and dry the lter funnel, insert a new cartridge and
restart the Memo as described above.
Please note that the Memo is only intended to be used with
BRITA® lter cartridges.
More information on the use of BRITA® water lter cartridges
and the Memo can be found in the BRITA®information guide.

8
Using Your Hot Cup
BeforeusingyourHotCupforthersttime
• Remove your Hot Cup carefully from the box. Remove any packaging and
promotional material and position your Hot Cup on a dry, level, secure work surface
away from the edge.
• Follow the instructions below and discard the rst full tank of water. This will remove
any residues that may remain from the manufacturing process.
• Fit the lter funnel and the BRITA® MAXTRA® water lter and set the BRITA® Memo
—see pages 6 and 7.

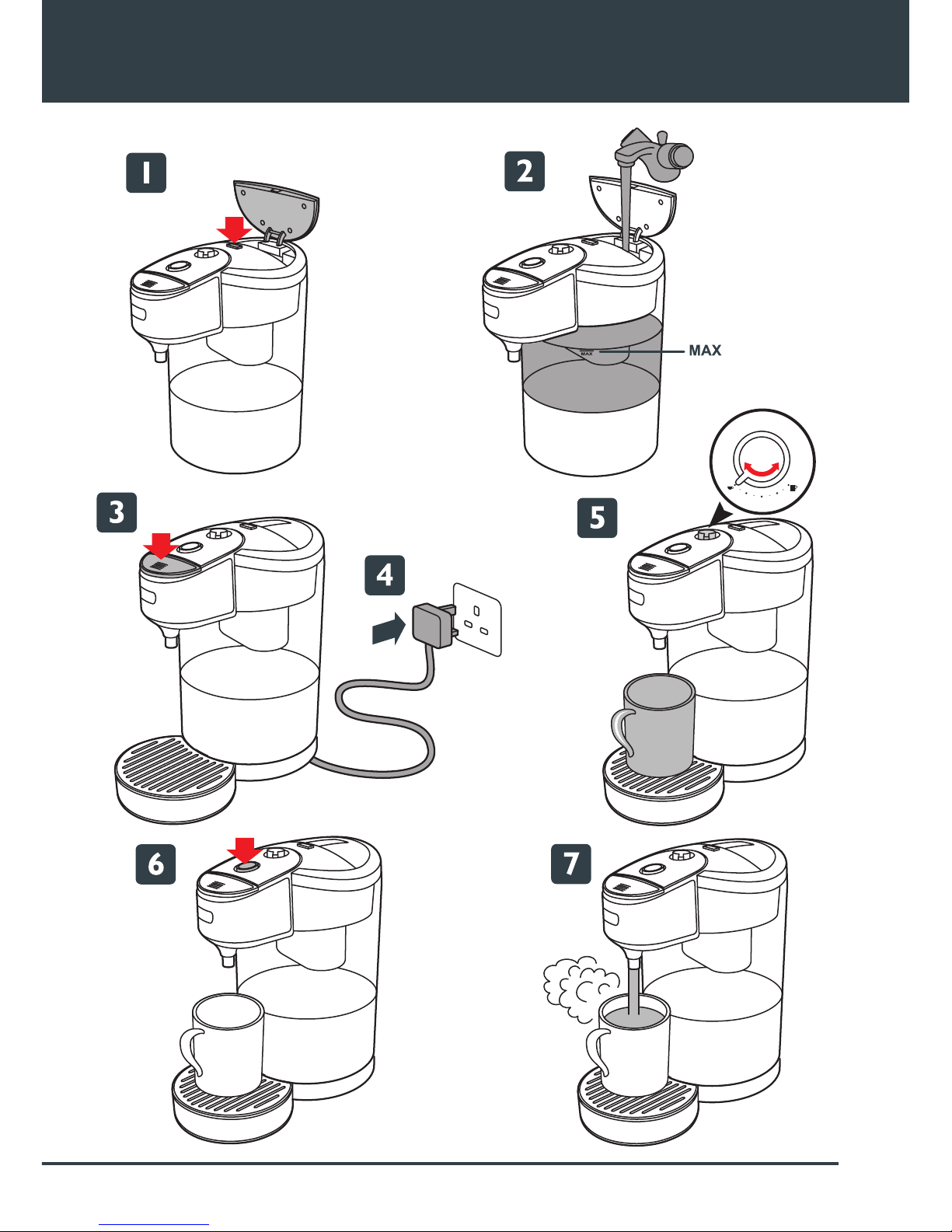

Using your Hot Cup
Always position your Hot Cup in such a way that the start button cannot be
accidentally operated, especially by children. As you use your Hot Cup, a certain
portionofthewaterboiledwillbetransferredbacktothewaterreservoir.This
will mean the water reservoir may become hot. Always use care when handling
your Hot Cup.
1. Press the lid ap release button to open the lid ap.
2. Fill the lter funnel from your cold tap up to the MAX mark on the lter funnel. Allow
the water to lter through into the water chamber. Repeat until the water level in the
chamber is no higher than the MAX marking on the water chamber.
3. Close the lid and press the stop button. This will make sure that your hot cup will not
immediately start a boil cycle when you place it onto the power base.
4. Connect your Hot Cup to a mains supply socket.
5. Place a suitable cup or container with a tea bag, coffee, sugar, etc. below the
dispensing nozzle. Never operate your Hot Cup without a cup or suitable container
placed below the dispensing nozzle. Adjust the dispensing control to the required
setting. The control adjusts the quantity of boiling water dispensed by your Hot Cup.
For smaller cups like teacups, set the control towards the setting; for larger cups
like coffee mugs, set the control towards the setting. If you are not sure which
setting to use, it’s best to use a lower setting until you gain experience using your Hot
Cup.
6. Press the start button. The body will light up blue and your Hot Cup will start to boil.
7. The selected quantity of boiling water will be dispensed into the cup. Your Hot Cup
is now ready to use again. If, after just having boiled, the start button doesn’t operate,
simply wait a few seconds before trying it again.
Stopping your Hot Cup
If you have started the boil procedure and then decide you want to stop your Hot Cup for
any reason, simply press the stop button. You can also stop water that is being dispensed
by pressing the stop button. The boiled water will be safely transferred back into the
water reservoir.

9
SMALL
CUP
LARGE
CUP

10
Cleaning
Always switch off and unplug your Hot Cup and allow it to completely cool
before cleaning. Never immerse the base unit, power cord or plug in water or
any other liquid. Do not use harsh abrasives, chemicals or oven cleaners.

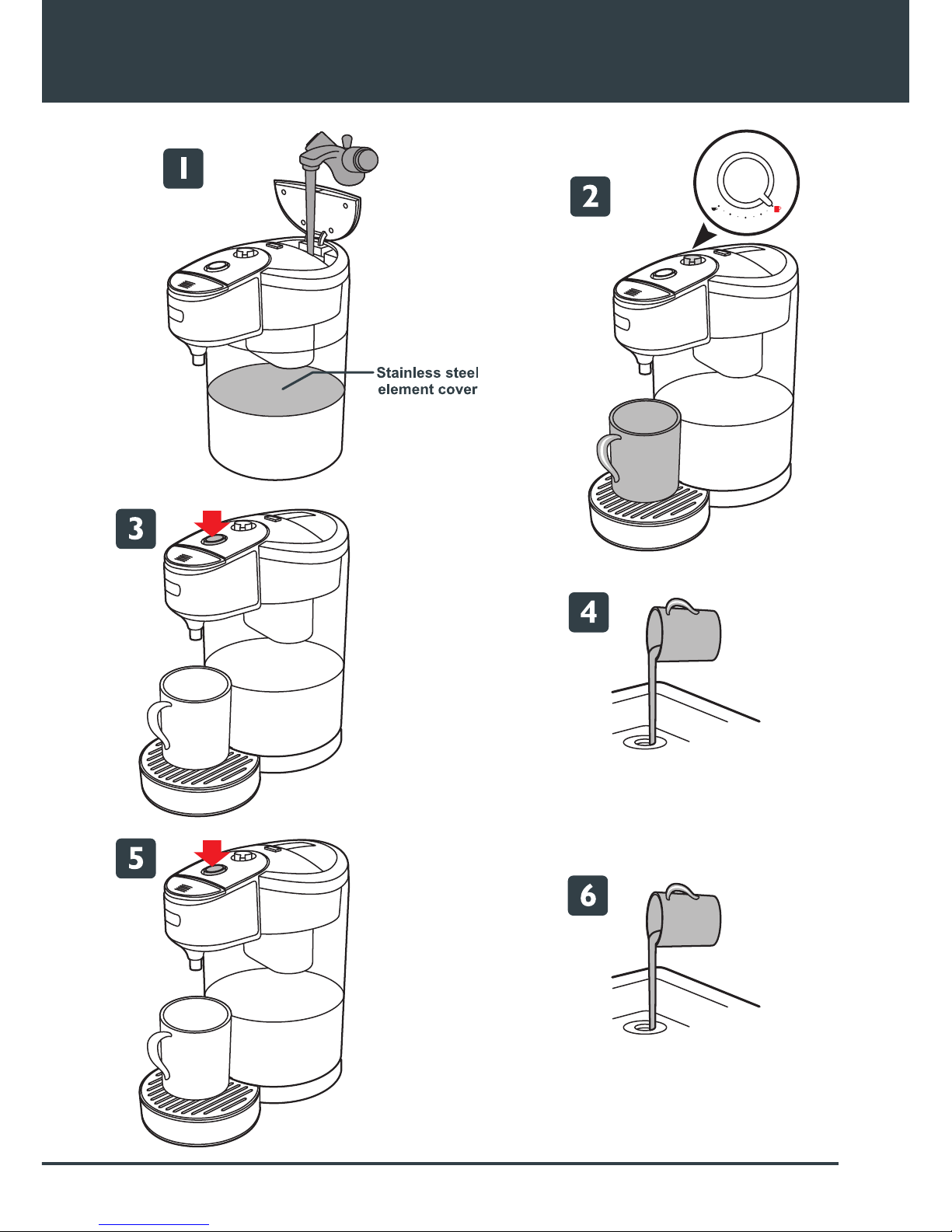

Emptying your Hot Cup
1. Fill your Hot Cup with a quantity of water that just covers the perforated stainless
steel element cover.
2. Place a suitable cup or container below the dispensing nozzle. Set the dispense
control to the setting.
3. Press the start button.
4. After the water has been dispensed, empty the cup and replace it under the
dispensing nozzle.
5. Press the start button again.
6. Discard the water.
Your Hot Cup is now empty.
If your Hot Cup will not be used for an extended period (e.g. if you are on holiday), we
recommend that you rst empty it.
Before using your Hot Cup again, carry out several boil cycles discarding the water each
time.
Cleaning
Clean the exterior surface of your Hot Cup with a damp cloth and then polish it with a
soft, dry cloth. Do not use steel wool pads or harsh/abrasive cleaners.

11

12
Descaling your Hot Cup
To maintain it’s performance, your Hot Cup will require descaling once every three
months or so. You may need to descale your Hot Cup more frequently if you live in a
hard water area.
By changing the MAXTRA® cartridge more frequently, you will need to descale less
often. BRITA® recommends to exchange the MAXTRA® cartridge every 4 weeks.
1. Completely remove the lid and remove the lter funnel and lter. Fill your Hot Cup
to the MAX marking on the water chamber and place an empty cup on the drip
tray. Replace the lid. Select a suitable setting for the dispensing control and press the
start button. Wait for the water to be dispensed into the cup.
2. Add a citric acid-based proprietary descaling product to the hot water in the cup
and stir.
3. Tip the contents of the cup into your Hot Cup and close the lid.
4. Place the empty cup on the drip tray and press the start button.
5. Wait for the water to be dispensed into the cup.
6. Discard the water from the cup.
7. Repeat steps 4, 5 and 6 until your Hot Cup is empty. Fill your Hot Cup with fresh
water to the MAX ll level and place an empty cup on the drip tray.
8. Press the start button and wait for the water to be dispensed into the cup.
9. Discard the water in the cup.
10. Repeat steps 8 and 9 until your Hot Cup is empty. This will rinse any remaining
descaling solution from your Hot Cup
11. When your Hot Cup is completely cleaned, reinsert the lter funnel and lter. Your
Hot Cup is ready for use again.
Descaling

13

14
Problem Possible Cause Solution
The start switch will not stay
in the on position.
Your Hot Cup has not reset
itself after the boiling cycle.
Your Hot Cup is still too hot
after the last boil cycle. Wait
a few seconds for it to cool
slightly before trying again.
The water tank does not
illuminate and your Hot Cup
does not dispense boiling
water.
• Your Hot Cup is not
plugged in.
• Your Hot Cup is not
positioned correctly on its
power base.
• The fuse has blown.
• Your Hot Cup has boiled
dry.
• Check your Hot Cup is
plugged in and switched on
at the supply socket.
• Check that the dispensing
nozzle is positioned
centrally over the drip tray.
• Check the fuse in the plug.
• Allow your Hot Cup to
cool down completely then
rell it with water.
Your Hot Cup does not
dispense a full cup of water
• Your Hot Cup has
excessive scale.
• The dispensing control may
be set too low.
• Descale your Hot Cup
• Adjust the dispensing
control
Your Hot Cup produces
excess steam but does not
dispense boiling water.
• There is not enough water
in your Hot Cup.
• Your Hot Cup has
excessive scale.
• Fill with water up to the
MAX marking then restart
the boil cycle.
• Descale your Hot Cup.
Your Hot Cup makes a
noise and there is a ‘clunk’
sound after water has been
dispensed.
This is the sound of the
internal valve operating after
the boil cycle nishes.
This is normal operation.
Water drips from the
dispensing nozzle after the
boil cycle has nished.
There is a residual amount
of water left inside your Hot
Cup after the boil cycle.
This is normal operation
Steam comes out from behind
the start button and behind
the dispensing nozzle
Steam is being vented in a
controlled manner through
designed vents
This is normal operation
The water reservoir is getting
hot.
Hot water is being returned
to the water reservoir
This is normal operation.
Your Hot Cup immediately
turns iteslf on when it is
placed on the power base.
Your Hot Cup is already
switched on.
Press the stop button.
Troubleshooting

15
Plug should be BS1363 approved
Fit a 13 Amp Fuse
Ensure that the outer sheath of the cable
is rmly held by the clamp
BROWN
(Live)
13 Amp
Fuse
BLUE
(Neutral)
GREEN/YELLOW
(Earth)
Connection to the mains supply
This appliance is tted with either a moulded or rewirable BS1363, 13 amp plug. The
fuse should be rated at 13 amps and be ASTA approved to BS1362.
If the fuse in a moulded plug needs to be changed, the fuse cover must be retted. The
appliance must not be used without the fuse cover tted.
If the plug is unsuitable, it should be dismantled and removed from the supply cord
and an appropriate plug tted as detailed below. If you remove the plug it must not be
connected to a 13 amp socket and the plug must be disposed of immediately.
The wires of the mains lead are coloured in accordance with the following code:
GREEN/YELLOW = EARTH BLUE = NEUTRAL BROWN = LIVE
The wire which is coloured GREEN/YELLOW must be connected to the terminal in
your plug which is marked with an E or by the earth symbol ( ) or coloured GREEN or
GREEN /YELLOW.
The wire which is coloured BLUE must be connected to the terminal in your plug which
is marked with the letter N or coloured BLACK.
The wire which is coloured BROWN must be connected to the terminal in your plug
which is marked with the letter L or coloured RED.
If any other plug is used, a 13 amp fuse must be tted either in the plug or adaptor or at
the distributor board.

16
After sales service
These appliances are built to the very highest of standards. There are no user
serviceable parts. Follow these steps if the unit fails to operate:
Check the instructions have been followed correctly.
Check that the fuse has not blown.
Check that the mains supply is functional.
If the appliance will still not operate, return the appliance to the place it was purchased
for a replacement. To return the appliance to the Customer Service Department, follow
the steps below:
Pack it carefully (preferably in the original carton). Ensure the unit is clean.
Enclose your name and address and quote the model number on all correspondence.
Give the reason why you are returning it.
If within the guarantee period, state when and where it was purchased and include proof
of purchase (e.g. till receipt).
Send it to our Customer Service Department at the address below:
Customer Service Department
JardenConsumerSolutions(Europe)Limited
MiddletonRoad
Royton
Oldham
OL2 5LN, UK.
Telephone: [phone] Fax: [phone]
e-mail:[email protected]

17
Guarantee
Please keep your receipt as this will be required for any claims under this guarantee.
This appliance is guaranteed for 1 year after your purchase as described in this
document.
During this guaranteed period, if in the unlikely event the appliance no longer functions
due to a design or manufacturing fault, please take it back to the place of purchase, with
your till receipt and a copy of this guarantee.
The rights and benets under this guarantee are additional to your statutory rights,
which are not affected by this guarantee. Only Jarden Consumer Solutions (Europe)
Limited (“JCS (Europe)”) has the right to change these terms.
JCS (Europe) undertakes within the guarantee period to repair or replace the appliance,
or any part of appliance found to be not working properly free of charge provided that:
• you promptly notify the place of purchase or JCS (Europe) of the problem; and
• the appliance has not been altered in any way or subjected to damage, misuse,
abuse, repair or alteration by a person other than a person authorised by JCS
(Europe).
Faults that occur through, improper use, damage, abuse, use with incorrect voltage, acts
of nature, events beyond the control of JCS (Europe), repair or alteration by a person
other than a person authorised by JCS (Europe) or failure to follow instructions for use
are not covered by this guarantee. Additionally, normal wear and tear, including, but not
limited to, minor discoloration and scratches are not covered by this guarantee.
The rights under this guarantee shall only apply to the original purchaser and shall not
extend to commercial or communal use.
If your appliance includes a country-specic guarantee or warranty insert please refer
to the terms and conditions of such guarantee or warranty in place of this guarantee or
contact your local authorized dealer for more information.
Waste electrical products should not be disposed of with household waste. Please
recycle where facilities exist. E-mail us at [email protected] for further recycling and
WEEE information.
Jarden Consumer Solutions (Europe) Limited
Middleton Road
Royton
Oldham
OL2 5LN
UK

18
TheMAXTRA®cartridgeis100%recyclable.LookoutforBRITA®recycling
pointsinmajorretailersorvisitwww.brita.co.ukformoreinformation.
WasteElectricalandElectronicEquipment(WEEE)
WEEE is the fastest growing waste stream in the UK, growing by at least 5%
each year. The UK public alone dispose of over 1.2 million tonnes of electrical
andelectronicwasteeveryyear;thiswouldllthenewWembleyStadiumsix
times over.
MuchoftheUK’selectronicwasteendsupinlandllsites.Ithasbeen
estimatedthatlandllspaceintheUKwillrunoutwithinthenext10yearsif
we do not increase the amount of waste we recycle.
WEEE that is not recycled can have negative impacts on soil, air and water
quality which can lead to environmental damage and which can also lead to
negative impacts on human and animal health.
Recycling household electrical equipment – regulations
WitheffectfromJuly2007,theUK’sWasteElectricalandElectronicEquipment
(WEEE)Regulationrequirethatallproducersofelectricalequipmentarenow
obliged to pay for recycling of household electrical goods, where previously this
bill was met by councils or items were not recycled at all. These regulations
also require that all retailers both actively assist in delivering a UK wide WEEE
collection infrastructure and encourage the participation of consumers in
recycling electronic equipment.
So that you can get your waste electrical goods recycled, we have contributed
towards a national fund to assist local councils to further develop their existing
waste electronics collection facilities, which will in turn allow producers of this
equipment to meet their obligations.
Recycling

19
The Crossed out Wheeled Bin Symbol
Allnewelectricalandelectronicequipmentshouldbemarkedwiththecrossed
out wheeled bin, which aims to encourage you to separate out WEEE from
other household waste and to dispose of it at a recycling facility.
recycle-more.co.uk
Foradviceonallaspectsofrecycling,tondouthowtominimiseyoureffecton
the environment and locate your nearest recycling facilities for electronic waste
pleasevisitwww.recycle-more.co.ukandusetherecycle-morebanklocator.
Recycle-more.co.ukalsoofferstoptipandadviceonallaspectsofrecycling,
makingiteasierandquickertoprotectourenvironmentandrecycle-more!

VKJ367_Iss_2 09/13 93233-1
©2013JardenConsumerSolutions(Europe)Limited
All rights reserved. Imported and distributed by Jarden Consumer Solutions (Europe) Limited,
Royton, Oldham OL2 5LN, United Kingdom.
The product you buy may differ slightly from the one shown on this carton due to continuing product development.
One (1) Year Limited Warranty—see inside for details.
Jarden Consumer Solutions (Europe) Limited is a subsidiary of Jarden Corporation (NYSE: JAH).
Made in PRC
www.breville.co.uk
®
