Breville ikon BSK500 User manual

BSK500
Kitchen Scale
Instructions
BSK500_V3.indd 1 15/11/07 11:21:49 AM

2
Contents
Page
Breville Recommends Safety First 4
Know Your Breville ikon™ Kitchen Scale 5
Using Your Breville ikon™ Kitchen Scale 7
Care, Cleaning and Storage 11
BSK500_V3.indd 2 15/11/07 11:21:50 AM

3
Congratulations
on the purchase of your new Breville ikon™ Kitchen Scale
BSK500_V3.indd 3 15/11/07 11:21:51 AM

4
Breville recommends safety first
We at Breville are very safety conscious. We design and manufacture consumer products with the
safety of you, our valued customer foremost in mind. In addition we ask that you exercise a degree of
care when using this product and adhere to the following precautions:
IMPORTANT SAFEGUARDS FOR YOUR IKON™ KITCHEN SCALE
Ensure the temperature probe is handled
with care because the pointed end is sharp.
Keep the appliance clean. Refer to care and
cleaning.
Do not use harsh abrasives or caustic
cleaners when cleaning this appliance.
Young children should be supervised to
ensure that they do not play with this scale
Any maintenance other than cleaning should
be performed at an authorised Breville
Service Centre.
This scale is for household use only.
•
•
•
•
•
•
Carefully read all instructions before
operation and save for future reference.
Remove and safely discard any packaging
material and promotional stickers and labels
before using the ikon™ Kitchen Scale for the
first time.
To eliminate a choking hazard for young
children, remove and safely discard the
protective cover fitted to the power plug of
the appliance.
Do not place the ikon™ Kitchen Scale near
the edge of a bench or table. Always ensure
that the surface is level, clean and free of
water, flour, etc.
This scale is a precision instrument. Do
not dismantle the scale and avoid strong
vibrations and shocks.
Any significant spillage onto the surface
under or around the appliance, or onto the
appliance itself, should be cleaned and dried
before continuing to use the appliance.
Do not place the ikon™ Kitchen Scale on or
near a hot gas or electric burner, or where it
could touch a heated oven. Do not place it in
direct sunlight.
When moving the scale to a new location
where the temperature of the new location
differs by more than 10°C (50°F), leave the
scale in the new location for at least 2 hours
before turning it on.
Always remove the battery if the scale will
not be used within the next 6 months or
longer.
Always ensure a 9V alkaline battery is
properly inserted into the scale before
use. The appliance will not operate unless
properly assembled.
•
•
•
•
•
•
•
•
•
•
BSK500_V3.indd 4 15/11/07 11:21:51 AM

5
Breville recommends safety first Know your Breville ikon™ Kitchen Scale
Power – press button to turn
the kitchen scale on and off.
The kitchen scale will turn
itself off automatically after
2 minutes of non-use
Zero – press button to
zero/tare the kitchen scale
and to set temperature
alarm/kitchen timer.
This button can also be
used to scroll up
Timer – button used to
operate the temperature
alarm/kitchen timer on
the kitchen scale
LCD Screen – easy reading
of weight, temperature and
timer with blue backlight
Temperature Probe
– used to measure
the temperature of
food and beverages
Weighing Platform
– hygienic stainless
steel platform
Temperature Probe
Socket – temperature
probe must be inserted
into the socket for use
Unit – press button to
set imperial (oz, lbs) or
metric (g, kg) standard on
the kitchen scale.
This button can also be
used to scroll down
9 Volt alkaline Battery is included for your convenience.
BSK500_V3.indd 5 15/11/07 11:21:52 AM

6
Know your Breville ikon™ Kitchen Scale
Specifications
Battery Type 1 x 9V Alkaline
Graduation 1g/0.1oz
Scale Maximum Capacity (Zero/Tare) 5Kg/11Lbs
Maximum Timer 99 min 59 sec
Maximum Temperature 150°C
Display
BSK500_V3.indd 6 15/11/07 11:21:52 AM

7
Using your Breville ikon™ Kitchen ScaleKnow your Breville ikon™ Kitchen Scale
Before first use
Remove and safely discard any packaging
material or promotional labels before using
the appliance for the first time.
Wipe the kitchen scale and temperature
probe with a damp cloth then dry thoroughly.
Inserting the Battery
Open the battery compartment cover
located underneath the kitchen scale and
insert 1 x 9V alkaline battery, ensuring the
polarity of the battery is correctly aligned.
Once the battery is properly inserted,
replace the compartment cover.
To use the kitchen scale
Ensure the kitchen scale is on a dry level
surface for operation.
Press the Power button. The Kitchen scale
will “Beep” once and all functions will be
briefly displayed. After a few seconds the
scale will be ready for use.
Place the item you wish to weigh in the
centre of the weighing platform. Record the
weight, then remove item and press the
Power button to off. Alternatively, if you have
not finished using the kitchen scale, follow
the directions below for other functions.
•
•
1.
1.
2.
3.
If the kitchen scale is switched on with an item
on the weighing platform, the LCD screen will
show “0”. If the item is removed the screen
will show the weight of the item with the Minus
sign (on the left hand side).
If the weighed items exceed the scale’s
capacity of 5kg/11lbs the error sign, “ERR” will
be displayed on the LCD screen.
The battery low indicator will appear on the
LCD screen should the battery need replacing.
Should this happen the LCD screen will display
the word “LO”.
The kitchen scale will automatically turn itself
off after 2 minutes of not being used. The LCD
screen will not be illuminated when the
kitchen scale is off.
To use the Zero button
To weigh different items consecutively without
removing the items from the kitchen scale, use
the “ZERO” button:
Press the Power button. The word “ZERO”
will display lower left side on the LCD
screen.
Place item to weigh in the centre of the
weighing platform and record weight. Press
the ZERO button to reset weight to “0”
before adding the next item.
1.
2.
The kitchen scale has a default function and
will remember the last program used. For
example, if metric grams or “g” was last
selected, this will automatically displayed the
next time the kitchen scale is switched on.
BSK500_V3.indd 7 15/11/07 11:21:53 AM

8
Using your Breville ikon™ Kitchen Scale
If the combined weight of all the items
weighed is less than 200g, ZERO will appear
on the left side of the LCD screen.
For example, when baking a cake that calls for
250g butter and 300g sugar. Place an empty
mixing bowl in the centre of the weighing
platform, then press the ZERO button. The
weight will display 0g and the word “TARE”
will be displayed on the LCD screen. Begin
to add the butter until the desired 250g is
displayed on the LCD screen. Then, press the
ZERO button again. Add sugar to mixing bowl
until the desired 300g is displayed on the LCD
screen.
To remove the word “TARE” and set the Kitchen
scale back to 0g/0.0oz at any time, ensure the
item is removed from the Kitchen scale and
press the ZERO button again. The word “TARE”
will disappear and the word “ZERO” will display
on the LCD screen.
If the combined weight of all the objects
measured is greater than 200g, the word
“TARE” will appear in the upper left side of the
LCD screen.
The Kitchen Scale’s maximum capacity is
5kg/11lbs. Each time an item is added using
the ZERO button, the weight of the previous
item is counted towards the maximum capacity.
For example, if you weigh a 4.0kg bowl of soup
and then press the ZERO button to weigh in
some onions, the maximum amount the onions
can weigh is 1.0kg 4.0kg + 1.0kg = 5kg
(5kg is the maximum weight of the Kitchen
Scale).
3. Converting Metric to Imperial
Measures
Press the UNIT button before weighing the
item to change the scale from the metric
system (g/kg) to the imperial system (oz/
lbs), if required.
Place item to weigh in the centre of the
weighing platform. Record the weight, then
remove item and press the Power button to
OFF if you have finished with the Kitchen
scales. Alternatively follow the below
directions for other functions.
1.
2.
BSK500_V3.indd 8 15/11/07 11:21:53 AM

9
Using your Breville ikon™ Kitchen Scale Using your Breville ikon™ Kitchen Scale
Setting the Timer
Press the Timer button once (a bell icon will
appear in the upper left hand corner).
Using the UNIT and ZERO buttons, scroll
either down or up to select the desired
amount of time. Begin setting the timer
by pressing the Timer button after each
correct digit is displayed on the LCD screen.
Maximum time countdown is “99:59”.
After the last correct digit is selected, press
the Timer button to start the timer.
To turn the alarm off press the Timer button
A continuous “beep” alarm will sound when the
count down timer is finished.
To turn the timer off before it sounds, press the
Timer button.
1.
2.
3.
4.
To use the Temperature Probe
Insert the temperature probe into the
temperature probe socket located at the
side of the Kitchen scale.
Insert the pointed end of the
temperature probe into the food/
beverage to record temperature
Temperature is displayed in Celsius on
the upper right side of the LCD screen
and will begin to increase or decrease in
temperature until the correct temperature is
shown on the LCD screen.
1.
2.
3.
BSK500_V3.indd 9 15/11/07 11:21:54 AM

10
Monitoring Ambient Temperature
The room/air temperature will always be
displayed on the upper right side on the
LCD screen unless the temperature probe
is connected to the socket and inserted into
a food or liquid of a different temperature.
Temperature is recorded in degrees Celsius, for
example 23ºC.

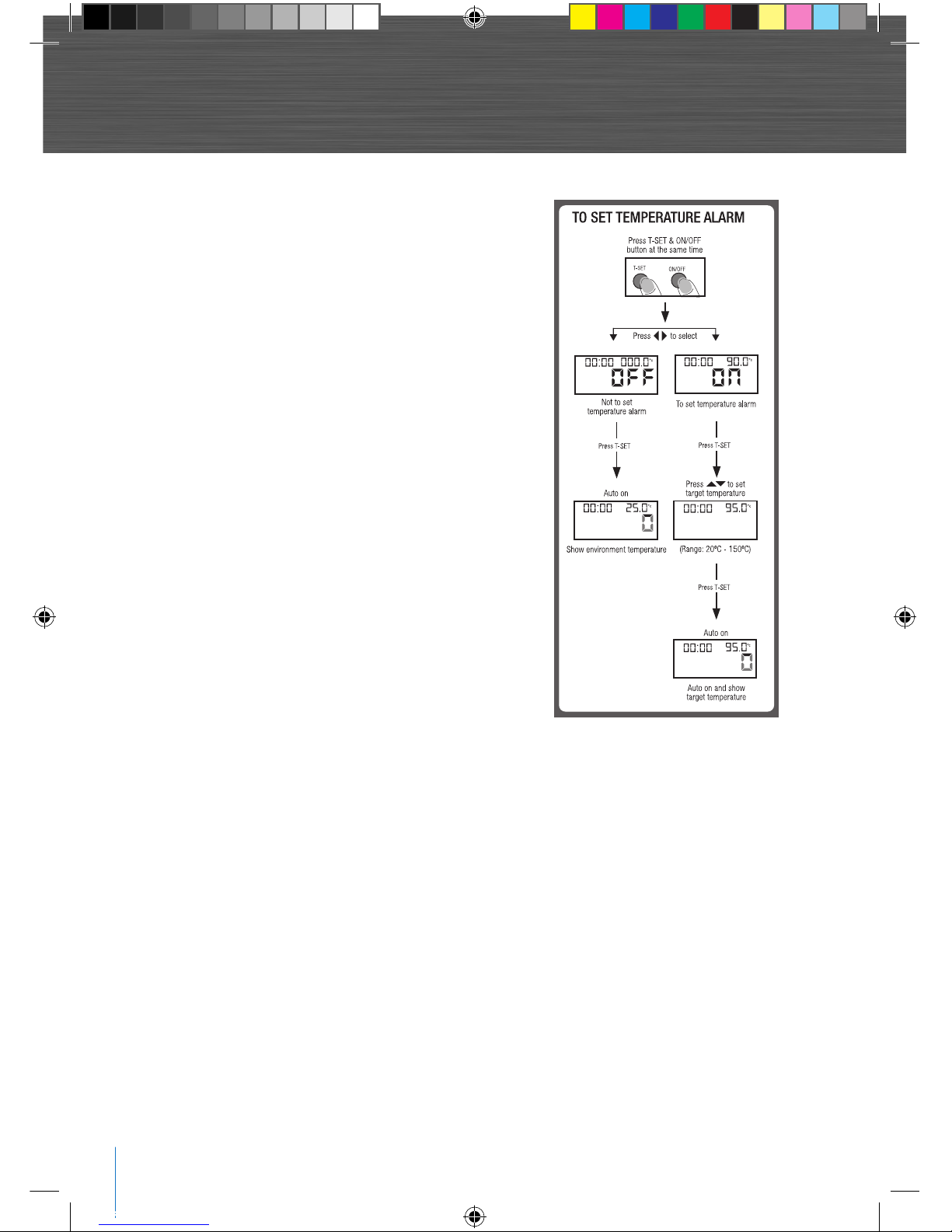

Setting the Temperature Alarm
The temperature alarm can be used with or
without the temperature probe in place. If
the temperature probe is in place, the alarm
will sound when the temperature of the
probe inserted into a food or liquid, has been
reached. If the temperature probe is not in
place, the alarm will sound when the ambient
temperature has been reached.
To turn the Temperature alarm ON
Ensure the power to the kitchen scale is
turned off.
To turn the Temperature Alarm ON, press
and hold down both the Power and Timer
buttons at the same time until the words
‘ON’ or ‘OFF’ appear
Press the UNIT or ZERO buttons to select
“ON”
Press the Timer button to confirm your
selection
Press the UNIT or ZERO buttons to select the
temperature for which you would like the
alarm to sound at.
Press the Timer button to confirm your
selection
The kitchen scale will take a moment to
program the temperature and the alarm
will sound when the desired temperature is
reached.
1.
2.
3.
4.
5.
6.
7.
Using your Breville ikon™ Kitchen Scale
To turn the Temperature alarm OFF
Ensure the power to kitchen scale is turned
off.
To turn the Temperature Alarm OFF, press
and hold down both the Power and Timer
buttons at the same time until the words
‘ON’ or ‘OFF’ appear.
Press the UNIT or ZERO buttons to select
“OFF”.
Press the Timer button to confirm your
selection.
1.
2.
3.
4.
BSK500_V3.indd 10 15/11/07 11:21:55 AM

11
Care, Cleaning and StorageUsing your Breville ikon™ Kitchen Scale
Always ensure the kitchen scale is kept
clean after each use to prevent a build up of
foods on the weighing scale and temperature
probe to avoid inaccurate recordings.
Before cleaning, ensure the power to scale is
turned off using the Power button.
Wipe the weighing platform and temperature
probe with a clean, damp cloth after each
use. Mild detergents can also be used to
clean the weighing platform and temperature
probe. Do not use harsh abrasives or caustic
cleaners when cleaning this appliance.
Never immerse the kitchen Scale in water or
any other liquid. Do not place the scale or
temperature probe in the dishwasher.
Ensure the kitchen scale and temperature
probe is thoroughly dry after cleaning.
•
•
•
•
Storing
Store the kitchen scale on a flat, dry, level
surface. Do not place anything on top, as
this may damage the appliance.
Always remove the battery if the kitchen
scale will not be used for 6 months or longer
Breville 5 year IKON Kitchen Scale
Guarantee
The kitchen scale comes with a 5 year
manufacturer’s guarantee against faulty
materials or manufacture. The warranty does
not cover damage caused by accident, misuse,
or being used in a manner not stated in the
instruction book.
For your convenience, The kitchen Scale comes
with 1 x 9V alkaline battery. This battery is not
covered under the 5 year warranty and must be
replaced when it becomes too low to operate
the scale. The low battery indicator, “LO” will
appear on the LCD screen when the battery
needs to be replaced
•
•
BSK500_V3.indd 11 15/11/07 11:21:55 AM

12
Australian Customers
Breville Customer Service Centre
PO Box 22
Botany NSW 2019
AUSTRALIA
Customer Service: 1300 139 798
Fax [phone]
Email Customer Service:
[email protected]
New Zealand Customers
Breville Customer Service Centre
Private Bag 94411
Greenmount
Auckland, New Zealand
Customer Service: 0800 273 845
Fax [phone]
Email Customer Service:
[email protected]
Breville Customer Service Centre
Breville is a registered trademark of Breville Pty. Ltd
ABN 98 000 092 928
© Copyright. Breville Pty. Ltd. 2007
ikon™ is a trademark of Breville Pty. Ltd.
Due to continual improvements in design or otherwise,
the product you purchase may differ slightly from the one
illustrated in this booklet.
Model BSK500 Issue 1/07
www.breville.com.au
BSK500_V3.indd 12 15/11/07 11:21:56 AM
