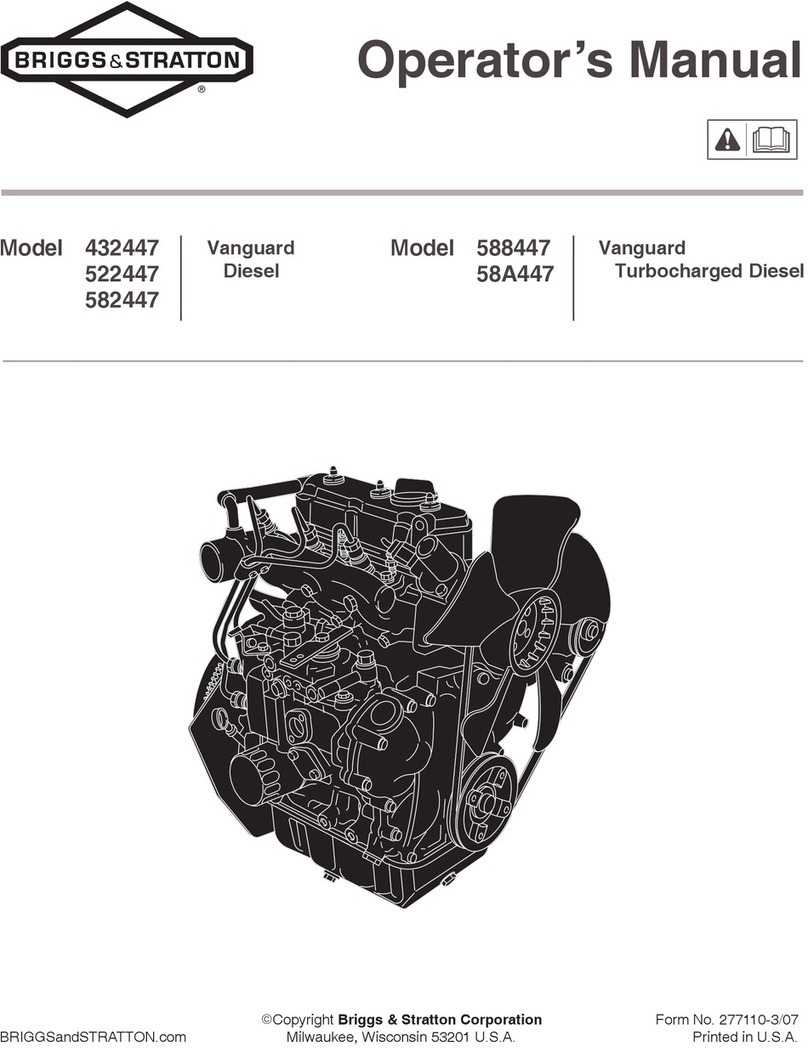

Briggs & Stratton Vanguard Diesel 432447 Installation and operation manual

853cov - page 1 (Black)
Screen angle and frequency: 45.0000, 150.0000
01999 - 87823
Briggs & Stratton Daihatsu LLC
Milwaukee, Wisconsin 53201
www.briggsandstratton.com Copyright 2001 by Briggs & Stratton Daihatsu LLC
FORM NO. 820853-7/01
PRINTED IN U.S.A.
Diesel Model
Series
Covered in
This Manual
432447
522447
582447
Turbocharged
Diesel Model
Series
Covered in
This Manual
588447
58A447
Operating & Maintenance
Instructions
For future reference, write your Date of Purchase here.
TABLE OF CONTENTS
Safety Information 4. . . . . . . . . . . . . . . . . . . . . . . . .
Engine Information 6. . . . . . . . . . . . . . . . . . . . . . . .
Oil 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel and Coolant 8. . . . . . . . . . . . . . . . . . . . . . . . . .
Gauges 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Starting and Stopping 10 – 11. . . . . . . . . . . . . . . . .
Maintenance 12. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adjustments 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Storage 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Warranty Information 19. . . . . . . . . . . . . . . . . . . . .
WARNING
Briggs & Stratton Daihatsu does not approve or authorize the
use of these engines on 3-wheel All Terrain Vehicles (ATVs),
motor bikes, aircraft products or vehicles intended for use in
competitive events. Use of these engines in such applications
could result in property damage, serious injury (including
paralysis), or even death.
For location of nearest Authorized B&S D Service Dealer
1-800-759-2744
Briggs & Stratton Daihatsu
Milwaukee, Wisconsin 53201
www.briggsandstratton.com

820853diesel - page 2 (Black)
Screen angle and frequency: 45.0000, 150.0000
2
The Power That Works For You.
Thank you for selecting a Briggs & Stratton engine to power your equipment.
Briggs & Stratton is committed to producing a line of engines which will make your life’s chores easier to
perform. We have, at the same time, improved the design of our engines so they are environmentally
friendly. Briggs & Stratton’s efforts have not stopped there. We are also committed to designing and
introducing even cleaner engines in the future, while maintaining our reputation for excellent utility and
value.
We hope you will enjoy your new engine and equipment. We welcome you to our worldwide family of
Briggs & Stratton engine users.
Best Wishes Always,
The Employees of Briggs & Stratton Corporation

820853diesel - page 3 (Black)
Screen angle and frequency: 45.0000, 150.0000
3
BEFORE OPERATING ENGINE
•Read entire Operating & Maintenance Instructions AND
the instructions for the equipment this engine powers.*
•Failure to follow instructions could result in serious injury
or death.
THE OPERATING & MAINTENANCE INSTRUCTIONS
CONTAIN SAFETY INFORMATION TO
•Make you aware of hazards associated with engines
•Inform you of the risk of injury associated with those hazards, and
•Tell you how to avoid or reduce the risk of injury.
820853
The safety alert symbol ( ) is used to identify safety
information about hazards that can result in personal injury.
A signal word (DANGER, WARNING, or CAUTION) is used
with the alert symbol to indicate the likelihood and the
potential severity of injury. In addition, a hazard symbol may
be used to represent the type of hazard.
DANGER indicates a hazard which, if not avoided,
will result in death or serious injury.
WARNING indicates a hazard which, if not
avoided, could result in death or serious injury.
CAUTION indicates a hazard which, if not avoided,
might result in minor or moderate injury.
CAUTION,when used without the alert symbol,
indicates a situation that could result in damage to
the engine.
THE INTERNATIONAL SYMBOLS USED
ON THE ENGINE OR
IN THIS MANUAL INCLUDE:
On Off
Fuel Shutoff
Read Operating &
Maintenance Instructions
Stop
Fuel
Choke
Safety Alert
Oil
HAZARD SYMBOLS AND MEANINGS
Explosion
Toxic Fumes
Moving Parts
Shock
Hot Surface
Hot Coolant
Fire
WARNING
The engine exhaust from this product
contains chemicals known to the
State of California to cause cancer,
birth defects, or other reproductive
harm.
* Briggs & Stratton does not necessarily know what equip-
ment this engine will power. For that reason, you should
carefully read and understand the operating instructions for
the equipment on which your engine is placed.

820853diesel - page 4 (Black)
Screen angle and frequency: 45.0000, 150.0000
4
SAFETY
WARNING
Fuel and its vapors are extremely flammable and
explosive.
Fire or explosion can cause severe burns or death.
WHEN ADDING FUEL
•Turn engine OFF and let engine cool at least 2
minutes before removing fuel cap.
•Fill fuel tank outdoors or in well-ventilated area.
•Do not overfill fuel tank. Fill tank to approximately
1-1/2 inches below top of neck to allow for fuel
expansion.
•Keep fuel away from sparks, open flames, pilot
lights, heat, and other ignition sources.
•Check fuel lines, tank, cap, and fittings frequently
for cracks or leaks. Replace if necessary.
WHEN STARTING ENGINE
•Make sure muffler, fuel cap and air cleaner are in
place.
•If fuel spills, wipe it off before starting engine.
WHEN OPERATING EQUIPMENT
•Do not tip engine or equipment at angle which
causes fuel to spill.
WHEN TRANSPORTING EQUIPMENT
•Transport with fuel tank EMPTY or with fuel shut-off
valve OFF.
WHEN STORING FUEL OR EQUIPMENT WITH
FUEL IN TANK
•Store away from furnaces, stoves, water heaters or
other appliances that have pilot light or other
ignition source because they can ignite equipment
with stored fuel or fuel source.
WARNING
Unintentional sparking can result in fire or electric
shock.
Unintentional start-up can result in entanglement,
traumatic amputation, or laceration.
BEFORE PERFORMING ADJUSTMENTS OR
REPAIRS
•Disconnect battery at negative terminal.
WARNING
Explosion and fire could result.
•If there is natural or LP gas leakage in area, do not
start engine.
•Do not use pressurized starting fluids because
vapors are flammable.

820853diesel - page 5 (Black)
Screen angle and frequency: 45.0000, 150.0000
5
SAFETY
WARNING
Engines give off carbon monoxide, an odorless,
colorless, poison gas.
Breathing carbon monoxide can cause nausea,
fainting or death.
•Start and run engine outdoors.
•Do not start or run engine in enclosed area, even if
doors or windows are open.
WARNING
If engine is warm DO NOT remove radiator cap.
Escaping steam can cause burns.
•Do not touch hot radiator, or open reservoir when
engine is running
•Allow engine to cool before removing radiator cap,
changing, or adding coolant.
WARNING
Rotating parts can contact or entangle hands, feet,
hair, clothing, or accessories.
Traumatic amputation or severe laceration can
result.
•Operate equipment with guards in place.
•Keep hands and feet away from rotating parts.
•Tie up long hair and remove jewelry.
•Do not wear loose-fitting clothing, dangling
drawstrings or items that could become caught.
WARNING
Running engines produce heat. Engine parts,
especially turbocharger and muffler, become ex-
tremely hot.
Severe thermal burns can occur on contact.
Combustible debris, such as leaves, grass, brush,
etc. can catch fire.
•Allow turbocharger, muffler, engine cylinder and
fins to cool before touching.
•Remove accumulated combustibles from muffler
area and cylinder area.
•Install and maintain in working order a spark
arrester before using equipment on forest-covered,
grass-covered, brush-covered unimproved land.
The state of California requires this (Section 4442
of the California Public Resources Code). Other
states may have similar laws. Federal laws apply
on federal land.

820853diesel - page 6 (Black)
Screen angle and frequency: 45.0000, 150.0000
6
ENGINE INFORMATION
ENGINE PARTS
1. Thermostat
2. Oil filler cap
3. Electric starter
4. Oil pan
5. Alternator
2
3
54
Diesel 1
11
6. Injector nozzle
7. Glow plug
8. Oil drains
9. Oil filter
10. Dipstick
11. Injector pump
12. Engine Date code
xxxxxxxx
13. Engine Model & Type number
xxxxxx xxxx-xx
7
10
13
9
6
8
12
1. Thermostat
2. Oil filler cap
3. Turbocharger
4. Electric starter
5. Alternator
6. Oil pan
Turbo-charged
Diesel
7. Injector nozzle
8. Glow plug
9. Oil drains
10. Oil cooler
(if equipped)
11. Oil filter
12. Dipstick
13. Injector pump
14. Engine Date code
xxxxxxxx
15. Engine Model & Type number
xxxxxx xxxx-xx
GENERAL INFORMATION
This is a three cylinder, liquid cooled engine.
On mobile equipment, this engine will operate satisfactorily at any angle at which operator and equipment can function safely.
MODEL SERIES 432447
Bore 2.68 in. (68 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 2.52 in. (64 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 42.5 cu. in. (697 cc). . . . . . . . . . . . . . . . . . . . .
MODEL SERIES 522447
Bore 2.68 in. (68 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 3.07 in. (78 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 52.0 cu. in. (850 cc). . . . . . . . . . . . . . . . . . . . .
MODEL SERIES 582447, 588447, 58A447
Bore 2.834 in. (72 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Stroke 3.07 in. (78 mm). . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Displacement 58.1 cu. in. (953 cc). . . . . . . . . . . . . . . . . . . . .

820853diesel - page 7 (Black)
Screen angle and frequency: 45.0000, 150.0000
7
OIL
820853
OIL CAPACITY
Oil capacity, including oil filter, is 3.5 quarts (3.3 liters).
TYPE OF OIL TO USE
•Use a high quality detergent oil classified “For Service CF,
or CF-4”.
•Do not use special additives with recommended oils.
•Do not mix oil with fuel.
•Choose a viscosity according to the table opposite.
CAUTION: This engine is shipped from Briggs &
Stratton Daihatsu without oil. Check oil level before
starting engine. If you start the engine without oil, the
engine will be damaged beyond repair and will not
be covered under warranty.
SAE Viscosity Grades
STARTING TEMPERATURE RANGE ANTICIPATED BEFORE NEXT OIL CHANGE
°C-34
°F-30 -10 10 50 70 90 110
-23 -12 0 10 21 32 43
32
*
*A synthetic 5W-30 oil may be used.
CHECKING AND ADDING OIL
•Check oil level before starting the engine.
•Check level daily, or after every eight (8) hours.
•Keep oil level at FULL.
•Do not overfill.
Note: After filling with or changing oil, start and run engine at
idle for 30 seconds. Shut engine off. Wait 30 seconds and
check oil level. Add oil, if required, to bring level toFull mark on
dipstick.
[1]. Place equipment level.
Clean around oil fill.
[2]. Remove dipstick and wipe
with clean cloth.
[3]. Then replace dipstick, and
remove to check oil level.
[4]. If oil is required, remove dipstick to allow
proper venting and pour oil slowly. Fill to
FULL line on dipstick. Recheck.
Bring oil
level to F
mark
on dipstick.
OIL FILL
[5]. Replace dipstick firmly.
CAUTION: When filling engine or adding oil.
To prevent engine damage upon
start-up, proper venting is necessary
when filling engine with oil or adding oil.
In addition to ensuring a level engine,
removing dipstick, and pouring oil
slowly, there must be clearance
between the oil fill device and the oil fill
hole in the valve cover as shown. This
clearance is necessary to permit
venting when filling, which prevents oil
from overrunning into breather.
Note
Clearance
Note
Clearance

820853diesel - page 8 (Black)
Screen angle and frequency: 45.0000, 150.0000
8
FUEL
TYPE OF FUEL TO USE
•THIS ENGINE IS CERTIFIED TO OPERATE
ON DIESEL FUEL.
•Use clean, fresh, diesel fuel with a minimum of 40 cetane.
Fresh fuel prevents gum from forming in the fuel system.
Purchase fuel in quantity that can be used within 30 days.
FUEL LEVEL
•Keep fuel tank full.
•Do not overfill tank.
•Allow space in tank for fuel expansion.
CAUTION: Do not use kerosene or
gasoline instead of diesel fuel. Failure to
observe this caution will damage the
engine.
ADDING FUEL
WARNING
•Fill fuel tank outdoors or in well-ventilated area,
away from sparks, open flames, pilot lights, heat,
and other ignition sources.
•If fuel spills, wait until it evaporates before starting
engine.
•Turn engine OFF and let engine cool at least 2
minutes before removing gas cap.
[1]. Remove cap. Fill tank to approximately 1-1/2
inches below top of neck to allow for fuel
expansion. Be careful not to overfill.
[2]. Replace cap before starting.
[3]. Check for fuel leaks at fuel filter, injector pump,
fuel pipes, etc..
COOLANT
•This engine is water cooled.
•A 50/50% mixture is required of phosphate-free antifreeze
and tap water for heat dissipation, rust resistance and
lubrication.
CHANGING & ADDING COOLANT
•Fill radiator to bottom of fill cap seat and between FULL
and LOW in reservoir, if so equipped.
WARNING
•Do not touch hot radiator, or open reservoir when
engine is running.
•Allow engine to cool before changing or adding
coolant.

820853diesel - page 9 (Black)
Screen angle and frequency: 45.0000, 150.0000
9
GAUGES
TYPICAL GAUGES (If Equipped)
COOLANT TEMPERATURE GAUGE
Indicates coolant temperature
when the starter switch is ON.
Normal range 80°-90°C
(175°-195°F).
Dangerous range above 105°C
(220°F).
HOUR METER
Indicates the total number of hours the
engine has been run.
FUEL GAUGE
To minimize condensation, keep fuel
tank full.
FUEL SHUT-OFF
Open valve before starting
engine. ON
POSITION
CAUTION: To prevent leaking, close fuel shut-
off valve when engine is transported.
TYPICAL PANEL LIGHTS (If Equipped)




X




 

Ignition light
The ignition light comes on when the starter switch is turned to
the ON position, and should be out while engine is running.
Engine oil pressure light
The engine oil pressure light comes on when the starter
switch is turned to the ON position and should be out while
engine is running.
Charge light
The charge light comes on when the starter switch is turned to
the ON position, but should be out while engine is running.
Heat or glow light
The heat or glow light comes on when the starter switch is
turned to HEAT or GLOW (ON if no HEAT or GLOW position),
but should be out while engine is running.
Fuel filter light
The fuel filter light comes on when enough water collects in
the fuel filter, but should be out when the water is drained.
Temperature light
If temperature light comes on, engine is overheating. Check:
Scoolant level;
Sdebris on radiator or any restriction to air flow.

820853diesel - page 10 (Black)
Screen angle and frequency: 45.0000, 150.0000
10
STARTING
♦Use correct type of oil for expected starting
temperature. (See Oil.)
♦Remove external equipment/engine loads. (See
equipment operating instructions.)
♦Open fuel shut-off valve, if equipped, before starting
engine.
♦Start with throttle control in FAST position.
♦Do not use fuel left over from summer. Use fresh fuel.
♦Allow engine to warm up several seconds to several
minutes, depending on outside temperature.
STARTING IN COLD WEATHER:
(below -10°C or 14°F)
CAUTION: Before starting engine for the first time, charge
battery as the equipment manufacturer recommends. Failure
to do so, may cause damage to the engine.
WARNING
•Do not use pressurized starting fluids.
•Vapors are flammable.
•Keep hands and feet clear of rotating machinery.
WARNING
•The manufacturer of equipment on which this
engine is installed specifies top speed at which
engine will be operated. DO NOT EXCEED this
speed.
TO START ENGINE
[1]. Insert key into starter
switch at OFF position. [2]. Move throttle control
to SLOW.
[3]. Insert key into starter
switch at OFF position.
Turn key to ON or HEAT.
(GLOW light comes on
indicating glow plugs are
preheating combustion
chamber.)
Typical throttle control Typical starter switch

820853diesel - page 11 (Black)
Screen angle and frequency: 45.0000, 150.0000
11
STARTING AND STOPPING
CAUTION:
To prolong starter life,
use short starting cycles,
not to exceed 30 secs./
min.
Extended cranking can
damage starter motor.
Typical starter switch
[4]. When GLOW light goes out,
turn key to START. [5]. When engine starts, release key,
which will return to ON position.
Typical starter switch
[6]. Move throttle control to SLOW
(if in FAST for cold starting
instructions).
[7]. Allow engine to warm up a few
minutes before applying load. Typical throttle control
CAUTION:
DO NOT accelerate or race a
cold engine. Failure to ob-
serve this caution may lead
to engine damage.
TO STOP ENGINE
[1]. Move throttle to SLOW.
Allow engine to run for
short time to cool down.
[2]. Turn key to OFF.
Always remove key and
store out of reach of children.
Typical throttle control Typical starter switch
CAUTION:
FOR TURBOCHARGER-EQUIPPED
ENGINE.
After operating engine at full load, allow
engine to idle for one minute before shutting it
off. Failure to observe this caution may lead
to turbocharger malfunction.

820853diesel - page 12 (Black)
Screen angle and frequency: 45.0000, 150.0000
12
MAINTENANCE
REGULAR MAINTENANCE WILL IMPROVE THE PERFORMANCE AND EXTEND THE LIFE OF THE ENGINE. MORE
FREQUENT SERVICE IS REQUIRED WHEN OPERATING IN ADVERSE CONDITIONS.
See any Authorized Briggs & Stratton Dealer for service. Use only genuine Briggs & Stratton parts. Other parts may not
perform as well, may damage the engine, and may result in injury.In addition, use of other parts may void your warranty.
Task
Perform
task at
hourly or
calendar
interval.
Check oil
level 
Check for
oil leaks

Change oil ****
Change oil
filter
*
Check
coolant

Change
coolant 
Check
fan belt 
Service
air cleaner ***
Check valve
clearance 
Check
battery
electrolyte

Change fuel
filter element

*Perform first maintenance operation after 50
hours. All subsequent maintenance performed at
this interval, unless specified. Service more often
when operating under heavy load or in high
temperatures.
** Replace after every 600 hours of operation.
Service more often when operating under heavy
load or in high temperature.
*** Perform annually if operated less than 100 hours.
**** Follow manufacturer’s maintenance schedule if
non-B&S D approved part is used.
DAILY CHECKS
WARNING Check coolant level when
engine is cold.
If engine is warm DO NOT
remove radiator cap.
COOLANT
Coolant level should be between FULL and LOW when
engine is cold. If reservoir is dry, it must be filled along
with radiator .
Normal water tempera-
ture gauge should read
between 175°and 195°
F (80°and 90°C) when
engine is running.
If water temperature rises above 220°F (105°C),
idle engine down for a while. Then stop engine.
Once engineis cooled, check coolantlevel, fan belt
tension and clogged radiator fins.
CAUTION:
Used oil is a hazardous waste product.
Dispose of used oil properly. Do not discard
with household waste. Check with your local
authorities, service center, or dealer for safe
disposal/recycling facilities.
OIL
Before starting engine, check oil for correct level.
See page 7 of this manual for instructions on checking
and adding oil.
WARNING

820853diesel - page 13 (Black)
Screen angle and frequency: 45.0000, 150.0000
13
MAINTENANCE
DAILY CHECKS continued
WARNING LIGHTS (Typical)
If fuel filter warning light comes on while en-
gine is running, stop engine and drain water
from fuel filter.
If oil pressure light comes on while engine is
running, stop engine immediately. Check oil
level or electrical system.
If charge light comes on while engine is run-
ning, check electrical system.
If charge light does not come on when start-
er switch is turned to the ON position, check
fuse or bulb.
See an Authorized Briggs & Stratton
Daihatsu Service Dealer if necessary.
FUEL
FILTER
XTo assure smooth operation, keep injector pump link-
age, springs and controls free of debris. Linkage should
move freely. Depending on use, this may need to be
performed more often.
CONTROL PARTS
Engine parts should be kept
clean to reduce the risk of
overheating and ignition of
accumulated debris.
WARNING
CAUTION: Do not use water to clean engine
parts. Water could contaminate fuel system. Use a
brush or dry cloth.
WARNING Before running engine, clean
muffler and manifold areas to
remove all grass and com-
bustible debris.
Depending on use, this may
need to be performed more
often.
MUFFLER
REGULAR MAINTENANCE
CHANGING OIL
[1]. Place engine level.
[2]. Disconnect battery at negative terminal
[3]. With engine OFF but still warm remove oil drain
plug and drain oil into appropriate receptacle.
[4]. Reinstall drain plug and torque to 25.5 ft. lbs.
(352 kg-cm)
[5]. Refill engine with new oil. Fill to FULL mark on
dipstick with new oil. Replace oil cap.
Caution: Do not overfill.
[6]. Start and run engine at idle for 5 minutes.
[7]. Stop engine, and wait 3 minutes. Then re-check oil
level.
[8]. If required, add oil to bring level to Fmark on
dipstick.
[9]. Check for leaks.
WARNING
•Disconnect battery at negative terminal.
OIL DRAIN PLUG
OIL FILTER
PART NO.
820314 OIL DRAIN PLUG
Oil drain / Oil filter

820853diesel - page 14 (Black)
Screen angle and frequency: 45.0000, 150.0000
14
MAINTENANCE
REGULAR MAINTENANCE continued
CHANGING OIL FILTER
[1]. Perform this maintenance during oil change main-
tenance. Drain engine oil as described for oil
change, and remove oil filter.
[2]. Before installing new filter, apply to filter gasket
fresh, clean oil.
[3]. Screw filter on by hand until gasket contacts oil
filter adapter. Tighten 1/2 to 3/4 turn more.
[4]. Add fresh oil. Follow steps as described for oil
change.
[5]. Check for oil leaks around filter.
WARNING
•Disconnect battery at negative terminal.
OIL DRAIN PLUG
OIL FILTER
PART NO.
820314 OIL DRAIN PLUG
Oil drain / Oil filter
AIR CLEANER
Note: Air cleaner may be supplied by equipment manufacturer.
Cartridge
To clean cartridge, gently tap on end with handle of
screwdriver. (Replace cartridge if very dirty or damaged.)
CAUTION: Do not use pressurized air or solvents
to clean cartridge. Pressurized air can damage
cartridge; solvents will dissolve cartridge.
[1]. Unlock clamps and remove cover.
[2]. Remove cartridge from air cleaner body.
[3]. Carefully clean out air cleaner cover.
[4]. Install cartridge in body.
[5]. Install cover and lock clamps.
CLAMPS
AIR
CLEANER
BODY
CARTRIDGE
P/N 820263
COVER

820853diesel - page 15 (Black)
Screen angle and frequency: 45.0000, 150.0000
15
MAINTENANCE
FUEL FILTER
If the fuel filter warning light comes on while engine is
running, stop engine and drain water from fuel filter.
To drain water:
[1]. Stop engine.
[2]. Place a drain pan under fuel filter and loosen drain
plug approximately 1 turn.
[3]. Water should drain. If necessary, operate priming
pump to drain water, but only until fuel flows from filter.
[4]. Tighten drain plug. Bleed air from fuel line.
[5]. Start engine. Ensure warning light goes out. Check for
leaks.
To replace fuel filter:
[1]. Disconnect sensor wire. Remove drain plug and
discard O-ring.
[2]. Remove fuel filter with filter wrench.
[3]. Screw new filter on by hand until gasket contacts
housing. Then tighten 1/3 turn more.
[4]. Install drain plug with new O-Ring. Connect sensor
wire.
[5]. Bleed air from fuel line. Start engine and check for
leaks.
Drain/replace fuel filter
PRIMING
PUMP
FUEL
FILTER
DRAIN
PLUG
SENSOR
WIRE
O-RING
WARNING
•Disconnect battery at negative terminal.
VALVE CLEARANCE
Note: If engine is running normally, this check and adjustment
may be omitted.
With No. 1 piston at TDC of compression stroke, check valve
clearances for cylinders shown in chart below. Rotate crank-
shaft 360°clockwise to check remaining valves. Adjust in
same order, if required.
Valve clearances (cold):
Int 0.008 in. (0.2 mm)
Exh 0.008 in. (0.2 mm)
Adjusting lock nut torque: 95 in. lbs. (110 kg-cm).
Check valve cover gasket for leakage. Replace if required.
Torque valve cover nuts to 48 in. lbs. (55 kg-cm).
Piston Position Cylinder 123
No. 1 piston at TDC, of compres- Int D D
No
.
1
iston
at
TDC
,
of
com res
sion stroke Exh D D
Rotate Crankshaft 360
°
clockwise
Int D
R
o
t
a
t
e
C
ran
k
s
h
a
ft
360°
c
l
oc
k
w
i
se Exh D
Valve clearance adjustment
WRENCH
SCREW
DRIVER
FEELER
GAUGE

820853diesel - page 16 (Black)
Screen angle and frequency: 45.0000, 150.0000
16
MAINTENANCE
FAN BELT
♦Check condition of fan belt.
♦Replace if damaged or worn.
To check for correct fan belt tension
When 22 lbs. (10 kg) of force is pressed at center of span
between fan and alternator, there should be 3/8 –1/2 in.
(10 to 12 mm) of belt movement.
3/8 –1/2 Inch
(10 –12 mm)
BELT MOVEMENT
BELT
To adjust for correct tension
[1]. Loosen the 2 bolts ( Aand B).
[2]. Place a handle (or similar object) between the
alternator and engine cylinder block. Then move the
alternator towards the outside of theengine, untilthe
fan belt deflection conforms to the specified value.
Specified fan belt deflection:
3/8 to 1/2 in. / 22 lbs. (10 to 12 mm / 10 kg)
[3]. Temporarily tightenthe 2bolts( Aand B) to fix the
alternator. Then remove the handle. Check fan belt
deflection. If it is within specifications, permanently
tightenthe2bolts( Aand B) as given below. If not,
repeat the above adjustment procedure.
Specified tightening torque:
A: 170 in-lbs (195 kg-cm)
B: 45 ft-lbs (622 kg-cm)
Check the fan belt deflection again.
3/8 –1/2 Inch
(10 –12 mm)
BELT MOVEMENT
HANDLE
BELT
A
B
SPARK ARRESTOR
♦If engine muffler is equipped with spark arrestor screen
assembly, remove for cleaning and inspection every 50
hours. Replace if damaged.

820853diesel - page 17 (Black)
Screen angle and frequency: 45.0000, 150.0000
17
ADJUSTMENTS
Injector pump
IDLE
SPEED
SCREW
SPEED
CONTROL
LEVER
LOCK NUT
Ì
Ì
Ì
Ì
Ì
Ì
CONTROL ADJUSTMENTS
If engine is hard to start or acceleration is uneven, check
control operation and adjust if required as described
below:
TO ADJUST THROTTLE CONTROL
[1]. Move equipment throttle control in SLOW or IDLE
position.
[2]. If lever does not contract idle speed screw, loosen
casing clamp screw.
[3]. Adjust casing clamp screw to allow speed control lever
to contact idle speed screw.
[4]. Tighten casing clamp screw.
TO ADJUST IDLE SPEED
[1]. Move equipment throttle control in SLOW or IDLE
position.
[2]. Loosen lock nut.
[3]. Adjust idle speed screw to obtain equipment manufac-
turer’s specified idle speed.
[4]. Tighten lock nut.
[5]. Re-adjust throttle control if required.
STORAGE
STORAGE
Engines stored over 30 days need special attention.
[1]. While engine is still warm, change oil.
[2]. Remove glow plugs and pour about 3 cc of engine oil into
each cylinder. Replace glow plugs and crank slowly to
distribute oil.
[3]. Clean engine of surface debris, chaff or grass.
[4]. Store in a clean, dry area. Do
not store in same area as a
stove, furnace, water heater, or
other appliance that uses a pilot
light or has a device that can
create a spark.
WARNING
Name
Address
City State Zip Country
Fill in both sides, clip and return to:
Briggs & Stratton Daihatsu Corporation
P.O. Box 1144
Milwaukee, WI 53201-1144 U.S.A.
Your Engine Type Code
Model
820853
See any Authorized Briggs &
Stratton Daihatsu Service Deal-
er. Insist on Genuine Briggs &
Stratton Daihatsu parts! Non-
original parts may not perform as
well and may void your warranty.
To obtain a complete Parts List
of Genuine Briggs & Stratton
Daihatsu Parts for your engine,
fill in both sides of this order form
carefully. We cannot fill your
order without the correct Engine
Model/Type/Code. (Please al-
low 3 to 4 weeks for delivery.)

820853diesel - page 18 (Black)
Screen angle and frequency: 45.0000, 150.0000
18
SERVICE
PARTIAL LIST OF GENUINE BRIGGS & STRATTON PARTS
Briggs & Stratton Daihatsu Part Numbers of some parts:
Part Briggs & Stratton Daihatsu Part No.
Oil 100028. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Oil filter 820314. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Air filter 820263. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Fuel filter element 820311. . . . . . . . . . . . . . . . . . . . . . . . . . .
SERVICE
See an Authorized Briggs & Stratton Daihatsu Service
Dealer. Each one carries a stock of Genuine Briggs & Stratton
Daihatsu Parts and is equipped with special service tools.
Trained mechanics assure expert repair service on all Briggs
& Stratton Daihatsu engines. Only dealers advertising as
“Authorized Briggs & Stratton Daihatsu”are required to meet
Briggs & Stratton Daihatsu standards.
When you purchase equipment pow-
ered by a Briggs & Stratton Daihatsu
engine, you are assured of highly
skilled, reliable service at any Authori-
zed Service Dealers worldwide. Look
for these signs wherever Briggs &
Stratton Daihatsu service is offered.
You may locate your nearest Authorized Briggs & Stratton
Daihatsu Service Dealer in our dealer locator map on our web
site www.briggsandstratton.com or you may locate your
nearest Authorized Briggs & Stratton Daihatsu Service
Dealer b
y
callin
g
1-800-759-2744.
The illustrated shop manual shown here
includes common specifications and
detailed information covering adjust-
ment, tune-up and repair of B&S D three
cylinder, 4 cycle engines. It is available
from an Authorized Briggs & Stratton
Daihatsu Service Dealer or you can order
it from the factory. Write:
Briggs & Stratton Corporation
Attn: Service Division
P. O. Box 1144
Milwaukee, WI 53201
Part No. MS-0750
           
             
            
Only Genuine
Briggs & Stratton
Daihatsu Parts
have the
Briggs & Stratton logo!
Look for Briggs & Stratton logo
stamped on the package!
Payment Method:
jCheck or money order enclosed payable to
Briggs & Stratton Corporation in the amount of $________
jPlease charge my jMasterCard jVISA
__ __ __ __ __ __ __ __ __ __ __ __ __ __ __ __
CREDIT CARD NUMBER
SIGNATURE (REQUIRED FOR CREDIT CARD ORDERS EXPIRATION DATE
Parts List $2.00
Shipping & Handling $1.50
**Add State Sales Tax
Total
Fill in both sides of this order form carefully
(U.S. Dollars, please)

19
For Model Series 432447, 522447 & 582447
Briggs & Stratton Daihatsu L.L.C. (B&S D), the California Air Resources Board (CARB)
and the United States Environmental Protection Agency (U.S. EPA) Emission Control
System Warranty Statement
(Owner’s Defect Warranty Rights and Obligations)
EMISSION CONTROL WARRANTY COVERAGE IS APPLICABLE TO CERTIFIED MODEL YEAR 2001 AND LATER
ENGINES, WHICH ARE PURCHASED AND USED IN CALIFORNIA, AND TO CERTIFIED MODEL YEAR 2001 AND
LATER ENGINES, WHICH ARE PURCHASED AND USED ELSEWHERE IN THE UNITED STATES.
California and United States Emission Control Defects Warranty Statement
The California Air Resources Board (CARB), U.S. EPA and B&S D are pleased to explain the Emission Control System
Warranty on your model year 2001 and later Non-road Compression-ignition engine. In California new Non-road Compres-
sion-ignition engines must be designed, built and equipped to meet the State’s stringent anti-smog standards. Elsewhere
in the United States, new Non-road Compression-ignition engines certified for model year 2001 and later, must meet
similar standards set forth by the U.S. EPA. B&S D must warrant the emission control system on your engine for the period
of time listed below, provided there has been no abuse, neglect or improper maintenance of your Non-road Compression-
ignition engine. Your emission control system includes parts such as the air cleaner, ignition system, and muffler. Also
included may be connectors and other emission related assemblies. Where a warrantable condition exists, B&S D will
repair your Non-road Compression-ignition engine at no cost to you including diagnosis, parts and labor.
Briggs & Stratton Daihatsu Emission Control Defects Warranty Coverage
Non-road Compression-ignition engines are warranted relative to emission control part defects for a period of 1,500 hours
or two years, whichever first occurs, subject to provisions set forth below. If any covered part on your Non-road Compres-
sion-ignition engine is defective, the part will be repaired or replaced by B&S D.
Owner’s Warranty Responsibilities
As the Non-road Compression-ignition engine owner, you are responsible for the performance of the required mainte-
nance listed in your Operating and Maintenance Instructions. B&S D recommends that you retain all your receipts covering
maintenance on your Non-road Compression-ignition engine, but B&S D cannot deny warranty solely for the lack of
receipts or for your failure to ensure the performance of all scheduled maintenance. As the Non-road Compression-ignition
engine owner, you should however be aware the B&S D may deny you warranty coverage if your Non-road Compression-
ignition engine or a part has failed due to abuse, neglect, improper maintenance or unapproved modifications. You are
responsible for presenting your Non-road Compression-ignition engine to an Authorized B&S D Service Dealer as soon as
a problem exists. The undisputed warranty repairs should be completed in a reasonable amount of time, not to exceed 30
days. If you have any questions regarding your warranty rights and responsibilities, you should contact a B&S D Service
Representative at 1 [phone].

20
Briggs & Stratton Daihatsu Emission Control Defects Warranty Provisions
The following are specific provisions relative to your Emission Control Defects Warranty Coverage. It is in addition to the
B&S D engine warranty for non-regulated engines found in the Operating & Maintenance Instructions.
1. Warranted Parts.
Coverage under this warranty extends only to the parts listed below (the emission control systems parts) to the extent these
parts were present on the engine purchased.
a. Fuel Metering System
•Injection pump with feed pump
•Injection nozzle
•Fuel filter
b. Air Induction System
•Air cleaner
•Intake manifold
c. Ignition System
•Glow plug
d. Exhaust System
•Exhaust manifold
e. Miscellaneous Items Used in Above System
•Vacuum, temperature, position, time sensitive valves and switches
•Electronic controls
•Connectors and assemblies
•Hoses
2. Length of Coverage
B&S D warrants to the initial owner and each subsequent purchaser that the Warranted Parts shall be free from defects in mate-
rials and workmanship which caused the failure of the Warranted Parts for a period of 1,500 hours or two years, whichever first
occurs, from the date the engine is delivered to a retail purchaser.
3. No Charge
Repair or replacement of any Warranted Part will be performed at no charge to the owner, including diagnostic labor which
leads to the determination that a Warranted Part is defective, if the diagnostic work is performed at an Authorized B&S D
Service Dealer. For emission warranty service, contact your nearest Authorized B&S D Service Dealer as listed in the “Yel-
low Pages”under “Engines, Gasoline,” “Gasoline Engines,” “Lawn Mowers,”or similar category.
4. Claims and Coverage Exclusions
Warranty claims shall be filed in accordance with the provisions of the B&S D Engine Warranty Policy. Warranty coverage
shall be excluded for failures of Warranted Parts which are not original B&S D parts or because of abuse, neglect or improp-
er maintenance as set forth in the B&S D Engine Warranty Policy. B&S D is not liable to cover failures of Warranted Parts
caused by the use of add-on, non-original, or modified parts.
5. Maintenance
Any Warranted Part which is not scheduled for replacement as required maintenance or which is scheduled only for regular
inspection to the effect of “repair or replace as necessary”shall be warranted as to defects for the warranty period. Any
Warranted Part which is scheduled for replacement as required maintenance shall be warranted as to defects only for the
period of time up to the first scheduled replacement for that part. Any replacement part that is equivalent in performance and
durability may be used in the performance of any maintenance or repairs. The owner is responsible for the performance of
all required maintenance, as defined in the B&S D Operating & Maintenance Instructions.
6. Consequential Coverage
Coverage hereunder shall extend to the failure of any engine components caused by the failure of any Warranted Part still
under warranty.
