Installation Manual
Dual 200 Amp - Split 400 Amp
Automatic Transfer Switch
with Service Disconnect and
AC Power Control Module™
Questions?
Help is just a moment away!
Call: Transfer Switch Helpline
800-743-4115
Monday - Friday 8:00 AM - 5:00 PM Central Standard Time
Al

Thank you for your purchase of this Briggs & Stratton Power Products® automatic transfer switch. This product is designed for use with
specific home standby generators and may not function with generators or remote modules produced by other manufacturers. Seek a
qualified electrical professional to determine applicability of this equipment to equipment manufactured by others. When operated and
maintained according to the instructions in this manual, your system will provide many years of dependable service.
This manual contains safety information to make you aware of the hazards and risks associated with this system and how to avoid them.
We have made every effort to provide for a safe, streamlined and cost-effective installation. As each installation is unique, it is impossible
to know of and advise of all conceivable procedures and methods by which installation might be achieved. We do not know all possible
hazards and/or the results of each possible method or procedure. It is important that you read and understand these instructions thoroughly
before attempting to install or operate this equipment. Save these original instructions for future reference.
This transfer switch requires professional installation before use. Refer to the Installation section of this manual for instructions on
installation procedures. Only licensed electrical contractors should install transfer switches. Installations must strictly comply with all
applicable feceral, state and local codes, standards and regulations. Your installer should follow the instructions completely.
Where to Find Us
You never have to look far to find Briggs & Stratton support and service for your system. Consult your Yellow Pages. There are many
authorized service dealers who provide quality service. You can also contact Technical Service by phone at 800-743-4115 between 8:00 AM
and 5:00 PM CT, or click on Find a Dealer at BRIGGSandSTRATTON.COM, which provides a list of authorized dealers.
For Future Reference
Please fill out the information below and keep with your receipt to assist in unit identification for future purchase issues.
Model Number | |
Revision
Serial Number | |
Date Purchased
Copyright © 2013. Briggs & Stratton Power Products Group, LLC
Milwaukee, Wi, USA. All rights reserved.
Briggs & Stratton Power Products is a registered
trademark of Briggs & Stratton Corporation
Milwaukee, WI, USA
2 BRIGGSandSTRATTON.COM

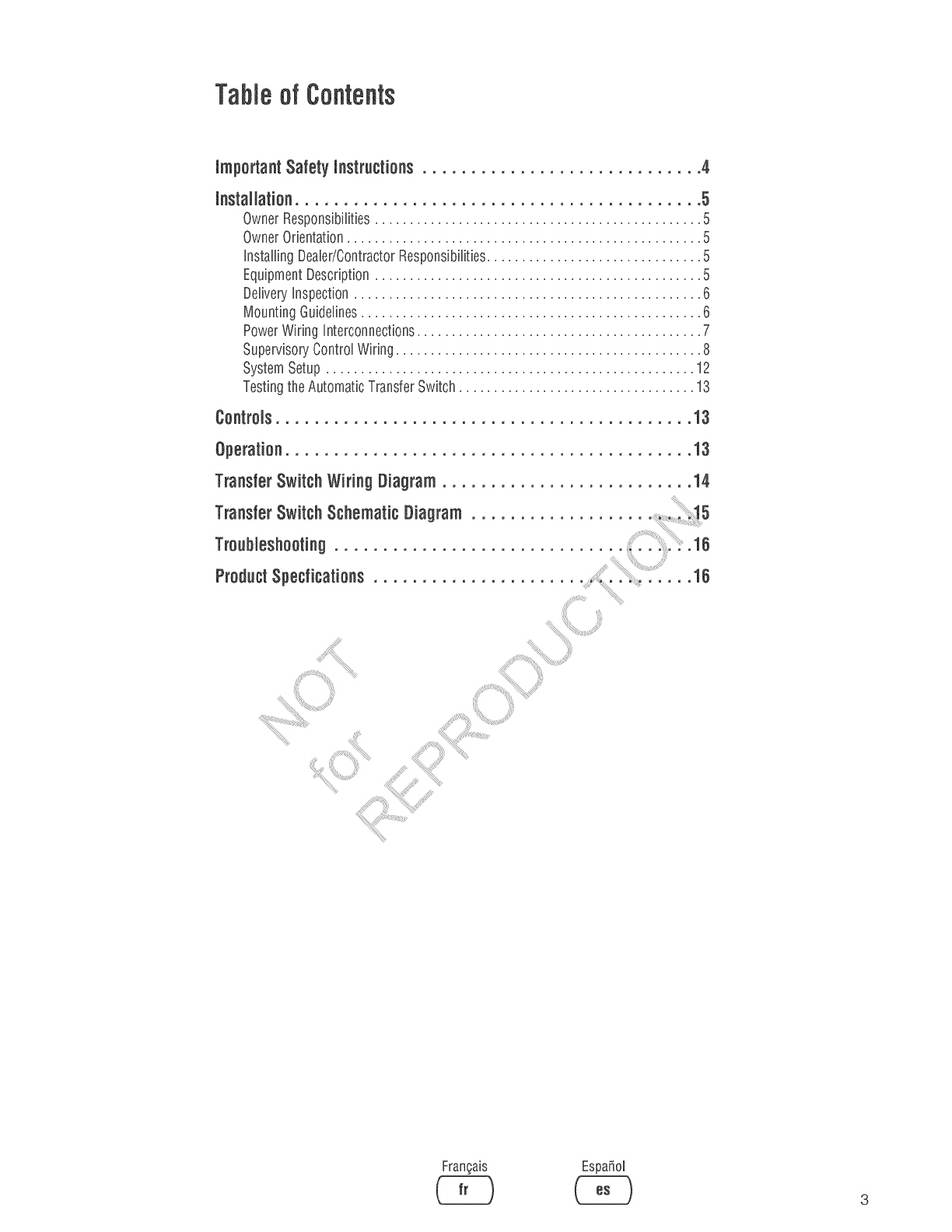

Table of Contents
Important Safety Instructions ©... 2... eee eee 4
Installation. 2... eee cece eee 5
Owner Responsibilities 000 ccc cence eee ene ey 5
Owner Orientation... ccc ence cere en eee e eens 5
installing Dealer/Contractor Responsibilities. ...00 00000000 5
Equipment Description 00. cence een aes 5
Delivery Inspection... ccc cece ene een aes 6
Mounting Guidelines... 000. ccc ccc e ene e ene eens 6
Power Wiring Interconnections... 000.0000 7
Supervisory Control Wiring... cence eee eee ees 8
System SED cece ete teen tere n eens 12
Testing the Automatic Transfer Switch oo... cee een 13
Controls... ccc ccc cece eee eeee 13
Operation. 0 ccc cece eee eeee 13
Transfer Switch Wiring Diagram... 0... eee 14
Transfer Switch Schematic Diagram .. 0... cote 15
Troubleshooting ©... ce ee eee eee 16
Product Specfications ... 0... 00. cee eee eee Bip eee 16
Francais Espafiol

Save These Instructions
Important Safety Instructions
SAVE THESE INSTRUCTIONS - This manual contains important
instructions that should be followed during installation of
the equipment.
Safety Symbols and Meanings
‘o
Electrical Shock Read Manual
4s The safety alert symbol indicates a potential personal injury
hazard. A signal word (DANGER, WARNING, or CAUTION) is used
with the alert symbol to designate a degree or level of hazard
seriousness. A safety symbol may be used to represent the type of
hazard. The signal word NOTICE is used to address practices not
related to personal injury.
As DANGER indicates a hazard which, if not avoided, will result in
death or serious injury.
4» WARNING indicates a hazard which, if not avoided, could result
in death or Serious injury.
4s CAUTION indicates a hazard which, if not avoided, could result
in minor or moderate injury.
NOTICE addresses practices not related to personal injury.
The manufacturer cannot possibly anticipate every possible
circumstance that might involve a hazard. The warnings in this
manual, and the tags and decals affixed to.the unit are, therefore,
not all-inclusive. If you use a procedureswork method or operating
technique that the manufacturer does not specifically recommend,
you must satisfy yourself that itis safe fervyou and others. You
must also make sure that the proeedure, work method or operatifig
technique that you choose does not render the equipment unsate-
4s WARNING Shock Hazard. Installing low and high voltage
) wire in same conduit could result in death, serious injury
ly and/or property damage.
« Do not run low and high voltage wire in the same conduit unless
the insulation rating on ALL wiring is rated for 600V. See NEC
for more information.
Ax WARNING Failure to properly ground equipment could cause
ly electrocution resulting in death or serious injury.
« Do not touch bare wires.
* Do not use equipment with worn, frayed, bare or otherwise
damaged wiring.
¢ Do not handle electrical cords while standing in water, while
barefoot, or while hands or feet are wet.
* if you must work around a unit while it is operating, stand on an
insulated dry surface to reduce.shock hazard.
« Do not allow unqualified pérsens ar children to operate or
service equipment.
* in case of an accident caused by electrical shock, immediately
shut down all seurces:of electrical power and contact local
authorities. Avoid direct contact with the victim.
A WARNING Shock hazard. Equipment contains high voltage
2 that could result in death, serious injury and/or
i property damage.
"DO NOT operate this equipment imprudently or neglect its
maintenance.
44 WARNING Certain components in this ‘product and related
accessories contain chemicals known to the State-of California
to cause cancer, birth defects, or other reproductive farm. Wash
hands after handling.
NOTICE Only qualified, licensed electricians should attempt
installation of this equipment, which must strictly comply with
applicable codes, standards and regulations.
NOTICE \mproper treatment of equipment could damage it and
shorten its life.
« Use equipment only for intended uses.
* ff you have questions about intended use, ask dealer or contact
Briggs & Stratton Power Products.
* Do not expose equipment to excessive moisture, dust, dirt, or
corrosive vapors.
« Remain alert at all times while working on this equipment. Never
work on the equipment when you are physically or
mentally fatigued.
¢ [ff connected devices overheat, turn them off and turn off their
circuit breaker/fuse.
BRIGGSandSTRATTON.COM

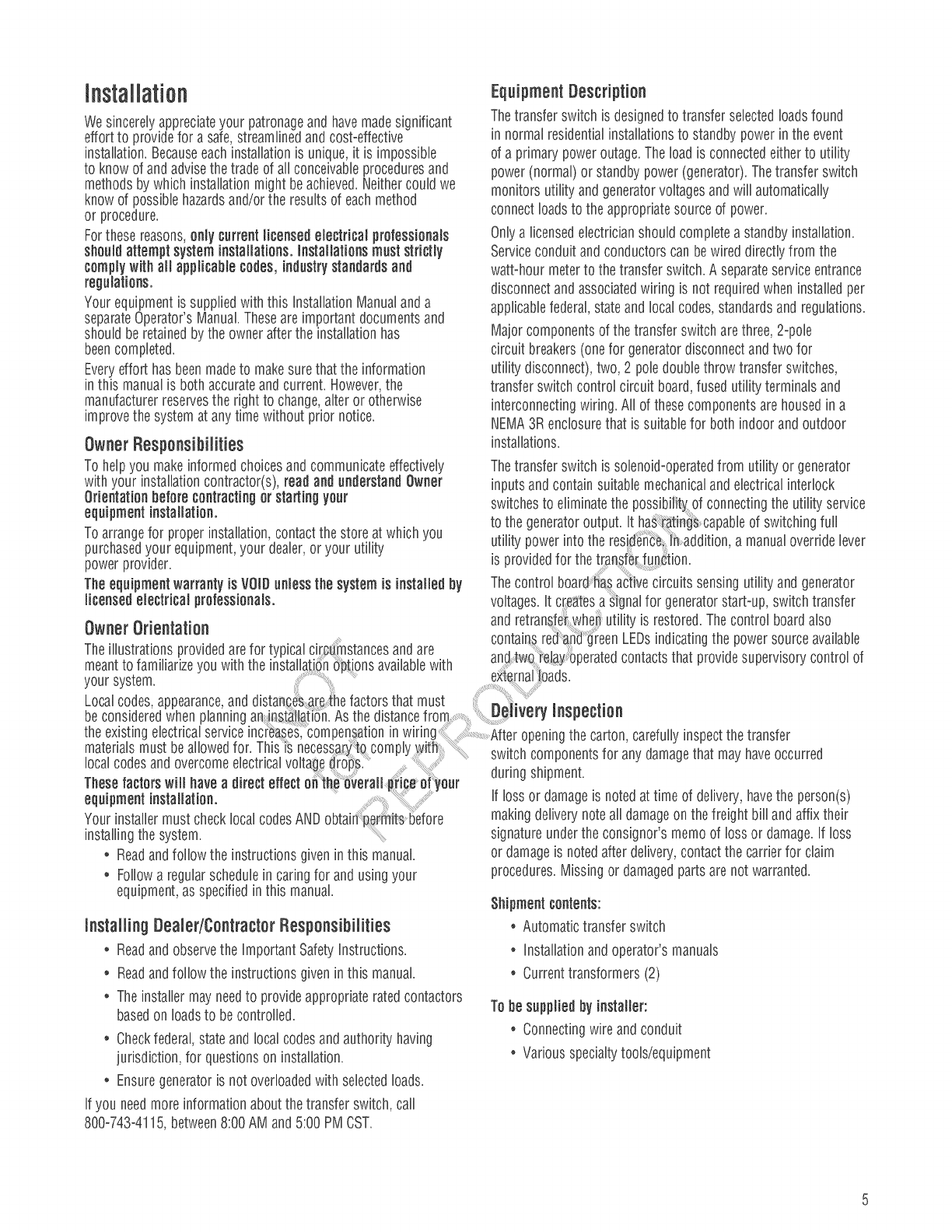

Installation
We sincerely appreciate your patronage and have made significant
effort to provide for a sate, streamlined and cost-effective
installation. Because each installation is unique, it is impossible
to know of and advise the trade of ail conceivable procedures and
methods by which installation might be achieved. Neither could we
know of possible hazards and/or the results of each method
or procedure.
For these reasons, only current licensed electrical professionals
should attempt system installations. Installations must strictly
comply with all applicable codes, industry standards and
reguiations.
Your equipment is supplied with this Installation Manual and a
separate Operator's Manual. These are important documents and
should be retained by the owner after the installation has
been completed.
Every effort has been made to make sure that the information
in this manual is both accurate and current. However, the
manufacturer reserves the right to change, alter or otherwise
improve the system at any time without prior notice.
Owner Responsibilities
To help you make informed choices and communicate effectively
with your installation contractor(s), read and understand Owner
Orientation before contracting or starting your
equipment installation.
To arrange for proper installation, contact the store at which you
purchased your equipment, your dealer, or your utility
power provider.
The equipment warranty is VOID unless the system is installed by
licensed electrical professionals.
Owner Orientation
The illustrations provided are for typical cireumstances and are
meant to familiarize you with the installation options available with
your system.
Local codes, appearance, and distances.arecthe factors that must
be considered when planning anvinstaliation. As the distance from
the existing electrical service increases, compensation in wiring
materials must be allowed for. This iS necessary to comply with
local codes and overcome electrical voltage drops.
These factors will have a direct effect on the overall. orice of your
equipment installation.
Your installer must check local codes AND obtain permits: before
installing the system.
« Read and follow the instructions given in this manual.
* Follow a reguiar schedule in caring for and using your
equipment, as specified in this manual.
installing Dealer/Contractor Responsibilities
* Read and observe the Important Safety Instructions.
¢ Read and follow the instructions given in this manual.
¢ The installer may need to provide appropriate rated contactors
based on loads to be controlled.
* Check federal, state and local codes and authority having
jurisdiction, for questions on installation.
* Ensure generator is not overloaded with selected loads.
if you need more information about the transfer switch, call
800-743-4115, between 8:00 AM and 5:00 PM CST.
Equipment Description
The transfer switch is designed to transfer selected loads found
in normal residential installations to standby power in the event
of a primary power outage. The load is connected either to utility
power (normal) or standby power (generator). The transfer switch
monitors utility and generator voltages and will automatically
connect loads to the appropriate source of power.
Only a licensed electrician should complete a standby installation.
Service conduit and conductors can be wired directly from the
watt-hour meter to the transfer switch. A separate service entrance
disconnect and associated wiring is not required when installed per
applicable federal, state and local codes, standards and regulations.
Major components of the transfer switch are three, 2-pole
circuit breakers (one for generator disconnect and two for
utility disconnect), two, 2 pole double throw transfer switches,
transfer switch control circuit board, fused utility terminals and
interconnecting wiring. All of these components are housed in a
NEMA 3R enclosure that is suitable for both indoor and outdoor
installations.
The transfer switch is solenoid-operated from utility or generator
inputs and contain suitable mechanical and electrical interlock
switches to eliminate the possibility of connecting the utility service
to the generator output. It has catings-capable of switching full
utility power into the residencé, in-addition, a manual override lever
is provided for the transfer, function.
The control board has active circuits sensing utility and generator
voltages. It ceedtes a signal for generator start-up, switch transfer
and retrangier.when utility is restored. The control board also
contains red and’green LEDs indicating the power source available
and-two relay operated contacts that provide supervisory control of
external loads.
Delivery Inspection
After opening the carton, carefully inspect the transfer
switch components for any damage that may have occurred
during shipment.
lf loss or damage is noted at time of delivery, have the person(s)
making delivery note all damage on the freight bill and affix their
signature under the consignor’s memo of loss or damage. If loss
or damage is noted after delivery, contact the carrier for claim
procedures. Missing or damaged parts are not warranted.
Shipment contents:
* Automatic transfer switch
¢ Installation and operators manuals
* Current transformers (2)
To be supplied by installer:
* Connecting wire and conduit
* Various specialty tools/equipment

Mounting Guidelines
The transfer switch system circuitry is enclosed in a NEMA Type 3R
enclosure suitable for indoor/outdoor use. Guidelines for mounting
the enclosure include:
Install enclosure on a firm, sturdy supporting structure.
* The transfer switch enclosure must be installed with
minimum NEMA 3R hardware for conduit connections.
¢ To prevent switch contact distortion, level and plumb the
enclosure. This can be done by placing washers between the
enclosure and the mounting surface.
¢ NEVER install the switch where any corrosive substance
might drip onto the enclosure.
* Protect the switch at all times against excessive moisture,
dust, dirt, lint, construction grit and corrosive vapors.
400 Amp
Watt / Hourmeter
Noy]
A typical automatic transfer switch installation is depicted below. It
is best if the transfer switch is mounted near the utility meter, either
inside or outside. Discuss layout suggestions/ changes with the
owner before beginning the system installation process.
NOTICE Before drilling conduit entry holes, or any other holes,
cover and protect the switch and electronics to prevent dirt and
metal fragments from entering the mechanical and electrical
components. Failure to do so may result in damage or malfunction
of the switch.
NOTICE Use a vacuum to clean any dirt or metal shavings inside
the transfer switch. Do not use a blower or compressed air to clean
the inside of the transfer switch because debris may become lodged
in the electrical and mechanical components causing damage or
malfunction.
BUS
Control
Wing
TTttt
tno
200
Am
200
Am
g
Utility
Ph
-
Utility
P
Transfer
Contactor
Switch
Distribution
Distribution
ane!
vr
ro
Panel
#2
SKN
Conditioner
ail tl
Furnace/Alr
: Handler
Service Generator
Disconnect
NOTICE: The load outputs of the transfer switch
can supply one 200 Amp panel each. These
outputs MUST NOT be combined, or used Pal 200 Arp
individually to supply a panel larger than 200 Switch
Amps.
incorrect!
Branch | Appliance
Circuits
Appliance
Dual 200 Amp Dual 200 Amp |
Transfer Transfer |
Switch Switch
= Correct
incorrect!
BRIGGSandSTRATTON.COM

Power Wiring Interconnections
NOTICE \mproper installation could cause damage to the circuit
boards and shorten their life. Installing circuit boards in live
circuits will damage the board and is not covered by warranty.
ALWAYS disconnect ALL sources of power prior to servicing.
« Remove all power prior to installing this equipment. Failure to
do so could cause internal damage to the board when making
electrical connections.
* Turn generator to OFF position.
¢ Turn off utility power to the standby generator and
transfer switch.
All wiring must be the proper gauge, properly supported and
protected by conduit. All wiring should be done per applicable
federal, state and local codes, standards and regulations. Obey
wire type and torque specifications printed on the terminal blocks,
neutral/ground connectors, and installation instructions. Approved
for copper and aluminum conductors.
4. WARNING Shock Hazard. Installing low and high voltage
’ wire in same conduit could result in death, serious injury
tly and/or property damage.
‘w
* Do not run low and high voltage wire in the same conduit unless
the insulation rating on ALL wiring is rated for 600V. See NEC
for more information.
Use installer supplied GOQVAC or greater wire of a gauge that
complies with the latest version of the National Electric Code to
complete the following connections between utility power, transfer
switch, generator, and main distribution panel. Apply the necessary
correction factors and wire size calculations Refer to the illustration
on pages 9 and 10 for component location.
1. Set generator’s circuit breaker ta OFF position.
2. Set generators system switch te.QFF position.
3. Remove 15 Amp fuse from generator control panel.
4 . Turn off utility power to the standby generator and
transfer switch.
5. Locate both 200 Amp utility line circuits comirigdrom.the
utility meter.
6. Connect one 200 Amp utility service line circuit'to one
transfer switch service disconnect circuit breaker. The
terminal is marked “Utility Connection” (Z1). Repeat for
second 200 Amp utility service line circuit (22).
NOTICE: DO NOT wire 400 Amp utility line to this Automatic
Transfer Switch.
7. Connect utility service neutral to transfer switch
neutral terminal (H1 or H2).
8. Connect main distribution panel feeder from first distribution
panel conductors (R71) to transfer switch terminals marked
“LOAD CONNECTION (W4)".
9. Connect main distribution panel feeder from second
distribution panel conductors (R2) to transfer switch
terminals marked “LOAD CONNECTION (V2)”.
NOTICE The two individual transfer switch terminals marked
“Load Connection” (Vi and V2) must be connected to separate
distribution panels.
NOTICE Connect the neutrals from both main distribution panels
($7 and $2) to the transfer switch neutral terminal (H1 and H2).
10. Connect two main distribution panel grounds (11 and T2) to
transfer switch “GND” terminal (U1 or U2).
Assure grounding electrode conductor is connected and
bonded per applicable federal, state and local codes,
standards and regulations.
11. Connect feeder conductors from transfer switch breaker
“GENERATOR CONNECTION” terminals (¥) to generator
circuit breaker LINE1 and LINE2 terminais (M). Each
conductor must pass through hole of current transformer
(Bi and B2) before making connection.
44 11
Cy CI ‘
6 Generator (4
(, Circuit (,
0 : Breaker: 22
Ground ol | e Neutral roun § C1 in @\ Neutra
E t I I
I 4} | I
E 1 I I
I 1 I I
Ground Line. Line 2 Neutral
To Transfer Switch
42. Plug Current transformer leads into “CT1” and “CT2”
terminals (Ei and E2) on transfer switch control board.
OO0O080
O O 2
bes lo OOO
firtitit
—J6
5
—4
3
2
NWI

18.
14.
15.
16.
7.
Connect conductor from transfer switch neutral terminal (#1
or H2) to generator NEUTRAL terminal (L). Observe generator
control panel labeling for terminal identification.
Connect conductor from transfer switch “GND” terminal
(U1 or U2) to generator control panel “GROUND” terminal
(K).
Assure generator equipment grounding conductor (G) is
connected per applicable federal, state and local codes,
standards and regulations.
Using minimum #14 AWG conductors, connect the transfer
switch “UTILITY 240 VAC” terminals to generator’s “240
VAC” terminals via two-pole connector supplied
with generator (P).
Using #18 AWG twisted pair conductors, no greater than
200 fi. in length, 300 volt minimum, and 75°C minimum,
connect “T/R” and “GND” terminals (B) on transfer switch
control board to the generator’s control panel “TxRx” and
“TxRx GND” terminals via ten pin connector (A) supplied
with generator. Count down to the proper pin location on the
generator control board since visual alignment with its decal
can be misleading:
Tighten all wire connections/fasteners to proper torque.
TR
OO OOO J9
GND TR Ve G@NDT/R NO C NC
OO
Supervisory Control Wiring
An air conditioner can be used with the supervisory contacts
on either terminals A-A or B-B. Terminals A-A can only be
used with supervisory control. Large loads can only be used
with contactor control on terminals B-B. Examples of each
system are described below.
1. The terminal strip on the transfer switch control board
has four connections for customer use. There are two
sets of “Normally Closed” contacts available. They will
be activated when generator power is required. These
can be used for supervisory control of large connected
loads on generator. Loads will be allowed to operate if
there is enough generator power available.
For installer convenience, there are two wireways provided to
help keep supervisory load wires organized.
2. Terminals “A-A” on transfer switch control board
are rated for 24VAC. Connect these contacts in
series between air conditioner thermostat and air
conditioner contactor.
To air conditioner contactor
A | Gop
if 24 VAC
From air conditioner thermostat (yellow?)
3. Terminals’BeB” on transfer switch control board are
rated fer’? Amp 125 VAC. When connected with an
installer supplied contactor, it can be used to control
alargeioad, such as an electric hot water heater.
Contacts are connected in series with the contactor
control circuit.
Contactor
B me Neutral
Bo ep
120 VAC
BRIGGSandSTRATTON.COM

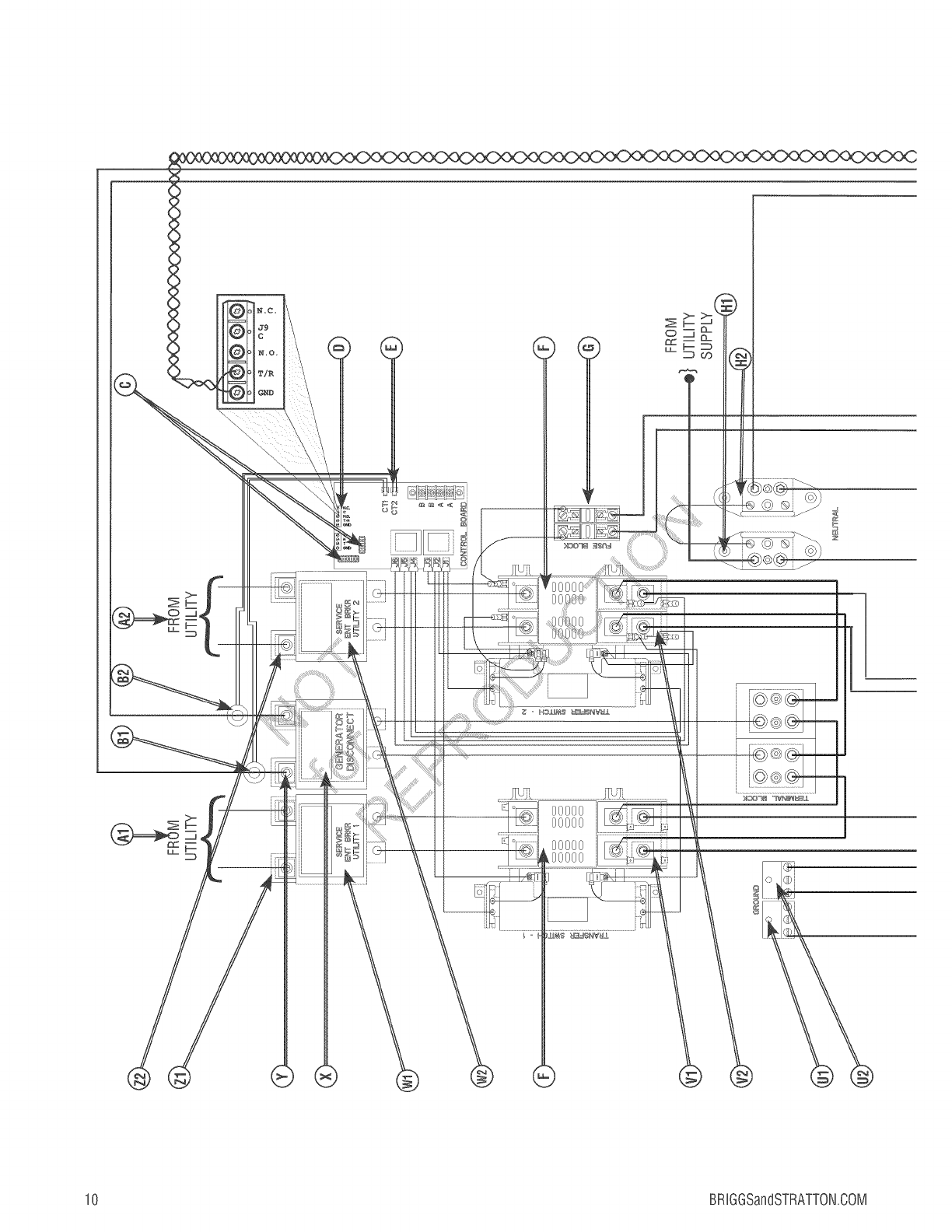

interconnection Diagram
The illustration on the following pages shows a completed transfer
switch installation. Each installation layout may vary.
illustration callouts are:
Ai -
AZ -
Bi -
B2 -
Hi -
H2 -
Ri -
R2 -
Si -
82 -
Ti -
T2 -
UT -
U2 -
Vi -
V2 -
Wi -
W2 -
Zi -
Z2 -
@
“sm
&
&
toa
tat
7
2S
m-
=
a.
From Utility to First Service Panel
From Utility to Second Service Panel
Current Transformer
Current Transformer
Dipswitches
T/R and GND to Generator
CT Terminals
Transfer Switch Contactors
UTILITY 240VAC to Generator
Transfer Switch Neutral Terminal
Transfer Switch Neutral Terminal
Generator
Generator Ground Terminal
Generator Neutral Terminal
Generator Circuit Breaker
Ten pin Connector
Two pin Connector
Main Distribution Panel 1
Main Distribution Panel 2
Distribution Panel Neutral Bus
Distribution Panel Neutral Bus
Distribution Panel Ground Bus
Distribution Panel Ground Bus
Transfer Switch Ground Terminal
Transfer Switch Ground Terminal
Load Connections to Distribution Panel
Load Connections to Distribution Panel 2
Service Entrance Breaker - UTILITY 1
Service Entrance Breaker - UTILITY 2
Generator Disconnect
Generator Connection
Utility Connection
Utility Connection

“RELASN
©
MOOT “WNINGEL
AlddNs
ALMULn
£
WOuS
MB018 Asha
YEISNY aL
° HOUMS SaSSNweL @
€
ALP
we
INS
SoIANSS
4
ALP
uyee
LNs
SOARES
ce
cee
ALPILA
NOH
BRIGGSandSTRATTON.COM 10

FROM
GENERATOR
Cree 2
= ty i
s Lm | | md _
ad a2 aie
75 3 8 =
Ceo s
LO oe [_]
Zt
wees Bend | Tall
Oc icy et
Lolly |at| [aut] FIL Lo
| wee 218
ss oo ol pm
Lal CL Lo
Ont
7

System Setup
You must perform the following before operating the system:
* |f generator is installed in an area regularly subjected to
temperatures below 40°F (4°C), select a 50 second warm up
time by moving jumper JP2 (6) installed on transfer switch
control board from ‘20’ position to ‘50’ position.
* Set the DPSW1 (A) and DPSW2 (B) dipswitches on the
transfer switch control board to match the kW rating of the
standby generator, as described in Setting Dipswitches.
OL
EERE
GLEE
Setting Dipswitches
Dipswitches are used to adjust control board operation based
on generator capacity. DPSW1 and DPSW2 switches are set to
correspond to total system kW rating. Dipswitch DPSW/1 (A) has
units of 1,000 watts; Dipswitch DPSW2.B)has units of
10,000 watts.
Set dipswitches with utility and generator powerremoved from
the transfer switch to ensure proper conirol syslem operation.
if dipswitches are set when power is present.at transfer, switch,
a power reset needs to be performed before the new'dipswiteh
settings will take effect. Power reset is when all power is*removed
from the transfer switch and then reintroduced after 30 seconds.
NOTICE An FG_8 will occur on standby generator control board if
dipswitches are not properly established as noted above.
12
NOTICE Use extreme caution when setting dipswitches or
damage to control board will result.
« Use a pencil or small piece of plastic to set the dipswitch.
* NEVER use a screwdriver or any type of metal object to set
dipswitches.
The “On” position for the dipswitches is the switch number ON
THE TRANSFER SWITCH CONTROL BOARD, not on the switch. For
example, for an 18,000 watt generator, set DPSW2 dipswitch 10 to
“On” position. Set DPSW1 dipswitch 8 to “On” position. 10,000 plus
8000 equals 18,000 watts. Set only one switch to “On” position
on DPSW1 and DPSWe.
Refer to following chart for proper switch selection(s).
kW Ratin DPSW DPSW
of OF, “ON” OF “ON”
Generator Position Position
TkW 7 0
SW 8 0
9kW 9 0
10kW* <0 10
TikwW* i 10
\
7)
10
3 10
4 |
5 10
y 6 10
TW i 10
; 1okW 8 10
1SkW 9 10
20kW 0 20
sOkW 0 30
45kW 5 40
4okw 8 40
5OkW 0 50
BOKW 0 60
* For generators with a rating that includes 500 Watts, round down to
next lowest rating
(example: 13.5 kW set to 13kW)
NOTICE Air density is less at high altitudes, resulting in less
available engine power. Specifically, engine power will decrease 3.5%
for each 1,000 feet (300 meters) above sea level and 1% for each 10°
F (5.6°C) above 77°F (25°C). Generators located in these conditions
must have the transfer switch programmed appropriately for this
power decrease.
BRIGGSandSTRATTON.COM

Testing the Automatic Transfer Switch
Turn both of the utility service disconnect circuit breakers feeding
the transfer switch contactors to the OFF position. The system’s
automatic sequence described below will initiate. To return to utility
power, turn the utility service disconnect circuit breakers to the
ON position.
Uiilily Fail
The generator senses when utility voltage is below 70 percent of
nominal. Engine start sequence is initiated after 6 second time
delay.
Engine Warm-Up
There is a time delay to allow for engine warm-up before transfer.
Use jumper on transfer switch control board to select delay of
20 seconds or 50 seconds.
Transfer
Transfer from utility to generator supply occurs after voltage is
above set levels and after the initial warm-up period. Minimum
engine run time is 5 minutes after transfer.
Utility Pickup
Voltage pickup level is 80 percent of nominal voltage.
Retransier
Retransfer from generator to utility power is approximately 10
seconds after utility voltage supply is above pickup level and
minimum run time is completed.
Engine Cool Down
Engine will run for 60 seconds after retransfer.
Controls
Other than a Manual Override lever, there.aré no operator controls
because this is an automatic trangtereswitch. The manual override
is to be used only by licensed professionals. Information on handle
use can be obtained by calling Technical. Semiceat’800-743-4115.
Operation
To select automatic transfer operation, do the following:
1. In the transfer switch, set both utility disconnect circuit
breakers to ON position.
2. Inthe transfer switch, set generator disconnect circuit breaker
to ON position.
3. Install 15 Amp fuse in generators control panel.
4. Set generators circuit breaker to ON position.
5. Set generators system switch to AUTO position.
The system will now be in automatic operation mode.
When the generator is providing power to the transfer switch, the
transfer switch control board is constantly monitoring generator
power. If the air conditioner is called to run, and there is sufficient
generator power available, the controller will close contacts “A-A”
to air conditioner contactor. Contacts “B-B” will open before
contacts A-A close. if loads are too great for the generator, contacts
A-A and/or B-B will open. When air conditioning is not needed, A_A
will open. If enough power is available, B-B will close.
Enclosure Door
To open the transfer switch door, remove the two exterior thumb
screws (A) and carefully lift off door.
To close and secure the door, push door closed against enclosure.
While in this position, the door can rest on the tab (B) at the
bottom of the enclosure. Reinstall both thumb screws to finger
tight. Enclosure door MUST be closed and secured at all times
except when system is being serviced.
When Calling for Assistance
You must have the Model Number and Serial Number from each
trarisfer switch or remote module ID label at hand if it is necessary
to contact a local service center regarding service or repair. Obtain
this information from the unit ID labels located on or inside device.
For convenience, record the information on the inside front cover of
this manual.
To contact Briggs & Stratton call 800-743-4115, between 8:00 AM
and 5:00 PM CT.
installation Inspection
Before placing the system into service, inspect the entire installation
carefully,
This completes the installation and startup instructions. The
operator's manual provides full details on Operation, Maintenance,
and Troubleshooting for the Automatic Transfer Switch.
13

vl
WOO
NOLEVELSPURSSOI
YE
TY SUPPLY
LITY SUP
Z40VAC 240W AC 240V AC
3 5 °
8 ¢
Ap
\ \ | >\ \
} — |) \ 5 COCR) BOGOT
SERVICE / | GENERATOR ame gizog
°/ ex eran 9/ | 0 / osconnect 7 | 25 E3676
UTILITY 1 ae er |
© U6
Ni 5 Ne 5 EI 2 Ns N2 Oe cz
— —— @—N2 J3 BO
“2 BO
t J AO
@——Ne2 AO
N CONTROL, BOARD
* %
:
s58—
6) S & :
: a | ° ° & |
2 a e 6
a Z a i :
i i 4
a z
hl
FD
)
& 2 o oO u. | C (
2 z 2 ‘| I io AMP
3S 2 oO | muse
& Be FN - BLOCK
TO
UTILITY GE
240VA
]
El
&
€2 E2
2)
ee
=2-———
o
2
OM UTILITY SUPPLY
CS
weibeig
Gui
YoIIMS
Jaysued)

Transfer Switch Schematic Diagram
FROM
UTILITY SUPPLY
lh i
| | | |
SS
TO GENERATOR A coon 4 00 OOOOOOH OOOPOOOOHOOIOHOOIIOOOIION |
SEAVICE | BENBRATOR
ENT BRKR ' DISCONNECT
UTILITY f \
cocD = gocD
COC EaC5
TRANSFER
SWITCH
-
1
TRANSFER
SWITCH
-
2
8 a
GROUND al Oro
5 o 2
S69 666 F Oe
e
I I I I Et el
DS |i
— bot 1 |
REAKER 4 722
15

Troubleshooting
Problem
Cause
Correction
Automatic transfer switch does not
transfer to generator
1.Generator breaker open.
2.Generator voltage not acceptable.
3.Generator disconnect circuit breaker open in
transfer switch.
1.Reset generator circuit breaker.
2.Refer to generator manual.
3.Reset generator disconnect circuit breaker
in transfer switch.
Automatic transfer switeh does not
transfer to utility
1.Utility disconnect circuit breakers open in
transfer switch.
2.Utility voltage not acceptable.
1.Reset utility disconnect circuit breaker in
transfer switch.
2.Wait for utility voltage to return to normal.
Generator is still running after switch
transfers to utility power
Engine cool down period. Engine should stop after 1 minute.
Generator or supervised loads (air
conditioner, etc.) are operating
improperly when generator is
supplying power
1.AA and/or BB are not operating correctly.
2.foo much load on generator.
3.Current transformer not connected.
4 Broken current transformer.
1.Five minute delay timer has not expired.
2.Decrease load to generator.
3.Contact local authorized service center.
4.Contact local authorized service center.
Generator is still running after utility
power is restored
1.Minimum engine run time has not elapsed.
2.Fuse(s) in transfer switch is defective.
1.Wait five minutes for transfer switch to
retransfer to utility power.
2.Contact local authorized service center.
Product Specfications
Automatic Transfer Switch
Model 071058
Rated Maximum Load Current Per Contactor '
ATT OF (2a C)* oo cccccsseccstessercstessercstessbegleces Denese 200-Amps
Rated AC VOHAQE. occ cscs cesses esellipees teeters lee, 250 Volts
Poles Per COMLACOM ..cccesescecstssessssstssssecsseecsseegiilresadaelbverseses 2
FLOQUENCY ..cecscetestesessersertsrertssissssitsirsitsrrsriseseariliggerisssen 60 Hz
Fault Current Rating ...... 25,000 RMS Symmetrical Amperes
Normal Operating Range ......... -20°F (-28.8°C) to 104°F (40°C)
WeIQKt oe. ec ceceeeeetessneeeneseneeenesenteenetenteeetenteeess 110 ibs (0 kg)
Dimensions (HxWxD) ....37in. x 24in. x 7in.@4em x Giem x 18¢m)
This transfer switch is a UL Listed device.
16 BRIGGSandSTRATTON.COM

Manual de instalacion
Dual 200 Amperios - Division 400 Amperios
Interruptor de transferencia automatica
con seccionador de servicio y modulo de control de
energia electrica de CA™
Preguntas?
La:ayuda es justa un momento lejos!
Liamada: Linea Directa de generador de hogar
800-743-4115 M-F 8-5 CT
Ai

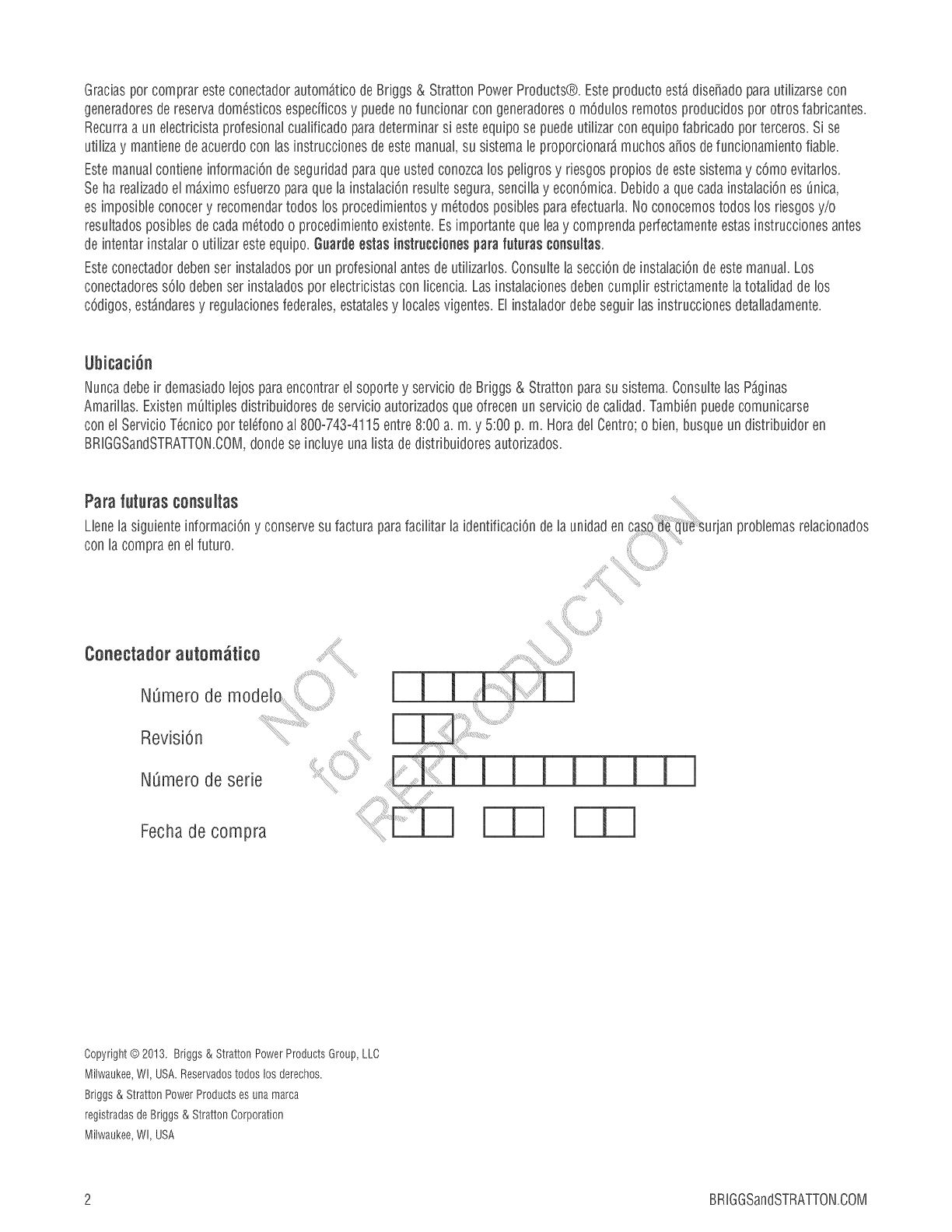

Gracias por comprar este conectador automatico de Briggs & Stratton Power Products®. Este producto esta disefiado para utilizarse con
generadores de reserva domésticos especificos y puede no funcionar con generadores o mddulos remotos producidos por otros fabricantes.
Recurra a un electricista profesional cualificade para determinar si este equipo se puede utilizar con equipo fabricado por terceros. Si se
utiliza y mantiene de acuerdo con las instrucciones de este manual, su sistema le proporcionara muchos afios de funcionamiento fiable.
Este manual contiene informacién de seguridad para que usted conozca los peligros y riesgos propios de este sistema y cémo evitarlos.
Se ha realizado el maximo esiuerzo para que la instalacién resulte segura, sencilla y econémica. Debido a que cada instalaci6n es linica,
es imposible conocer y recomendar todos los procedimientos y mélodos posibles para efectuarla. No conocemos todos los riesgos y/o
resultados posibles de cada método o procedimiento existente. Es importante que lea y comprenda perfectamente estas instrucciones antes
de intentar instalar o utilizar este equipo. Guarde estas insirucciones para futuras consultas.
Este conectador deben ser instalados por un profesional antes de utilizarios. Consulte la seccién de instalacién de este manual. Los
conectadores solo deben ser instalados por electricistas con licencia. Las instalaciones deben cumplir estrictamente la totalidad de los
cOdigos, estandares y regulaciones federales, estatales y locales vigentes. El instalador debe sequir las instrucciones detalladamenie.
Ubicacion
Nunca debe ir demasiado lejos para encontrar el soporte y servicio de Briggs & Stratton para su sistema. Consulte las Paginas
Amarillas. Existen multiples distribuidores de servicio autorizados que ofrecen un servicio de calidad. También puede comunicarse
con el Servicio Técnico por teléfono al 800-743-4115 entre 8:00 a. m. y 5:00 p. m. Hora del Centro; o bien, busque un distribuidor en
BRIGGSandSTRATTON.COM, donde se incluye una lista de distribuidores autorizados.
Para futuras consultas
Llene la siguiente informacidn y conserve su factura para facilitar la identificacién de la unidad en caso Ge qlie'surjan problemas relacionados
con la compra en el futuro.
Conectador automatico
Numero de modelo | |
Revision |
Numero de serie |
Fecha de compra
Copyright © 2013. Briggs & Stratton Power Products Group, LLC
Milwaukee, WI, USA. Reservados todos los derechos.
Briggs & Stratton Power Products es una marca
registradas de Briggs & Stratton Corporation
Milwaukee, WI, USA
2 BRIGGSandSTRATTON.COM

Tabla de contenido
instrucciones importantes de seguridad....................00. 4
Instalacion.. 0... cece eee eee ees 5
Responsabilidades del propietario. 0... ccc cee eee 5
Orientacion al propietario occ eee ene ees 5
Responsabilidades del distribuidor / tecnico instalador ........0.000000.00008., 5
Descripcidn del equipo... cc ccc cece e ee t eee e eas 5
Inspeccidn en el momento de la entrega... cece eee eee 6
Directrices de MONtaje. . crete tenet eens 6
Interconexion de los cables de alimentaciOn.. 0... eee 7
Terminales de control de supervision... 0... ccc cece ees 9
Configuracin del sistema... cece cette ene eens 12
Prueba del conectador automalico 00... cece eee ees 13
Controles 0. ccc cece eens 14
Funcionamiento .. 0... cece tee eee 14
Resolucion de problemas... .. 2.0.0... 0.0.0: e cece ee ee eee 15
Especificaciones del producto... 2... 2... eee etiiane 16
Espafiol

Guarde estas instrucciones
Instrucciones importantes de seguridad
GUARDE ESTAS INSTRUCCIONES - Este manual contiene
instrucciones importantes que se deben seguir durante la
instalacion y el mantenimiento del equipo.
Simbolos sobre la seguridad y significados
wy
Descarga eléctrica Lea el manual
Ay El simbolo de alerta de seguridad indica un posible riesgo
para su integridad fisica. Se utiliza una palabra de sefializacién
(PELIGRO, ADVERTENCIA 0 ATENCION) junto con el simbolo de
alerta para designar un grado o nivel de gravedad de riesgo. Se
puede utilizar un simbolo de seguridad para representar el tipo
de riesgo. La palabra de sefializaci6n AVISO se utiliza para hacer
referencia a una practica no relacionada con una lesién fisica.
4s PELIGRO indica un riesgo que, de no evitarse, provocard la
muerte o lesiones de gravedad.
4s ADVERTENCIA indica un riesgo que, de no evitarse, podria
provocar la muerte o lesiones de gravedad.
Av ATENCION indica un riesgo que, de no evitarse, podria provocar
lesiones leves 0 moderadas.
AVIS hace referencia a una practica no relacionada con una lesién
fisica.
EI fabricante no puede prever toda circunstaricia que conlleve
un riesgo potencial. Por tanto, las advertenciase este manual,
asi como las etiquetas y calcomanias adheridas a la unidad, no
incluyen todos los riesgos posibles.°Gi williza un procedimiento,
método de trabajo o técnica de Ws6°ne recomendado
especificamente por el fabricante, debera asegurarse de que es
seguro tanto para usted como para otrasyperSonas’ También.debera
asegurarse de que el procedimiento, mélotg Getrabajoro técnica de
uso que élija no hace que el equipo sea inseguro.
Ax ADVERTENCIA Peligro de descarga. La instalacién de un
ull cable de baja y alla tensién en el mismo conducto podria
be provocar dafios materiales, lesiones graves 0 incluso la
wy muerte,
* No tienda un cable de baja y alta tensién en el mismo conducto
a menos que el valor nominal de aisiamiento en TODO el
cableado sea de 600 V. Para obtener mas informacidn, consulte
el NEC.
4 ADVERTENCIA Una conexién a tierra defectuosa del equipo
’ podria provocar electrocucién, asi como lesiones graves
il 0 incluso la muerte.
* flo toque los cables pelacos.
* No utilice el equipo con cables desgastados, deshilachados o
deteriorados de cualquier otra forma.
* No manipule los cables eléctricos si se encuentra en una zona
htimeda, esta descalzo o tiene las manos 0 los pies mojados.
* Si tiene que trabajar junto a una unidad en funcionamiento,
manténgase en una superficievaislada y seca para reducir el
riesgo de descarga eléctriea,
* flo permita que personas to Cualificadas o nifios utilicen o
reparen el equipo.
* En caso de accidente provocado por una descarga eléctrica,
desconecteinmediatamente todos los suministros de energia
eléctrica y pdngase en contacto con las autoridades locales.
Evite el contacte directo con la victima.
@. ADVERTENCIA Peligro de descarga eléctrica. El equipo
2 contiene alto voltaje que podria provocar dafios
be materiales, lesiones graves y/o la muerte.
* NO utilice este equipo con imprudencia ni descuide su
mantenimiento.
4s ADVERTENCIA Determinados componentes en este producto
y los accesorios relacionados contienen sustancias quimicas
declaradas cancerigenas, causantes de malformaciones, y otros
defectos congénitos por el Estado de California. Lavese las
manos después de manipular estos elementos.
AVISO La instalacion de este equipo debe cumplir estrictamente
la totalidad de los codigos, estandares y regulaciones vigentes,
por lo que sdlo debe ser llevada a cabo por un electricista
cualificado.
AVISO Un tratamiento inadecuado del equipo podria estropearlo
y acortar su vida Util.
* Utilice el equipo sélo para los usos previstos.
* En caso de dudas sobre su uso, dirfjase al distribuidor 0 a Briggs
& Stratton Power Products.
* No exponga el equipo a un exceso de humedad, polvo, suciedad
0 vapores Corrosivos.
* Manténgase alerta en todo momento cuando utilice este equipo.
Nunca lo utilice ni manipule en condiciones de fatiga fisica 0
mental.
* Sise calientan excesivamente los dispositives conectados,
apaguelos y abra sus interruptores o quite sus fusibles.
BRIGGSandSTRATTON.COM
