BRINKMANN PUMPS TH11 Series User manual

BE3914 Operating Instructions
(Translation of original)
©Brinkmann Pumpen Edition 12/2019 Page 1 of 16
BRINKMANN Immersion Pumps
TH/STH11…TH/STH17
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2 D-58791 Werdohl
Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de
Fax.: +49-2392 / 5006-180 [e-mail]
Subject to change without prior notice. Order - No. : BE3914 ENGLISH

BE3914 Edition 12/2019 Page 2 of 16
Brinkmann Immersions pumps of the series TH/STH11 ... TH/STH17
Contents
1Indication to the manual ....................................2
2Description of product ....................................2-6
3Safety instructions.............................................9
4Transport and storage.......................................9
5Installation and Connection.............................10
6Start up / Shut down........................................11
7Operation.........................................................11
8Servicing and Maintenance.............................11
9Trouble shooter’s guide................................... 12
10 Spare part ..................................................13-15
11 Repair ............................................................. 15
12 Disposal .......................................................... 15
13 EC declaration of conformity........................... 16
1 Indication to the manual
This operating manual gives basic instructions which
are to be observed during installation, operation and
maintenance of the pump. It is therefore imperative
that this manual be read by the responsible person-
nel and operator prior to assembly and commission-
ing. It is always to be kept available at the installa-
tion site.
1.1 Identification of safety instructions in the
operating manual
Safety instructions given in this manual non-
compliance with which would affect safety are
identified by the following symbol
Safety sign according with
ISO 3864 –B.3.1
or where electrical safety is involved, with:
Safety sign according with
ISO 3864 –B.3.6
Where non-compliance with the safety instructions
may cause a risk to the machine and it’s function the
word
ATTENTION
is inserted.
2 Description of product
2.1 General description of the pump
Pumps of this type are multi-stage rotary pumps.
Series TH/STH use closed impellers in order to
minimizing power consumption and to optimize
hydraulic pump efficiencies. In addition, the TH/STH
series offers high pressures at short immersion
depths.
The pump shaft and the motor shaft are connected
by a coupling. The pump shaft is sealed by a rotat-
ing mechanical seal. The pump is protected again
impurity by a filter. Pump and motor form a compact
and space-saving unit.
Vertically mounted pumps are equipped with a
mounting flange. The pump end immerses into the
tank and the motor extends vertically above the
tank.
2.2 Intended use
The immersion pumps of the series TH/STH have
been especially developed to supply internally
cooled tools with coolant fluid within the limiting
application in accordance with table 1.
Limit of Application (Table 1)
ATTENTION
The pumps are to be operated within their design
limits. Applications outside of these limits are not
approved. The manufacturer is not responsible for
any damages resulting from use of the pumps in
such applications.
2.3 Type Designation
2.4
Type
TH/STH11...17
Mediums
Industry water, cooling emulsions,
cooling- and cutting-oils
Kinetic viscosi-
ty of the medi-
um
...25 mm2/s
Temperature of
medium
0 ... 80 °C
Particle-size in
the medium
1 mm
max. operation
pressure
27 bar
min. delivery
volume
1% of Q max.
Dry running
The pumps are not suitable for dry
running.
Switching-on
frequency per
hour
Motors less 3 kW max. 200
from 3 kW to 4.0 kW max. 40
from 5.0 kW to 10.3 kW max. 20
Motors 11 kW and higher max. 15
Ambient tem-
perature
40 °C
Set-up altitude
1000 m
(S)TH11 02 A280

BE3914 Edition 12/2019 Page 3 of 16
Technical data
50 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1102A180
2.1
250
433
182
34
1.3
63
(S)TH1103A180
3.8
250
433
182
35
1.5
63
(S)TH1104A280
4.8
250
459
278
39
1.7
63
(S)TH1105A280
5.9
255
492
278
43
1.9
63
(S)TH1106A280
7.0
260
492
278
45
2.6
63
(S)TH1107A310
8.0
265
531
310
55
3.0
71
(S)TH1108A380
9.2
280
531
374
58
3.3
71
(S)TH1109A380
(S)TH1110A470
10.7
11.9
280
531
374
470
59
60
4.0
71
(S)TH1111A470
(S)TH1112A470
13.0
14.0
285
561
470
67
68
5.0
71
(S)TH1113A500
(S)TH1114A570
15.2
16.3
290
561
502
566
69
71
5.5
71
(S)TH1115A570
(S)TH1116A660
(S)TH1117A660
(S)TH1118A660
17.8
19.0
20.0
21.2
295
640
566
662
101
103
104
105
7.5
74
(S)TH1119A760
(S)TH1120A760
(S)TH1121A760
22.4
23.8
25.0
300
640
758
110
112
115
9.0
74
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 4 of 16
50 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1402A180
2.8
420
459
182
37
1.7
63
(S)TH1403A280
4.1
425
492
278
43
2.6
63
(S)TH1404A280
5.9
445
531
278
55
3.3
71
(S)TH1405A380
7.2
455
531
374
57
4.0
71
(S)TH1406A380
8.4
465
561
374
64
5.0
71
(S)TH1407A470
10.0
475
561
470
66
5.5
71
(S)TH1408A470
(S)TH1409A570
11.8
12.1
475
640
470
566
98
102
7.5
74
(S)TH1410A570
(S)TH1411A660
14.3
16.0
485
640
566
662
110
115
9.0
74
S)TH1412A660
(S)TH1413A760
17.6
19.0
490
647
662
758
131
135
11.0
74
(S)TH1414A760
(S)TH1415A900
(S)TH1416A900
20.1
21.9
23.2
500
647
758
902
139
143
145
13.0
74
(S)TH1417A900
24.8
500
952
902
155
15.0
78
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 5 of 16
50 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1702A180
3.1
500
492
182
42
2.2
63
(S)TH1703A280
4.3
500
531
278
55
3.3
71
(S)TH1704A280
6.0
500
561
278
61
5.0
71
(S)TH1705A380
7.7
505
561
374
64
5.5
71
(S)TH1706A380
(S)TH1707A470
9.1
10.4
505
640
374
470
87
97
7.5
74
(S)TH1708A470
12.0
510
640
470
116
9.0
74
(S)TH1709A570
(S)TH1710A570
13.7
15.0
520
647
566
124
126
11.0
74
(S)TH1711A660
(S)TH1712A660
16.4
18.0
535
647
662
128
129
13.0
74
(S)TH1713A760
19.7
535
952
758
150
15.0
78
(S)TH1714A760
(S)TH1715A900
(S)TH1716A900
(S)TH1717A900
21.2
22.4
24.0
25.2
535
555
1002
758
902
168
170
172
175
18.5
78
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 6 of 16
60 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1102B180
3.4
275
433
182
34
1.49
66
(S)TH1103B180
5.2
285
492
182
43
2.18
66
(S)TH1104B280
6.8
290
492
278
44
2.94
66
(S)TH1105B280
8.2
300
531
278
57
3.8
74
(S)TH1106B280
10.1
310
531
278
58
4.55
74
(S)TH1107B310
(S)TH1108B380
11.9
13.8
320
325
561
310
374
62
64
5.75
74
(S)TH1109B380
15.6
330
561
374
65
6.3
74
(S)TH1110B470
(S)TH1111B470
(S)TH1112B470
17.2
19.0
20.4
330
335
340
640
470
97
98
99
8.6
77
(S)TH1113B500
(S)TH1114B570
(S)TH1115B570
22.1
23.8
25.0
340
350
350
640
502
566
108
109
110
10.3
77
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 7 of 16
60 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1402B180
4.0
460
492
182
47
2.94
66
(S)TH1403B280
6.0
475
531
278
58
4.55
74
(S)TH1404B280
8.1
490
561
278
65
6.3
74
(S)TH1405B380
(S)TH1406B380
10.2
12.2
500
510
640
374
94
95
8.6
77
(S)TH1407B470
14.4
520
640
470
108
10.3
77
(S)TH1408B470
16.4
530
647
470
123
12.6
79
(S)TH1409B570
(S)TH1410B570
18.6
20.8
545
550
647
566
127
128
15.0
79
(S)TH1411B660
(S)TH1412B660
22.8
25.0
560
570
952
662
157
160
17.3
81
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 8 of 16
60 Hz
Type
Max. del.
pressure
bar /
spec. weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
hmm
Weight
TH2)
kg
Power
kW
Noise
level3)
dBA
(S)TH1702B180
4.1
550
531
182
55
3.8
74
(S)TH1703B280
6.4
555
561
278
60
5.75
74
(S)TH1704B280
8.4
570
640
278
86
8.6
77
(S)TH1705B380
10.8
580
640
374
115
10.3
77
(S)TH1706B380
13.1
600
647
374
118
12.6
79
(S)TH1707B470
(S)TH1708B470
15.2
17.4
605
610
647
470
122
123
15.0
79
(S)TH1709B570
19.7
620
952
566
148
17.3
81
(S)TH1710B570
(S)TH1711B660
21.8
24.0
630
640
1002
566
662
160
161
21.3
81
1) Dimensions in accordance with page 10
2) Weight STH = Weight TH + 2 kg
3) Noise emissions measured in accordance with
DIN 45635 at a distance of 1 m
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BE3914 Edition 12/2019 Page 9 of 16
3 Safety instructions
When operating the pump, the safety instructions
contained in this manual, the relevant national
accident prevention regulations and any other ser-
vice and safety instructions issued by the plant
operator are to be observed.
3.1 Hazards in the event of non-compliance
with the safety instructions
Non-compliance with the safety instructions may
produce a risk to the personnel as well as to the
environment and the machine and results in a loss
of any right to claim damages.
For example, non-compliance may involve the
following hazards:
•Failure of important functions of the ma-
chines/plant
•Failure of specified procedures of maintenance
and repair
•Exposure of people to electrical. mechanical and
chemical hazards
•Endangering the environment due to hazardous
substances being released
3.2 Unauthorized modes of operation
•Pump may not be used in potentially explosive
environments!
•Pump and discharge piping are not designed to
hold any weight and may not be used as a step
ladder.
3.3 Remaining Risk
Risk of Injury!
Risk of squeezing or crushing body parts when
installing or removing the pump exists. Proper and
secured lifting tools must be used.
Risk of burns!
The pump must have cooled down sufficiently prior
to commencing any repair. maintenance or installa-
tion.
3.4 Qualification and training of operating
personnel
The personnel responsible for operation, mainte-
nance, inspection and assembly must be adequately
qualified. Scope of responsibility and supervision of
the personnel must be exactly defined by the plant
operator. If the staff does not have the necessary
knowledge, they must be trained and instructed.
which may be performed by the machine manufac-
turer or supplier on behalf of the plant operator.
Moreover, the plant operator is to make sure that the
contents of the operating manual are fully under-
stood by the personnel.
3.5 Safety instructions relevant for operation
•If hot or cold machine components involve haz-
ards. they must be guarded against accidental
contact.
•Guards for moving parts (e.g. coupling) must not
be removed from the machine while in operation.
•Any leakage of hazardous (e.g. explosive. toxic.
hot) fluids (e.g. from the shaft seal) must be
drained away so as to prevent any risk to per-
sons or the environment. Statutory regulations
are to be complied with.
•Hazards resulting from electricity are to be pre-
vented (see for example, the VDE Specifications
and the bye-laws of the local power supply utili-
ties).
•The pumps’ stability against falling over is not
ensured unless it is properly mounted onto the
tank.
•The female threads on the motor MUST NOT be
used to lift the entire pump and motor assembly.
3.6 Safety instructions relevant for mainte-
nance, inspection and assembly work
Any work on the machine shall only be performed
when it is at a standstill, it being imperative that the
procedure for shutting down the machine described
in this manual be followed.
Pumps and pump units which convey hazardous
media must be decontaminated.
On completion of work all safety and protective
facilities must be re-installed and made operative
again.
Prior to restarting the machine, the instructions listed
under “Start up” are to be observed.
3.7 Signs on the pump
It is imperative that signs affixed to the machine,
e.g.:
•arrow indicating the direction of rotation
•symbols indicating fluid connections
be observed and kept legible.
3.8 Unauthorized alterations and production
of spare parts
Any modification may be made to the machine only
after consultation with the manufacturer. Using
spare parts and accessories authorized by the
manufacturer is in the interest of safety. Use of other
parts may exempt the manufacturer from any liabil-
ity.
4 Transport and storage
Protect the pump against damage when transport-
ing.
The pumps may only be transported in a horizontal
position and hooks or straps must be attached on
the motor and pump end.
Do not use the pump shaft for connecting any trans-
portation aids such as hooks or straps.
Pumps must be drained prior to their storage.
Store pump in dry and protected areas and protect it
against penetration of foreign bodies.
Always store pump above the freezing point!

BE3914 Edition 12/2019 Page 10 of 16
5 Installation and Connection
5.1 Mechanical installation
During any assembly or disassembly process the
pumps must be secured against tipping trough ropes
for example at all times.
Pumps must be mounted securely. Piping, tank and
pumps must be mounted without any tension.
The inlet is at the bottom of the immersed pump body.
The distance between the inlet and the tank bottom
must be so large that the inlet cannot be blocked by
deposits during longer shutdowns.
The leakage is collected in a leakage chamber and
drained off by the leakage hole into the tank. During the
assembling of the pump, be sure that the leakage hole
is free.
To obtain the full flow rate it is recommended to choose
for the pipework the nominal bore diameter of the
pumps cross section for connection. Therefore pipe
bends should be used, not pipe angles!
The pipework must be qualified for occuring hydraulic
pressure.
***) Dimensions for 15.0 kW 50 Hz to 21.3 kW
ATTENTION
Pay attention of the max. tightening torque for
piping connection
Type
Pipe connection
Cast iron
TH11...17
G 1 ½
150 Nm
STH11...17
G 1 ½
150 Nm
When installed the space around the pump must
be large enough to provide sufficient cooling of
the motor.
Do not prop up the pressure line via the joining
socket.
The pump must be mounted in that way that
rotating parts under the cover of the coolant
tank can not be touched!
5.2 Electric wiring
All service work must be carried out by qualified
service personnel. Pump must be disconnected
from the power source and all rotating parts
must stand still. Reassure that pump is discon-
nected from power source and cannot be
switched on. Verify that there is no voltage at the
terminal board!
According to the European Standard EN809 a motor
overload must be installed and properly set to the
full load amps stated on the pump name plate.
It is the responsibility of the machine operator to
decide whether or not an additional emergency
switch must be installed.
5.2.1 Circuit
Tension voltage and frequency must correspond
with the shown specification on the nameplate.
The pump must be wired so that a solid long term
electrical connection is ensured. Establish a solid
ground connection.
The electrical wiring must be performed ac-
cording to the wiring diagram shown inside the
terminal box cover. (Please see above sample
wiring diagrams)

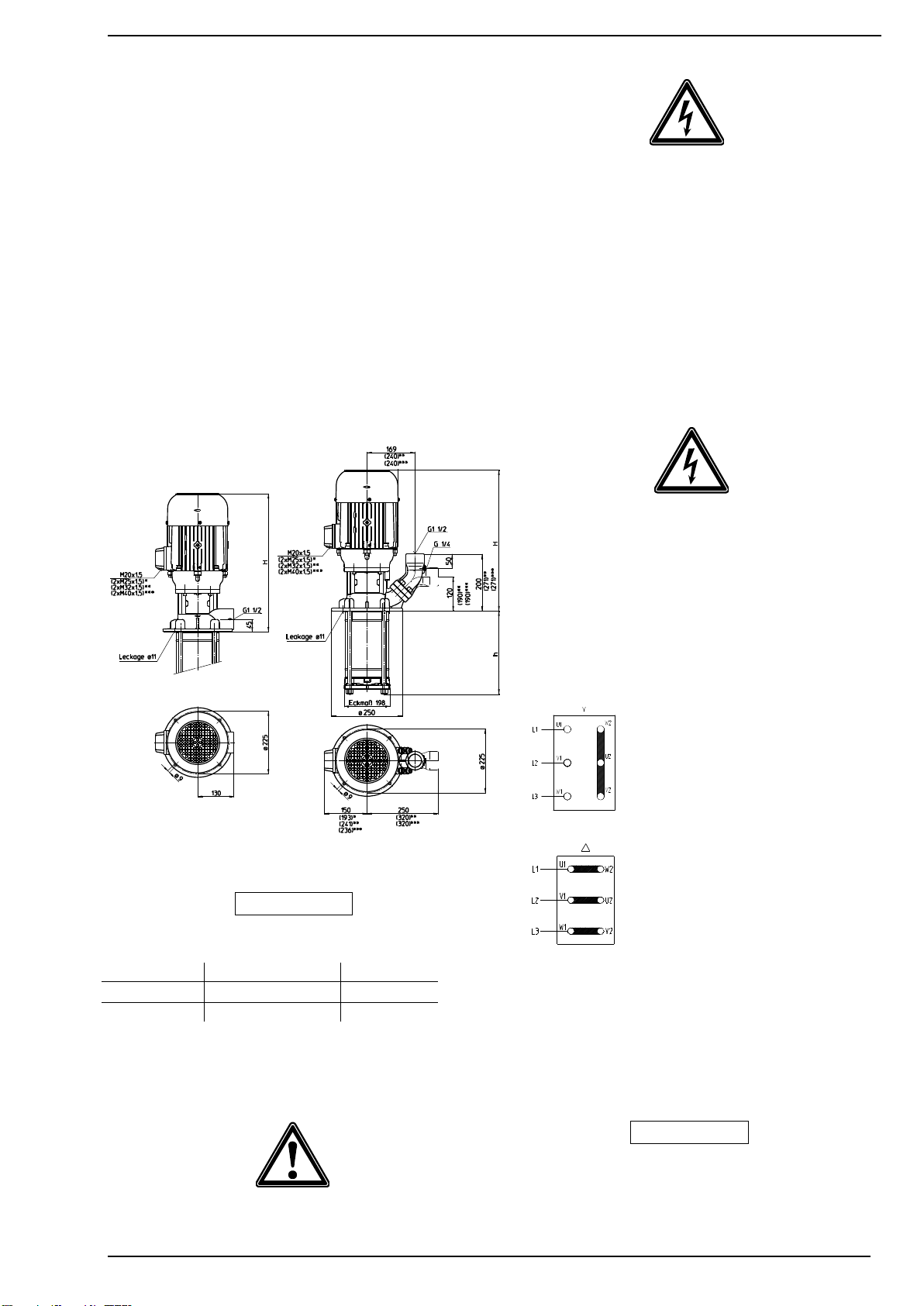

Wiring diagram e.g.
There may be no foreign objects such as dirt, parti-
cles or humidity inside the terminal board.
Mount terminal board cover to motor tight against
dust and humidity and close up all unused wiring
ports.
ATTENTION
When Variable Frequency Drives are used interfer-
ing signals might occur.
Non-sinus shaped supply voltage from a variable
frequency drive might result in elevated motor tem-
peratures.
TH11...17
STH11...17
*) Dimensions. for 7.5 to 10.3 kW ; **) Dimensions for 11.0 / 13.0 kW
and 15 kW 60 Hz
Star connection
up to 5.5 kW
3 x 400 V. 50 Hz
resp. 380-415 V. 50 Hz
Delta connection
up to 5.5 kW
3 x 230 V. 50 Hz
resp. 220-240 V. 50 Hz
From 7.5 kW and higher
3 x 400 V. 50 Hz
resp. 380-415 V. 50 Hz

BE3914 Edition 12/2019 Page 11 of 16
6 Start up / Shut down
6.1 Start up
ATTENTION
Switch off at the mains.
After connection the electrical wires, close the
terminal box. Briefly start the motor (max. 30 sec.)
and check the rotation according to the arrow on the
top of the motor.
If the direction is incorrect change over two of the
power leads.
6.2 Shut down
All service work must be carried out by qualified
service personnel. Pump must be disconnected from
the power source and all rotating parts must stand
still. Reassure that pump is disconnected from
power source and cannot be switched on. Verify that
there is no voltage at the terminal board!
Open terminal box and disconnect the power leads.
Empty out the pump.
7 Operation
Liquid level
Be sure that the suction hole of the pump body is
immersed about 55 mm in the liquid (min. liquid
level) before starting up the motor.
If the pump should lock up and cease, shut
pump down (see 6.2) and disconnect from power
supply. Pump must be uninstalled and removed
from the system prior to its repair.
Attention! Potential Risk of Burning!
Surface temperatures above 50°C do occur
during regular operation, i.e. on the surfaces of
the motor and bearing housing.
It must be insured that the pump has cooled
down sufficiently prior to performing any repair
or maintenance work.
8 Servicing and Maintenance
ATTENTION
The surface of the motor must be kept free of dirt.
The motor shaft is spinning in permanently greased
ball bearings (with special grease and increased
bearing play) and does not require any special
maintenance.
min.
liquid level
Keep open
Leakage hole

BE3914 Edition 12/2019 Page 12 of 16
9 Trouble shooter’s guide
Fault
Cause
Remedy
Motor does not start, no motor
noise
At least two of the power supply
leads have failed
Overload has tripped
Check fuses, terminals and supply
leads.
Inspect overload
Motor does not start, humming
noise
One of the supply leads has failed
Impeller faulty
Motor bearing faulty
See above
Replace impeller
Replace bearing
Overload trips
Pump locked up mechanically
High on/of cycling frequency
Inspect pump hydraulics
Check application
Power consumption is too high
Wrong direction of rotation of
impeller
Lime or other deposits
mechanical friction
See above
Clean pump mechanism
repair pump
Motor overheats
High on/off cycling frequency
Wrong power supply (voltage or
cycles)
Insufficient cooling
See above
Power supply must correspond with
name plate rating
Check air flow at motor fan
Pump does not pump
liquid level too low
Pump mechanism faulty
Pipe blocked
Fill up liquid
replace pump mechanism
Clean pipe
Insufficient flow and pressure
Wrong direction of rotation of
impeller
Pump mechanism silted up
Worn pump mechanism
Change over two power supply
leads
Clean pump mechanism
Replace pump mechanism
Incorrect flow or pressure
Wrong power supply (voltage or
cycles)
Power supply must correspond with
name plate rating
Running noise/Vibration
Foreign objects in pump end
Impeller damaged
Bearing/Bushing broken
Remove foreign objects
Replace impeller
Replace bearing/bushing

BE3914 Edition 12/2019 Page 13 of 16
10Spare part

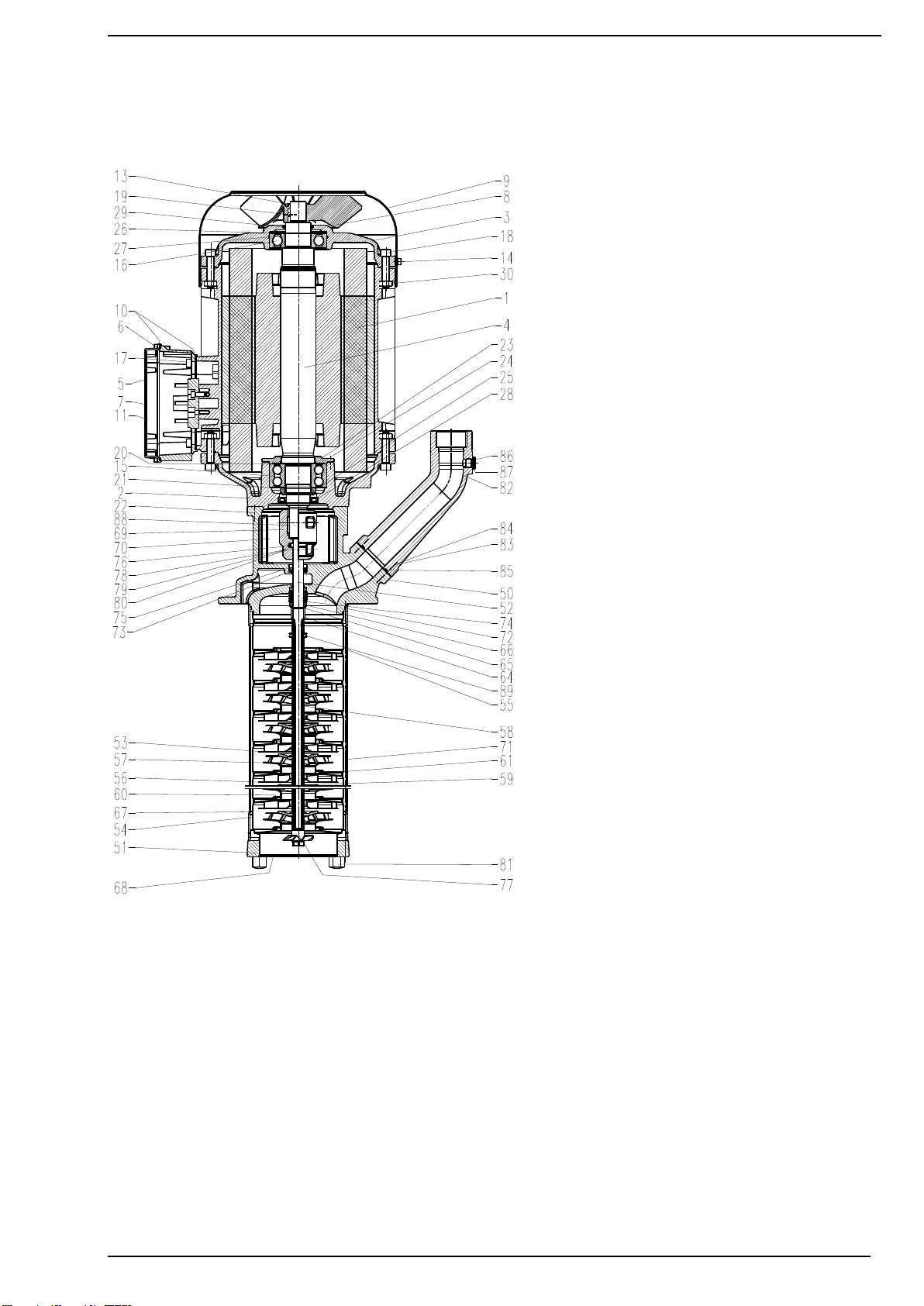

10.1 Spare part list for the immersion pumps
of the series TH/STH11
TH/STH1402A180...TH/STH1413A760
TH/STH1402B180...TH/STH1408B470
TH/STH1702A180...TH/STH1710A570
TH/STH1702B180...TH/STH1706B380
ItemDescription
1 Stator with terminal board
2 Motor flange
3 End shield
4 Motor shaft with rotor
5 Terminal box up to 5.5 kW
6 Terminal box frame from 7.5 kW and over
7 Terminal box cover from 7.5 kW and over
8 Fan
9 Fan cover
10 Gasket
11 Gasket from 7.5 kW and over
13 Retaining ring
13 Retaining ring 1.3…2.6 kW DIN 471
14 Thread rolling screw DIN 7500
15 Ball bearing DIN 625
15 Ball bearing 1.3…2.6. 7.5 kW DIN 628
16 Ball bearing DIN 625
17 Slotted cheese head screw DIN 84
18 Hexagon socket head cap screw DIN 912
19 Parallel pin DIN 7
20 Retaining ring up to 5.5 kW DIN 472
21 Retaining ring up to 5.5 kW DIN 471
22 Socket head cap screw DIN 912
23 Bearing cover 7.5 kW and over
24 Socket head cap screw 7.5 kW DIN 912
25 Shaft nut 7.5 kW and over
26 Compensation disk
27 O-ring
28 Shaft seal up
29 Rotary shaft seal
30 Nut up 11 kW DIN 934
50 Pump body
51 Intake cover
52 Pump shaft
53 Diffusor with sliding ring
54 Entering stage with sliding ring
55 Outflow stage in combination with Impeller (89)
55 Spacer ring in combination with distance plate (89)
56 Bearing stage with sliding ring
57 Impeller
58 Spacer-long 2 x per stage
59 Spacer-short 1 x per bearing stage
60 Sliding ring
61 Shaft sleeve
64 Mech. Seal stop ring cover
65 Mech. seal stop half-ring
66 Mech. seal washer
67 Pump casing
68 Sieve
69 Clamp coupling
70 Coupling shield with M5 screw
71 Stud bolt
72 O-ring
73 Rotary shaft seal
74 Mechanical seal
75 Retaining ring
76 Parallel pin DIN 7
77 Suction screw
78 Hexagon socket head cap screw DIN 912
79 Serrated lock washer DIN 6798
80 Hexagon nut DIN 934
81 Hexagon cap nuts DIN 917
82 Joining socket STH
83 Socket head cap screw STH DIN 912
84 Spring washer STH DIN 7980
85 O-ring STH
86 Screw plug STH DIN 908
87 Sealing ring STH DIN 7603
88 Woodruff key DIN 6888
89 Distance plate instead of impeller at
empty stage
89 Impeller at full stage number

BE3914 Edition 12/2019 Page 14 of 16

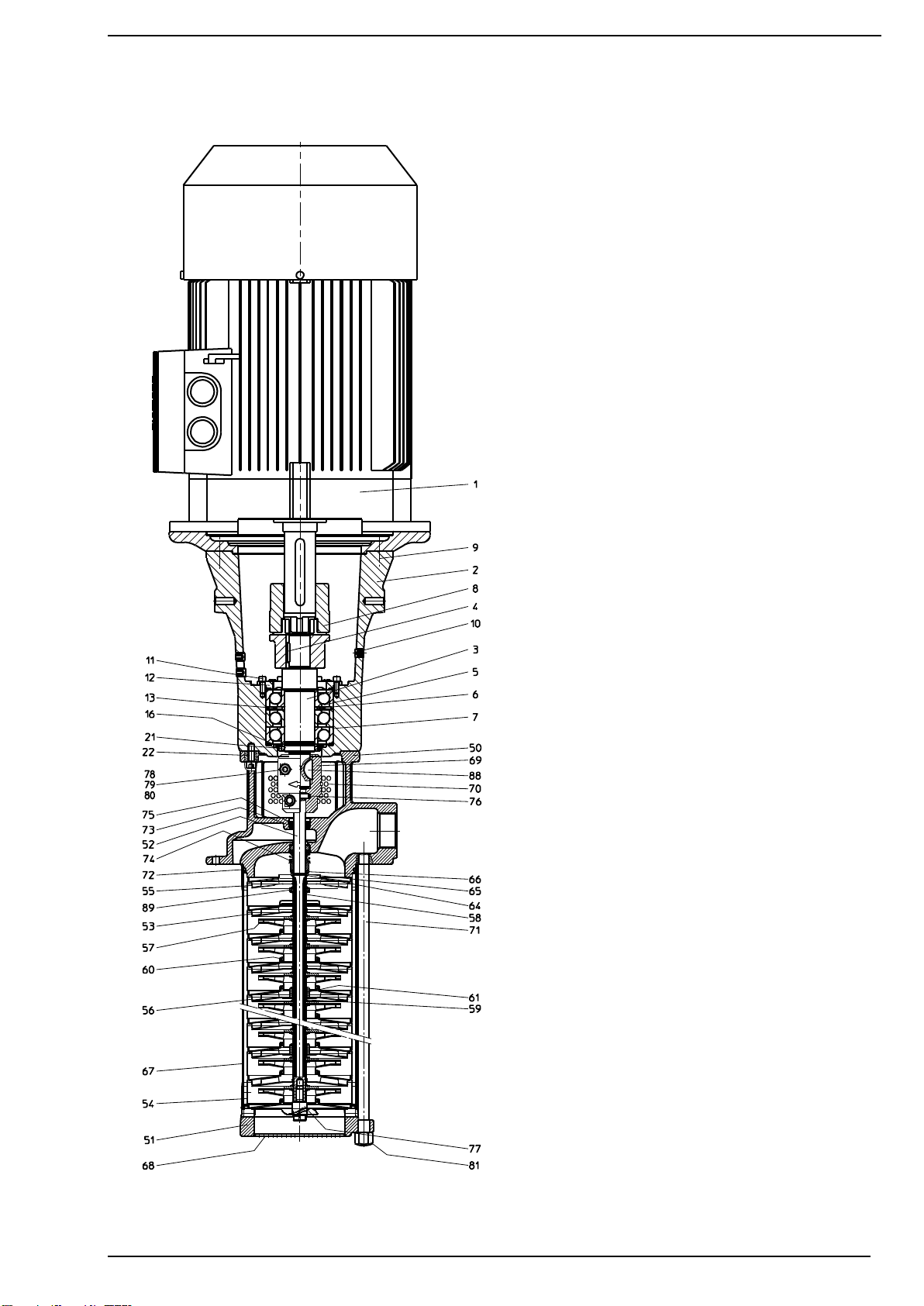

10.2 Spare part list for the immersion pumps
of the series
TH/STH1414A760...TH/STH1417A900
TH/STH1409B570...TH/STH1412B660
TH/STH1711A660...TH/STH1717A900
TH/STH1707B470...TH/STH1711B660
ItemDescription
1 Motor
2 Bearing housing
3 Bearing shaft
4 Woodruff key DIN 6888
5 Ball bearing DIN 628
6 Distance plate
7 Ball bearing DIN 628
8 Coupling
9 Socket head cap screw DIN 912
10 Threaded pin DIN 705
11 Bearing cover
12 Socket head cap screw DIN 912
13 Nilos-ring
16 Nilos-ring
21 Shaft nut
22 Socket head cap screw DIN 912
50 Pump body
51 Intake cover
52 Pump shaft
53 Diffusor with sliding ring
54 Entering stage with sliding ring
55 Outflow stage in combination with Impeller (89)
55 Spacer ring in combination with distance plate (89)
56 Bearing stage with sliding ring
57 Impeller
58 Spacer-long 2 x per stage
59 Spacer-short 1 x per bearing stage
60 Sliding ring
61 Shaft sleeve
64 Mech. seal stop ring cover
65 Mech. seal stop half-ring
66 Mech. seal washer
67 Pump casing
68 Sieve
69 Clamp coupling
70 Coupling shield with M5 screw
71 Stud bolt
72 O-ring
73 Rotary shaft seal
74 Mechanical seal
75 Retaining ring
76 Parallel pin DIN 7
77 Suction screw
78 Hexagon socket head cap screw DIN 912
79 Serrated lock washer DIN 6798
80 Hexagon nut DIN 934
81 Hexagon cap nuts DIN 917
88 Woodruff key DIN 6888
89 Distance plate instead of impeller at empty stage
89 Impeller at full stage number
Design STH see page 13:
82 Joining socket STH
83 Socket head cap screw STH DIN 912
84 Spring washer STH DIN 7980
85 O-ring STH
86 Screw plug STH DIN 908
87 Sealing ring STH DIN 7603

BE3914 Edition 12/2019 Page 15 of 16
10.3 Indications to the spare part order
Spare parts are available from the supplier.
Standard commercially available parts are to be
purchased in accordance with the model type.
The ordering of spare parts should contain the
following details:
1. Pumptype
e.g. TH1407A470
2. Pump No.
e.g. 12193914
The date of the construction year is a compo-
nent of the pumps type number.
3. Voltage. Frequency and Power
Take item 1, 2 and 3 from the nameplate
4. Spare part with item No.
e.g. Impeller item No. 57
11Repair
11.1 Exchange the rotary mechanical seal:
(S)TH11…(S)TH17
1) Disconnect the pump from the power supply.
2) Loosen the M5 screws and pull out coupling
shield (70). Remove clamp coupling (69.1. 69.2)
and parallel pin (76).
3) Loosen and pull off the hexagon cap nuts (81),
the stud bolt (71) and the pump casing (67) from
the pump unit. Remove pump unit with pump
shaft (52) from the pump body (50).
4) Take off rotating axial face seal unit (74.1-74.5)
and mech. seal washer (66) from the shaft (52)
and clean the shaft. Pay attention to the drilled
hole for the parallel pin (76) that it is without any
bur. Check the sliding surface for the rotary
shaft seal (73) for any damage.
5) Remove complete seal (74.6. 74.7) from the
pump body (50) and clean the seat.
6) Mounting of the new axial face seal:
Ensure that the sliding surfaces of the ring and
the rotating axial face seal unit are free from
grease and dirt.
Moisten the angle-sleeve (74.7) of the counter
ring lightly with rinse water / (water with wash-
ing-up liquid) and push the unit into the seat of
the pump body (50).
Slide the mech. seal washer (66) first and then
the axial face seal (74.1-74.5) onto the pump
shaft (52).
7) Lubricate lightly the lip of the rotary shaft seal
(73) and push it into the pump body (50). Then
insert the pump shaft (52) with the pump unit
through the rotary shaft seal (73).
8) Fit together the coupling clamp (69) with the
parallel pin (76) around the shafts, tighten the
hexagon socket head cap screws (78) with the
serrated lock washer (79) lightly.
Be sure that the key of the motor shaft (4) coin-
cides with the key groove of the coupling clamp
(69.1). Press the pump shaft (52) toward the
motor and tighten the screws.
The distance between the two shaft ends must
be zero.
9) Lubricate the O-ring seal (72) of the pump body
(50), screw and put on the stud bolt (71), the
hexagon cap nuts (81) and the pump casing
(67).
10)Fit the coupling shield (70) into the pump body
(50) and tighten the M5 screws.
11)Reconnect pump to the power supply.
Check direction of rotation!
12Disposal
When disposing of the pump or the packaging
materials the local and national regulation for
proper disposal must be complied with.
Prior to its disposal, the pump must be completely
drained and decontaminated if necessary.
Tightening torques for screwed connections
Thread - 
M4
M5
M6
M8
M10
Strength
classes
4.8
4.8
8.8
8.8
8.8 /
10.0
Tightening
torque (Nm)
1
Nm
3
Nm
4.5 Nm
20 Nm
Clamp
coupling
15 Nm
30 Nm
Clamp
coupling
30
Nm

BE3914 Edition 12/2019 Page 16 of 16
13EC declaration of conformity
DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL
EG-Konformitätserklärung
EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE
Hersteller / Manufacturer / Constructeur / Fabricante
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Produktbezeichnung / Product name / Désignation du produit / Designación del producto
Tauchpumpen / Immersion pumps / Pompes plongeantes / Bombas de inmersión
Typ / Type / Tipo TH/STH11 … 17
Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der
EG-Mitgliedsstaaten überein:
The named product conforms to the following Council Directives on approximation of laws of the EEC Member States:
Le produit sus-mentionné est conforme aux Directives du Conseil concernant le rapprochement des législations des
Etats membres CEE:
El producto designado cumple con las Directivas del Consejo relativas a la aproximación de las legislaciones de los
Estados Miembros de la CEE:
2006/42/EG Richtlinie für Maschinen
2006/42/EC Council Directive for machinery
2006/42/CE Directive du Conseil pour les machines
2006/42/CE Directivas del Consejo para máquinas
2014/30/EU Richtlinie für elektromagnetische Verträglichkeit
2014/30/EU Council Directive for Electromagnetic compatibility
2014/30/UE Directive du Conseil pour Compatibilité électromagnétique
2014/30/UE Directivas del Consejo para Compatibilidad electromagnética
2011/65/EU und 2015/863/EU RoHS Richtlinien
2011/65/EU and 2015/863/EU RoHS Directives
2011/65/UE et 2015/863/UE Directives RoHS
2011/65/UE y 2015/863/UE RoHS Directivas
Folgende Ausnahmen gem. Anhang III RoHS (2011/65/EU) werden in Anspruch genommen: 6a, 6b.
The following exceptions in accordance with appendix III RoHS (2011/65/ EU) are claimed: 6a, 6b.
Les exceptions suivantes selon l'annexe III RoHS (2011 / 65 / UE) sont revendiquées : 6a, 6b.
Las siguientes excepciones conforme al apéndice III RoHS (2011/65 / UE) son requeridas: 6a, 6b.
Hinsichtlich der elektrischen Gefahren wurden gemäß Anhang I Nr. 1.5.1 der Maschinenrichtlinie 2006/42/EG die Schutz-
ziele der Niederspannungsrichtlinie 2014/35/EU eingehalten.
With respect to potential electrical hazards as stated in appendix І No. 1.5.1 of the machine guide lines 2006/42/EC all
safety protection goals are met according to the low voltage guide lines 2014/35/EU.
Conformément à l'annexe I N° 1.5.1 de la Directive "Machines" (2006/42/CE) les objectifs de sécurité relatifs
au matériel électrique de la Directive "Basse Tension" 2014/35/UE ont été respectés.
Con respecto al potencial peligro eléctrico como se indica en el apéndice I No. 1.5.1 del manual de la máquina
2006/42/CE, todos los medios de protección de seguridad se encuentran según la guía de bajo voltaje 2014/35/UE.
Die Übereinstimmung mit den Vorschriften dieser Richtlinien wird nachgewiesen durch die vollständige Einhaltung
folgender Normen:
Conformity with the requirements of this Directives is testified by complete adherence to the following standards:
La conformité aux prescriptions de ces Directives est démontrée par la conformité intégrale avec les normes suivantes:
La conformidad con las prescripciones de estas directivas queda justificada por haber cumplido totalmente las siguientes normas:
Harmonisierte Europ. Normen / Harmonised Europ. Standards / Normes europ. harmonisées / Normas europ. Armonizadas
EN 809 :1998+A1 :2009+AC :2010 EN ISO 12100 :2010 EN 60204-1 :2018 EN 61000-3-2 :2014 EN 61000-3-3 :2013
EN 61000-6-2 :2005/AC :2005 EN 61000-6-3 :2007/A1 :2011/AC :2012 EN IEC 63000 :2018
Nationale Normen / National Standards / Normes nationales / Normas nacionales : EN 60034-1 :2010/AC :2010
Die Hinweise in der Betriebsanleitung für den Einbau und die Inbetriebnahme der Pumpe sind zu beachten.
The instructions contained in the operating manual for installation and start up the pump have to be followed.
Les indications d’installation / montage et de mise en service de la pompe prévues dans l’instruction d’emploi doivent
être suivies.
Tenga en cuenta las instrucciones en el manual para la instalación y puesta en marcha de la bomba.
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Werdohl, 03.12.2019
...............................................................................................
Reimund Gidde
Geschäftsführer
Managing Director
Dr. H. Abou Dayé
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Dokumentationsbevollmächtigter / Representative of
documentation/ Mandataire de documentation /
Mandatario de documentación
