BRINKMANN PUMPS SXC2824 User manual

BE3124
Operating Instructions
(Translation of original)
©Brinkmann Pumpen Edition 11/2019 1
BRINKMANN Cutter pumps
SXC2824 / SXC2824-H
Brinkmann Pumpen
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2 D-58791 Werdohl
Tel.: +49-2392 / 5006-0 www.brinkmannpumps.de
Fax.: +49-2392 / 5006-180 [e-mail]
Subject to change without prior notice. Order - No.: BE3124 ENGLISH

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 2
Brinkmann Cutter pumps of the series SXC2824 / SXC2824-H
Contents
1Indication to the manual .................................... 2
2Description of product........................................ 2
3Safety instructions............................................. 4
4Transport and storage....................................... 5
5Installation and Connection............................... 5
6Start up / Shut down.......................................... 7
7Operation........................................................... 7
8Servicing and Maintenance............................... 8
9Trouble shooter’s guide .....................................9

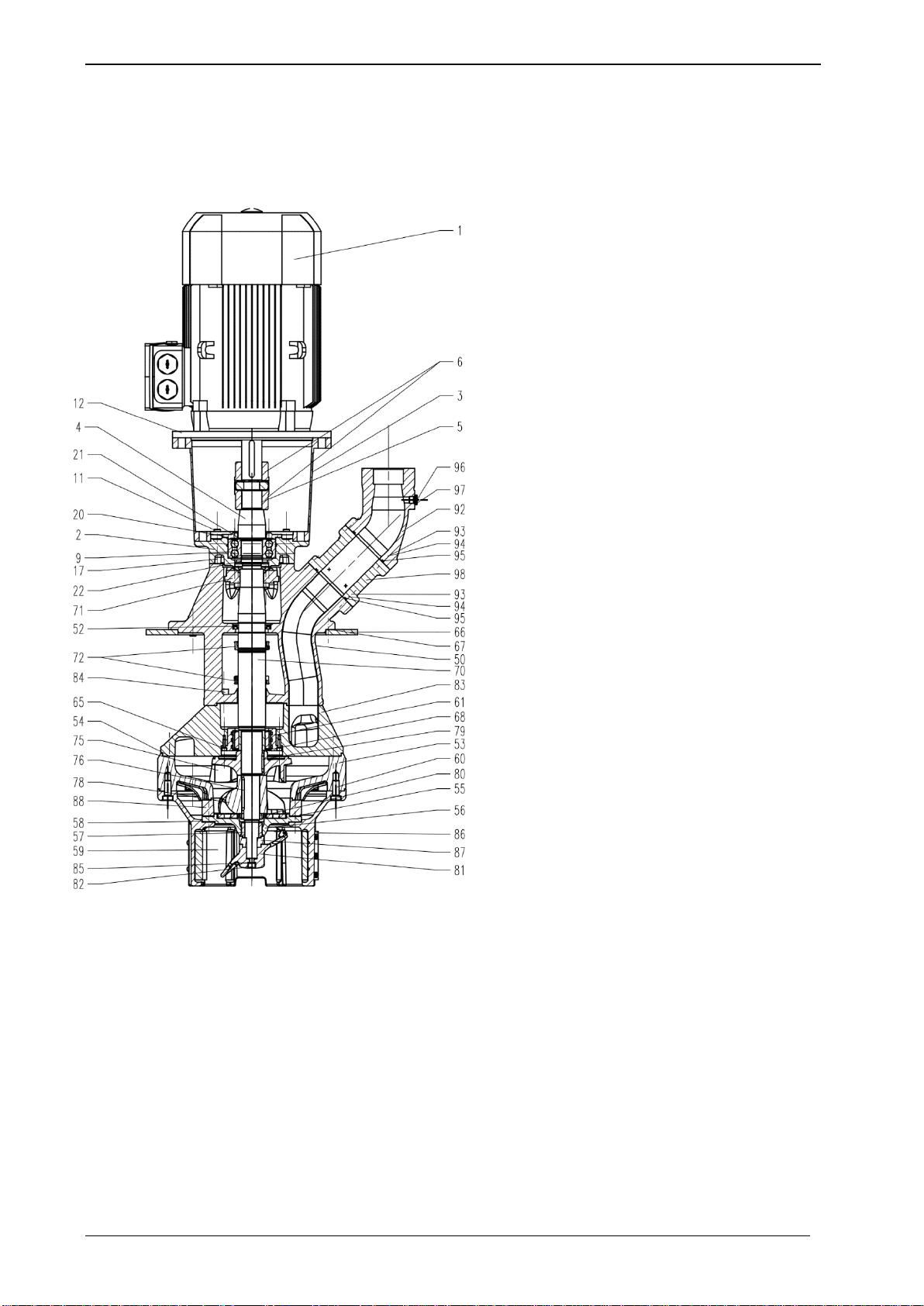

10 Spare part........................................................10

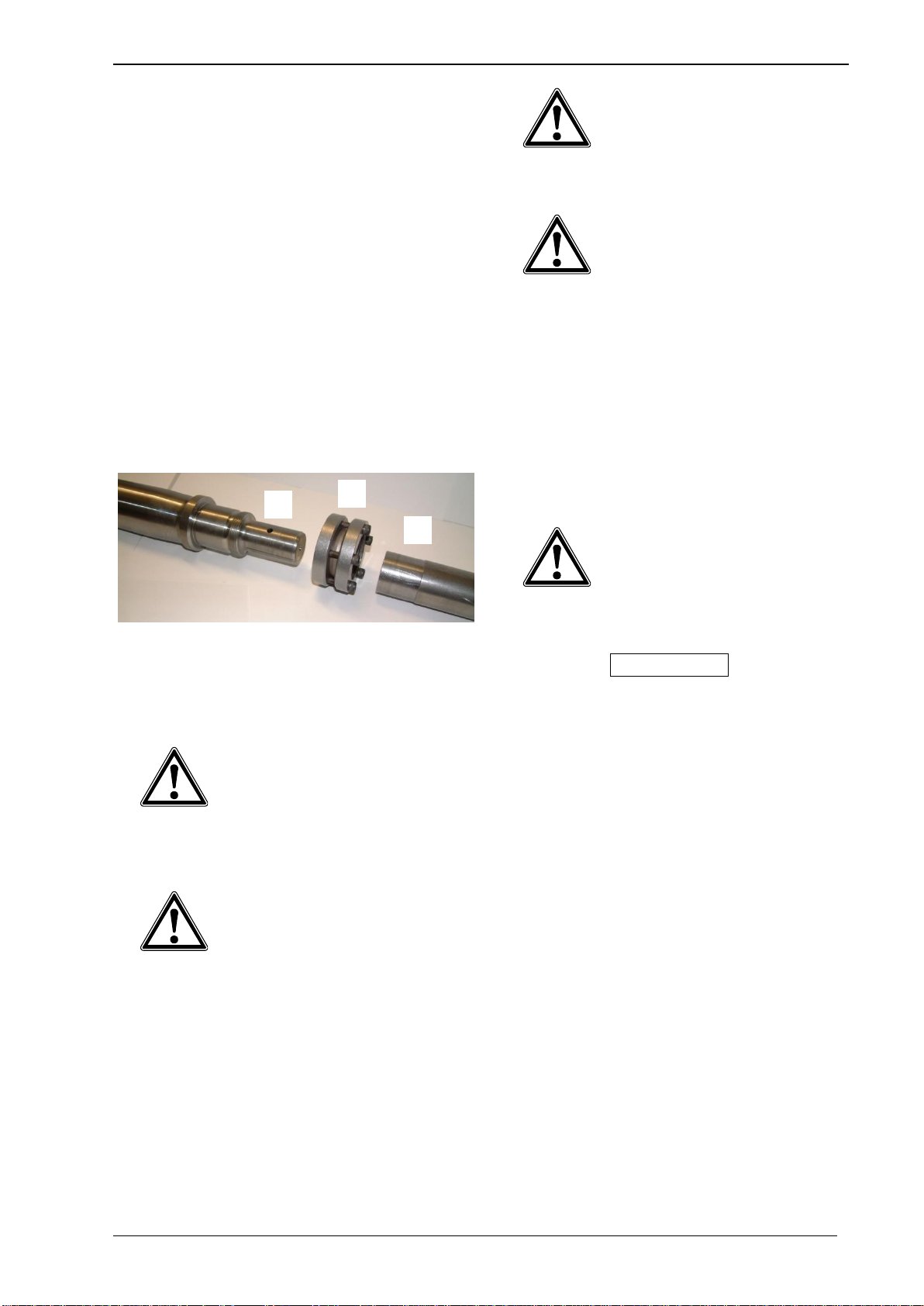

11 Repair Instructions / Replacing shaft clamps
and shafts........................................................11
12 Disposal...........................................................12
13 EC declaration of conformity............................13
1 Indication to the manual
This operating manual gives basic instructions
which are to be observed during installation, op-
eration and maintenance of the pump. It is there-
fore imperative that this manual be read by the
responsible personnel and operator prior to as-
sembly and commissioning. It is always to be
kept available at the installation site.
1.1 Identification of safety instructions
in the operating manual
Safety instructions given in this manual non-com-
pliance with which would affect safety are identi-
fied by the following symbol:
Safety sign according with ISO
3864 –B.3.1
or where electrical safety is involved, with:
Safety sign according with ISO
3864 –B.3.6
The signal word WARNING indicates a hazard-
ous situation which, if not avoided, could result in
death or serious personal injury.
The signal word CAUTION indicates a hazardous
situation which, if not avoided, could result in mi-
nor or moderate personal injury.
The signal word ATTENTION indicates a hazard-
ous situation which, if not avoided, may cause a
risk to the machine and it’s function.
2 Description of product
2.1 General description of the pump
Pumps of the series SXC are one-stage rotary
pumps. The impellers are fixed on the driving
shaft extension. The pump shaft and motor shaft
are interconnected by means of a shaft clamp.
The cutting unit is cutting the chips and the semi-
open impeller with its large clearances allows to
pump the particles along with the coolant fluid
from the machine back to the filter. The SXC
pumps are capable of handling chip to coolant ra-
tios of up to 0.5% by weight.
The chips must be supplied to the suction mouth
of the pump. Pump and motor form a compact
and space-saving unit.
Vertically mounted pumps are equipped with a
mounting flange. The pump end immerses into
the tank and the motor extends vertically above
the tank.
2.2 Intended use
The cutter pumps of the series SXC are designed
to handle low alloyed steels, machining steel and
cast iron / aluminum combinations. Chips can
also be in the shape of birds nests or chip bun-
dles.
–Pay attention of the limit of application in
table 1!
The cutter pumps are intended for installation in
machines and cannot be operated alone.

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 3
Limit of Application (Table 1)
ATTENTION
The pumps are to be operated within their design
limits.
Applications outside of these limits are not ap-
proved. The manufacturer is not responsible for
any damages resulting from use of the pumps in
such applications.
2.3 Technical data
Type
SXC
WARNING
Risk of fire and explosion!
Pump may not be used in potentially explosive
environments.
Mediums
Coolants,
cooling- and cutting-oils on
request.
Flashing point of
the medium to be
pumped
≥150 °C
Chip material
Low alloyed steel, machin-
ing steel, cast iron/alumi-
num combinations
max. chip to coolant ratio
by weight: 0.5%
Chip geometry
Chip bundles to max. Ø
100 mm
Kinetic viscosity of
the medium
...45 mm2/s
Temperature of
medium
0 ... 80 °C
Dry running
Dry running causes in-
creased wear and should
be avoided.
During the test of the direc-
tion of rotation (< 30 s) per-
missible.
Switching-on fre-
quency per hour
The pump SXC should be
operated in continual oper-
ation mode, not pulsed
mode.
Ambient tempera-
ture
40 °C
Set-up altitude
1000 m
Type
Max. del.
pressure
bar / spec.
weight 1
Max. del.
volume
l/min
Height1)
H mm
Depth of
immersion1)
h mm
Weight
kg
Power
(4-pole)
50 / 60 Hz
kW
SXC2824-H/
SXC2824 / 480
/ 610
/ 730
2.0
1700
809
476
606
726
194
196
199
7.5 / 8.6

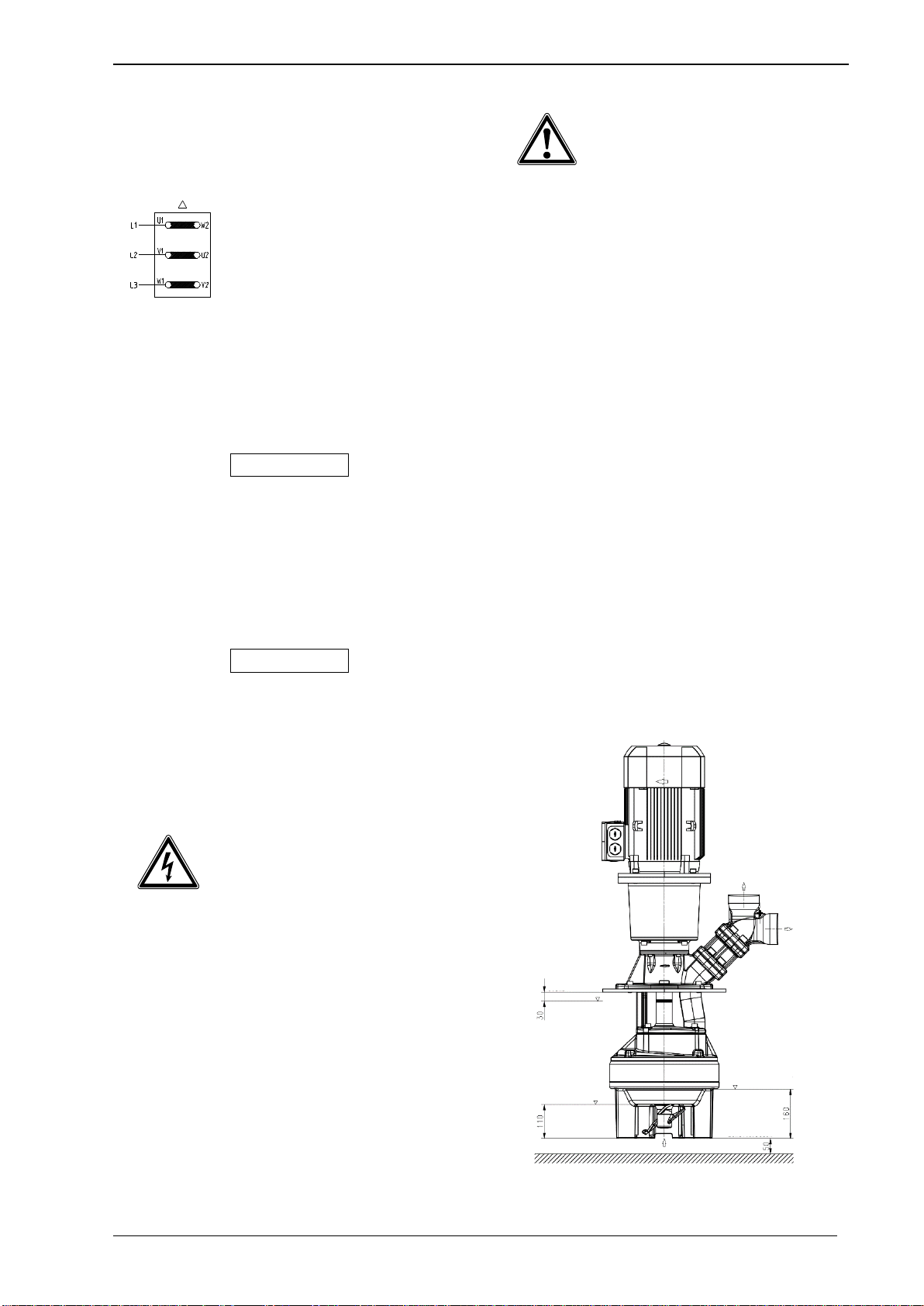

1) Dimensions in accordance with drawing 1.
The motor is surface-cooled and compliant with
DIN IEC 34 and EN 60034 (protection degree IP 55).

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 4
3 Safety instructions
When operating the pump, the safety instructions
contained in this manual, the relevant national ac-
cident prevention regulations and any other ser-
vice and safety instructions issued by the plant
operator are to be observed.
3.1 Hazards in the event of non-com-
pliance with the safety instruc-
tions
Non-compliance with the safety instructions may
produce a risk to the personnel as well as to the
environment and the machine and results in a
loss of any right to claim damages.
For example, non-compliance may involve the fol-
lowing hazards:
•Failure of important functions of the ma-
chines/plant
•Failure of specified procedures of mainte-
nance and repair
3.2 Unauthorized modes of operation
–Pump may not be used in potentially explosive
environments. Risk of explosion!
–Pump and discharge piping are not designed
to hold any weight and may not be used as a
step ladder.
3.3 Remaining Risk
Risk of Injury!
Risk of squeezing or crushing body parts when
installing or removing the pump exists.
–Proper and secured lifting tools must be used.
Risk of burns!
–The pump must have cooled down sufficiently
prior to commencing any repair, maintenance
or installation.
3.4 Qualification and training of oper-
ating personnel
–The personnel responsible for operation,
maintenance, inspection and assembly must
be adequately qualified.
–Scope of responsibility and supervision of the
personnel must be exactly defined by the plant
operator.
–If the staff does not have the necessary
knowledge, they must be trained and in-
structed, which may be performed by the ma-
chine manufacturer or supplier on behalf of
the plant operator. Moreover, the plant opera-
tor is to make sure that the contents of the op-
erating manual are fully understood by the
personnel.
3.5 Safety instructions relevant for op-
eration
–If hot or cold machine components involve
hazards, they must be guarded against acci-
dental contact.
–Guards for moving parts (e.g. coupling) must
not be removed from the machine while in
operation.
–Any leakage of hazardous (e.g. explosive,
toxic, hot) fluids (e.g. from the shaft seal) must
be drained away so as to prevent any risk to
persons or the environment. Statutory regula-
tions are to be complied with.
–All service work must be carried out by quali-
fied service personnel.
–The pumps’ stability against falling over is not
ensured unless it is properly mounted onto the
tank.
–The female threads on the motor MUST NOT
be used to lift the entire pump and motor as-
sembly.
–Sharp-edged components (e.g. Impellers)
must only be touched with suitable work pro-
tection, e.g. with protective gloves.
–Reassure that pump is disconnected from
power source and cannot be switched on.
The by the machine generated noise level de-
pends on the type of chip material pumped.
–It is the responsibility of the machine owner to
ensure that no harm from noise is caused to
the machine operating personnel. i.e. PPE
such as ear protection should be supplied and
worn by the operator.
–Local regulations with respect to maximum al-
lowed noise levels must be complied with at
all times.
3.6 Safety instructions relevant for
maintenance, inspection and as-
sembly work
–Any work on the machine shall only be per-
formed when it is at a standstill, it being imper-
ative that the procedure for shutting down the
machine described in this manual be followed.
–Pumps and pump units which convey hazard-
ous media must be decontaminated.
–On completion of work all safety and protec-
tive facilities must be re-installed and made
operative again.
–Prior to restarting the machine, the instruc-
tions listed under “Start up” (see point 6.1) are
to be observed.
•Exposure of people to electrical, mechanical
and chemical hazards
•Endangering the environment due to hazard-
ous substances being released

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 5
3.7 Signs on the pump
–It is imperative that signs affixed to the ma-
chine, e.g:
•arrow indicating the direction of rota-
tion
•symbols indicating fluid connections
be observed and kept legible.
3.8 Unauthorized alterations and pro-
duction of spare parts
Any modification may be made to the machine
only after consultation with the manufacturer.
Using spare parts, standard parts, and accesso-
ries authorized by the manufacturer is in the inter-
est of safety. Use of other parts may exempt the
manufacturer from any liability.
4 Transport and storage
WARNING
Danger of clamping, crushing and cutting
when transporting the pump!
–Protective packaging should remain on
the pump end until its installation.
–The pumps may only be transported in a
horizontal position and hooks or straps
must be attached on the motor and pump
end.
ATTENTION
–Protect the pump against damage when
transporting.
–Pump may not be placed on its pump end!
–Do not use the pump shaft for connecting
any transportation aids such as hooks or
straps.
WARNING
Risk of injury by discharging fluid!
Pumping fluid that remains inside the pump af-
ter shut down can freeze during low tempera-
ture conditions and cause damage and cracks
to pump components, such as the pump body.
As a result, after restart of the pump the
pumping fluid can then discharge through
such cracks under high pressure and cause
severe injury.
–Pumps must be drained prior to their stor-
age.
–Store pump in dry and protected areas
and protect it against penetration of for-
eign bodies.
–Always store pump above the freezing
point!
5 Installation and Connection
5.1 Mechanical installation
WARNING
Risk of clamping or crushing body parts
when installing or removing the pump ex-
ists!
–Pump must be secured with appropriate
hoist.
–During any assembly or disassembly pro-
cess the pumps must be secured against
tipping trough ropes for example at all
times.
–The pumps must be securely mounted to the
tank.
CAUTION
Risk of cutting and crushing!
If the pipe work is installed under tension and
with stress on the pump, the discharge port
can break off and the pipe work can collapse.
–Discharge piping must be installed without
tension or stress with proper support.
–Discharge piping must never be used as a
step ladder.
–Do not prop up the pressure line via the
joining socket.
–Piping, tank and pumps must be mounted
without any tension.
ATTENTION
–Maximum tightening torque for piping con-
nections is 170 Nm!
ATTENTION
–When installed the space around the
pump must be large enough to provide
sufficient cooling of the motor.
The inlet is at the bottom of the immersed pump
body.
The bottom of the inlet cover must be located 50
mm above the tank bottom in order to prevent un-
wanted objects, such as broken tools or indexing
plates from entering the pump suction. This dis-
tance is critical and must be maintained at all
times.
–To obtain the full flow rate it is recommended
to choose for the pipework the nominal bore
diameter of the pumps cross section for con-
nection.
–Pipe bends should be used, not pipe angles.
–The pipework must be qualified for occuring
hydraulic pressure.

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 6
WARNING
Risk of injury by ejected parts!
The pump may only be operated if installed
within a suitable tank with proper enclosures!
–As particles and/or chips can be redi-
rected from the pump suction at a high ve-
locity, the tank design must incorporate
appropriate protection, i.e. a tank cover,
that prevents such objects from being
ejected out off the tank.
WARNING
Risk of crushing and cutting by moving
parts!
–The pump must be mounted in that way
that rotating parts under the cover of the
coolant tank can not be touched!
WARNING
Risk of fire and explosion!
The creation of an ignition spark with the pres-
ence of an ignitable aerosol can lead to risk of
fire and explosion!
When pumping cooling- and cutting oils the
following is to be adhered to:
–The geometry of the tank must be de-
signed and executed in such a way that
no flammable aerosol can develop (i.e.
through velocity) during operation of the
pump.
–The necessity of mist collection / exhaus-
tion must be investigated and determined.
–In order to avoid the formation of an igni-
tion spark, no foreign particles may enter
the tank.
5.2 Electric wiring
WARNING
Electric shock!
All service work must be carried out by quali-
fied service personnel. Pump must be discon-
nected from the power source and all rotating
parts must stand still. Reassure that pump is
disconnected from power source and cannot
be switched on.
–Verify that there is no voltage at the termi-
nal board!
–According to the European Standard EN809 a
motor overload must be installed and properly
set to the full load amps stated on the pump
name plate.
WARNING
Risk of injury by uncontrolled start-up of
the pump or by missing emergency shut
off switch!
Unwanted pump start-up or missing shut off
switches can cause severe injury through
ejected parts from the pump discharge or from
cutting or pulling body parts into the pump
suction.
–Reassure that pump is disconnected from
power source and cannot be switched on.
–It is the responsibility of the machine operator
to decide whether or not an additional emer-
gency switch must be installed.
5.2.1 Circuit
WARNING
Electric shock!
Tension voltage and frequency must corre-
spond with the shown specification on the
nameplate.
–The pump must be wired so that a solid
longterm electrical connection is ensured.
–Establish a solid ground connection.
Drawing 1

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 7
The electrical wiring must be performed ac-
cording to the wiring diagram shown inside
the terminal box cover.
(Please see above sample wiring diagrams):
Wiring diagram e.g.
There may be no foreign objects such as dirt, par-
ticles or humidity inside the terminal board.
–Mount terminal board cover to motor tight
against dust and humidity and close up all un-
used wiring ports.
ATTENTION
When Variable Frequency Drives are used in-
terfering signals might occur.
Non-sinus shaped supply voltage from a varia-
ble frequency drive might result in elevated
motor temperatures.
6 Start up / Shut down
6.1 Start up
ATTENTION
–After connection the electrical wires, close
the terminal box. Briefly start the motor
(max. 30 sec.).
–Check the rotation according to the arrow
on the top of the motor.
If the direction is incorrect change over two of the
power leads.
6.2 Shut down
WARNING
Electric shock!
All service work must be carried out by quali-
fied service personnel. Pump must be discon-
nected from the power source and all rotating
parts must stand still. Reassure that pump is
disconnected from power source and cannot
be switched on.
–Verify that there is no voltage at the termi-
nal board!
–Open terminal box and disconnect the power
leads.
–Empty out the pump.
7 Operation
WARNING
Risk of injury by uncontrolled start-up of
the pump or absence of emergency shutt
of switch!
–Unwanted pump start-up or missing shut
off switches can cause severe injury
through ejected parts from the pump dis-
charge or from cutting or pulling body
parts into the pump suction.
–Reassure that pump is disconnected from
power source and cannot be switched on.
–It is the responsibility of the machine oper-
ator to decide whether or not an additional
emergency switch must be installed.
Liquid level
According to the drawing 3, the maximum liquid
level must stay about 30 mm below the mounting
flange, also ensure that the minimal liquid level
for the SXC pump is 110 mm or 160 mm (see
drawing 3) before starting up the motor.
The pump suction is at the bottom of the im-
mersed pump body.
The bottom of the inlet cover must be located
50 mm above the tank bottom in order to prevent
unwanted objects, such as broken tools or index-
ing plates from entering the pump suction.
This distance is critical and must be maintained at
all times.
–By means of suitable tank geometry the chips
are to be led to the suction mouth of the
pump.
Drawing 3
Delta connection
3 x 400 V, 50 Hz
resp. 380-415 V, 50 Hz
Drawing 2
max.
liquid level
min.
liquid level
coolants
min.
liquid level
oils
min. distance
to the tank
bottom

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 8
WARNING
Risk of fire and explosion!
The creation of an ignition spark with the pres-
ence of an ignitable Aerosol can lead to risk of
fire and explosion.
The fluid level during operation with cooling
and cutting oils must therefore always be
above the cutting mechanism to fully cover it
in order to avoid the possibility of the creation
of an ignition spark.
–Unwanted objects, such as broken tools or
indexing plates which still lie under the
pump after stopping the working process
must be taken out in regular intervals!
–Any repair or maintenance work must be
performed after the pump has been turned
off and the shaft has come to a complete
stop. Risk of injury!
See provided warning label!
–If the pump should lock up and cease,
shut pump down (see point 6.2) and dis-
connect from power supply. Pump must
be uninstalled and removed from the sys-
tem prior to its repair.
ATTENTION
Pulsed mode causes increased wear due to
the return flow of chips and additional load on
the bearings.
–The SXC pump should be operated in
continual operation mode, not pulsed
mode!
–The pump should transport medium with-
out chips for 1-2 minutes before being
switched off!
8 Servicing and Maintenance
CAUTION
Risk of burns!
–The pump must have cooled down suffi-
ciently prior to commencing any repair,
maintenance or installation.
WARNING
Risk of injury through contaminated parts!
–Pumps and pump units which convey haz-
ardous media must be decontaminated.
ATTENTION
–The surface of the motor must be kept
free of dirt.
The motor shaft is spinning in permanently
greased ball bearings and does not require any
special maintenance.
–On completion of work all safety and protec-
tive facilities must be re-installed and made
operative again.
–Prior to restarting the machine, the instruc-
tions listed under “Start up” (point 6.1) are to
be observed
.

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 9
9 Trouble shooter’s guide
Fault
Cause
Remedy
Motor does not start, no motor
noise
At least two of the power supply
leads have failed
Overload has tripped
Check fuses, terminals and supply
leads.
Inspect overload
Motor does not start, humming
noise
One of the supply leads has failed
Impeller faulty
Motor bearing faulty
See above
Replace impeller
Replace bearing
Overload trips
Pump locked up mechanically
High on/of cycling frequency
Inspect pump hydraulics
Check application
Power consumption is too high
Wrong direction of rotation of im-
peller
Lime or other deposits
mechanical friction
See above
Clean pump mechanism
repair pump
Motor overheats
High on/off cycling frequency
Wrong power supply (voltage or
cycles)
Insufficient cooling
See above
Power supply must correspond
with name plate rating
Check air flow at motor fan
Pump does not pump
liquid level too low
Pump mechanism faulty
Pipe blocked
Fill up liquid
replace pump mechanism
Clean pipe
The pump pumps no chips
Chip breaker worn or damage
Replace the chip breaker
Insufficient flow and pressure
Wrong direction of rotation of im-
peller
Pump mechanism silted up
Worn pump mechanism
Change over two power supply
leads
Clean pump mechanism
Replace pump mechanism
Incorrect flow or pressure
Wrong power supply (voltage or
cycles)
Power supply must correspond
with name plate rating
Running noise/Vibration
Foreign objects in pump end
Impeller damaged
Bearing/Bushing broken
Remove foreign objects
Replace impeller
Replace bearing/bushing

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 10
10 Spare part
10.1 Spare part list for the immersion
pumps of the series SXC2824
Drawing 4
Item Description
1 Motor
2 Bearing flange
3 Pump housing
4 Bearing shaft
5 Woodruff key
6 Coupling
9 Ball bearing DIN 628
11 Socket head cap screw DIN 912
12 Socket head cap screw with lock DIN 912
with spring washer DIN 7980
17 Socket head cap screw with lock DIN 912
20 Bearing cover
21 Retaining ring DIN 7603
22 Shaft nut
50 Pump body
52 Shaft seal
53 Intake cover
54 Socket head cap screw with lock DIN 912
55 Washer
56 Chip breaker
57 Bearing bush
58 Socket head cap screw with lock DIN 7984
59 Inlet cover
60 Socket head cap screw with lock DIN 7984
61 Bushing cartridge assembly
65 Socket head cap screw with lock DIN 912
66 Pump sheets
67 Socket head cap screw with lock DIN 912
68 Distance plate
70 Insert shaft
71 Shaft clamp
72 Splash ring
75 Impeller
76 Key DIN 6885
78 Suction screw
79 Key DIN 6885
80 Shaft nut
81 Agitator
82 Socket head cap screw with lock DIN 912
83 Pump plate
84 Socket head cap screw with lock DIN 912
85 Serrated lock washer
86 Hard metal plates
87 Scraper SXC2824-H
88 Wear protection SXC2824-H
92 Joining socket
93 Socket head cap screw DIN 912
94 Spring washer DIN 7980
95 O-ring
96 Screw plug DIN 908
97 Sealing ring DIN 7603
98 Adapter

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 11
10.2 Indications to the spare part order
Spare parts are available from the supplier.
Standard commercially available parts are to be
purchased in accordance with the model type.
The ordering of spare parts should contain the
following details:
1. Pumptype
e.g. SXC2824 / 480
2. Pump No.
e.g. 07193124
The date of the construction year is a compo-
nent of the pumps type number.
3. Voltage, Frequency and Power
Take item 1, 2 and 3 from the nameplate
4. Spare part with item No.
e.g. Intake cover item No. 53
11 Repair Instructions / Replac-
ing shaft clamps and shafts
11.1 Dismantling the insert shaft or ex-
tension shaft
–Disconnect the submergible pump from the
mains both electrically and mechanically.
CAUTION
Risk of burns!
–The pump must have cooled down suffi-
ciently prior to commencing any repair or
maintenance.
WARNING
Risk of squeezing or crushing body parts
when installing or removing the pump ex-
ists!
–Secure pump with appropriate hoist.
–Remove pump from system. Secure pump
against tipping over, i.e. use ropes to secure
pump.
–Disassemble the motor.
–Set the pump down on the pump housing.
–Dismantle the pump unit and the extension
pump body (if appropriate).
WARNING
Risk of injury due to sharp edges on pump
components, i.e. impeller blades!
–Wear safety gloves!
WARNING
Risk of injury by discharging parts!
–Do not, under any circumstances, remove
the screws on the shaft clamp (1) com-
pletely.
–Remove the extension shaft (2) and shaft
clamp (1).
–Dismantle the pump body.
–Loosen the screws on the shaft clamp (1)
(see above), pull the insert shaft (2) off the
motor shaft (3).
11.2 Assembling the insert shaft and
motor shaft
WARNING
Risk of jamming or crushing during pump
installation or removal!
–Secure pump with appropriate hoist.
ATTENTION
–Clean the contact surfaces of the insert
shaft (2) (inside) and the motor shaft (3).
They must not be lubricated or oiled.
–Set the pump down on the pump housing.
–Position the shaft clamp (1) (use a new shaft
clamp) in the centre of the cranked clamping
diameter (2) of the insert shaft.
–Insert the motor shaft (3) into the insert shaft
(2).
–Tighten:
Mark the first screw and tighten all the screws
evenly by hand, one after the other in a clock-
wise direction (not cross-ways).
–Use a torque screwdriver to tighten each
screw first with 12 Nm then with 24 Nm and
finally with 35 Nm (in a clockwise direction
again).
–Repeat the last turn (with 35 Nm) 3 times.
3
1
2
1 = Shaft clamp
2 = Insert / extension shaft
3 = Motor shaft / Insert shaft
Drawing 5

BRINKMANN-Cutter pumps SXC2824 / SXC2824-H
BE3124 Edition 11/2019 12
WARNING
Risk of injury due to sharp edges on pump
components, i.e. impeller blades!
–Wear safety gloves!
–Install the motor.
–The remainder of the reassembly process is
to be completed in the opposite order of the
prior described dismantling process.
ATTENTION
Assembly help and detailed instruction is de-
manded for the assembly of the pump and
adjusting of the cutting unit!
–Request the required documents from the
manufacturer.
–Note torques for the screw connections!
–Pump Installation. Secure pump against fall-
ing over. i.e. with use of safety straps.
–Reconnect immersion pump as described in
point 5.
ATTENTION
–When putting the pump back into use,
make sure the direction of rotation is
correct (see point 6.1)!
12 Disposal
When disposing of the pump or the packaging
materials the local and national regulation for
proper disposal must be complied with.
–Prior to its disposal, the pump must be com-
pletely drained and decontaminated if neces-
sary.
Thread - 
M5
M6
M8
M12
M16
Strength
classes
8.8
8.8
8.8
8.8
8.8
Tightening
torque (Nm)
3 Nm
4.5 Nm
20 Nm
80 Nm
Item 54,
60, 84
60 Nm
Item 93
100 Nm
Item 54
Tightening torques for screwed connections

BE3124 Edition 11/2019 13
13 EC declaration of conformity
DEUTSCH / ENGLISH /FRANÇAIS / ESPAÑOL
EG-Konformitätserklärung
EC declaration of conformity / Déclaration de conformité CE / Declaración de conformidad CE
Hersteller / Manufacturer / Constructeur / Fabricante
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Produktbezeichnung / Product name / Désignation du produit / Designación del producto
Cutterpumpen / Cutter Pumps / Pompes Broyeuses / Bombas Trituradoras
Typ / Type / Tipo SXC2824 / SXC2824-H
Das bezeichnete Produkt stimmt mit den folgenden Richtlinien des Rates zur Angleichung der Rechtsvorschriften der
EG-Mitgliedsstaaten überein:
The named product conforms to the following Council Directives on approximation of laws of the EEC Member States:
Le produit sus-mentionné est conforme aux Directives du Conseil concernant le rapprochement des législations des
Etats membres CEE:
El producto designado cumple con las Directivas del Consejo relativas a la aproximación de las legislaciones de los
Estados Miembros de la CEE:
2006/42/EG Richtlinie für Maschinen
2006/42/EC Council Directive for machinery
2006/42/CE Directive du Conseil pour les machines
2006/42/CE Directivas del Consejo para máquinas
2014/30/EU Richtlinie für elektromagnetische Verträglichkeit
2014/30/EU Council Directive for Electromagnetic compatibility
2014/30/UE Directive du Conseil pour Compatibilité électromagnétique
2014/30/UE Directivas del Consejo para Compatibilidad electromagnética
2011/65/EU und 2015/863/EU RoHS Richtlinien
2011/65/EU and 2015/863/EU RoHS Directives
2011/65/UE et 2015/863/UE Directives RoHS
2011/65/UE y 2015/863/UE RoHS Directivas
Folgende Ausnahmen gem. Anhang III RoHS (2011/65/EU) werden in Anspruch genommen: 6a, 6b.
The following exceptions in accordance with appendix III RoHS (2011/65/ EU) are claimed: 6a, 6b.
Les exceptions suivantes selon l'annexe III RoHS (2011 / 65 / UE) sont revendiquées : 6a, 6b.
Las siguientes excepciones conforme al apéndice III RoHS (2011/65 / UE) son requeridas: 6a, 6b.
Hinsichtlich der elektrischen Gefahren wurden gemäß Anhang I Nr. 1.5.1 der Maschinenrichtlinie 2006/42/EG die Schutz-
ziele der Niederspannungsrichtlinie 2014/35/EU eingehalten.
With respect to potential electrical hazards as stated in appendix І No. 1.5.1 of the machine guide lines 2006/42/EC all
safety protection goals are met according to the low voltage guide lines 2014/35/EU.
Conformément à l'annexe I N° 1.5.1 de la Directive "Machines" (2006/42/CE) les objectifs de sécurité relatifs
au matériel électrique de la Directive "Basse Tension" 2014/35/UE ont été respectés.
Con respecto al potencial peligro eléctrico como se indica en el apéndice I No. 1.5.1 del manual de la máquina
2006/42/CE, todos los medios de protección de seguridad se encuentran según la guía de bajo voltaje 2014/35/UE.
Die Übereinstimmung mit den Vorschriften dieser Richtlinien wird nachgewiesen durch die vollständige Einhaltung
folgender Normen:
Conformity with the requirements of this Directives is testified by complete adherence to the following standards:
La conformité aux prescriptions de ces Directives est démontrée par la conformité intégrale avec les normes suivantes:
La conformidad con las prescripciones de estas directivas queda justificada por haber cumplido totalmente las siguientes normas:
Harmonisierte Europ. Normen / Harmonised Europ. Standards / Normes europ. harmonisées / Normas europ. Armonizadas
EN 809 :1998+A1 :2009+AC :2010 EN ISO 12100 :2010 EN 60204-1 :2018 EN 61000-3-2 :2014 EN 61000-3-3 :2013
EN 61000-6-2 :2005/AC :2005 EN 61000-6-3 :2007/A1 :2011/AC :2012 EN IEC 63000 :2018
Nationale Normen / National Standards / Normes nationales / Normas nacionales : EN 60034-1 :2010/AC :2010
Die Hinweise in der Betriebsanleitung für den Einbau und die Inbetriebnahme der Pumpe sind zu beachten.
The instructions contained in the operating manual for installation and start up the pump have to be followed.
Les indications d’installation / montage et de mise en service de la pompe prévues dans l’instruction d’emploi doivent
être suivies.
Tenga en cuenta las instrucciones en el manual para la instalación y puesta en marcha de la bomba.
Brinkmann Pumpen, K. H. Brinkmann GmbH & Co. KG
Werdohl, 06.11.2019
.......................................................
Reimund Gidde
Geschäftsführer
Managing Director
Dr. H. Abou Dayé
K. H. Brinkmann GmbH & Co. KG
Friedrichstraße 2, D-58791 Werdohl
Dokumentationsbevollmächtigter / Representative of
documentation/ Mandataire de documentation /
Mandatario de documentación
