Brinkmann Series 2630 User manual

OFF
HIGH
LOW
OFF
HIGH
LOW
OFF
HIGH
LOW
OFF
HIGH
LOW
MAXIMUM

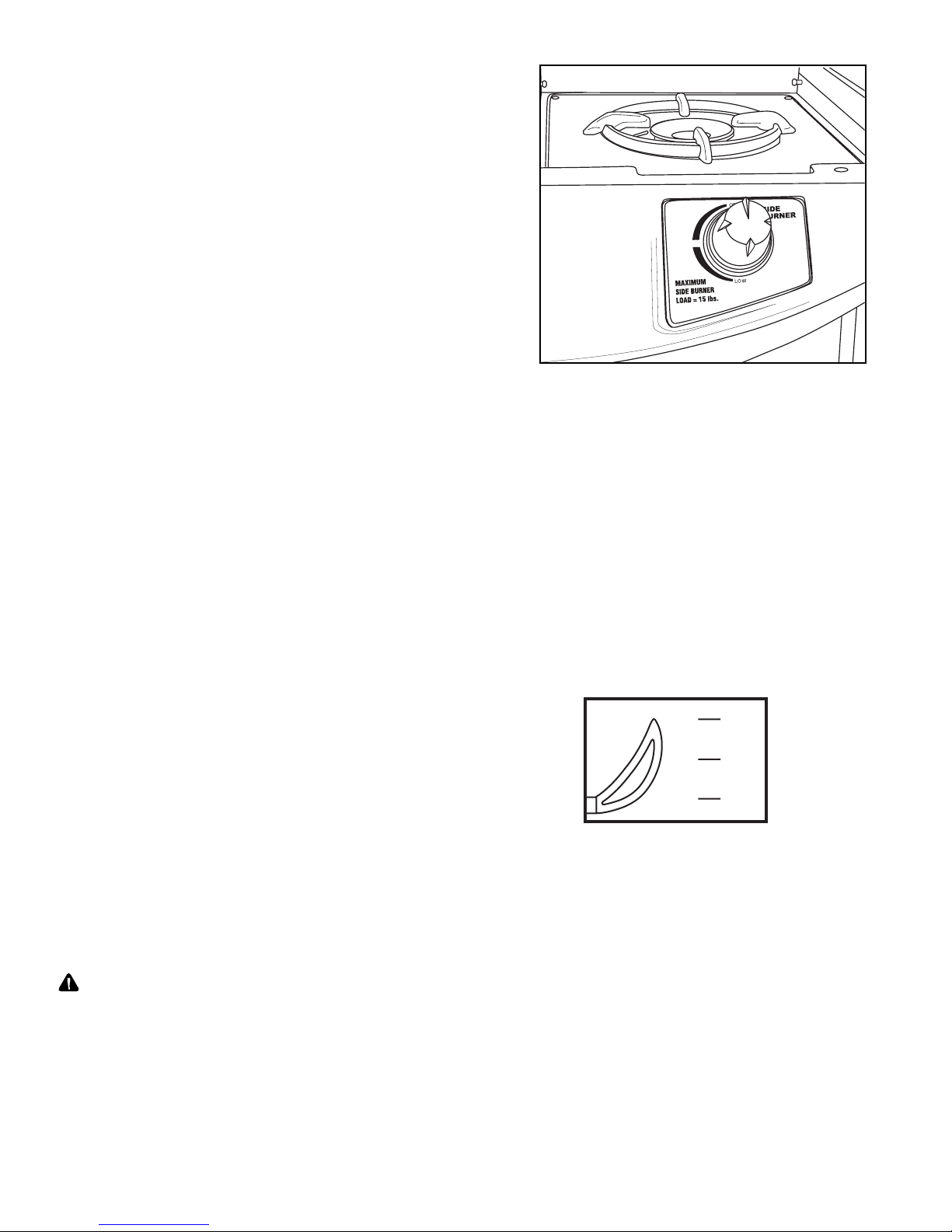

SIDE BURNER
LOAD = 15 lbs.
1. Read and follow all warnings and instructions
in owner’s manual before lighting.
2. Open lid before lighting burner.
3. Make sure all control knobs are in the OFF position.
4. Select the burner to be lit. Push and turn the control
knob of that burner to HIGH.
5. Press the electronic igniter and hold for 3-5
seconds to light burner.
6. If burner does NOT ignite immediately, turn control
knob to OFF,wait 5 minutes to allow gas to
dissipate and repeat lighting procedure.
7. Repeat Steps 4-6 for lighting each burner. Always
use electronic igniter for lighting each burner.
8. Refer to owner’s manual for match lighting procedure.
9. For assistance, call 1-800-527-0717.
10. To turn off, turn control knobs clockwise until it locks
in OFF position.
GRILL LIGHTING INSTRUCTIONS: SIDE BURNER
LIGHTING
INSTRUCTIONS:
1. Follow Steps
1-3 in GRILL
LIGHTING
INSTRUCTIONS.
2. Push and turn
SIDE BURNER
control knob to
HIGH.
3. Follow Steps
5-10 in GRILL
LIGHTING
FOR OUTDOOR USE ONLY
50
100
200300
400
500
°F
OWNER’S MANUAL
WARNING
HAZARDOUS EXPLOSION MAY
RESULT IF THESE WARNINGS AND
INSTRUCTIONS ARE IGNORED. READ
AND FOLLOW ALL WARNINGS AND
INSTRUCTIONS IN THIS MANUAL TO
AVOID PERSONAL INJURY, INCLUDING
DEATH OR PROPERTY DAMAGE.
ASSEMBLY AND OPERATING INSTRUCTIONS
SAVE THIS MANUAL FOR FUTURE REFERENCE
NOTICE TO INSTALLER:
LEAVE THESE INSTRUCTIONS
WITH THE GRILL OWNER FOR
FUTURE REFERENCE.
Stainless Steel
Outdoor Grill

WE WANT YOU TO ASSEMBLE AND USE YOUR GRILL AS SAFELY AS POSSIBLE.
THE PURPOSE OF THIS SAFETY ALERT SYMBOL IS TO ATTRACT YOUR
ATTENTION TO POSSIBLE HAZARDS AS YOU ASSEMBLE AND USE YOUR GRILL.
WHEN YOU SEE THE SAFETY ALERT SYMBOL
PAY CLOSE ATTENTION TO THE INFORMATION WHICH FOLLOWS!
READ ALL SAFETY WARNINGS AND INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING AND OPERATING YOUR GRILL.
1
DANGER
IMPORTANT SAFETY
WARNINGS
FOR YOUR SAFETY:
IF YOU SMELL GAS:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. Open the Lid.
4. If odor continues, leave the area and immediately call your gas supplier or your fire department.
FOR YOUR SAFETY:
1. DO NOT store or use gasoline or other liquids with flammable vapors in the vicinity of this or
any other appliance.
2. An LP cylinder shall not be stored in the vicinity of this or any other appliance to avoid the
possibility of explosion.
• Never store a LP gas cylinder under or near this grill.
• A fire causing death or serious injury may occur if the above is not followed exactly.
WARNING
WARNING

2
WARNING
•Never use liquid propane gas (LP) in a unit designed for natural gas.
•Never use charcoal briquets or lighter fluid in a gas grill.
•Leak test all connections before first use, even if grill was purchased fully assembled and after
each time the hose is connected to the natural gas supply.
•Never check for leaks using a match or open flame.
CAUTION! Strong odors, colds, sinus congestion, etc. may prevent the detection of
natural gas. Use caution and common sense when testing for leaks.
•Always keep gasoline, paint thinner, or other flammable liquids or combustible materials away
from your gas grill.
•DO NOT store flammable products: paper towels, rags, pot holders, etc. in tool drawer.
•Always check the grill prior to each use as indicated in the "Pre-Start Check List" section of this
manual.
•Keep children and pets away from hot grill. DO NOT allow children to use or play near this grill.
•DO NOT leave the grill unattended while in use.
•DO NOT allow the gas hose to come in contact with hot surfaces.
•DO NOT allow grease from drain hole to fall on hose.
•Keep any electrical supply cords away from water or heated surfaces.
•Keep a fire extinguisher on hand acceptable for use with gas products. Refer to your local
authority to determine proper size and type.
•Never place more than 15 pounds on the side burner. DO NOT lean on the side burner shelf.
•For household use only. DO NOT use this grill for anything other than its intended purpose.
•DO NOT use while under the influence of drugs or alcohol.
•Grill is hot when in use. To avoid burns:
•DO NOT attempt to move the grill.
•Lock the wheels so the unit does not accidentally move.
•Wear protective gloves or oven mitts.
•DO NOT touch any hot grill surfaces.
•DO NOT wear loose clothing or allow hair to come in contact with grill.
USE CAUTION AND COMMON SENSE WHEN OPERATING YOUR GAS GRILL.
FAILURE TO ADHERE TO THE SAFETY WARNINGS AND GUIDELINES IN THIS
MANUAL COULD RESULT IN SEVERE BODILY INJURY OR PROPERTY DAMAGE.
SAVE THIS MANUAL FOR FUTURE REFERENCE.

3
WARNING
WARNING
•DO NOT use hard metal piping of any kind to connect this type of grill to a natural gas source.
Use only hose specified by manufacturer. Using hard metal piping or convoluted metal tubing is
an unsafe practice. Movement of the grill can cause breakage of metal pipe.
•The appliance and its individual shut off valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of
1/2 psi (3.5 kPa).
•The appliance must be isolated from the gas supply piping system by closing its individual
manual shut off valve during any pressure testing of the gas supply piping system at test
pressure equal to or less than 1/2 psi (3.5 kPa).
•This grill is designed for natural gas use at 7 inch water column supply pressure. Verify supply
pressure with your local gas company. Not for use with LP gas.
•Connections to gas source must be performed by a certified plumber.
INSTALLATION INFORMATION:
The installation of this appliance must be in accordance with:
All applicable local codes, or in the absence of local codes, either:
• National Fuel Gas Code,
• ANSI Z223.1 1988 or latest edition (USA)
• Natural Gas Installation Code: CAN/CGA B149.1 (Canada)
• Propane Installation Code: CAN/CGA B149.2 (Canada)
• Only ANSI Z21.54 approved hoses should be used with this grill.
To check your local codes, see your local LP gas dealer or natural gas company.
•FOR OUTDOOR USE ONLY. DO NOT operate indoors or in an enclosed area such as garage,
shed or breezeway.
•Use your grill OUTDOORS in a well ventilated space away from dwellings or other buildings to
prevent dangers associated with gas accumulation and toxic vapors. We recommend your grill
be situated at least 10 feet from buildings.
•Maintain a minimum clearance of 24 inches (60 cm) between all sides of grill and walls or other
combustible material. Do not use grill under overhead unprotected combustible construction.
•DO NOT use or install this grill in or on a recreational vehicle and/or boat.

4
•Never use your grill without leak testing all gas connections and hoses. See the section on
“Leak Testing”in this manual for proper procedures.
•Visually inspect the hose assembly prior to each use for evidence of damage, excess wear or
deterioration. If found, replace the assembly before using your grill. Only the Brinkmann
supplied replacement should be used.
WARNING
CONNECTING YOUR GRILL TO THE NATURAL GAS SOURCE
1. Coat pipe nipple with gas resistant teflon tape or pipe dope. Tighten quick-disconnect coupling onto
pipe nipple that leads to natural gas supply (Figure A).
2. After grill is completely assembled, make sure natural gas supply valve is “OFF”and then connect
natural gas hose to socket. Push sleeve back on socket (Figure B) and insert plug until sleeve snaps
forward, locking plug into socket. Be sure to leak test these connections prior to use.
Pipe nipple
Quick-disconnect
coupling Plug
Push sleeve back to attach
Sleeve
Socket
Natural gas supply
Natural gas supply Hose
Hose
Insert cover when hose is disconnected
DISCONNECTING YOUR GRILL FROM THE NATURAL GAS SOURCE
1. Turn natural gas supply valve “OFF”
2. To disconnect, push sleeve back and pull plug out of sleeve.
(Figure A)
(Figure B)
Supply valve
Supply valve

LEAK TESTING:
To prevent fire or explosion hazard:
•DO NOT smoke or permit ignition sources in the area while conducting a leak test.
•Perform test OUTDOORS only in a well ventilated area.
•Never perform a leak test with a match or open flame.
•Never perform a leak test while the grill is in use or while grill is still hot.
WHEN TO PERFORM A LEAK TEST:
•After assembling your grill and before lighting for the first time, even if purchased fully assembled.
•Every time the gas hose is connected to the natural gas supply or if any of the gas components
are replaced.
•Any time your grill has been moved.
•At least once per year or if your grill has not been used for more than 60 days.

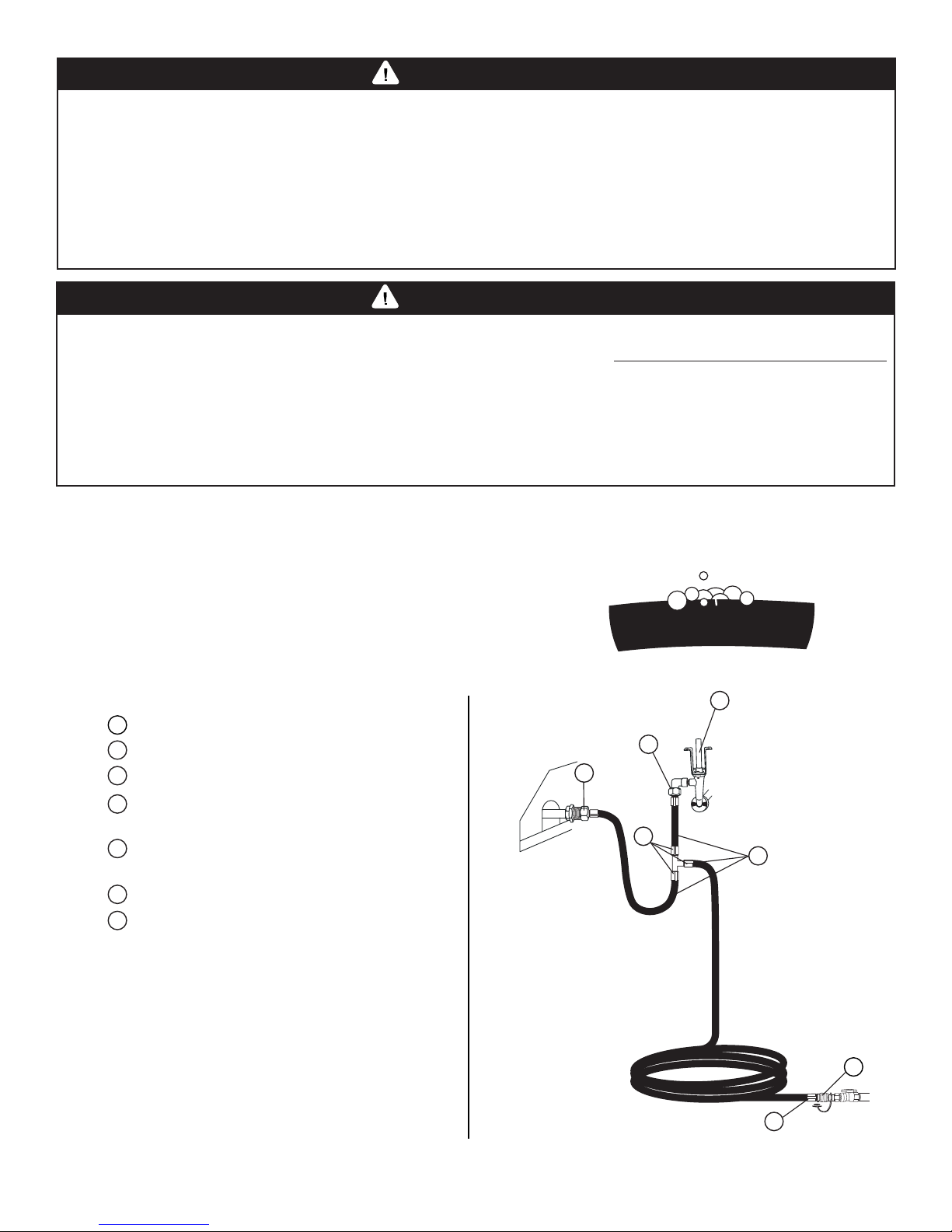

CHECKING FOR LEAKS:
1. Create a mixture of 50% water and 50% liquid dishwashing soap.
2. Open the lid.
3. Insure all burner knobs are set to the OFF position.
4. Turn on the natural gas supply.
5. Apply the soap water mixture to the following:
Quick-disconnect coupling
Plug and hose connection
The full length of gas supply hose
“T”connector to all three gas supply
hoses .
Gas supply hose connection to side
burner valve assembly.
Side burner valve stem cap.
Gas supply connection to gas manifold.
WARNING
A
B
C
D
E
F
G
Watch For Bubbles
DANGER
A
B
C
D
E
F
G
5

WARNING
6
6. Check each place listed (A -G) for growing bubbles which indicates a leak.
7. Turn OFF gas supply at natural gas supply.
8. Turn on control knobs to release gas pressure in hose.
9. Turn control knobs to OFF position.
10. Tighten any leaking connections.
11. Repeat soapy water test until no leaks are detected. DO NOT use the grill if leaks cannot be stopped.
Contact a qualified gas appliance repair service.
12. Turn OFF gas supply at natural gas supply until you are ready to use your grill.
13. Wash off soapy residue with cold water and towel dry.
14. Wait 5 minutes to allow all gas to evacuate the area before lighting grill.
NOTE: The leak test must be performed in an area that has adequate lighting in order to see if
bubbles are developing. DO NOT use a flashlight to check for bubbles.
PRE-START CHECK LIST:
Property damage, bodily harm, severe burns, and death could result from failure to follow these
safety steps. These steps should be performed after the grill has been assembled, stored, moved,
cleaned, or repaired. DO NOT operate this grill until you have read and understand ALL of the
warnings and instructions in this manual.
•Insure that the grill is properly assembled.
•Inspect the gas supply hose for burns, chaffing, kinks, and proper routing before each use. Hose
should be at least 3 inches from hot surfaces.
•Leak check all gas connections and hose. See section on "Leak Testing".
•Ensure that all electrical supply cords are properly grounded and are kept away from water and hot
surfaces.
•Position your grill on level ground in a well ventilated location, a safe distance from combustible
materials and buildings.
•Properly place the empty grease tray under the grease drain hole in the bottom of the
grill to catch grease during use.
Read, understand and follow all warnings and instructions contained in this manual. DO NOT skip
any of the warnings and instructions contained in the preceding sections of this manual.
WARNING

LIGHTING INSTRUCTIONS:
Follow the instructions exactly.
1. OPEN THE GRILL LID before attempting to light a burner so that fumes do not accumulate inside
the grill. An explosion could occur if grill lid is down.
2. Check that all burner control knobs and the natural gas supply are turned to the OFF position.
3. Turn on the natural gas supply.
4. DO NOT stand with head, body, or arms over the grill when lighting.
LIGHTING THE MAIN BURNERS:
1. Open lid before lighting burner.
2. Make sure all control knobs are in the OFF position.
3. Select the burner to be lit. Push and turn the control knob of
that burner to the HIGH position.
4. Press the electronic igniter and hold for 3-5 seconds until
burner ignites.
5. If burner does NOT ignite immediately, turn the burner control
knob to OFF, wait 5 minutes for gas to evacuate the grill.
Repeat steps 1 through 5 until burner ignites.
6. If burner does not ignite using the push button igniter wait
5 minutes, see "Match Lighting the Main Burners" section.
7. Once lit, light adjacent burners in sequence by pressing in
and rotating the control knob to the HIGH position.
MATCH LIGHTING THE MAIN BURNERS:
1. Open lid before lighting.
2. Turn the burner control knobs to OFF.
3. Place a paper match in the end of the matchlighter. Strike the
match and place through lighting hole in the right hand side
of the grill to approximately 1/2" (2 to 3 cm) from the burner.
4. Turn on the FAR RIGHT burner control knob to the HIGH
position. The burner should light within 5 seconds.
5. If the burner does not light, turn the control knob to OFF and
wait 5 minutes for gas to evacuate the grill. Repeat steps 1
through 5 until the burner ignites.
6. Once lit, light adjacent burners in sequence by pressing in and rotating the control knob to the
HIGH position.
7. If the burner does not light within the first few attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and natural gas supply. DO NOT attempt to operate the grill
until the problem is found and corrected. See “Trouble Shooting”section of this manual.
WARNING
7
OFF
HIGH HIGH
LOW
LOW LOW LOW
HIGH HIGH
OFF OFF
OFF
1. Read and follow all warnings and instructions
in owner’s manual before lighting.
2. Open lid before lighting burner.
3. Make sure all control knobs are in the OFF position.
4. Select the burner to be lit. Push and turn the control
knob of that burner to HIGH.
5. Press the electronic igniter and hold for 3-5
seconds to light burner.
6. If burner does NOT ignite immediately, turn control
knob to OFF, wait 5 minutes to allow gas to
dissipate and repeat lighting procedure.
7. Repeat Steps 4-6 for lighting each burner. Always
use electronic igniter for lighting each burner.
8. Refer to owner’s manual for match lighting procedure.
9. For assistance, call 1-800-527-0717.
10. To turn off, turn control knobs clockwise until it locks
in OFF position.
GRILL LIGHTING INSTRUCTIONS: SIDE
LIGH
T
INST
R
1. Fo
l
1-
3
LI
G
IN
S
2. Pu
s
SI
D
co
n
HI
G
3. Fo
l
5-
1
LI
G
IN
S
FOR OUTDOOR USE ONLY
Lighting Hole Matchlighter

LIGHTING THE SIDE BURNER:
1. Open lid to the side burner before lighting.
2. Turn on the side burner by pressing in and rotating the
control knob to the HIGH position.
3. Press and hold the igniter button on the main control
panel for 3-5 seconds until the burner ignites.
4. If burner does not ignite immediately, turn the burner
control knob to OFF and wait 5 minutes for gas to
evacuate the grill. Repeat steps 1 through 4 until
burner ignites.
5. If burner does not ignite using the push button igniter
wait 5 minutes, see "Match Lighting the Side Burner" section.
MATCH LIGHTING THE SIDE BURNER:
1. Open the lid to the side burner before lighting.
2. Turn the burner control knob to OFF.
3. Strike and place a match approximately 1/2" (2 to 3 cm) from the burner.
4. Turn the side burner control knob to the HIGH position. The burner should light immediately.
5. If burner does not ignite immediately, turn the burner control knob to OFF and wait 5 minutes for gas
to evacuate the grill. Repeat steps 1 through 5 until the burner ignites.
6. If the burner does not light within the first few attempts of match lighting, there is a problem with the
gas supply. Turn off the gas at the burner and natural gas supply. DO NOT attempt to operate the grill
until the problem is found and corrected. See “Trouble Shooting”section of this manual.
TURNING OFF THE GRILL:
1. Turn OFF the natural gas supply.
2. Turn all burner control knobs to the OFF position.
NOTE: Turn off the natural gas supply first to prevent gas
from being left in the system under pressure.
CAUTION !
•The natural gas supply should always be in the off, or closed, position when the grill is not in use.
8
NOTE: Observe flame height when lit: Flame should be a
Blue/Yellow color approximately 1”high when
burner is on “High.”
1”
.5”
0”

9
OPERATING THE GRILL:
Never use Charcoal or Lighter Fluid inside your Natural Gas Grill. Read and follow all warnings and
instructions contained in the preceding sections of this manual.
BREAKING IN YOUR GRILL:
•In manufacturing and preserving the components of your grill, oil residue may be present on the
burner and cooking surfaces of your grill.
•Before cooking on your grill for the first time you should operate it for 15 minutes on HIGH to burn off
residual oils.
PREHEATING THE GRILL:
•Prior to use, it is recommended that you preheat your grill. This ensures that the grilling surfaces are
at the desired temperatures to sear the food sugars when cooking. After lighting your grill, set the
main burner control knobs to the HIGH position for 10 to 15 minutes.
CONTROLLING FLARE-UPS:
•Flare-ups are a part of cooking meats on a gas grill. This adds to the unique flavor of cooking on a
gas grill. Excessive flare-ups can over-cook your food and cause a dangerous situation for you and
your grill. Excessive flare-ups result from the build-up of grease in the bottom of your grill. If this
should occur, DO NOT pour water onto flames. This can cause the grease to splatter and could result
in serious burns or bodily harm. If grease fire occurs, close the lid and turn off the main burners until
the grease burns out. Use caution when re-opening the lid as sudden flare-ups may occur.
•DO NOT leave your grill unattended while in use.
•DO NOT move grill when in use. Lock wheels in place to stabilize grill.
•DO NOT use water to extinguish flare-ups.
•Have fire extinguisher readily accessible suitable for use with gas appliances.
TO MINIMIZE FLARE-UPS:
•Trim excess fat from meats prior to cooking.
•Cook meats with high fat contents (chicken or pork) on Low settings or indirectly.
•Ensure that your grill is on level ground and the grease is allowed to evacuate the grill through the
drain hole in the bottom and into drip pan.
INDIRECT COOKING:
•Indirect cooking is the process of cooking your food without the heat source being directly under your
food. You can sear meats over a high flame on one side of the grill while slow cooking a roast on the
other (unlit) side of the grill.
WARNING
WARNING

ROTISSERIE COOKING:
•Your grill was pre-drilled from factory to include mounting holes for a Brinkmann rotisserie (sold
separately). Do not use a rotisserie not specifically manufactured for this grill.
•Read and follow all instructions provided with the rotisserie. Save instructions for future reference.
•Do not use the side burner when using a rotisserie.
•When using an AC current rotisserie, it must be electrically grounded in accordance with local
codes, or in the absence of local codes:
•In the US: The National Electrical Code –ANSI-NFPA No. 70 –Latest Edition
•In Canada: the Canadian Electrical Code –CSA C22.1
•Only use a Brinkmann Rotisserie manufactured specifically for use with this grill.
•The Rotisserie is equipped with a three pronged plug for your protection against electrical
shock. This plug should be plugged directly into a properly grounded 3 prong receptacle. Never
cut or remove the grounding plug. Any extension cord must also have a 3 prong receptacle.
•All electrical supply cords should be kept away from water and any hot surfaces of the grill.
USING OTHER FEATURES OF THE GRILL:
THE SIDE BURNER:
•The side burner can be used to prepare side dishes such as beans, potatoes, corn, or to warm
sauces.
•The burner valve can be adjusted from high to low depending upon your cooking demands.
•Read instructions on lighting your grill to light the side burner.
•Never close the side burner cover when the burner is lit.
•Use a 10" diameter pot or smaller that does NOT have an extended handle when cooking on the
side burner. Center pot over burner.
•Never place more than 15 pounds on the side burner. The side burner is not constructed to hold
weight exceeding 15 pounds.
•Use caution to avoid bumping grill, side burner or pot to prevent pot from spilling contents
possibly leading to severe burns.
•DO NOT use side burner to deep fry food in oil to avoid dangers associated with oil igniting
creating a very dangerous situation.
WARNING
10
WARNING

TRANSPORTING AND STORAGE:
•Never move a grill when it is hot or when objects are on the cooking surfaces.
•Make sure that natural gas supply is shut off. After moving the grill check that all gas
connections are free of leaks. Refer to instructions for leak test on page 5 of this manual.
•DO NOT store a spare LP gas cylinder (filled or empty) under or near the grill.
•Never store flammable liquids or spray canisters under or near the grill.
•DO NOT extinguish grease fires using water.
•If the outdoor cooking gas appliance is not in use, the gas must be turned off at the natural
gas supply.
Follow the instructions listed below.
BEFORE STORING YOUR GRILL:
•Ensure that the natural gas supply has been turned off.
•Clean all surfaces.
•Lightly coat the burners with cooking oil to prevent excess rusting.
•If storing the grill indoors, disconnect the hose from the natural gas supply.
•If storing the grill outdoors, cover the grill with a grill cover for protection from the weather. A grill
cover can be purchased by contacting: The Brinkmann Corporation at 1-800-527-0717.
CLEANING AND MAINTENANCE:
•For safe grilling and peak performance of your grill, perform these checks at least twice per year or
after extended periods of storage.
HARDWARE
•Be sure to tighten up all hardware (nuts, bolts, screws, etc.) at least twice per year.
CASTINGS
•Remove the cooking grills, heat shields, and burners from inside your grill. Use a brush with hot water
and detergent to remove excess residue. NEVER use a commercial oven cleaner. Rinse completely
with water. Towel dry and replace all components as described in the assembly instructions.
WARNING
11

BURNER ASSEMBLY/MAINTENANCE
•Although your burners are constructed of cast iron, they may rust as a result of the extreme heat and
acids from cooking foods. Regularly inspect the burners cracks, abnormal holes, and other signs of
corrosion damage. If found, replace the burner.
•DO NOT obstruct the flow of combustion and ventilation air. Burner tubes can become blocked
by spiders and other insects building their nests. Blocked burner tubes can prevent gas flow to the
burners and could possibly result in a burner tube fire. To clean the Burner Assembly follow these
instructions to clean and/or replace parts of burner assembly or if you have trouble igniting the grill.
1. Turn gas off at control knobs and natural gas supply.
2. Remove cooking grills and heat shields.
3. Remove cotter pins from beneath each burner "foot" using a screwdriver or needle nose pliers.
4. Carefully lift each burner up and away from valve openings.
5. Use a narrow bottle brush or a stiff wire bent into a small hook to run through each burner tube and
flame port several times.
NOTE: Wear eye protection when performing procedure 6.
6. Use compressed air to blow into burner tube and out the flame ports. Check each port to make sure
air comes out each hole.
7. Wire brush entire outer surface of burner to remove food residue and dirt.
8. Check burner for damage, if any large cracks or holes are found replace burner.
IMPORTANT: Burner tubes must reengage valve openings.
9. Carefully replace burners.
10. Replace cotter pin beneath each burner.
11. Replace heat shields and cooking grills.
COOKING GRILLS
•Clean with mild soap detergent and water. Do not use steel wire bristles to clean the stainless steel
cooking grills. Steel can cause the finish to chip or crack. DO NOT use a commercial oven cleaner.
12

TROUBLE SHOOTING:
Problem: Possible Causes:
•Burner will not light 1. Check natural gas supply.
2. Bad electrode spark.
Check to see if the grill will “match light.”(See Page 9)
Electrode or collector may need adjustment.
3. Burner may not be properly seated.
4. Burner may be obstructed.
•Fire at control knobs 1. Burner holes may be obstructed. See section on
Cleaning and Maintenance of the Burner holes.
2. Burner is improperly seated on control valve.
3. Gas connections may be loose.
Leak Check and tighten all connections.
•Yellow Flames at burner 1. Burner is obstructed. See section on
Cleaning and Maintenance of the Burner.
•Flame blows out on “LOW”1. Burner holes may be obstructed. See section on
Cleaning and Maintenance of Burners.
2. Grill is not sufficiently preheated.
3. Burner is improperly seated on control valve.
•Grill is Too Hot 1. Excess grease build-up causing grease fires.
2. Cook on a lower temperature setting.
13

14
•To protect your grill from excessive rust, the unit must be kept clean and covered at all times when not in
use. A grill cover may be ordered directly from Brinkmann by calling 1-800-468-5252 or 1-800-527-0717.
•Wash cooking grills and heat shields with hot, soapy water, rinse well and dry. Lightly coat cooking grill
with vegetable oil or vegetable oil spray.
•Clean inside and outside of grill by wiping off with a damp cloth. Apply a light coat of vegetable oil or
vegetable oil spray to the interior surface to prevent rusting.
•If rust appears on the exterior surface of your grill, clean and buff the affected area with steel wool or fine
grit emery cloth. Touch-up with a good quality high-temperature resistant paint.
•Never apply paint to the interior surface. Rust spots on the interior surface can be buffed, cleaned, then
lightly coated with vegetable oil or vegetable oil spray to minimize rusting.
GRILL COOKING TIPS
CLEANLINESS
•Always wash hands thoroughly with soap and hot water prior to handling food and after handling raw
meat, un-cooked poultry or seafood.
•When using a platter to carry raw meat, un-cooked poultry or seafood to the grill, make sure to wash the
platter thoroughly with soap and hot water before placing cooked foods back on the platter or use different
platters for raw and cooked foods.
•Never use the same utensils when handling raw meat, un-cooked poultry or seafood unless you wash the
utensils thoroughly with soap and hot water.
•Never re-use marinade from raw meat or un-cooked poultry on foods that have been cooked and are
ready to be served.
GRILLING TO PROPER TEMPERATURE
•Use a meat thermometer to be sure food has reached a safe internal temperature. You may order a
Commercial-quality thermometer from Brinkmann. For more information on this product and other
Brinkmann accessories, please refer to the accessory pages at the end of this manual.
•The US Department of Agriculture recommends the minimum temperature be reached for the
following food items:
Chops . . . . . . . . . . . . . . . . . . . .145 degrees F
Ground Meat . . . . . . . . . . . . . . .160 degrees F
Pork . . . . . . . . . . . . . . . . . . . . . .160 degrees F
Poultry . . . . . . . . . . . . . . . . . . .180 degrees F
Roasts . . . . . . . . . . . . . . . . . . . .145 degrees F
HELPFUL HINTS
•If you pre-cook meat or poultry, do so immediately before grilling.
•Never defrost meat at room temperature or on a countertop.
•Refrigerate leftovers within 2 hours of taking food off the grill.
•For additional information, please phone the USDA’s toll free Meat & Poultry Hotline at 1-800-535-4555.
PROPER CARE & MAINTENANCE

15
ASSEMBLY INSTRUCTIONS
READ ALL SAFETY WARNINGS & ASSEMBLY INSTRUCTIONS CAREFULLY
BEFORE ASSEMBLING OR OPERATING YOUR GRILL.
WE RECOMMEND TWO PEOPLE WORK TOGETHER WHEN ASSEMBLING THIS UNIT.
The following provided tools are required to assemble this Brinkmann Pro Series 2630 Grill:
•Flathead Screwdriver
•Hex Nut Wrench
1 Electronic Igniter Button
1 Electronic Igniter Spring
1 Side Burner Grate
1 Brass Burner Ring
1 Side Burner Assembly
1 Side Burner Knob
1 Ice Bucket Insulation
1 Left Side Cart Panel
1 Right Side Cart Panel
1 Hose/Valve/Quick-disconnect
1 Ice Bucket Outer Shell
1 Retaining Nut
1 Bottom Cart Panel
1 Back Cart Panel
4 Locking Casters
2 Doors
4 Door Magnets
2 Door Handles

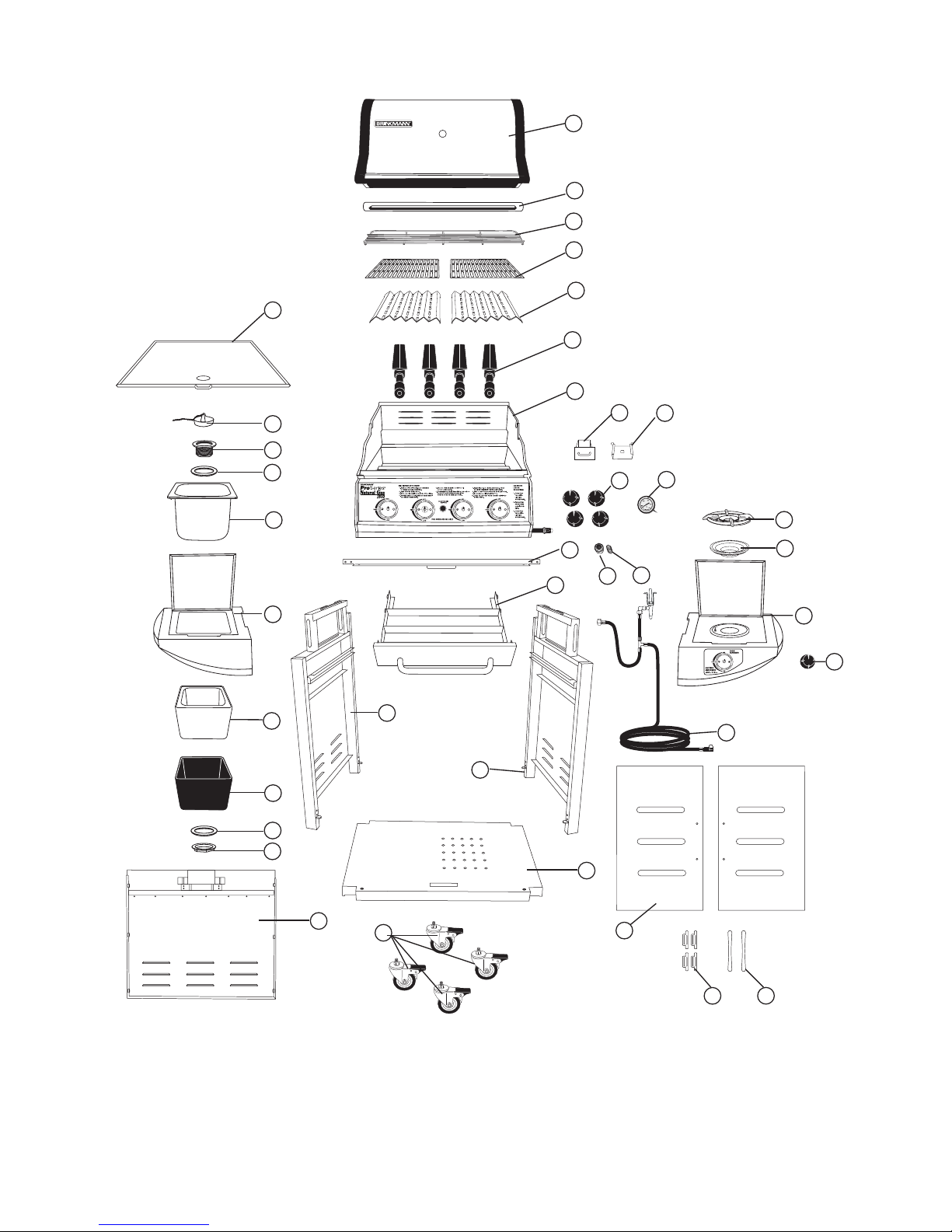

PARTS LIST:
1 Hood
1 Hood Handle
1 Warming Rack
2 Cooking Grills
2 Heat Shields
4 Grill Burners
1 Grill Bottom
1 Grill Body Assembly
1 Grease Tray
1 Grease Tray Bracket
1 Stopper
4 Control Knobs
1 Temperature Gauge
1 Drain
2 Rubber Gasket
1 Stainless Steel Ice Bucket
1 Side Table/Ice Bucket Assembly
1 Door Bracket
1 Tool Drawer
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
21
22
23
24
25
26
27
20
29
30
31
32
33
34
35
28
37
36

16
(Proof of purchase will be required.)
Inspect contents of the box to ensure all parts are included and undamaged.
1
FOR MISSING PARTS, PLEASE CALL CUSTOMER SERVICE AT 1-800-527-0717.
2
3
4
5
6
7
8
910
24
11
13
12
14
15
16
17
18
19 20 21
22
23
27
25
26
28
15
29
30
31
32
33
34 35
36 37

17
4 M6 X 12mm bolts
8 M6 X 20mm bolts
14 M6 X 60mm bolts
1 AA/1.5V Alkaline battery
PARTS CARD CONTENTS
Make sure you have all items listed under PARTS LIST and PARTS BAG CONTENTS before
you begin the installation process.
Your Parts Bag will include:
M6 X 12mm bolts
M6 X 20mm bolts
M6 X 60mm bolts
AA/1.5V Alkaline battery
Screwdriver
Hex nut wrench
4 #10 X 1/2 self tapping screws
1 Screwdriver
1 Hex nut wrench
Qty. Qty.
#10 X 1/2 self
tapping screws

Choose a good, cleared assembly
area and get a friend to help you put
your grill together. Lay cardboard
down to protect grill finish and
assembly area.

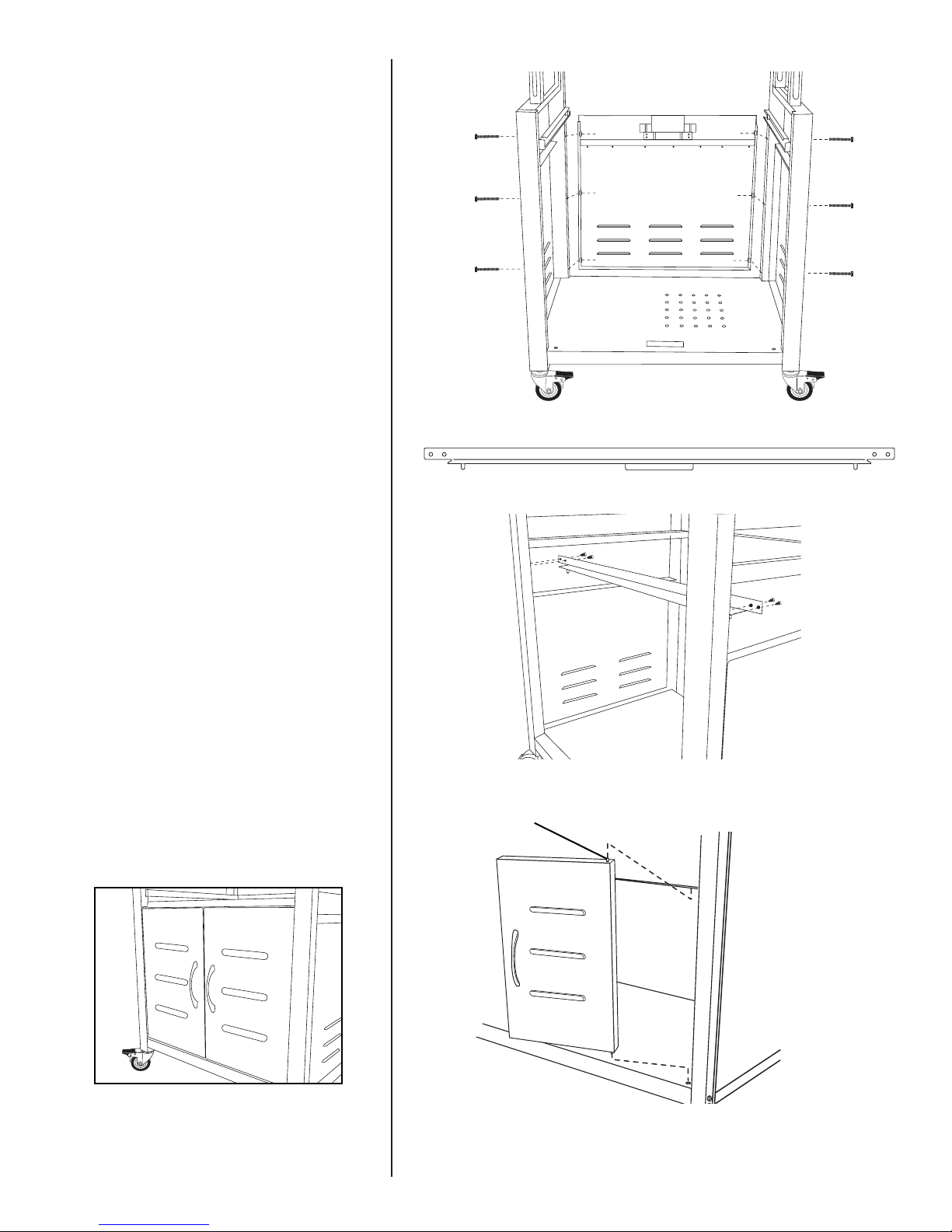

Step 1
Assemble bottom cart panel and
right side cart panel assembly by
using four M6 X 60mm bolts
(hand tighten only at this point).
Step 2
Assemble bottom cart panel and left
side cart panel assembly by using four
M6 X 60mm bolts. Tighten all eight
M6 X 60mm bolts at this time.
Note: With the help of a friend, turn
the cart over, try to minimize
the stress to the side panels.
Step 3
Attach locking casters to the bottom
of the cart. Tighten caster bolts
securely using hex nut wrench
provided in parts pack.
Note: With the help of a friend, turn
the cart to its upright
position.
18
Locking Caster
Hex Nut Wrench

19
Step 4
Attach back cart panel by using six
M6 X 60mm bolts.
Note: Leave bolts hand tight until
Step 11.
Step 5
Install door bracket using the four
#10 X 1/2”self taping screws. Make
sure door stop is set toward back of
cart.
Step 6
Insert right side door, placing lower
pivot into the pivot hole on bottom
cart panel, then align door with cart
frame. Depress spring pin located
on top edge of door and slide door
toward side cart panel until spring
pin locks into hole in door bracket.
Repeat for other door.
Door bracket
Spring Pin
