British Fires NEW FOREST 870 Assembly Instructions

© 2023 British Fires
NEW FOREST ELECTRIC FIRES
INSTALLATION & USER INSTRUCTIONS
870, 1200, 1600 & 1900 SIZES
AU

// TABLE OF CONTENTS
Section Contents Page
1.0 Important Notes 02
2.0 Appliance Plug 03
3.0 Appliance Data 03–04
4.0 Component Checklist 05
5.0 Site Requirements 05
6.0 Clearances To Combustibles 06
7.0 Unpacking The Appliance 06
8.0.0 Preparing the Appliance – Preparing the Corner Bracket Position 07
8.1.0 Preparing the Appliance 08
8.1.1 Preparing the Appliance – 870, 1200 & 1600 – Adding L-Shaped Brackets 09
8.1.2 Handling the front glass – 1900 10
8.2.0 Preparing the Appliance – Adding blanking plates and trims;
Removing front glass for 870, 1200 & 1600 11
9.0 Installation Introduction 12
9.1 Installation Options 12–14
9.2 Installation – Studwall Fixing 15–17
9.3 Installation – Floating Suite 18–20
10.0 Forest View Fuel Bed 21–22
10.1 Slate View Fuel Bed 23–24
10.2 Diamond Light Fuel Bed 25
10.2 Installing the Deluxe Real Logs Fuel Bed 26
11.0 Pairing the Remote Control 27
12.0 Operating the Appliance 27–31
13.0 Safety Cut-Out System 32
14.0 Cleaning and Maintenance 32
15.0 Troubleshooting Guide 33
16.0 Spare Parts List 34–38
17.0 Servicing 39
18.0 Three Year Limited Warranty 40
19.0 Dimensions 41–42
// IMPORTANT
Please read completely
through the instructions and
verify that all listed parts are
present before assembly.
// 01

// 1.0 IMPORTANT NOTES
Important – these instructions should be read carefully and retained for future reference.
When using this electrical appliance, basic
precautions should be followed to reduce
the risk of fire, electric shock and injury to
person, including the following:
This heater must be used on an AC
supply only and the voltage marked on the
heater’s rating label must correspond to
the supply voltage.
DO NOT switch the appliance on until it
is properly installed as described in this
manual.
This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way and
understand the hazards involved. Children
shall not play with the appliance. Cleaning
and user maintenance shall not be made
by children without supervision.
Children of less than 3 years should
be kept away unless continuously
supervised. Children aged from 3 years
and less than 8 years shall only switch
on/off the appliance provided that it has
been placed or installed in its intended
normal operating position and they have
been given supervision or instruction
concerning use of the appliance in a safe
way and understand the hazards involved.
Children aged from 3 years and less than 8
years shall not plug in, regulate and clean
the appliance or perform user maintenance.
CAUTION: Some parts of this appliance
can become very hot and cause burns.
Particular attention has to be given
where children and vulnerable people are
present.
Check that all parts included are intact and
not damaged. If the supply cord is damaged,
it must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard. Never
use the appliance if the cord or any part of
the appliance shows signs of damage. The
heater must not be located immediately
below a socket-outlet.
DO NOT use this heater in the immediate
surroundings of a bath, a shower or a
swimming pool.
WARNING: In order to avoid overheating,
DO NOT cover the fan of the heater.
DO NOT use this heater with a
programmer, timer, separate remote-
control system or any other device that
switches the heater on automatically, since
a fire risk exists if the heater is covered or
positioned incorrectly.
CAUTION: In order to avoid a hazard due to
inadvertent resetting of the thermal cut-
out, this appliance must not be supplied
through an external switching device, such
as a timer, or connected to a circuit that is
regularly switched on and off by the utility.
WARNING: This heater is not equipped with
a device to control the room temperature.
Do not use this heater in small rooms when
they are occupied by persons not capable
of leaving the room on their own, unless
constant supervision is provided.
Keep furniture, curtains and other fabric
material away from appliance.
DO NOT leave the appliance unattended
during use.
DO NOT run the mains cable under carpets,
rugs etc.
DO NOT cover or obstruct the heater
in any way. Overheating will result if it is
accidentally covered.
Never immerse the appliance in water or
any other liquids.
DO NOT use the appliance outdoors.
Before cleaning the appliance, ensure it is
unplugged from the power and that it is
completely cool.
DO NOT clean the appliance with abrasive
chemicals.
Never use accessories that are not
recommended or supplied by the
manufacturer. It could cause danger to the
user or damage to the appliance.
DO NOT insert or allow foreign objects to
enter the inlet or outlet vents as this may
result in electric shock, fire or damage to the
appliance.
DO NOT install the fire using an extension
cord.
Unplug from the mains supply if the
appliance is not to be used for long periods.
This appliance is only suitable for well-
insulated spaces or occasional use.
DO NOT use this appliance in an open flue.
// 02© 2023 British Fires

// 2.0 APPLIANCE PLUG // 3.0 APPLIANCE DATA
These appliances are supplied with a pre-wired three
pin plug and 1.8 metres of electrical cable. It is
therefore necessary for a suitable electrical socket
to be located within this distance and be easily
accessible. The appliances are suitable for installa-
tion in static holiday/park homes. The appliances
may be hard wired into a fuse spur, providing that
the fuse spur is external to the installation and easily
accessible, this must be carried out by a service
agent or competent person, such as a qualified elec-
trician. This heater is for use on 220–240 volts. The
cord is a 3-pin plug as shown below and is 1.8m. New Forest 1200 Electric Fire
Weight 65 kg
Dimensions 565 x 1200 x 311mm
New Forest 870 Electric Fire
Weight 33 kg
Dimensions 465 x 870 x 311mm
All New Forest Electric Fires
Supply Voltage & Rating Power 220–240V ∼ 50Hz, 1500W
Heating Elements 1260 – 1500W
Lighting LED
Approvals SAA
New Forest 1600 Electric Fire
Weight 85 kg
Dimensions 565 x 1600 x 311mm
New Forest 1900 Electric Fire
Weight 96 kg
Dimensions 565 x 1925 x 311mm
// WARNING:
Before enclosing the appliance, test the power in situation in
order to ensure the power to the appliance working properly.
// 03

Item Symbol Value Unit Item Unit Item Unit
Heat Output Types of heat input, for electric storage local space heaters only Other control options
Nominal heat output Pnom 1.5 KW Manual heat charge control with integrated thermostat N/A Room temperature control with
presence detection No
Minimum heat output (indicative) Pmin 0.75 KW Manual heat charge control with room and/or outdoor temperature
feedback N/A Room temperature control with open
window detection Yes
Maximum continuous heat output Pmax, c 1.5 KW Electronic heat charge control with room and/or outdoor temperature
feedback N/A With distance control option No
Fan assisted heat output N/A With adaptive start control No
With working time limitation No
Auxiliary electricity consumption Type of heat output/room temperature control With black bulb sensor No
At nominal heat output elmax 0.0 KW Single stage heat output and no room temperature control No
At minimum heat output elmin 0.0 KW Two or more manual stages no temperature control No
In standby mode elSB 0.0 KW With mechanical thermostat room temperature control Yes
With electronic room temperature control No
Electronic room temperature control plus day timer Yes
Electronic room temperature control plus week timer Yes
This fire is fitted with Light Emitting Diode’s
(LEDs) in place of conventional bulbs.
LEDs generate the same light levels
as conventional bulbs, but use a fraction
of the energy consumed.

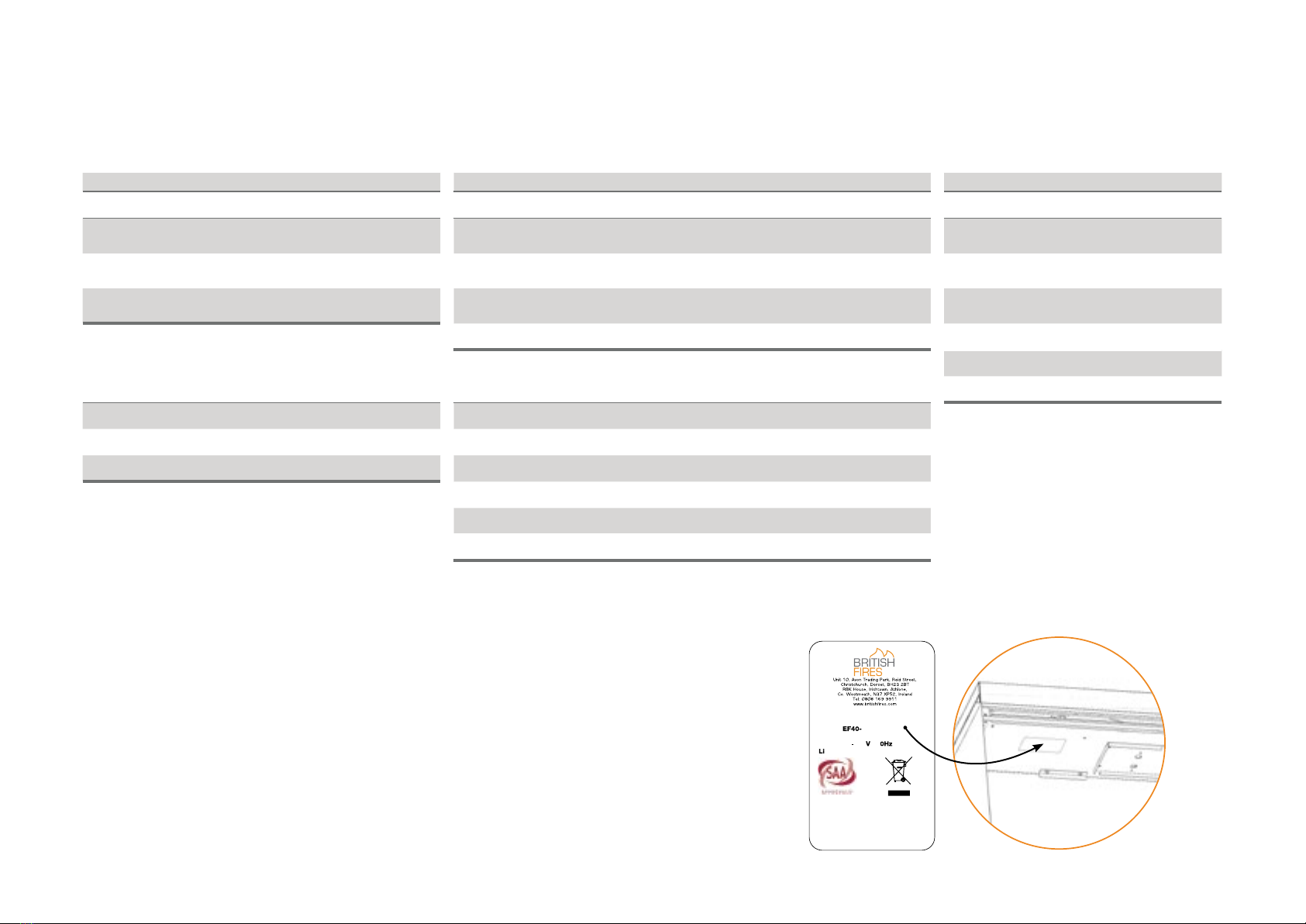

The data label, including the model
and serial number, can be found
inside the fire underneath the heat
assembly housing.
Model: XXA
Heater: 1260-1500W
Volts: 220 240 ~ 5
ghting: LED
S/N: XXXX2023XX00001
U
XXW23
Certificate No.
SAA-230369-EA
// 04© 2023 British Fires

// 4.0 COMPONENT CHECKLIST // 5.0 SITE REQUIREMENTS
Quantity Description
1Heater unit
1Wall bracket
1Remote control handset
1Box of logs (extra small logs for 1600 & 1900)
1Bag of slate
1Bag of bark
1Bag husk
1Bag of large crystals (+1 bag for 1900)
1Bag of small crystals for 870
2Bag of small crystals (+1 bag for 1600 & 1900)
2AAA batteries
2L-shaped brackets
2Blanking plates (Located in styrofoam)
4Small end trims (Located in styrofoam)
2Large end trims (Located in styrofoam)
24 4 x 8 mm Firebox screws
24 x12 mm Firebox screws
8Wall plugs for 870
12 Wall plugs for 1200
14 Wall plugs for 1600
16 Wall plugs for 1900
8Fixing screws for 870
12 Fixing screws for 1200
14 Fixing screws for 1600
16 Fixing screws for 1900
2Suite fixing brackets
2Glass suction cups for 1900 only
1Deluxe Real Log Fuel Bed
It should be noted that the appliance creates warm convected air
currents. These currents move heat from the room surroundings
to, and up the wall surfaces adjacent to the heater.
If the appliance is to be secure on a dry wall or a timber framed
construction then the integrity and ability of the wall to secure the
appliance must be confirmed. It is important in these circumstances
that any vapour barrier and/or structural members of the house frame
are not damaged.
If you are unsure of the ability of the wall to secure the appliance
and/or which type of wall fixing to use, you should take professional
advice and obtain the correct fixings. Alternatively, find a more suitable
wall location.
• DO NOT run the supply cable under carpets.
• DO NOT site in a position where curtains or drapes could cover the
appliance, or other soft materials could cover e.g. below a
coat rack.
• DO NOT site behind an opening door where mechanical impact/
damage could occur.
• DO NOT site where the supply cable would become a trip hazard.
• DO NOT sit, stand or forcefully pull on the appliance.
• DO NOT obstruct, cover or force items into the openings.
• DO NOT use the heater to dry clothes.
• DO NOT site/use in an outdoor location(s).
It is important that the following clearances are maintained from the
appliance to combustible materials. These clearances are dependent
on the securing location as defined on the following pages.
// 05

// 5.0 SITE REQUIREMENTS // 6.0 CLEARANCES TO COMBUSTIBLES // 7.0 UNPACKING THE APPLIANCE
870, 1200, 1600 & 1900
The minimum distance to the front of the appliance
is 900 mm.
There are no clearances for above or to the side
of the appliance, apart from being clear of curtains
and drapes for a flush wall installation.
If the stud wall immediately above the heater of
the appliance protrudes in front of the appliance
rather then finishing flush, then the over hanging
section of the installation must be made from a
non-combustible material, such as calcium silicate.
*See page 12 for more details
Before starting the installation of this fireplace, please read the following:
1) The installation should be carried out by two adults to avoid injury
or damage. If for any reason it is considered too heavy, please
obtain assistance.
2) When lifting the electric appliance, always keep your back straight.
Bend your legs and not your back. Avoid twisting at the waist. It is
better to reposition your feet.
3) Avoid upper body and top heavy bending. Always bend from the
knees rather than the waist. Do not lean forward or sideways while
handling the appliance.
4) Always grip the appliance with the palm of the hand – do not use the
tips of fingers for support.
5) Always keep the appliance as close to the body as possible. This will
minimize the cantilever action.
6) Use gloves to provide additional grip.
7) Unpack the package and lift the appliance gently out of the box. Put it
on a flat surface with the front panel facing forward.
// 7.0 UNPACKING THE APPLIANCE
1900 ONLY
Carefully remove the packaging from the appliance.
Then using a cross headed screw driver to remove
the transit brackets from the front and rear of the
appliance.
Crosshead screws // CAUTION
This appliance is heavy.
Always seek assis-
tance whilst unpacking
and/or during instal-
lation. Please read all
the instructions before
continuing to unpack or
install appliance.
New Forest 1900 only
// 06© 2023 British Fires

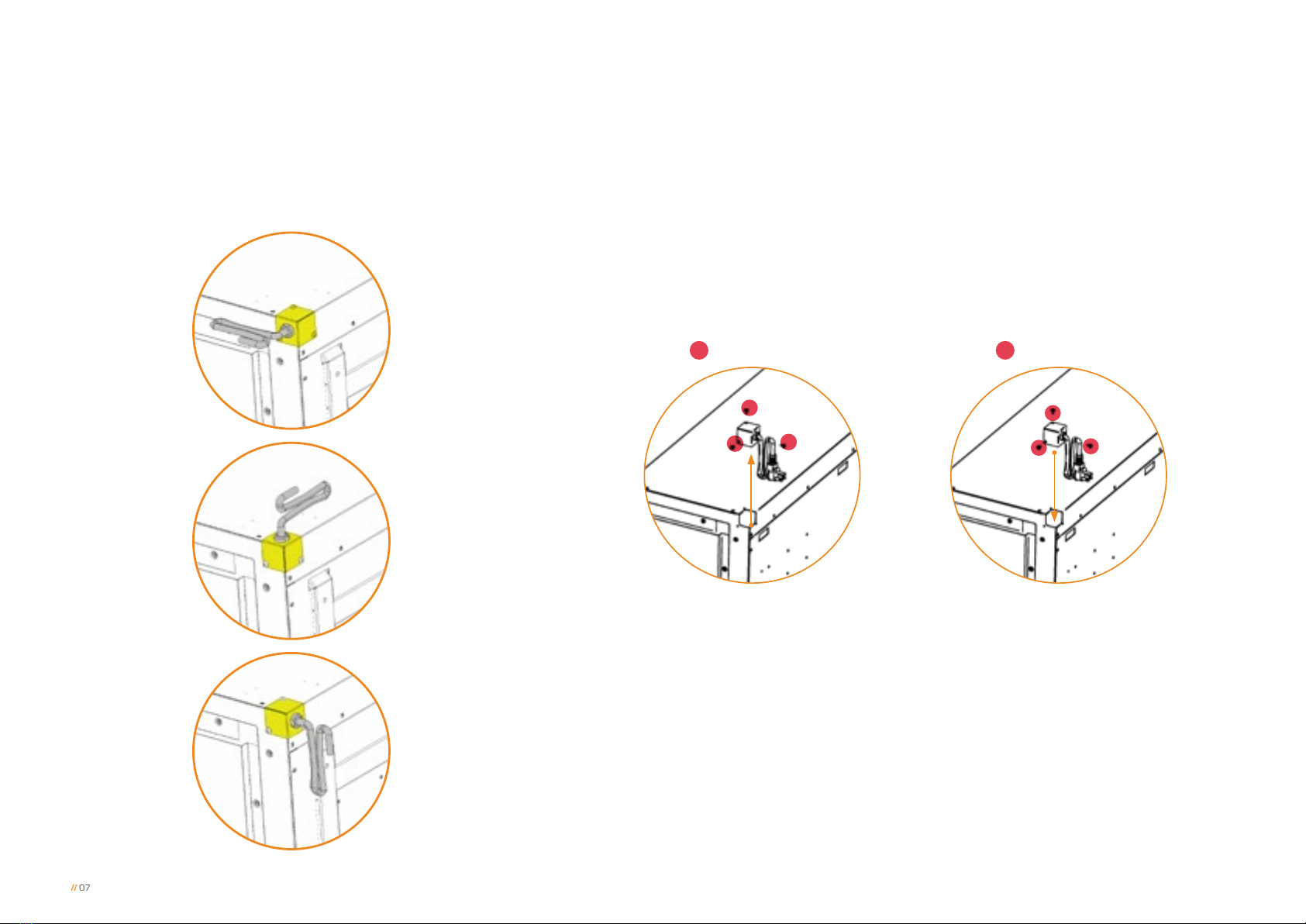

// 8.0.0 PREPARING THE CORNER BRACKET
ALTERING THE CORNER BRACKET POSITION
Reinstalling the corner bracket
Once the preferred position
has been selected, screw
the three (3x) screws back
into position, securing the
corner bracket into place.
Different corner bracket orientations
Select which orientation the power cable would suit
the installation best.
Removing the corner bracket
Remove the three (3x)
screws holding the corner
bracket into position on
the rear right hand side
of the appliance with a
cross headed screw driver.
Crosshead screws Crosshead screws
// 07

Front-Facing (One-sided) See Figure A
A blanking plate will need to be installed at each end of the appliance,
offer the blanking plate up to the side of the appliance and ensure
that all of the holes in the blanking plate line up with the holes on the
side of the firebox. Once in the correct position, screw the 6x firebox
screws with a cross headed screw driver into position, use the same
process for both sides.
Cornered (Two-sided) See Figure A & B
Install only one of the blanking plates on the end that will be covered.
Follow the front-facing instructions, above, for the one blanking plate.
For the exposed side the trims will need to be used. Place both small
trims into position, lining the screw holes up, then when in the correct
position screw into place with the screws provided using a cross headed
screwdriver. Next, secure in place the large trim vertically on to the
side of the appliance in between the two small trims. Line the screw
holes up and secure the provided screws into place with a cross headed
screwdriver.
Three Sided & Suite Installations See Figure B
Place both small trims into position, lining the screw holes up then
screw into place with the screws provided using a cross headed
screwdriver. Once the small trims are installed the large trim will be
vertically placed in between the two small trims, as pictured above. Use
the same steps for both sides.
Blanking
Plate
// 8.1.0 PREPARING THE APPLIANCE
ADDING BLANKING PLATES AND TRIMS
blanking plates and trims can be found in the polystyrene packaging
Firebox screws
Firebox screws
Figure A
Small trim
Small trim
Large trim
Figure B
// 08© 2023 British Fires

Rear Fixing Crosshead screws

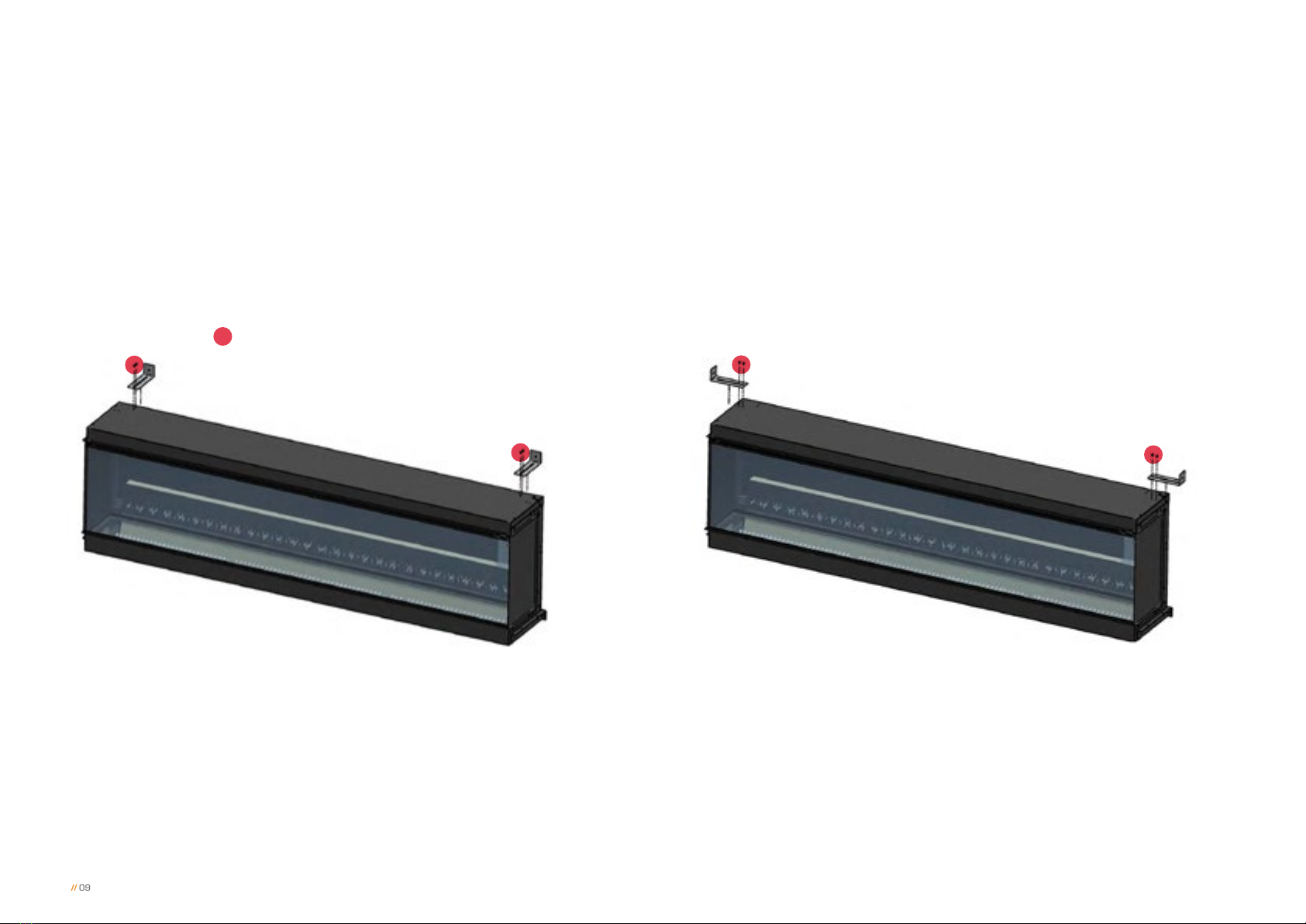

// 8.1.1 PREPARING THE NEW FOREST 870, 1200, 1600 & 1900
ATTACHING L-SHAPED BRACKETS TO THE APPLIANCE
Using a cross headed screw driver screw the wall brackets onto
the top of the appliance with the four (4x) 4 x 8 mm firebox screws
provided to suit your preferred installation. (Rear fixing or side fixing.)
Side Fixing
// 09

// 8.1.2 HANDLING THE NEW FOREST FRONT GLASS (1900 ONLY)
REMOVING THE FRONT GLASS
Crosshead screws
To remove the front glass from the appliance, use a cross
headed screwdriver to remove the screws from either end
of the top bracket of the appliance, holding the glass in place.
Use the suction cups provided to remove the front glass,
ensure that the inside of the suction cups and the targeted
surface on the glass is wiped clean with a clean lint-free cloth.
Open the handles of the suction cups and press them firmly
onto the glass, ensure there are no air bubbles, then place the
handles together on each suction cup. Ensure the cups are
secure in position on the glass and lift.
Ensure the glass is supported at all times.
Next, gently leaver the top of the glass towards you, ensuring
you have full support of the glass.
Lift the glass up and out from the appliance and place the glass
on a soft, flat surface on the floor.
Insert your preferred fuel bed options as shown in the following
pages in section 10.0, pgs 19–24
To re-install the glass, see the instructions in reverse order.
// 10© 2023 British Fires

The 12x (870 & 1200) or 14x (1600 & 1900) 4 x 8 mm firebox screws can be found packaged in the polystyrene casing
and the blanking plates and trims can found underneath the Styrofoam.

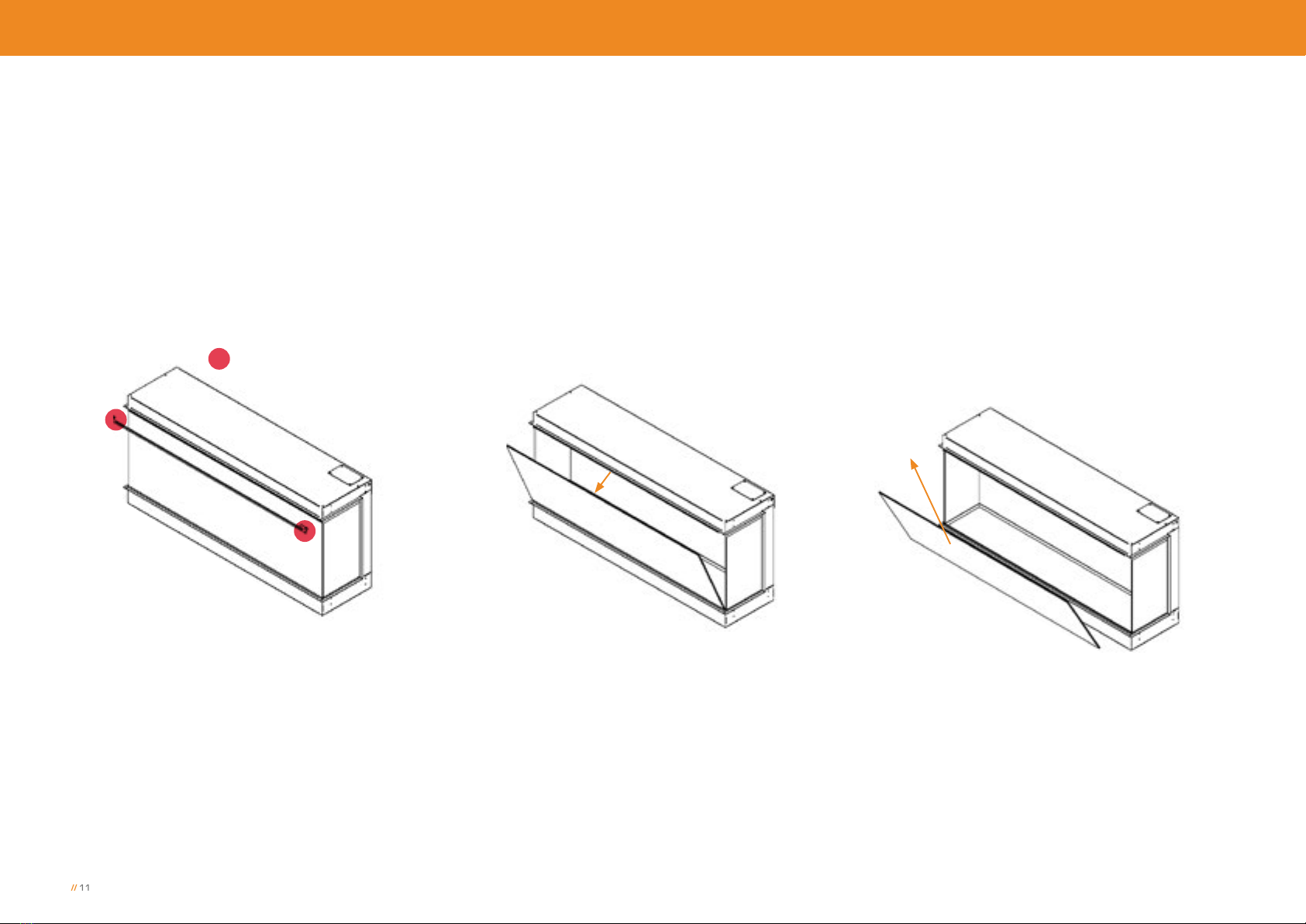

// 8.2.0 PREPARING THE APPLIANCE
REMOVING FRONT GLASS FOR THE 870, 1200 & 1600
Crosshead screws
We strongly recommend that two people are used to
remove the glass, both using protective gloves.
1) To remove the front glass from the
appliance, use a cross headed screwdriver
to remove the screws from either end of
the top bracket of the appliance, holding the
glass in place.
Ensure the glass is supported at all times.
2) Next, gently leaver the top of the glass
towards you, ensuring you have full support
of the glass.
3) Lift the glass up and out from the appliance
and place the glass on a soft, flat surface on
the floor.
4) Insert your preferred fuel bed options as
shown in the following pages in section 10.0,
pgs 19–24
5) To re-install the glass, see the instructions in
reverse order.
WE STRONGLY RECOMMEND THAT PROTECTIVE GLOVES ARE WORN WHEN HANDLING THE GLASS
// 11

// 9.0 INSTALLATION
British Fires assumes absolutely no responsibility for
injuries and damages that may occur due to improper
installation or handling.
Remove any protective film coatings from the
finished/decorative surfaces of the appliance,
if any. After having selected the final position of the
appliance taking into account the integrity of the wall
the electric appliance may be secured to the wall.
To ensure customer safety, be sure to design the
installation so that the strength of both the wall
and any wall fixings used are sufficient. Do not block
the ventilation holes of the appliance. The wall onto
which the appliance/stud wall is installed must be
flat. Install only on a vertical surface. Avoid sloped
surfaces. Installation onto anything other than a
vertical wall may result in fire, damage or injury.
If the appliance/stud wall is to be mounted on a dry
wall or a timber framed construction wall then efforts
should be made to fix into two or more wooden studs,
or supporting wooden members of the wall using the
fixing screws provided. If this is not achievable then
the wall should be strengthened using appropriate
building materials.
Ensure that the correct wall plugs are used for the
type of wall that the stud work is being connected to.
Ensure the plug or fuse spur is fully accessible.
// WARNING:
Before enclosing the appliance, test the power
in situation in order to ensure the power to the
appliance working properly.
// 9.1 INSTALLATION OPTIONS
The stud wall MUST include a header at the dimensions,
highlighted on the following pages. This is to ensure
that the weight of the finished wall is not resting on
top of the appliance.

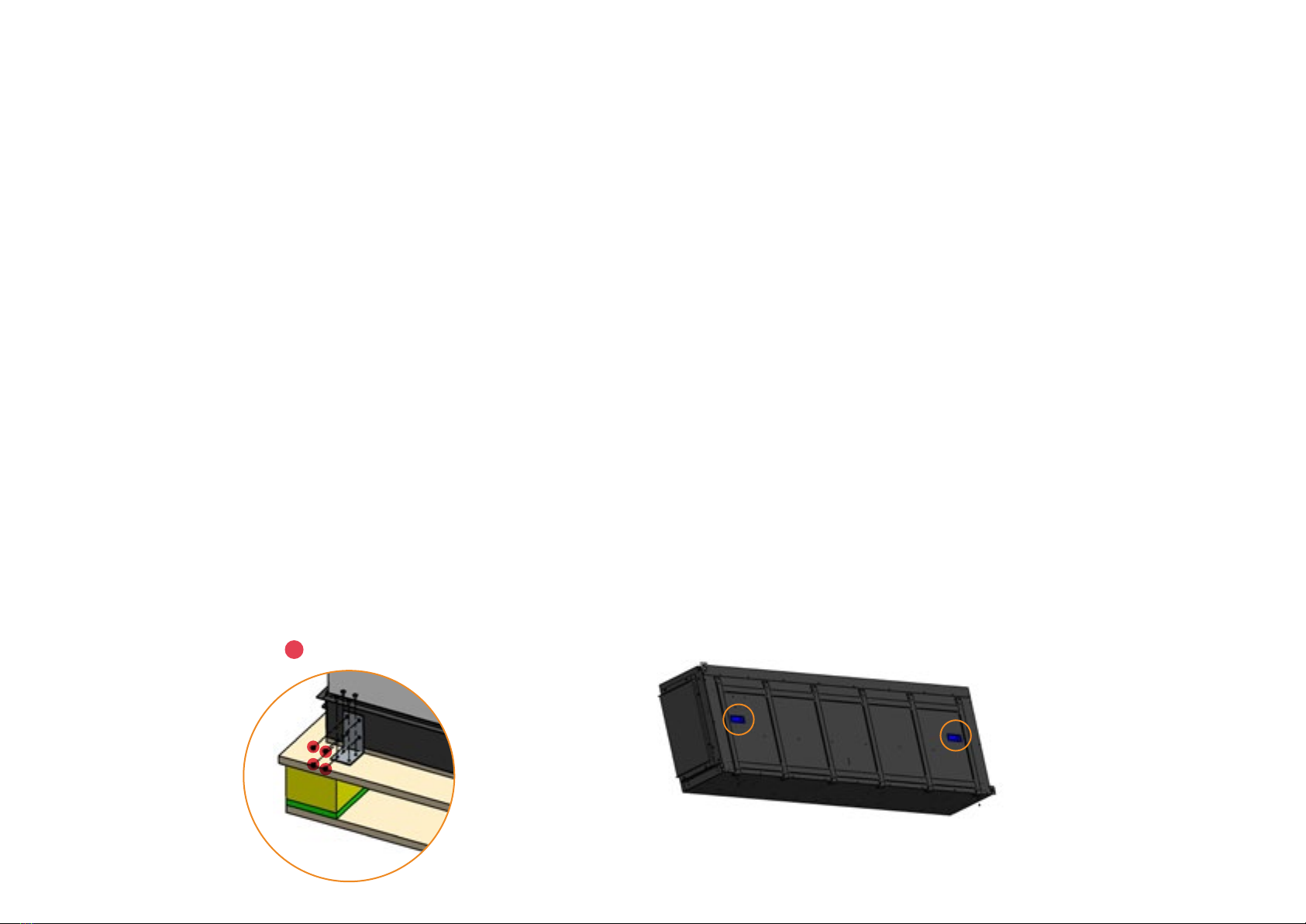

The power inlet cable can be installed through your
choice of two locations on the top, right hand corner
of the appliance. Each can be accessed through one
removable plate.
This appliance should be positioned on a firm level
surface and in a clean ‘dust free’ environment. If
fitted into an open chimney, the chimney must be
blocked off to reduce the risk of draught and damp
through the fire, which may cause the safety cut out
system in the fan heater to operate.
The base of the opening/stud work must be able to
take the full weight of the appliance.
Any protruding headers MUST be made of a non-combustible
material.
See page 16.

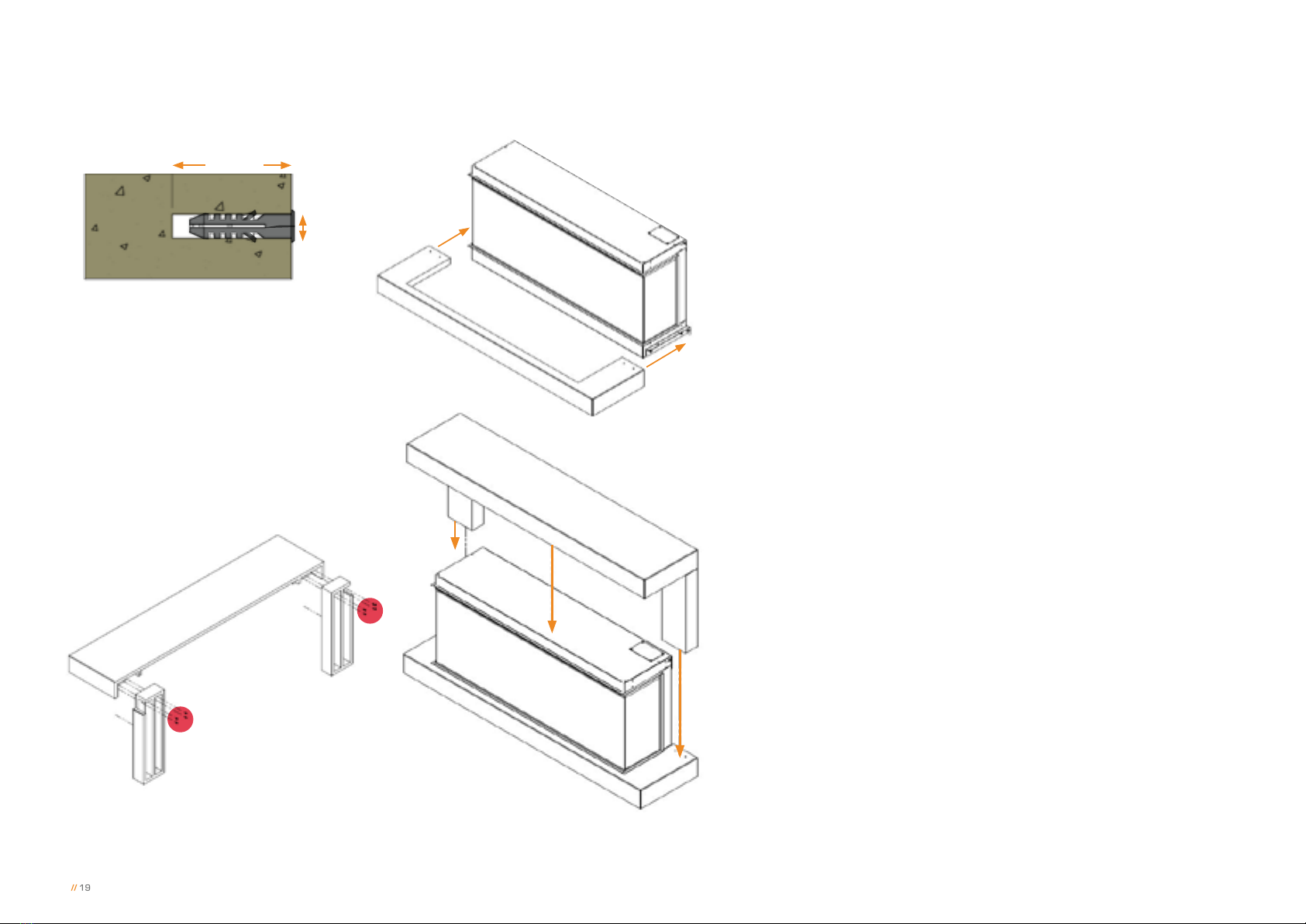

To install into a stud wall the mounting bracket must
be removed from the rear of the appliance as shown
in section 9.3, page 16–18.
Once the frame work has constructed and secured to the wall
and the appliance is in its end position, ensure that there is
power to the appliance before any cladding/plasterboard is
installed.
// 12© 2023 British Fires

One-sided (fully-recessed) installation Two-sided installation
W
H
DW
H
D
HeaderHeader
New Forest 1200 mm Open Dimensions
H 565 mm W1180 mm D 300 mm
New Forest 870 mm Open Dimensions
H 465 mm W847 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1580 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1904 mm D 300 mm
New Forest 1200 mm Open Dimensions
H 565 mm W1180 mm D 300 mm
New Forest 870 mm Open Dimensions
H 465 mm W847 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1580 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1904 mm D 300 mm
// 9.1 INSTALLATION OPTIONS
FALSE CHIMNEY BREAST CONSTRUCTION
// 13

Three-sided installation 1200, 1600 & 1900
Non-Combustible Overhang Requirements
W
H
D
Stud Wall
Appliance
*Non-combustible
Header
New Forest 1200 mm Open Dimensions
H 565 mm W1180 mm D 300 mm
New Forest 870 mm Open Dimensions
H 465 mm W847 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1580 mm D 300 mm
New Forest 1600 mm Open Dimensions
H 565 mm W1904 mm D 300 mm
*If the stud wall immediately
above the heater protrudes
beyond the front of the appliance
then the over-hanging section of
the installation must be made
from a non-combustible material,
such as calcium silicate fireboard.
OFFSET OVERHANG
DIRECT OVERHANG
*Shelving clearances pictured above
must be followed for the New Forest
870 model. Failure to do so may cause
the thermostatic control to switch off
the product.
Flush to the
edge directly
above heater
Overhanging
directly above
the heater
870 Shelf Clearances
3cm
2cm
5cm
10 cm
// 14© 2023 British Fires

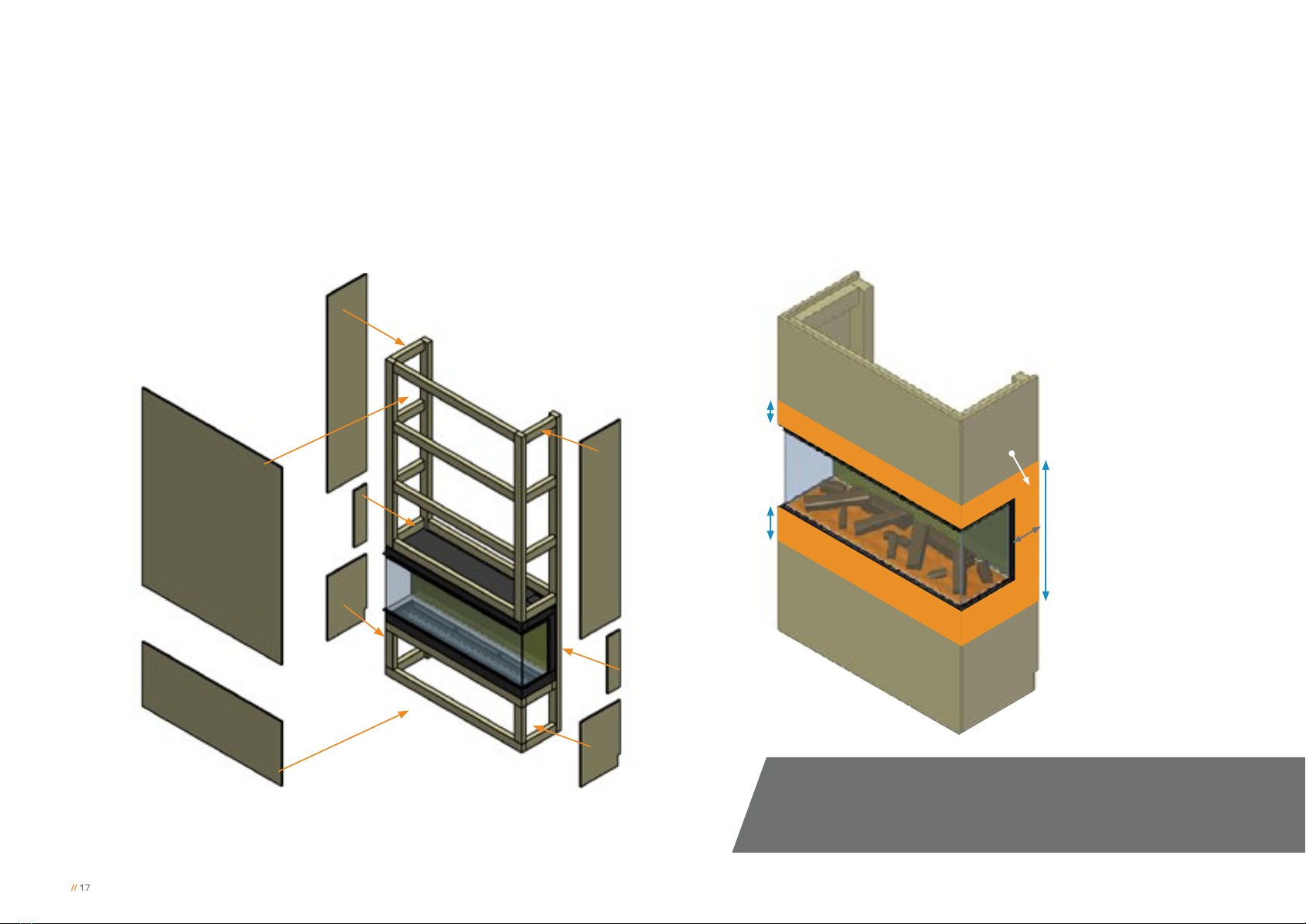

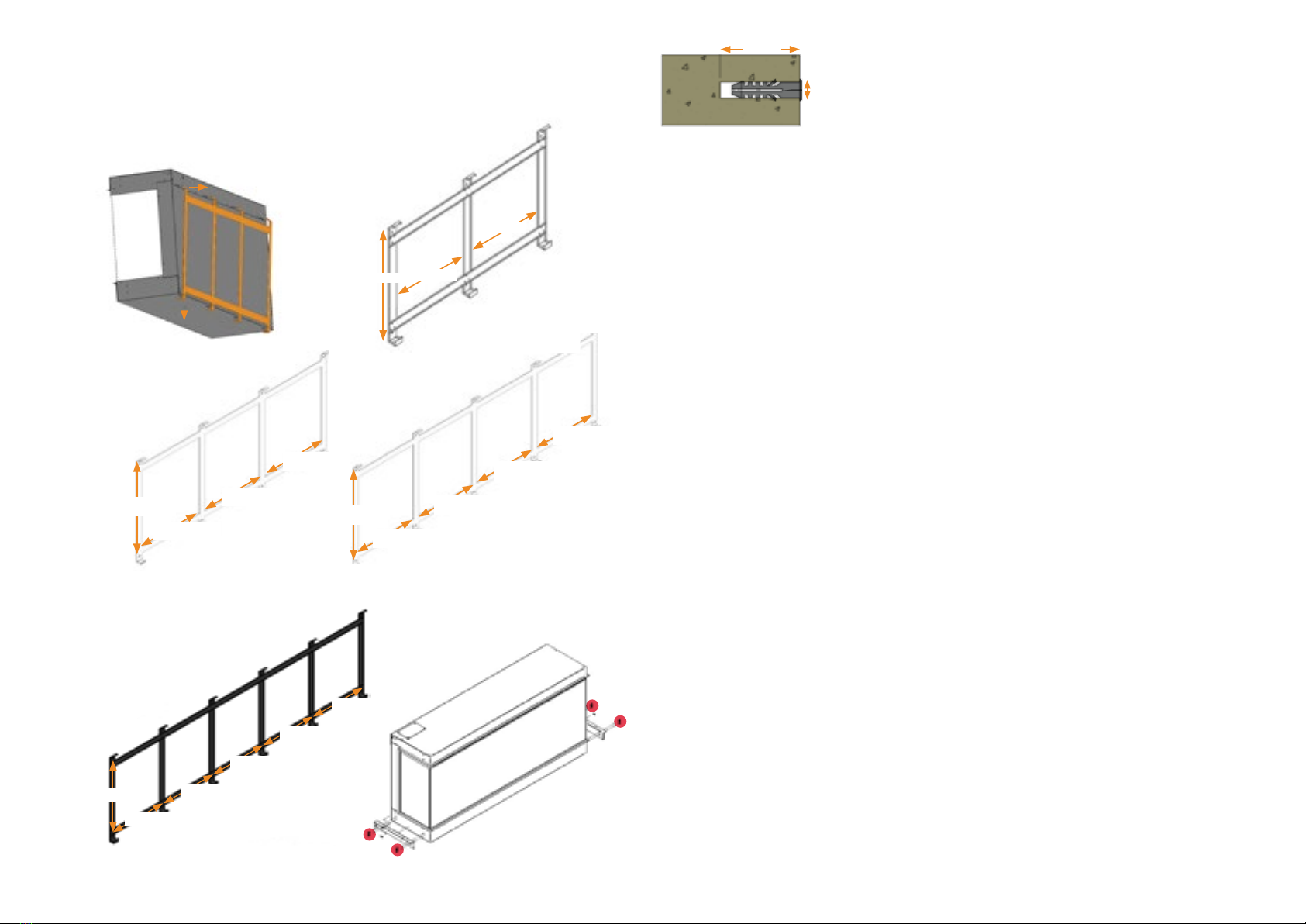

// 9.2 INSTALLATION – STUDWALL FIXING
FALSE CHIMNEY BREAST CONSTRUCTION
Ensure the structure is safely
secured to the wall using the appro-
priate fixings method and able
to support the full weight of the
appliance. Please see section 9.0,
page 10, for further information
Step 2 – Build frame work and inset the fireStep 1 – Prepare framework to desired dimensions
See section 9.1 (Pg 11–12) for dimensions
Check regularly for security
of wall fixings as appropriate.
Also check security of supply
cable and connections. If
the supply cable becomes
damaged, it must be
replaced by a service agent
or competent person, such
as a qualified electrician.
The wall where the appliances are
to be installed must be capable of
long-term support of the total load of
the appliance. Measures should also
be taken to ensure sufficient strength
to withstand the force of earthquakes,
vibration and other external forces.
Plasterboard alone is not considered
to be a structural material. It is not
recommended to rely on plasterboard
fixings alone to support the weight of
the appliance.
// 15

Insert the appliance into the false chimney breast. With a pencil
mark through the wall fixing bracket on to the wall/studding where
you wish to attached the appliance to the structure.
Please note: Before drilling into walls, always check that there
are no hidden wires, pipes, etc. Make sure that screws and
wall plugs supplied are suitable for supporting the unit in your
surface. Consult a qualified person if you are not sure.
Step 3 – Installing the appliance
Remove the appliance from the position and use an appropriate
sized drill for the chosen wall fixing. If the appliance is to be
installed into a brick masonry wall the supplied wall plugs can be
used, to use these wall plugs drill a 8 mm wide x 50 mm deep hole
into the wall. Insert the 2x wall plugs into position, then return the
appliance to its finished position. Screw the wall screws through
the wall brackets on the appliance and into the wall plugs in the
wall and tighten, securing the appliance into position.
Once the appliance is in the correct position plug the appliance
into the wall and check the power to the appliance. Refer to
sections 11.0 and 12.0 on how to sync the remote and operate
the appliance.
Crosshead screws
Crosshead screws
// 16© 2023 British Fires

Please note: Before drilling into walls, always check that
there are no hidden wires, pipes, etc. Make sure that screws
and wall plugs supplied are suitable for supporting the unit
in your surface. Consult a qualified person if you are not sure.
// IMPORTANT:
Important do not drill through the appliance when installing
the cladding into position! The power cable is located on the
rear right hand side of the appliance!
Step 4 – Add finishing boards. *Important – fire must be in place before this stage*
95mm
Power
Cable
// 9.2 INSTALLATION – STUDWALL FIXING
FALSE CHIMNEY BREAST CONSTRUCTION
870*, 1200, 1600, 1900
DO NOT DRILL THROUGH
HIGHLIGHTED SECTION BELOW
584mm; *NF870: 484mm
65mm
95mm
// 17

350 mm
450 mm
342 mm
342 mm
342 mm
342 mm
342 mm
450 mm
New Forest 1900
New Forest 1200
// 9.3 INSTALLATION – FLOATING
1) Remove the wall mounting bracket from rear of the appliance by
moving the bracket down and out from the appliance. (See Fig. A)
2) Find the optimal place to mount your appliance. Consider the proper
position relative to your room, placement of furniture and windows.
3) Hold the mounting bracket up to the wall to verify the correct
location and ensure that the mounting bracket is level. Use a pencil to
mark the six (6x) (870), eight (8x) (1200), ten (10x) (1600) or twelve
(12x) (1900) mounting holes on the wall at the desired mounting
location, using the mounting bracket as a template.
4) Drill a 8 mm wide x 50 mm deep hole on the marked points.
NOTE: If installing the mounting bracket to a wall stud, there is no need to drill
the holes in the wood and no need for the plastic wall anchors. It is rec-
ommended to install the mounting bracket to at least one wooden stud.
5) Tap the eight six (6x) (870), eight (8x) (1200), ten (10x) (1600) or
twelve (12x) (1900) wall anchors into the pre-drilled holes with a
hammer until they are flush with the wall.
6) Secure the mounting bracket to the wall by using all six (6x) (870),
eight (8x) (1200), ten (10x) (1600) or twelve (12x) (1900) wall-fixing
screws.
7) Install the suite fixing brackets to both sides of the appliance by lining
up all four screw holes on the bracket with the four screw holes on
each side of the appliance. Once lined up screw eight (8x) 4 x 8 mm
screws to connect the two brackets to the bottom sides of the
appliance. (See Fig. C)
Before Installing the appliance onto the wall with the suite, secure the side-trims
each side of the appliance as described in section 8.1 Preparing the Appliance.
The installation should be carried out by two adults to avoid injury or damage.
If for any reason it is considered too heavy, please obtain assistance.
Fig. C
Fig. A
50 mm
8 mm
350mm
350mm
450mm
New Forest 870
New Forest 1600
350 mm
350 mm
450 mm 350 mm
350 mm
350 mm
350 mm
// 18© 2023 British Fires

8) Install the appliance onto the mounting bracket on the
wall. Then mark with a pencil through the hole in the
end of the suite fixing brackets against the wall.
9) Remove the appliance off of the wall.
10) Drill a 8 mm wide x 50 mm deep hole on either side
of the appliance.
Please note: Before drilling into walls,always check that
there are no hidden wires, pipes, etc. Make sure that
screws and wall plugs supplied are suitable for support-
ing the unit in your surface. Consult a qualified person if
you are not sure.
11) Tap the two wall anchors into the pre-drilled holes with
a hammer until they are flush with the wall.
12) Install the appliance back onto the wall mounting
bracket.
13) Then screw the wall screws through the rear of the
suite fixing brackets and into the wall plugs.
14) Carefully slide the bottom of the suite onto the suite
fixing brackets.
15) Screw the two legs of the suite from the rear onto
the back of the top section of the suite as shown, left.
16) Carefully lower the top section of the surround onto
the top of the firebox.
// 9.3 INSTALLATION – FLOATING
50 mm
8 mm
// 19
