1.0 PRODUCT DESCRIPTION
LBC-HDBT-T/R-ICP
•An HDBaseT HDMI extender with multiple control I/O ports
•Not only extend HDMI video, but also provide in-line control I/O
paths,overHDBaseT link
EXTENDER
•Extend HDMI, IR, LAN, and RS-232 up to 100 meters over 1
CAT 5e/6 Cable
•Full HDTV video resolutions for 4K2K and 1080p/1080i/720p
•Fully uncompressed video and audio, provides zero loss of
quality
•SupportsTrue DDC/EDID/HDCPtransmission
•Bi-directionalPOH
INLINE CONTROL PROCESSORS (ICP)
•Control I/O ports contain:
- two (2) RS-232
- two (2) Relay
- two (2) Digital I/O
- one (1) IR
- one (1) Ethernet
•Control and monitorAV devices using a standard Ethernet
network (Smart phone or PC) or RS-232 (keypad)
•Front panel port status indicators
•Userfriendly customizable control configurations via built-in
web server
Figure 1-1 shows a typical application diagram.
Figure 1-1
ORDERING INFORMATION
LBC-HDBT-T-ICP Link Bridge Transmitter w/IR/RS-232/Ethernetand Control I/O Ports
LBC-HDBT-R-ICP Link Bridge Receiver w/IR/RS-232/Ethernetand Control I/O Ports
HDMI
RS-232
IR
LAN
HDBaseT
Link
1 CAT-5/6e
NET
Keypad
LB-KP8
LBC-HDBT-T LBC-HDBT-R-ICP HDMI
RS-232
IR
LAN
RS-232
Digital I/O
Relay
IR
For
Control
Ethernet
RS-232
For
Extende
r

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
6
2.0 OPERATION CONTROLSAND FUNCTIONS
2.1 Transmitter Extender Front and Rear Panels
A1. HDMI In: Connectto HDMIsource equipmentsuch asa DVDor
Blu-ray player.
A2. LAN: Connect to an internet or network connection.
A3. RS-232 In: Connect to a PC or laptop with D-Sub 9 pin male
cable for the transmission of RS-232 commands.
A4. Power LED: This blue LED will illuminate when the device is
connected to a power supply.
A5. DC24V:Plugthe 24VDCpowersupplyintotheunitandconnect
theadaptor to anACoutlet. Only oneside of powerneeds to be
connected to activate both transmitter and receiver.
A6. IR 1 Blaster: Connect to the supplied IR blaster cable for IR
signaltransmission. Placethe IRblasterin directline-of-sight of
the equipment to be controlled.
A7. IR 2 Extender: Connect to the supplied IR receiver cables for
IRsignal reception. Ensurethat remote beingused is withinthe
direct line-of-sight of the IR extender.
A8. Link LED: The yellow LED will illuminate when both the input
and output signals are connected.
A9. CAT5e/6Out:Connecttothe recieverunitwithaSingle CAT5e/6
cable for tranmission of all data signals.
TX Extender/Front
A1 A2 A3
TX Extender/Rear
A4 A5 A6 A7
A8 A9

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 7
2.2 Receiver Extender Front and Rear Panels
B1. HDMI Out: Connecttoa HDMIequipped TV/monitor fordisplay
of the HDMI input source signal.
B2. LAN: Connect to a PC or Laptop to the Internet or network
connection.
B3. RS-232 Out: Connect to the device that is to be controlled (via
D-Sub 9 pin female cable) by RS-232 commands.
B4. Power LED: This blue LED will illuminate when the device is
connected to a power supply.
B5. DC24V:Plugthe24 VDCpowersupply intotheunitand connect
the adaptor to an AC outlet. Only one side of power needs to
be connected to activate both transmitter and receiver.
B6. IR 2 Blaster: Connect to the supplied IR blaster cable for IR
signaltransmission. Place the IRblaster in direct lineofsight of
the equipment to be controlled.
B7. IR 1 Extender: Connect to the supplied IR receiver cables for
IRsignal reception. Ensurethatremote being usedis within the
direct line-of-sight of the IR extender.
B8. Link LED: The yellow LED will illuminate when both the input
and output signals are connected.
B9. CAT5e/6 In: Connect to the transmitter unit with a Single
CAT5e/6 cable for tranmission of all data signals.
B9
RX Extender/Front
RX Extender/Rear
B4 B5 B6 B7
B8
B1 B2 B3

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
8
2.3 ICP Front and Rear Panel
C1. Digital I/O: Digital input/output ports.
C2. Digital I/O LEDs: Light when the corresponding ports are
activehigh.
C3. RS-232: Serial port to control devices.
C4. RS-232 LEDs: Light when the corresponding RS-232 ports
are active.
C5. REM LED: Light when the unit is set as a remote unit.
C6. IR LED: Light when the IR out are active.
C7. RELAY LED: Light when the corresponding, normally open
pins, are closed.
C8. RELAY: Normally open and normally closed relay ports.
C9. AUX-In and AUX-Out: Reserved.
C10. DC24V: DC power input connector.
C11. IR Out: IR blaster port.
C12. SW: The unit configuration dip switch
C13. IR Learner: Built-in IR receiver for IR learning.
C14. IR Learner LED: Lighted when the unit is IR learning mode.
C15. CONFIG: Configuration/keypad port
C16. LAN: Ethernet connector.
C17. RESET: Press the button to reset the device back to factory
default settings.
ICP/Fron
t
ICP/Rear
C1 C2 C5 C6 C8 C9
C13
C14 C15 C16 C17
C10 C11 C12
C3 C4 C7

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 9
3.0 CONNECTOR PINOUT ASSIGNMENT
3.1 Extender
3.1.1 D-Sub PinAssignment
3.1.2 IR Blaster Cable PinAssignment
Pin
1
2
3
4
5
6
7
8
9
Define TX/RX
N/C
TxD/RxD
RxD/TxD
N/C
GND
N/C
N/C
N/C
N/C
IR Blaster Power 5V
IR Blaster Signal
NC

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
10
3.1.3 IR Receiver Cable PinAssignment
3.2 ICP
IR Receiver
IR Signal
Power 5V
Grounding
Front
Digital I/O CH-1 GND Digital I/O CH-2 GND GND
Relay 1 Normally Open Relay 1 Common Relay 1 Normally Closed Reserved/Do Not Connect Reserved/Do Not Connect
Digital I/O LEDs 1=I/O Ch-1 2=I/O Ch-2
Remote LED (On=Remote) IR TX LED
(On=IR TX Act.)
}
On=High Level
Reserved/Do Not Connect Reserved/Do Not Connect
Relay 2 Normally Closed
Relay 2 Common
Relay 2 Normally Open
RS-232 OUT CH-2 RS-232 OUT CH-1
GND
RS-232 IN CH-2 RS-232 IN CH-1
1=Relay 1 ON 2=Relay 2 ON
RS-232 LEDs
1=CH-1 Activity 2=CH-2 Activity

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 11
Rear
IR OUT for
external emitter IR detector
behind holes
Reset button:
push to reset to
default settings
RJ-45
1 - TX+
2 - TX-
3 - RX+
4 - N/C
5 - N/C
6 - RX-
7 - N/C
8 - N/C
CONFIG/Keypad
1. +12V keypad power
2. RS-232 IN
3. RS-232 OUT
4. GND
IR Learn LED
(ON in IR
Learn mode
DIP SW
Position 1: Local/Remote
(Local=OFF)
Position 2: Reserved
Position 3: Reserved
Position 4: Reserved
3.3 LB-KP8 Keypad
In many cases, LBC-HDBT-T/R-ICP will need a keypad
(LB-KP8)to trigger the preset control function. Thefollowingis
the connection diagram between LBC-HDBT-T/R-ICP and
LB-KP8.
Rear
Control
RJ-45
Pin 1: RS-232 OUT
Pin 2: RS-232 IN
Pin 3: --no connect--
Pin 4: +12v
Pin 5: +12v
Pin 6: --no connect--
Pin 7: GND
Pin 8: GND

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
12
Thecable connectionbetween LB-KP8and LB-ICPisshown below.
IR
Learner
CONFIG LAN RESET
1
IR Out
1
+12VDC
SW
ON
Standard RJ45
Termination T-568B
2. White / Orange (RS232 In) 3. Orange (RS232 Out) 1. Blue (+12V) 4. Brown (Ground)
1.White/Orange
2.Orange
3.White/Green
4.Blue
5.White/Blue
6.Green
7.White/Brown
8.Brown

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 13

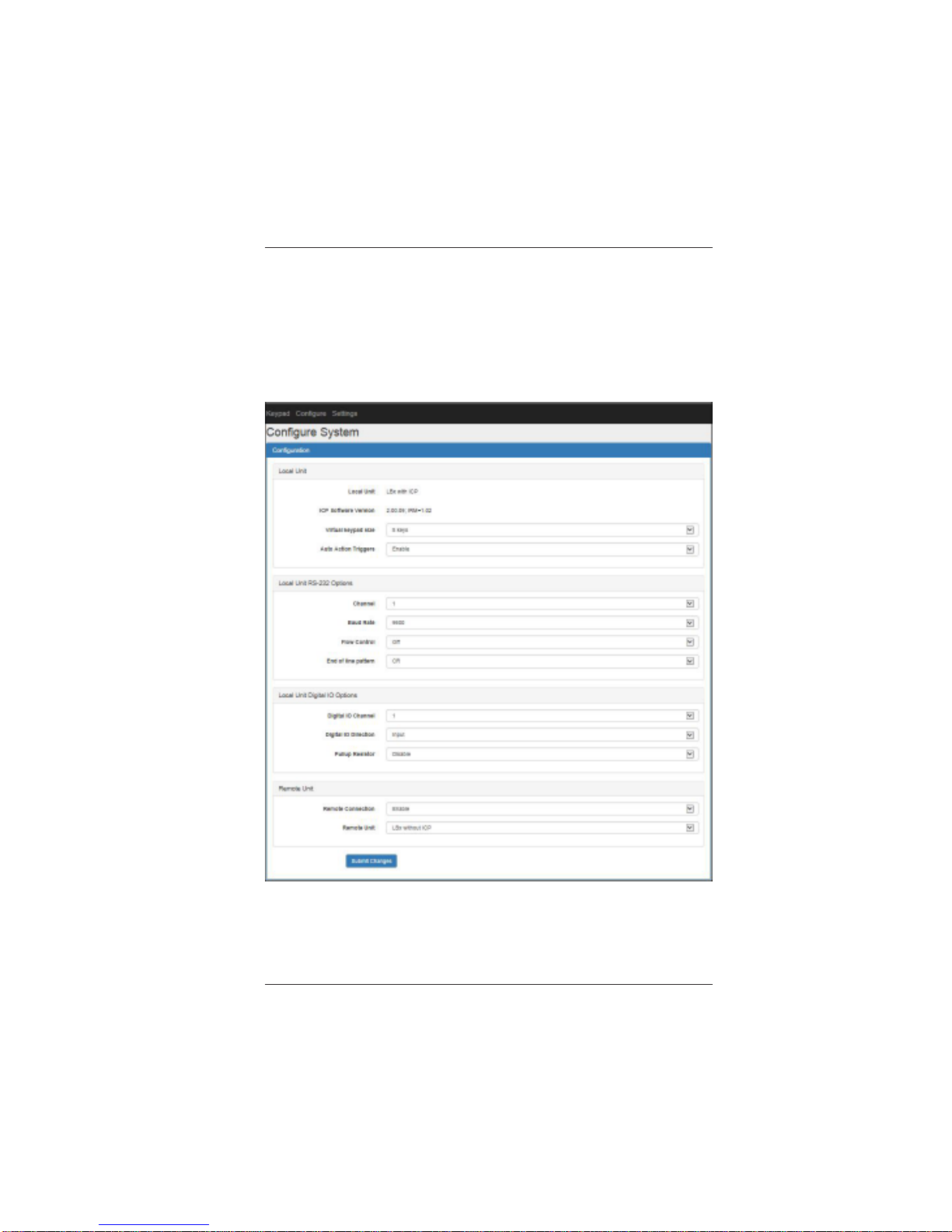

4.0 LB-ICP WEB SERVER DESCRIPTION
Introduction
The ICP Web Server provides user friendly and intuitive web pages to
configurethe virtual keypadand automation functions within theICP. It
alsoprovides web pagesto manage the IRLearner and IRcode import.
A standard web browser can be used to access the web pages.
Accessing Web Server
TheIP address of the ICPmust be obtained in ordertoaccess the Web
Server. There are 2 ways to obtain the IP address of an ICP.
1) Use the IPCONFIG command in the Configuration Port
Command Line Interface to display the unit’s IP address.
2) Use the BCI PC Configuration Program (seeAppendix)

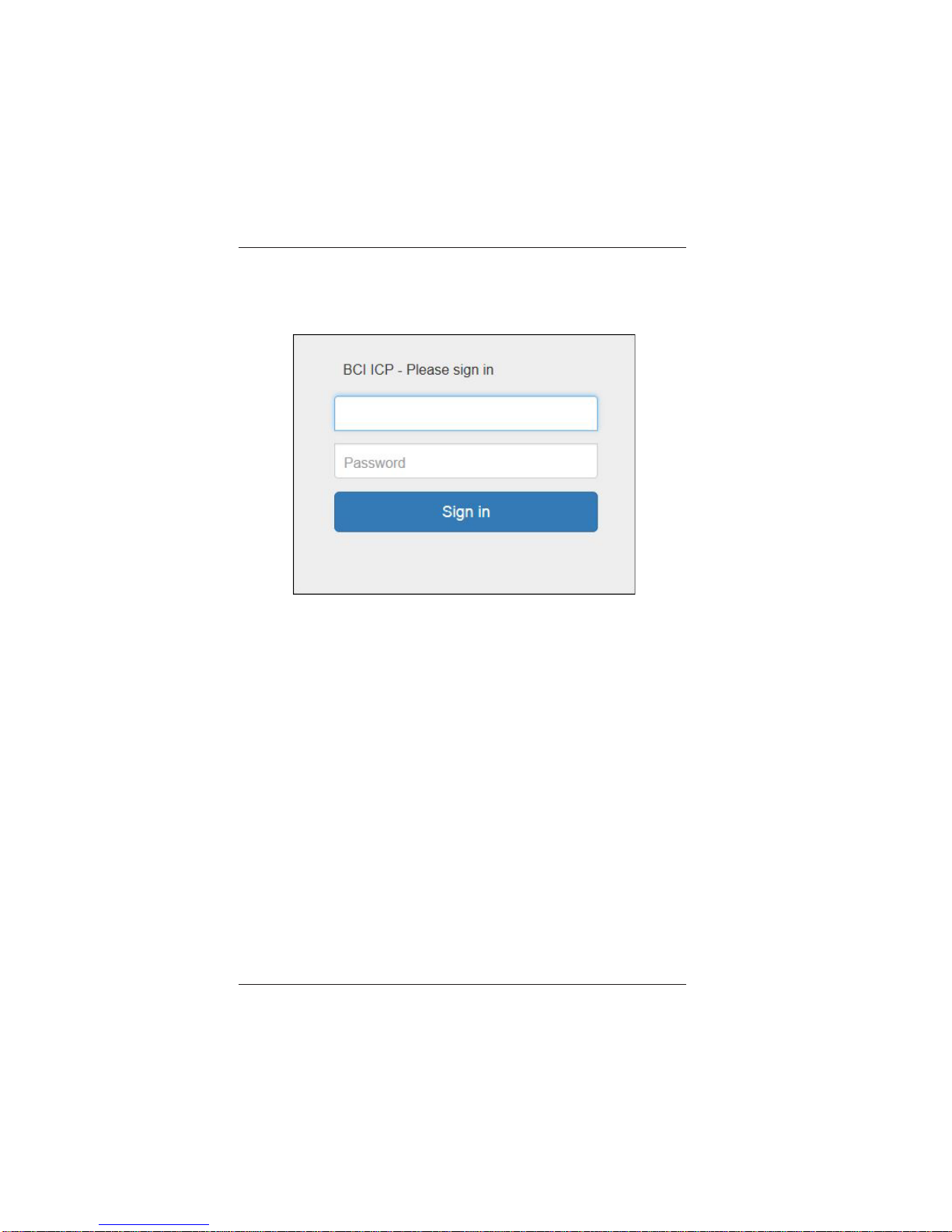

Type in the unit’s IP address in the web browser. The ICP Virtual
Keypad page will be displayed. All 8keys of the VirtualKeypadare un-
programmed by default. The keys are configured in the Configure
KeyAction page.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
14
Beforeconfiguring the Virtual Keypad,thesystemfirst needs to be set
up using the Configure System page. On the top menu bar, click
Configure and then click System. Thisbrings up the ICP Login page.
IntheICPLogintypeinadmin forthe Useridandadmin forthePassword
andthen click Sign in button. TheConfigure System pagewill appear.
See the following section for Configure System page details. Once
logged in, the user is free to open any of the Configure or Settings
pages. The default Password can be changed using the BCI Product
Configuration program (seeAppendix).

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 15
Configure System
TheConfigure System page is usedtoconfigure the localunit’svirtual
keypad, RS-232 channels, Digital IO channels and remote unit types.
On the top menu bar, click Configure and then click System. The
following page will be displayed.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
16
Local Unit
The first two lines in this panel show the Local unit type and software
version. Below that are the pull down menus for selecting the virtual
keypad size and enablingAutoAction Triggers.
VirtualKeypad Size:Select8 keys or16 keys. 8keys option:maximum
of 10 actions per key. 16 keys option: maximum of 5 actions per key.
AutoAction Triggers: SelectEnable to enable theautoaction triggers
definedintheConfigure AutoAction page. Select Disable todisable
all auto triggers.
Local Unit RS-232 Options
This panel is used to configure the local RS-232 channels.
Channel:Select channel 1, 2 or3.Note: Channel 3 is onlyavailableon
LBC-ICP and EAD/SCL-ICP units.
Channel 1/2: RS-232 control channels.
Channel 3:RS-232 control channel or pass-through channel.Channel
3 defaults as a control channel. Set Remote Connection (Remote Unit
panel) to Disable in order to configure Channel 3 as a pass-through
channel.Channel3(Remote)is thepass-through channelon theremote
unit.
Baud Rate: Select a baud rate from 9600 to 115200 baud.
Flow Control: Select On to enable flow control and Off todisable flow
control. Flow control is available only on Channel 1. If flow control is
enabled,Channel2is no longer available.
End of Line Pattern: Select CR or CR+LF for end of line termination.
Local Unit Digital IO Options
The3 pull down menusinthis panel are usedto configure the Digital IO
settings.Digital IOs are inputs by defaultand show up as triggers inthe
ConfigureAutoActions page.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 17
Digital IO Channel: Select channel 1or 2.
Digital IO Direction: Select channel as a digital Input or Output.
If the Digital IO Direction is set to Input, there is an option for Pullup
Resistor.
Pullup Resistor: Select Enable or Disable pull-up resistor.
If the Digital IO Direction is set to Output, there is an option for Digital
Output Mode.
Digital Output Mode: Select TTL for a 5V compatibleTTLtypeoutput
orOpen Collector for an open collector type output. An opencollector
type output can be used to implement a contact closure type output.
For example, if a digital output is set to Open Collector, setting the
DigitalOutputStateto 1 (High) will emulateaswitch closure to ground.
Setting the Digital Output State to 0 (Low) will emulate a switch being
open. TheOpenCollectoroutputalsohasan optionfora PullupResistor.
Remote Unit
Thispanelenables the connection with the remote unit and selects the
remote unit type. This panel is not available if the Local unit type is
Standalone ICP.
Remote Connection: SelectEnable toenable the connectionwith the
remote unit. Select Disable to disable the connection with the remote
unitand enable the RS-232pass-throughchannel. None of the remote
unit control outputs will be available once Disable is selected.
Remote Unit: Select the remote unit type. The available remote unit
types are LBx without ICP, LBx with ICP and EAD/SCL with ICP.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
18
Configure KeyAction
The Configure Key Action page is used to configure the keys virtual
on the virtual keypad. On the 8-key keypad, each function key can be
definedas a macrofor up to10different actions. Onthe 16-key keypad,
each function key can be defined as a macro for up to 5 actions. The
availableactionsare Relay,RS-232,IRandTelnet.DigitalOutputactions
areonlyavailableif DigitalIOsareconfigured asoutputsinthe Configure
System page.
OnthetopmenuclickConfigure andthenclickKeyAction.Thefollowing
page will be displayed.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 19
Function Key: Select the function key F1 through F8 to be defined.
Function Key Label: Type in a label name for the selected function
key.
Function Key Mode: Select Standard for a “momentary” type key.
Only one action is assigned to a Standard key. Select Toggle for a
“toggle” type key. A Toggle key has two states: Press and Release.
One set of actions is assigned to the Press state and another set of
actions is assigned to the Release state.
Command Action: Select the action number to be defined. Action 1
throughAction 10 can be defined.
Spacing: Enter the delay (in seconds) desired before the command
action.
Action Type: Select the action type. Available types are None,
Relay, Digital Output, RS-232, IR, and Telnet.

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [phone]
20
Relay Options
Relay Channel: Select the relay channel 1or 2.
Relay State: Select the relay channel state, On (energized) or Off
(de-energized).
Digital Output Options
Digital Output Channel: Select the digital output channel 1or 2.
Note: this option is not available if both Digital IO channels are set to
Inputs in Configure System page.
Digital Output State: Select the digital output state: 1 (High) or 0
(Low).

LBC-HDBT-T/R-ICPUserManual
LinkBridgeTM HBaseTHDMITransmission Systemw/Inline ControlProcessor
Broadata Technical Support, [email protected] 21
RS-232 Options
RS-232 Channel: Select channel 1, 2, or 3 (Remote).
Transmit String: Type in the text string to be transmitted. Strings are
terminatedwithCR+LF,depending on the selection made in Configure
System page. Characters enclosed by <> will be treated as hex. For
example to transmit 00h enter <00>.
