Broadata LBH-H-T/R-EAD-ICP User manual

LBH-H-T/R-EAD-ICP
LINK BRIDGETM HBASETHDMI
TRANSMISSION SYSTEM WITH EXTERNAL
AUDIO AND INLINE CONTROL PROCESSOR
BCI reserves the right to make changes to the products described herein without prior
notice or consent. No liability is assumed as a result of their use or application. All
rightsreserved.
©2015 Broadata Communications, Inc.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 3
SAFETY INSTRUCTIONS AND
COMPLIANCE DECLARATIONS
PLEASE OBSERVE THE FOLLOWING SAFETY
PRECAUTIONS
SURGE PROTECTION DEVICE RECOMMENDED
This product contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lightning strikes,
etc. Use of surge protection systems is highly recommended in order
to protect and extend the life of your equipment.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
4
TABLE OF CONTENTS
1.0 PRODUCT DESCRIPTION ..............................................5
2.0 OPERATION CONTROL AND FUNCTIONS ...................6
2.1 TRANSMITTER EXTENDER FRONT AND REAR
PANELS ...........................................................................6
2.2 RECEIVER EXTENDER FRONT AND REAR PANEL.....7
2.3 ICP FRONT AND REAR PANEL .....................................8
3.0 CONNECTOR PINOUT ASSIGNMENT ...........................9
3.1 EXTENDER ......................................................................9
3.1.1 SERIAL DATA INTERFACE............................................9
3.1.2 STATUS LEDS .............................................................10
3.2 ICP .................................................................................11
3.3 LB-KP8 ...........................................................................12
4.0 LB-ICP WEB SERVER DESCRIPTION .........................14
5.0 SPECIFICATIONS...........................................................34
6.0 SERVICE PROCEDURE ................................................37
6.1 REPLACEMENT POLICY ..............................................37
6.2 RETURN AND REPAIR SERVICE .................................37
7.0 LIMITED WARRANTY ....................................................38

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 5
1.0 PRODUCT DESCRIPTION
Overall
•An HDBaseT HDMI extender with external audio ports and
multimple control I/O ports
•Not only extend HDMI video, but also provide in-line control
I/O paths, over HDBaseT link
Extender
•Extend HDMI, external stereo audio, and RS-232/IR up to 100
meters over 1 CAT-5e/6 cable
•Full HDTV video resolution for 4K2K and 1080p/1080i/720p
•Fully uncompressed video and audio, provides zero loss of
quality
•SupportsTrueDDC/EDID/HDCP transmission
•Bi-directionalPOH
Inline Control Processor (ICP)
•Control I/O ports contain:
- two (2) RS-232
- two (2) Relay
- two (2) Digital I/O
- one (1) IR
- one (1) Ethernet
•Control and monitorAV devices using a standard Ethernet
•Front panel port status indicators
•Userfriendlycustomizablecontrol configurations viabuilt-in
web server
ORDERING INFORMATION
LBH-H-EAD-T-ICP Link Bridge HDMI Transmitter w/Audio,
RS-232 and Control I/O Ports
LBH-H-EAD-R-ICP Link Bridge HDMI Receiver w/Audio,
RS-232 and Control I/O Ports

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
6

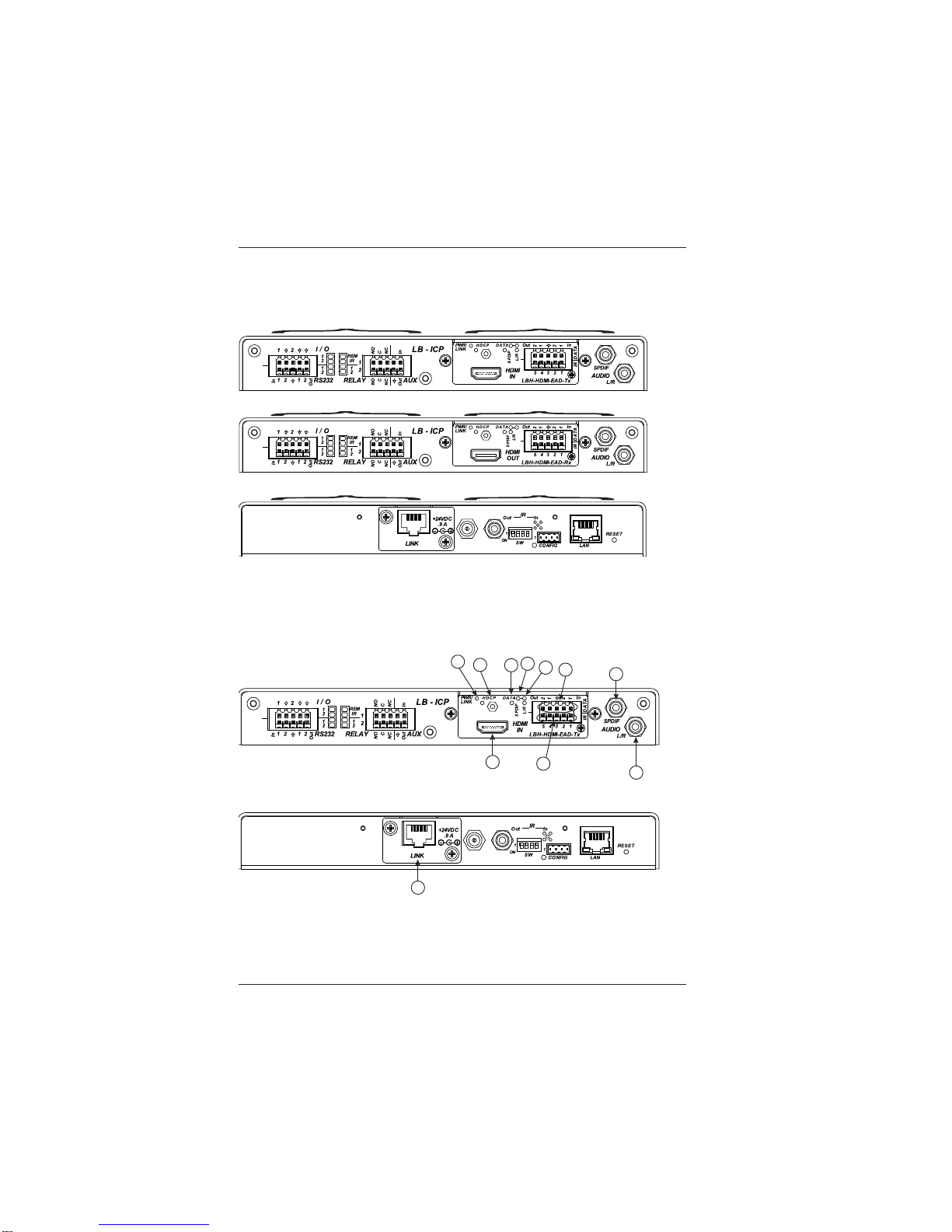

2.0 OPERATION CONTROLSAND FUNCTIONS
2.1 Transmitter Extender Front and Rear Panel
1. Power/Link: The red LED indicates the unit is powered up.
The green LED indicates that the unit has a good HDBT
connection.
ICP Extender
ICP Extender
ICPExtender
TX
Front
RX
Front
TX or R
X
Rear
10
123456
7
8
9
TX
Extender/Front
11
TX
Extender/Rear

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 7
2. HDCP LED: The blue LED is lighted when HDCP video is
present.TheblueLEDblinkswhennon-HDCPvideoispresent.
3. SPDIFLED: LightedwhencorrespondingSPDIFaudioisactive.
4. DATALEDs:Lightedwhencorresponding inputoroutput ports
are active.
5. L/R LED: Lighted when corresponding audio is active.
6. DATA: RS-232 pass-through data connector.
7. IR: IR pass-through IR connector.
8. SPDIF: SPDIF audio input connector.
9. L/R: L/R audio input connector.
10. HDMI IN: HDMI video input connector.
11. HDBT: HDBT CAT-5e/6/7 cable connector.
2.2 Receiver Extender Front and Rear Panel
1. Power/Link: The red LED indicates the unit is powered up.
The green LED indicates that the unit has a good HDBT
connection.
2. HDCP LED: The blue LED is lighted when HDCP video is
present.TheblueLEDblinkswhennon-HDCPvideoispresent.
3. SPDIFLED: LightedwhencorrespondingSPDIFaudioisactive.
4. DATALEDs:Lightedwhencorresponding inputoroutput ports
are active.
5. L/R LED: Lighted when corresponding audio is active.
6. DATA: RS-232 pass-through data connector.
10
123456
7
8
9
RX
Extender/Front
11
RX
Extender/Rear

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
8
7. IR: IR pass-through IR connector.
8. SPDIF: SPDIF audio output connector.
9. L/R: L/R audio output connector.
10. HDMI IN: HDMI video output connector.
11. HDBT: HDBT CAT-5e/6/7 cable connector.
2.3 ICP Front and Rear Panel
1. Digital I/O: Digital input/output ports.
2. Digital I/OLEDs: Lightwhen thecorrespondingportsareactive
high.
3. RS-232: Serial port to control devices.
4. RS-232 LEDs: Light when the corresponding RS-232 ports
are active.
5. REM LED: Light when the unit is set as a remote unit.
6. IR LED: Light when the IR out are active.
7. RELAYLED:Light whenthe corresponding,normallyopenpins,
are closed.
8. RELAY: Normally open and normally closed relay ports.
9. AUX-In and AUX-Out: Reserved.
10. DC12V: DC power input connector.
11. IR Out: IR blaster port.
12
34
56
7
89ICP Fron
t
10
ICP Back
11 12
13
14 15 16 17

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 9
12. SW: The unit configuration dip switch
13. IR Learner: Built-in IR receiver for IR learning.
14. IR Learner LED: Lighted when the unit is IR learning mode.
15. CONFIG: Configuration/keypad port
16. LAN: Ethernetconnector.
17. RESET: Press the button to reset the device back to factory
default settings.
3.0 CONNECTOR PINOUT ASSIGNMENT
3.1 Extender
3.1.1 Serial Data Interface
Each LBH-H-EAD-ICP unit can be used for RS-232 and IR
interface.
RS-232/ IR Data
The LBH-H-EAD-ICP transmits two channels of data
signals. Follow the procedures for installing data terminal
devices.
1. Label and connect one serial data cable to the user’s
RS-232 or IR device.
2. Connect the other end of this cable to the front panel
data terminal block connector on the
LBH-H-EAD-ICP (see below).
RS-232/IR Terminal block pinout

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
10
3.1.2 Status LED’s
Additional status LED’s are provided for the user to indicate
the presence of HDCP video, audio presence and data
presence. These are to assist the user in identifying right from
thefrontpanelwhetheragivensignalispresentfortransmission
andaidinthetroubleshootingprocessif agivensignalismissing.
HDCP LED: Will be solid LED when video
input has a HDCP. It will blink when video
input does not have HDCP.
Data in and Data out LED:
It will be on when the unit
detects data signal.
SPDIF & L/R detect LED.
It will be on when the unit detect
the audio input signal.
LBH-HDMI-EAD-Tx
Out
SPDIF
L/R
IN
HDMI
LINK
PWR/
HDCP DATA
DATA
12543 SPDIF
AUDIO
L/R
IR
In
1221
LBH-HDMI-EAD-Rx
Out
L/R
SPDIF
OUT
HDMI
HDCP
LINK
PWR/
DATA
DATA
AUDIO
IR
12543 L/R
SPDIF
In
1
122

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 11

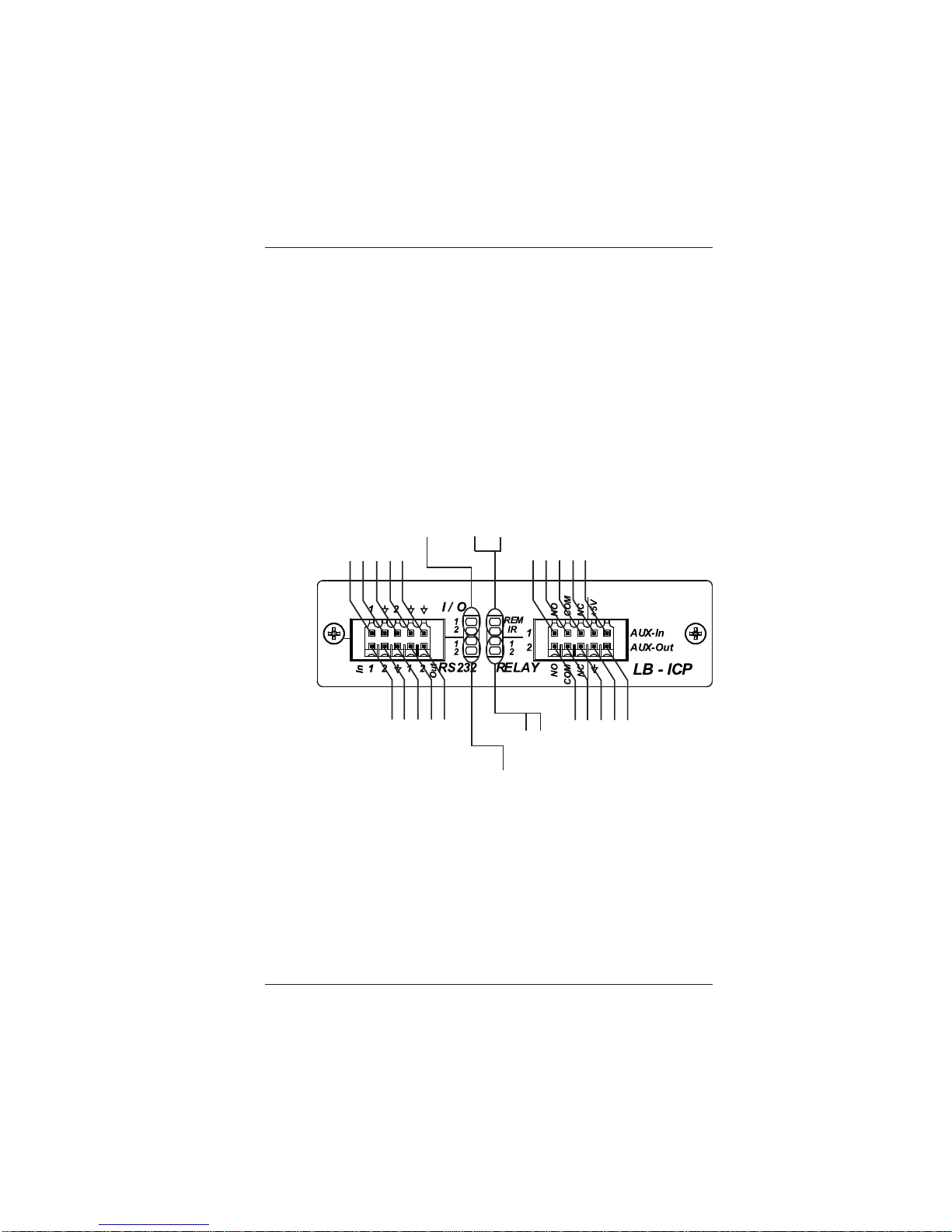

3.2 LB-ICP
Front
Digital I/O CH-1 GND Digital I/O CH-2 GND GND
Relay 1 Normally Open Relay 1 Common Relay 1 Normally Closed Reserved/Do Not Connect Reserved/Do Not Connect
Digital I/O LEDs 1=I/O Ch-1 2=I/O Ch-2
Remote LED (On=Remote) IR TX LED
(On=IR TX Act.)
}
On=High Level
Reserved/Do Not Connect Reserved/Do Not Connect
Relay 2 Normally Closed
Relay 2 Common
Relay 2 Normally Open
RS-232 OUT CH-2 RS-232 OUT CH-1
GND
RS-232 IN CH-2 RS-232 IN CH-1
1=Relay 1 ON 2=Relay 2 ON
RS-232 LEDs
1=CH-1 Activity 2=CH-2 Activity

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
12

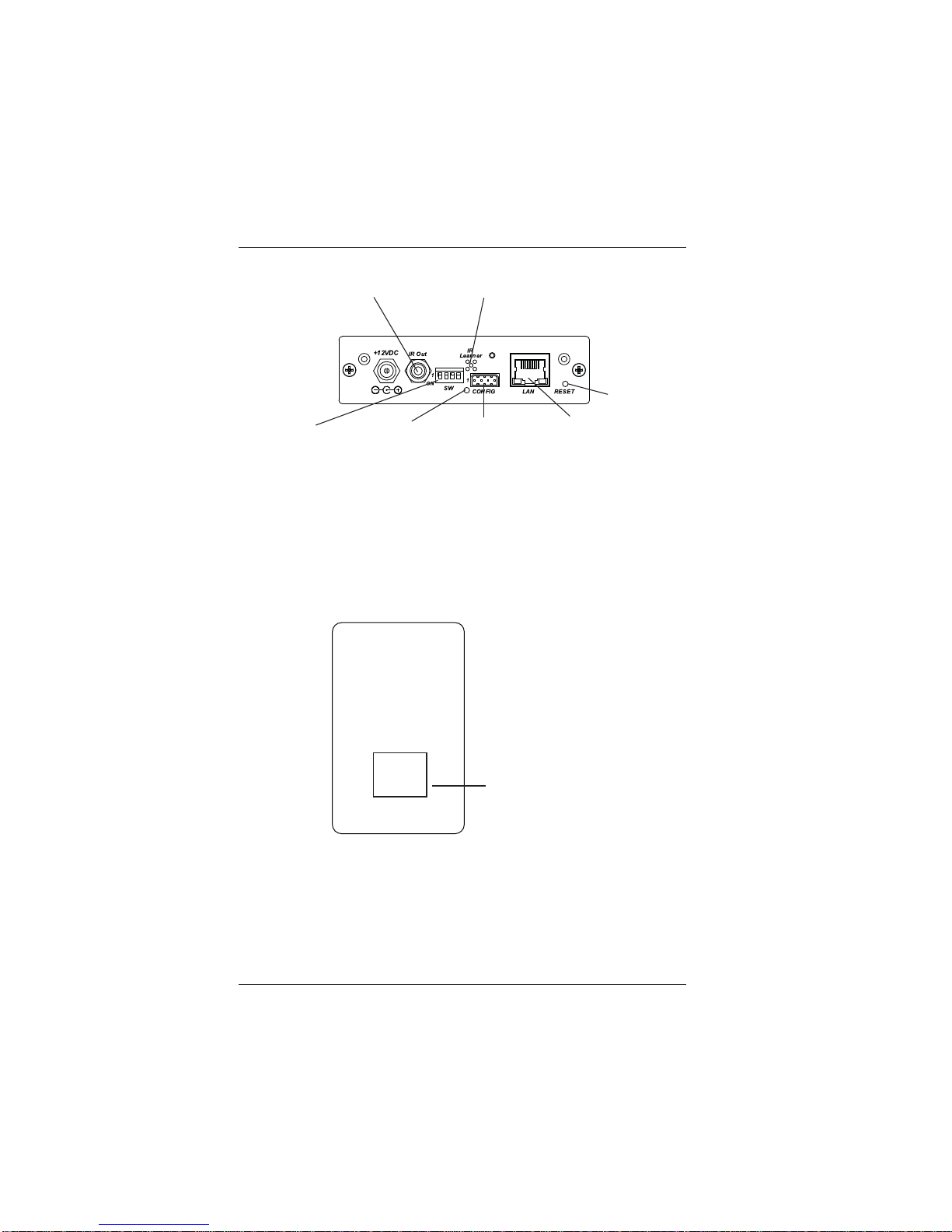

3.3 LB-KP8
Rear
IR OUT for
external emitter IR detector
behind holes
Reset button:
push to reset to
default settings
RJ-45
1 - TX+
2 - TX-
3 - RX+
4 - N/C
5 - N/C
6 - RX-
7 - N/C
8 - N/C
CONFIG/Keypad
1. +12V keypad power
2. RS-232 IN
3. RS-232 OUT
4. GND
IR Learn LED
(ON in IR
Learn mode
DIP SW
Position 1: Local/Remote
(Local=OFF)
Position 2: Reserved
Position 3: Reserved
Position 4: Reserved
Rear
Control
RJ-45
Pin 1: RS-232 OUT
Pin 2: RS-232 IN
Pin 3: --no connect--
Pin 4: +12v
Pin 5: +12v
Pin 6: --no connect--
Pin 7: GND
Pin 8: GND

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 13

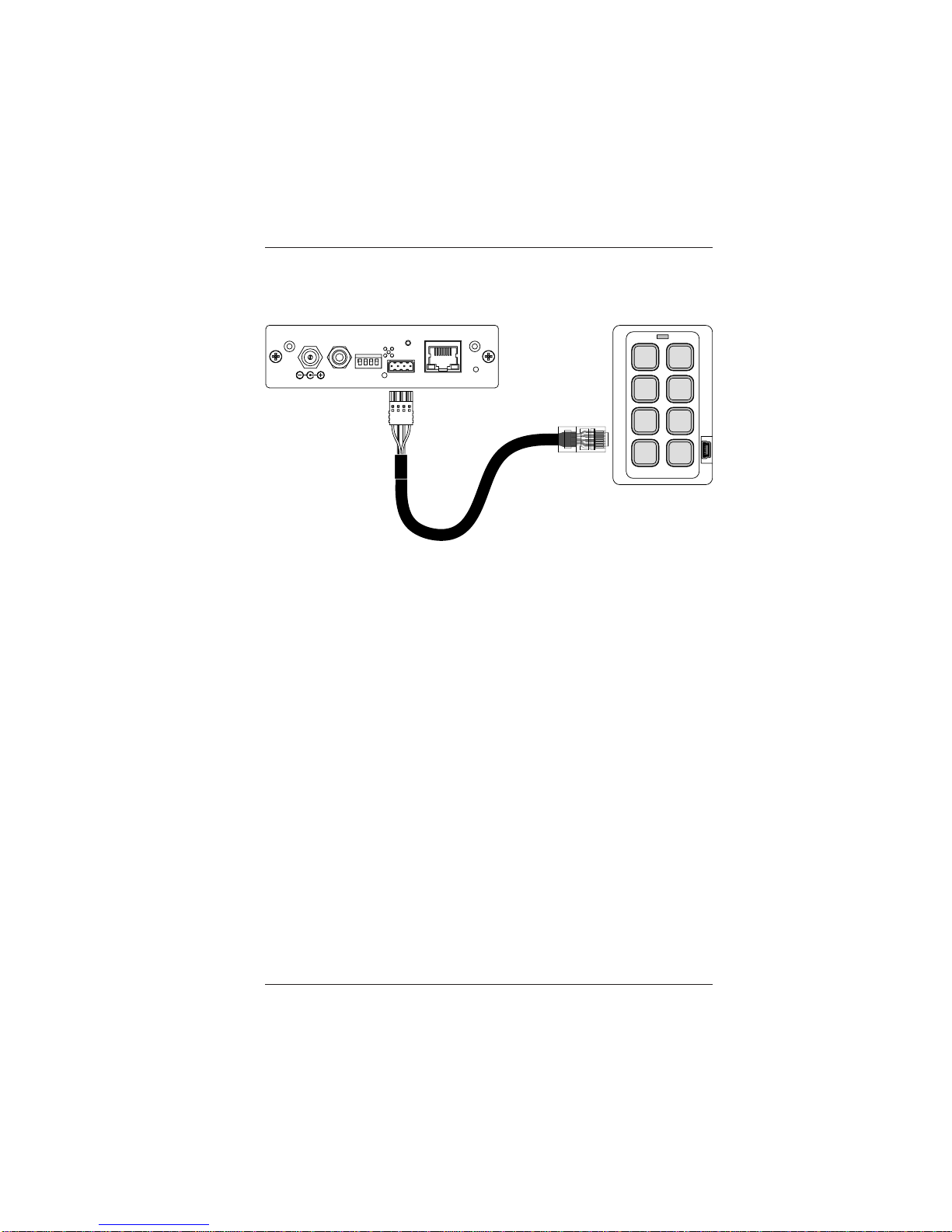

ThecableconnectionbetweenLB-KP8 andLB-ICPisshown below.
IR
Learner
CONFIG LAN RESET
1
IR Out
1
+12VDC
SW
ON
Standard RJ45
Termination T-568B
2. White / Orange (RS232 In) 3. Orange (RS232 Out) 1. Blue (+12V) 4. Brown (Ground)
1.White/Orange
2.Orange
3.White/Green
4.Blue
5.White/Blue
6.Green
7.White/Brown
8.Brown

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
14
4.0 LB-ICP WEB SERVER DESCRIPTION
Introduction
The ICP Web Server provides user friendly and intuitive web pages to
configurethevirtualkeypad andautomationfunctionswithin the ICP. It
alsoprovidesweb pages tomanagethe IRLearnerand IR codeimport.
A standard web browser can be used to access the web pages.
Accessing Web Server
TheIPaddressof the ICPmustbe obtained inorderto access theWeb
Server. There are 2 ways to obtain the IP address of an ICP.
1) Use the IPCONFIG command in the Configuration Port
Command Line Interface to display the unit’s IP address.
2) Use the BCI PC Configuration Program (seeAppendix)

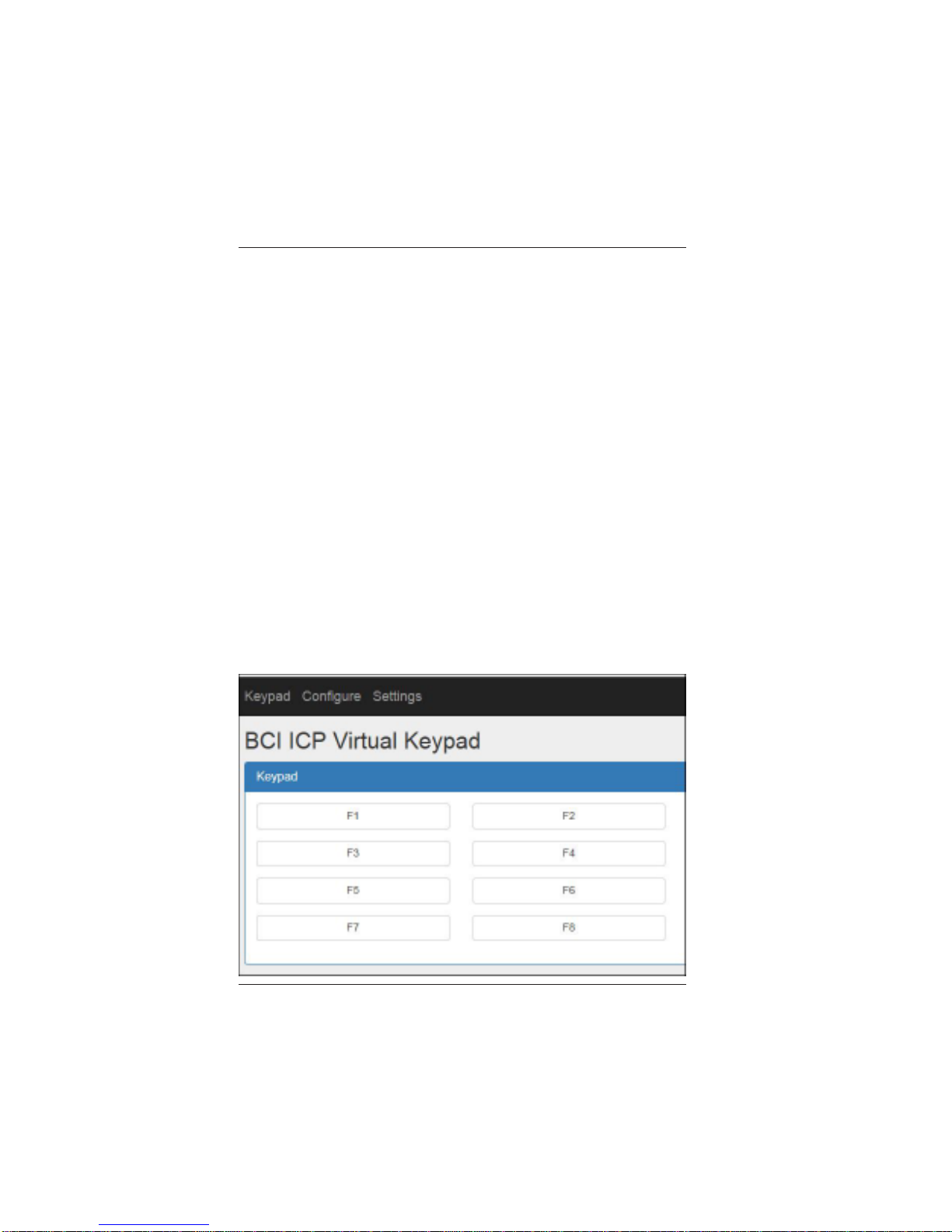

Type in the unit’s IP address in the web browser. The ICP Virtual
Keypad page will bedisplayed. All8keys of theVirtual Keypadare un-

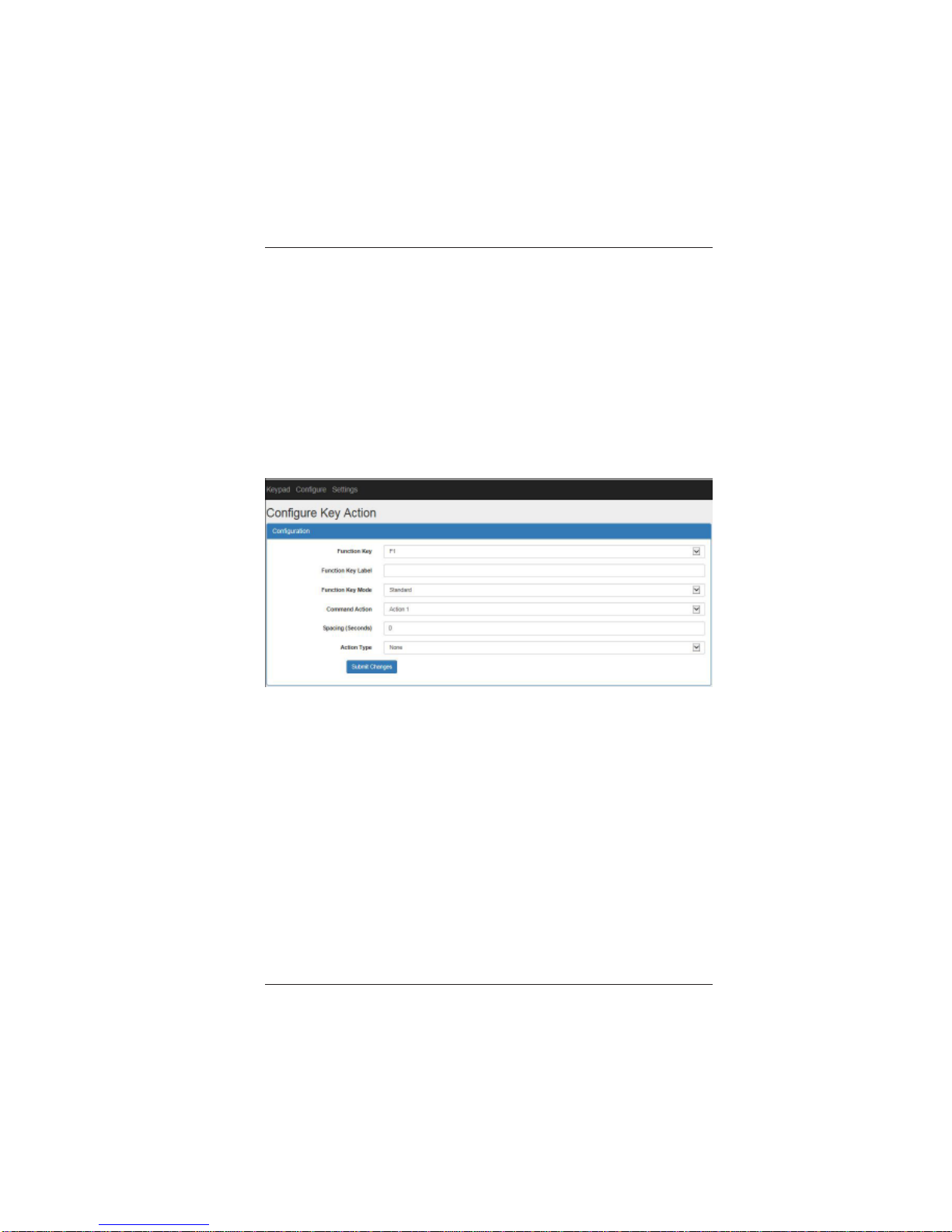

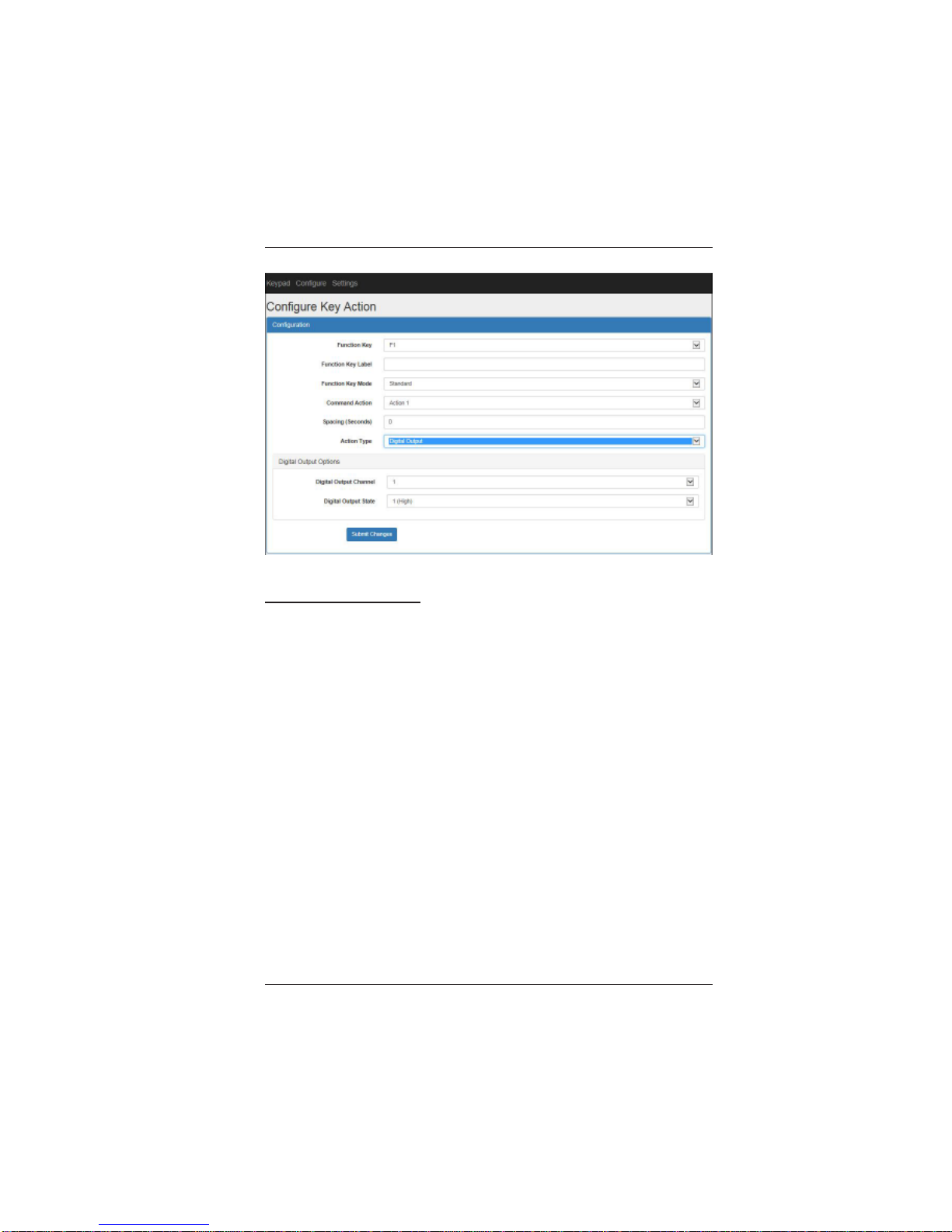

programmed by default. The keys are configured in the Configure
KeyAction page.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 15
BeforeconfiguringtheVirtual Keypad,the system firstneedstobe set
up using the Configure System page. On the top menu bar, click
Configure and then click System. ThisbringsuptheICP Login page.
Inthe ICPLogintypeinadminfortheUseridand adminforthePassword
andthenclick Sign in button. TheConfigure System pagewillappear.
See the following section for Configure System page details. Once
logged in, the user is free to open any of the Configure or Settings
pages. The default Password can be changed using the BCI Product
Configuration program (seeAppendix).

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
16

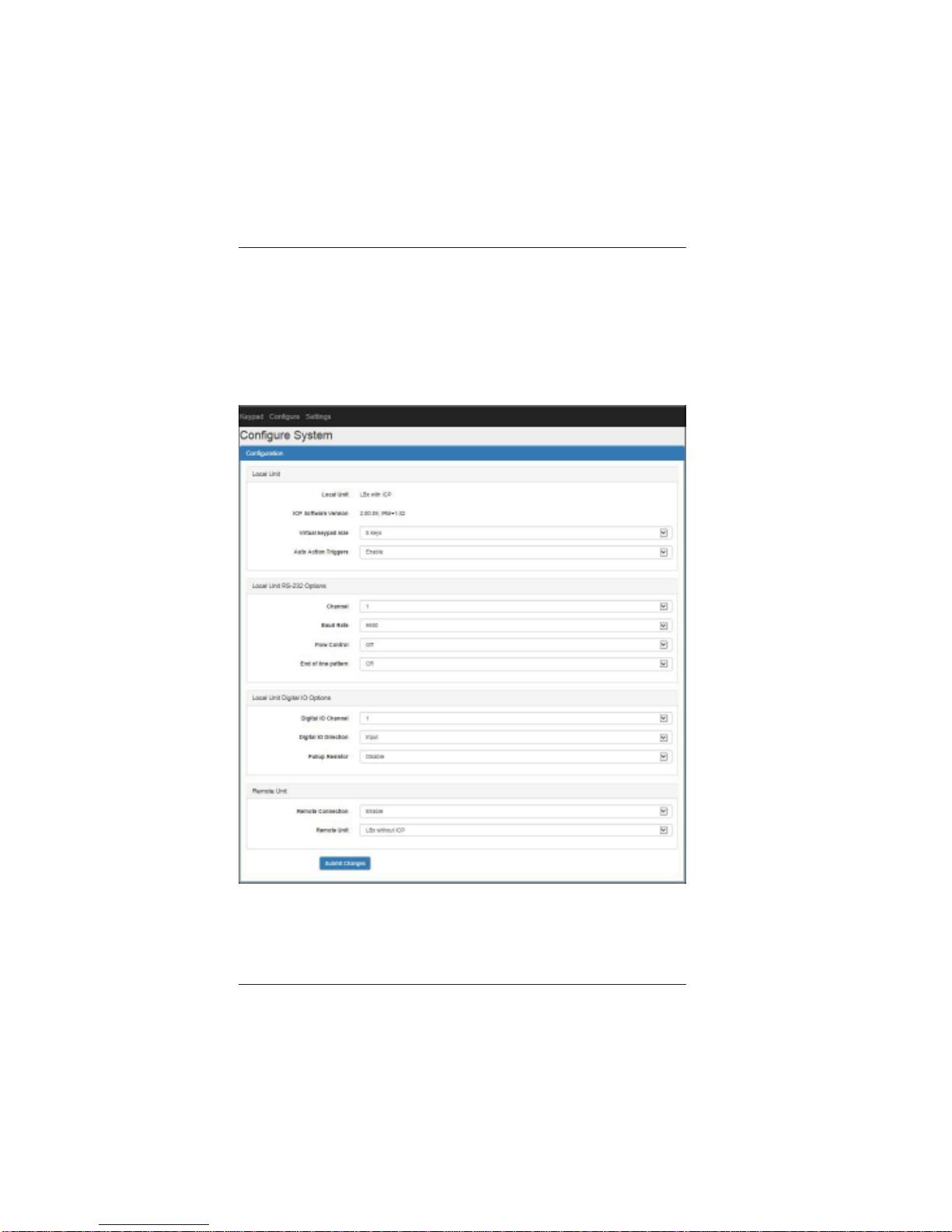

Configure System
TheConfigure System pageisused toconfigurethelocal unit’svirtual
keypad, RS-232 channels, Digital IO channels and remote unit types.
On the top menu bar, click Configure and then click System. The
following page will be displayed.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 17
Local Unit
The first two lines in this panel show the Local unit type and software
version. Below that are the pull down menus for selecting the virtual
keypad size and enablingAutoAction Triggers.
VirtualKeypadSize:Select8 keys or16 keys.8 keysoption:maximum
of 10 actions per key. 16 keys option: maximum of 5 actions per key.
AutoAction Triggers:SelectEnable to enabletheautoaction triggers
definedintheConfigure AutoAction page. Select Disableto disable
all auto triggers.
Local Unit RS-232 Options
This panel is used to configure the local RS-232 channels.
Channel:Selectchannel1, 2 or3.Note: Channel 3isonlyavailable on
LBC-ICP and EAD/SCL-ICP units.
Channel 1/2: RS-232 control channels.
Channel 3:RS-232controlchannel or pass-throughchannel.Channel
3 defaults as a control channel. Set Remote Connection (Remote Unit
panel) to Disable in order to configure Channel 3 as a pass-through
channel.Channel3(Remote)isthepass-through channelontheremote
unit.
Baud Rate: Select a baud rate from 9600 to 115200 baud.
Flow Control: Select On to enable flow control and Off todisableflow
control. Flow control is available only on Channel 1. If flow control is
enabled,Channel2isno longer available.
End of Line Pattern: Select CR or CR+LF for end of line termination.
Local Unit Digital IO Options
The3pulldown menusinthispanel areusedtoconfigure theDigitalIO
settings.DigitalIOsare inputs bydefaultand show upastriggersin the
ConfigureAuto Actions page.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
18
Digital IO Channel: Select channel 1or 2.
Digital IO Direction: Select channel as a digital Input or Output.
If the Digital IO Direction is set to Input, there is an option for Pullup
Resistor.
Pullup Resistor: Select Enable or Disable pull-up resistor.
If the Digital IO Direction is set to Output, there is an option for Digital
Output Mode.
Digital Output Mode: SelectTTL fora5V compatibleTTLtypeoutput
orOpen Collector foranopen collector typeoutput. Anopencollector
type output can be used to implement a contact closure type output.
For example, if a digital output is set to Open Collector, setting the
DigitalOutput State to1 (High) willemulate a switchclosuretoground.
Setting the Digital Output State to 0 (Low) will emulate a switch being
open. TheOpen Collectoroutput alsohas anoption foraPullupResistor.
Remote Unit
Thispanelenablestheconnection with theremoteunitandselects the
remote unit type. This panel is not available if the Local unit type is
Standalone ICP.
Remote Connection: SelectEnable toenable theconnectionwith the
remote unit. Select Disable to disable the connection with the remote
unitandenablethe RS-232pass-throughchannel. Noneof theremote
unit control outputs will be available once Disable is selected.
Remote Unit: Select the remote unit type. The available remote unit
types are LBx without ICP, LBx with ICP and EAD/SCL with ICP.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 19
Configure KeyAction
The Configure Key Action page is used to configure the keys virtual
on the virtual keypad. On the 8-key keypad, each function key can be
definedasa macroforupto 10differentactions. Onthe16-keykeypad,
each function key can be defined as a macro for up to 5 actions. The
availableactionsareRelay, RS-232,IR andTelnet. DigitalOutputactions
areonly availableifDigitalIOsareconfiguredasoutputsintheConfigure
System page.
OnthetopmenuclickConfigureandthenclickKeyAction.Thefollowing
page will be displayed.
Function Key: Select the function key F1 through F8 to be defined.
Function Key Label: Type in a label name for the selected function
key.
Function Key Mode: Select Standard for a “momentary” type key.
Only one action is assigned to a Standard key. Select Toggle for a
“toggle” type key. A Toggle key has two states: Press and Release.
One set of actions is assigned to the Press state and another set of
actions is assigned to the Release state.
Command Action: Select the action number to be defined. Action 1
throughAction 10 can be defined.

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/External Audio and Inline Control Processor
Broadata Technical Support, [phone]
20
Spacing: Enter the delay (in seconds) desired before the command
action.
Action Type: Select the action type. Available types are None,
Relay, Digital Output, RS-232, IR, and Telnet.
Relay Options
Relay Channel: Select the relay channel 1or 2.
Relay State: Select the relay channel state, On (energized) or Off
(de-energized).

LBH-H-T/R-EAD-ICPUserManual
Link BridgeTM HBaseT HDMI Transmission System w/ExternalAudio and Inline Control Processor
Broadata Technical Support, [email protected] 21
Digital Output Options
Digital Output Channel: Select the digital output channel 1or 2.
Note: this option is not available if both Digital IO channels are set to
Inputs in Configure System page.
Digital Output State: Select the digital output state: 1 (High) or 0
(Low).
