Broadcast Tools DTD-16 + G2 User manual

Installation and Operation Manual
PROBLEM SOLVED
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools,Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools,Inc.
Copyright® 1989 - 2023 by Broadcast Tools,Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Manual update: 6/12/2023
Firmware Version: 2.02
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
CHANGE WITHOUT NOTICE
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
DTD-16 + G2 NET
16 Channel DTMF Tone/Sequence Decoder with Ethernet
INC
®

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
Table of Contents
Section Title Page #
Introduction. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Who to Contact for Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Features/Benefits . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installation/Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Power. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Surge Protection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
UPS Standby Power System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Program Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
USB/RS232 Serial/Ethernet Ports. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Relay Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Open Collector Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Audio Input Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programming Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Programming. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Output Modes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Dip-switch Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Restoring Factory Defaults . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Ethernet Setup and Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Ethernet “Quick Start” Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Connecting via the Ethernet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

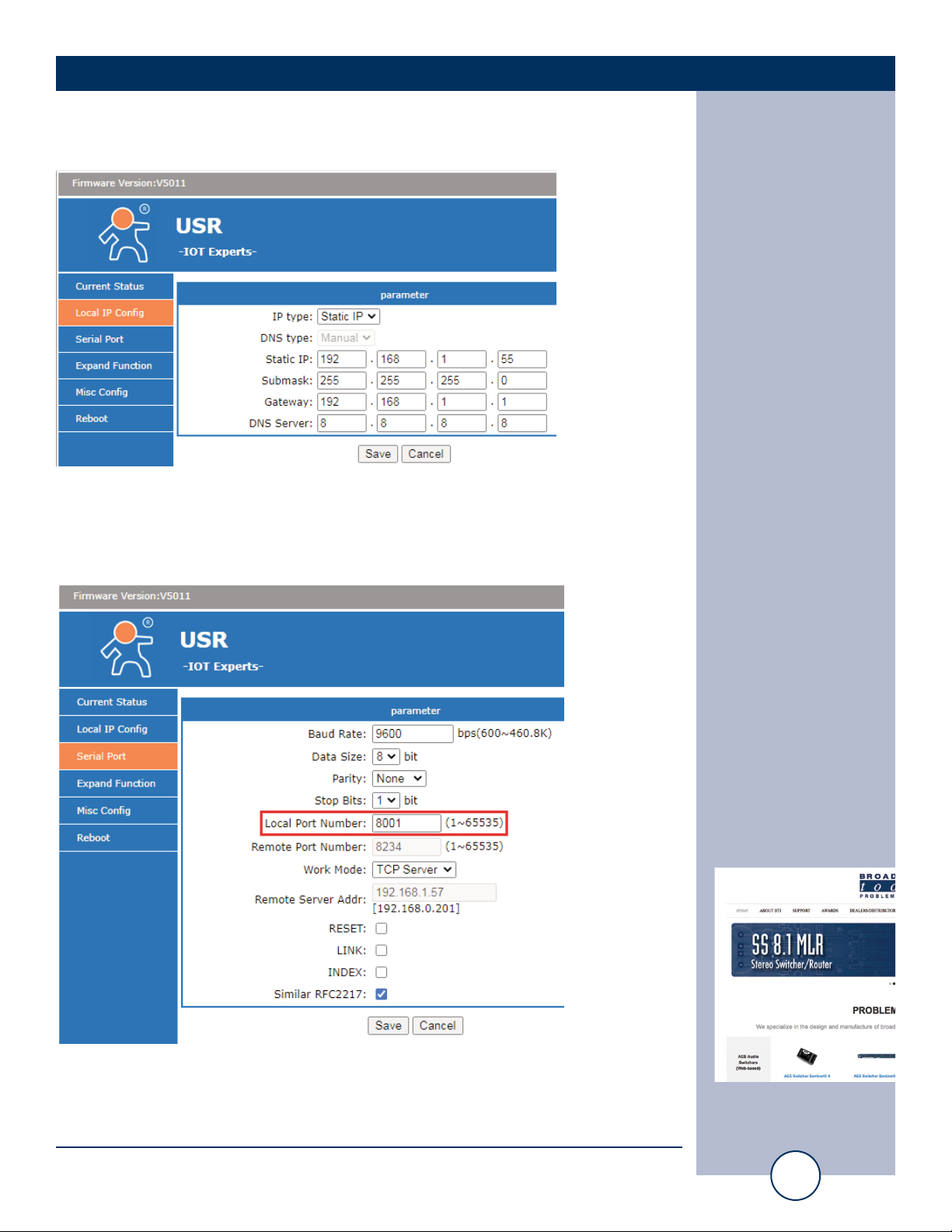

Changing network settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Front and rear panel drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . Appendix
Connector and configuration jumper layout. . . . . . . . . . . . . . . . . . Appendix
WEBSITE:
Visit our web site for
product updates and
additional information.
2
CONTENTS

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
INTRODUCTION
INTRODUCTION
Thank you for your purchase of the DTD-16 + G2 NET DTMF Tone Decoder, which
we will refer to throughout the manual as the DTD-16 + G2 NET. We are confident
this product will give you many years of dependable service. This manual is intend-
ed to give you all the information needed to install and operate the Broadcast Tools®
DTD-16 + G2 NET.
SAFETY INFORMATION
Only qualified technical personnel should install the DTD-16 + G2 NET. Any
attempt to install this device by a person who is not technically qualified could result
in a hazardous condition to the installer or other personnel or damage to the DTD-
16 + G2 NET or other equipment. Please ensure that proper safety precautions have
been taken before installing this device. If you are unfamiliar with this type of equip-
ment, please contact a properly qualified engineer to handle the installation and
setup of the DTD-16 + G2 NET. Broadcast Tools, Inc., is unable to support NON-
Broadcast Tools software, hardware, or NON-Broadcast Tools
computer/hardware/software problems. If you experience these problems, please
research your hardware/software instruction manuals, or contact the manufacturers
technical support department.
WHO TO CONTACT FOR HELP
If you have any questions regarding your product or you need assistance, please con-
tact your distributor from whom you purchased this equipment. If you would like
more information about BROADCAST TOOLS® products, you may reach us at:
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284-1503 USA
Voice: 360.854.9559
Fax: [phone]
Internet Home Page: www.broadcasttools.com
E-mail:[email protected]
THANK YOU FOR CHOOSING
BROADCAST TOOLS® BRAND PRODUCTS!
CAUTION!
Broadcast Tools®
Products, as with any
electronic device, can
fail without warning.
Do not use this product
in applications where a
life threatening condition
could result due to failure.
NOTE:
This manual should be
read thoroughly before
installation and operation.
WEBSITE:
Visit our web site for
product updates and
additional information.
Broadcast Tools is a Veteran Owned Business
Designed, Assembled and Supported in WA State, USA

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OVERVIEW
Product Overview
The DTD-16 + G2 NET is a full-featured DTMF tone/sequence decoder that is user
programmable to decode single tones or sequences up to six tones in length which
can be assigned to any one of eight SPST normally open relays, eight open collec-
tors, USB serial, RS-232 serial, and Ethernet.
The DTD’s relay and open collector outputs can be programmed to close for the
duration of tone, pulse immediately after completion of detection, wait a pro-
grammed (up to 9.99 seconds) length of time after detection, or latch/unlatch.
Programming is performed using a non-dedicated PC via USB serial, RS-232 serial,
or Ethernet (TCP or UDP) using a terminal program like PuTTY or HyperTerminal.
Features/Benefits
• Decodes all 16 DTMF tones or user-programmed tone sequences.
• 8 SPST relay outputs and 8 open collector outputs triggered by tones or tone
sequences.
• Front panel tone audio input level control with a range of -20 to +24dbu
• Adjustable tone detection time.
• Front panel relay status, power, tone activity, program mode, and activity LEDs.
• Programmed via USB serial, RS-232 serial, Ethernet (TCP or UDP) connection.
• Mode configuration via front panel dipswitches.
• Relay, open collector, and tone audio connections on removable euro-block screw
terminal connectors to simplify wiring and service, mating plugs are supplied.
• Fully RFI proofed.
• Surge protected internal power supply, 9 VDC universal desktop power adapter
with IEC inlet included.
• Up to three units may be mounted on the optional RA-1 rack shelf, using four
supplied Velcro feet. Desktop and wall mounting are also possible.
Inspection
Please examine your DTD-16 + G2 NET carefully for any damage that may have
been sustained during shipping. If any damage is present, please notify the shipper
immediately and retain the packaging for inspection by the shipper. The package
should contain the DTD-16 + G2 NET, a 9 VDC power supply, a USB-A/B cable, a
“S9” RJ11-to-DB9 cable, a 7-foot BLUE straight-through CAT 5 cable, a 7-foot
GRAY crossover CAT 5 cable. Manuals can be downloaded from our web site.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
INSTALLATION
Installation/Operation
Power
Connect the 2.1mm barrel type center positive power connector into the unit and the
9 VDC power supply with domestic connector into a 120 Vac 50-60 Hz power source.
Surge Protection
The DTD-16 + G2 NET has built-in resistance to voltage changes; we recommend
that you use a power surge protector or line conditioner on the incoming AC line.
Lightning strikes and/or other high voltage surges may damage your DTD-16 + G2
NET and connected equipment if it is not properly protected. For lightning protec-
tion devices, check out www.polyphaser.com and www.itwlinx.com.
UPS Standby Power System
We recommend that you connect your DTD-16 + G2 NET to a UPS standby power
system. A UPS, like the BE600M1 from APC helps to minimize the risk to the DTD-
16 + G2 NET and provides power during a power outage.
NOTE:
Never use any type of
power supply other
than the specified/sup-
plied power supply.
Check the power jack
on the back of the unit
to determine which
power supply is
required.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
INSTALLATION
LED Indicators
“PWR”: Power LED (Green).
“DV” LED: Indicates valid DTMF tone detection (Yellow).
“PGM” LED: Flashes when in Programming Mode (Red).
“DAT” LED: Indicates serial data transfer (Red).
“K1”- “K8” Relay LEDs: Lit when the corresponding relay is on (Green).
Program (PGM) button
Used to toggle in and out of programming mode. See the “Programming” section of
this manual for more information.
“OPTIONS” Configuration Dip-switches
The DTD’s mode configuration is set via a four-position dipswitch, labelled”
OPTIONS” (S2), located on the front panel of the unit. See the “Dip-switch
Settings” section of this manual for more information.
Audio Input Gain Adjustment
The front panel “INPUT LVL” control may be used to adjust the DTMF tone detection
sensitivity from –20dBu to +24dBu. This control should be adjusted for solid DV tone
detection LED indication while normal DTMF tone audio being fed into the DTD.
DTMF Tone Detection Jumper Settings
JP1 = DTMF Tone detection jumper (Guard time)
The DTD is equipped with a 4-position jumper, labeled “JP1” on its PCB. This is
used to adjust how quickly DTMF tones are detected. The settings are as follows:
Fast = 50ms ON / 50ms OFF
Medium = 100ms ON / 100ms OFF. (Default)
Slow = 150ms ON / 150ms OFF.
USB PGM Port
This type B USB port is used to connect the DTD-16 + G2 NET to a computer for
configuration via a virtual COM port. See the “Programming” section of this manual
for more information.
RS-232 Serial PGM Port (RJ-11 Jack):
This RJ-11 jack is used to connect the DTD-16 + G2 NET to a computer’s COM port
for configuration via RS-232 serial using the included reverse modular cable with 9-
pin “S9” female D-sub adapter. See the “Programming” section of this manual for
more information.
LAN/NET Ethernet Port
This 10/100 Ethernet port is used to connect the DTD-16 + G2 NET to a computer
for configuration via telnet/TCP socket connections. See the “Ethernet” and
“Programming” sections of this manual for more information.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
INSTALLATION

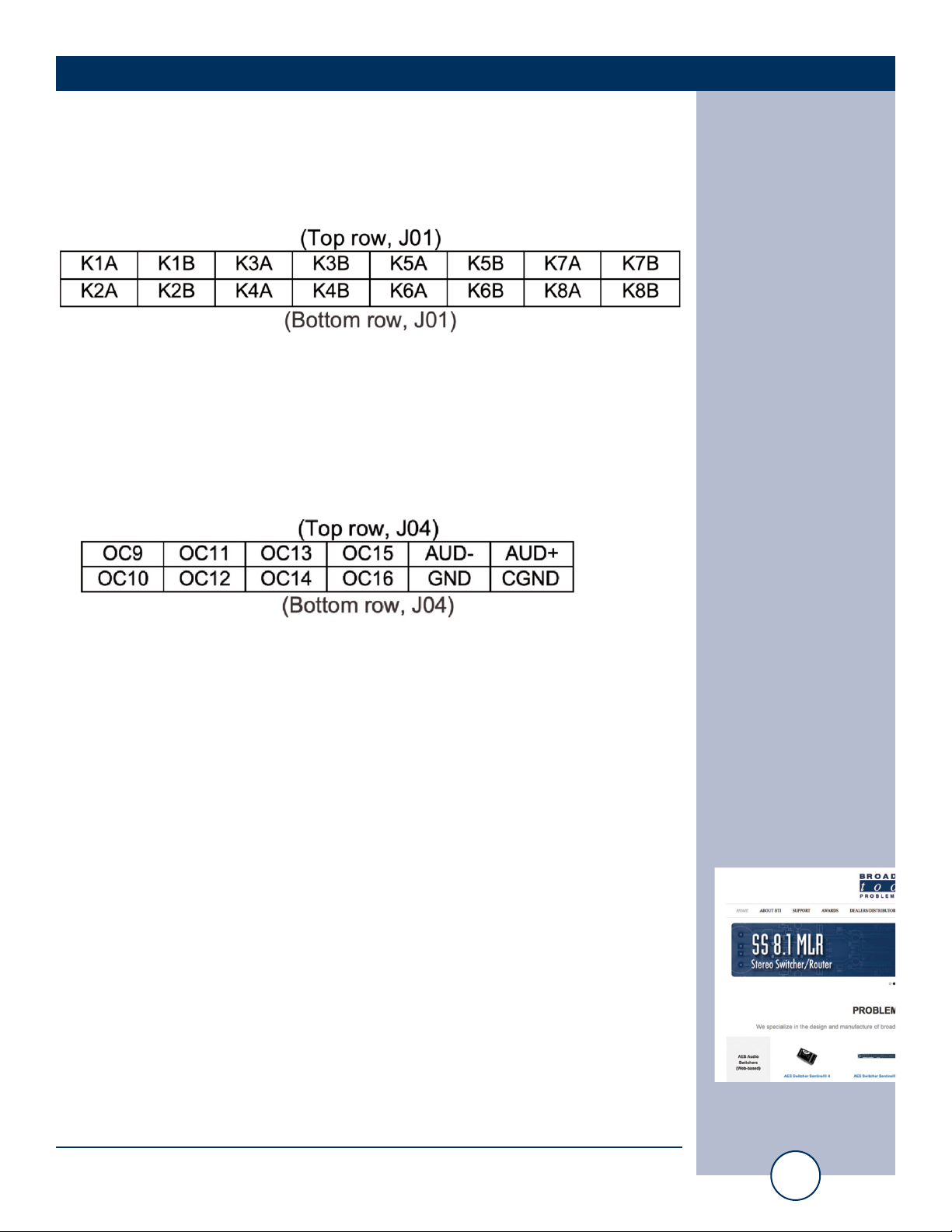

Relay Outputs
The eight relay outputs are SPST normally open/dry. Make your connections to the
desired relays K1 A/B through K8 A/B. Front panel LEDs indicate when a relay is active.
Open Collector Outputs
The open collector outputs are labeled OC9 through OC16. Make your connection
between the desired open collector and ground “GND”. The open collector (OCx) output
for the selected channel will go low to ground (GND) providing a return for a PIP/trigger
input, TTL/CMOS logic, or external relay. External pull-up resistors may be required in
some installations. NOTE: The open collectors are rated at up to 6 VDC @ 50 mA.
Audio Input Connection
Connect the audio feed supplying DTMF tone audio for your equipment to the “AUD-
“and “AUD+” removable screw terminals on the J04 top terminal block connector.
The cable shield should connect to the signal ground “GND”/ “SGND” terminal on the
bottom J04 terminal block connector. See above for pinouts. The input is Hi-Z, active
balanced and adjustable via the front panel “INPUT LVL” trim pot.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
PROGRAMMING
WEBSITE:
Visit our web site for
product updates and
additional information.
Programming
The DTD can be programmed from a computer via its USB serial, RS-232 serial, or
Ethernet interface. See the “Ethernet” section of the manual for Ethernet setup
instructions.
Connecting via the USB Serial “PGM” port:
1. Connect the supplied USB A/B cable from the “USB PGM” jack on the DTD
rear panel to an available USB port on your PC. When you first plug the DTD
into your PC, it should automatically install the correct FTDI USB Serial “Virtual
COM port” drivers which will allow you to access the DTD on a COM port.
NOTE: If the DTD’s FTDI USB Serial “Virtual COM port” drivers do not auto-
matically install they may be downloaded here:
http://www.ftdichip.com/Drivers/VCP.htm
2. Start a serial terminal application like PuTTY, Tera Term or HyperTerminal con-
figured for the connected COM port set to 9600 baud, 8, N, 1, flow control to
NONE, Emulation set to ANSI, and local character echo enabled.
Connecting via the RS-232 Serial “PGM” port:
1. Connect the supplied “S9” RJ11 to DB9 adapter cable from the RJ11 PGM jack
on the DTD rear panel to an available RS232 serial COM port on your PC.
2. Start a serial terminal application like PuTTY, Tera Term or HyperTerminal con-
figured for the connected COM port set to 9600 baud, 8, N, 1, flow control to
NONE, Emulation set to ANSI, and local character echo enabled.
“S9” RJ11 to DB9 adapter pinout:
RJ-11
Adapter
Pin
DB-9 D-SUB
Pin #
4 3 RS-232 Receive
3 2 RS-232 Transmit
2 5 Ground
Product’s point of
view Function Name.
Modular connector’s
point of view.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
PROGRAMMING
Programming Steps
1. Press the recessed front panel PGM button or type “p” in the terminal to enter
Program Mode. The red front panel PGM LED will blink to indicate the DTD is
in Program mode and the Program Menu will be displayed in the terminal window:
DTD-16+ VER 2.02
OUT-CMD ON/OFF CODES
01-0-0.00-1111/
02-0-0.00-2222/
03-0-0.00-3333/
04-0-0.00-4444/
05-0-0.00-5555/
06-0-0.00-6666/
07-0-0.00-7777/
08-0-0.00-8888/
09-0-0.00-9999/
10-1-0.10-101/
11-0-0.00-****/
12-0-0.00-####/
13-0-0.00-AAAA/
14-0-0.00-BBBB/
15-0-0.00-CCCC/
16-0-0.00-DDDD/
SELECT 01-16 & ENTER 0=MOM, 1=LATCH, 2=XLATCH
DELAY 000-999 (0.00-9.99 SEC), MOM OR ON CODE / OFF
CODE :
2. Type the output channel number, 01 through 16, a “- “(dash) will be displayed
after the number are entered along with a new line.
3. Type the single command digit to set the output mode: “0” for momentary, “1”
for Latch or “2” for Exclusive Latch. A “- “(dash) will be displayed after the
command digit and a new line will be displayed.
4. Enter a time delay value of 0.00 to 9.99 seconds as a three-digit value (000-999).
Do not enter the ".", it will be entered automatically. This is the time that will
elapse after a command is received and before the output is activated. The
default time delay before activation is 0.00 seconds. A “- “(dash) will be dis-
played after the command digit and a new line will be displayed.
5. Enter the DTMF tone or string value(s) you want to use to operate the selected
output. The default values are listed above.
To exit Program mode, press the ESC key. Program mode will be exited automati-
cally after 60 seconds of inactivity. When Program mode is exited the DTD will list
the current program values and perform a reset.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
PROGRAMMING
Output Modes
Momentary
If you have selected the momentary function for this output channel, you can program
two codes up to 5 digits for the first code and 6 digits for the second code that can be
used to activate that output. If your code is shorter than 5 digits enter a “/” at the end of
the first data string. This will cause a new line to be displayed. Enter the second code
you want to momentarily trigger. If the string is less than 6 digits press the “Enter” key.
The codes for that output will now be saved and you can go on to programming another
output. The momentary output closure duration is 1 second.
Momentary Programming Example:
To program output 1 for momentary for code 123 and 321 with a time delay of 4.25 sec-
onds before activation:
01
0
425
123/ 321(CR)
Latch
For the Latch function, the first code will be used to latch the output on, and the second
code to turn latch it off. Program the “ON” code, from 1 to 6 digits. If it is shorter than
5 digits, terminate with the “/” character. A new line will be displayed. Now enter the
code you want to use to turn OFF that output. It must be from 1 to 6 digits long. If it is
shorter than 6 digits terminate with the “Enter” key. You cannot enter the same code to
latch an output on and turn it off.
Latch Programming Example:
To program output 2 for 456 latch on, 654 latch off with no time delay:
02
1
0.00
456/654(CR)
Exclusive Latch
For the Exclusive Latch function, the first tone/code will be used to latch the output on,
and the second tone/code to turn it OFF, if desired. You do not need to enter an OFF
code. In Exclusive latch mode, when any exclusive latch output is selected, all other
exclusive latch outputs will be reset. Enter the “ON” code, from 1 to 5 digits. If it is
shorter than 6 digits terminate with the “/” character. A new line will be displayed. Now
enter the code you want to use to turn off that output. It must be from 1 to 6 digits long.
If it is shorter than 5 digits terminate with the “Enter” key. You cannot enter the same
code to latch an output on and turn it OFF.
Exclusive Latch Programming Example:
To program output 2 for 789 x-latch on with time delay of .10 second:
02
2
010
789(CR)
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
PROGRAMMING
Dip-switch Settings
By default, all four dipswitches are in the up/off position which sets the DTD to its
normal operating mode and programming. The following alternate operating modes
are available via the front panel configuration dipswitches:
DIP-1
If DIP-1 is turned ON; all momentary outputs will become key-follow outputs. This
means that the selected output will turn ON when the last digit of the momentary
code is decoded and stay on for as long as that digit is being decoded. This is useful
for remote pan-tilt camera control.
DIP-2
When DIP-2 is ON, the “#” character will be translated to a CR/LF (0Dh 0Ah) on the
ASCII RS-232 output. This allows you to use the “#” as an “Enter” key and is useful
for using DTMF to remotely control equipment that requires a CR/LF termination.
DIP-3
When DIP-3 is ON, codes programmed into odd channels, 1,3,5,7, etc., will operate
relay one. Even channels 2,4,6,7, etc., will operate relay 2. Relays 1 and 2 can be
programmed to any mode; momentary, latching, or exclusive latching.
DIP-4
When DIP-4 is ON, Relays will be engaged on the trailing edge of the DTMF signal
in both momentary and latching modes.
Restoring to factory defaults:
The default program values may be reloaded at any time by removing power from
the DTD-16 + G2 NET, holding down the PGM button and plugging in the power
and then releasing the PGM button after a few seconds. The PGM LED will blink
once after the defaults are loaded.)
Ethernet settings defaults may be restored by depressing the recessed front panel
Def. (Defaults) push button, applying power to the unit, and holding down the push
button for five seconds after power up.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
Ethernet Setup and Operation
Ethernet “Quick Start” Guide
CAUTION! NEVER DOWNLOAD FIRMWARE UPDATES OR CHANGES TO
THE WEB SERVER UNLESS INSTRUCTED TO DO SO BY BROADCAST
TOOLS®. DOING SO DELETES ALL SOFTWARE AND VOIDS ALL WAR-
RANTIES FROM BROADCAST TOOLS, INC.
Instructions for changing the IP address of the computer that will be used for the
configuration of this product are given here. Note that these instructions are specif-
ically for computers with the Windows 10 operating system but will also work with
Windows 7. For setup using other operating systems, refer to the appropriate OS
user’s manual.

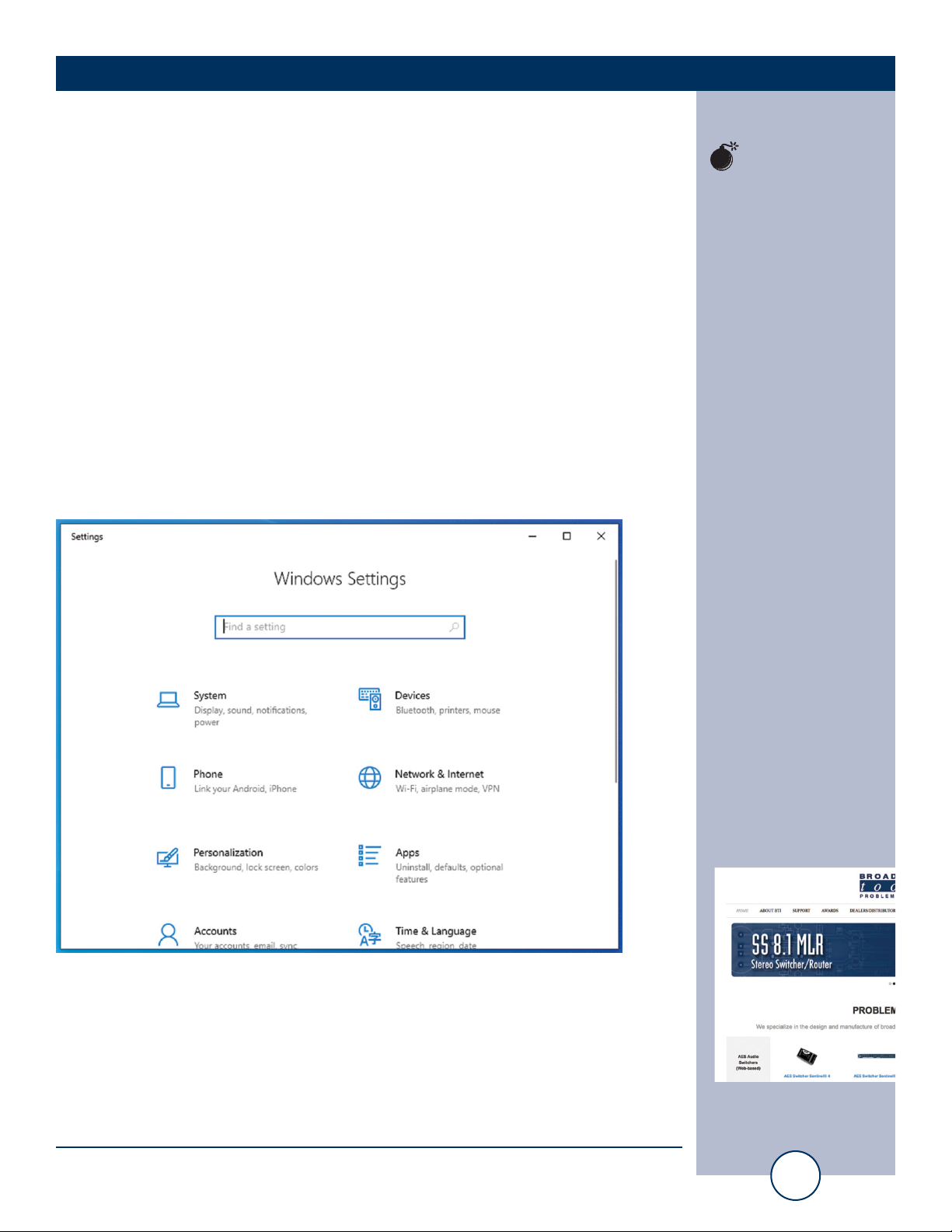

Step 1: Open the control panel by clicking on the Start Menu, click on Settings, then
click on Network & Internet.
CAUTION!
If you are not familiar
with Ethernet enabled
equipment, it may be
useful to contact your
IT department, network
administrator or net-
work consultant for
assistance. Assigning
an IP address already
in use by another
device may cause prob-
lems with your net-
work!
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
Step 2: Under Advanced Network Settings click Change adapter settings. The
Network Connections windows will pop up, as shown below.
Step 3: Right click on the icon labeled Local Area Connection or Ethernet. A menu
will appear. Select the option at the bottom of the menu labeled Properties.
The Ethernet Properties window will appear.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
Step 4: On the Local Area Connection Properties page, double click on Internet
Protocol (TCP/IPv4) to display properties.

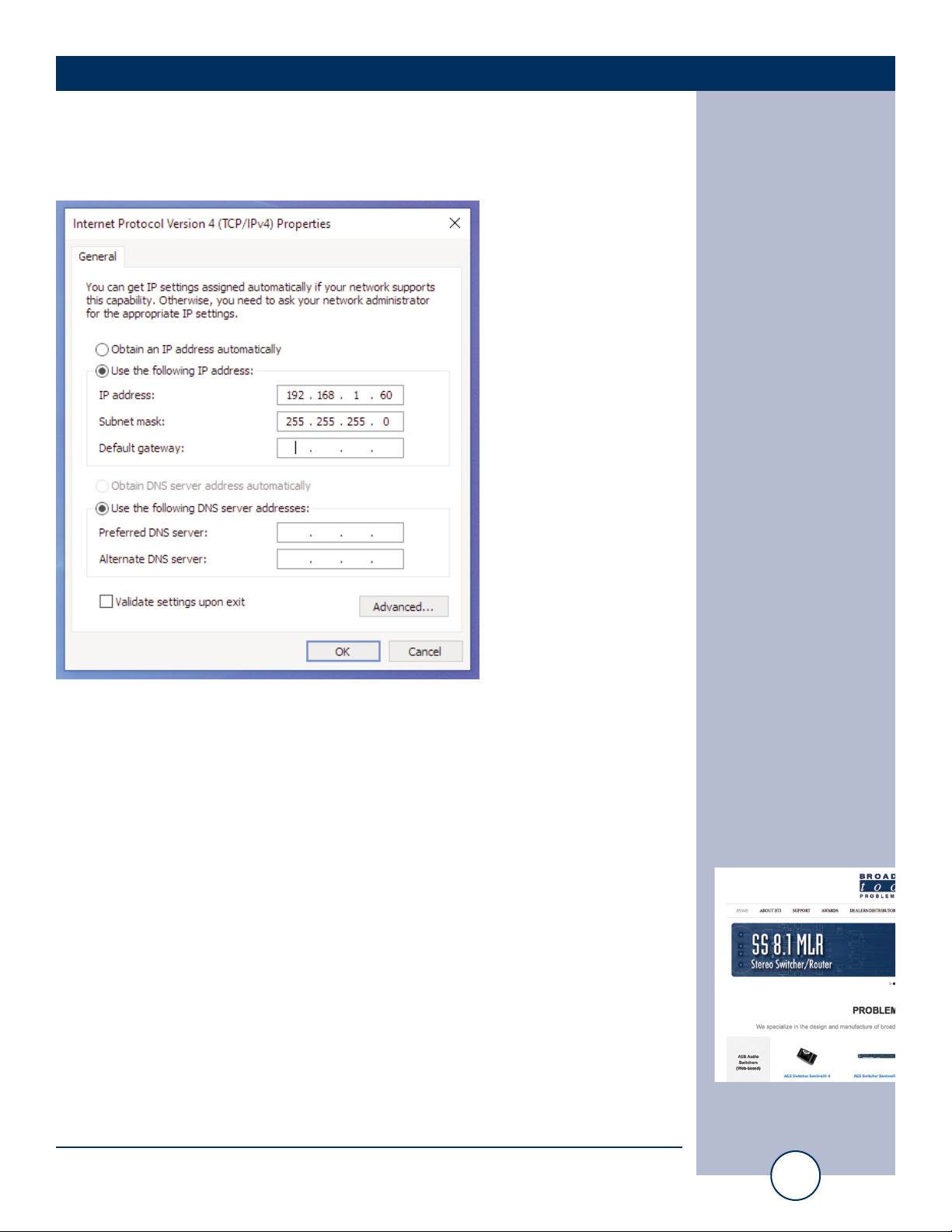

Step 5: Before making any changes to the network settings, write down the current
settings (or screen capture the page and print) so that they can be restored
once the unit is configured. Next, select the radio button labeled “Use the
following IP address” and type in the IP address 192.168.1.60. Type in the
subnet mask of 255.255.255.0. Leave the default gateway field blank. Click
OK to apply the new settings.
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
WEBSITE:
Visit our web site for
product updates and
additional information.
Connecting via the Ethernet “LAN/NET” port:
1. Connect the supplied GRAY colored XOVER cable between the PC’s Ethernet
port and the products “LAN/NET” network RJ45 jack.
2. Connect the included power supply to the DTD. Verify that the green PWR LED
is lit and the green “LINK” LED to the left of the “LAN/NET” Network RJ45 jack
is illuminated
3. Open terminal application PuTTY configured for a Telnet connection type to host
192.168.1.55 port 8001.
4. In PuTTY configuration > Terminal > Line discipline options set Local echo
“Force on” and Local line editing to “Force off”.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
5. Click okay to connect to the DTD and type “p” into the terminal window and
press return to enter programming mode. See: “Programming Steps” section of
this manual.
Changing network settings on the Ethernet “LAN/NET” port:
NOTE: We recommend the use of Chrome, Firefox, or Safari for as your browser.
1. Connect the supplied GRAY colored XOVER cable between the PC’s Ethernet
port and the products “LAN/NET” network RJ45 jack.
2. Connect the included power supply to the DTD. Verify that the green PWR LED
is lit and the green “LINK” LED to the left of the “LAN/NET” Network RJ45 jack
is illuminated.
3. Open a web browser window and navigate to the DTD’s default IP address:
http://192.168.1.55
4. When prompted to login, use the default login and password. Login: admin
Password: 1234
WEBSITE:
Visit our web site for
product updates and
additional information.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
OPERATION
WEBSITE:
Visit our web site for
product updates and
additional information.
5. To change the network settings, choose “Local IP Config” from the side bar:
6. The default work mode is TCP Server, TCP Client, UDP Server and UDP Client
are also available. To change the TCP port choose “Serial Port” from the side bar
and change the “Local Port Number” setting
7. To save changes click “Save” then when prompted click "Restart Module” and
“Ok” to reboot the web server module and allow the changes to take effect.

e-mail: [email protected] voice: 360.854.9559 fax: [phone]
DTD-16+ G2 Net Installation and Operation Manual
SPECIFICATIONS
Specifications
Input Level: -20dBu to +24dBu.
Input Impedance: 200K Ω balanced, 100K Ω unbalanced.
Relay Outputs: Eight SPST, normally open dry contacts. 30
VDC @ 1 amp max.
Open Collector Outputs: Eight, sinking up 6 VDC / 50 mA max to
ground.
RS-232 Serial: 9600, 8, N,1 / RJ11 jack. Reverse module
cable and RJ11 to DB9 adapter (S9) included.
USB Serial: 9600, 8, N,1 / USB type B female. FTDI
Chipset.
Ethernet Interface: RJ-45, 10base-T or 100base-TX, auto sensing
with link & activity LED indicators - Full/half
duplex.
Supported Protocols: TCP/IP, UDP/IP, ARP, ICMP, HTTP, TEL-
NET.
I/O Connectors: Audio Inputs, relays, and open collector out-
puts. Removable screw terminal blocks.
Power: 9-12 VDC, greater than 500 mA. 2.1mm ID x
5.5mm OD coaxial connector, center positive,
surge protected. Universal switching power
supply with IEC AC inlet supplied.
Operating Environment: 32°F/0°C-122°F/50°C; 0%-95% non-con-
densing relative humidity; 10,000ft/3048m.
Dimensions: 6 x 5.25 x 1.63 in (W x L x H)
Options: RA-1 Rack Shelf. 1 RU. Accommodates up to
3 units, filler panels supplied. Note: Velcro is
provided to secure the product to the RA-1
shelf.
DBM-1 DIN rail mounting bracket.
WEBSITE:
Visit our web site for
product updates and
additional information.

19
DTD-16+ G2 Net Installation and Operation Manual
LIMITED WARRANTY
LIMITED WARRANTY
The term “Buyer” as used in this document refers to and includes both (but only) (a) any person or entity who acquires such an item for
the purpose of resale to others (i.e., a dealer or distributor of an item), and (b) the first person or entity who acquires such an item for
such person’s or entity’s own use.
Broadcast Tools warrants to each Buyer of any item manufactured by Broadcast Tools that the item will be free from defects in materials
and workmanship at the time it is shipped by Broadcast Tools if the item is properly installed, used and maintained.
EXCLUSIVE REMEDIES
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited
Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in
accordance with Broadcast Tools’ instructions for confirmation by inspection of the defect (which at Broadcast Tools’ election may
include, without limitation, a requirement that the Buyer first obtain a Return Authorization number from Broadcast Tools, that the Buyer
furnish proof of purchase in the form of an invoice and/or receipt, and that the Buyer prepay all freight charges associated with any return
of the item to Broadcast Tools using such freight service as Broadcast Tools reasonably may specify), Broadcast Tools will repair or
replace the defective item, or will refund the purchase price paid by the Buyer for the item. Broadcast Tools shall have the exclusive
right to choose between these alternative remedies.
NO OTHER WARRANTIES OR REMEDIES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, BROADCAST TOOLS AND ITS SUPPLIERS DISCLAIM ALL OTHER
WARRANTIES, EITHER EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABIL-
ITY OR FITNESS FOR A PARTICULAR PURPOSE; AND THE FOREGOING ALTERNATIVE REMEDIES SHALL BE EXCLUSIVE OF
ALL OTHER REMEDIES. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS,
WHICH VARY FROM STATE/JURISDICTION TO STATE/JURISDICTION.
NO LIABILITY FOR CONSEQUENTIAL DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, NEITHER BROADCAST TOOLS NOR ANY OF ITS SUPPLIERS
SHALL HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, INDIRECT, CONSEQUENTIAL OR PUNITIVE DAMAGES WHATSO-
EVER (INCLUDING, WITHOUT LIMITATION, ANY DAMAGES FOR LOST PROFITS, BUSINESS INTERRUPTION, LOSS OF DATA OR
INFORMATION, COST OF CAPITAL, CLAIMS OF CUSTOMERS, OR ANY OTHER PECUNIARY LOSS) ARISING OUT OF THE USE
OF OR THE INABILITY TO USE ANY ITEM SUPPLIED BY BROADCAST TOOLS, EVEN IF BROADCAST TOOLS HAS BEEN
ADVISED OF THE POSSIBILITY OF SUCH DAMAGES HAVE ANY LIABILITY FOR ANY SPECIAL, INCIDENTAL, CONSEQUENTIAL,
EXEMPLARY OR PUNITIVE DAMAGES. THIS LIMITATION OF LIABILITY APPLIES WHETHER A CLAIM IS ONE ALLEGING
BREACH OF A CONTRACT OR WARRANTY, NEGLIGENCE OR OTHER TORT, FOR THE VIOLATION OF ANY STATUTORY DUTY,
THE FAILURE OF ANY LIMITED OR EXCLUSIVE REMEDY TO ACHIEVE ITS ESSENTIAL PURPOSE, OR ANY OTHER CLAIM OF
ANY NATURE. BECAUSE SOME STATES AND JURISDICTIONS DO NOT ALLOW THE EXCLUSION OR LIMITATION OF LIABILITY
FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES, THIS LIMITATION MAY NOT APPLY TO YOU.
Broadcast Tools, Inc.
131 State Street
Sedro-Woolley, WA 98284 • USA
360.854.9559 voice •866.783.1742 fax
[email protected] e-mail
www.broadcasttools.com website
e-mail: [email protected] voice: 360.854.9559 fax: [phone]

K1
K2
K3
K4
K5
K6
K7
K8
PWR
DV
PGM
DAT
DTD-16 + G2 NET
PGM LAN/NET
Input
LvlOPTIONS
e-mail: [email protected] voice: 360.854.9559 fax: [phone]
Product_Name Installation and Operation Manual
20
APPENDIX
PWR 9-12VDCUSB
K1A
RS232
K2A
OC9
OC10
K1B
K2B
K3A
K4A
K3B
K4B
K5A
K6A
K5B
K6B
K7A
K8A
K7B
K8B
OC11
OC12
OC13
OC14
OC15
OC16
AUD-
GND
AUD+
CGND
