ConvergeAV CPNTTOSHDMI User manual

Component and Toslink to HDMI Converter
CPNTTOSHDMI Instruction Manual
Actual product may vary from photo

FCC
Compliance Statement
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected
• Consult the dealer or an experienced radio/TV technician for help.
UUssee
ooff TTrraaddeemmaarrkkss,, RReeggiisstteerreedd TTrraaddeemmaarrkkss,, aanndd ootthheerr PPrrootteecctteedd NNaammeess aanndd SSyymmbboollss
This manual may make reference to trademarks, registered trademarks, and other protected names
and/or symbols of third-party companies not related in any way to StarTech.com. Where they occur
these references are for illustrative purposes only and do not represent an endorsement of a product
or service by StarTech.com, or an endorsement of the product(s) to which this manual applies by the
third-party company in question. Regardless of any direct acknowledgement elsewhere in the body of
this document, StarTech.com hereby acknowledges that all trademarks, registered trademarks,
service marks, and other protected names and/or symbols contained in this manual and related
documents are the property of their respective holders.

Instruction Manual
i
Table
of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
System Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Operating Controls and Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Connection and Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Accessory Products from StarTech.com . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Warranty Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Instruction Manual
1
Thank you for purchasing a StarTech.com Component and Toslink to HDMI Converter. A
perfect solution for consolidating A/V connections into a single, convenient HDMI
connection, CPNTTOS2HDMI allows you to connect the YCbCr/YPbPr output from a DVD
or Set-top box to an HDMI capable display, and features optimized bandwidth capability to
provide HDTV resolutions of up to 1080p.
Introduction
•Compliant with HDMI 1.2
Features
System
requirements:
•HDMI cable: Required between converter and display
Package
contents:
•1 x Component Video + Toslink to HDMI Converter
This package should contain:
•Quick and easy installation
•Supports a maximum display resolution of up to 1080p
•An available power outlet
•A Toslink Audio Source
•1 x Power Adapter
•1 x Instruction Manual
•A YCbCr/YPbPr Video Source

Instruction Manual
2

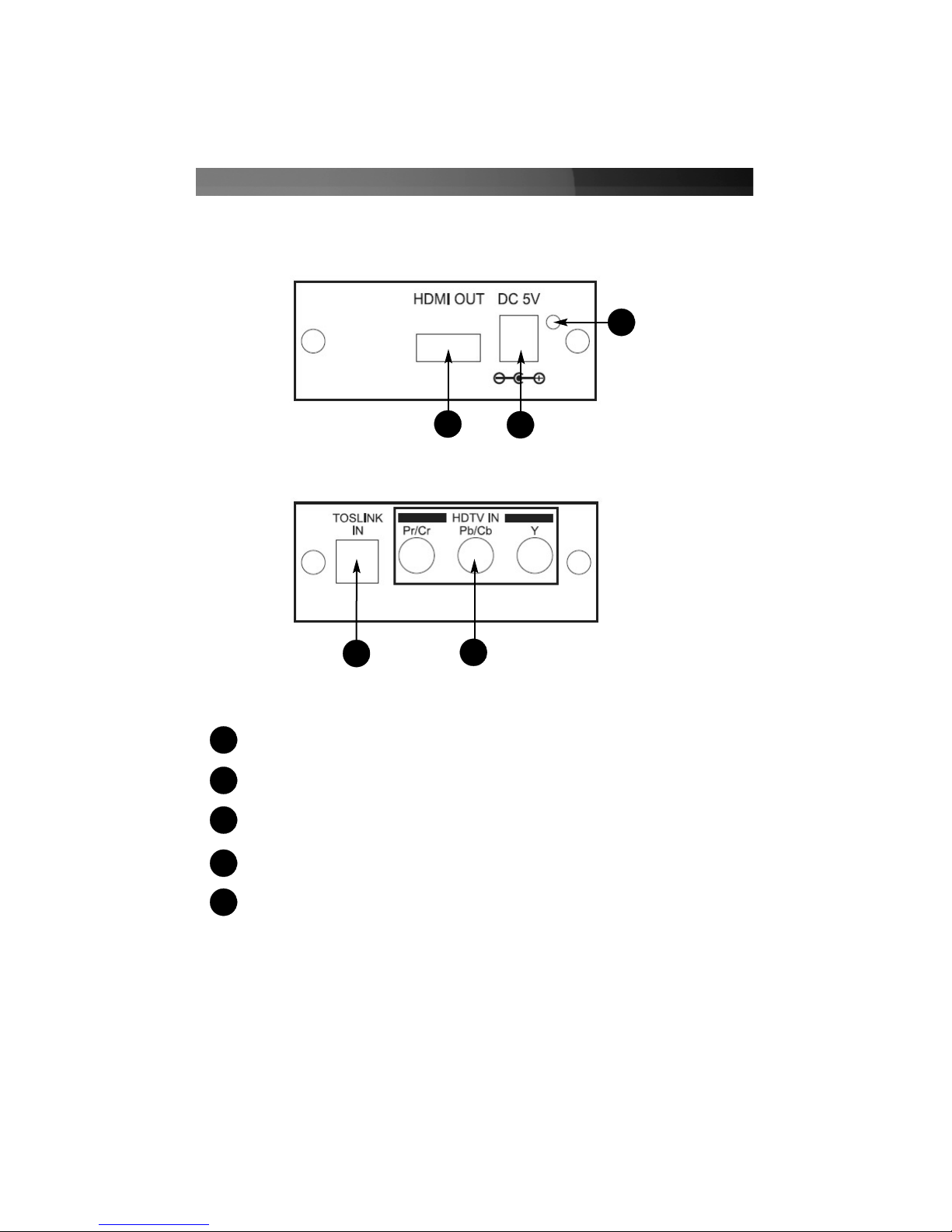

Operating
Controls and Functions
Front Panel
Rear Panel
1
2
3
4
12
3
45
5
HDMI Output Connector: Connect to the HDMI input of your display using
HDMI Cable
DC Power Supply: 5V (1A)
Power LED Light
Toslink digital audio input: Connects the Toslink output of your DVD or STB
Analog YPbPr/YCbCr input connector: Connects to the YPbPr or YCbCr
output of your DVD or STB.

Instruction Manual
3
Connection
and Installation
DVD Player / Set
top box
PC/YPbPr to HDMI
Format Converter
3 RCA to 3 RCA
cable
HDMI Cable
HDMI Display
Accessory
Products from StarTech.com
Contact your local StarTech.com dealer or visit www.startech.com for cables or other
accessories that will help you get the best performance out of your new product.
HDMIMM6
6ft HDMI to HDMI Digital Video Cable
HDMIMM10
10ft HDMI to HDMI Digital Video Cable
ZENTOS1
Cable ZEN 3.3 ft (1m) Toslink Audio Cable
ZENTOS2
Cable ZEN 6.6 ft (2m) Toslink Audio Cable
ZENTOS3
Cable ZEN 9.8 ft (3m) Toslink Audio Cable
ZENTOS3
Cable ZEN 9.8 ft (3m) Toslink Audio Cable
ZENTOS4
Cable ZEN 13.1 ft (4m) Toslink Audio Cable

Instruction Manual
4
Technical
Support
StarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-
leading solutions. If you ever need help with your product, visit www.startech.com/support and
access our comprehensive selection of online tools, documentation, and downloads.
Warranty
Information
This product is backed by a one-year warranty. In addition, StarTech.com warrants its products against
defects in materials and workmanship for the periods noted, following the initial date of purchase.
During this period, the products may be returned for repair, or replacement with equivalent products
at our discretion. The warranty covers parts and labor costs only. StarTech.com does not warrant its
products from defects or damages arising from misuse, abuse, alteration, or normal wear and tear.
Limitation
of Liability
In no event shall the liability of StarTech.com Ltd. and StarTech.com USA LLP (or their officers,
directors, employees or agents) for any damages (whether direct or indirect, special, punitive,
incidental, consequential, or otherwise), loss of profits, loss of business, or any pecuniary loss, arising
out of or related to the use of the product exceed the actual price paid for the product. Some states
do not allow the exclusion or limitation of incidental or consequential damages. If such laws apply, the
limitations or exclusions contained in this statement may not apply to you.
Specifications
Power 5V 1A Center positive
HD Input Analog YCbCr/YPbPr through 3 RCA Connectors
Input Signal 1 Vp-p 75Ω,
Cb/Cr or Pb/Pr: 0.7 Vp-p, 75Ω
Audio Input Digital Toslink audio
Operating Frequency Up to 165MHz
Dimensions 76(W) x 30(H) x 105(D)mm
Regulatory
Certifications FCC, CE, ROHS, WEEE

31 December 2007 (Rev. A)
