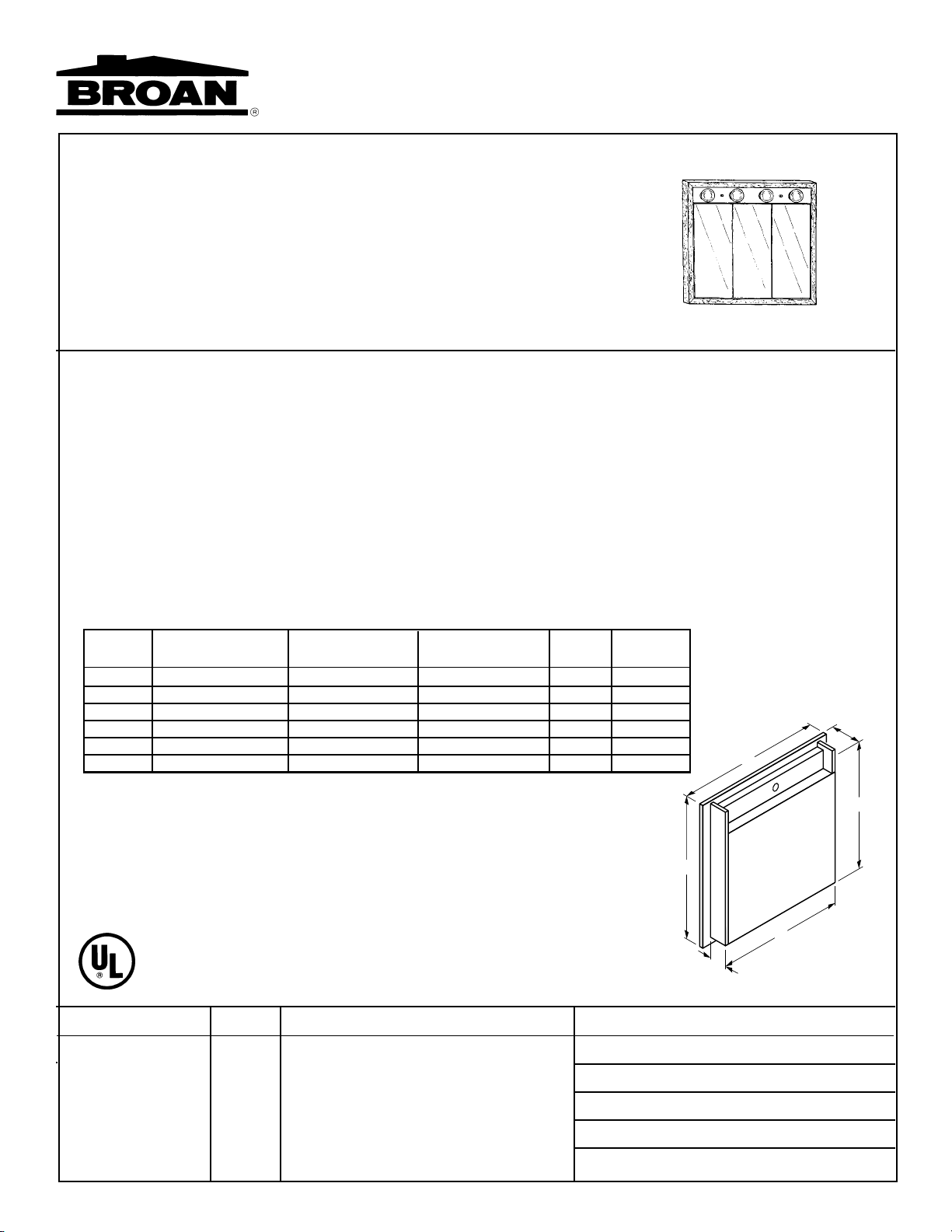

SPECIFICATION SHEET
Broan-NuTone LLC, 926 West State Street, Hartford, WI 53027 (1-800-637-1453)
PRESTIQUE SERIES
BATHROOM CABINETS
WITH BUILT-IN TOPLIGHT
Tri-view surface or recessed mount cabinets with
built-in toplight.
FEATURES
•Wood construction
•Three-way viewing
•Three storage areas
•Adjustable wood shelves
•5/32" premium float glass mirrors
•Pin hinges
•Wood frame
•Oak or white finish
TYPICAL SPECIFICATION
BathroomcabinetshallbeBroanPrestigeSeriesModel
947224, (947230), (947236), (942224), (942230),
(942236).
Cabinetshallbefabricatedofwoodwithoakfinish,(942
series has white finish).
Cabinetshallbeequippedwiththree(3)mirroreddoors
and two (2) adjustable wood shelves.
Cabinetshallhavebuilt-inlightfixtureandshallaccom-
modate standard household bulbs of 60W. (Bulbs not
included). Unit to be U.L. listed.
20E 99041479B
MODEL OVERALL SIZE BODY SIZE WALL OPENING BULBS
NO. A B C D E F W H D FINISH (G25/G40)
947224 239/16 281/84¼ 223/16 26¾ 3½ 225/827½ 3½ Oak 3 60W
947230 299/16 281/84¼ 283/16 26¾ 3½ 225/827¼ 3½ Oak 4 60W
947236 359/16 281/84¼ 343/16 26¾ 3½ 345/827¼ 3½ Oak 5 60W
942224 239/16 281/84¼ 223/16 26¾ 3½ 225/827½ 3½ White 3 60W
942230 299/16 281/84¼ 283/16 26¾ 3½ 225/827¼ 3½ White 4 60W
942236 359/16 281/84¼ 343/16 26¾ 3½ 345/827¼ 3½ White 5 60W
